USER MANUAL WS 7039 TECHNOLINE

• Time in 12/24 hour format.
  Daily Alarm Function
• Low battery indicate
• Humidity measurable range: 20% RH 95% RH
  • Temperature:

Indoor temperature measurement ranges: -9.9^ C (14.1°F) ~ 50^ C (122°F)

Outdoor temperature measurement ranges: -50^ (-58^) 70^ (158^)

Temperature alternatively in ^ C or ^ .

Maximum /minimum value query of temperature and humidity
- Power Supply: Battery:2 x LR03 AAA

Production Appearance

EN 1

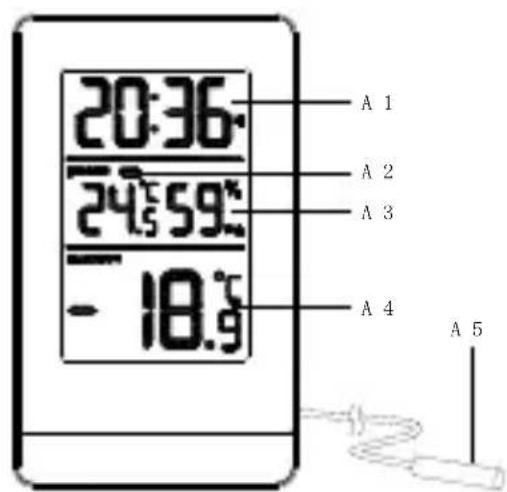

Part A-Positive LCD

A1: Time
A2: Low battery indicate
A3: Indoor temperature and humidity
A4: Outdoor temperature
A5: Outdoor temperature sensor

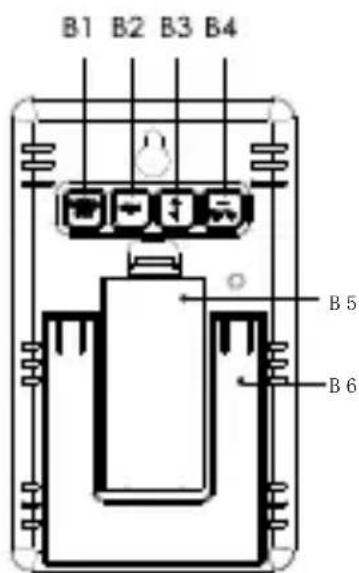

Part B - Back button

B1:“MODE/SET” button
B2: “MEM” button

B3: “+ / ” button
B4:“- /°C/°F” button
B5: battery door
B6: Stand cover

Initial operation:

• Open the battery compartment cover
• Insert 2 x AAA batteries observing polarity [ “+” and “-” marks]
• When you insert the batteries, all icons on the LCD display will light up for 3 seconds, you will hear a beep tone and the station detects indoor temperature & humidity.

Display modes

• Press the "MODE" button once and the display will switch from time to date. Press the "MODE" button once again to switch to alarm time display.

Manual time setting

• While time display, press and hold the "MODE" button for 2 seconds, the 12/24HR start to flash. Now use "+" and "-" buttons to switch 12/24 hour mode.
• Press "MODE" to confirm your setting, the Hour display starts to flash. Now use "+" and "-" buttons to set the hour.
• Press "MODE" to confirm your setting, the Minute display starts to flash. Now use "+" and "-" buttons to set the minute.
• Press "MODE" to confirm your setting and to end the setting procedures.

Please note:

• If there is no valid operation within 20 seconds, the station will automatically return to normal time mode from the set mode.

Manual Date setting

• While date is displayed, press and hold “MODE” button for 2 seconds. The year (2015) starts to flash. Use the "+" and "-" buttons to set the year.
• Press "MODE" button to confirm your setting, the month and date icons start to flash. Use "+" and "-" buttons to set the date on month/date or date/month.
• Press "MODE" button to confirm your setting, the month display starts to flash. Use "+" and "-" buttons to set the correct month.
• Press "MODE" button to confirm your setting, the date display starts to flash. Use "+" and "-" buttons to set the correct date.
• Press "MODE" button to confirm your setting and to end the setting procedure.

Setting the daily alarm

• Press “+” button once, LCD will display the “ ” icon, the alarm function is ON. Press the “+” button once again, the “ ” icon will disappear, the alarm function is OFF.

• While alarm time is displayed, press and hold "MODE" button for 2 seconds, The hours of alarm time starts to flash. Use the "+" and "-" buttons to set the hours.

• Press "MODE" button to confirm your setting. The minutes start to flash. Use the "+" and "-" buttons to set the minutes.

• Press "MODE" button to confirm your setting and to end the setting procedure.

Please note:

• If there is no valid operation within 20 seconds, the station will automatically return to normal time mode from the set mode.
• The alarm will sound for 2 minutes if you do not deactivate it by pressing any button. In this case the alarm will be repeated automatically after 24 hours.
• Rising alarm sound (crescendo, duration: 2 minutes) changes the volume 4 times whilst the alarm signal is heard.

Switching off the alarm signal

• Press any button to stop the alarm signal. It is not necessary to reactivate the alarm. It switches itself automatically to the alarm time which has already been set.

Maximum/minimum temperature/humidity

• Press once "MEM" button, the LCD will display maximum

EN 5

value of temperature/ humidity. The LCD will display the minimum value of temperature/humidity. If the “MEM” button is pressed again the maximum value is displayed.

• While displaying MAX or MIN values, there is "MAX" or "MIN" on the LCD.
• Press and hold "MEM" button for 3 seconds. The temperature/humidity maximum/minimum value will reset to the current values

Please note:

• If the temperature reading is below ranges, the LL.L will be displayed. If the temperature reading is above ranges, the HH.H will be displayed.

Switching ^ C or ^ F

• Press once “ -/^ C/^ F ” button to switching the temperature unit in ^ C or ^ F .

Specifications

Perpetual calendar range: 2000-1-1~2099-12-31

IN Temperature measuring range: -9.9 50^ / 14.2 122^

OUT Temperature measuring range: -50~70°C /-58~158°F

Temperature resolution: 0.1^ / oF

Temperature accuracy:

0^ C 40^ C: ± 1^ C

-50^ -0^, 40^ 70^: ± 2^

32^ F 104^ F: ± 1.8^ F

-58^ F 32^ F, 104^ F 158^ F: ± 3.6^ F

Humidity measuring range: 20-95%

Humidity resolution: 1%

Humidity accuracy:

40-80%: ±5%

20~39%,81-95%: ±8%

Precautions

• This main unit is intended to be used only indoors.

• Do not subject the unit to excessive force or shock.

• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.

• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

• Use only alkaline batteries, not rechargeable batteries.
  Install batteries correctly by matching the polarities (+ / - )
• Always replace a complete set of batteries.
• Never mix used and new batteries.
• Remove exhausted batteries immediately.
• Remove batteries when not in use.
• Do not recharge and do not dispose of batteries in fire as the batteries may explode.
• Ensure batteries are stored away from metal objects as contact may cause a short circuit.
• Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
• Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are

committed by law to bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste
