USER MANUAL XMADI BEHRINGER

2 3Quick Start GuideEXPANSION CARD X-MADI Terminals marked with this symbol carry electrical current of su cient magnitude to constitute risk of electric shock. Use only high-quality professional speaker cables with ¼" TS or twist-locking plugs pre-installed. Allother installation or modi cation should be performed only by quali edpersonnel. This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure - voltage that may be su cient to constitute a risk ofshock. This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read themanual. Caution To reduce the risk of electric shock, do not remove the top cover (or the rear section). No user serviceable parts inside. Refer servicing to quali edpersonnel. Caution To reduce the risk of re or electric shock, do not expose this appliance to rain and moisture. Theapparatus shall not be exposed to dripping or splashing liquids and no objects lled with liquids, such as vases, shall be placed on the apparatus. Caution These service instructions are for use by quali ed service personnel only. Toreduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairshave to be performed by quali ed servicepersonnel.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

6. Clean only with dry cloth.

7. Do not block any ventilation

openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources

such as radiators, heat registers, stoves, or other apparatus (including ampli ers) that produce heat.

9. Do not defeat the safety purpose of

the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding- type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. Ifthe provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from

being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Use only attachments/accessories

speci ed by themanufacturer.

with the cart, stand, tripod, bracket, or table speci ed by the manufacturer, orsold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during

lightning storms or when unused for long periods of time.

14. Refer all servicing to quali ed

service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has beendropped.

15. The apparatus shall be connected to

a MAINS socket outlet with a protective earthing connection.

16. Where the MAINS plug or an

appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. Important Safety Instructions4 5Quick Start GuideEXPANSION CARD X-MADI

17. Correct disposal

of this product: This symbol indicates that this product must not be disposed of with household waste, according to the WEEE Directive (2012/19/EU) and your national law. This product should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment (EEE). The mishandling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the e cient use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city o ce, or your household waste collection service.

18. Do not install in a con ned space,

such as a book case or similar unit.

19. Do not place naked ame

sources, such as lighted candles, on the apparatus.

20. Please keep the environmental

aspects of battery disposal in mind. Batteries must be disposed-of at a battery collection point.

21. Use this apparatus in tropical and/

or moderate climates. MUSIC Tribe accepts no liability for any loss which may be su ered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical speci cations, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. MIDAS, KLARK TEKNIK, LAB GRUPPEN, LAKE, TANNOY, TURBOSOUND, TC ELECTRONIC,

TC HELICON, BEHRINGER, BUGERA

BESCHRÄNKTE GARANTIE

HAFTUNGSAUSSCHLUSS MUSIC Tribe ne peut être tenu pour responsable pour toute perte pouvant être subie par toute personne se ant en partie ou en totalité à toute description, photographie ou a rmation contenue dans ce document. Les caractéristiques, l’apparence et d’autres informations peuvent faire l’objet de modi cations sans noti cation. Toutes les marques appartiennent à leurs propriétaires respectifs. MIDAS, KLARK TEKNIK, LAB GRUPPEN, LAKE, TANNOY, TURBOSOUND, TC ELECTRONIC,

TC HELICON, BEHRINGER, BUGERA

as trovoadas ou quando não for utilizado durante longos períodos detempo. Instruções de Segurança ImportantesWarning Failure to observe the following warnings may lead to fatality or serious injury from re or electric shock. Before installing the card, you must refer to the owner’s manual of the host device or to behringer.com to verify that your host device supports this card, and to verify the number of cards that can be installed in combination with other BEHRINGER or third-party cards.

• Do not attempt to disassemble or modify the card. Donot apply excessive force to board connectors or other board components. Mishandling of board may lead to shock, re hazard, or equipment failure.

• Disconnect the power cable from the main unit before installing this card to eliminate shock hazard. Caution Failure to observe the following precautions may lead to personal injury, or may result in damage to equipment or other property.

• Do not touch the board’s metallic leads (pins) whenhandling the card. Pins are sharp and may causeinjury.

• The card is electrostatic-sensitive. Before handling the card, you should brie y touch the main unit’s metal casing with your bare hand so as to drain o any static charge from your body. BEHRINGER assumes no responsibility for data loss, equipment damage, or injury caused by inappropriate handling or usage.

1. IMPORTANT NOTICE: DO NOT MODIFY

THIS UNIT! This product, wheninstalled as indicated in the instructions containedin this manual, meets FCC requirements. Modi cations not expressly approved by BEHRINGER may void your authority, granted by the FCC, to use theproduct.

2. IMPORTANT: When connecting this product to

accessories and/or another product, use only high quality shielded cables. Cables supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

3. NOTE: This product has been tested and found to

comply with the requirements listed in FCC Regulations,

Part 15 for Class “B” digital devices. Compliance with these

requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit “OFF” and “ON”, please try to eliminate the problem by using one of the following measures: Relocate either this product or the device that is being a ected by the interference. Utilize power outlets that are on di erent branch circuits (circuit breaker or fuse) or install AC line lters. In the case of radio or TV interference, relocate/reorient the antenna. If the antenna uses 300Ohm ribbon cable, use coaxial cable instead. If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact BEHRINGER customer service. FCC INFORMATION U.S.A.

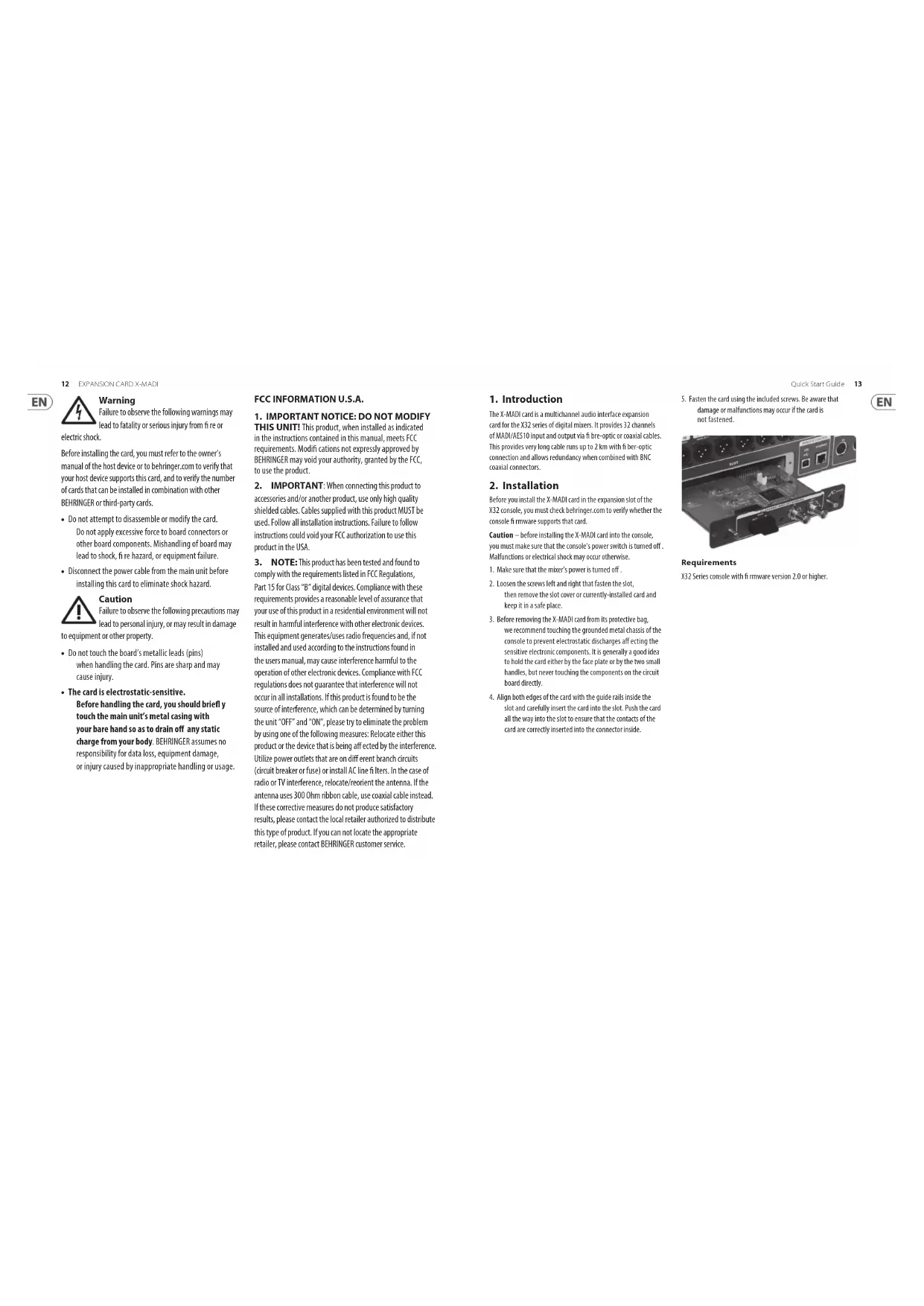

The X-MADI card is a multichannel audio interface expansion card for the X32 series of digital mixers. It provides 32 channels of MADI/AES10 input and output via bre-optic or coaxial cables. This provides very long cable runs up to 2 km with ber-optic connection and allows redundancy when combined with BNC coaxial connectors.

Before you install the X-MADI card in the expansion slot of the X32 console, you must check behringer.com to verify whether the console rmware supports that card. Caution – before installing the X-MADI card into the console, you must make sure that the console’s power switch is turned o . Malfunctions or electrical shock may occur otherwise.

1. Make sure that the mixer’s power is turned o .

2. Loosen the screws left and right that fasten the slot,

thenremove the slot cover or currently-installed card and keep it in a safe place.

3. Before removing the X-MADI card from its protective bag,

we recommend touching the grounded metal chassis of the console to prevent electrostatic discharges a ecting the sensitive electronic components. It is generally a good idea to hold the card either by the face plate or by the two small handles, but never touching the components on the circuit board directly.

4. Align both edges of the card with the guide rails inside the

slot and carefully insert the card into the slot. Push the card all the way into the slot to ensure that the contacts of the card are correctly inserted into the connector inside.

5. Fasten the card using the included screws. Be aware that

damage or malfunctions may occur if the card is not fastened. Requirements X32 Series console with rmware version 2.0 or higher. 12 13Quick Start GuideEXPANSION CARD X-MADI3. X32 Setup

• MADI Chan In selects the start channel for the block of 32-ch that will be available for input routing: MADI ch 01, ch 09, ch 17, ch 25, ch 33 (in 64 channel mode)

• MADI Chan Out selects the start channel for the block of 32-ch that will be replaced in the MADI output stream: MADI ch 01, ch 09, ch 17, ch 25, ch 33 (in 64 channel mode)

• MADI Source selection boxes for MADI connection – ber- optic and/or coaxial. Select both for redundant use of coaxial and ber-optic connections.

• X-MADI card can be selected as the clock source on the X32 Setup/con g page. In that case, the X32 will be slaved to the MADI clock received on BNC input or ber-optic inputs. Note that this may require rebooting the console if the internal and external clock rates are di erent (i.e. 44.1/48 kHz).

• Dual BNC coaxial input and outputs, 75 Ohm

• Cables up to 100 meters in length may be used.

• Cables up to 2 km in length may be used.

• 2x small handles for removing the expansion card from the slot

• 2x M3x6 screws for fastening the card in the slot

Connectors Duplex bre-optic, SC-plug, IEC874-19 1

ADI (AES10) BNC INPUT 1

MADI (AES10) BNC OUTPUT 1

ADI (AES10) BNC INPUT 1

MADI (AES10) BNC OUTPUT 1

NTRADA MADI (AES10) BNC 1

SAÍDA MADI (AES10) BNC 1

complies with the FCC rules as mentioned in the followingparagraph: This equipment has been tested and found to comply with the limits for a ClassB digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the followingmeasures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit di erent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician forhelp. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Important information: Changes or modi cations to the equipment not expressly approved by MUSIC Group can void the user’s authority to use the equipment.
