USER MANUAL XDANTE BEHRINGER

High-Performance 32-Channel Audinate Dante Expansion Card for X32Table of Contents Important Safety Instructions ......................... 3 FCC INFORMATION U.S.A.

2 EXPANSION CARD X-DANTE3Quick Start Guide Terminals marked with this symbol carry electrical current of sucient magnitude to constitute risk of electric shock. Use only high-quality professional speaker cables with ¼" TS or twist-locking plugs pre-installed. Allother installation or modication should be performed only by qualiedpersonnel. This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure - voltage that may be sucient to constitute a risk ofshock. This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read themanual. Caution To reduce the risk of electric shock, do not remove the top cover (or the rear section). No user serviceable parts inside. Refer servicing to qualiedpersonnel. Caution To reduce the risk of re or electric shock, do not expose this appliance to rain and moisture. Theapparatus shall not be exposed to dripping or splashing liquids and no objects lled with liquids, such as vases, shall be placed on the apparatus. Caution These service instructions are for use by qualied service personnel only. Toreduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairshave to be performed by qualied servicepersonnel.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

6. Clean only with dry cloth.

7. Do not block any ventilation

openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources

such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of

the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding- type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. Ifthe provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from

being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Use only attachments/accessories

specied by themanufacturer.

with the cart, stand, tripod, bracket, or table specied by the manufacturer, orsold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during

lightning storms or when unused for long periods of time.

14. Refer all servicing to qualied

service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has beendropped.

15. The apparatus shall be connected to

a MAINS socket outlet with a protective earthing connection.

16. Where the MAINS plug or an

appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. Important Safety Instructions4 EXPANSION CARD X-DANTE LIMITED WARRANTY LEGAL DISCLAIMER

17. Correct disposal

of this product: This symbol indicates that this product must not be disposed of with household waste, according to the WEEE Directive (2012/19/EU) and your national law. This product should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment (EEE). The mishandling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the ecient use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city oce, or your household waste collection service.

18. Do not install in a conned space,

such as a book case or similar unit.

19. Do not place naked ame

sources, such as lighted candles, on the apparatus.

20. Please keep the environmental

aspects of battery disposal in mind. Batteries must be disposed-of at a battery collection point.

TC HELICON, BEHRINGER, BUGERA

TC HELICON, BEHRINGER, BUGERA

BESCHRÄNKTE GARANTIE

TC HELICON, BEHRINGER, BUGERA

e DDA são marcas ou marcas registradas do MUSIC Group IP Ltd. © MUSIC Group IP Ltd. 2017 Todos direitos reservados. Para obter os termos de garantia aplicáveis e condições e informações adicionais a respeito da garantia limitada do MUSIC Group, favor vericar detalhes na íntegra através do website music-group.com/warranty.Warning Failure to observe the following warnings may lead to fatality or serious injury from re or electric shock. Before installing the card, you must refer to the owner’s manual of the host device or to behringer.com to verify that your host device supports this card, and to verify the number of cards that can be installed in combination with other BEHRINGER or third-party cards.

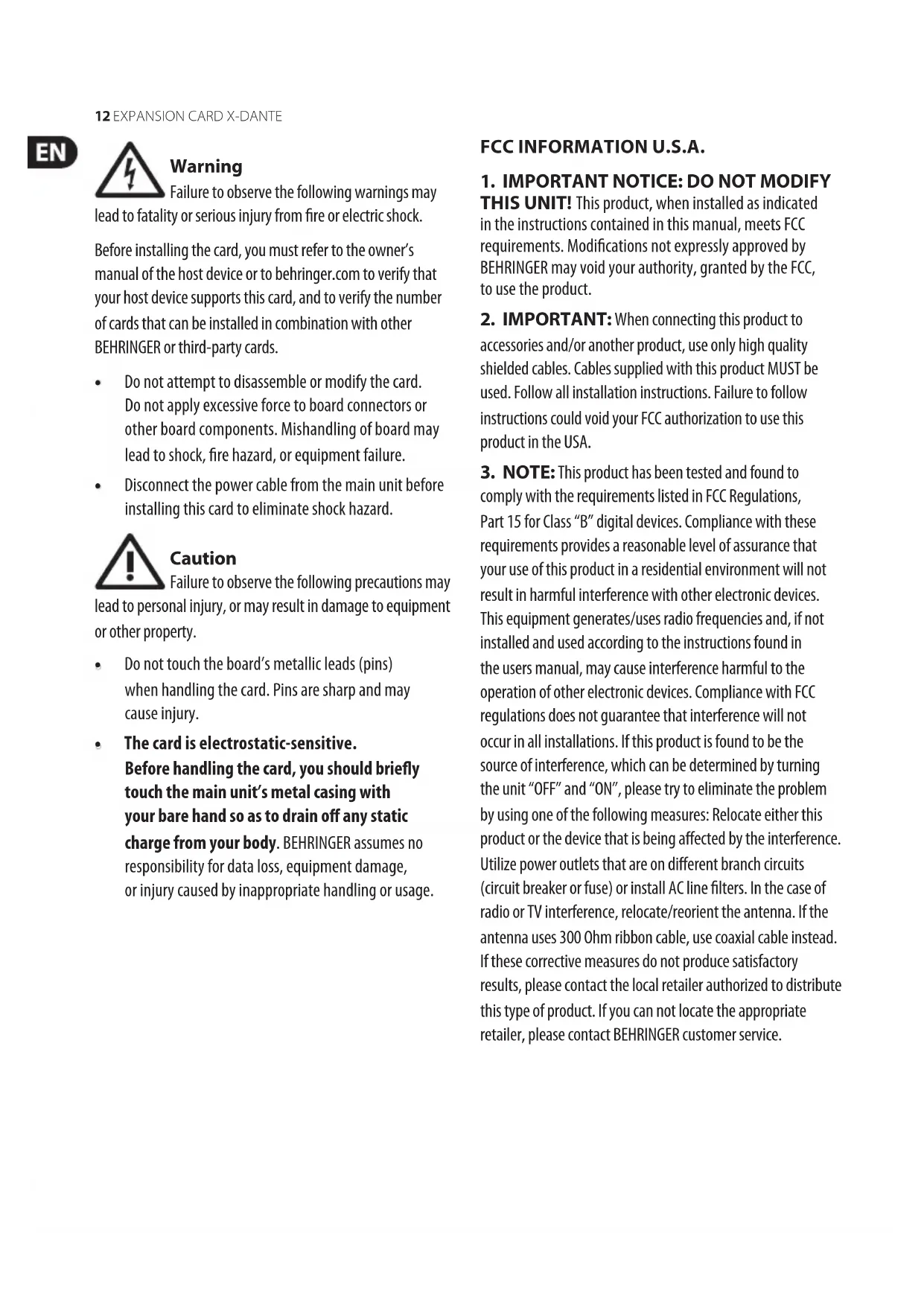

• Do not attempt to disassemble or modify the card. Donot apply excessive force to board connectors or other board components. Mishandling of board may lead to shock, re hazard, or equipment failure.

• Disconnect the power cable from the main unit before installing this card to eliminate shock hazard. Caution Failure to observe the following precautions may lead to personal injury, or may result in damage to equipment or other property.

• Do not touch the board’s metallic leads (pins) whenhandling the card. Pins are sharp and may causeinjury.

• The card is electrostatic-sensitive. Before handling the card, you should briey touch the main unit’s metal casing with your bare hand so as to drain o any static charge from your body. BEHRINGER assumes no responsibility for data loss, equipment damage, or injury caused by inappropriate handling or usage.

1. IMPORTANT NOTICE: DO NOT MODIFY

THIS UNIT! This product, wheninstalled as indicated in the instructions containedin this manual, meets FCC requirements. Modications not expressly approved by BEHRINGER may void your authority, granted by the FCC, to use theproduct.

2. IMPORTANT: When connecting this product to

accessories and/or another product, use only high quality shielded cables. Cables supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

3. NOTE: This product has been tested and found to

comply with the requirements listed in FCC Regulations,

Part 15 for Class “B” digital devices. Compliance with these

requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit “OFF” and “ON”, please try to eliminate the problem by using one of the following measures: Relocate either this product or the device that is being aected by the interference. Utilize power outlets that are on dierent branch circuits (circuit breaker or fuse) or install AC line lters. In the case of radio or TV interference, relocate/reorient the antenna. If the antenna uses 300Ohm ribbon cable, use coaxial cable instead. If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact BEHRINGER customer service. FCC INFORMATION U.S.A. 12 EXPANSION CARD X-DANTE13Quick Start Guide

Dante is a high-performance digital media protocol designed to deliver audio over a standard Ethernet IP network. The X-DANTE card allows the X32 series of digital mixers to share up to 32 x 32 channels of audio with any network of Dante-enabled devices via single or redundant Ethernet connection. Using existing network infrastructure at 100 Mbit/s or 1 Gbit/s, the Dante protocol oers very stable, low-latency transmission for a variety of professional applications unifying multi-channel audio distribution across multiple locations or device families.

Before you install the X-DANTE card in the expansion slot of the X32 console, you must check behringer.com to verify whether the console rmware supports that card. Minimum required X32 rmware for X-DANTE is version 2.0. We recommend that you periodically check your console’s product page for console rmware updates. Caution – before installing the X-DANTE card into the console, you must make sure that the console’s power switch is turned o. Malfunctions or electrical shock may occur otherwise.

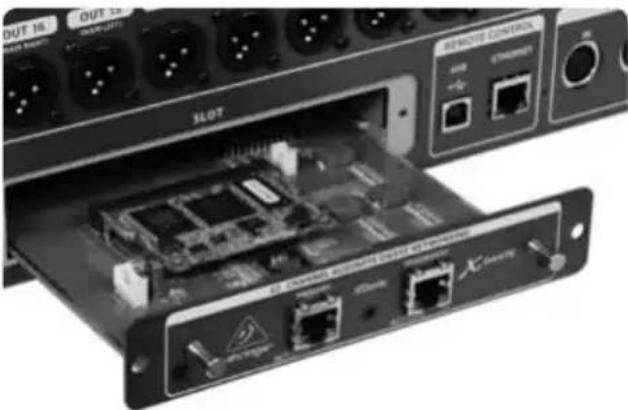

1. Make sure that the mixer’s power is turned o.

2. Loosen the 2 screws left and right that fasten the slot,

then remove the slot cover or currently-installed card and keep it in a safe place.

3. Before removing the X-DANTE card from its protective bag,

we recommend touching the grounded metal chassis of the console to prevent electrostatic discharges aecting the sensitive electronic components. It is generally a good idea to hold the card either by the face plate or by the two small handles, but never touching the components on the circuit board directly.

4. Align both edges of the card with the guide rails inside the

slot and carefully insert the card into the slot. It should slide in without any considerable resistance. Push the card all the way into the slot to ensure that the contacts of the card are correctly inserted into the connector inside.

5. Fasten the card using the included screws. Be aware

that damage or malfunctions may occur if the card is not fastened.

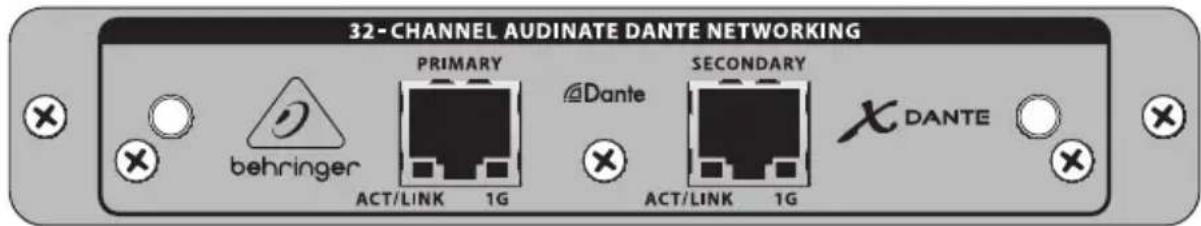

• 2x RJ45 connectors with integrated LEDs

• ACT/LINK LED (green) lights green when valid IP network connection exists.

• 1 G LED (amber) lights when used in 1 GBit/s network.

• 2x small handles (St) for removing the expansion card from the slot

• 2x outer screws for xing the card in the slot (M3 x 6 size).

• 3x countersunk screws xing the PCBA to the bracket. Do not remove these!15Quick Start Guide

5. Connection Scenarios

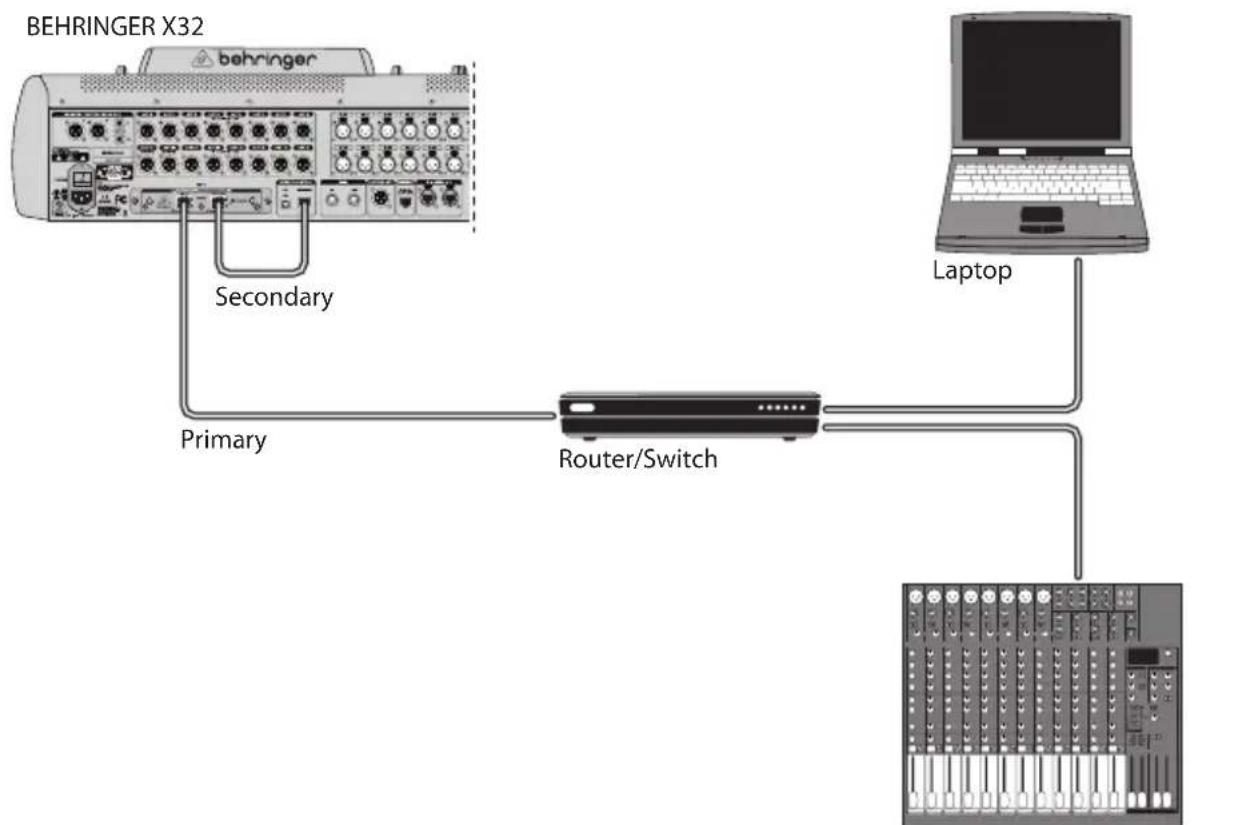

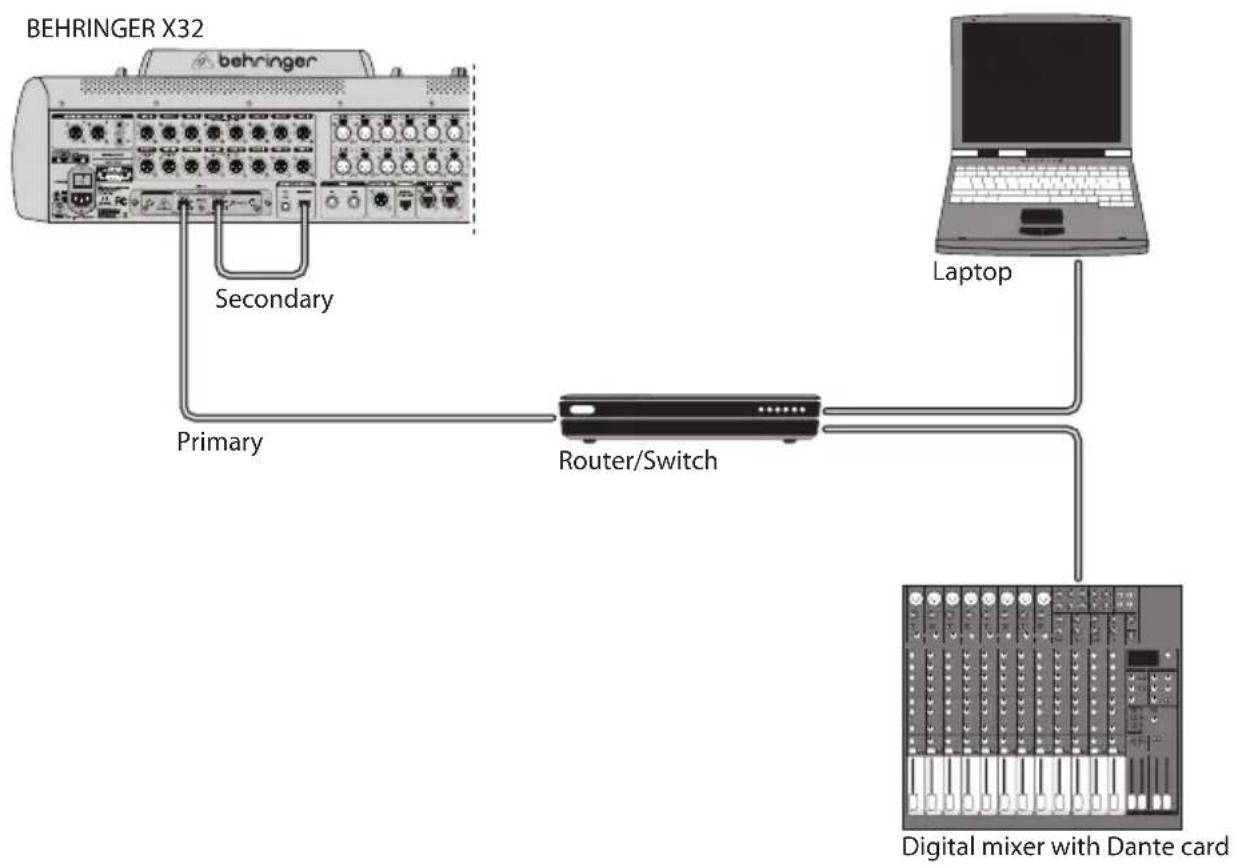

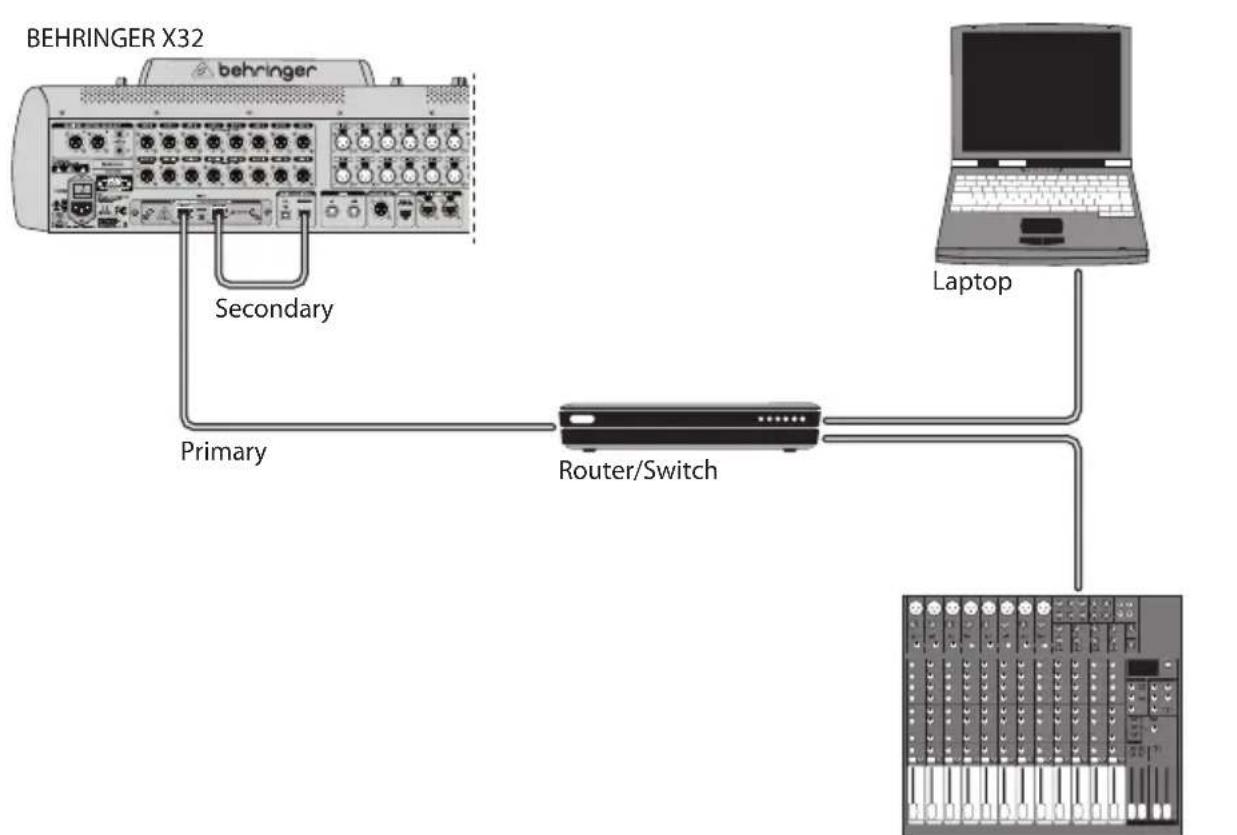

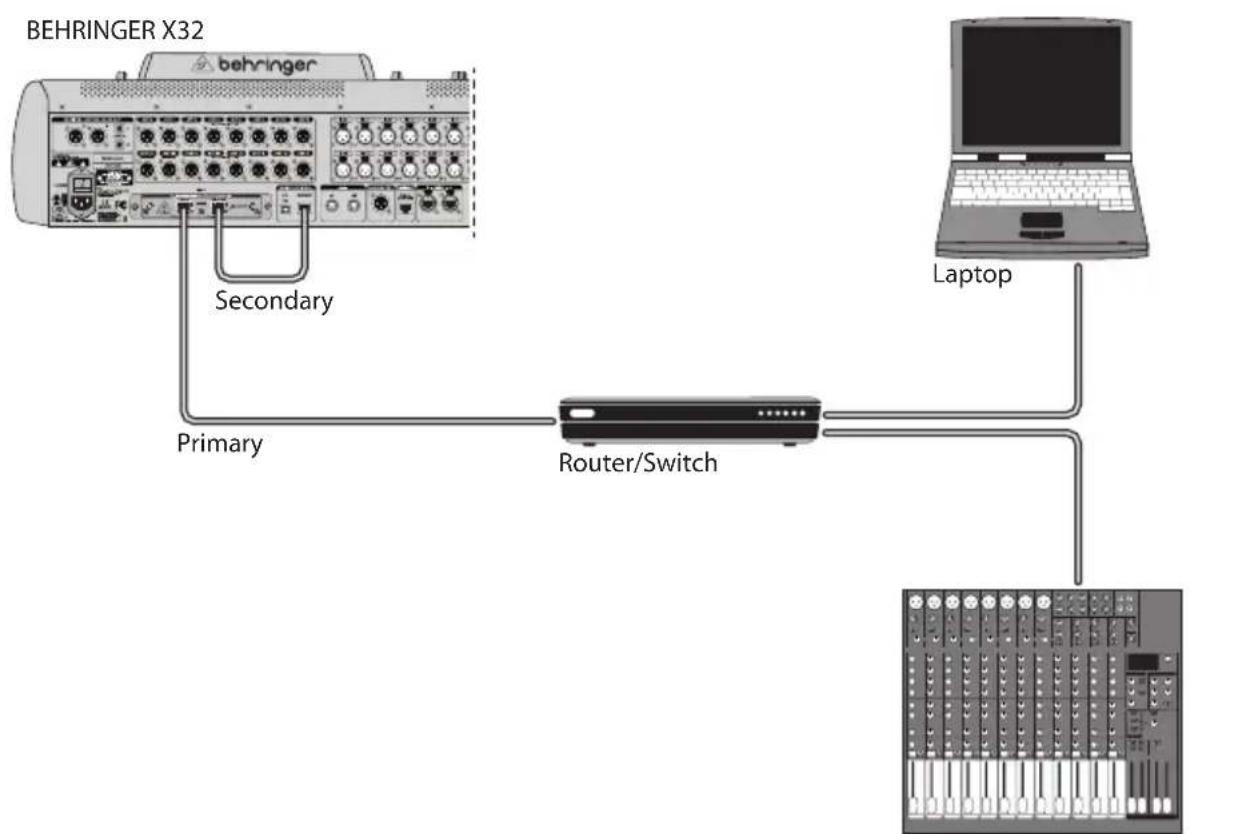

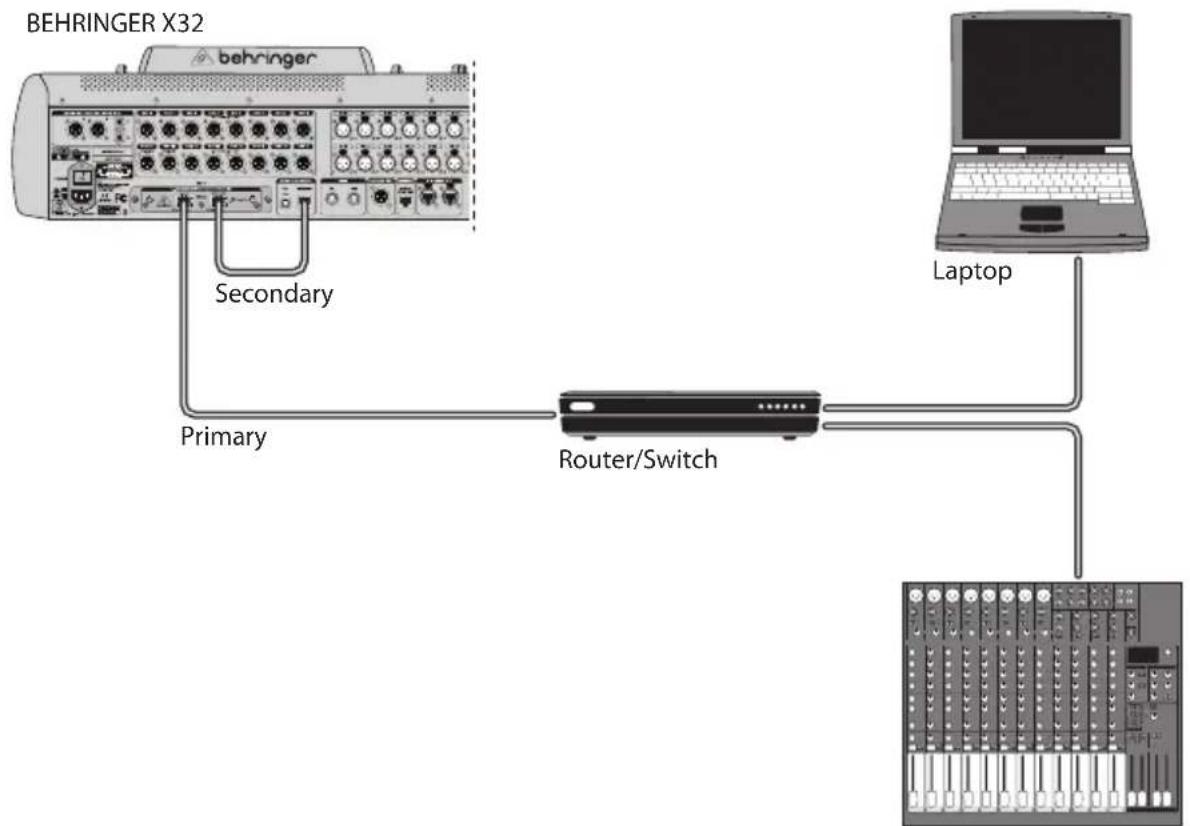

5.1 X32 with X-DANTE connection to

➝ PC and other Dante-enabled audio devices, e.g. generic digtal console with Dante card

for advice on suitable network routers for use with Dante networks visit audinate.com Here the PC performs 3 tasks concurrently: a) run Dante Controller app for signal routing b) run X32-Edit app, for X32 remote control c) run Dante Virtual Soundcard, DVS, for recording/playback of all audio channels of both mixers BEHRINGER X32 Router/Switch Primary Secondary Laptop Digital mixer with Dante card16 EXPANSION CARD X-DANTE

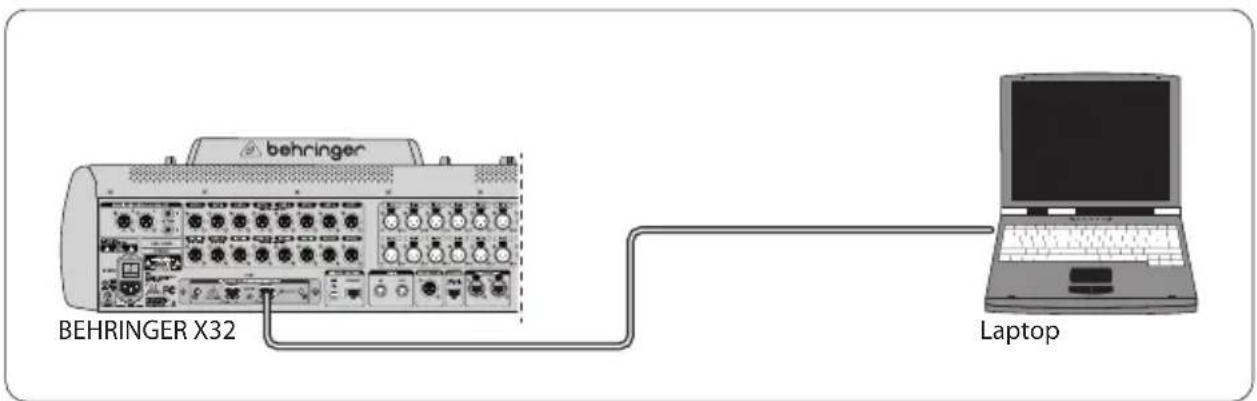

5.2 X32 with X-DANTE straight

connection to PC / Mac and Dante Virtual Soundcard DVS

for recording/playback up to 32 x 32 channels

for advice on using and licensing Dante Virtual Soundcard visit audinate.com

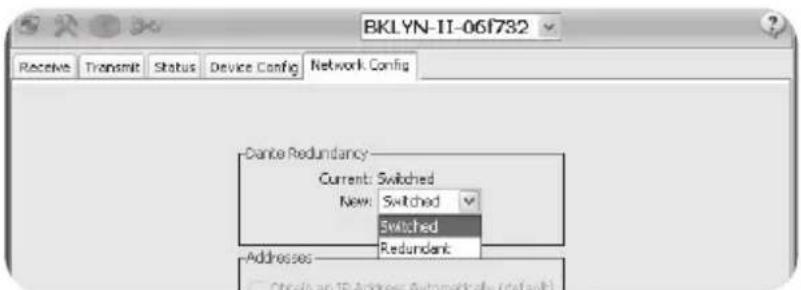

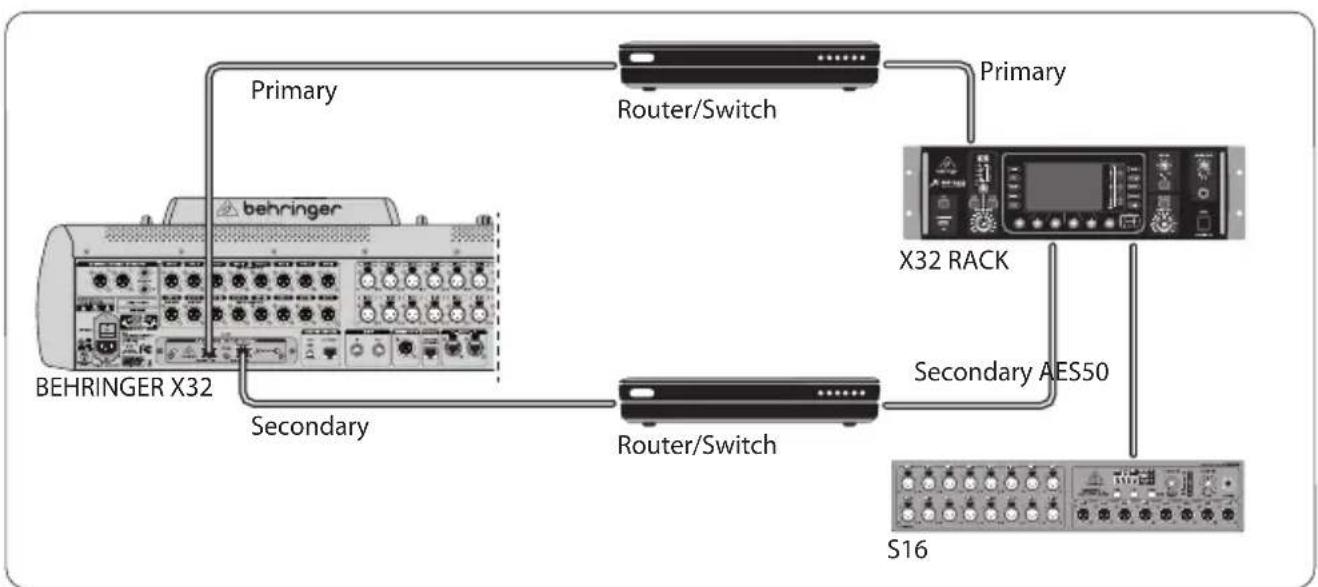

5.3 X32 with X-DANTE redundant

network infrastructure X32 ➝ two separate routers with independent wiring ➝ X32 RACK + S16 X32 with DANTE redundant network infrastructure Change Dante Controller network conguration tab ‘Switched’ to ‘Redundant’ Laptop BEHRINGER X32 Router/Switch Secondary Secondary AES50 Primary Primary X32 RACK S16 Router/Switch BEHRINGER X3217Quick Start Guide

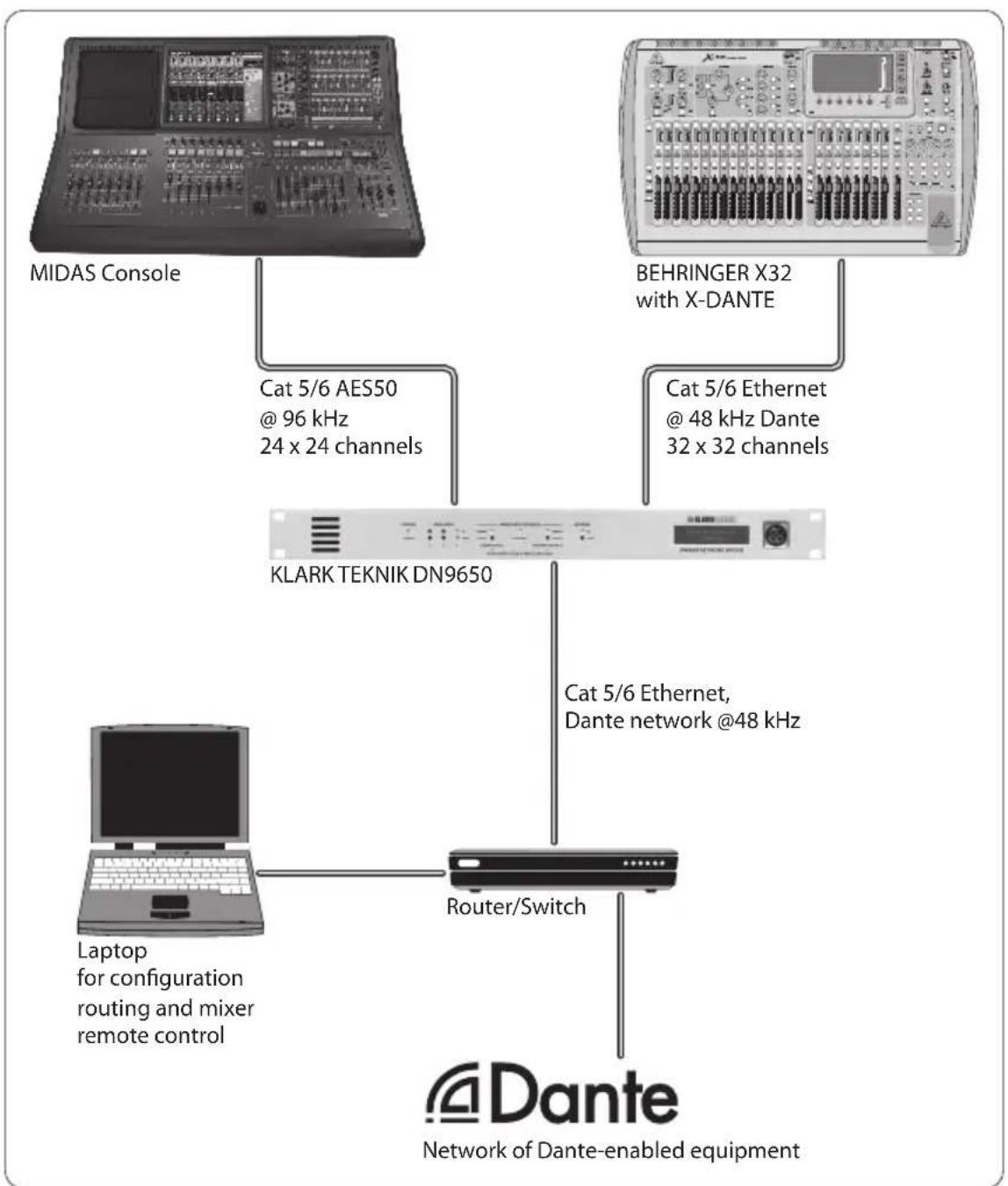

5.4 X32 with X-DANTE connection to

Network of Dante-enabled equipment Cat 5/6 Ethernet, Dante network @48 kHz Cat 5/6 AES50 @ 96 kHz 24 x 24 channels Cat 5/6 Ethernet @ 48 kHz Dante 32 x 32 channels Router/Switch Laptop for conguration routing and mixer remote control VIEW VIEW VIEWVIEWVIEWVIEWVIEWVIEW VIEW VIEW VIEW

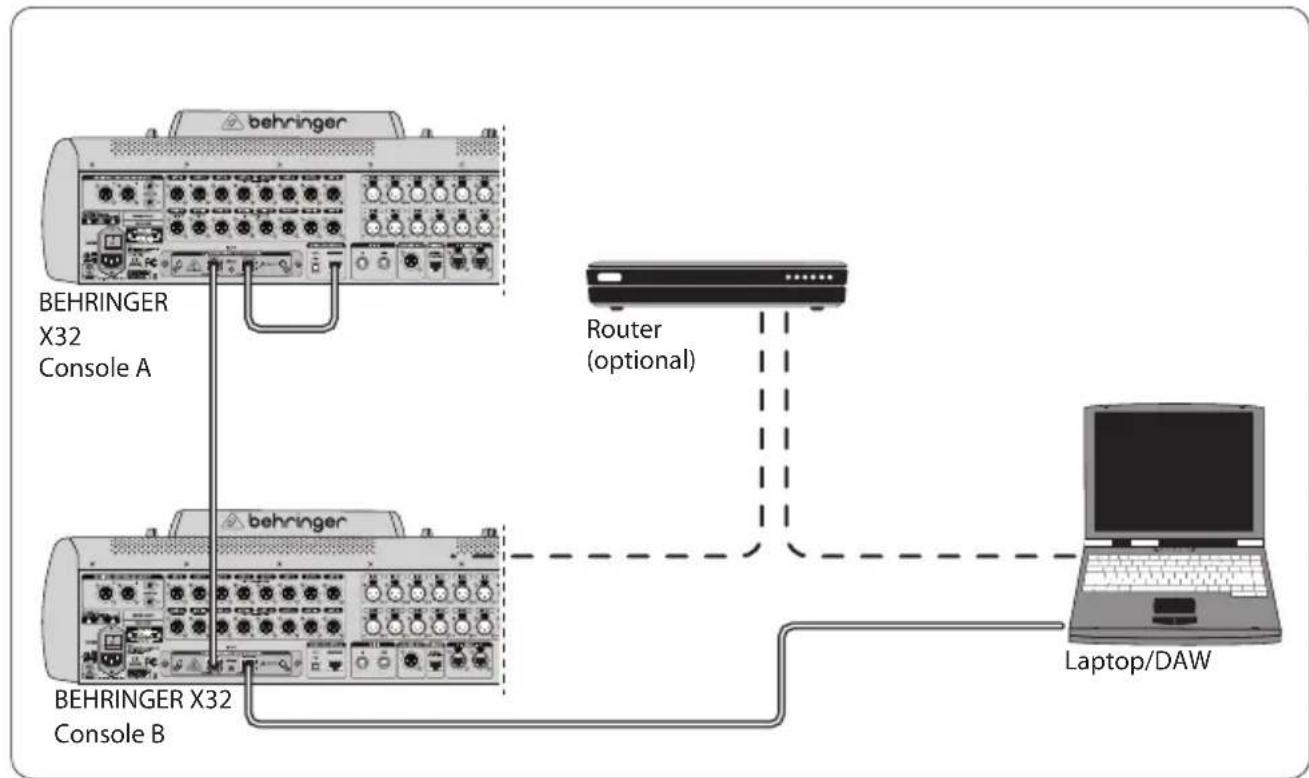

5.5 Two X32 consoles with X-DANTE

connection to DVS for recording 64 simultaneous tracks

• Both consoles need to have X-DANTE cards installed. Connectone of the X-DANTE Ethernet ports on console A with the card installed in console B.

• Connect the second port of console B, either directly with the DAW-PC/Mac or via a network router to which the DAW has access. This link will carry all 64 channels to and from both consoles.

• Tip: The console’s Ethernet remote control can be done over the same network. For remote controlling console A in this example, it is sucient to use a short patch cable connecting console A’s Remote connector with the free port on X-DANTE. Since both ports on X-DANTE of console B are occupied already, you would need to patch a separate cable to the network router.

• Open the Dante Virtual Soundcard driver control panel and switch it ON.

• Run the Dante Controller application to congure the virtual channel patch bay and route the channels between Dante Virtual Soundcard and the consoles. Two X32 consoles with X-DANTE connection to DVS for recording 64 simultaneous tracks BEHRINGER X32 Console A Laptop/DAW Router (optional) BEHRINGER X32 Console B19Quick Start Guide

The following four X32 screens have to do with conguring the X-DANTE and the signals to/from the card.

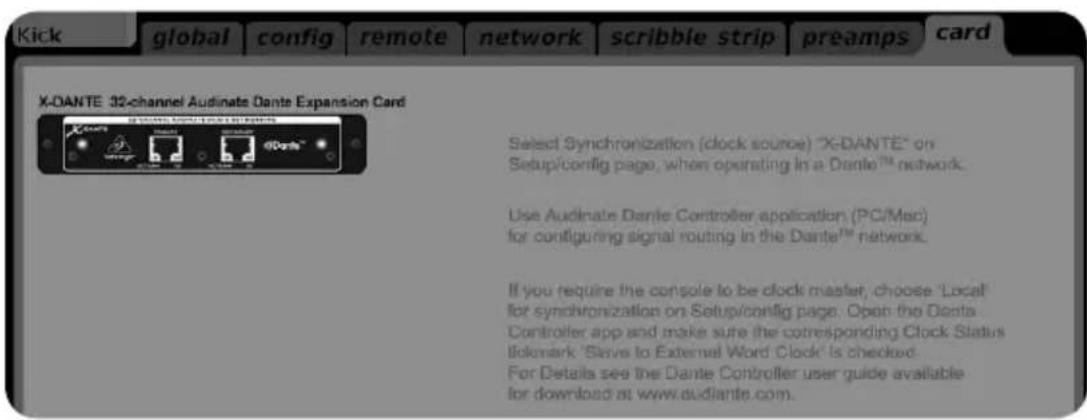

• The SETUP/card screen shows a graphic of the X-DANTE card when it has been installed correctly, and oers advice on setup.

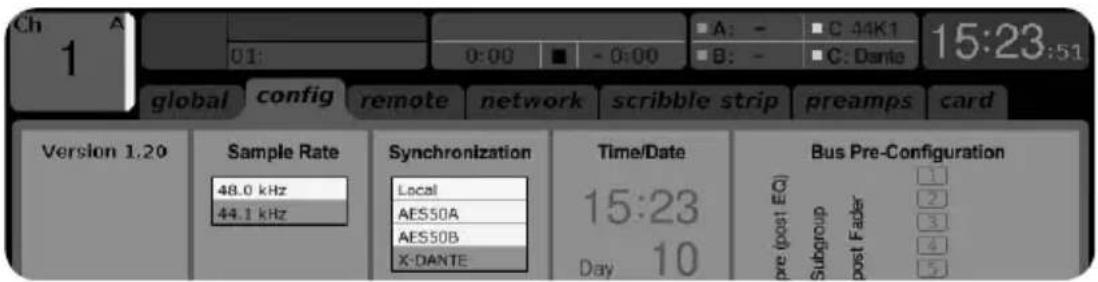

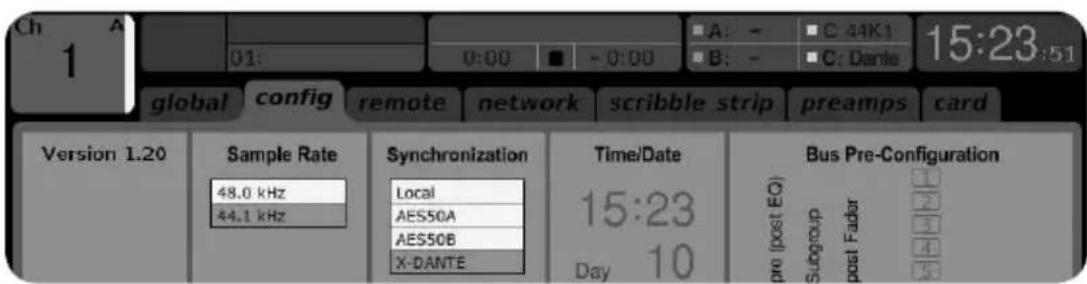

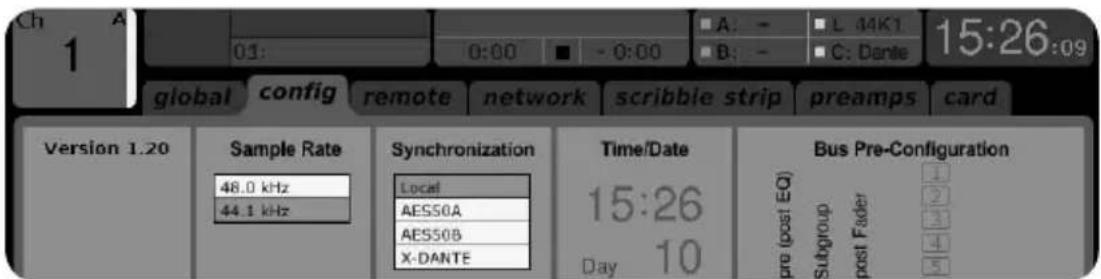

• The SETUP/cong page selects the synchronization source and shows status indicators in the top ‘global’ area (which should normally be “C” for X-DANTE Card).

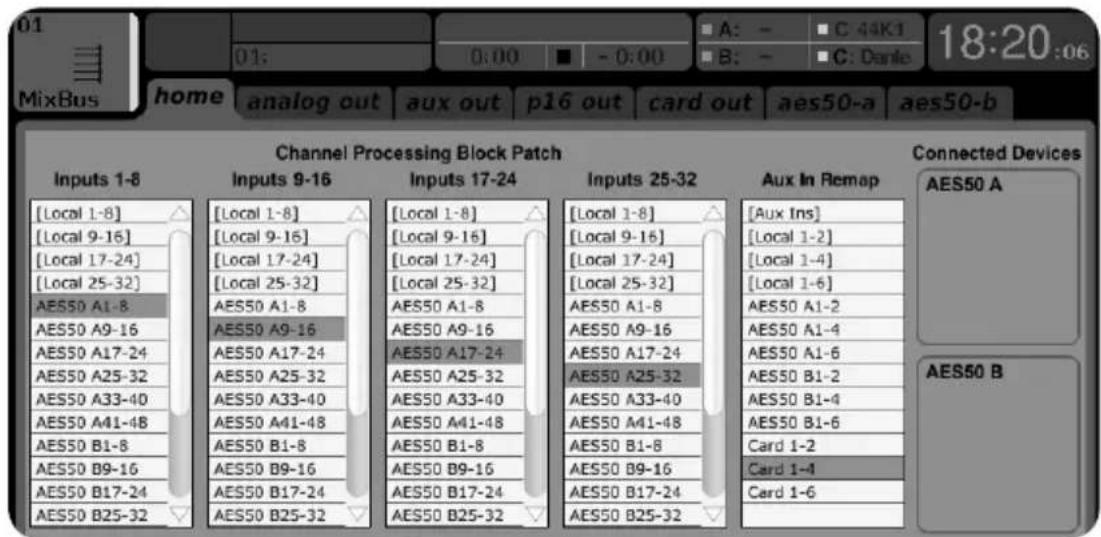

• The ROUTING/home page allows patching of signals from the X-DANTE card to the Input Channel processing. (e.g. channel 1-4 on Aux In)20 EXPANSION CARD X-DANTE

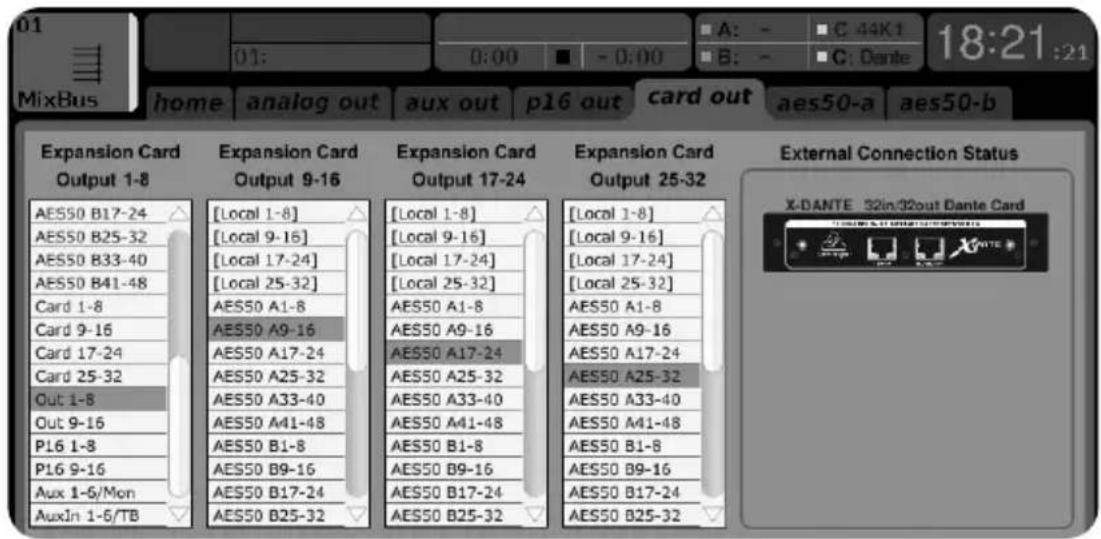

• The ROUTING/card out page selects channel blocks that will be provided to the Dante network controller. (e.g. 8 Local Outputs and 3 x 8 signals from AES50 Port A) Note that the Dante network routing must be congured exclusively using the Dante Controller Application for Mac/PC. The signals that have been routed from the Dante Controller App to the X-DANTE card are available for patching to the input channel routing on the console’s Routing/Home page. Please refer to audinate.com for a comprehensive set of documentation, FAQ and forum advices on conguring the Dante Controller and Dante Virtual Soundcard applications. Synchronization A master word clock source must be selected for the network. The X-DANTE Brooklyn II VCXO clock oers extremely low-jitter. In this case the Setup/Cong page should look like this: Note that the status bar shows “C: 44K1” and a green light for proper synchronization of 44.1 kHz to the card. The second green light “C: Dante” indicates proper installation of the X-DANTE card. The Dante Controller app congures the network for using the X-DANTE VCXO clock in this application.21Quick Start Guide See the X32 PRODUCER line, which is congured for Clock Status Master in the following example: Note that the check boxes for ‘Slave to External Word Clock’ are unchecked in this application. Alternative Synchronization: Use the internal X32 clock as master clock. In this case the Setup/Cong page should look like this: Note that the status bar shows “L 44K1” and a green light for Local (internal) clock of 44.1 kHz. The second green light “C: Dante” indicates proper installation of the X-DANTE card.22 EXPANSION CARD X-DANTE The Dante Controller must now be congured for “Slave to External Word Clock” in this application. See the X32 PRODUCER line, which is congured Master in this example: Renaming Dante Devices “Device View” By default, the X-DANTE card may show up as “BKLYN-II-06f732” in the controller app. The last six digits represent a part of the card’s Ethernet MAC address. However, the controller’s Device View allows assigning a more descriptive name to the network device, see example below.

7. Audinate Software Tools

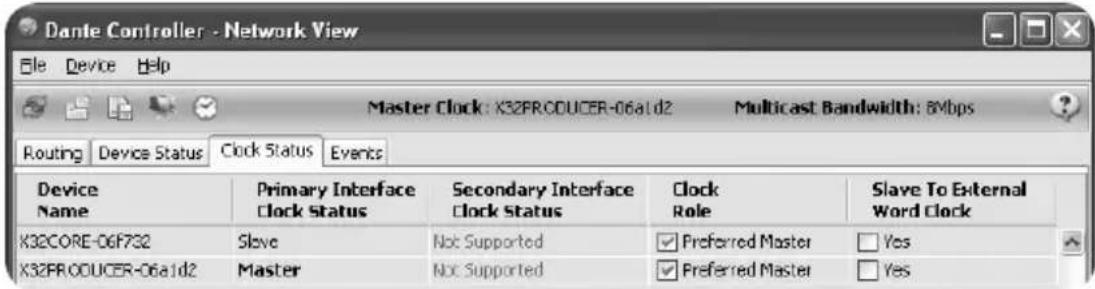

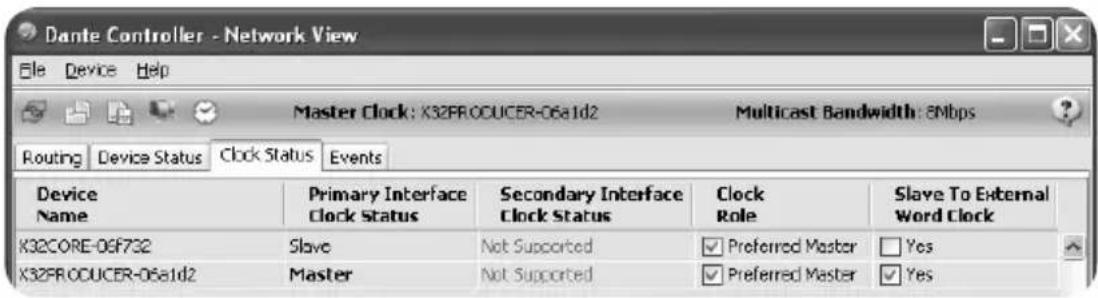

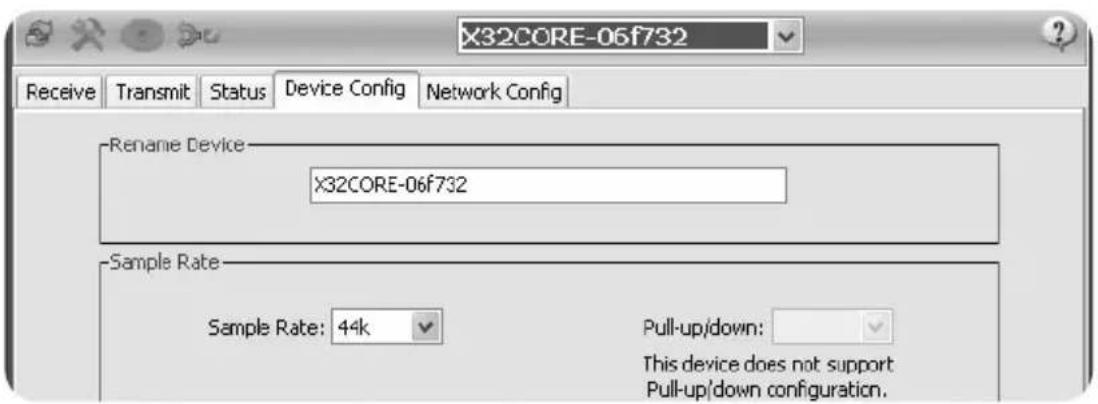

Dante Controller The Dante Controller is a software application provided by Audinate which allows users to congure and route audio around Dante networks. It is available for PCs running Windows and Apple Macs running OSX 10.5. Dante Controller must be installed on one or more PC/Mac computers on the Dante network in order to change any signal routing or clocking in the network. Dante Controller is not required, when everything is pre-congured, for running audio between Dante devices over the network. Dante Virtual Soundcard The Dante Virtual Soundcard is a software application that turns your PC or Mac into a Dante-enabled device, allowing Dante audio trac to be transmitted and received using the standard Ethernet port. No additional hardware is required. On Windows, the Dante Virtual Soundcard uses Steinberg’s ASIO audio interface, and can be used with any audio application that supports ASIO or WDM. On Mac OSX, the Dante Virtual Soundcard uses the standard Core Audio interface, and can be used by almost any standard audio application. Visit audinate.com for further advice on downloading and licensing these applications.23Quick Start Guide

Network of Dante-enabled equipment Cat 5/6 Ethernet, Dante network @48 kHz Cat 5/6 AES50 @ 96 kHz 24 x 24 channels Cat 5/6 Ethernet @ 48 kHz Dante 32 x 32 channels Router/Switch Laptop for conguration routing and mixer remote control VIEW VIEW VIEWVIEWVIEWVIEWVIEWVIEW VIEW VIEW VIEW

Network of Dante-enabled equipment Cat 5/6 Ethernet, Dante network @48 kHz Cat 5/6 AES50 @ 96 kHz 24 x 24 channels Cat 5/6 Ethernet @ 48 kHz Dante 32 x 32 channels Router/Switch Laptop for conguration routing and mixer remote control VIEW VIEW VIEWVIEWVIEWVIEWVIEWVIEW VIEW VIEW VIEW

Network of Dante-enabled equipment Cat 5/6 Ethernet, Dante network @48 kHz Cat 5/6 AES50 @ 96 kHz 24 x 24 channels Cat 5/6 Ethernet @ 48 kHz Dante 32 x 32 channels Router/Switch Laptop for conguration routing and mixer remote control VIEW VIEW VIEWVIEWVIEWVIEWVIEWVIEW VIEW VIEW VIEW

Network of Dante-enabled equipment Cat 5/6 Ethernet, Dante network @48 kHz Cat 5/6 AES50 @ 96 kHz 24 x 24 channels Cat 5/6 Ethernet @ 48 kHz Dante 32 x 32 channels Router/Switch Laptop for conguration routing and mixer remote control VIEW VIEW VIEWVIEWVIEWVIEWVIEWVIEW VIEW VIEW VIEW

Input/Output Characteristics Input / Output channels 32 / 32 Sample rates 44.1 kHz / 48 kHz Sample word length 24-Bit PCM Clock synchronization, onboard high-quality Dante network clock, based upon IEEE1588 PTP (precision time control) X32 ‘Local’

Dante network clock ‘X-DANTE’ System audio latency depends on Dante Controller network conguration

Audinate is a registered trademark of Audinate Pty Ltd. Dante is a trademark of Audinate Pty Ltd. Mac is a trademark of Apple Inc. Windows is a registered trademark of Microsoft Corporation in the United States in other countries. All other trademarks are the property of their respective owners. Audinate products are protected by one or more of US Patents 7747725, 8005939, 7978696, 8171152 and other patents pending or issued, see www.audinate.com/patents.64 EXPANSION CARD X-DANTE FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION Responsible Party Name: MUSIC Group Services NVInc. Address: 5270 Procyon Street Las Vegas, NV 89118 USA Phone Number: +1 702 800 8290

EXPANSION CARD X-DANTE

complies with the FCC rules as mentioned in the followingparagraph: This equipment has been tested and found to comply with the limits for a ClassB digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the followingmeasures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician forhelp. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Important information: Changes or modications to the equipment not expressly approved by MUSIC Group can void the user’s authority to use the equipment. EXPANSION CARD X-DANTEDedicate Your Life to MUSIC
