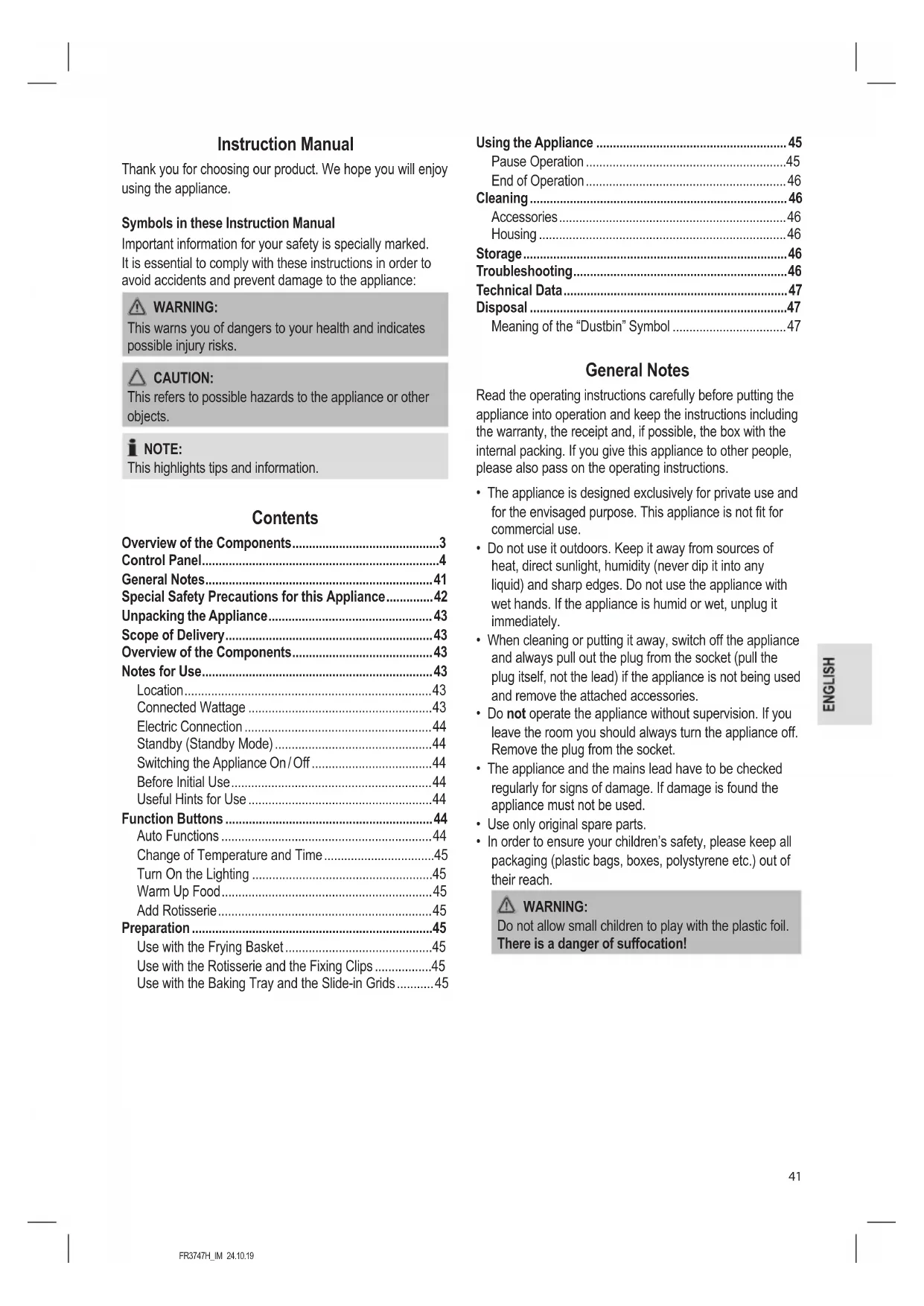

Instruction Manual Thank you for choosing our product. We hope you will enjoy using the appliance. Symbols in these Instruction Manual Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not t for commercial use.

• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.

• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.

• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.

• Use only original spare parts.

• In order to ensure your children’s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Do not allow small children to play with the plastic foil. There is a danger of suffocation!FR3747H_IM 24.10.19

Special Safety Precautions for this Appliance You will nd the following symbol with warning character on the appliance:

WARNING: Hot surface!

Danger of burns! During operation and afterwards, the temperature of the accessi- ble surfaces will be very high.

• Therefore, only touch the appliance at the door handle as well as the control panel. If necessary, use oven gloves.

• During operation, hot steam may escape from the air outlet opening. Keep a sufcient distance.

• Do not cover the air inlet opening and air outlet opening, in order to ensure sufcient air circulation.

• Keep sufcient distance (15 cm) to highly ammable objects such as furniture, curtains, etc.!

• Due to rising heat and vapours do not place the appliance under wall cupboards.

• Do not operate the appliance with an external timer or separate remote control system.

• Do not tamper with the safety switch.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental ca- pabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.FR3747H_IM 24.10.19

• Keep the appliance and its cord out of reach of children less than 8 years.

• Do not repair the appliance by yourself. Always contact an au- thorized technician. If the supply cord is damaged, it must be re- placed by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard. CAUTION: This appliance is not intended to be immersed in water during cleaning. Please observe the instructions that we have included for you in the chapter “Cleaning”. Unpacking the Appliance

1. Remove the appliance from its packaging.

2. Remove all packaging materials like foils, lling materi-

als, cable holders, and carton packaging.

3. Check the scope of deliveries for completeness.

4. If there are missing parts or obvious damage, do not use

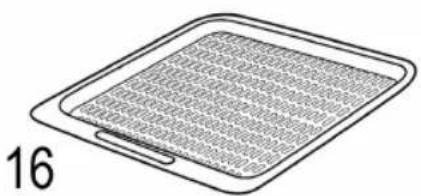

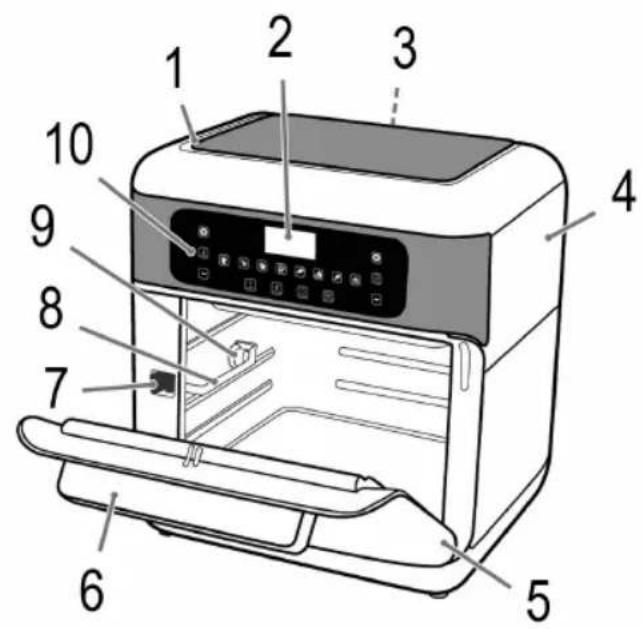

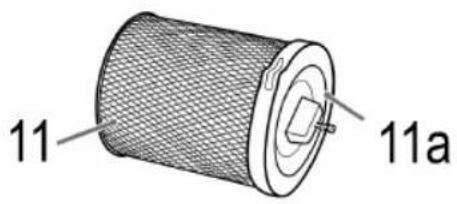

the appliance. Return it to your retailer immediately. Scope of Delivery 1 × Hot air fryer 1 × Frying basket with lid 1 × Removal tool 2 × Fixing discs for spits 1 × Rotisserie 1 × Baking tray / Grease drip tray 2 × Slide-in grid Overview of the Components Picture A, Page 3 1 Air inlet opening 2 Display 3 Air outlet opening 4 Housing 5 Door 6 Door handle 7 Release 8 Guide rail 9 Mount for the rotisserie / frying basket 10 Control panel 11 Frying basket 11a Lid 12 Removal tool 13 Fixing clips 14 Rotisserie 15 Baking tray / Grease drip tray 16 Slide-in grid Picture B, Page 4: Symbols on the Control Panel 17 Buttons for program selection

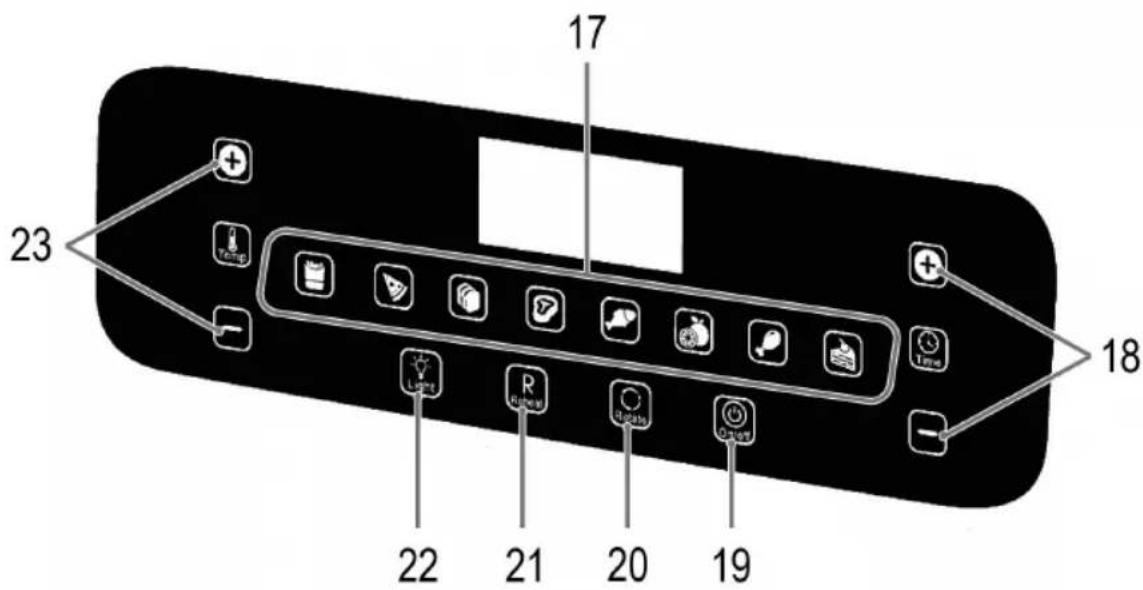

and buttons for the time setting ( ) 19 button (Switching the appliance on / off) 20 button (Add rotisserie) 21 button (Warm up food) 22 button (Turn on the lighting) 23 and buttons for the temperature setting ( ) Notes for Use Location

• Set the appliance onto a non-slip, level, and heat-resist- ant surface.

• Take care that the appliance and the mains cable never are placed onto hot surfaces or near heat sources (e. g. range, hob). Connected Wattage The total power consumption of this appliance can be up to 1500 W. With this connected load a separate supply line protected by a 16 A household circuit breaker is recom- mended. CAUTION: Overload!

• If you use extension leads, these should have a cable cross-section of at least 1.5 mm².

• Do not use any multiple sockets, as this appliance is too powerful.FR3747H_IM 24.10.19

1. Before inserting the power plug into the outlet, check

that the mains voltage to be used matches that of the appliance. You can nd the required information on the nameplate.

2. Connect the appliance to a properly installed earthed

socket. You will hear a beep sound and all symbols light up briey. The button lights red. Standby (Standby Mode) NOTE: The appliance is in standby, if the button lights red. When faced with the following situations, the appliance will switch into standby:

• When the power plug is inserted.

• If no button is pressed for approx. 60 seconds.

• When the time has elapsed.

• When you press and hold the button for approx. 3 seconds. You exit the standby mode by pressing the button. All symbols light up and the button ashes red. Switching the Appliance On / Off Turn the appliance on and off by using the button. NOTE: Operation is only possible when the door is closed. Before Initial Use

• There is a protective layer on the heating element. To remove this, operate the appliance for about 10 minutes without any contents.

Allow the appliance to cool down before you clean it! - Disconnect the mains plug from the wall socket. - Wipe the inside of the appliance and clean the acces- sories before using the appliance. Useful Hints for Use

• A safety switch prevents the use of the appliance when the door is not closed. The lighting of the control panel goes out.

• Do not overll the basket. Always make sure the food has enough space in the basket to get the best results.

• In order to achieve crispy results, you can baste the food with a little oil.

• Do not prepare the appliance for high-fat foods (e. g. sausages).

• All foods can be prepared in the appliance, which are also suitable for the oven.

• Frozen meals or liquid foods such as soups can be prepared in appropriate containers.

• Note that the dough expands during baking of cakes, bread or similar. Nothing must come into contact with the heating element.

• Pour water on homemade potato products after cutting at least 30 minutes to reduce the potato starch. Then dry the potato pieces with paper.

• The cooking time depends on several factors: Size, con- dition, quantity of food and set temperature. For standard values, see “Function Buttons” “Auto functions”.

• If you do not preheat the hot air fryer, add 3 minutes to the cooking time.

• Fry steaks / larger quantities of meat in a pan previously before leaving to cook in the hot air fryer. Time and temperature are dependent on the desired degree of doneness. Function Buttons NOTE:

• The buttons on the appliance are touch keys. Gently touch the buttons with a nger to execute the function. Whenever a button is pressed, it will be conrmed by a beep sound.

• If you keep the or buttons pressed, fast mode will start. Auto Functions Select your desired automatic program on the control panel. The set program can be identied by the ashing of the respective button. Button Mode Pre-set temperature in °C Pre-set time in min. French fries 200 15 Pizza 175 25 Bread 165 15 Meat 180 15 Fish 175 30 Drying 40 120 Poultry 190 30 Cakes 160 30 NOTE:

• These shall be considered as guide values. Depending on the size and weight, the time and temperature may be longer and higher or shorter and lower.FR3747H_IM 24.10.19

• You may, however, change the pre-set temperature and time of the auto functions.

• If you would like to select another program after start- ing a program, rst press the button. Change of Temperature and Time The and buttons are available twice each on the appliance.

• Use the or buttons above and below the Temp symbol to set the temperature. (In all programs - except Drying - 80 °C to 200 °C, Drying: 40 °C to 80 °C)

• Use the or buttons above and below the Time symbol to set the cooking time. (In all programs - except Drying - 1 to 90 minutes, Drying: 1 to 24 hours) NOTE: The display shows alternately the remaining running time and the set temperature. Turn On the Lighting Use the button to switch the lighting in the interior of the appliance on and off. After approx. 2 minutes, the lighting switches off automatically. In addition, the lights go on when the door is opened. Lighting on = button ashes Lighting off = button lights continuously Warm Up Food Use the button to warm up food. The button ashes once you have presses it. The preset temperature is 115 °C and the time 6 minutes. Add Rotisserie Use the button to switch the rotisserie on and off. You need this one for the rotisserie as well as the frying basket. Rotisserie on = button ashes Rotisserie off = button lights continuously Preparation Use with the Frying Basket

2. Slide the grease drip tray onto the bottom of the hot air

3. Hold the frying basket by the black plastic surfaces.

Open the lid of the frying basket by turning it in the direction of . The symbol must be exactly above the detent. Remove the lid.

4. Fill the basket with the desired food.

5. Close the lid. Place the lid in such a way that the

sym- bol is above the detent. Tighten the lid in the direction of .

6. Lift the frying basket with the removal tool onto the guide

rails. Hold the release button (7) in the direction of the arrow and slide the basket toward the end of the rail. Unhand the release. The frying basket must snap into place. Use with the Rotisserie and the Fixing Clips NOTE: Do not select a roast which is too large. The food being grilled must be far enough away from the internal walls and the heating elements and must not touch them.

2. Slide the grease drip tray onto the bottom of the hot air

3. Rub edible oil on to the revolving spit and spit forks.

4. Poultry has to be dressed before grilling. To do so, tie

the wings and the legs closely to the body using kitchen yarn.

5. Place the dressed poultry or the piece of roast meat

carefully on to the revolving spit. Push the spit forks on to the revolving spit and use them to x the roast meat in place. Tighten the xing clips by means of the screws.

6. Lift the ready-made rotisserie with the removal tool

onto the guide rails. Hold the release button (7) in the direction of the arrow and slide the basket toward the end of the rail. Unhand the release. The rotisserie must snap into place. Use with the Baking Tray and the Slide-in Grids

2. Slide the baking tray and / or the slide-in grids into the

slide rails. Using the Appliance

button to exit standby mode. You will see the preset setting 200 °C and 15 minutes.

3. Select an automatic program and, if necessary, change

the cooking time and the temperature with the or buttons.

5. Press the button to start the cooking process.

• Press the button to pause the operation. The but- ton is ashing. Press the button again to resume the operation. The button is continuously lit again.FR3747H_IM 24.10.19

• However, the operation will be interrupted when you open the door. Close the door to resume operation. NOTE: The appliance will start from the spot it has been paused. End of Operation NOTE: When the cooking time has elapsed, the fan continues to run to cool down the appliance. ashes in the display. After approx. 20 seconds, 3 beeps will sound and disappears on the display. The appliance is again in standby mode.

WARNING: Danger of burns!

• Hot steam can escape!

spit, remove it with the removal tool. To do this, unlock the frying basket or the rotisserie spit using the unlocking mechanism (7) and remove it. If you have used the baking sheet or the slide-in grids, pull them out.

3. Place the accessories only on heat-resistant surface!

• Always turn the appliance off before cleaning it and remove the mains plug. Wait until the appliance has cooled down.

• Do not immerse the appliance in water! Doing so may result in an electric shock or re. CAUTION:

• Do not use any wire brush or other abrasive objects.

• Do not use any acidic or abrasive detergents. Accessories The accessories can be cleaned in a warm rinse bath. Housing Clean the appliance inside and outside with a slightly moist, not a wet cloth. Storage

• Clean the appliance as described. Let the accessories dry completely.

• We recommend that you store the appliance in its original packaging when it is not to be used for a longer period.

• Always store the appliance at a well ventilated and dry place outside the reach of children. Troubleshooting If a problem occurs, it is often only a small thing. Before you contact our service, please note the following information: Problem Possible Cause Remedy The appliance is not working. The appliance has no power supply. Check the socket with another appliance. Plug in the mains plug correctly. Check the main circuit breaker. The door is not closed properly. Close the door until it audibly snaps into place. The appliance is defective. Contact our service or a repair centre. The lighting in the interior does not light up anymore. The lighting is defect.FR3747H_IM 24.10.19

Problem Possible Cause Remedy The food is not cooked to the end. The basket is too full. Reduce the amount of food. Smaller quantities are cooked evenly. The temperature is set too low. Set a higher temperature. The cooking time is set too low. Set a longer period of time. The food is not crisp. Foods are used, which is only suitable for a conventional fryer. Use oven-ready food or sprinkle it with a little oil. Smoke comes out of the appliance. You are preparing very fatty foods. Fat splashes inside the appliance may cause the emission of fumes. Provide adequate ventilation. On the baking sheet / fat drip tray are still fat residues from previous use. Clean the baking sheet / fat drip tray after each use as described in the chapter “Cleaning”. Technical Data Model:.................................................................... FR 3747 H Power supply:.....................................220 - 240 V~, 50 / 60 Hz Power consumption: ...................................................1500 W Protection class: ..................................................................... Net weight: ....................................................... approx. 6.8 kg The right to make technical and design modications in the course of continuous product development remains reserved. This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibil- ity and low voltage directives, and has been constructed in accordance with the latest regulations. Disposal Meaning of the “Dustbin” Symbol Protect our environment: do not dispose of electrical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of re-uti- lisation of electrical and electronic equipment. Information concerning where the equipment can be dis- posed of can be obtained from your local authority.FR3747H_IM 24.10.19
