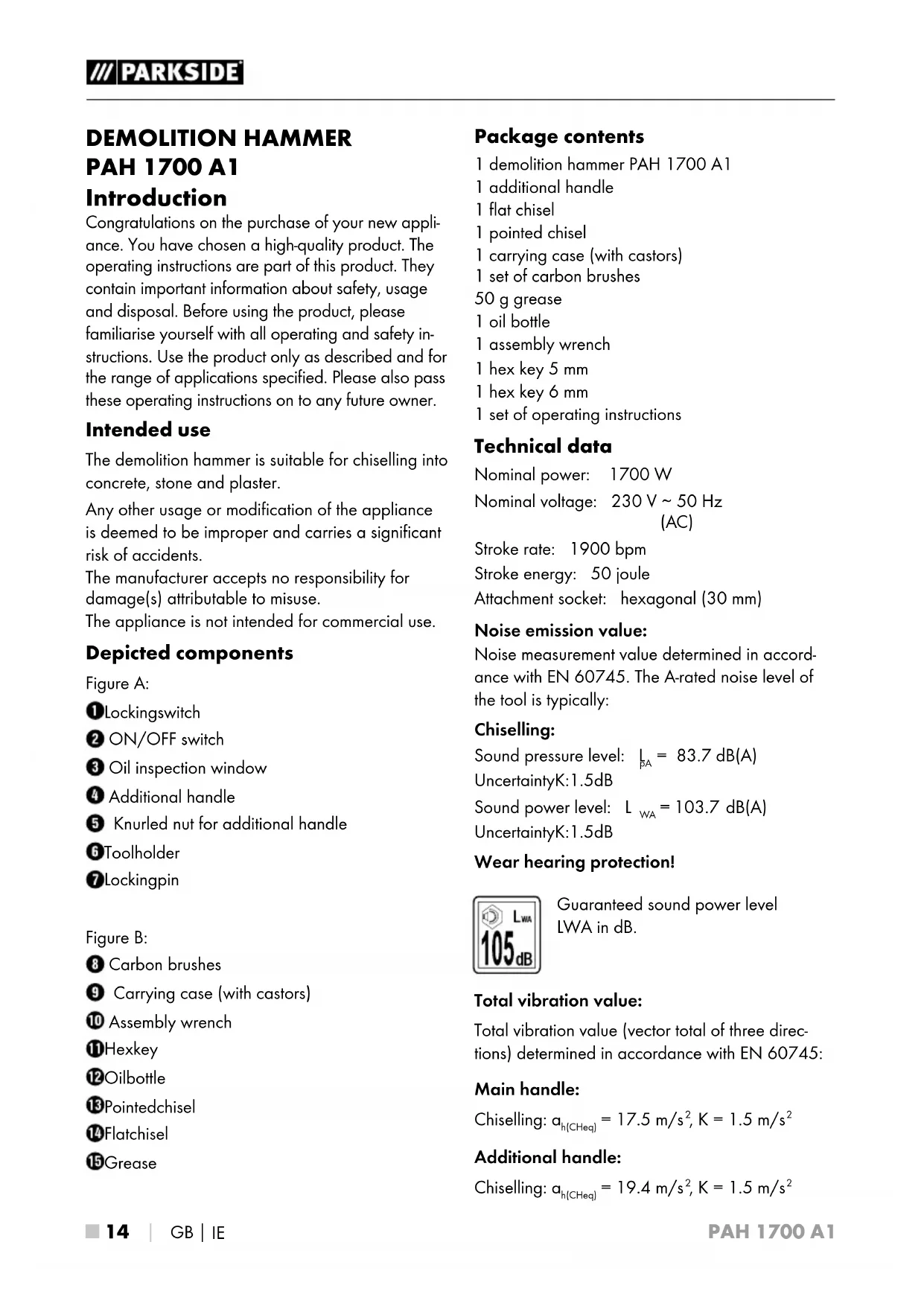

DEMOLITION HAMMER PAH 1700 A1 Introduction Congratulations on the purchase of your new appli- ance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety in- structions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner. Intended use The demolition hammer is suitable for chiselling into concrete, stone and plaster. Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) attributable to misuse. The appliance is not intended for commercial use. Depicted components Figure A: Locking switch ON/OFF switch Oil inspection window Additional handle Knurled nut for additional handle Tool holder Locking pin Figure B: Carbon brushes Carrying case (with castors) Assembly wrench Hex key Oil bottle Pointed chisel Flat chisel Grease Package contents 1 demolition hammer PAH 1700 A1 1 additional handle 1 flat chisel 1 pointed chisel 1 carrying case (with castors) 1 set of carbon brushes 50 g grease 1 oil bottle 1 assembly wrench 1 hex key 5 mm 1 hex key 6 mm 1 set of operating instructions Technical data Nominal power: 1700 W Nominal voltage: 230 V ∼ 50 Hz (AC) Stroke rate: 1900 bpm Stroke energy: 50 joule Attachment socket: hexagonal (30 mm) Noise emission value: Noise measurement value determined in accord- ance with EN 60745. The A-rated noise level of the tool is typically: Chiselling: Sound pressure level: L

= 103.7 dB(A) Uncertainty K: 1.5 dB Wear hearing protection! Guaranteed sound power level LWA in dB. Total vibration value: Total vibration value (vector total of three direc- tions) determined in accordance with EN 60745: Main handle: Chiselling: a h(CHeq) = 17.5 m/s

Additional handle: Chiselling: a h(CHeq) = 19.4 m/s

 15 ■ NOTE ► The vibration level specified in these instruc- tions has been measured in accordance with a standardised measuring procedure and can be used for equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate. WARNING! ► The vibration level varies in accordance with the use of the power tool and may be higher than the value specified in these instructions in some cases. Regular use of the power tool in this way may cause the user to underesti- mate the vibration. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load). Symbols used on the appliance ■ Read the operating instructions.

Wear hearing protection.

Wear safety goggles.

BEFORE FIRST USE. Caution! Fill with oil before first use! General Power Tool Safety Warnings WARNING! ► Read all safety warnings and all instruc- tions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flam- mable liquids, gases or dust. Power tools cre- ate sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or ground- ed surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.PAH 1700 A1 ■ 16 

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entan- gled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) P revent unintentional starting. Ensure that the electric tool is switched off before you connect it to the power supply, pick it up or carry it. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewel- lery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that can- not be controlled with the switch is dangerous and must be repaired. c) Remove the plug from the socket before making adjustments to the appliance, chang- ing accessories or putting the appliance into storage. Such preventive safety measures reduce the risk of starting the power tool ac- cidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalign- ment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.PAH 1700 A1

a) Have your power tool serviced by a qualified repair person using only identical replace- ment parts. This will ensure that the safety of the power tool is maintained. Safety instructions specific to hammers ■ Wear hearing protection. Exposure to loud noise can lead to hearing loss. ■ Use the additional handles supplied with the appliance. Loss of control can lead to injuries. ■ Hold the appliance by the insulated handles when you are carrying out work during which the deployed tool may come into contact with concealed power cables or its own power cable. Contact with a live wire may electrify exposed metal parts of the power tool and could give the operator an electric shock.

Wear a dust mask. Before use WARNING! RISK OF INJURY! ► Switch off the appliance and pull out the power plug before starting any work on the appliance. NOTE ► Periodically check the tightness of the hexa- gon socket head screws on the unit. Use the included hex key

Greasing WARNING! ► Before every use, check whether there is enough grease (e.g. multi-purpose grease, bearing grease, etc.) in the appliance and on the chisel. Operation without grease will cause irreparable damage to the appliance. ♦ Grease the tool holder with the supplied grease . ♦ Grease the appropriate chisel shaft

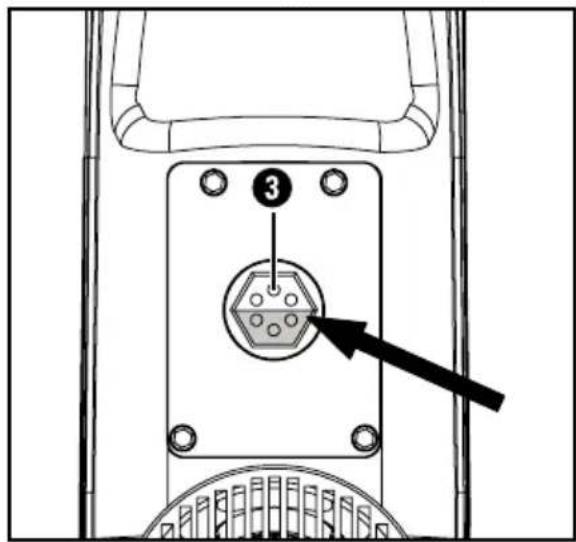

with the supplied grease . Checking the oil level NOTE ► Before operating the appliance, check whether there is enough oil (e.g. SAE 20W—50) in the appliance. Operation without sufficient oil will cause irreparable damage to the appliance. ♦ Hold the appliance with the tool holder facing upwards. ♦ Look in the oil inspection window on the underside of the appliance to see whether there is sufficient oil in the appliance (see fig. 1). Fig. 1 If you cannot see any oil in the oil inspection window , top up the oil (SAE 20W—50) as described in the section “Topping up the oil”. Mount the auxiliary handle The additional handle is pre-mounted on delivery. ♦ Mount the additional handle as shown in the exploded view (see fold-out page). Use the additional handle ♦ You can position the additional handle as you wish. ♦ Undo the knurled nut

♦ Turn the additional handle around the ap- pliance axis up to 360° and/or forwards or backwards into the desired position. ♦ Retighten the knurled nut .PAH 1700 A1 ■ 18 

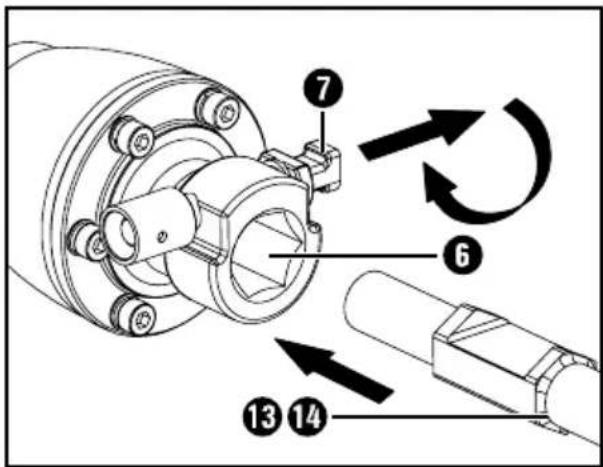

Fitting the chisel WARNING! ► Use only an appropriate hexagonal shaft chisel with a diameter of 30 mm. ► Before every use, check whether there is enough grease in the appliance and on the chisel (see section "Greasing"). Operation without grease will cause irrepa- rable damage to the appliance. ♦ Pull out the locking pin and lock it into posi- tion so that it does not block the tool holder . The flat side of the locking pin must point upwards to open the tool holder . Fig. 2 ♦ Place the chisel / with the milled groove pointing in the direction of the locking pin (see fig. 2). ♦ Turn the locking pin 180° until it audibly clicks into place. This locks the tool holder . The rounded side of the locking pin points upwards. Check that the chisel / is properly locked in place by pulling it. The system has radial play because of the design. NOTE ► If the locking pin cannot be locked into position, this means that the chisel / is not in the correct position. Move the machine into a vertical position and then press the chisel / towards the floor. You can now rotate the locking pin . Removing the chisel WARNING! RISK OF INJURY! ► The chisel can become very hot during opera- tion. Allow the chisel to cool down after use and always wear protective gloves when you are removing the chisel. Pull out the locking pin and lock it into position so that it does not block the tool holder . The flat side of the locking pin must point upwards to open the tool holder . ♦ Pull the chisel / out of the tool holder . Use WARNING! RISK OF INJURY! ► The chisel can jam during use and this can transfer powerful forces into the handle. Always ensure that you are standing securely and have a firm grip during operation. ► Ensure that the appliance is switched off before plugging it in. WARNING! ► Before every use, check whether there is enough grease in the appliance (see section "Greasing"). Operation without grease will cause irrepa- rable damage to the appliance. ► Before operating the appliance, check whether there is enough oil in the appliance (see section "Checking the oil level"). Opera- tion without sufficient oil will cause irrepara- ble damage to the appliance. ► Do not apply excessive pressure when working with the appliance. This reduces the performance and puts added strain on the motor.PAH 1700 A1

 19 ■ Switching on and off During operation, you can choose between instan- taneous and continuous operation. Switching to instantaneous operation: ♦ Press the ON/OFF switch

Switching off instantaneous operation: ♦ Release the ON/OFF switch

Switching to continuous operation: ♦ Press the ON/OFF switch and lock it in this position with the locking switch . Switching off continuous operation: ♦ Press the ON/OFF switch and release it again. Maintenance and cleaning WARNING! RISK OF INJURY! Switch off the appliance and pull out the power plug before starting any work on the appliance. ■ The handles, ventilation slots and the motor housing must always be kept clean, dry and free from oil or grease. ■ Use a soft, dry cloth to clean the housing. ■ Make sure that the ventilation slits are not obstructed. ■ Clean the tool holder regularly: ♦ Before fitting a tool into the tool holder

grease it lightly. WARNING! ► If the cord of the power tool is damaged, it must be replaced with a specially designed cord that can be purchased through our Customer Service. NOTE ► Replacement parts not listed (such as switch- es) can be ordered via our service hotline. Topping up the oil NOTE ► Before operating the appliance, check whether there is enough oil in the appliance (see section "Checking the oil level"). Operation without sufficient oil will cause irreparable damage to the appliance. If you have ascertained that there is no oil in the oil inspection window , you need top up the oil: ♦ Lay the appliance on a flat surface with the oil inspection window facing upwards. ♦ Use the supplied assembly wrench

remove the oil inspection window from the housing. ♦ Pour the oil with help from the oil bottle into the opening until it is 1 cm below the lip. ♦ Replace the oil inspection window and screw it tight using the assembly wrench . Check the fill level as described in the section “Checking the oil level”. Replacing the carbon brushes NOTE ► Have the carbon brushes replaced by the manufacturer, Customer Service or a similarly qualified person.PAH 1700 A1 ■ 20 

Disposal The packaging is made of environmentally friendly material and can be disposed of at your local recycling centres. Do not dispose of power tools in your normal domestic waste! European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner. Your local community or municipal authorities can provide information on how to dispose of the worn- out appliance. Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below. Warranty conditions The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase. If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is depend- ent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.PAH 1700 A1

 21 ■ Scope of the warranty This appliance has been manufactured in accordance with strict quality guidelines and inspected meticu- lously prior to delivery. The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres. Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase. ■ You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bot- tom of the appliance. ■ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. ■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com. Service Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: kompernass@lidl.co.uk Service Ireland Tel.: 1890 83,70 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: kompernass@lidl.ie IAN 298641 Importer Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

Translation of the original Conformity Declaration We, KOMPERNASS HANDELS GMBH, documents officer: Mr. Semi Uguzlu, BURGSTR. 21, DE - 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives: Machinery Directive (2006/42/EC) EMC (Electromagnetic Compatibility) (2014/30/EU) RoHS Directive (2011 / 65 / EU)*
