USER MANUAL 30.5050 TFA

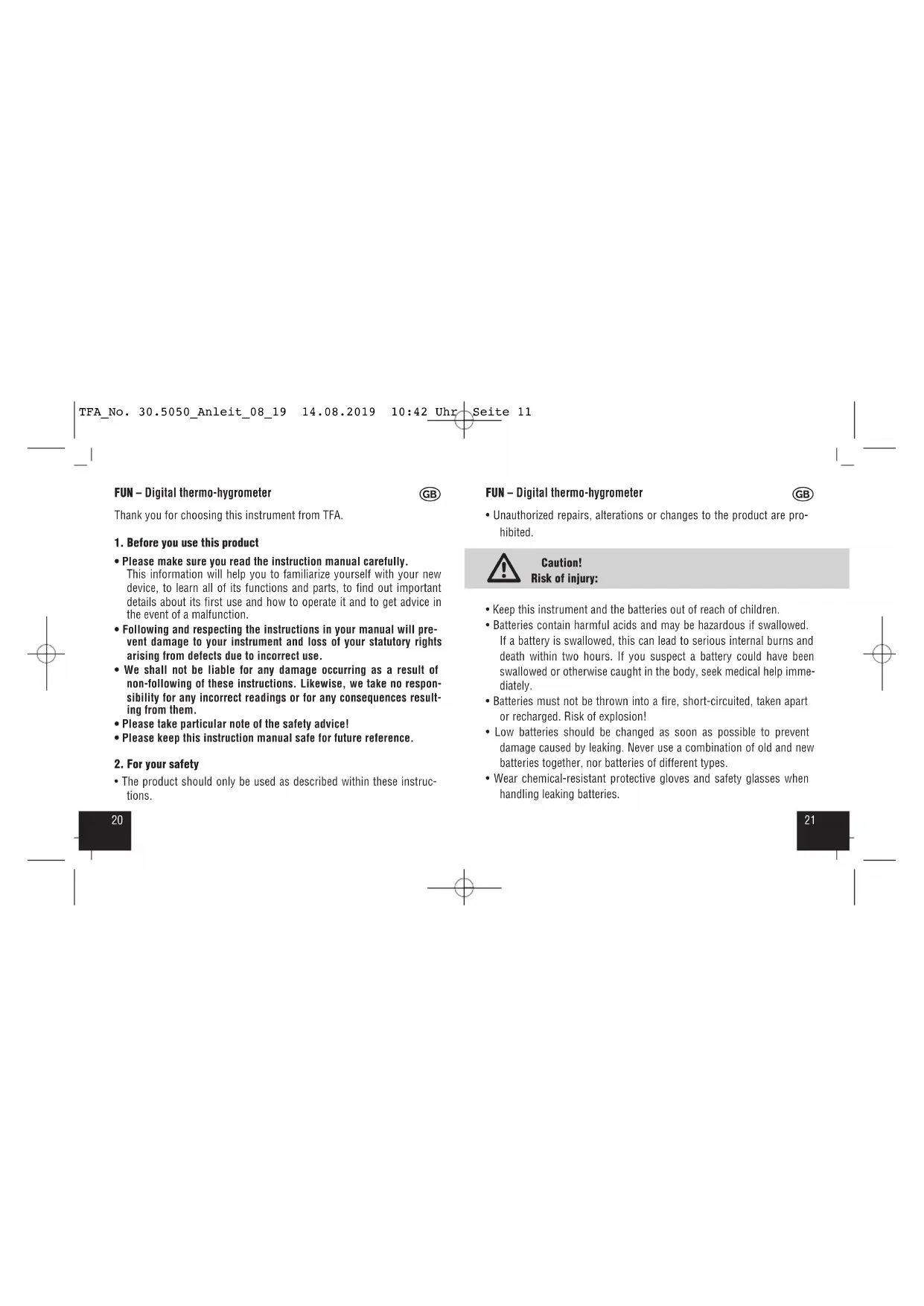

• Unauthorized repairs, alterations or changes to the product are pro- hibited. Caution! Risk of injury:

• Keep this instrument and the batteries out of reach of children.

• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help imme- diately.

• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!

• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types.

• Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries. Thank you for choosing this instrument from TFA.

1. Before you use this product

• Please make sure you read the instruction manual carefully. This information will help you to familiarize yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it and to get advice in the event of a malfunction.

• Following and respecting the instructions in your manual will pre- vent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.

• We shall not be liable for any damage occurring as a result of non-following of these instructions. Likewise, we take no respon- sibility for any incorrect readings or for any consequences result- ing from them.

• Please take particular note of the safety advice!

• Please keep this instruction manual safe for future reference.

C 1: Stand (fold out) C 2: Suspension device C 3: Battery compartment

• Remove the protective film from the display.

• Open the battery compartment and insert two new AAA 1.5 V batte- ries, polarity as illustrated.

• Close the battery compartment again.

• All segments will be displayed briefly.

• The device is ready for use.

4.1 Radio-controlled time reception

• The clock will now scan the DCF frequency signal and the DCF sym- bol will be flashing on the display. Important information on product safety!

• Do not expose the device to extreme temperatures, vibrations or shocks.

• Protect it from moisture.

Note on radio-controlled time The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bundesanstalt based in Braun- schweig (Brunswick), Germany. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via the frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Your radio clock receives the signal, converts it and always shows the exact time. The adjustment to Daylight Saving Time (summer/winter time) is auto- matic. The reception quality depends mainly on geographic location. Normally there should be no reception problems within a 1,500 km radius around Frankfurt. Therefore, please note the following steps:

• The recommended distance to any interfering sources like computer screens or TV sets is at least 1.5 - 2 meters.

• Within concrete walls (reinforced with steel) such as basements, the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve reception.

• All other information disappears from the display. During the DCF time reception period, no button can be pressed.

• When the time code is successfully received after 3-10 minutes, the radio-controlled time, the date and the DCF symbol will be shown steadily on the display.

• The indoor temperature, the humidity and the corresponding smiley symbol appear on the display.

• Interrupt the reception by pressing the SET button for 3 seconds.

• The DCF reception always takes place daily at 1:00, 2:00 and 3:00 o'clock in the morning. If the reception is not successfully received, another DCF reception will take place the next full hour (up to 2 times).

• You can also activate the DCF reception manually. Press the SET but- ton. The DCF reception symbol flashes.

• If the clock cannot detect the DCF-signal (e.g. due to interference, transmitting distance, etc.), the time can be set manually. The DCF reception symbol disappears and the clock will then work as a nor- mal quartz clock (see: Manual settings).

• Once the DCF time signal is successfully received and the DCF reception is activated (dcF ON), the manually set time is overwritten. TFA_No. 30.5050_Anleit_08_19 14.08.2019 10:42 Uhr Seite 132726 FUN – Digital thermo-hygrometer

• dCF on flashes. By default, the DCF reception is activated (on).

• Press the + button if you want to deactivate the DCF reception (OFF) or activate again (on).

• Confirm with the SET button.

• Once the DCF time reception is deactivated the clock must be manu- ally set. No time zone will appear.

5.3 Setting of the time zone

• The time zone correction is needed for countries where the DCF sig- nal can be received but the time zone is different from the DCF time (e.g. 1=one hour plus).

• Press + button to correct the hours for the DCF time (+3/-3).

5.4 Setting of the time and date

• Press the SET button to make the settings in the following sequence: Hours, minutes, year, month and day. Press + button to adjust it.

• Confirm with the SET button.

• During night-time, the atmospheric interference is usually less severe and reception is possible in most cases. A single daily recep- tion is adequate to keep the accuracy deviation under 1 second.

• The device will automatically quit the setting mode if no button is pressed for 20 seconds.

• Press and hold the + button in the respective setting mode for quick setting.

• Press and hold the SET button for 3 seconds to enter the setting mode.

5.1.1 Temperature unit setting

• °C flashes in the display.

• Press the + button to change between °C (Celsius) or °F (Fahrenheit) as temperature unit.

• Confirm with the SET button.

• Press the MIN/MAX button again, to go back to the display of the present values.

• The device will automatically quit the MIN/MAX mode if no button is pressed for 5 seconds.

• To clear the recorded maximum or minimum readings, press and hold the MIN/MAX button for three seconds while the maximum or minimum values are displayed.

• For the indication of the comfort level of the indoor climate on the display appears: Laughing face Ideal values 19...25°C 40...55% Neutral face 26...30°C 30...39% 56...60% Sad face ≤18°C, ≥31°C ≤ 29%, ≥61% Sad face DRY too dry ≤ 29%

5.5 Reset of the maximum-minimum values

• MIN MAX MANUAL flashes.

• Press the + button to select the automatic (AUTO) or manual (MANUAL) reset mode of the maximum-minimum values.

• Confirm with the SET button.

5.5.1 Manual reset mode

• The maximum and minimum values are only reset manually.

5.5.2 Automatic reset mode

• The maximum and minimum values are automatically reset at mid- night. Manual reset is also possible.

• MIN appears on the display.

• The minimum values measured since the last reset appear on the display.

• Press the MIN/MAX button again.

• MAX appears on the display.

• Open the battery compartment and insert two new AAA 1.5 V batter- ies, polarity as illustrated.

• Close the battery compartment again.

Problem Solution No display ➜ Ensure the batteries' polarities are correct ➜ Change the batteries No DCF reception ➜ Activate DCF reception in setting mode (On) ➜ Press the SET button to activate the DCF reception manually ➜ Choose another place for your product ➜ Wait for an attempt reception during the night ➜ Check if there is any source of interference Sad face WET too wet ≥61%

8. Positioning and fixing

• The device can be placed onto any flat surface with the foldable stand found at the back of the unit. Press firmly with both thumbs until the stand is properly locked in place and a click is heard.

• The device can be wall mounted at a chosen location by the mount- ing hole found at the back of the unit.

• Avoid radiators and direct sunshine.

9. Care and maintenance

• Clean the device with a soft damp cloth. Do not use solvents or scouring agents.

• Remove the batteries if the device will not be used for an extended period of time.

• Keep the device in a dry place.

9.1 Battery replacement

Please do not dispose of this product in ordinary house- hold waste. As a consumer, you are required to take end- of-life devices to a designated collection point for the dis- posal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

Power consumption: 2 x 1,5 V AAA batteries (not included) Measuring range - temperature 0 °C… +50 °C (+32…+122 °F) Accuracy ±1 °C Measuring range humidity: 10%... 99%RH Accuracy ±5 % @ 30…80 % Housing dimension 88 x 19 (44) x 88 mm Weight 68 g (device only) ➜ Restart the instrument according to the manual ➜ Set the clock manually Incorrect indication ➜ Change the batteries

This product has been manufactured using high-grade materials and components which can be recycled and reused. Never dispose of empty batteries and rechargeable bat- teries with ordinary household waste. As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment. The symbols for the contained heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). TFA_No. 30.5050_Anleit_08_19 14.08.2019 10:42 Uhr Seite 173534 FUN – Digital thermo-hygrometer
