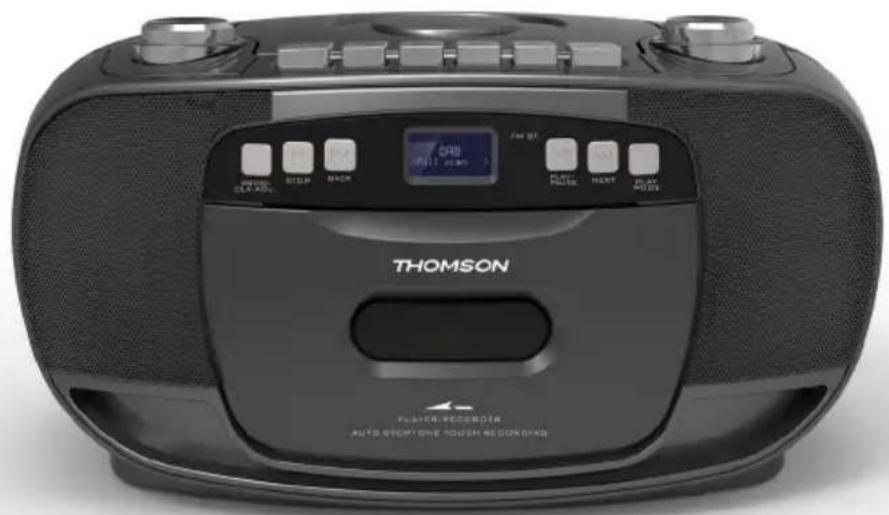

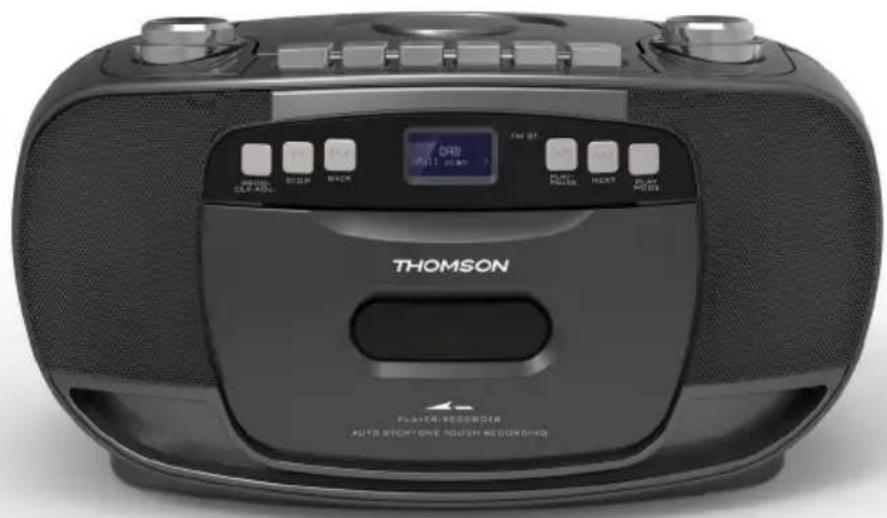

| Product Type | Hi-Fi system with CD player, cassette, DAB/FM radio and Bluetooth connectivity |
| Model | RK200DABCD |
| Brand | Thomson |

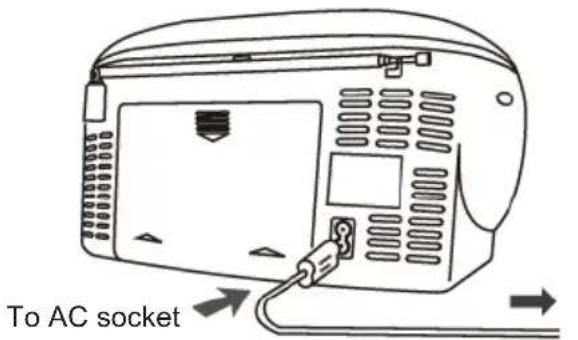

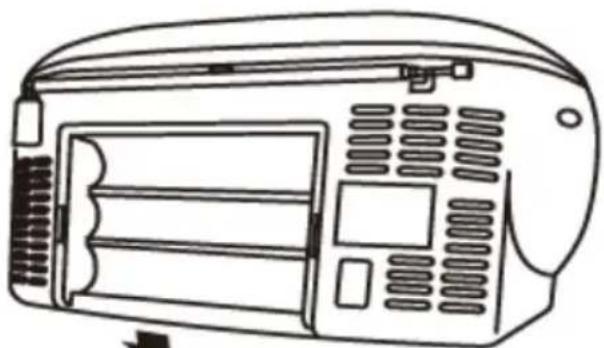

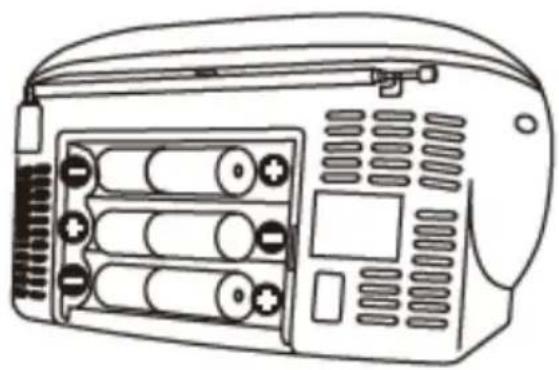

| Power supply | 230 V AC ~ 50 Hz, 0.3 A; also compatible with 6 UM-2 (C size) batteries |
| Radio frequency range | FM 88.8 – 108 MHz; DAB/DAB+ 174.829 – 239.200 MHz |
| Output power | 1.5 W x 2 (stereo) |
| Speaker impedance | 8 ohms |
| Main functions | CD playback (including MP3), audio cassette, DAB/FM radio, AUX input, Bluetooth |
| Advanced functions | Clock with alarm, alarm repeat, auto/manual tuning, track programming, repeat play |
| Bluetooth range | Up to 10 meters |
| Display | LCD display showing information (title, frequency, time, etc.) |
| Antenna | Telescopic antenna for DAB/FM |
| Cassette playback | Playback, recording and erasing |
| Auto standby | Yes, after 10 minutes of inactivity (no operation or audio source) |
| Backup batteries | 6 UM-2 (C size) batteries not included |
| Care and cleaning | Unplug before cleaning; use a soft damp cloth; do not use abrasive products |
| Safety | Do not expose to water, naked flames or excessive heat; maintain at least 10 cm ventilation around the device; do not ingest batteries |
| Spare parts and repairability | Contact Thomson after-sales service (support.thomson@bigben.fr); repair by qualified personnel only |
| General information | Made in China by Bigben Interactive SA – EU Declaration of Conformity available at www.bigben.fr/support |
Frequently Asked Questions - RK200DABCD THOMSON
How to set the clock on the Thomson RK200DABCD hi-fi system?
Put the device in standby, then press the CLOCK button. Follow the on-screen instructions to set the 12/24h format, hour, minutes, year, month and day. Confirm each step with the CONFIRM button.
Can I set the alarm to wake up to the radio?
Yes. In standby mode, press the ALARM button. Select alarm 1 or 2, set the time, volume (0-30), then choose the source: CD, DAB, FM or buzzer. Confirm each step with CONFIRM.

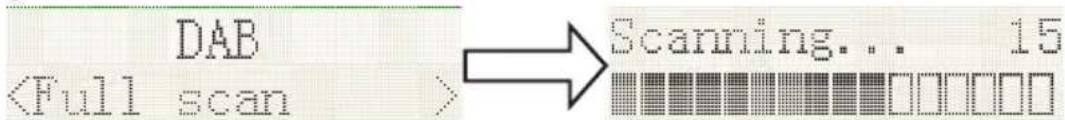

How to automatically search for DAB radio stations?
Make sure the telescopic antenna is extended. Turn on the device and select DAB mode (FUNCTION button). Start an automatic scan by pressing CONFIRM. The progress bar indicates the search.
Is it possible to play MP3 files on a CD?
Yes, the system supports MP3 CD playback. Insert the disc, close the compartment, playback starts automatically. Use the PREVIOUS/NEXT buttons to navigate between tracks.
How to program the playback order of tracks on a CD?
In CD stop mode, press PROG. The screen shows 'P 01'. Select the desired track with the PREVIOUS/NEXT buttons, then press PROG to confirm. Repeat for up to 20 tracks. Press PLAY to start programmed playback.
Can I connect a smartphone via Bluetooth?
Yes, the system has built-in Bluetooth. Select Bluetooth mode (via the FUNCTION button) and pair your phone. The range is about 10 meters. In case of an incoming call, playback pauses automatically.
How to record an audio cassette?
Insert a blank cassette. Press PAUSE, then RECORD. Select the source (CD or Radio) with the FUNCTION button. Release pause to start recording. Press STOP to finish.
What to do if the radio finds no stations?

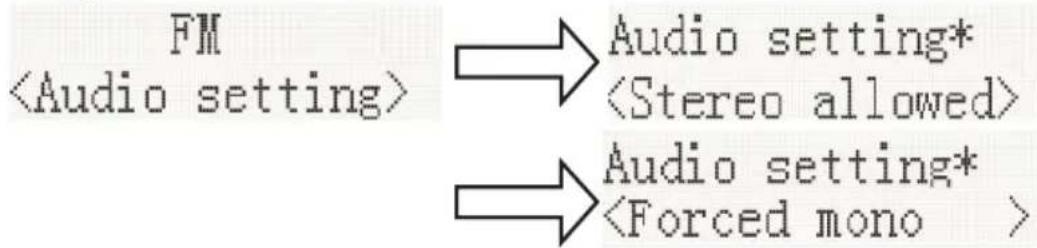

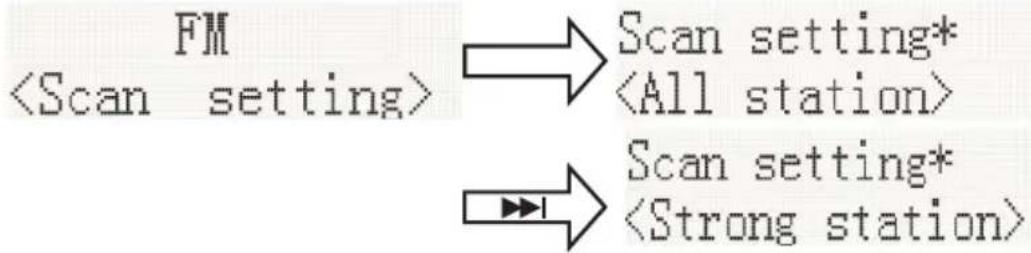

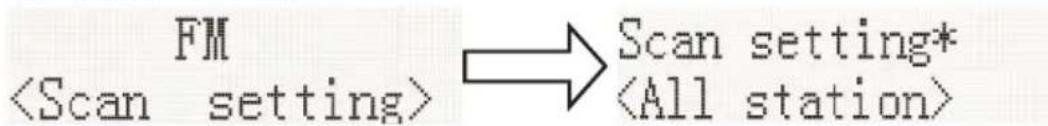

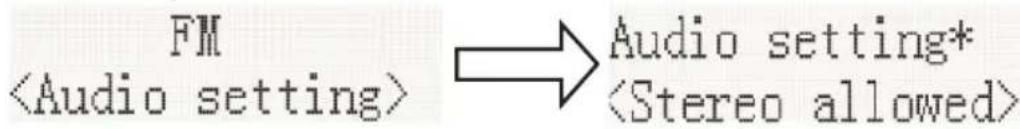

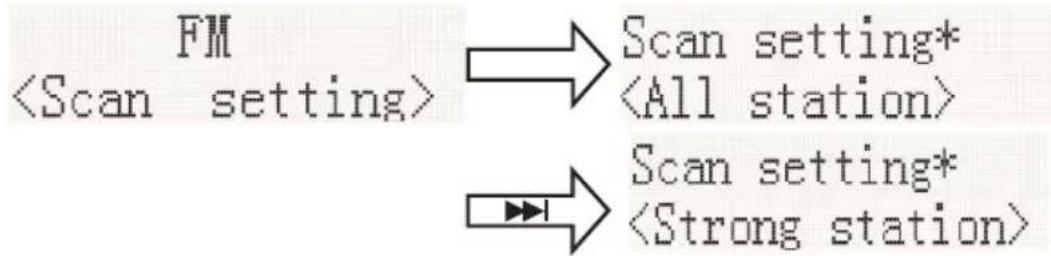

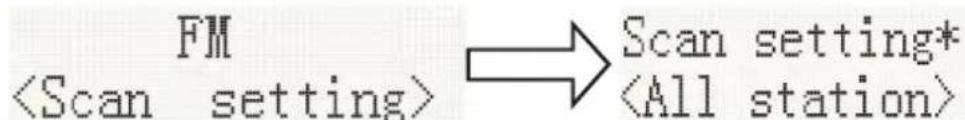

Check that the telescopic antenna is fully extended. Try a different location to improve reception. Perform a new automatic scan. In FM, adjust sensitivity in the menu (all stations or strong stations).
How to stop repeat play of a CD track?
Press the REPEAT button several times until 'REPEAT OFF' appears on the screen for about 2 seconds. Normal playback resumes.
What to do in case of a malfunction?
First consult the full manual (available at notice-facile.com). If the problem persists, contact Thomson after-sales service by phone (09 69 32 59 62, toll-free call) or by email at support.thomson@bigben.fr.
