Product Type	GPS Multimedia Car Stereo
Brand	Kenwood
Model	DNX775RVS
Screen Size	6.95 inches (diagonal) – 156.6 x 81.6 mm
Screen Resolution	800 x 480 pixels (1,152,000 pixels)
Dimensions (without sleeve)	178 x 100 x 160 mm
Dimensions (with sleeve)	182 x 112 x 163 mm
Weight	2.5 kg
Operating Voltage	14.4 V (10.5 – 16 V allowed)
Maximum Current Consumption	15 A
Maximum Audio Output Power	50 W x 4 (front/rear)
Typical Output Power	22 W x 4
Speaker Impedance	4 – 8 Ω
Preamp Level	4 V / 10 kΩ
Bluetooth	Version 3.0, profiles HFP, A2DP, AVRCP, PBAP, SPP
Navigation	High-sensitivity GPS, cold start ~29 seconds
Supported Audio Formats	MP3, WMA, AAC, WAV, FLAC, Vorbis, DSD
Supported Video Formats	MPEG-1/2, H.264, WMV, MKV
Connections	2 USB ports (1.5 A each), AV input, video output, camera, GPS antenna
Operating Temperature	-10 °C to +60 °C
Maintenance and Cleaning	Wipe with a soft dry cloth; do not use solvents or volatile products
Safety	Do not insert metallic objects; do not look at the screen while driving
Spare Parts and Repairability	Contact an authorized Kenwood dealer for any parts or repairs

Frequently Asked Questions - DNX775RVS KENWOOD

How to turn on the device?

Press the HOME button to turn on the device. To turn it off, hold HOME for 1 second.

How to connect a phone via Bluetooth?

Go to SETUP > Bluetooth to register your phone. Enable Bluetooth on the phone, search for the device (named DNX775RVS) and confirm pairing.

How to use Apple CarPlay?

Connect your iPhone to the black USB port using the KCA-iP103 cable (optional). Touch the Apple CarPlay icon on the source selection screen to start.

What to do if the screen does not turn on?

Check the fuse and vehicle power (ACC or ON position). If the problem persists, consult an authorized Kenwood dealer.

How to clean the screen?

Use a soft dry cloth (like a silicone cloth). Never use solvents, alcohol, or direct sprays that could damage the screen.

Can I play DVDs?

Yes, the device plays Video DVDs, VCDs, and Audio CDs. Insert the disc into the slot after opening the panel by pressing the ▲ button and then DISC EJECT.

How to set the clock?

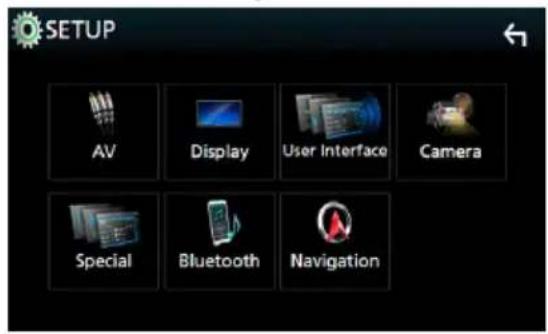

Press MENU then touch SETUP > User Interface. Select Clock and choose Manual or NAV-SYNC (GPS synchronization) to set the time.

What to do if GPS cannot find the position?

Make sure the vehicle is outside, away from tall buildings or trees. The first acquisition may take a few minutes. Once signals are received, subsequent acquisitions will be faster.

How to update navigation maps?

Visit www.garmin.com/kenwood to purchase an updated map. Follow the on-screen instructions to download and install the update to an SD card.

How to reset the device?

There is no reset button. You can disconnect the vehicle battery for a few minutes, but this will erase settings. For persistent issues, contact an authorized Kenwood dealer.

USER MANUAL DNX775RVS KENWOOD

[Locale]

REMARQUE

Simple line drawing of a hand cursor clicking a button (no text or symbols)

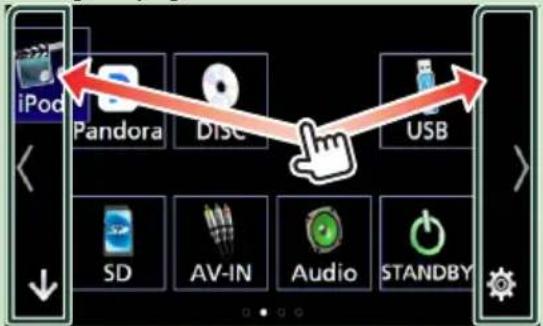

●Toucher longuement

Change la page

1

[NAV Mute]

[NAV Interrupt Speaker]

KENWOOD Traffic Powered By INRIX

Technical line drawing of a CD or DVD drive showing internal components and an arrow indicating motion (no text or symbols present)

Scenic coastal landscape with framed photos of islands and sea, numbered 6 and 7 to 8 (no text or symbols on the landscape itself)

[SETUP] (DVD uniquement)

[PBC] (VCD uniquement)

Active/Désactive Playback control/Commande de lecture (PBC).

[Audio] (VCD uniquement)

1 CODEC / [ ]

La lecture commence.

Disque

Coastal landscape with green plants and ocean in the background under a partly cloudy sky (no text or symbols visible)

Coastal landscape with green plants and ocean background under cloudy sky (no text or symbols)

■Menu Language] / [Subtitle Language] / [Audio Language]

■[Dynamic Range Control]

[Menu Language], [Subtitle Language], [Audio Language].

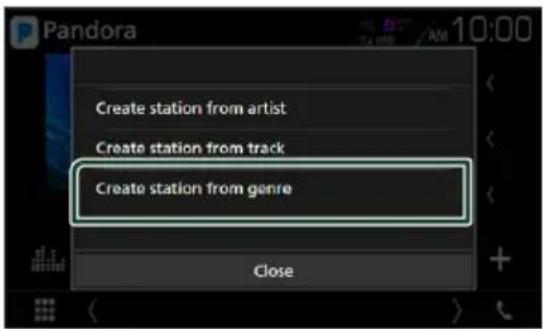

1 Touchez [Create station from genre].

Line drawing of a USB connector with an inserted port (no text or symbols)

Diagram of a device with an open lid and a rectangular component inserted, showing no text or symbols.

Scenic coastal landscape with green foliage, distant ocean, and two framed boxes labeled 8 and 9 (no text or symbols on the main scene)

REMARQUE

REMARQUE

[TI] (FM uniquement)

REMARQUE

REMARQUE

2 Touchez [Traffic & Weather].

[Jump]

REMARQUE

REMARQUE

REMARQUE

REMARQUE

[√ All]

REMARQUE

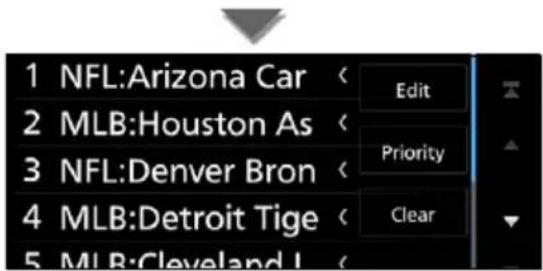

[Edit]

3 Touchez [Done].

REMARQUE

[TEL (HFP) 1], [TEL (HFP) 2]

La lecture commence.

REMARQUE

REMARQUE

REMARQUE

■[Add number from phonebook]

[Bluetooth HF/Audio]

[Noise Reduction Level]

[Rear Camera Interruption]

[Rear Camera Settings]

[Parking Guidelines]

[Front Camera Mirror Image]

2 Touchez [Screen Adjustment].

[Parking Assist Display]

[Parking Assist Position]

■ [Touch Panel Adjust]

REMARQUE

[Audio SETUP Memory]

[Audio SETUP Recall]

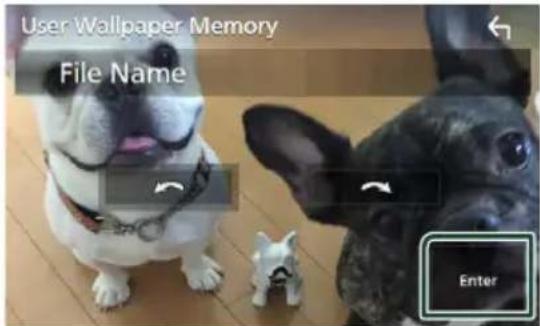

[Wallpaper Customize]

[User]

3 Touchez [Enter].

[Speaker]

[HPF FREQ]

Contrôle de l'audio

[Fader / Balance]

REMARQUE

Décalage du volume

[Zone Select]

[Front Source] [Rear Source]

[Bass Boost]

"OFF", "Low" (Bas), "High" (Haut)

[Drive Equalizer+]

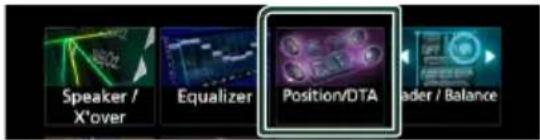

3 Touchez [Position/DTA].

4 Touchez [Level].

[Sound Image LR (Front)]

[Sound Image LR (Rear)]

Diagram of a handheld device with battery, switch, and internal components (no text or symbols)

Top-down schematic of a mechanical or electronic device layout with no visible text, numbers, or symbols.

Ventilateur

Pure electrical circuit lines without any symbols

Antenne Bluetooth

Diagram showing a rectangular box being inserted into a rectangular frame, with an arrow indicating the direction of insertion (no text or symbols present)

Antenne GPS

REMARQUE

Diagram showing light rays interacting with a rectangular object, with an inset illustrating the right-hand rule (no text or symbols present)

Technical line drawing of a mechanical component with alignment tools (no text or symbols)

Illustration of hands using a tool to adjust or install a rectangular object (no text or symbols visible)

REMARQUE

Line drawing of a hand holding a rectangular device with mounting brackets (no text or symbols)

Technical illustration of a mechanical component with threaded end and cylindrical shaft (no text or symbols)

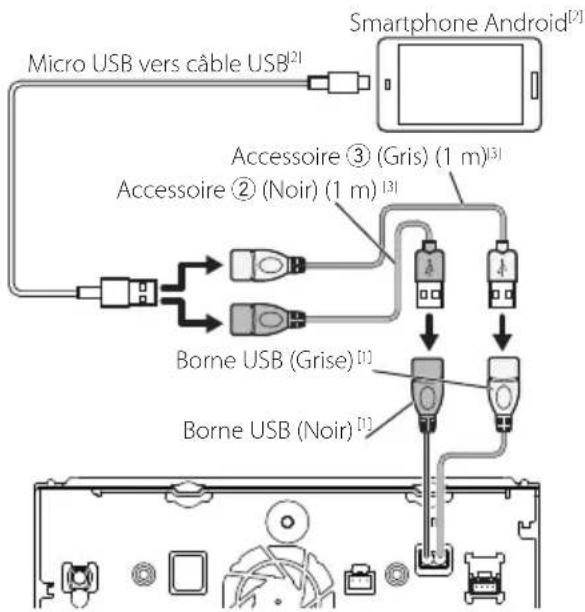

Connector un smartphone roid
