Regulatory Notice

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

A. Do not attempt to operate this microwave oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
B. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on the sealing surface.
C. Do not operate the microwave oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the:

1) Door (bent),
2) Hinges and latches, (broken or loosened),
3) Door seals and sealing surface.

D. The microwave oven should not be adjusted or repaired by anyone except properly qualified service personnel.

1. FCC Notice

CAUTION

FCC CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of FCC Rules. Operation is Subject to following two conditions:

1) This device may not cause harmful interference, and
2) This device must accept any interference received including interference that cause undesired operation.

For products sold in the US and Canadian markets, only channels 1\~11 are available. You cannot select any other channels.

FCC STATEMENT:

This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

Regulatory Notice

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorienting or relocating the receiving antenna
  • Increasing the separation between the equipment and receiver
• Connecting the equipment to an outlet that is on a different circuit than the radio or TV
• Consulting the dealer or an experienced radio/TV technician for help.

FCC RADIATION EXPOSURE STATEMENT:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter.

2. IC Notice

The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003. For products sold in the US and Canadian markets, only channels 1\~11 are available. You cannot select any other channels.

IC RADIATION EXPOSURE STATEMENT:

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter.

ContentsContents

Important safety instructions 5

Introducing your new oven 19

Overview 19 What's included with your oven 19

Before you begin 20

Energy saving tips 20 Turntable (For microwave oven) 20 Water reservoir 21

Basic operations 22

Control panel 22 Setting the temperature 22 Control lockout 23 Kitchen timer 23

Microwave oven (Upper Oven) 26

Setting the power level 26 Timed cooking 26 Microwave 27 Power convection 28 Broil 28 Speed power convection 29 Speed broil 29 Auto cook 30 Defrost 33 Sensor cook 34 Fit choice 38 Slim fry 41 Power auto cook 42

Oven (Lower Oven) 44 Timed cooking 44 Delay start 44 Using the temp probe 45 Twin cooking mode temperature setting ranges 47 Oven functions 48 Using the healthy cook feature 54 Using the gourmet cook feature 56 Using the smart control feature (Lower oven only) 57 Using the oven racks 58 Using the gliding rack 60 Using the divider 61 Using the clean feature 61 Settings 68 Using the Sabbath feature 70

Maintaining your appliance 71 Care and cleaning of the oven 71 Removing the oven door (Lower oven only) 73 Replacing the oven door (Lower oven only) 74 Changing the oven light (Lower oven only) 75

Troubleshooting 76 Control Display 76 For the Microwave Oven 76 For the Lower Oven 79 Information codes 82

Warranty (U.S.A) 83 Warranty (CANADA) 84 Appendix 86 Open Source Announcement 86

4 English

Important safety instructions

Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or damage when using the oven. This guide does not cover all possible conditions that may occur. Always contact your service agent or the manufacturer about problems that you do not understand.

WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS

Warnings and important safety instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your oven.

Important safety symbols and precautions

What the icons and signs in this user manual mean:

WARNING

Hazards or unsafe practices that may result in severe personal injury or death.

CAUTION

Hazards or unsafe practices that may result in minor personal injury or property damage.

CAUTION

To reduce the risk of fire, explosion, electric shock, or personal injury when using your oven, follow these basic safety precautions.

Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
☐ Call a Samsung service center for help.
Note

These warning signs are here to prevent injury to you and others. Please follow them explicitly.

After reading this section, keep it in a safe place for future reference.

SAVE THESE INSTRUCTIONS

English 5

Important safety instructions (Microwave Oven)

CALIFORNIA PROPOSITION 65 WARNING

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

WARNING

To reduce risk of burns, electric shock, fire, personal injury or exposure to excessive microwave energy:

1. Read all safety instructions before using the appliance.
2. Read and follow the specific "Precautions to avoid possible exposure to excessive microwave energy" on page 2.
3. This appliance must be grounded. Connect only to properly grounded outlets. See Important "Grounding instructions" on page 7 of this manual.
4. Install or locate this appliance only in accordance with the provided installation instructions.
5. Some products such as whole eggs and sealed containers (for example, closed glass jars) can explode if heated rapidly. Never heat them in a microwave oven.
6. Use this appliance only for its intended use as described in the manual. Do not put corrosive chemicals or vapors in or on this appliance. This type of microwave oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.
7. As with any appliance, close supervision is necessary when it is used by children. Keep children away from the door when opening or closing it as they may bump themselves on the door or catch their fingers in the door.

8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.

9. This appliance should be repaired or serviced only by qualified service personnel. Contact the nearest authorized service facility for examination, repair, or adjustment.

10. Do not cover or block any openings in the appliance.
11. Do not tamper with or make any adjustments or repairs to the door.
12. Do not store this appliance outdoors. Do not use this product near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.
13. Do not immerse the cord or plug in water.
14. Keep the cord away from heated surfaces (including the back of the oven).
15. Do not let the cord hang over edge of table or counter.
16. When cleaning surfaces of the door and oven that come together when the door closes, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth. Unplug the plug before cleaning the unit.
17. To reduce the risk of fire in the oven cavity:
18. Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
19. Remove wire twist ties from paper or plastic bags before placing the bags in the oven.
20. If materials inside the oven ignite, keep the oven door closed, turn the oven off, and disconnect the power cord, or shut off the power at the fuse or circuit breaker panel. If the door is opened, the fire may spread.
21. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.

SAVE THESE INSTRUCTIONS

6 English

1. Liquids, such as water, milk, coffee, or tea can be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury:
2. Do not overheat liquid.
3. Stir liquid both before and halfway through heating it.
4. Do not use straight-sided containers with narrow necks.
5. After heating, let containers with liquid stand in the microwave oven for a short time before removing.
6. Use extreme care when inserting a spoon or other utensil into a container holding liquid.
7. Oversized foods or oversized metal utensils should not be inserted into the microwave oven as they may create a fire or electric shock.
8. Do not clean with metal scouring pads. Pieces can burn off the pad and touch electrical parts creating a risk of electric shock.
9. Do not store any materials, other than manufacturer's recommended accessories, in this microwave oven when not in use.
10. Do not cover the racks or any other part of the microwave oven with metal foil. This will cause overheating of the oven.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electrical current. This appliance is equipped with a cord that includes a grounding wire and a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING

Improper use of the grounding plug can result in a risk of electric shock.

• Plug into a grounded 3 prong outlet. Do not remove the third (grounding) prong. Do not use an adaptor or otherwise defeat the grounding plug.
• Consult a qualified electrician or service person if you do not understand the grounding instructions or if you are not sure if the appliance is properly grounded.
• We do not recommend using an extension cord with this appliance. If the power-supply cord is too short, have a qualified electrician or serviceman install an outlet near the appliance. However, if it is necessary to use an extension cord, read and follow the "Use of Extension Cords" section below.

USE OF EXTENSION CORDS

A short power supply cord is provided to reduce the risk of your becoming entangled in or tripping over a longer cord. Longer cord sets or extension cords are available and you can use them if you exercise care. If you use a long cord or extension cord:

1. The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
2. The extension cord must be a grounding-type 3-wire cord and it must be plugged into a 3-slot outlet.
3. The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over accidentally. If you use an extension cord, the interior light may flicker and the speed of the blower may vary when the microwave oven is on. Cooking times may be longer too.

SAVE THESE INSTRUCTIONS

English 7

Important safety instructions (Oven)

FOR YOUR SAFETY

When using electrical appliances, you should follow basic safety precautions, including the following:

CAUTION

• Use this appliance only for its intended purpose as described in this Owner's Manual.
• Potentially hot surfaces include the oven vent opening, surfaces near the opening, and crevices around the oven door.
  Proper Installation - Be sure your appliance is properly installed and grounded by a qualified technician.
  User servicing - Do not repair or replace any part of the appliance unless specifically recommended in this manual. All other servicing should be referred to a qualified technician.
  Always disconnect the power to the appliance before servicing by removing the fuse or switching off the circuit breaker.

Do not enter the oven.

• Do not leave children alone. Never leave children alone or unattended in an area where this appliance is in use. They should never be allowed to sit or stand on any part of the appliance.
• Never use your appliance for warming or heating the room.
• Do not use water on grease fires. Turn off the oven to avoid spreading the flames. Smother the fire or flames by closing the door or use a dry chemical, baking soda, or foam-type extinguisher.
• Avoid scratching or striking the glass doors and the control panel. Doing so may lead to glass breakage. Do not cook on a product with broken glass. Shock, fire, or cuts may occur.

SAVE THESE INSTRUCTIONS

8 English

• If there is a fire in the oven during self-cleaning, turn the oven off and wait for the fire to go out. Do not force the door open. The introduction of fresh air at self-cleaning temperatures may lead to a burst of flame from the oven. Failure to follow these instructions may result in severe burns.
• If the oven is heavily soiled with oil, self-clean the oven before using the oven again. Leaving the oil in place creates a risk of fire.
• Wipe up heavy soil on the oven bottom with a paper tower or rag before self-cleaning. Self-cleaning the oven when there is heavy soil on the oven bottom requires longer cleaning cycles and produces more smoke.
  • Storage in or on the appliance. Do not store flammable materials in the oven or near the surface units. Be sure all packing materials are removed from the appliance before operating it. Keep plastics, clothes, and paper away from parts of the appliance that may become hot.
• Wear proper apparel. Never wear loose-fitting or hanging garments while using the appliance.

• Use only dry potholders. Placing moist or damp potholders on hot surfaces may result in burns from steam. Do not let the potholder touch hot heating elements. Do not use a towel or other bulky cloth instead of a potholder.
• Teach children not to play with the controls or any other part of the oven.
• For your safety, do not use high-pressure water cleaners or steam jet cleaners to clean any part of the oven.
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid creating a hazard.
• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

SAVE THESE INSTRUCTIONS

English 9

Important safety instructions (Oven)

ELECTRICAL SAFETY

• Use only the factory installed flexible power cord to connect to the power supply. Do not use a 3rd party power supply cord kit.
• The appliance should be serviced only by qualified service personnel. Repairs carried out by unqualified individuals may cause injury or a serious malfunction. If your appliance is in need of repair, contact a Samsung authorized service center. Failure to follow these instructions may result in damage and void the warranty.
• Flush - mounted appliances may be operated only after they have been installed in cabinets and workplaces that conform to the relevant standards. This ensures that the appliances are installed in compliance with the appropriate safety standards.

• If your appliance malfunctions or if fractures, cracks, or splits appear:

• Switch off the oven.

• Unplug the oven from the AC wall outlet.
• Contact your local Samsung service center.

WARNING

- Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

CHILD SAFETY

WARNING

• This appliance is not intended for use by young children or infirm persons without the adequate supervision of a responsible adult.
• Young children should be supervised to ensure that they do not play with the appliance.
• Keep children away from the door when opening or closing it as they may bump themselves on the door or catch their fingers in the door.
• During self-cleaning, the surfaces may get hotter than usual. Keep small children away from the oven when it is in the self-cleaning mode.

WARNING

Accessible parts may become hot during use. To avoid burns, young children should be kept away.

SAVE THESE INSTRUCTIONS

10 English

OVEN

- DO NOT TOUCH THE HEATING ELEMENTS OR INTERIOR SURFACES OF THE OVEN. Heating elements may be hot even though they are dark in color. Interior surfaces of an oven become hot enough to cause burns. During and after use, do not touch or let clothing or other flammable materials contact the heating elements or interior surfaces of the oven until they have had sufficient time to cool. Other surfaces of the appliance may become hot enough to cause burns. Among these surfaces are oven vent openings and surfaces near these openings, the oven door, and the window of the oven door.

• Do not heat unopened food containers. The build-up of pressure may cause the container to burst and result in injury.
• Do not use the oven to dry newspapers. If overheated, newspapers can catch fire.
• Do not use the oven for a storage area. Items stored in an oven can ignite.

• Use care when opening the door. Let hot air or steam escape before you remove food from or put food into the oven.
- Protective liners. Do not use aluminum foil to line the oven bottoms, except as suggested in this manual. Improper installation of these liners may result in a risk of electric shock or fire.
- Placement of oven racks. Always place oven racks in the desired location while the oven is cool. If the rack must be moved while the oven is hot, use potholders. Do not let the potholders come in contact with the hot heating element in the oven.
- Do not allow aluminum foil or a meat probe to contact the heating elements.
• During use, the appliance becomes hot.
Care should be taken to avoid touching heating elements inside the oven.
- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass. They can scratch the surface which may result in the glass shattering.

SAVE THESE INSTRUCTIONS

English 11

Important safety instructions (Oven)

CAUTION

Do not attempt to operate the oven during a power failure.

If the power fails, always turn the oven off. If the oven is not turned off and the power returns, the oven may begin to operate again. Food left unattended could catch fire or spoil.

SELF-CLEANING OVENS

Do not clean the door gasket. The door gasket is essential for a good seal. Care should be taken not to rub, damage, or move the gasket.
- Never keep pet birds in the kitchen. Birds are extremely sensitive to the fumes released during an oven self-clean cycle. Fumes may be harmful or fatal to birds. Move birds to a well-ventilated room.
- Clean only the parts listed in this manual in the self-clean cycle. Before self-cleaning the oven, remove the partition, rack, utensils, and any food.
- Before operating the self-clean cycle, wipe grease and food soils from the oven. Excessive amounts of grease may ignite, leading to smoke damage to your home.

Do not use any commercial oven cleaner or oven liner protective coating of any kind in or on the outside of the oven.

• Remove the nickel oven shelves from the oven before you begin the self-cleaning cycle or they may discolor.
• If the self-cleaning mode malfunctions, turn the oven off and disconnect the power supply. Have it serviced by a qualified technician.
• Excess spillage must be removed before you run the self-cleaning cycle.

VENTILATING HOOD

- Clean ventilating hoods frequently. Do not let grease accumulate on the hood or filter.

• When flaming foods under the hood, turn the fan on.

SAVE THESE INSTRUCTIONS

12 English

CRITICAL INSTALLATION WARNINGS

WARNING

This appliance must be installed by a qualified technician or service company.
- Failing to have a qualified technician install the oven may result in electric shock, fire, an explosion, problems with the product, or injury.
- Unpack the oven, remove all packaging material and examine the oven for any damage such as dents on the interior or exterior of the oven, broken door latches, cracks in the door, or a door that is not lined up correctly. If there is any damage, do not operate the oven and notify your dealer immediately.
- Keep all packaging materials out of the reach of children. Children may use them for play and injure themselves.
• This appliance must be properly grounded.
- Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
- This may result in electric shock, fire, an explosion, or problems with the product

• Do not cut or remove the ground prong from the power cord under any circumstances.
• Connect the oven to a circuit that provides the correct amperage.
• Do not install this appliance in a humid, oily or dusty location, or in a location exposed to direct sunlight or water (rain drops).
  This may result in electric shock or fire.
• Do not use a damaged power cord or loose wall socket.
• This may result in electric shock or fire.
• Do not pull or excessively bend the power cord.
• Do not twist or tie the power cord.
• Do not hook the power cord over a metal object, place a heavy object on the power cord, or insert the power cord between objects.
  This may result in electric shock or fire.
  If the power cord is damaged, contact your nearest Samsung service center.

SAVE THESE INSTRUCTIONS

English 13

Important safety instructions (Oven)

CRITICAL USAGE WARNING

CAUTION

• If the appliance is flooded by any liquid, please contact your nearest Samsung service center. Failing to do so may result in electric shock or fire.
• If the appliance produces a strange noise, a burning smell, or smoke, unplug the power plug immediately and contact your nearest Samsung service center.

- Failing to do so may result in electric shock or fire

- In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate the area immediately. Do not touch the power cord. Do not touch the appliance.

A spark may result in an explosion or fire.
• Take care not to contact the oven door, heating elements, or any of the other hot parts with your body while cooking or just after cooking.
- Failing to do so may result in burns.
- If materials inside the oven should ignite, keep the oven door closed, turn the oven off and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. If the door is opened, the fire may spread.

SAVE THESE INSTRUCTIONS

14 English

• Always observe safety precautions when using your oven. Never try to repair the oven on your own - there is dangerous voltage inside. If the oven needs to be repaired, contact an authorized Samsung service center near you.
• If you use the appliance when it is contaminated by foreign substances such as food waste, it may result in a problem with the appliance.
  Take care when removing the wrapping from food taken out of the appliance.

If the food is hot, hot steam may be emitted abruptly when you remove the wrapping and this may result in burns.

- Do not attempt to repair, disassemble, or modify the appliance yourself.

Since a high voltage current enters the product chassis, it may result in electric shock or fire.
When a repair is needed, contact your nearest Samsung service center.

- If any foreign substance such as water has entered the appliance, contact your nearest Samsung service center.

Failing to do so may result in electric shock or fire.

- Do not touch the power cord with wet hands.

- This may result in electric shock.

- Do not turn the appliance off while an operation is in progress.

- This may cause a spark and result in electric shock or fire.

- Do not let children or any person with reduced physical, sensory, or mental capabilities use this appliance unsupervised.

- Make sure that the appliance's controls and cooking areas are out of the reach of children.

- Failing to do so may result in electric shock, burns, or injury.

- Do not touch the inside of the appliance immediately after cooking. The inside of the appliance will be hot.

- Failing to do so may result in burns.

- Do not use or place flammable sprays or objects near the oven.

- Flammable items or sprays can cause fires or an explosion.

- Do not insert fingers, foreign substances, or metal objects such as pins or needles into inlets, outlets, or holes. If foreign substances are inserted into any of these holes, contact your product provider or nearest Samsung service center.

- Do not tamper with or make any adjustments or repairs to the door. Under no circumstances should you remove the door or outer shell of the oven.

- Do not store or use the oven outdoors.

- Never use this appliance for purposes other than cooking. - Using the appliance for any purpose other than cooking may result in fire.

- Open the cap or stopper of sealed containers (herb tonic tea bottle, baby bottle, milk bottle and so on) before heating them. Make a hole in food items that have shells (eggs, chestnuts, etc) with a knife before cooking them.

- Failing to do so may result in burns or injury.

- Never heat plastic or paper containers and do not use them for cooking.

- Failing to do so may result in fire.

SAVE THESE INSTRUCTIONS

English 15

Important safety instructions (Oven)

- Do not heat food wrapped in paper from magazines, newspapers, etc.

- This may result in fire.

- Do not open the door when the food in the oven is burning.

- If you open the door, it causes an inflow of oxygen and may cause the food to ignite.

- Do not apply excessive pressure to the door or the inside of the appliance. Do not strike the door or the inside or the appliance.

- Hanging on to the door may result in the product falling and cause serious injury.

- If the door is damaged, do not use the appliance. Contact a Samsung service center.

- Do not hold food in your bare hands during or immediately after cooking.

- Use cooking gloves. The food may be very hot and you could burn yourself.

- As the handle and oven surfaces may be hot enough to cause burns after cooking, use cooking gloves to protect your hands from burns.

USAGE CAUTIONS

CAUTION

- If the surface is cracked, turn the appliance off. - Failing to do so may result in electric shock

• Dishes and containers can become hot. Handle with care.

- Hot foods and steam can cause burns. Carefully remove container coverings, directing the steam away your hands and face.

- Remove lids from baby food jars before heating. After heating baby food, stir well to distribute the heat evenly. Always test the temperature by tasting before feeding the baby. The glass jar or the surface of the food may appear to be cooler than the interior, which can be hot enough to burn an infant's mouth.

• Take care as beverages or food may be very hot after heating.

Especially when feeding a child, make sure the food or beverage has cooled sufficiently.

SAVE THESE INSTRUCTIONS

16 English

• Take care when heating liquids such as water or other beverages.

• Make sure to stir during or after cooking.
• Avoid using a slippery container with a narrow neck.
• Wait at least 30 seconds after heating before removing the heated liquid.
• Failing to do so may result in an abrupt overflow of the contents and cause burns.

- Do not stand on top of the appliance or place objects (such as laundry, an oven cover, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.

Items, such as a cloth, may get caught in the door.

- This may result in electric shock, fire, problems with the product, or injury.

• Do not operate the appliance with wet hands.
• This may result in electric shock.
• Do not spray volatile substances such as insecticide onto the surface of the appliance.
• As well as being harmful to humans, it may also result in electric shock, fire, or problems with the product.

- Do not put your face or body close to the appliance while cooking or when opening the door just after cooking.

• Take care that children do not come too close to the appliance.
• Failing to do so may result in children burning themselves.

- Do not place food or heavy objects over the edge of the oven door.

- If you open the door, the food or object may fall and this may result in burns or injury.

• Do not abruptly cool the door, the inside of the appliance, or a dish by pouring water over it during or just after cooking.
• This may result in damage to the appliance. The steam or water spray may result in burns or injury.
• Do not operate while empty except for self-cleaning.
• Do not defrost frozen beverages in narrow-necked bottles. The bottles can break.
• Do not scratch the glass of the oven door with a sharp object.
• This may result in the glass being damaged or broken.
• Do not store anything directly on top of the appliance when it is in operation.

SAVE THESE INSTRUCTIONS

English 17

Important safety instructions (Oven)

• Do not use sealed containers. Remove seals and lids before cooking. Sealed containers can explode due to the build up of pressure even after the oven has been turned off.
• Take care that food you are cooking in the oven does not come into contact with the heating element.
• This may result in fire.
• Do not over-heat food.
• Overheating food may result in fire.
• Use caution when opening or closing the door. Your fingers may be pinched, resulting in physical injury.
• The door has wires at the bottom for connecting LED lights. Be careful not to pull or cut the wires when handling the door.

CRITICAL CLEANING WARNINGS

CAUTION

• Do not clean the appliance by spraying water directly on to it.
• Do not use benzene, thinner, or alcohol to clean the appliance.
  This may result in discoloration, deformation, damage, electric shock, or fire.
  • Take care not to hurt yourself when cleaning the appliance (externally or internally).
  You may hurt yourself on the sharp edges of the appliance.
• Do not clean the appliance with a steam cleaner.
  This may result in corrosion.
• Keep the inside of the oven clean. Food particles or spattered oils stuck to the oven walls or floor can cause paint damage and reduce the efficiency of the oven.

SAVE THESE INSTRUCTIONS

18 English

Introducing your new oven

Overview

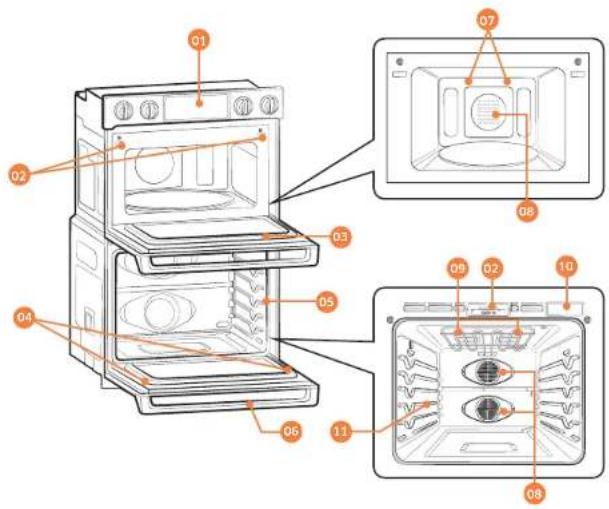

Labeled diagram of an oven with numbered parts for identification and assembly reference.

01 Control panel
02 Door latch
03 MWO door
04 Door LED light
05 Oven gasket
06 Oven door
07 LED lamp
08 Convection fan
09 Halogen lamp*
10 Water reservoir 11 Shelf position

What's included with your oven

This oven ships with different kinds of accessories that help you cook what you want.

Accessories for oven

Wire racks (2)* Gliding rack (1)* Divider (1)*

Temp probe (1)*

Wire racks	Use these racks in the lower oven when baking and broiling.
Gliding rack	The fully extendable Gliding Rack makes food preparation casier, especially when you are preparing heavier dishes.
Divider	Use the Divider to divide the lower oven into two cavities so you can cook two different items at the same time.
Temp probe	The Temp probe lets you cook meat to the exact internal temperature you want, taking the guess work out of determining whether a piece of meat is done or not.

Introducing your new oven

Accessories for microwave

Roller ring* Turntable* Hot plate*

Low rack* High rack*

Roller ring Put in the center of the base. It supports the turntable.

Turntable Put on the roller ring with the center fitting of the coupler. It serves as a cooking base.

Racks Use one of these racks as appropriate to cook two dishes simultaneously. A smaller dish on the turntable, and the other on the selected rack. You can use these racks with Broil or Convection function.NOTEDo not use wire racks with Microwave mode except where specifically noted in this manual.

Hot plate Put on the turntable. Use this to brown food, or to keep pastries or pizza crisp.

NOTE

• Do not use the turntable without the roller ring.
• If you need an accessory marked with a *, you can buy it from the Samsung Contact Center (1-800-726-7864).

Before you begin

Before using the top and bottom ovens for the first time, remove all the accessories, and then clean the ovens thoroughly. Then, set the lower oven to Bake, and run it at 400°F for 1 hour. Next, set the microwave (top) oven to Power Convection, and then run it at 400°F for 1 hour. There will be a distinctive odor. This is normal. Ensure your kitchen is well ventilated during this conditioning period.

Energy saving tips

• During cooking, the oven door should remain closed except when you turn food over. Do not open the door frequently during cooking to maintain the oven temperature and to save energy.
• If cooking time is more than 30 minutes, you can switch the oven off 5-10 minutes before the end of the cooking time to save energy. The residual heat will complete the cooking process.
  • To save energy and reduce the time needed for re-heating the oven, plan oven use to avoid turning the oven off between cooking one item and the next.
  • Whenever possible, cook more than one item at a time.

Turntable (For microwave oven)

Simple line drawing of a circular object on a stand with an orange arrow indicating direction (no text or symbols)

Remove all packing materials inside the oven. Install the roller ring and turntable. Check that the turntable rotates freely.

20 English

Water reservoir

The water reservoir is used for the Steam Bake, Steam Roast and Hybrid Clean functions and also to remove water scale that may form on the oven walls, especially after Steam Baking, Steam Roasting, and Hybrid cleaning. Fill it with water in advance of steam cooking or descaling.

Illustration of a hand using a tool to adjust a small orange box on a cabinet (no text or symbols visible)

1. Locate the water reservoir. The water reservoir is on the right side of the oven, just above the oven opening. Touch Reservoir ☐ in the control panel. The oven ejects the water reservoir. Grasp the front of the reservoir, and then slide it out to remove.

Illustration of a hand pouring liquid into a circular tank on a surface (no text or symbols)

1. Open the reservoir cap, and then fill the reservoir with 22 oz. (650 ml) of drinkable water.

NOTE

You can open the reservoir by removing the rubber cap or by removing the clear plastic top.

Illustration of a hand inserting a wooden block into a refrigerator (no text or symbols)

1. Replace the cap or the clear plastic top, and then slide the water reservoir back into the reservoir slot.
2. Push the reservoir in. There will be soft click when it is in place correctly. Touch Reservoir ☐The oven retracts the water reservoir.
3. Close the oven door.

Max 0.51 0.30

NOTE

Do not exceed the max line.

Diagram of a mechanical component with a circular hole and labeled section A (no text or symbols beyond labels)

NOTE

Make sure the cap and the upper portion of the water reservoir (labeled A) are closed before using the oven.

CAUTION

The water reservoir becomes hot during cooking. Make sure you wear oven gloves to remove or refill the water reservoir.

Basic operations

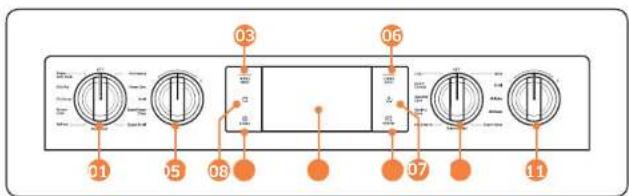

Control panel

01 05 08 03 06 07 11

01 Upper Mode Knob: Use to select the mode of the upper Microwave Oven.
02 Temperature Knob: Use to set the temperature for the upper Microwave oven.
03 Microwave: Use to display the upper Microwave oven mode screen on the display. Touching here does not turn the oven on or off. It only displays its current status.
04 Timer ☎: Use to display the set Timer screen.
05 Settings and Control Lockout: Use to display the Setting screen. If you touch and hold this key for 3 seconds, all oven functions will be disabled.
06 Lower Oven: Use to display the lower oven mode screen on the display. Touching here does not turn the oven on or off. It only displays its current status.
07 Lamp ☐: Use to turn the oven light on or off.
08 Reservoir ☐: Touch to open the water reservoir.
09 Display: Swipe to navigate through the menus and tap to select a desired setting.
10 Lower Mode Knob: Use to select the mode of the lower Oven.
11 Temperature Knob: Use to set the temperature for the lower oven.

NOTE

If you tap the display while wearing plastic or oven gloves, the display will not operate properly. Take the gloves off first, and then tap with a bare finger.

Setting the temperature

This oven provides two methods to set the temperature.

Temperature knob

• Use the Temperature Knob on the left or right side of the control panel to set the temperature for the upper Microwave oven and the lower oven respectively. For the upper oven, you can use this knob in Power Convection and Speed Power Convection features. For the lower oven, you can use this knob in Bake, Convection Bake, Convection Roast, Steam Bake and Steam Roast features.
• Turn the appropriate knob clockwise (+) or counterclockwise (-) and then release. The temperature will rise or fall by 5 °F.
• To change the temperature quickly by more than 5 °F, turn and hold the knob at the + or - position.

English

Numeric pad

Control lockout

Control Lockout lets you lock the buttons on the touch pad so they cannot be activated accidentally. Control Lock locks only the lower oven door so it cannot be opened. You can only activate Control Lockout when the oven is in standby mode.

How to activate the control lockkout feature

1. Cancel or turn off all functions.

2. Touch Control Lockout for 3 seconds.

3. The display will change to the control lock screen and the control lock confirmation will appear at the bottom of the screen.

NOTE

- Control Lockout is available only when the oven temperature is under 400 °F. - All other functions must be cancelled before you activate Control Lockout.

How to unlock the controls

Touch Control Lockout for 3 seconds. The control lock confirmation and the lock icon will disappear from the display.

It may take up to 10 seconds for the doors to unlock.

Kitchen timer

The kitchen timer serves as an extra timer that will beep when the set time has elapsed. It does not start or stop cooking functions. You can use the kitchen timer with any of the other oven functions. You can set 10 timers maximum simultaneously. Each timer will count down independently of all the other active timers.

How to set the timer

1. Touch Timer

The display will change to the timer screen.

1. Tap + Add timer.

After you have performed Steps 1 to 5, you can return to Step 2 and set additional timers. You can also name timers so you can identify them separately. See page 24.

English 23

Basic operations

How to change the timer name

1. Tap the numbers in the numeric pad to set the timer. (You can set the timer for any amount of time from 1 sec to 23 hr 59 min 59 sec).

2. Tap OK.

3. Tap START.
   When the set time has elapsed, the oven will beep and the display will show the Timer has finished.

4. You can pause, reset, or delete the timer at any time by tapping the screen.

You can change the timer name to identify what you are timing, for example, a chicken defrosting.

1. Tap the timer name area.
   • The keyboard appears.
2. Enter the new timer name, and then tap OK.
   • The display shows the changed timer name.

Minimum and maximum settings

Upper microwave oven

All the features listed in the table below have minimum and maximum time, temperatures, and power level settings.

Turn the Upper Microwave oven mode knob to select the cooking mode. Set the temperature or microwave power level using the Upper Microwave oven knob or the numeric pad. See Setting the Temperature on pages 22 and Basic Baking and Broiling Instructions starting on page 51.

Feature		Temp./Power range	Default Temp./Power	Max. time
Manual mode	Microwave	10-100%	100%	1 Hr. 30 min.
		The microwave energy enables food to be cooked or reheated without changing either the form or the color.
	Power Convection	100-450°F(40-230°C)	350°F	2 Hr.
		Power Convection is similar to Convection mode. However, the heating elements generate stronger heat and distribute stronger air currents inside the oven. This is designed to cook food faster while keeping or improving the taste.
	Broil			1 Hr. 30 min.
		Use this for grilling food such as meat.

24 English

Feature		Temp./Power range	Default Temp./Power	Max. time
Manual mode	Speed Power Conv.	100-450 °F(40-230 °C)10-70%	350 °F30%	1 Hr. 30 min.
		The heating elements generate heat and the convection fan distributes the heat inside the oven, which is reinforced by microwave energy.
	Speed Broil	10-70% 30%	1 Hr. 30 min.
		The heating elements generate heat, which is reinforced by microwave energy.
Auto mode	Auto Cook	For cooking beginners, the oven offers a total of 29 auto cooking programs.
	Defrost	The oven offers 4 defrosting programs for your convenience.
	Sensor Cook	The 16 Sensor Cooking features provide pre-programmed cooking times.You do not need to set either the cooking times or the power levels.
	Fit Choice	The Fit Choice menu contains pre set cooking programs for 26 different items. You do not need to set the cooking times or the power levels.

Feature		Temp./Power range	Default Temp./Power	Max. time
Auto mode	Slim Fry	You don't need to set either the cooking time or power level. You can adjust the slim fry cook category as shown in this manual (see page 41). You will use less oil compared to frying with an oil fryer and feel much healthier as you reduce the use of oil.
	Power Auto Cook	To accommodate first-time users of the Power Convection mode, the oven offers 15 auto programs.

O = Available = Not Available

To use the twin mode functionality of the lower oven, you must insert the divider into the lower oven and divide it into an upper and lower compartment. See page 61.
“ A blank means that a factory set temperature is applied for the best performance. You cannot adjust this temperature.

Microwave oven (Upper Oven) Microwave oven (Upper Oven)

Setting the power level

Timed cooking

In timed cooking mode, the oven turns on immediately and cooks for the length of time you select.

At the end of the cooking time, the oven turns off automatically.

- You can use the timed cooking feature only with another cooking operation. (Microwave, Power Convection, Broil, Speed Power Convection, Speed Broil).

How to set the oven for timed cooking

Microwave Ohr 0min 00sec

1. Turn the upper Oven Mode knob to the cooking operation you want.
2. Tap Cook Time. The display will change to the cooking time screen.

• Tap the Power Level area.
- Flick the screen or tap the wheel picker to set the power level. If you tap the wheel picker, the numeric pad will appear:
• Tap the Power Level area.
- Flick the screen or tap the wheel picker to set the power level. If you tap the wheel picker, the numeric pad will appear:

1. Tap numbers in the numeric pad to set the cooking time.

1. Tap OK. The cooking time screen closes.

1. The cooking time is displayed in the Cook Time area on the screen.
2. Tap START to start cooking.
3. If you want to pause cooking, tap PAUSE. In PAUSE, you can cancel or continue cooking by tapping CANCEL COOKING or CONTINUE.

NOTE

See pages 51 through 52 for basic baking and broiling instructions.

CAUTION

Use caution with the timed cooking features. You can use these features to cook cured or frozen meats and most fruits and vegetables.

For food that can easily spoil, such as milk, eggs, and unfrozen or fresh fish, meat, or poultry, chill them in the refrigerator first.

Even when chilled, they should not stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when cooking is completed. Eating spoiled food can result in sickness from food poisoning.

26 English

Microwave

Microwaves are high-frequency electromagnetic waves that can be used to cook or reheat food without changing either the form or color of the food.

1. Put food in a microwave safe container, and then place the container in the center of the turntable. Close the door.
2. Turn the Upper mode knob to select Microwave.
3. Tap Power Level, and then, flick the screen or tap the wheel picker to set the power level. If you tap the wheel picker, the numeric pad will appear.

1. Tap Cook Time, and then use the number pad to input a desired cook time. You can also use the +30SEC button to specify the cooking time.

1. Tap START to start cooking.
2. If you want to pause cooking, tap PAUSE. In PAUSE, you can cancel or continue cooking by tapping CANCEL COOKING or CONTINUE.

CAUTION

• Use only microwave-safe cookware.
• Use oven gloves when taking out food.

Power level

100% (High) 50% (Medium)
90% (Sauté) 40% (Medium low)
80% (Reheat) 30% (Low)
70% (Medium high) 20% (Defrost)
60% (Simmer) 10% (Warm)

Microwave oven (Upper Oven)

Power convection

The heating elements generate heat, which is evenly distributed inside the oven by the convection fan. You can use a microwave rack or a combination of a rack and hot plate on the turntable. Use this mode for biscuits, individual scones, rolls, and cakes as well as fruit cakes, choux pastries, and souffles.

1. Put a rack or the combination of a rack and the hot plate on the turntable.
2. Turn the Upper mode knob to select Power Convection, and then tap the temperature area. If you tap the temperature area, the numeric pad will appear. You can input a desired temperature between 100°F and 450°F (default: 350°F).

To preheat, simply tap START.

Power Convection 350°

1. Tap Cook Time, and then use the number pad to specify a cooking time.

Power Convection Refer to the power descriptor 350° 2nd ed. Current State START

1. Tap START to start cooking.
2. If you want to pause cooking, tap PAUSE. In PAUSE, you can cancel or continue cooking by tapping CANCEL COOKING or CONTINUE.

CAUTION

• Use only microwave-safe cookware.
• Use oven gloves when taking out food.

Broil

For best performance, make sure all heating elements are in the horizontal position.

1. Put a rack or the combination of a rack and the hot plate on the turntable.
2. Turn the Upper mode knob to select Broil. If preheating is preferred, simply tap START.

You cannot set the temperature in Broil mode.

1. Tap Cook Time, and then use the number pad to specify a cooking time.

1. Tap START to start cooking.
2. If you want to pause cooking, tap PAUSE. In PAUSE, you can cancel or continue cooking by tapping CANCEL COOKING or CONTINUE

• Use only microwave safe cookware.
• Use oven gloves when taking out food.

Speed power convection

1. Put a rack or the combination of a rack and the hot plate on the turntable.
2. Turn the Upper mode knob to select Speed Power Convection, and then tap the temperature area. If you tap the temperature area, the numeric pad will appear. You can input a desired temperature between 100°F and 450°F (default: 350°F).

NOTE

To preheat, simply tap START.

Speed Power Conv. 0hr 0min 00sec Control STRAW A1826

1. Tap Power Level, and then flick the screen or tap the wheel picker to specify a power level between 10% and 70%. If you tap the wheel picker, the numeric pad appears.

1. Tap Cook Time, and then use the number pad to specify a cooking time. You can also use the +30SEC button to specify the cooking time.

Speed Power Conv. 0hr 10min 30sec

1. Tap START to start cooking.
2. If you want to pause cooking, tap PAUSE. In PAUSE, you can cancel or continue cooking by tapping CANCEL COOKING or CONTINUE

CAUTION

• Use only microwave-safe cookware.
• Use oven gloves when taking out food.

Speed broil

The heating elements generate heat, which is reinforced by the microwave energy.

1. Put a rack or the combination of a rack and the hot plate on the turntable.
2. Turn the Upper mode knob to select Speed broil.

NOTE

You cannot set the temperature in Speed broil mode.

Speed broil Ohr 00min 00sec

1. Tap Power Level, and then flick the screen or tap the wheel picker to specify a power level between 10% and 70%. If you tap the wheel picker, the numeric pad appears.

English 29

Microwave oven (Upper Oven)

Speed broil Refer to mode: 30 sec 0hr 10min 30sec

CAUTION

• Use only microwave-safe cookware.
• Use oven gloves when taking out food.

1. Tap Cook Time, and then use the number pad to specify a cooking time. You can also use the +30SEC button to specify the cooking time.

2. Tap START to start cooking.

3. If you want to pause cooking, tap PAUSE. In PAUSE, you can cancel or continue cooking by tapping CANCEL COOKING or CONTINUE.

Auto cook

The oven offers 29 different auto cook options for your convenience. You do not need to set either the cooking time or the power level. You can adjust the size of the serving.

1. Put the food in the center of the turntable and close the door.
2. Turn the Upper mode knob to select Auto Cook. The display will show the Speed Cook and Soften/Melt menus. Choose the menu you want, and then view the auto cook programs in the menu by scrolling the list. The two menus together provide 29 auto cook options.
3. Tap the Auto Cook option you want.

1. Tap the weight area to select the food weight screen.

1. Flick the screen to select the food weight.
2. Tap OK.

30 English

1. Tap START to start cooking.

2. If you want to pause cooking, tap PAUSE. In PAUSE, you can cancel or continue cooking by tapping CANCEL COOKING or CONTINUE.

CAUTION

• Use only microwave-safe cookware.
• Use oven gloves when taking out food.

Food Amount Instructions
Speed Cook
Bacon 2 ea	4 ea6 ea	Layer 2 paper towels on a microwave safe plate and arrange the bacon on the towels. Do not overlap bacon. Cover with an additional paper towel. Remove the paper towel immediately after cooking.
Hot Dog	2 ea4 ea	Pierce the hot dogs 3 times with a fork. Place the hot dogs on the hot plate, then place the plate on the low rack. When the microwave beeps, add the buns, and then press START to continue.
Oatmeal	1 pack2 packs	Follow the package directions for the recommended amount of water needed. Stir well before and afterwards.
Nachos	1 serving	Arrange the tortilla chips uniformly on a microwave safe plate, then place the plate on the high rack. Sprinkle evenly with cheese.Contents:4 to 5 oz. tortilla chips1⁄2 cup grated cheese

Food Amount Instructions
Baked Potato 2 ea	4 ea	Pierce the potatoes 3 times with a fork. Place the potatoes on the low rack. After cooking, let the potatoes stand for 3-5 minutes.
Brownie Mix 1 pack Pour the batter into an 8 x 8 inch microwave safe pan, then place the pan on the low rack.
Frozen Cookie Dough	8 ea Place 8 cookies on the hot plate, then place the plate on the low rack.
Box Cake Mix 1 pack Pour the batter into 8 inch microwave safe round cake pan. Place the pan on the low rack.
Marble Cake 1 ea Put the fresh dough into a microwave safe round cake pan. Put the dish on the low rack. After baking, let stand for 5-10 minutes.
Frozen Garlic Bread	6 ea Put frozen garlic bread on the hot plate, then place the plate on the low rack. When the microwave beeps, turn the bread over, and then press START to continue. After cooking, let stand for 1-2 minutes.

English 31

Microwave oven (Upper Oven)

Food Amount Instructions
Homemade lasagna	40 oz.	Ingredients:0.7 lb. minced beef, 2 tbsp olive oil, 8 oz, tomato sauce, 4 oz, beef stock, 8 lasagna sheets, 1 onion (chopped), organo, and basil to taste, 8 oz, grated mozzarella cheeseMethod:Sauce: Heat the oil in a frying pan, then cook the minced beef and chopped onion for about 10 min until browned all over. Combine with the tomato sauce and beef stock, add the dried herbs. Bring to a boil, and then simmer for 30 minutes. Cook lasagna noodles according to the package directions. Layer noodle, meat sauce, and cheese then repeat. Sprinkle the remaining cheese evenly on the top layer. Place the oven dish on the low rack. After cooking, let stand for 2-3 minutes.
Frozen Soft Pretzels	2 ea4 ea	Place the pretzels on the hot plate, then place the plate on the low rack.
Frozen Churros 2 ea	4 ea	Place the churros on the hot plate, then place the plate on the high rack.
Quesadilla 1 ea	2 ea	Follow the package preparation instructions. Place the Quesadilla on the hot plate, then place the plate on the low rack.
Toast Hawaii 4 ea	Toast the bread slices first. Put the toast with topping on the high rack. Let stand for 2-3 minutes.
Chicken Breast 0.75 lb.1.5 lbs.		Put chicken breast on the high rack. Let stand for 1-2 minutes.
Turkey Breast 0.75 lb.1.5 lbs.		Put turkey breast on the high rack. Let stand for 1-2 minutes.

Food Amount Instructions
White Fish Fillet	1 ea2 ca	Place the fillets (cod, pollack, etc.) on the hot plate, then place the plate on the high rack. Let stand for 1-2 minutes.
Meat Loaf 2.5 lbs. Ingredients:		112 lbs. ground beef, 1 egg, 1 onion (chopped), 1 cup milk, 1 cup dried bread crumbs, salt and pepper to taste.Method:In a large bowl, combine the beef, egg, onion, milk, and bread crumbs. Season with salt and pepper to taste, and then place in a lightly greased 5 x 9 inch loaf pan. Place the pan on the low rack.
Roast Beef 2.0 lbs.	3.0 lbs.	Place the roast beef on the low rack. When the microwave beeps, turn over the roast beef, and then restart the microwave. Brush the roast beef with oil and seasonings.
Whole Chicken 4.0 lbs.	5.0 lbs.	Brush the chicken oil and spices. Put breast side down in the middle of low rack. When the beep sounds, turn the chicken over using tongs, and then press the START to continue. After cooking, let stand for 2-3 minutes.

32 English

Food Amount Instructions
Soften/Melt
Melt Butter 0.25	lb. (1 stick)0.5 lb. (2 sticks)	Unwrap the butter and cut the butter into several pieces. Place the butter on a microwave safe dish and cover with wax paper. Stir well afterwards.
Soften Butter 0.25	lb. (1 stick)0.5 lb. (2 sticks)	Remove the butter from the packaging and place on a microwave safe dish.
Melt Chocolate	cup chips Place the chocolate chips in a microwave safe dish. When the microwave beeps, stir well, and then press START to continue.Unless stirred, the chocolate chips will keep their shape even when the heating time is over.
Soften Ice Cream	1 serving: 1 pint2 servings: 1.5 quarts	Remove the lid of the carton. Place the carton in the center of the microwave.
Soften Cream Cheese	4 oz.8 oz.	Unwrap the cream cheese and place on a microwave safe dish.
Melt Cheese 4 oz.	8 oz.	Place the cheese in a microwave safe bowl and cover with wax paper. Stir well afterwards.
Melt Marshmallows	5 oz.10 oz.	Place the marshmallows in a large microwave safe dish. Stir well afterwards.
Melt Caramel	4 oz.8 oz.	Place the caramel in a large microwave safe dish. Stir well afterwards.

Defrost

The oven provides 4 different defrosting options for your convenience. The time and power levels are automatically adjusted according to your selection.

1. Put food in suitable cookware, then put the cookware on the turntable and close the door.

2. Turn the Upper mode knob to select Defrost. The display will show 4 defrost options.

3. Tap the Defrost option you want.

1. Tap the weight area to select the food weight.

2. Flick the screen or tap the number to select the food weight. If you tap the number, the numeric pad appears.

3. Tap OK.

English 33

Microwave oven (Upper Oven)

1. Tap START to start defrosting.

2. If you want to pause defrosting, tap PAUSE. In PAUSE, you can cancel or continue defrosting by tapping CANCEL COOKING or CONTINUE.

CAUTION

• Use only microwave-safe cookware.
• Use oven gloves when taking out food.

Food Amount Instructions
Meat 0.1-3.5 lbs. Shield the edges with aluminium foil. Turn the meat over when the oven beeps. This program is suitable for lamb, pork, steaks, chops, and ground meat. For ground meat, place the meat directly on the turntable tray on wax paper. Do not use an extra tray. Let stand, covered with foil, for 5-10 minutes.
Poultry 0.1-3.5 lbs. Shield the leg and wing tips with aluminium foil. Turn the poultry over when the oven beeps. This program is suitable for whole chicken as well as for chicken portions.
Fish 0.1-3.5 lbs. Shield the tail of a whole fish with aluminium foil. Turn the fish over when the oven beeps. This program is suitable for whole fish as well as for fish fillets.
Bread 0.1-2.0 lbs. Place bread on a ceramic plate and if possible, turn over as soon as the oven beeps. This program is suitable for all kinds of bread, sliced or whole, as well as for bread rolls and baguettes. Arrange bread rolls in a circle.

Sensor cook

The oven offers 16 different sensor cook options for your convenience, which include pre-programmed cooking times. You do not need to set either the cooking time or the power level. Once you have selected a program and touched START, the oven automatically sets the cooking time and starts to cook. The gas sensing animation effect shows the status of the sensing process.

Sensor cook
Cupcoa	cucoua (cupcoa)
Culica	lucuca (culica)
Cana	dana (ana)
Ceratique	Pacal (ceratique)
Dinse yoloa	Dinse supergiora (yoloa)

1. Put the food in the center of the turntable and close the door.
2. Turn the Upper mode knob to select Sensor Cook. The display will show 16 sensor cook options. (You can scroll down through the list.)

MODEL NAME	Sensor cook
	Copper	Crude Cigarette
	Senna	Power Dish
	Cran	Methanol
	Term glass	Flue mineral
	Dr. on slide	3 inch pipe (1000 ft)

1. Tap the Sensor Cook option you want.

Popcorn (Microsoft Information) J&K 2016
	2748

1. Tap START to start cooking.
2. If you want to pause cooking, tap PAUSE. In PAUSE, you can cancel or continue cooking by tapping CANCEL COOKING or CONTINUE.

CAUTION

• Use only microwave-safe cookware.

• Use oven gloves when taking out food.

Food Amount Instructions
Popcorn	3.0 3.5 oz.1 package	Use only one microwave popcorn bag at a time.Be careful when removing the heated bag from the oven and when opening it.
Potato 1 to 5 ca	Pierce each potato several times witha fork. Place on the turntable in a spoke-like fashion. After cooking, let the potatoes stand for 3-5 minutes. Let the oven cool for at least 5 minutes before using it again.
Pizza 1 to 4 slices	Place 1 4 pizza slices on a microwave safe plate with the wide ends of the slices towards the outside edge of the plate. Do not let the slices overlap. Do not cover. Let the oven cool for at least 5 minutes before using it again.
Beverage 6 to 8 oz	Use a measuring cup or mug and do not cover. Place the beverage in the oven. After heating, stir well. Let the oven cool for at least 5 minutes before using it again.

Food Amount Instructions
Dinner Plate 1 serving Use only precooked, refrigerated foods.Cover the plate with vented (1 inch vent) plastic wrap or waxed paper tucked under the plate. If the food is not as hot as you would like after using the "Sensor" function, continue heating using additional time and power.Contents:3-4 oz. meat, poultry, or fish (up to 6 oz. with bone)1⁄2 cup starch (potatoes, pasta, rice, etc.)1⁄2 cup vegetables (about 3-4 oz.)
Casserole 1 to 4 servings Cover the plate with vented (1 inch vent) plastic wrap. If the food is not as hot as you would like after using the "Sensor" function, continue heating using additional time and power. Stir the food once before serving.Contents:Casseroles: refrigerated
Pasta	1 to 4 servings Cover the plate with vented (1 inch vent) plastic wrap. If the food is not as hot as you would like after using the "Sensor" function, continue heating using additional time and power. Stir the food once before serving.Contents:Pasta: canned spaghetti

Microwave oven (Upper Oven)

Food Amount Instructions
Soup 1 to 4 servings Cover the bowl with vented (1 inch vent) plastic wrap. If the soup is not as hot as you would like after using the "Sensor" function, continue heating using additional time and power. Stir the soup once before serving.Contents:Soup: refrigerated
Frozen Breakfast 4	to 8 oz. Use this button for frozen sandwiches, breakfast entrees, pancakes, waffles, etc. Follow the package instructions for covering and standing. Let the oven cool for at least 5 minutes before using it again.
Frozen Dinner 13 to 18 oz. Remove the food from its wrapping and follow the instructions on the box for covering and letting stand. Let the oven cool for at least 5 minutes before using it again.
Rice 1 to 2 cups Add 1 cup of cold water for 1 cup of rice. Use a large glass pyrex bowl. Cover with vented (1 inch vent) plastic wrap. Rice doubles in volume during cooking. After the cooking time is over, stir before standing time, and then salt or add herbs and butter.
Mini Ravioli 8 to 14 oz. Put mini ravioli evenly into a microwave safe glass bowl. Cover with vented (1 inch vent) plastic wrap. Let stand for 2-3 minutes. Stir the food once before serving.

Food Amount Instructions
Fresh Vegetables	1 to 4 servings	Place the fresh vegetables (broccoli florcts, cauliflower florcts, zucchini, Eggplants etc.) in a microwave safe ceramic, glass, or plastic dish and add 2-4 tbs. water. Cover with vented (1 inch vent) plastic wrap while cooking and stir before letting stand. Let the oven cool for at least 5 minutes before using it again.
Fresh Root Vegetables	1 to 4 servings	Place the fresh vegetables (carrots, leeks, potatoes, beet etc.) in a microwave safe ceramic, glass, or plastic dish and add 2-4 tbs. water. Cover with vented (1 inch vent) plastic wrap while cooking and stir before letting stand. Let the oven cool for at least 5 minutes before using it again.
Frozen Vegetables	1 to 4 servings	Place the frozen vegetables in a microwave safe ceramic, glass, or plastic dish and add 2-4 tbs. water. Cover with vented (1 inch vent) plastic wrap to cook. Stir before letting stand for 3-5 minutes. Let the oven cool for at least 5 minutes before using it again.
Canned Vegetables	1 to 4 servings	Place the canned vegetables in a microwave safe ceramic, glass, or plastic dish. Cover with vented (1 inch vent) plastic wrap while cooking and stir before letting stand. Let the oven cool for at least 5 minutes before using it again.

36 English

Auto sensor cooking instructions

The Auto Sensor cooks your food automatically by detecting the amount of gases generated from the food while it is cooking.

• When food is cooked, many kinds of gases are generated. The Auto Sensor determines the proper time and power level by detecting these gases, eliminating the need to set the cooking time and power level.
• When you cover a container with its lid or plastic wrap during Sensor Cooking, the Auto Sensor will detect the gases generated after the container has been saturated with steam.

NOTE

If using cling film or plastic wrap, leave a small opening (vent) near the edge of the dish for ventilation or pierce the plastic with a knife or fork in several places.

• Shortly before cooking ends, the remaining cooking time will begin its count down. This will be a good time for you to rotate or stir the food for even cooking if it is necessary.
• Before Auto Sensor cooking, food may be seasoned with herbs, spices, or browning sauces. A word of caution though: Salt or sugar may cause burn spots on food so these ingredients should be added after cooking.

Utensils & cover

• To obtain good cooking results with the Auto Sensor function, follow the directions for selecting appropriate containers and covers in the charts in this manual.
• Always use microwave-safe containers and cover them with their lids or with plastic wrap. When using plastic wrap, turn back one corner to allow steam to escape at the proper rate.
• Always cover your microwave safe dish or container with its matching lid. If the dish or container does not have its own lid, use plastic wrap.
  • Fill containers at least half full.
• Foods that require stirring or rotating should be stirred or turned toward the end of the Sensor Cook cycle, after the time has started to count down on the display.

CAUTION

• After installing the oven and plugging it into an electrical outlet, do not unplug the power cord for 24 hours. The gas sensor needs time to stabilize in order to cook satisfactorily.
• It is not advisable to use the Auto Sensor cooking feature continuously, i.e. one cooking operation immediately after another.
  • Install the oven in a well ventilated location for proper cooling and airflow and to ensure the sensor will operate accurately.
• To avoid poor results, do not use the Auto Sensor cooking function when the room ambient temperature is above 90 °F or below 45 °F.
• Do not use volatile detergent to clean your oven. Gas resulting from this detergent may affect the sensor.
• Avoid placing the oven near high moisture or gas emitting appliances, since this will interfere with the proper performance of the Auto Sensor.
  • Always keep the inside of the oven clean. Wipe all spills with a damp cloth. This oven is designed for household use only.

Microwave oven (Upper Oven)

Fit choice

1. Put the food in the center of the turntable and close the door.
2. Turn the Upper mode knob to select Fit Choice.

1. Tap to select Fit Choice cook. The display will show 4 different menus. These provide 26 Fit Choice cook options. (You can scroll down the list.)

1. Tap the serving area to display the servings of food screen.

1. Flick the number to select the number of servings.
2. Tap OK.

1. Tap START to start cooking.
2. If you want to pause cooking, tap PAUSE. In PAUSE, you can cancel or continue cooking by tapping CANCEL COOKING or CONTINUE.

CAUTION

• Use only microwave-safe cookware.
• Use oven gloves when taking out food.

Food Amount Instructions
Fresh Vegetables
Broccoli Florets	1 serving2 servings3 servings4 servings(1 serving = 4-5 oz.)	Wash and clean the broccoli. Prepare the florets and place in a microwave safe bowl. Add 1-4 tablespoons of water (1 Tbsp per serving). Cover during cooking and stir afterwards.
Cauliflower Florets	1 serving2 servings3 servings4 servings(1 serving = 4-5 oz.)	Wash and clean the cauliflower.Prepare the florets and place in a microwave safe bowl.Add 1-4 tablespoons of water (1 Tbsp per serving). Cover during cooking and stir afterwards.
Carrots 1 serving	2 servings3 servings4 servings(1 serving = 4-5 oz.)	Wash and clean the carrots. Cut the carrots into oven slices and place in a microwave safe bowl.Add 1-4 tablespoons of water (1 Tbsp per serving). Cover during cooking and stir afterwards.

38 English

Food Amount Instructions
Green Beans 1 serving2 servings3 servings4 servings(1 serving = 4-5 oz.)		Wash and clean the green beans.Place the green beans in a microwave safe bowl.Add 1-4 tablespoons of water (1 Tbsp per serving). Cover during cooking and stir afterwards.
Spinach 1 serving2 servings3 servings4 servings(1 serving = 4-5 oz.)		Wash and clean the spinach. Place the spinach in a microwave safe bowl.Add 1-4 tablespoons of water (1 Tbsp per serving). Cover during cooking and stir afterwards.
Zucchini 1 serving2 servings3 servings4 servings(1 serving = 4-5 oz.)		Wash and clean the zucchini. Cut zucchini into slices. Place the zucchini in a microwave safe bowl.Add 1-4 tablespoons of water (1 Tbsp per serving). Cover during cooking and stir afterwards.
Eggplants 1 serving2 servings3 servings4 servings(1 serving = 4-5 oz.)		Wash and clean the eggplants. Cut eggplants into slices. Place the eggplants in a microwave safe bowl and sprinkle with 1 Tbsp lemon juice.Add 1-4 tablespoons of water (1 Tbsp per serving). Cover during cooking and stir afterwards.
Potatoes 1 ea	2 ea3 ea4 ea	Pierce each potato several times with a fork. Place on the turntable in a spoke-like fashion. After cooking, let the potatoes stand for 3-5 minutes.

Food Amount Instructions
Frozen Vegetables
Broccoli Florets	1 serving2 servings3 servings4 servings(1 serving = 4-5 oz.)	Place the broccoli in a microwave safe bowl. Add 1-4 tablespoons of water (1 Tbsp per serving). Cover during cooking and stir afterwards.
Carrots 1 serving	2 servings3 servings4 servings(1 serving = 4-5 oz.)	Place the carrots in a microwave safe bowl. Add 1-4 tablespoons of water (1 Tbsp per serving). Cover during cooking and stir afterwards.
Corn 1 serving	2 servings3 servings4 servings(1 serving = 3-4 oz.)	Place the corn in a microwave safe bowl. Add 1-4 tablespoons of water (1 Tbsp per serving). Cover during cooking and stir afterwards.
Green Beans 1 serving	2 servings3 servings4 servings(1 serving = 4-5 oz.)	Place the green beans in a microwave safe bowl. Add 1-4 tablespoons of water (1 Tbsp per serving). Cover during cooking and stir afterwards.
Peas 1 serving	2 servings3 servings4 servings(1 serving = 3-4 oz.)	Place the peas in a microwave safe bowl. Add 1-4 tablespoons of water (1 Tbsp per serving). Cover during cooking and stir afterwards.
Mixed Vegetables	1 serving2 servings3 servings4 servings(1 serving = 4-5 oz.)	Place the mixed vegetables in a microwave safe bowl. Add 1-4 tablespoons of water (1 Tbsp per serving). Cover during cooking and stir afterwards.

Microwave oven (Upper Oven)

Food Amount Instructions
Canned Vegetables
Carrots 1 serving	2 servings3 servings4 servings(1 serving = 4-5 oz.)	Place the carrots in a microwave safe bowl. Cover during cooking and stir afterwards.
Corn 1 serving	2 servings3 servings4 servings(1 serving = 3-4 oz.)	Place the corn in a microwave safe bowl. Cover during cooking and stir afterwards.
Green Beans 1 serving	2 servings3 servings4 servings(1 serving = 4-5 oz.)	Place the green beans in a microwave safe bowl. Cover during cooking and stir afterwards.
Peas 1 serving	2 servings3 servings4 servings(1 serving = 3-4 oz.)	Place the peas in a microwave safe bowl. Cover during cooking and stir afterwards.
Spinach 1 serving	2 servings3 servings4 servings(1 serving = 4-5 oz.)	Place the spinach in a microwave safe bowl. Cover during cooking and stir afterwards.
Beans 1 serving	2 servings3 servings4 servings(1 serving = 4-5 oz.)	Place the beans in a microwave safe bowl. Cover during cooking and stir afterwards.

Food Amount Instructions
Grain
Oatmeal 1 pack	2 packs	Follow the package directions for the recommended amount of water needed. Stir well before cooking and afterwards.
Brown Rice 1 cup	2 cups	Add 1 cup of cold water for 1 cup of rice. Use a large glass bowl. Cover with vented (1 inch vent) plastic wrap. Rice doubles in volume during cooking. After the cooking time is over, stir before standing time, and then salt or add herbs and butter.
White Rice 1 cup	2 cups	Add 1 cup of cold water for 1 cup of rice. Use a large glass bowl. Cover with vented (1 inch vent) plastic wrap. Rice doubles in volume during cooking. After the cooking time is over, stir before standing time, and then salt or add herbs and butter.
Bulgur 1⁄2 cup	1 cup	Follow the package directions for the recommended amount of water needed. Stir well before cooking and fluff with a fork afterwards.
Quinoa 1 cup	2 cups	Follow the package directions for the recommended amount of water needed. Stir well before cooking and afterwards.
Whole Wheat Macaroni	1 cup2 cups	Follow the package directions for the recommended amount of water needed. Carefully remove from the microwave and drain the hot water.

40 English

Slim fry

Slim Fry
Dinner dry rolls	Dinner blue rolls
Dinner smooth ring ends	Dinner blue ring ends
Dinner smooth or bristle	Dinner blue
Dinner slice gridded	Dinner rolls
Dinner smooth edge	Dinner bagged

1. Put the food in the center of the turntable, and then close the door.
2. Turn the Upper mode knob to select Slim Fry.
3. Tap to select one of 10 different options.

4. Tap the weight area to select the food weight screen.

5. Flick the screen to select the food weight.

6. Tap OK.

7. Tap START to start cooking.

8. If you want to pause cooking, tap PAUSE. In PAUSE, you can cancel or continue cooking by tapping CANCEL COOKING or CONTINUE.

Food Amount Instructions
Frozen Onion Rings	8 oz.12 oz.	Place the onion rings on the hot plate, then place the plate on the high rack.
Frozen Potato Croquettes	8 oz.16 oz.	Place frozen potato croquettes on the hot plate, then place the plate on the high rack.
Frozen Prawns, Breaded	8 oz.12 oz.	Place frozen prawns on the hot plate, then place the plate on the high rack.
Frozen Mini Spring Rolls	8 oz.12 oz.	Place frozen mini spring rolls on the hot plate, then place the plate on the high rack.
Frozen Potato Wedges	12 oz.16 oz.	Place frozen potato wedges on the hot plate, then place the plate on the high rack.
Frozen Fish Cutlets	8 oz.12 oz.	Place frozen fish cutlets on the hot plate, then place the plate on the high rack.
Homemade French Fries	8 oz.12 oz.	Peel potatoes and cut into sticks with a thickness of .4 x .4 in (10 x 10 mm). Soak in cold water for 30-40 minutes. (Put some salt in the cold water for the osmotic pressure.) Dry potato sticks with a towel, and then brush with 1 tsp (5 g) oil. (Try to remove the moisture completely. Otherwise, the potatoes may get scorched and stick to the bottom of the tray.) Place them on the hot plate, then place the plate on the high rack.
Drumsticks 3 ca	6 ca	Rinse drumsticks and place them on the hot plate, then place the plate on the high rack. When the microwave beeps, turn over drumsticks, and then press START to continue.

CAUTION

• Use only microwave-safe cookware.
• Use oven gloves when taking out food.

Microwave oven (Upper Oven)

Food Amount Instructions
Chicken Wings 10	ca20 ea	Rinse chicken wings and place on the hot plate, then place the plate on the high rack.
Roasted Vegetables	8 oz.12 oz.	Cut eggplants, carrots, zucchini, and then brush them with 1 tsp (5 g) oil. Place sliced vegetables on the hot plate, then place the plate on the high rack.

Power auto cook

1. Put the food in the center of the turntable and close the door.
2. Turn the Upper mode knob to select Power Auto Cook
3. Tap to select one of 15 different options.

4. Tap the weight area to select the food weight screen.

5. Flick the screen to select the food weight.

1. Tap START to start cooking.
2. If you want to pause cooking, tap PAUSE. In PAUSE, you can cancel or continue cooking by tapping CANCEL COOKING or CONTINUE.

CAUTION

• Use only microwave-safe cookware.
• Use oven gloves when taking out food.

Food Amount Instructions
Bone-In Chicken Pieces	1.0 lb.2.0 lbs.	Brush the chicken pieces with oil and seasonings. Place the pieces skin side down on the high rack. When the microwave beeps, turn over bone-in chicken pieces, and then press START to continue.
Hamburger 2 ea	4 ea(1 ea: 4 oz.)	Place the hamburgers on the hot plate. Place the plate on the high rack.When the microwave beeps, turn the hamburgers over, and then press START to continue.
Sirloin Steak, Medium (1 inch)	1 inch, 1.0 lb.	Place the steak on the high rack. When the microwave beeps, turn over the steak, and then press START to continue. Let the steak rest for 5 minutes before slicing.Brush the Steaks with oil and seasonings.
Sirloin Steak, Well Done (1 inch)	1 inch, 1.0 lb.	Place the steak on the high rack. When the microwave beeps, turn over the steak, and then press START to continue. Let the steak rest for 5 minutes before slicing.Brush the Steaks with oil and seasonings.
Boneless Pork Chops	2 ea4 ea(1 ea = 5-6 oz)	Place the pork chops on the high rack.When the microwave beeps, turn over the pork chops, and then pressSTARTto continue. Brush the pork chops with oil and seasonings.
Salmon Steak 2 ea	4 ea(1 ea = 5-6 oz)	Brush the Salmon fillets with oil and seasonings. Place the Salmon fillets on the hot plate, and then place the plate on the high rack.
Homemade Gratin	20 oz.40 oz.	Ingredients (40 oz.)25 oz. potatoes, 4 oz. milk, 4 oz. cream, 1 oz. boaten whole cgg, 1 tsp each of salt, pepper, nutmeg, 5-6 oz. grated mozzarella cheese, butter, thyme.For a 20 oz. recipe, use half the quantities above.MethodPeel potatoes and slice them to 0.1-0.2 inch thickness. Spread the slices on a clean towel and keep them covered with the towel while you prepare the rest of the ingredients. Rub the surface of a gratin dish with the butter. Put the rest of the ingredients except grated cheese into a large bowl and stir well. Layer the potato slices in the dish slightly overlapping and pour the mixture over the potatoes. Spread the grated cheese over the top, and then put the gratin dish on the low rack. After cooking, let stand for 2-3 minutes. Serve sprinkled with a few fresh thyme leaves.

Food Amount Instructions
Homemade Mac and Cheese	12 oz. Put oven dish on the low rack and cook.
Frozen Pizza (6 inch)	6 inch Place the pizza on the high rack.
Frozen Pizza (12 inch)	12 inch Place the pizza on the low rack.
Frozen Waffles 2 ca	4 ca	Place the waffles on the hot plate, then place the plate on the low rack.
Frozen Cheese Sticks	6 ca12 ca	Place the cheese sticks on the hot plate, then place the plate on the high rack.
Frozen Buffalo Wings	12 oz.16 oz.	Place the chicken wings on the hot plate, then place the plate on the high rack.
Frozen Potato Chips	12 oz.16 oz.	Place the frozen potato chips on the hot plate, then place the plate on the high rack.
Frozen Chicken Nuggets	8 oz.16 oz.	Place the frozen chicken nuggets on the hot plate, then place the plate on the high rack.

Oven (Lower Oven)

Timed cooking

In timed cooking mode, the oven turns on immediately and cooks for the length of time you select.

At the end of the cooking time, the oven turns off automatically.

- You can use the timed cooking feature only with another cooking operation. (Bake, Convection Bake, Convection Roast, Steam Bake, Steam Roast, Healthy Cook).

How to set the oven for timed cooking

1. Turn the Lower Oven Mode knob to the cooking operation you want.

2. Tap Cook Time. The display will change to the cooking time screen.

3. Tap numbers in the numeric pad to set the cooking time. (You can set the cooking time for any amount of time from 1 minute to 9 hours and 59 minutes).

1. Tap OK. The cooking time screen closes. The cooking time is displayed in the Cook Time area on the screen.
2. Tap START to start cooking.
3. You can cancel a cook time at any time by setting the Cook Time to 0 minutes.

See pages 51 through 52 for basic baking and broiling instructions.

CAUTION

Use caution with the timed cooking or delay start features. You can use these features to cook cured or frozen meats and most fruits and vegetables. For food that can easily spoil, such as milk, eggs, and unfrozen or fresh fish, meat, or poultry, chill them in the refrigerator first.

Even when chilled, they should not stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when cooking is completed. Eating spoiled food can result in sickness from food poisoning.

Delay start

In the delay timed cooking mode, the oven's timer turns the oven on at a time you select in advance. You can have the oven turn off automatically after a set time has elapsed by setting the Timed Cooking function as well.

• You can use the delay start feature only with another cooking operation (Bake, Convection Bake, Convection Roast, Steam Bake, Steam Roast, Healthy Cook, Self Clean).
• You can set the oven for a delayed start before setting other cooking operations.
• The clock must be set to the current time.

How to set the oven for delay timed cooking

1. Position the oven rack(s) and place the food in the oven.

2. Turn the lower Oven Mode knob to the cooking operation you want.

3. Set the cooking time if you want the oven to turn off automatically after a set time. (See the Timed cooking section on page 44).

4. Tap Delay start. The current time is displayed as the first entry.

5. Tap numbers in the numeric pad to set the time you want the oven to start.

1. Tap OK. The Delay Start screen closes. The start time, and, if you set it, the cooking time, is displayed on the screen.

2. Tap START to start cooking.

NOTE

See pages 51 through 52 for basic baking and broiling instructions.

Using the temp probe

For many foods, especially roasts and poultry (beef, chicken, turkey, pork, lamb, etc), measuring the internal temperature is the best way to determine if the food is properly cooked. The Temp probe lets you cook meat to the exact internal temperature you want, taking the guess work out of determining whether a piece of meat is done or not. This function can be used with Bake, Convection Bake, or Convection Roast.

After the internal temperature of the food reaches 100 °F, the increasing internal temperature will be shown in the display.

How to use the temp probe

1. Push the tip of the Temp probe into the meat as fully as possible, so that the tip is in the center of the meat.

Illustration of two food items: a bread roll and a chicken on a mat (no text or symbols)

• Insert the probe completely into the meat as shown in the illustrations. It should not touch bone, fat, or gristle.
• If you do not fully insert the probe into the meat, the Temp Probe function will not work correctly because the probe will sense the oven temperature, not the temperature of the meat.
• For bone-in meats, insert the probe into the center of the lowest and thickest portion of the piece.
• For whole poultry (turkey, large chickens, etc.), insert the probe into the thickest part of the inner thigh, parallel to the leg.
• If you activate the Keep Warm function to keep the meat warm after you have cooked it using the Temp Probe function, the meat's internal temperature will exceed the temperature you want.

Oven (Lower Oven)

1. Insert the temp probe plug into the socket on the top side wall of the oven as far as it will go.
2. Turn the lower oven Mode knob to select the desired cooking mode (Bake, Convection Bake or Convection Roast). Set the cooking temperature. (See pages 22.)
3. Tap Temp Probe to set the desired internal temperature.
4. Set the desired internal temperature using the numeric pad.
   Available temperatures 100 °F to 200 °F
5. If you want to use the Cook time or Delay start, set each function.
6. Tap START
7. When the desired internal temperature is reached, the function automatically stops and an alarm sounds.
   To protect the Temp probe's tip, be careful not to insert the probe so that the tip protrudes through the surface of the meat. Make sure that the tip is in or near the center of the meat.
   • Do not store the probe in the oven.
8. Do not leave the probe inside the oven during a self-cleaning or broiling cycle. You can permanently damage the probe and it will no longer work.
   • To avoid breaking the probe's tip, defrost your food completely.
9. Do not use tongs when inserting or removing the probe. Tongs can damage the probe.
10. Use the Temp probe for Temp Probe function cooking only. Do not use the Temp probe for any other purpose.

CAUTION

CAUTION

NOTE

• If you remove the Temp probe while the Temp Probe function is operating or insert the Temp probe while baking or cooking normally, cooking will stop after 1 minute.
• If you use the probe to cook frozen food, there are times when probe cannot be detected by the oven. (The probe icon won't appear in the display.)

Temp probe table

Type of Food Internal temperature
Beef / Lamb	Rare 140°F
	Medium 160°F
	Well done 170°F
Pork 170°F
Poultry 180-185°F

NOTE

If you cover the meat with aluminum foil and allow it to stand for 10 minutes after cooking, the Internal temperature will rise 5-10 degrees.

Removing the temp probe

Remove the temp probe plug from the socket.

CAUTION

After cooking, the Temp probe is hot enough to cause burns. Let it cool sufficiently before attempting to remove it.

46 English

Twin cooking mode temperature setting ranges

Using the divider, you can divide, the Lower oven into two compartments, flex upper and flex lower. This is also called twin mode. When you use the flex upper and flex lower compartments in the Lower oven at the same time, each compartment has a minimum and maximum amount of power available and consequently minimum and maximum temperature settings. Oven temperatures in the flex lower compartment also limit broil settings in the flex upper compartment. The temperature and broil setting limitations are shown in the table below and on the next page.

FLEX UPPER COMPARTMENT		FLEX LOWER COMPARTMENT(Available function settings and temperatures)
Mode Set Temp.		Bake, Convection Bake
		Min Max
Broil	Hi 400 °F 480 °F
	Low 325 °F 480 °F
Convection Bake & Convection Roast	480 °F 400 °F 480 °F
	450 °F 350 °F 480 °F
	300 °F 250 °F 375 °F
	250 °F 225 °F 300 °F
	175 °F 175 °F 200 °F

NOTE

To insert the divider, see page 61.

FLEX LOWER COMPARTMENT		FLEX UPPER COMPARTMENT(Available function settings and temperatures)
Mode Set Temp.		Broil		Convection Bake.Convection Roast
		Low H	Min Max
Bake & Convection Bake	480 °F O Q 400 °F		480 °F
	450 °F O Q 350 °F		480 °F
	350 °F O X	275 °F	450 °F
	325 °F O X	275 °F	400 °F
	250 °F X X	225 °F	300 °F
	175 °F X X	175 °F	200 °F

O = Available X = Not Available

NOTE

The twin cooking mode lets you use different settings for the upper and lower compartments, such as different switch off times, cooking times, and temperatures settings. To apply or modify settings in either compartment, touch the respective touch pad.

English 47

Oven (Lower Oven)

Oven functions

Cooking mode

Turn the Upper or Lower oven mode knob to select the cooking mode. Set the temperature using the Upper or Lower oven Temp knob, the numeric pad, or the wheel picker. See Setting the Temperature on pages 22 and Basic Baking and Broiling Instructions starting on page 51.

Mode	Temperature range		Single oven	* Twin oven		Temp probe	No preheat (Only Single oven)
	Single oven * Twin oven Upper Lower
Bake	175 °F (80 °C) - 550 °F (285 °C)	175 °F (80 °C) - 480 °F (250 °C)	O - O	O -
Broil	L0 / HI	L0 / HI	O	O	-	-	-
Convection Bake	175 °F (80 °C) - 550 °F (285 °C)	175 °F (80 °C) - 480 °F (250 °C)	O	O O O		O
Convection Roast	175 °F (80 °C) - 550 °F (285 °C)	175 °F (80 °C) - 480 °F (250 °C)	O	O - O		O
Steam Bake	230 °F (110 °C) - 550 °F (285 °C)	230 °F (110 °C) - 480 °F (250 °C)	O	O -	-		-
Steam Roast	230 °F (110 °C) - 550 °F (285 °C)	-	O -	-	-		-
Keep Warm	175 °F (80 °C)	-	O	-	-	-	-

O = Available - = Not Available
* To use the twin flex oven functionality, you must insert the divider into the lower oven and divide it into an upper and lower compartment. See page 61.

Mode Instruction
Bake	Bake is used to cook cakes, cookies, and casseroles. Always preheat the oven first.Baking temperatures and times will vary depending on the ingredients and the size and shape of the baking pan used.Dark or nonstick coatings may cook faster with more browning.NOTEFor performance reasons, the convection fan may turn on or off during baking.
Broil	Broiling is a method of cooking tender cuts of meat by direct heat under the broil element of the oven.The high heat cooks quickly and gives a rich, brown outer appearance. Broil mode is best for meats, fish, and poultry up to 1 inch thick.Always preheat the oven for 5 minutes before broilingSee the Broiling recommendation guide section starting on page 50.
Convection Bake	Convection Bake uses a fan to circulate the oven's heat evenly and continuously within the oven.This improved heat distribution allows for even cooking and excellent results while using multiple racks at the same time.Breads and pastries brown more evenly.
Convection Roast	Convection Roast is good for cooking large tender cuts of meat, uncovered. The convection fan circulates the heated air evenly over and around the food.Meat and poultry are browned on all sides as if they were cooked on a rotisserie.The heated air seals in juices quickly for moist and tender results while, at the same time, creating a rich golden brown exterior.
Steam Bake	• Steam Bake provides excellent baking conditions for breads, pastries, and desserts by increasing moisture content and improving texture and flavor.• See the Steam cook recommendation guide section starting on page 50.
Steam Roast	• Steam Roast provides excellent cooking conditions for roasted meats or poultry by maintaining a crispy surface while sealing in the juices for a moist and tender result.• See the Steam cook recommendation guide section starting on page 50.
Keep Warm	• The keep warm mode will keep cooked food warm for serving up to 3 hours after cooking has finished.• You can use the keep warm mode without any other cooking operations or you can set it to activate after a timed or delay timed cooking operation.• You should not use this mode to reheat cold food.

Oven Oven functions
	Single oven	Upper	Microwave, Power Convection, Broil, Speed Power Convection, Speed Broil, Auto Cook, Defrost, Sensor Cook, Fit Choice, Slim Fry, Power Auto Cook
		Lower	Bake, Broil, Convection Bake, Convection Roast, Steam Bake, Steam Roast, Keep Warm, Healthy Cook, Gourmet Cook, Smart Control, Clean
	* Twin oven	Flex Upper	Broil, Convection Bake, Convection Roast, Steam Bake, Healthy Cook, Smart Control
		Flex Lower	Bake, Convection Bake, Healthy Cook, Smart Control

* To use the twin flex oven functionality, you must insert the divider into the upper oven and divide it into an upper and lower compartment. See page 61.

Oven (Lower Oven)

Broiling recommendation guide

The size, weight, thickness, starting temperature, and your doneness preference will affect broiling times. This guide is based on meats at refrigerator temperature. Always use a broiler pan and its grid when broiling. Always preheat the oven for 5 minutes before broiling.

Food Doneness Size Thickness Level					Rack position	Cooking time (min.)
						1st side 2nd side
Hamburgers	Medium 9	patties 3"	Hi 6 3:00 2:00
	Medium 9	patties 1"	Hi 6 3:20 2:20
Beef steaks	Rare - 1"	Hi 5 5:00	4:00
	Medium	-	1-1 12 "	Hi	5	6:00-6:30	4:30-4:00
	Well done	-	1-1 12 "	Lo	4	7:00-8:00	4:00-5:00
Chicken pieces	Well done	4.5 lbs.	12 - 12 "	Lo	3	16:00-18:00	13:00-15:00
	Well done	2 lbs.	12 - 12 "	Lo	3 or 4	15:00-16:00	10:00-12:00
Pork chops	Well done	1 lbs.	1"	Lo	3	8:00-10:00	6:00-8:00
Fish fillets	Well done	-	14 - 12 "	Lo	3 or 4	7:00-8:00	4:00-5:00

Steam cook recommendation guide

Steam mode	Level	Foods
Steam bake	High	Rye breads, Desserts (Flan caramel)
	Med Croissants, Pies, Reheats (Pizza, Casseroles)
	Low	Pastries
Steam Roast	High
	Med Moats, Poultry
	Low	Turkey, Large meats

50 English

Basic baking and broiling instructions

1. To use Twin Flex mode, insert the divider into the Lower oven. See page 61 for details. If you are using single oven mode, skip this step and go to Step 2.
2. Turn the lower oven Mode knob to select the desired cooking mode. If you inserted the divider, select FLEX UPPER or FLEX LOWER on the screen.

1. Set the temperature you want. (See the Minimum and maximum settings section on page 24.)

2. Broil mode can be set only Hi or Low.

3. Keep Warm temperatures are fixed and cannot be changed.

Convection Bake 325°F

1. Follow the steps below to use the No Preheat feature, Steam Bake, or Steam Roast. If you are not using these features, skip these steps and go to Step 5 on the next page.

• No Preheat (Only Single oven)

a. If you are select Convection Bake or Convection Roast, the display will show the No preheat information. (The default is OFF).
b. Tap the No Preheat area. The No Preheat feature is activated and the display will show ON.

NOTE

- For best performance, we recommend cooking on a single rack.

Type Rack Positions
Baking 3 or 4
Roasting 1 or 2

• Place food in the oven before you start cooking when using the No preheat feature.
• For best performance, preheat the oven when baking rising bakery products such as angel food cakes, bundt cakes, or puff pastries.

English 51

Oven (Lower Oven)

Steam Bake 350°F Cost Time Airflow Rate Product START

High Medium Low OK! OK

• Steam Bake, Steam Roast

a. If you selected Steam Bake or Steam Roast, the display will show the steam level information. (The default is Medium).
b. Tap the Steam area to adjust the steam level. The steam level adjustment screen appears. You can set the steam level to Low, Medium, or High.

c. Tap OK. The steam level adjustment screen closes and the steam level information is displayed. Important: You must fill the water reservoir before you start steam cooking. See the Water reservoir section on page 21.

1. If you want to use the Cook Time, or Delay Start function, set each function now. See pages 44 and 45 for instructions.

1. Tap START to begin cooking.
2. Tap CANCEL when cooking is done or if you want to cancel cooking.

How to adjust the temperature while cooking

If you are using the ovens in single mode, do one of the following:

To adjust the temperature in the lower oven
- Use the lower oven temperature knob to adjust the temperature or
- Tap LOWER OVEN on the screen, tap the temperature area, enter the new temperature using the numeric keypad, and then tap OK.
To adjust the temperature in the upper microwave oven
- Use the upper oven temperature knob to adjust the temperature or
- Tap Microwave on the screen, tap the temperature area, enter the new temperature using the numeric keypad, and then tap OK.

If you are using the Lower oven in twin flex mode, tap FLEX UPPER or FLEX LOWER, and then do one of the following:

• Use the lower oven temperature knob to adjust the temperature or
• Tap the temperature area, enter the new temperature using the numeric keypad, and then tap OK.

- Place food in the oven after preheating if the recipe calls for it. Preheating is very important for good results when baking cakes, cookies, pastry, and breads. After the oven has reached the desired temperature, the oven will beep 6 times.

• The convection oven fan shuts off when the oven door is opened.
- DO NOT leave the door open for long periods of time while using convection cooking or you may shorten the life of the convection heating element.

NOTE

• If you leave the oven door open for more than 2 minutes when the oven is on, all heating elements will shut off automatically.
• When you have finished cooking, the cooling fan will continue to run until the oven has cooled down.
  • Make sure to drain the remaining water after using steam cooking. Once the oven starts draining, please wait until the draining cycle is complete.
• When a steam function is complete, you must empty the water reservoir because the remaining water can affect other cooking modes.
• If you are using an oven thermometer in the oven cavity, the temperature registered by the thermometer may differ from the actual set oven temperature.
• For performance reasons, the convection fan may turn on or off while the oven is cooking.
• This oven is designed for CLOSED DOOR broiling. The oven door must be closed during broiling.

CAUTION

Diagram of a kitchen appliance with orange crosshair overlay, showing internal components and no text or symbols

Always broil with the oven door closed. Use care when opening the door. Let hot air or steam escape before you remove food from or put food into the oven.

English 53

Oven (Lower Oven)

Using the healthy cook feature
Health Cook provides 6 different specialized cooking options.

Mode	Temperature range		Single oven	*Twin oven
	Single oven *Twin oven Upper Lower
Baked Potato	175°F (80°C) - 550°F (285°C)	175°F (80°C) - 480°F (250°C)	0 0 0
Grilled Chicken	175°F (80°C) - 550°F (285°C)	175°F (80°C) - 480°F (250°C)	0 0 0
Salmon Steak	175°F (80°C) - 550°F (285°C)	175°F (80°C) - 480°F (250°C)	0 0 0
White Fish Fillet	175°F (80°C) - 550°F (285°C)	175°F (80°C) - 480°F (250°C)	0 0 0
Dehydrate	100°F (40°C) - 225°F (105°C)	- 0	-	-
Bread Proof	** None	-	0	-	-

To use the twin flex oven functionality, you must insert the divider into the lower oven and divide it into an upper and lower compartment. See page 61. None means that a factory set temperature is applied for the best performance. You cannot adjust this temperature.

Mode Instruction
Baked Potato	• Baked Potato is specially designed to cook potatoes or sweet potatoes.
Grilled Chicken	• Grilled Chicken is specially designed to cook chicken pieces or chicken breasts. To prevent over-browning and drying of the skin, wrap each piece or breast of the chicken in foil.
Salmon Steak	• Salmon Steak is specially designed to cook salmon steaks.
White Fish Fillet	• White Fish Fillet is specially designed to cook white fish fillets.
Dehydrate	• Dehydrate dries food or removes moisture from food via heat circulation.• After drying the food, keep it in a cool and dry place.• For fruit, adding lemon or pineapple juice or sprinkling sugar on the fruit helps the fruit retain sweetness.• See the table below for Dehydrate settings.
	Category Rack position Temperature (°F)
	Vegetables or Fruit 3 or 4 100-150
	Meat 3 or 4 145-225
Bread Proof	• Bread Proof provides an optimal temperature for the bread proofing process, and therefore does not require a temperature adjustment.• For the best results, always start the Bread Proof option with a cool oven.

Healthy Cook
No program or year
aked jouca 100	old jouca 100	salvus rond 100
Milk and Mies 100	Oryngus 100	Brook rond 100

No. of Kcal/mol	Healthy Cook
	No. of	No. of	No. of
15	300 gm	250 gm	150 gm
20	400 gm	300 gm	200 gm

Baked Potato375
GOLD TIME	CORNAL TIME	STAFF
10:00 PM	14:00 PM

1. Turn the Mode knob to the Healthy Cook mode. The display will show the specialized cooking options.

2. Tap the cooking option you want.

3. Set the temperature you want.

4. Tap START.

NOTE

You cannot adjust the temperature of the Bread Proof mode.

CAUTION

• Do not use Bread Proof when the oven temperature is above 125°F. If temperature is above 125°F, this mode won't function properly. Wait until the oven cools down.
• Do not use Bread Proof for warming food. The proofing temperature is not hot enough to keep food warm.
• Place the dough in a heat-safe container on rack position 3 or 4 and cover it with a cloth or with plastic wrap. You may need to anchor the plastic wrap underneath the container so that the oven does not blow the plastic wrap off the dough.
• To avoid lowering the temperature and extending proofing time, do not open the oven door.

NOTE

• Preheating is not necessary.
- An error beep sounds if the temperature setting is out of the set range.

Rack position chart for special cooking options

Food Single (Both Ovens) Flex Upper Flex Lower
Baked Potato 5 A 1
Grilled Chicken 4 or 5 A 1
Salmon Steak 4 or 5 A 1
White Fish Fillet 4 or 5 A 1
Dehydrate	3 or 4	-	-
Bread Proof	3	-	-

NOTE

Refer page 58 for Rack Positions chart.

English 55

Oven (Lower Oven)

Using the gourmet cook feature

For inexperienced cooks, the oven offers 10 gourmet auto cook options. Take advantage of this feature to save time or shorten your learning curve. The cooking time and temperature will be adjusted according to the selected recipe. You can download detailed recipes for each option from the Samsung website.

Garlic prime rib + 1% 2.7% up + 3% 4.0% up + 5% 6.0% up OK

1. Turn the Mode knob to the Gourmet Cook mode. The display will show 10 auto cook options. (You can scroll down through the list.)
2. Tap the Gourmet Cook option you want.
3. Follow the on-screen instructions.

Garlic prime rib 3 39 4:40 AM 5 41 START

Cooking tips in the gourmet cook mode

1. Tap START to start cooking.
2. Tap OK.
3. Tap ☐ the screen to see a cooking tip.
4. The display will show the cooking tip. You can see the cooking tip before you start cooking or while you are cooking.

Using the smart control feature (Lower oven only)

To use the oven's Smart Control feature, you must download SmartThings app to a mobile device. Functions that can be operated using SmartThings app may not work smoothly if communication conditions are poor or the oven is installed in a place with a weak Wi-Fi signal.

Please refer to the following table for the main functions that can be operated from the app.

When Smart Control on the oven is off	Monitoring (Oven, Probe), Oven off
When Smart Control on the oven is on.	Monitoring (Oven, Probe), Oven start, Oven off, Error check

How to connect the oven

1. Download and open the SmartThings app on your smart device.
2. Follow the app's on-screen instructions to connect your oven.
3. Once the process is complete, the connected 📋 icon located on your oven displays and the app will confirm you are connected.
4. If the connection icon does not turn on, follow the instruction in the app to reconnect.

To start the oven remotely

Turn the Mode knob to Smart Control. The oven can now be started and controlled remotely by a connected mobile device.

When Smart Control is on you can:

• Remotely change oven settings (mode, time, temperature) using your mobile device.
• Remotely start the oven.
• Remotely turn off the oven.
• Once cooking starts, you can change the cooking time and temperature remotely.

NOTE

Important: Self Clean mode cannot be started remotely.

NOTE

• Opening the oven door or turning the Mode knob to other modes will deactivate Smart Control and prevent you from turning the oven on or controlling the oven remotely.
• If Smart Control is deactivated, you can still monitor the oven's status and turn the oven off.
• When oven cooking is finished or cancelled. Smart Control will be deactivated.

Oven (Lower Oven)

Using the oven racks

Lower oven rack positions (single mode)

Diagram of an oven with labeled parts and a grid layout, showing numbered compartments or fixtures.

Recommended rack positions for cooking

Type of Food Rack Positions
Broiling hamburgers 6
Broiling meats or small cuts of poultry, fish	3-5
Bundt cakes, pound cakes, frozen pies, casseroles	4 or 3
Angel food cakes, small roasts	2
Turkeys, large roasts, hams, fresh pizza	1

• This table is for reference only.

Lower oven rack positions with divider (twin mode)

Diagram of an oven interior with labeled zones A, B, C, D and a central globe showing the sun.

The upper compartment has 2 rack positions (A, B). The lower compartment has 3 rack positions (1-3).

Type of Food	Rack Positions
	Upper	Lower
Frozen pies A 1
Angel food cakes - 1
Bundt or pound cakes - 1
Muffins, browines, cookies, cupcakes, layer cakes, Pies, Biscuits	A	1
Casseroles A 1
Small roast, hams A 1
Small turkeys, medium roasts	-	1

• This table is for reference only.

Rack and pan placement

Single Oven Rack

Multiple Oven Racks

Centering baking pans in the oven as much as possible will produce better results. If baking with more than one pan, place the pans so each has at least 1" to 1½" of air space around it.

When baking on a single oven rack, place the oven rack in position 3 or 4. See the figure on the left.

When baking cakes and cookies on multiple racks, place the oven racks in positions 3 and 5.

Using multiple oven racks

Type of Baking Rack Positions
Cakes and cookies 3 and 5

Two stacked trays with circular indentations, labeled with numbers 3 and 5 (no text or symbols on the trays themselves)

Multiple Oven Racks

Before using the racks

Each rack has stops that need to be placed correctly on the supports. These stops will keep the rack from coming completely out.

Removing the racks

1. Pull the rack straight out until it stops.

2. Lift up the front of the rack, and then pull it out.

Replacing the racks

1. Place the end of the rack on the support.

2. Tilt the front end up and push the rack in.

CAUTION

• Do not cover a rack with aluminum foil or place aluminum foil on the oven bottom. This will hamper heat circulation, resulting in poor baking, and may damage the oven bottom.
• Arrange the oven racks only when the oven is cool.

Oven (Lower Oven)

Using the gliding rack

The fully extendable Gliding rack makes food preparation easier, especially when you are preparing heavier dishes. The Gliding rack has 2 glide tracks that allow you to extend the rack well out of the oven without touching the sides of the oven walls.

Installing the gliding rack

Rack Guides

- With the Gliding rack in the Closed position and the oven off, carefully insert the Gliding Rack between the guides until the rack reaches the back.

Diagram of an oven with internal grating and a directional arrow indicating flow or movement (no text or symbols)

- When using the Gliding rack in the oven, be sure to pull on the handle of the rack only to slide it in and out. If you grasp the frame while using the rack, the entire Gliding rack will be removed. Make sure you use oven mitts when handling the Gliding rack during cooking.

Removing the gliding rack

Illustration of an oven with a right-handled door and a scroll, showing internal structure without any text or symbols.

- With the Gliding rack in the Closed position and the oven off and cool, grasp the rack and frame and pull both forward to remove.

Technical line drawing of a mechanical assembly with orange cross-shaped components (no text or symbols)

CAUTION

Do not install the Gliding rack directly above the Wire rack. You will not be able to install it properly and the rack could fall.

NOTE

You can install the Gliding rack in any rack positions except the lowest rack position in the oven (level 1).

60 English

Using the divider

• To use twin mode operation, insert the divider into the Lower oven.

- Handle the divider with both hands.

- Use oven gloves when inserting or removing the divider.

To install the divider into the lower oven cavity

Four-panel diagram showing a device with labeled ports and control buttons, likely for industrial or electrical system design.

1. Insert the divider into the 4th rack position of the cavity.

2. Push the divider in until its back end rests against the back of the cavity.

CAUTION

If the oven displays -dc-.

- Check the divider to see if it is installed correctly.

Using the clean feature

The Clean feature has four selections: Self-Clean, Hybrid Clean, Descale, and Draining.

Self clean

This self-cleaning oven uses high temperatures (well above cooking temperatures) to burn off leftover grease and residue completely or reduce them to a finely powdered ash that you can wipe away with a damp cloth.

CAUTION

- During the self-cleaning cycle, the outside of the oven will become very hot to the touch. Do not leave small children unattended near the appliance.

- Some birds are extremely sensitive to the fumes given off during the self-cleaning cycle of any oven. Move birds to another well ventilated room.

- Do not line the oven walls, racks, bottom, or any other part of the oven with aluminum foil. Doing so will result in poor heat distribution, poor baking results, and cause permanent damage to the oven interior. Aluminum foil will melt and adhere to the interior surface of the oven.

- The oven door locks during self-cleaning. Do not force the oven door open. This can damage the automatic door locking system. Use care when opening the oven door after the self-cleaning cycle is complete. Stand to the side of the oven when opening the door to allow hot air or steam to escape. The oven may still be VERY HOT

Oven (Lower Oven)

Before a self cleaning cycle

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Fig. 1

Don't hand clean the oven door gasket. You may hand clean the door.

Fig. 2

• We recommend venting your kitchen with an open window or using a ventilation fan or hood during the self-cleaning cycle.
• Remove the wire rack, broil pan, broil pan insert, all cookware, and any aluminum foil from the oven.
• Wipe up debris from the oven bottom. (Fig. 1)
  • The silver-colored oven racks can be self-cleaned, but they will darken, lose their luster, and become hard to slide.
• Residue on the front frame of the oven and outside the gasket on the door will need to be cleaned by hand. Clean these areas with hot water, soap-filled steel-wool pads, or cleansers such as Soft Scrub. Rinse well with clean water and dry.
• Do not clean the gasket. The fiberglass material of the oven door gasket cannot withstand abrasion. It is essential for the gasket to remain intact. If you notice it becoming worn or frayed, have it replaced. (Fig. 2)
  • Make sure the oven light cover is in place and the oven light is off.

How to run a self cleaning cycle

1. Turn the Mode knob to Clean. The display will show 4 cleaning selections.

1. Tap Self Clean.

Self clean Own, coming

1. Tap Clean Time.

1. Flick the screen to set the clean time. You can choose 2 hours, 3 hours, or 5 hours. (The default is 3h).
2. Tap OK.

Self clean Clean Air Drive Time 4.5 GHz 9:30 AM START

1. If you don't want to use the Delay Start feature, go to Step 8. Otherwise, tap Delay Start, and then go to Step 7.

4:35 1 23:1 67900 0

1. Set the time you want self-cleaning to start, and then tap OK.

Self clean Clean cleaning Clean Time 2x 00:00 Help Help

1. Tap START to begin self-cleaning. The motor-driven door lock will engage automatically. Important: Only lower oven door locks when you run a self cleaning cycle on the lower oven.

Self clean Clear up to 20% of the End: 0.0742 48% OK Cancel

1. If you need to stop or interrupt a self cleaning cycle, tap CANCEL.

NOTE

• You will not be able to start a self-cleaning cycle if the control lockout feature is activated or if the oven's temperature is too hot.
• The oven doors lock automatically. The display will show the cleaning time remaining. You cannot open the oven doors until the temperature drops to a safe/cool temperature.
• The self clean feature can be used in only one oven at a time. While one oven is in self cleaning mode, you cannot use the other oven for cooking.

After a self-cleaning cycle

• You may notice some white ash in the oven. Wipe it up with a damp cloth after the oven cools. (If white spots remain, remove them with a soap-filled steel wool pad and rinse thoroughly with a vinegar and water mixture.)
• If the oven is not clean after one cycle, repeat the cycle.
• You cannot set the oven for cooking until the oven is cool enough for the door to unlock.

Hybrid clean

The Hybrid cleaning function saves time and energy by removing leftover grease and residue that you can wipe away with a damp cloth.

CAUTION

• Do not line the oven walls, racks, bottom, or any other part of the oven with aluminum foil. Doing so will result in poor heat distribution, poor baking results, and cause permanent damage to the oven interior. Aluminum foil will melt and adhere to the interior surface of the oven.
  The oven door locks during Hybrid cleaning. Do not force the oven door open. This can damage the automatic door locking system. Use care when opening the oven door after a Hybrid cleaning cycle is complete. Stand to the side of the oven when opening the door to allow hot air or steam to escape.

Oven (Lower Oven)

Before a hybrid cleaning cycle

Line drawing of a hand cleaning or cleaning a kitchen appliance (no text or symbols)

Fig. 1

Don't hand clean the oven door gasket. You may hand clean the door.

Fig. 2

• Remove the wire rack, broil pan, broil pan insert, all cookware, and any aluminum foil from the oven.
• Wipe up debris from the oven bottom. (Fig. 1)
  • The silver-colored oven racks can be Hybrid cleaned, but they will darken, lose their luster, and become harder to slide.
• Residue on the front frame of the oven and outside the gasket on the door will need to be cleaned by hand. Clean these areas with hot water, soap-filled steel-wool pads, or cleansers such as Soft Scrub. Rinse well with clean water and dry.
• Do not clean the gasket. The fiberglass material of the oven door gasket cannot withstand abrasion. It is essential for the gasket to remain intact. If you notice it becoming worn or frayed, have it replaced. (Fig. 2)
  • Make sure the oven light cover is in place and the oven light is off.

NOTE

Remove oven racks and accessories before starting the Hybrid Clean mode.

How to run a hybrid cleaning cycle

1. Turn the Mode knob to Clean. The display will show 4 cleaning selections.

1. Tap Hybrid Clean.

1. Tap the Clean Time area to adjust the clean time. The clean time adjustment screen appears. You can set the clean time to 20 min or 90 min.

20min 90min CAMS SCT NC

1. Tap SET. The clean time adjustment screen closes and the clean time information is displayed on the screen.

1. Tap START to begin Hybrid cleaning.

2. Follow the on-screen instructions. Hybrid cleaning will start automatically after the oven senses water in the water reservoir.

NOTE

Both oven doors are locked during Hybrid cleaning.

1. When Hybrid cleaning is complete, clean the oven's interior. There will be a significant amount of water remaining on the bottom of the oven after a Hybrid cleaning cycle. Remove the residual water with a sponge or soft dry cloth.

NOTE

For Hybrid cleaning, use exactly 20 oz. (600 ml) of water since this produces the best results.

After a hybrid cleaning cycle

• Take care when opening the door after a Hybrid cleaning procedure has ended. The water on the bottom is hot.
- Open the oven door and remove the remaining water with a sponge. Do not leave the residual water in the oven for any length of time. Wipe the oven clean and dry with a soft cloth. Do not forget to wipe under the oven door scal.
- Use a detergent soaked sponge, a soft brush, or a nylon scrubber to wipe the oven interior. Remove stubborn residue with a nylon scourer. You can remove lime deposits with a cloth soaked in vinegar.
- If the oven remains dirty, you can repeat the procedure once the oven has cooled.
- For heavy residue, such as grease left over from roasting, we recommend that you rub detergent into the residue before activating the Hybrid cleaning function.
- After cleaning, leave the oven door open at a 15° angle to allow the interior enamel surface to dry thoroughly.

NOTE

• You will not be able to start a Hybrid cleaning cycle if the Control Lockout feature is activated or if the oven's temperature is too hot.
• The oven doors lock automatically. The display will show the cleaning time remaining. You cannot open the oven doors until the temperature drops to a safe/cool temperature.
• The Hybrid clean feature can be used in only one oven at a time. While one oven is in Hybrid cleaning mode, you cannot use the other oven for cooking.
• If the oven is not clean after one cycle, repeat the cycle.
• You cannot set the oven for cooking until the oven is cool enough for the door to unlock.

English 65

Oven (Lower Oven)

Descale

If you use Steam Bake or Steam Roast functions frequently, we recommend descaling regularly to remove minerals from the oven that may affect the taste or quality of food cooked. When running a descaling cycle, use only descaling agents that are specific to steam ovens or coffee machines.

NOTE

If you use Steam Bake or Steam Roast functions for more than a total of 12 hours, the Descale indicator turns on. You can still enable the Steam Bake or Steam Roast functions for the next two hours without descaling. However, after those two hours are up, the Steam Bake or Steam Roast functions will be disabled until you run a descaling cycle.

How to run a descale cycle

1. Turn the Mode knob to Clean. The display will show 4 cleaning selections.
2. Tap Descale

1. Tap START.

1. Follow the on-screen instructions. It takes 3 hours to complete the cycle.
2. Empty and clean the water reservoir, and then fill it with 1.7 oz. (50 ml) of descaling agent and 13.5 oz. (400 ml) of drinkable water.

1. When descailing is complete, the oven drains water automatically.
2. Use oven gloves to remove and empty the water reservoir, and then refill it with 22 oz (650 ml) of drinkable water for rinsing.
3. Follow the on-screen instructions, and then tap OK to start rinsing.
4. Follow the on-screen instructions, and then tap OK to start rinsing.

441672 Descaling complete. How can do this is done with it.

1. When rinsing is complete, use oven gloves to empty and clean the water reservoir.

WARNING

Use only descaling agents that are specific to steam ovens or coffee machines.

66 English

CAUTION

• Running the Descaling function disables Steam Bake and Steam Roast. Do not cancel descaling while it is in process. If you stop it, you must restart the descaling cycle and complete it within the next three hours to re-enable the Steam Bake and Steam Roast functions.
  • To avoid accidents, keep children away from the oven.
• For the correct ratio of water and the descaling agent, follow the agent manufacturer's instructions. If the ratio of water to descaling agent differs from the instructions here (8 to 1), use the ratio indicated in the instructions for the descaling agent.

NOTE

Although the oven automatically starts descaling in 5 seconds without your confirmation, we recommend that you confirm your selection. This is to prevent descaling from starting by mistake.

Draining

When a steam function is complete, you must drain the remaining water to prevent the water from affecting other cooking modes. To drain the water, follow these steps.

How to run a draining

PEACHING	Clean
	Self clean	Hybrid clean
	vacuole	mobbing

1. Turn the Mode knob to Clean. The display will show 4 cleaning selections.
2. Tap Draining

1. Tap START. The oven drains water from the steam generator to the water reservoir.

1. When draining is complete, use oven gloves to remove and empty the water reservoir.

NOTE

Once the oven starts draining, please wait until the draining cycle is complete.

English 67

Oven (Lower Oven)

Settings

In Settings, you can change the default settings to your preference or diagnose problems with the network connection.

Convection Bake 325+

Touch Settings 📋 The display will show the Setting item.

Wi-Fi

To enable a Wi-Fi connection

1. Touch Settings 📄 and then tap Wi-Fi > ON.
2. Tap Wi-Fi, and then tap a Wi-Fi network in the list that appears.
3. You will be prompted to provide a password for a secure network. Enter the password.

To manually input an IP

1. Touch Settings 🔒 and then tap Wi-Fi > ON.
2. Tap WI-FI, and then tap Add Network.
3. Enter an IP manually, and then tap CONNECT to apply your settings.

NOTE

• To disable a Wi-fi connection, Touch Settings 🔊 and then tap WI-FI > OFF.
- For details about the Wi-Fi connection and using the SmartThings app, see the SmartThings app user manual.

Display

1. Brightness

You can change the brightness of the display screen.

- Touch Settings 📄 and then tap Display > Brightness. Use the bar to adjust the brightness of the screen.

1. Screen saver

If screen saver is turned off, the Clock theme and Timeout menu are disabled. Touch Settings 🌐 and then tap Display > Screen saver > OFF.

1. Clock theme

- Touch Settings 📋 and then tap Display > Clock theme. Slide the current setting to select a desired theme.

1. Timeout

- Touch Settings @ and then tap Display > Timeout. Tap the current setting to select a desired time. You can select a time from 5 minutes to 60 minutes.

Date & Time

To enable automatic date and time
1. Turn on the Wi-Fi connection.
2. Touch Settings 📋 and then tap Date & Time.
3. Tap ON in the right screen. The date and time are set automatically.
To manually input the date and time
1. Touch Settings 📋 and then tap Date & Time.
2. Tap OFF in the right screen. Time zone, set date, and set time are activated.
3. You can set the time zone, date, and time.
To change the time format
1. Touch Settings and then tap Date & Time. Tap the current setting to select a desired time format.
2. You can select 12-hour clock or 24-hour clock.

Language

Choose a display language.

1. Touch Settings @ and then tap Language. Tap the current setting to select a desired language.

2. You can select English, Spanish, or French.

Volume

Adjust the volume level for beeps and melodies.

Touch Settings and then tap Volume. Use the bar to adjust the volume.

Temp

1. Temp unit

You can program the oven control to display the temperature in Fahrenheit or Celsius. The oven has been preset at the factory to display in Fahrenheit.

- Touch Settings and then tap Temp > Temp unit. Tap the current setting to select a desired unit.

1. Temp adjust

The temperature in the oven has been calibrated at the factory. When first using the oven, be sure to follow recipe times and temperatures. If you think the oven is too hot or too cool, you can correct the temperature in the oven. Before correcting, test a recipe by using a temperature setting that is higher or lower than the recommended temperature.

The baking results should help you to decide how much of an adjustment is needed. The oven temperature can be adjusted +35 °F (+19 °C).

- Touch Settings 🔊 and then tap Temp > Temperature Adjust. Tap the current setting. You can increase or decrease the temperature by 35 °F (19 °C).

NOTE

This adjustment will not affect the broiling or the self-cleaning temperatures. The adjustment will be retained in memory after a power failure.

12 hour energy Saving

If you accidentally leave the oven on, this feature will automatically turn off the oven after 12 hours during baking functions or after 3 hours during a broil function.

1. Touch Settings @ and then tap 12 hour energy Saving > ON

2. The 12 hour energy saving icon will appear in the indicator area.

Easy connection

Easy connection enables you to easily configure the network settings including the authentication procedure.

Help

Help provides useful tips and explanations on a specific item that you select.

1. Troubleshooting

Tap a checkpoint directly on the screen, and then try the suggestions.

1. Guide for first use

- Provides simple instructions on the basic use of the oven.

About device

You can see information about the oven and do a software update.

To update the software:

1. Touch Settings and then tap About device > SW update > Update.

2. Tap INSTALL. The software is updated and the system restarts automatically.

Sabbath

You can set Sabbath mode. See the Using the Sabbath feature section on the next page.

Demo mode

This option is for use by retail establishments for display purposes only. (The heating element does not operate.)

1. Touch Settings 🎨 and then tap Demo mode > ON

2. The Demo mode indicator appears on screen.

English 69

Oven (Lower Oven)

Using the Sabbath feature

(For use on the Jewish Sabbath & Holidays)

For further assistance, guidelines for proper usage, and a complete list of models with the Sabbath feature, please visit the web at http://www.star-k.org.

You can use the Sabbath feature with baking only. The oven temperature may be set higher or lower after you set the Sabbath feature. (The oven temperature adjustment feature should be used only during Jewish holidays.) The display, however, will not change and tones will not sound when a change occurs. Once the oven is properly set for baking with the Sabbath feature active, the oven will remain on continuously until the Sabbath feature is cancelled. This will override the factory preset 12 hour energy saving feature. If the oven light is needed during the Sabbath, touch Lamp - before activating the Sabbath feature. Once the oven light is turned on and the Sabbath feature is active, the oven light will remain on until the Sabbath feature is turned off. If the oven light needs to be off, be sure to turn the oven light off before activating the Sabbath feature.

How to use the Sabbath feature

1. Turn the Mode knob to Bake mode.

Bake "Normal to Bake" 325° Grain Time: 10.00 gm Eggs: 10.00 gm $1.00 Beaker

1. Set the temperature and cook time you want.

2. Tap START.

1. Touch Settings and then tap Sabbath to use the Sabbath feature. The oven will not beep or display any further changes. You may change the oven temperature once baking has started. Remember that the oven will not beep or display any further changes once the Sabbath feature is engaged.

Sabbath - Temp * Sabbath Mode Off You

1. You can turn the oven off at any time by turning the Mode knob to the OFF position. Note that this method does not turn Sabbath mode off.

2. To turn Sabbath mode off, tap and hold Sabbath OFF for 3 seconds. Note that this turns the oven off too.

70 English

Maintaining your appliance

Do not to attempt to activate any other program feature except Bake while the Sabbath feature is active.
You can change the oven temperature, but the display will not change and tones will not sound when a change occurs. After you change the temperature while the unit is in Sabbath mode, there is a 15 second delay before the unit recognizes the change.
You can set the Cook Time function before activating the Sabbath feature.
Should you experience a power failure or interruption, the oven will shut off. When power is returned, the oven will not turn back on automatically. Sabbath will be displayed in the oven control display, but the oven will not operate. Food may be safely removed from the oven while it is still in the Sabbath mode, however the oven cannot be turned back on until after the Sabbath Holidays. After the Sabbath observance, turn off the Sabbath mode. Tap and hold Sabbath Off for 3 seconds.
Do not open the oven door or change the oven temperature for about 30 minutes after you have started Sabbath mode to allow the oven to reach the set temperature. Note that for best performance, the oven fan operates only when the oven temperature is rising.

Care and cleaning of the oven

Cleaning painted parts and decorative trim

• For general cleaning, use a cloth with hot, soapy water.
• For more difficult residue and built-up grease, apply a liquid detergent directly onto the area and leave for 30 to 60 minutes. Wipe with a damp cloth and dry. Do not use abrasive cleaners on any oven surface. They can be scratched.

Cleaning stainless steel surfaces

1. Shake a bottle of Stainless Steel Appliance Cleaner or Polish well.
2. Place a small amount of stainless steel appliance cleaner or polish on a damp cloth or damp paper towel.
3. Clean a small area, rubbing with the grain of the stainless steel if applicable.
4. Dry and buff with a clean, dry paper towel or soft cloth.
5. Repeat as necessary.

NOTE

• Do not use a steel-wool pad. It will scratch the surface.
• If a mineral oil-based stainless steel appliance cleaner has been used before to clean the appliance, wash the surface with dishwashing liquid and water prior to using the Stainless Steel Appliance Cleaner or Polish.

English 71

Maintaining your appliance

Oven racks

• If the racks are left in the oven during a self-cleaning cycle, their color will turn slightly blue and the finish will be dull. After the self-cleaning cycle is complete and the oven has cooled, rub the sides of the racks with wax paper or a cloth containing a small amount of oil. This will help the racks glide more easily on their tracks.
• Gliding racks may be cleaned by hand with an abrasive cleaner or steel wool. During cleaning, be careful not to allow water or cleaner to enter the slides on the sides of rack.

NOTE

• Do not clean in a dishwasher.
- If the rack becomes hard to remove or replace, lightly wipe the oven rack guides with cooking oil. Do not wipe cooking oil on the slides.
- If the rack becomes difficult to slide, the rack may need to be lubricated using a graphite lubricant.

NOTE

• To order graphite lubricant., call Samsung customer care at 1-800 SAMSUNG (726-7864) or visit our homepage (www.samsung.com/us/support, www.samsung.com/ca/support, or www.samsung.com/ca_fr/support) and search for part number DG81 01629A.
• If you want to buy directly, go to http://www.samsungparts.com.

To lubricate the slides of the gliding rack

Isometric line drawing of a metal rack or cage structure (no text or symbols)

1. Remove the rack from the oven. See removing the gliding rack in the Using the gliding rack section on page 60.
2. Fully extend the rack on a table or countertop. Newspaper may be placed underneath the rack for easy cleanup.

1. If there is debris in the slide tracks, wipe it away using a paper towel. (Any graphite lubricant wiped away must be replaced - See steps 4 through 7.

1. Shake the graphite lubricant before opening it. Starting with the left (front and back) slide mechanism of the rack, place four (4) small drops of lubricant on the two (2) bottom tracks of the slide close to the bearing carriers.

72 English

Diagram showing two steps of a device handle or latch mechanism with Chinese labels and arrows indicating action.

Oven door

Don't hand clean the oven door gasket. You may hand clean the door.

1. Repeat for the right (front and back) slide mechanism of the rack.
2. Open and close the rack several times to distribute the lubricant.
3. Replace the cap on the lubricant and shake it again. Turn the rack over and repeat steps 3, 4, 5, and 6.
4. Close the rack, turn the rack right-side-up, and then place in oven. See Installing the gliding rack on page 60.

NOTE

- Do not spray the gliding rack with cooking spray or other lubricant sprays.

• Use soap and water to thoroughly clean the top, sides, and front of the oven door. Rinse well. You may use a glass cleaner on the outside glass of the oven door. DO NOT immerse the door in water. DO NOT spray or allow water or the glass cleaner to enter the door vents. DO NOT use oven cleaners, cleaning powders, or any harsh abrasive cleaning materials on the outside of the oven door.
• DO NOT clean the oven door gasket. The oven door gasket is made of a woven material which is essential for a good seal. Care should be taken not to rub, damage, or remove this gasket.

Removing the oven door (Lower oven only)

CAUTION

• The door is very heavy. Be careful when removing and lifting the door.
- Do not lift the door by the handle.

Use two hands to remove an oven door.

WARNING

You can't remove the upper oven door for safety reason.

Simple line drawing of a rectangular frame with an internal square, no text or symbols present.

A. Wire Harness

1. Prior to removing the oven door, prepare a surface where you will place it. This surface should be flat and covered with a soft blanket. You can also use the corner posts from your packaging material.
2. Disconnect the LED light's Wire Harness from the bottom right of the door.

Illustration of hands connecting a cable to a connector (no text or symbols visible)

Maintaining your appliance

Technical diagram showing two mechanical assembly steps labeled A and B, with arrows indicating movement or force direction.

A. Oven door hinge lock in locked position
B. Oven door hinge lock in unlocked position

Line drawing of a hand using a tool to lift or adjust a wooden panel (no text or symbols)

Line drawing of a hand adjusting a metal bracket with a measuring tape (no text or symbols)

1. Open the oven door.

2. Locate the oven door hinge locks in both corners of the oven door, and then rotate the hinge locks toward the oven door to the unlocked position. If the door hinge lock is not rotated fully (see illustration B on the left for an example of full rotation), you will not be able to remove the door properly.

3. Partially close the door to engage the door latch locks. The door will stop at this point.

4. Partially close the door to engage the door latch locks. The door will stop at this point.

5. Using two hands, grasp the edges of the oven door. Lift and pull the oven door toward you and remove. You may need to gently shift the door from side to side as you pull.

6. Set the oven door aside on the prepared covered work surface with the oven door resting on its handle.

7. Using two hands, grasp the edges of the oven door. Lift and pull the oven door toward you and remove. You may need to gently shift the door from side to side as you pull.

8. Set the oven door aside on the prepared covered work surface with the oven door resting on its handle.

Replacing the oven door (Lower oven only)

CAUTION

The door is very heavy. You may need help lifting the door high enough to slide it into the hinge slots. Do not lift the door by the handle.

WARNING

You can't replace the upper oven door for safety reason.

Technical diagram showing a mechanical component with labeled connection point A

A. Slot in the oven cavity for the door hinge lock

Line drawing of a hand using a tool to bracket or install a wooden post (no text or symbols)

1. Using two hands, grasp the side edges of the door at the midpoint. Face the oven cavity.

2. Locate the slots on each side of the oven cavity for the door hinge locks.

3. Hold the door at a 45° angle, and then align the door hinges with the slots in the lower front of the oven cavity. Slowly insert the door, making sure you maintain the 45° angle. You will know the door is engaged in the slot when you feel a slight drop.

Line drawing of a hand using a tool to lift or install a wooden plank (no text or symbols)

1. Lower the oven door to the fully open position. If the oven door does not open to a full 90°, repeat steps 1 through 3.
2. Locate the oven door hinge locks in the corners of the oven door, and rotate the hinge locks toward the oven cavity to the locked position. See Step 3 (Illustration A) in the "Removing the oven door" section for the proper locked position.
3. Close the oven door.
4. When the hinges are properly installed and the door is closed, there should be an even gap between the door and the control panel. If one side of the oven door is hanging lower than the other, the hinge on that side is not properly installed.
5. Reconnect the LED light's Wire Harness.

CAUTION

After replacing the door, make sure to reconnect the wires. Push them inward to arrange them as they were before you removed the door. Wires that are not connected or arranged correctly can be caught in the door or damaged by heat.

Changing the oven light (Lower oven only)

The oven light is a standard 40-watt appliance halogen bulb. It comes on when the oven door is open. When the oven door is closed, touch Lamp ☐ to turn the light on or off. It will not work during a self-cleaning or Hybrid cleaning cycle.

Diagram showing two views of a mechanical component with labeled section D1

1. To change the halogen bulb, you must tilt the broil heater down. To do this, turn the circular nut on the support counterclockwise while holding the broil heater. The broil heater should loosen and tilt down. Important: The broil heater is not a removable part. Do not force the broil heater down. Do not let it drop down.
2. Remove the glass cover.
3. Remove the halogen bulb cover
4. Replace the halogen bulb.
5. When done, replace the glass cover, and then follow Step 1 above in the reverse order to return the broiler to its correct position.

CAUTION

Before changing your oven light, disconnect the electrical power to the oven at the main fuse or circuit breaker panel. Make sure the oven and the halogen bulb are cool.

Troubleshooting

Samsung works hard to ensure that you don't have problems with your new electric oven. If you run into unexpected trouble, look first for a solution in the tables below. If you're still having trouble after trying the suggested solution, call Samsung at 1 800 SAMSUNG (1 800-726-7864).

Control Display

Problem Possible cause Solution
The display goes blank.	A fuse in your home may be blown or the circuit breaker tripped.	Replace the fuse or reset the circuit breaker.
The buttons cannot be pressed properly.	There is foreign matter caught between the buttonsTouch model: There is moisture on the exteriorThe lock function is set	Remove the foreign matter and try again.Remove the moisture and try again.Check whether the lock function is set.

For the Microwave Oven

Symptom Cause	Action
General
The buttons cannot be pressed properly.	Foreign matter may be caught between the buttons.	Remove the foreign matter and try again.
	For touch models: Moisture is on the exterior.	Wipe the moisture from the exterior.
	Child lock is activated. Deactivate Child lock.
The oven does not work.	Power is not supplied. Make sure power is supplied.Make sure the oven is plugged in. Check if a fuse has been blown or circuit breaker has been tripped.
	The door is open. Close the door and try again.
	The door open safety mechanisms are covered in foreign matter.	Remove the foreign matter and try again.
The oven stops while in operation.	The user has opened the door to turn food over.	After turning over the food, press the Start button again to start operation.
The power turns off during operation.	The oven has been cooking for an extended period of time.	After cooking for an extended period of time, let the oven cool.
	The cooling fan is not working.	Listen for the sound of the cooling fan.
	Trying to operate the oven without food inside.	Put food in the oven.
	There is insufficient ventilation space for the oven.	There are intake/exhaust outlets on the front and rear of the oven for ventilation.Keep the gaps specified in the product installation guide.
	Several power plugs are being used in the same socket.	Designate only one socket to be used for the oven.
There is a popping sound during operation, and the oven doesn't work.	Cooking sealed food or using a container with a lid may cause popping sounds.	Do not use sealed containers as they may burst during cooking due to expansion of the contents.
The oven exterior is too hot during operation.	There is insufficient ventilation space for the oven.	There are intake/exhaust outlets on the front and rear of the oven for ventilation.Keep the gaps specified in the product installation guide.
	Objects are on top of the oven.	Remove all objects on the top of the oven.
The door cannot be opened properly.	Food residue is stuck between the door and oven interior.	Clean the oven and then open the door.

Symptom Cause	Action
Heating including the Warm function does not work properly.	The oven may not work, too much food is being cooked, or improper cookware is being used.	Put one cup of water in a microwave safe container and run the microwave for 1-2 minutes to check whether the water is heated. Reduce the amount of food and start the function again. Use a cooking container with a flat bottom.
The thaw function does not work.	Too much food is being thawed.	Reduce the amount of food and start the function again.
The interior light is dim or does not turn on.	The door has been left open for a long time.	The interior light may automatically turn off when the Eco function operates. Close and reopen the door or press the Cancel button.
	The interior light is covered by foreign matter.	Clean the inside of the oven and check again.
A beeping sound occurs during cooking.	If the Auto Cook function is being used, this beeping sound means it's time to turn over the food during thawing.	After turning over the food, press the Start button again to restart operation.
The oven is not level.	The oven is installed on an uneven surface.	Make sure the oven is installed on flat, stable surface.
There are sparks during cooking.	Metal containers are used during oven/thawing functions.	Do not use metal containers.

Troubleshooting

Symptom Cause	Action
When power is connected, the oven immediately starts to work.	The door is not properly closed.	Close the door and check again.
There is electricity coming from the oven.	The power or power socket is not properly grounded.	Make sure the power and power socket are properly grounded.
1. Water drips.2. Steam is emitted through a door crack.3. Water remains in the oven.	There may be water or steam in some cases depending on the food. This is not an oven malfunction.	Let the oven cool and then wipe with a dry dish towel.
The brightness inside the oven varies.	Brightness changes depending on power output changes according to function.	Power output changes during cooking are not malfunctions.
Cooking is finished, but the cooling fan is still running.	To ventilate the oven, the cooling fan continues to run for about 3 minutes after cooking is complete.	This is not an oven malfunction.

Symptom Cause	Action
Turntable
While turning, the turntable comes out of place or stops turning.	There is no roller ring, or the roller ring is not properly in place.	Install the roller ring and then try again.
The turn table drags while turning.	The roller ring is not properly in place, there is too much food, or the container is too large and touches the inside of the microwave.	Adjust the amount of food. Do not use containers that are too large.
The turn table rattles while turning and is noisy.	Food residue is stuck to the bottom of the oven.	Remove any food residue stuck to the bottom of the oven.
Broiling
Smoke comes out during operation.	During initial operation, smoke may come from the heating elements when you first use the oven.	This is not a malfunction. After you run the oven 2-3 times, it should stop.
	Food is on the heating elements.	Let the oven cool and then remove the food from the heating elements.
	Food is too close to the grill.	Put the food a suitable distance away while cooking.
	Food is not properly prepared and/or arranged.	Make sure food is properly prepared and arranged.
Convection
The oven does not heat.	The door is open. Close the	door and try again.
Smoke comes out during preheating.	During initial operation, smoke may come from the heating elements when you first use the oven.	This is not a malfunction. After you run the oven 2-3 times, it should stop.
	Food is on the heating elements.	Let the oven cool and then remove the food from the heating elements.
There is a burning or plastic smell when using the oven.	Plastic or non heat resistant cookware is used.	Use glass cookware suitable for high temperatures.
There is a bad smell coming from inside the oven.	Food residue or plastic has melted and stuck to the interior.	Run the Steam Bake function for an hour, and then wipe with a dry cloth.You can put a lemon slice inside, and then run Steam Bake to remove the odor more quickly.

Symptom Cause	Action
The oven does not cook properly.	The oven door is frequently opened during cooking.	If you open the door often, the interior temperature will be lowered and this may affect the results of your cooking.
	The oven controls are not correctly set.	Correctly set the oven controls and try again.
	The broil heater or other accessories are not correctly inserted.	Correctly insert the accessories.
	The wrong size or wrong type of cookware is used.	Use suitable cookware with flat bottoms.

For the Lower Oven

Problem Possible cause Solution
The oven will not turn on.	The oven is not completely plugged into the electrical outlet.	Make sure the electrical plug is inserted into a live, properly grounded outlet.
	A fuse in your home may be blown or a circuit breaker may have tripped.	Replace the fuse or reset the circuit breaker.
	The oven controls have been set improperly.	See the Basic operations section starting on page 22.
	The oven is too hot. Allow the oven to cool.
	Incomplete service wiring. Call for service.
	Power outage. Check to see if the house lights will turn on. If necessary, call your local electric company for service.

Troubleshooting

Problem Possible cause Solution
The oven light will not turn on.	The light is loose or defective.	Tighten or replace the lamp.Call for service if the door light does not turn on.
	The switch operating the light is broken.	Call for service.
The oven smokes excessively during broiling.	The oven controls have not been set properly.	See the Basic operations section starting on page 22.
	The meat has been placed too close to the element.	Reposition the rack to provide proper clearance between the meat and the element. Preheat the broil element for searing.
	The meat has not been properly prepared.	Remove excess fat from the meat. Cut away fatty edges that may curl, leaving the lean intact.
	Grease has built up on oven surfaces.	Regular cleaning is necessary when broiling frequently.
Food does not bake or roast properly.	The oven controls have not been set correctly.	See the Basic operations section starting on page 22.
	The oven rack has been positioned incorrectly or is not level.	See the Using the oven racks section on page 58.
	The oven thermistor needs to be adjusted.	See Temp adjust in the Settings section on page 69.

Problem Possible cause Solution
Food does not broil properly.	The serving size may not be appropriate.	Refer to the Broiling recommendation guide for serving sizes on page 50, and then try again.
	The rack has not been properly positioned.	See the Broiling recommendation guide on page 50.
	The cookware is not suited for broiling.	Use suitable cookware.
	In some areas, the power (voltage) may be low.	• Preheat the broil element for 10 minutes.• See the Broiling recommendation guide on page 50.
The oven temperature is too hot or too cold.	The oven thermistor needs to be adjusted.	See Temp adjust in the Settings section on page 69.
There is water dripping.	You may see water or steam in some cases depending on the food you are cooking. This is not a product malfunction.	Let the oven cool and then wipe with a dry dish towel.
There is steam coming through the crack between the oven body and the door.
Water remains in the oven.

80 English

Problem Possible cause Solution
I can hear water boiling during steam cooking.	Water is being heated by the steam heater.	This is not a product malfunction.
The oven will not self-clean.	The oven temperature is too high to start a self-clean operation.	Allow the oven to cool and then reset the controls.
	The oven controls have been set incorrectly.	See the Self clean section on page 61.
	A self-cleaning cycle cannot be started if the oven lockout feature has been activated.	Deactivate the oven control lockout (see page 23).
Excessive smoking during a self-cleaning cycle.	There is excessive soiling in the oven.	Press OFF. Open the windows to rid the room of smoke. Wait until the self-cleaning cycle is cancelled. Wipe up the excessive soil and then start the self-cleaning cycle again.
The oven door will not open after a self-cleaning cycle.	The oven is too hot. Allow the oven to cool.
The oven is not clean after a self-cleaning cycle.	The oven controls were not set correctly.	See the Self clean section on page 61.
	The oven was heavily soiled. W	pe up heavy spillovers before starting the self-cleaning cycle. Heavily soiled ovens may need to be self cleaned again or for a longer period of time.

Problem Possible cause Solution
Steam is coming out of the vent.	When using the convection feature, it is normal to see steam coming out of the oven vent.	This is normal operation and not a system failure.Use the oven as usual.
	As the number of racks or amount of food being cooked increases, the amount of visible steam will increase.
A burning or oily odor is coming from the vent.	This is normal for a new oven and will disappear in time.	To speed the process, set a self-cleaning cycle for a minimum of 3 hours.See the Self clean section on page 61.
Strong odor. An odor coming from the insulation around the inside of the oven is normal for the first few times the oven is used.		Operate the oven empty on the bake setting at 400 °F for 1 hour.
Fan noise. A convection fan may automatically turn on and off.		This is not a system failure but normal operation.
The oven racks are difficult to slide.	The shiny, silver-colored racks were cleaned in a self-cleaning cycle.	Apply a small amount of vegetable oil to a paper towel, and then wipe the edges of the oven racks with the paper towel.
The oven door is locked.	The circuit breaker has been tripped or there was a power failure while the oven door was locked.	Activate Control Lockout, and then unlock the control. See the Oven Control Lockout section on page 23.

Troubleshooting

Information codes

Displayed Code	Possible cause Solution
C-d0	This code occurs if the control key is short for 1 minute.	Clean the buttons and make sure there is no water on/around them. Turn off the oven and try again. If the problem continues, contact a local Samsung service center.
C-d1	This code occurs if the door lock is mispositioned.	Press OFF, and then restart the oven. If the problem persists, disconnect all power to the oven for at least 30 seconds and then reconnect the power. If this does not solve the problem, call for service.
C-F0	This code occurs if communication between the Main and Sub PBA is interrupted.
C-F2	This code occurs if communication between the Main and Touch is interrupted.
C-10	The cooking sensor is open when the microwave is operating.
	The cooking sensor is short when the microwave is operating.
C-20	The oven sensor is open when the oven is operating.
	The oven sensor is short when the oven is operating.
C-21	This code occurs if the internal temperature rises abnormally high.

Displayed Code	Possible cause Solution
C-23	The temp probe sensor is short when the oven is operating.	Press OFF, and then restart the oven. If the problem persists, disconnect all power to the oven for at least 30 seconds and then reconnect the power. If this does not solve the problem, call for service.
C-30	The PCB sensor is open when the oven is operating.
	The PCB sensor is short when the oven is operating.
C-31	This code occurs if the PCB temperature rises abnormally high.	Call for service
-dC- This code appears if the divider is inserted or removed while the oven is operating.		Make sure the divider is inserted properly, and then restart the oven.If the problem persists, disconnect all power to the oven for at least 30 seconds and then reconnect the power. If this does not solve the problem, call for service.
C-70 The steam sensor is open when the oven is operating		Press OFF, and then restart the oven. If the problem persists, disconnect all power to the oven for at least 30 seconds and then reconnect the power. If does not solve the problem, call the service.
C-72 There are drain system related problems.
C-A2	The cooling motor is operating abnormally.	Call for service.

Warranty (U.S.A)

PLEASE DO NOT DISCARD. THIS PAGE REPLACES THE WARRANTY PAGE IN THE USE & CARE GUIDE

SAMSUNG ELECTRIC OVEN

LIMITED WARRANTY TO ORIGINAL PURCHASER WITH PROOF OF PURCHASE

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials or workmanship for the limited warranty period, starting from the date of original purchase, of:

One (1) Year Parts and Labor

Ten (10) Years Magnetron Part (Part Only)

This limited warranty is valid only on products purchased and used in the United States that have been installed, operated, and maintained according to the instructions attached to or furnished with the product. To receive warranty service, the purchaser must contact SAMSUNG at the address or phone number provided below for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center to receive warranty service.

SAMSUNG will provide in-home service within the contiguous United States during the warranty period at no charge, subject to availability of SAMSUNG authorized servicers within the customer's geographic area. If in-home service is not available, SAMSUNG may elect, at its option, to provide transportation of the product to and from an authorized service center. If the product is located in an area where service by a SAMSUNG authorized servicer is not available, you may be responsible for a trip charge or required to bring the product to a SAMSUNG authorized service center for service.

To receive in-home service, product must be unobstructed and accessible to the service agent.

During the applicable warranty period, a product will be repaired, replaced, or the purchase price refunded, at the sole option of SAMSUNG. SAMSUNG may use new or reconditioned parts in repairing a product, or replace the product with a new or reconditioned product. Replacement parts and products are warranted for the remaining portion of the original product's warranty or ninety (90) days, whichever is longer. All replaced parts and products are the property of SAMSUNG and you must return them to SAMSUNG.

This limited warranty covers manufacturing defects in materials or workmanship encountered in normal household, noncommercial use of this product and shall not cover the following: damage that occurs in shipment, delivery, installation, and uses for which this product was not intended; damage caused by unauthorized modification or alteration of the product; product where the original factory serial numbers have been removed, defaced, changed in any way, or cannot be readily determined; cosmetic damage including scratches, dents, chips, and other damage to the product's finishes; damage caused by abuse, misuse, overheating due to overcooking, glass tray or turntable, pest infestations, accident, fire, floods, or other acts of nature or God; damage caused by use of equipment, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG; damage caused by incorrect electrical line current, voltage, fluctuations and surges; damage caused by failure to operate and maintain the product according to instructions; in-home instruction on how to use your product: service to correct installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e., house wiring, fuses, or water inlet hoses); and reduced magnetron power output related to normal aging.

The cost of repair or replacement under these excluded circumstances shall be the customer's responsibility.

Visits by an authorized servicer to explain product functions, maintenance or installation are not covered by this limited warranty. Please contact SAMSUNG at the number below for assistance with any of these issues.

Samsung will charge a repair fee for replacing an accessory or repairing cosmetic damage if the damage to the unit and/or damage to or loss of the accessory was caused by the customer. Items this covers include:

• Dented, scratched, or broken door, handle, out-panel, or control panel
• Broken or lost tray, guide roller, coupler, filter, or wire rack

English 83

Warranty Warranty (U.S.A) Warranty (CANADA)

Parts that SAMSUNG has determined can be replaced by the user may be sent to the customer for installation. In SAMSUNG's discretion, an authorized servicer can be dispatched to perform such installation.

EXCLUSION OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from state to state.

LIMITATION OF REMEDIES

YOUR SOLE AND EXCLUSIVE REMEDY IS PRODUCT REPAIR, PRODUCT REPLACEMENT, OR REFUND OF THE PURCHASE PRICE AT SAMSUNG'S OPTION, AS PROVIDED IN THIS LIMITED WARRANTY. SAMSUNG SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO TIME WAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELING EXPENSES, LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED. AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from state to state.

SAMSUNG does not warrant uninterrupted or error-free operation of the product. No warranty or guarantee given by any other person, firm, or corporation with respect to this product shall be binding on SAMSUNG.

To obtain warranty service, please contact SAMSUNG at:

Samsung Electronics America, Inc.

85 Challenger Road

Ridgefield Park, NJ 07660

1-800-SAMSUNG (726-7864) and www.samsung.com/us/support

PLEASE DO NOT DISCARD. THIS PAGE REPLACES THE WARRANTY PAGE IN THE USE & CARE GUIDE

SAMSUNG ELECTRIC OVEN

LIMITED WARRANTY TO ORIGINAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS CANADA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

ONE (1) YEAR PARTS AND LABOR,

FIVE (5) YEARS PARTS WARRANTY FOR MAGNETRON

This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the CANADA. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center. Samsung will provide in-home service during the warranty period at no charge subject to availability within the contiguous CANADA. In home service is not available in all areas. To receive in home service, the product must be unobstructed and accessible to the service agent. If service is not available Samsung may elect to provide transportation of the product to and from an authorized service center.

84 English

SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer. This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product and shall not apply to the following: damage which occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG which damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal and reinstallation; problems caused by pest infestations, and overheating or overcooking by user. This limited warranty shall not cover cases of incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or fixing installation errors. SAMSUNG does not warrant uninterrupted or error-free operation of the product.

EXCEPT AS SET FORTH HEREIN THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS OR IMPLIED AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. NO WARRANTY OR QUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT. REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS. DAMAGE OR INJURY TO PURCHASER AND PURCHASER'S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT. IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To obtain warranty service, please contact SAMSUNG at:

Samsung Electronics Canada Inc.

2050 Derry Road West, Mississauga, Ontario L5N 0B9 Canada

1-800-SAMSUNG (726-7864) and www.samsung.com/ca/support (English)

www.samsung.com/ca_fr/support (French)

English 85

Appendix MemoAppendix

Open Source Announcement

The software included in this product contains open source software. You may obtain the complete corresponding source code for a period of three years after the last shipment of this product by sending an email to mailto:[e-mail].

It is also possible to obtain the complete corresponding source code in a physical medium such as a CD-ROM; a minimal charge will be required.

The following URL http://opensource.samsung.com/opensource/OVEN_A20_TZ/ seq/0 leads to the download page of the source code made available and open source license information as related to this product. This offer is valid to anyone in receipt of this information.

QR code image containing encoded data, no visible human-readable text

Appendix

86 English

Memo

SAMSUNG

Scan the QR code' or visit www.samsung.com/spsn to view our helpful How-to Videos and Live Shows * Requires reader to be installed on your smartphone

Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance.

QUESTIONS OR COMMENTS?

COUNTRY CALL OR VISIT US ONLINE AT
U.S.AConsumer Electronics	1-800-SAMSUNG (726-7864) www.samsung.com/us/support
CANADA 1-800-SAMSUNG (726-7864)		www.samsung.com/ca/support (English)www.samsung.com/ca_fr/support (French)

DE68-04447A-03

Horno combinado de microondas empotrable

Manual del usuario

NQ70M7770D*

SAMSUNG

SQ7061773D AA DD68 54574 03 EN:MDS CTR,ndb 12018 09 30 富 125555

Labeled diagram of an oven with numbered parts for identification and assembly reference.

Simple line drawing of a circular table with a pointer and base, no text or symbols present

Illustration of a hand using a tool to adjust or install a small orange box on a door (no text or symbols visible)

Illustration of a hand pouring liquid into a circular tank on a surface (no text or symbols)

Illustration of a hand placing an orange wooden box into a refrigerator (no text or symbols)

Diagram of a mechanical component with a circular feature and dashed lines, labeled A (no text or symbols present)

NOTA

Hand interacting with a device control panel showing a lock icon and status indicators

Illustration of two food items: a raw steak on a griddle and a cooked chicken on a mat (no text or symbols)

Diagram showing electrical connections with labeled components and symbols, including a circle containing 'X' and 'O'

High Medium Low CNCOR AS OK

Diagram of a computer setup with monitor, keyboard, and mouse (no text or labels)

Top-down schematic of a microwave oven with labeled air ducts and fan (no text or symbols)

Diagram of an oven interior with labeled zones and equipment layout

Diagram of two stacked rectangular trays with circular holes, labeled with numbers 3 and 5 (no text or symbols on the trays themselves)

Diagram of an oven with a rack and door, showing internal structure and airflow direction (no text or symbols)

Diagram of an open refrigerator with a highlighted handle and orange arrow indicating rotation (no text or symbols)

Diagram of a smart air conditioner unit with orange X-shaped components and no visible text or symbols

PRECAUCIÓN

Four-panel diagram showing mechanical or electrical components with Chinese labels, likely illustrating a system or device layout.

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Fig. 1

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

Fig. 1

Isometric line drawing of a metal rack or cage structure (no text or symbols)

Diagram showing two steps of a device handle or latch mechanism with Chinese labels and directional arrows indicating movement.

Simple line drawing of a rectangular frame with a dashed circular arrow labeled 'A' pointing to the bottom right corner (no text or symbols on the frame itself)

Illustration of hands connecting a cable to a connector (no text or symbols visible)

Technical diagram showing two mechanical assembly steps labeled A and B, with arrows indicating movement or force direction.

Line drawing of a hand using a tool to cut or install a wooden frame (no text or symbols)

Line drawing of a hand adjusting a door panel with a handle (no text or symbols)

Diagram showing a mechanical or electrical component with labeled points A and B, connected by an orange line indicating connection.

Line drawing of a hand holding a bracket with a wooden post (no text or symbols)

Line drawing of a hand using a tool to lift or adjust a wooden plank (no text or symbols)

Ridgefield Park, NJ 07660

1-800-SAMSUNG (726-7864) www.samsung.com/us/support

NO LA DESECHE. ESTA HOJA REEMPLAZA LA PÁGINA DE GARANTÍA EN LA GUÍA DE USO Y MANTENIMIENTO

Samsung Electronics Canada Inc.

2050 Derry Road West, Mississauga, Ontario L5N 0B9 Canada

1-800-SAMSUNG (726-7864) y www.samsung.com/ca/support (English)

www.samsung.com/ca_fr/support (French)

Español 85

Apéndice NotasApéndice

QR code image containing encoded data, no visible human-readable text

Apéndice

86 Español

Notas

SAMSUNG

Labeled diagram of an oven with numbered components for identification

Simple line drawing of a round table with a central stand and an orange pointer (no text or symbols)

Illustration of a hand using a tool to adjust or install a small orange box (no text or symbols visible)

Illustration of a hand pouring liquid from a cup onto a circular object on a surface (no text or symbols)

Illustration of a hand placing an orange box into a refrigerator (no text or symbols)

Technical diagram of a mechanical component with labeled parts A and an arrow indicating direction (no text or symbols beyond labels)

REMARQUE

Grill Grill is a hot-up game High CONTROL

Illustration of two food items: a bread roll and a roasted chicken on a grid mat (no text or symbols)

Diagram of a refrigerator with open door and side table, showing internal seating arrangement (no text or labels)

Gourmet Cook
Tensiness of the past food item (e.g. Cough)
Amino acid of	Milk and milk to be processed	Culture in the past food item
Vermes to prepare a healthy diet	Compared to the best health	Beef and Bitter on a healthy diet

Gourmet Cook
T. L.L. Box
100 gm	200 gm	300 gm
100 gm	200 gm	300 gm
100 gm	200 gm	300 gm

Gourmet Cook
crowned oil	Bare not a a	cane de maalb gouwet oil
Vine a a	Cvening oil a	Ileve banaea a

Diagram of an oven with labeled parts and a central globe, showing numbered components for cooking or assembly.

Diagram of an air vent with labeled components and directional arrows indicating flow or movement

Two stacked trays with circular indentations, labeled 3 and 5 (no text or symbols on the trays themselves)

Grilles multiples

Illustration of an oven with a rack and ventilation duct, showing airflow direction (no text or symbols)

Illustration of an open oven with grilles and a handle, showing internal structure without any text or symbols.

Technical line drawing of a mechanical assembly with orange cross-shaped components (no text or symbols)

ATTENTION

Four-panel diagram showing a device with labeled components and directional arrows, likely illustrating a mechanical or electrical system.

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Fig. 1

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Fig. 1

Isometric line drawing of a metal rack or cage structure (no text or symbols)

Diagram showing two steps of a device handle or latch mechanism with Chinese labels and directional arrows indicating movement.

Simple line drawing of a rectangular frame with a dashed circular arrow labeled 'A' pointing to the bottom right corner (no text or symbols on the frame itself)

Illustration of hands connecting a cable to a connector (no text or symbols visible)

Technical diagram showing two mechanical assembly steps labeled A and B, with arrows indicating movement or force direction.

Line drawing of a hand using a tool to lift or adjust a wooden plank (no text or symbols)

Line drawing of a hand holding a metal bracket with a pull arrow, no text or symbols present

Technical diagram showing a mechanical component with labeled connection point A

Illustration of a hand holding a bracket with wooden frame (no text or symbols)

Line drawing of a hand using a tool to lift or adjust a wooden plank (no text or symbols)

Ridgefield Park, NJ 07660

1-800-SAMSUNG (726-7864) et www.samsung.com/us/support

VEUILLEZ NE PAS JETER. CETTE PAGE REMPLACE LA PAGE DE GARANTIE CONTENUE DANS LE GUIDE D'UTILISATION ET D'ENTRETIEN.

FOUR ÉLECTRIQUE SAMSUNG

Samsung Electronics Canada Inc.

2050 Derry Road West, Mississauga, Ontario L5N 0B9 Canada

1-800-SAMSUNG (726-7864) et www.samsung.com/ca/support (English)

www.samsung.com/ca_fr/support (French)

Français 85

Annexe NotesAnnexe

QR code image containing encoded data, no visible human-readable text

Annexe

86 Français

Notes

SAMSUNG
