USER MANUAL MW6194W SAMSUNG

Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance.

100% Recycled Paper

This manual is made with 100% recycled paper.

MW6194ST
MW6194W
ME6194ST

imagine the possibilities

Thank you for purchasing this Samsung product.

SAMSUNG

CONTENTS

Using this instruction booklet 2
Important safety information 2
Legend for symbols and icons 3
Precaution to avoid possible exposure to excessive microwave energy. 3
Important safety instructions 4
Installing your microwave oven 7
How a microwave oven works 7
What to do if you are in doubt or have a problem. 8
Accessories. 8
Setting up your microwave oven 8
Control panel. 9
Setting the clock. 9
Using the pause/cancel button 9
Selecting the weight unit 10
Using the one minute ^+ button. 10
Using the sensor cook buttons 10
Sensor cooking guide 10
Using the instant cook buttons 11
Using the handy helper button 11
Using the kids meals button. 12
Using the snack bar button 12
Reheating automatically 13
Defrosting automatically 13
Setting cooking times & power levels 13
One-stage cooking 14
Multi-stage cooking 14
Demonstration mode 14
Using the more/less buttons 15
Switching the beeper on/off 15
Using the kitchen timer 15
Setting the child protection lock 15
Power saving feature 15
Cooking utensils 16
Cooking techniques 17
Cooking guide 19
Auto defrosting guide 21
Recipes 21
Troubleshooting guide 23
Error message 24
Care and cleaning 24
Specifications 25

USING THIS INSTRUCTION BOOKLET

You have just purchased a SAMSUNG microwave oven. Your Owner's Instructions contain valuable information on cooking with your microwave oven:

Safety precautions
Suitable accessories and cookware
Useful cooking tips
Cooking tips

IMPORTANT SAFETY INFORMATION

IMPORTANT SAFETY INSTRUCTIONS.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Before using the oven, confirm that the following instructions are followed.

• Use this appliance only for its intended purpose as described in this instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance.
• Because these following operating instructions cover various models, the characteristics of your microwave oven may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service centre or find help and information online at www.samsung.com.
• This microwave oven is supposed for heating food. It is intended for domestic home-use only. Do not heat any type of textiles or cushions filled with grains, which could cause burns and fire. The manufacturer cannot be held liable for damage caused by improper or incorrect use of the appliance.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possible result in a hazardous situation.

LEGEND FOR SYMBOLS AND ICONS

Hazards or unsafe practices that may result in severe personal injury or death.

Hazards or unsafe practices that may result in minor personal injury or property damage.

Warning; Fire hazard Warning; Not surface

Warning; Electricity Warning; Expositive material

Do NOT attempt. Follow direct explicitly.

Do NOT disassemble.

Do NOT touch.

Call the service center for help.

Important

PRECAUTION TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY.

Failure to observe the following safety precautions may result in harmful exposure to microwave energy.

(a) Under no circumstances should any attempt be made to operate the oven with the door open or to tamper with the safety interlocks (door latches) or to insert anything into the safety interlock holes.
(b) Do NOT place any object between the oven door and front face or allow food or cleaner residues to accumulate on sealing surfaces. Ensure that the door and door sealing surfaces are kept clean by wiping after use first with a damp cloth and then with a soft dry cloth.
(c) Do NOT operate the oven if it is damaged until it has been repaired by a qualified microwave service technician trained by the manufacturer. It is particularly important that the oven door closes properly and that there is no damage to the:

(1) door (bent)
(2) door hinges (broken or loose)
(3) door seals and sealing surfaces
(d) The oven should not be adjusted or repaired by anyone other than a properly qualified microwave service technician trained by the manufacturer.

Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic defect if the damage to the unit and/or damage to or loss of the accessory was caused by the customer. Items this stipulation covers include:

(a) A Dented, Scratched, or Broken Door, Handle, Out-Panel, or Control Panel.
(b) A Broken or missing Tray, Guide Roller, Coupler, or Wire Rack.

ImportTaNT SafETy INStruCTioNS

Make sure that these safety precautions are obeyed at all times.

warNING	A	A	A	A
Only qualified staff should be allowed to modify or repair the microwave oven.	✓	✓	✓	✓
Do not heat liquids and other food in sealed containers.	✓	✓	✓	✓
For your safety, do not use high-pressure water cleaners or steam jet cleaners.	✓	✓	✓	✓
Do not install this appliance; near heater, inflammable material; in a humid, oily or dusty location, in a location exposed to direct sunlight and water or where gas may leak; on un level ground.	✓	✓	✓	✓
This appliance must be properly grounded in accordance with local and national codes.	✓	✓	✓	✓
Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis.	✓	✓	✓	✓
Do not pull or excessively bend or place heavy objecton the power cord.	✓	✓	✓	✓
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power plug.	✓	✓	✓	✓
Do not touch the power plug with wet hands.	✓	✓	✓	✓
Do not turn the appliance off by unplugging the power plug while an operation is in progress.	✓	✓	✓	✓
Do not insert fingers or foreign substances, If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service centre.	✓	✓	✓	✓
Do not apply excessive pressure or impact to the appliance.	✓	✓	✓	✓

Do not place the oven over a fragile object such as a sink or glass object. (Counter top model only)	✓	✓
Do not use benzene, thinner, alcohol, steam cleaner or high pressure cleaner to clean the appliance.	✓	✓	✓	✓
Ensure that the power voltage, frequency and current are the same as those of the product specifications.	✓	✓		✓
Plug the power plug into the wall socket firmly. Do not use a multiple plug adapter, an extension cord or an electric transformer.	✓	✓	✓
Do not hook the power cord on a metal object, insert the power cord between the objects or behind the oven.	✓	✓	✓
Do not use a damaged power plug, damaged power cord or loose wall socket. When the power plug or power cord is damaged, contact your nearest service centre.	✓	✓	✓	✓
Appliances are not intended to be operated by means of an external timer or separate remote-control system.	✓	✓
Do not pour or directly spray water onto the oven.	✓	✓
Do not place objects on the oven, inside or on the door of the oven.	✓	✓	✓
Do not spray volatile material such as insecticide onto the surface of the oven.	✓	✓
Children should be supervised to ensure that they do not play with the appliance	✓	✓	✓	✓
The appliance is not intended for installing in road vehicles, caravans and similar vehicles etc.	✓	✓	✓	✓
Do not store flammable materials in the oven. Take special care when heating dishes or drinks that contain alcohol as alcohol vapours may contact a hot part of the oven.	✓		✓	✓
The microwave oven is intended to be used on the counter or counter top use only, the microwave oven shall not be placed in a cabinet. (Counter top model only)	✓	✓	✓	✓
★warNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.	✓	✓	✓	✓
★warNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.	✓	✓	✓	✓
★This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.	✓	✓	✓	✓
★warNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.	✓	✓	✓	✓
★warNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.	✓	✓	✓	✓
★warNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.	✓	✓	✓
★warNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.	✓		✓	✓
★warNING: Accessible parts may become hot during use. To avoid burns young children should be kept away.	✓		✓

warNING: Microwave heating of beverages can result in delayed eruptive boiling,therefore care must be taken when handling the container; To prevent this situation ALWAYS allow a standing time of at least 20 seconds after the oven has been switched off so that the temperature can equalize. Stir during heating, if necessary, and ALWAYS stir after heating. In the event of scalding, follow these FIRST AID instructions: • Immense the scalded area in cold water for at least 10 minutes. • Cover with a clean, dry dressing. • Do not apply any creams, oils or lotions.

During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

warNING: The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;

The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

This oven should be positioned proper direction and height permitting easy access to cavity and control area.

Before using the oven first time, oven should be operated with the water during 10 minute and then used.

This microwave oven has to be positioned so that plug is accessible. If the oven generates a strange noise, a burning smell, or smoke is emitted, unplug the power plug immediately and contact your nearest service center.

During cleaning conditions the surfaces may get hotter than usual and children should be kept away. (Cleaning function model only)

Excess spillage must be removed before cleaning and utensils which state in cleaning manual can be left in the oven during cleaning. (Cleaning function model only)	✓	✓	✓	✓
Appliance should allow to disconnection of the appliance from the supply after installation. The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules. (Built-in model only.)	✓	✓	✓	✓
Keep children away from the door when opening or closing it as they may bump themselves on the door or catch their fingers in the door.	✓	✓	✓	✓
Do not put the tray or rack in water shortly after cooking because it may cause breakage or damage of the tray or rack.				✓
Do not operate the microwave oven for deep fat frying because the oil temperature cannot be controlled. This could result in a sudden boil over of the hot liquid.	✓			✓

Caution		A	A	A	A
Only use utensils that are suitable for use in microwave ovens; DO NOT use any metallic containers, Dinnerware with gold or silver trimmings, Skewers, forks, etc. Remove wire twist ties from paper or plastic bags. Reason: Electric arcing or sparking may occur and may damage the oven.
When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;
Do not use your microwave oven to dry papers or clothes.
Use shorter times for smaller amounts of food to prevent overheating and burning food.
If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;
The oven should be cleaned regularly and any food deposits removed;

Do not immerse the power cable or power plug in water and keep the power cable away from heat.	✓	✓
Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended; Also do not heat airtight or vacuum-sealed bottles, jars, containers, nuts inshells, tomatoes etc.			✓	✓
Do not cover the ventilation slots with cloth or paper. They may catch fire as hot air escapes from the oven. The oven may also overheat and switch itself off automatically, and will remain off until it cools sufficiently.	✓		✓
Always use oven mitts when removing a dish from the oven to avoid unintentional burns.			✓
Do not touch heating elements or interior oven walls until the oven has cooled down.			✓
Stir liquids halfway during heating or after heating ends and allow the liquid stand at least 20 seconds after heating to prevent eruptive boiling.			✓
Stand at arms length from the oven when opening the door to avoid getting scalded by escaping hot air or steam.			✓
Do not operate the microwave oven when it is empty. The microwave oven will automatically shut down for 30 minutes for safety purposes. We recommend placing a glass of water inside the oven at all times to absorb microwave energy in case the microwave oven is started accidentally.	✓			✓
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.	✓			✓
Install the oven in compliance with the clearances stated in this manual. (See installing your microwave oven)	✓		✓
Take care when connecting other electrical appliances to sockets near the oven.	✓	✓	✓

INSTaLLING yoUr microwave ovEN

Place the oven on a flat level surface 85 cm above the floor. The surface should be strong enough to safety bear the weight of the oven.

1. When you install your oven, make sure there is adequate ventilation for your oven by leaving at least 10cm (4 inches) of space behind and, on the sides of the oven and 20~cm (8 inches) of space above.

1. Remove all packing materials inside the oven. Install the roller ring and turntable. Check that the turntable rotates freely.

1. This microwave oven has to be positioned so that plug is accessible.
   If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. For your personal safety, plug the cable into a 3-pin, 230 Volt, 50 Hz, AC earthed socket. If the power cable of this appliance is damaged, it must be replaced by a special cable.
   Do not install the microwave oven in hot or damp surroundings like next to a traditional oven or radiator. The power supply specifications of the oven must be respected and any extension cable used must be of the same standard as the power cable supplied with the oven. Wipe the interior and the door seal with a damp cloth before using your microwave oven for the first time.

How a mlCrowavE ovEN workS

Cooking principle

1. The microwaves generated by the magnetron are distributed uniformly as the food rotates on the turntable. The food is thus cooked evenly.
2. The microwaves are absorbed by the food up to a depth of about 1 inch (2.5 cm). Cooking then continues as the heat is dissipated within the food.
3. Cooking times vary according to the container used and the properties of the food.

Quantity and density
Water content
- Initial temperature (refrigerated or not)

As the centre of the food is cooked by heat dissipation, cooking continues even when you have taken the food out of the oven. Standing times specified in recipes and in this booklet must therefore be respected to ensure:

Even cooking of the food right to the centre
The same temperature throughout the food

WHAT TO DO IF YOU ARE IN DOUBT OR HAVE A PROBLEM

Becoming familiar with a new appliance always takes a little time. If you have any of the problems listed below, try the solutions given. They may save you the time and inconvenience of an unnecessary service call.

The following are normal occurrences.

Condensation inside the oven
Air flow around the door and outer casing
Light reflection around the door and outer casing
- Steam escaping from around the door or vents

The food is not cooked at all.

Have you set the timer correctly?
Is the door closed?
- Have you overloaded the electric circuit and caused a fuse to blow or a breaker to be triggered.

The food is either overcooked or undercooked.

Was the appropriate cooking length set for the type of food?
Was an appropriate power level chosen?

Sparking and cracking occur inside the oven (arcing).

Have you used a dish with metal trimmings?
Have you left a fork or other metal utensil inside the oven?
Is aluminum foil too close to the inside walls?

The oven causes interference with radios or televisions.

• Slight interference may be observed on televisions or radios when the oven is operating. This is normal.
  Solution: Install the oven away from televisions, radios and aerials.
  If interference is detected by the oven's microprocessor, the display may be reset.
• Solution: Disconnect the power plug and reconnect it. Reset the time.

If the above guidelines do not enable you to solve the problem, contact your local dealer or SAMSUNG after-sales servic.

ACCESSIONS

1. Roller ring, to be placed in the center of the oven.

Purpose: The roller ring supports the turntable.

1. Turntable, to be placed on the roller ring with the center fitting on to the coupler.

Purpose: The turntable serves as the main cooking surface; it can be easily removed for cleaning.

1. Place the oven on a flat, sturdy surface and plug the cord into a grounded outlet, once plugged in, the display on your oven will show:

Make sure there is adequate ventilation for your oven by leaving at least four inches of space behind, above, and to the side of the oven.

1. Open the oven door by pulling on the handle.

2. Wipe the inside of the oven with a damp cloth.

3. Place the pre-assembled ring in the indentation in the center of the oven.

1. Place the glass tray on top of the ring so that the three glass tabs in the center of the tray fit securely into the tabs on the floor of the oven.

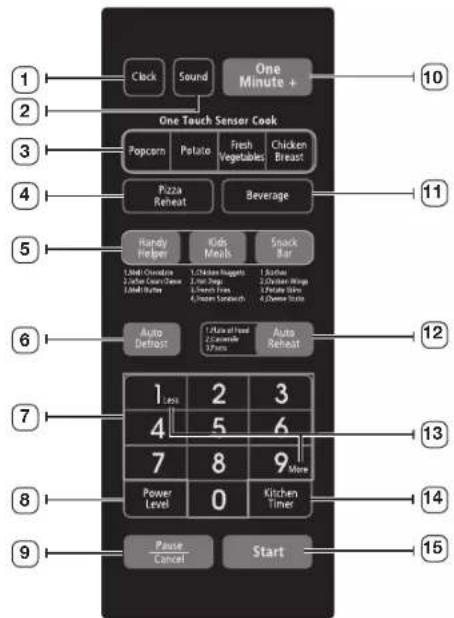

CONTROL PANEL

1. Clock
2. Sound
3. One Touch Sensor Cook Button
4. Pizza Reheat (INSTANT COOK)
5. Auto Cook Menus

6. Auto Defrost
   7.NumberButton

7. Power Level

8. Pause/Cancel
9. One Minute +
10. Beverage (INSTANT COOK)
11. Auto Reheat
12. More/Less
13. Kitchen Timer
    15.Start

SETTING THE CLOCK

1. Press the Clock button. The "ENTER" and "TIME" indicators flash.
2. Use the Number buttons to enter the current time. You must press at least three numbers to set the clock. If the current time is 5:00 enter, 5,0,0.
3. When 5 seconds has elapsed, "ENTER" indicator flash and "Cloc" will be displayed.
4. Press Clock again. A colon will blink, indicating that the time is set.
   If there is a power interruption, you will need to reset the clock. You can check the current time while cooking is in progress by pressing the Clock button.
   Auto energy saving function

If you do not select any function when appliance is in the middle of setting or operating with temporary stop condition, function is canceled and clock will be displayed after 25 minutes. Oven Lamp will be turned off after 5 minutes with door open condition.

USING THE PAUSE/CANCEL BUTTON

The Pause/Cancel button allows you to clear instructions you have entered. It also allows you to pause the oven's cooking cycle, so that you can check the food.

• To pause the oven during cooking: press Pause/Cancel once. To restart, press Start.
  To stop cooking, erase instructions, and return the oven display to the time of day: press Pause/Cancel twice.
  To correct a mistake you have just entered: press Pause/Cancel once, then re-enter the instructions.

SELECTING THE WEIGHT UNIT

You can easily select the weight unit (Kg or Lbs) of the microwave oven.

1. Press the '0' button within 4 seconds right after plug in the microwave oven.
2. Select either Kg or Lbs by pressing '0' button.
3. Wait for 3 seconds after selecting the weight unit.
4. The weight unit you selected is automatically set.
   To reset the weight unit, unplug the power and plug in again. Then go back to step 1 above.

USING THE ONE MINUTE + BUTTON

This button offers a convenient way to heat food in one minute increments at the High power level.

1. Press the One Minute+ button once for each minute you wish to cook the food. For example, press it twice for two minutes. The time will display, and the oven starts automatically.
   Add minutes to a program in progress by pressing the One Minute+ button for each minute you want to add.

USING THE SENSOR COOK BUTTONS

By actually sensing the steam that escapes as food heat, this feature automatically adjusts the oven's heating time for various types and amounts of precooked food. All food should be precooked and at refrigerator temperature.
1. Press the Sensor Cook button corresponding to the food you are cooking (Popcorn, for example). The display shows and your microwave oven will begin cooking automatically. When cooking popcorn, wait at least five minutes between each bag to avoid overheating the glass tray. If you want to check the current time while cooking is in progress, press the Clock button.

SENSOR COOKING GUIDE

Follow the instructions below when sensor cooking different types of food.

Food Amount	Procedure
Popcorn 3.0 ~ 3	5 oz 1 package	Use only one microwave-only bag of popcorn at a time. Use caution when removing and opening hot bag from oven. Let oven cool for at least 5 minutes before using again.
Potatoes 1 to 6 ea.	Prick each potato several times with fork. Place on tumtable in spoke-like fashion. Let stand 3-5 min. Let oven cool for at least 5 minutes before using again.
Fresh vegetables	1 to 4 cups Place fresh vegetables in microwave-safe dish and add 2 Tbsp of water. Cover with microwave safe plastic wrap or lid. If using plastic wrap be sure to leave a small opening near the edge of dish for ventilation. Remove vegetable from oven let sit covered for 2 minutes, stir or serve. Let oven cool for at least 5 minutes before using again.
Chicken breast 0.5 to 1.5 lbs Arrange	chicken pieces in a microwave-safe dish with the thickest portions to the outside. Cover with wax paper tucking sides of wax paper under dish. In case of thick chicken breast, for the best result, pound each side lightly with a mallet before cooking. When the oven beeps, turn over and rearrange them. Let oven cool for at least 5 minutes before using again.

USING THE INSTANT COOK BUTTONS

1. Press the Instant Cook button corresponding to the food you are cooking (Beverage, for example). The display shows the first serving size. ("ENTER" and "QTY." will flash):
2. Press the button repeatedly to select the serving size you want. The display will cycle through all available serving sizes. Once you select the correct serving size, the microwave will begin cooking automatically.

When the cooking time is over, the oven will beep. The oven will then beep every minute.

Item Weight Remarks
Pizza reheat	1 slice	Put the pizza on a microwave-safe plate with wide end of slice towards the outside edge of the plate.
	2 slices
	3 slices	Do not let slices overlap. Do not cover.
	4 slices	Before serving, let stand 1-2 min.
Beverage	½ cup	Use measuring cup or mug; do not cover.
	1 cup	Place the beverage in the oven.
	2 cups	After heating, stir well.

USING THE HANDY HELPER BUTTON

1. Press the Handy Helper button corresponding to the food you are cooking. The display shows "A-1".(item code) Press the Handy Helper button repeatedly to select the item you want. (Refer to the Handy Helper Chart below)
2. Press the Number 1 or 2 button to select the serving size you want. Only the 1 button (serving) is available to Soften Cream Cheese and Melt Chocolate. (Refer to the Handy Helper Chart below for the serving)
3. Press Start button to begin cooking.

Handy helper chart

Code Item Weight Remarks
A-1 Melt chocolate	1 cup chips	Place chocolate chips or square in a microwave-safe dish. Stir well at half time when the oven beeps, and re-start the oven. Unless stirred, the chocolate keeps its shape even when heating time is over.
A-2 Soften cream cheese	1 package (8 oz.)	Unwrap cream cheese and place on microwave-safe dish. Let stand 1-2 min.
A-3 Melt butter	1 stick (1/4 lb.) 2 sticks (1/2 lb.)	Remove wrapping and cut butter in half vertically. Place butter in dish, cover with wax paper. Stir well after finishing and let stand 1-2 min.

USING THE KIDS MEALS BUTTON

1. Press the Kids Meals button corresponding to the food you are cooking. The display shows "A-1"(item code). Press the Kids Meals button repeatedly to select the item you want. (Refer to the Kids Meals Chart below)
2. Press the Number 1 or 2 button to select the serving size you want. (Refer to the Kids Meals Chart below for the serving.)
3. Press Start button to begin cooking.

Kids meals chart

Code Item Weight	Remarks
A-1 ChickenNuggets	4-5 oz6-7 oz	Put a paper towel on top of plate and arrange nuggets in spoke fashion on paper towel. Do not cover. Let stand 1 min.
A-2 Hot Dogs 2 ea	4 ea	Prick hot dogs, place on plate. When the oven beeps, add buns and re-start the oven.
A-3 FrenchFries	4-5 oz6-7 oz	Place 2 paper towels on plate and arrange french fries on towels, do not overlap. Blot with additional paper towel after removal from oven.
A-4 FrozenSandwich	1 ea2 ea	Place frozen sandwich in susceptor "sleeve" (which is in package) and put on plate.

USING THE SNACK BAR BUTTON

1. Press the Snack Bar button corresponding to the food you are cooking. The display shows "A-1" (item code). Press the Snack Bar button repeatedly to select the item you want. (Refer to the Snack Bar Chart below)

2. Press the Number 1 or 2 button to select the serving size you want. Only the 1 button (serving) is available for Nachos. (Refer to the Snack Bar Chart below for the serving)

3. Press Start button to begin cooking.

Snack bar chart

Code Item Weight Remarks
A-1 Nachos 1 serving	Place tortilla chips	on plate without overlapping. Sprinkle evenly with cheese. Contents: -2 cups tortilla chips -1/3 cup grated cheese
A-2 Chicken Wings	5-6 oz 7-8 oz	Use pre-cooked, refrigerated chicken wings. Place chicken wings around plate in spoke fashion and cover with wax paper.
A-3 Potato Skins	1 cooked potato 2 cooked potatoes	Cut cooked potato into 4 even wedges. Scoop or cut out potato flesh, leaving about 1/4" of skin. Place skins in spoke fashion around plate. Sprinkle with bacon, onions and cheese. Do not cover.
A-4 Cheese Sticks	5-6 pcs 7-10 pcs	Place cheese sticks on plate in spoke fashion. Do not cover.

REHEATING AUTOMATICALLY

To reheat food, select the type of dish and the number of servings you want to reheat, and the microwave automatically sets the reheating time.

1. Press the Auto Reheat button repeatedly to select the type of dish you wish to reheat. The initial serving size for each dish is one serving. You can select up to four cups for casseroles and pasta, Rice tinned reheat. Only one serving is available for a plate of food. The display shows the dish and quantity you have chosen.
2. Use the Number buttons to increase the serving size. For example, for three servings, press the 3 button (Refer to the Auto Reheat Chart below for the servings). The display shows the number of servings you have selected:
3. Press the Start button. The display will show Cooking Time.

Auto reheat chart

Item Weight Remarks
Plate of food	1 serving Use onlly pre-cooked, refrigerated foods. Cover plate with vented plastic wrap or wax paper.Contents:- 3-4 oz. meat, poultry or fish (up to 6 oz. with bone)- 1/2 cup starch (potatoes, pasta, rice, etc.)- 1/2 cup vegetables (about 3-4 oz.)
Casserole 1	to 4 servings(8 oz./serving)	Use only refrigerated foods.Cover with lid or vented plastic wrap.Stir foods well before serving.
Pasta 1 to 4	servings(8 oz./serving)

DEFROSTING AUTOMATICALLY

To thaw frozen food, set the weight of the food and the microwave automatically sets the defrosting time, power level and standing time.

1. Press the Auto Defrost button. The display shows "0.5 lbs." (0.2Kg if you have set your oven for metric measure). ("ENTER" and "Lbs." will flash).
2. To set the weight of your food, press the Auto Defrost button repeatedly. This increases the weight by 0.5 lb increments, up to 6.0 lbs. (The Auto Defrost button will increase the weight by 0.2 Kg up to 2.6 kg if you are using metric measurement).
   You can also use the Number buttons to enter the weight of the food directly.
   The oven calculates the defrosting time and starts automatically. Twice during defrosting, the oven will beep to let you know to turn the food over.
3. Press the Pause/Cancel button, open the oven door, and turn the food over.
4. Press the Start button to resume defrosting.

See page 21 for the auto defrosting guide.

SETTING COOKING TIMES & POWER LEVELS

Your microwave allows you to set up to two different stages of cooking, each with its own time length and power level. The Power Level button lets you control the heating intensity from Warm (1) to High (0).

ONE-STAGE COOKING

For simple one-stage cooking, you only need to set a cooking time. The power level is automatically set to High. If you want to set the power to any other level, you must set it using the Power Level button.

1. Use the Number buttons to set a cooking time. You can set a time from one second to 99 minutes, 99 seconds. To set a time over one minute, enter the seconds too. For example, to set 20 minutes, enter 2, 0, 0, 0.
2. If you want to set the power level to something other than High, press the Power Level button, then use the Number buttons to enter a power level.

Power levels

1 = PL:10 (Warm) 6 = PL:60 (Simmer)
2 = PL:20 (Low) 7 = PL:70 (Medium hgh)
3 = PL:30 (Defrost) 8 = PL:80 (Reheat)
4 = PL:40 (Medium low) 9 = PL:90 (Saute)
5 = PL:50 (Medium) 0 = PL:Hi (High)

1. Press the Start button to begin cooking. If you want to change the power level, press Pause/Cancel before you press Start, and re-enter all of the instructions.
   Some recipes require different stages of cooking at different temperatures. You can set multiple stages of cooking with your microwave.

MULTI-STAGE COOKING

1. Follow steps 1 and 2 in the "One-Stage Cooking" section on the previous page.
   When entering more than one cooking stage, the Power Level button must be pressed before the second cooking stage can be entered. To set the power level at High for a stage of cooking, press the Power Level button twice.
2. Use the Number buttons to set a second cooking time.
3. Press the Power Level button, then use the Number buttons to set the power level of the second stage of cooking.
4. Press Start to begin cooking.
   You can check the Power Level while cooking is in progress by pressing the Power Level button.

DEMONSTRATION MODE

You can use the Demonstration Mode to see how your microwave oven operates without the oven heating.
1. Hold the 0 button and then press the 1 button. To turn demo mode off, repeat step 1 above.

USING THE MORE/LESS BUTTONS

The More/Less buttons allow you to adjust pre-set cooking times. They only work in the Sensor Reheat, Sensor Cooking, Instant Cook, Handy Helper, Kids Meals, Snack Bar or Time Cook modes. Use the More/Less button only after you have already begun cooking with one of these procedures.

1. To ADD more time to an automatic cooking procedure: Press the More (9) button.
2. To REDUCE the time of an automatic cooking procedure: Press the Less (1) button.
   If you wish to increase/decrease in Time Cook mode by 10 sec, press the More (9) or Less (1) button.

SWITCHING THE BEEPER ON/OFF

You can switch the beeper off whenever you want.

1. Press the Sound button. The display shows "ON", ("START" will flash)
2. Press the Sound button to turn the volume off. The display shows: "OFF". ("START" will flash)
3. Press Start. The display returns to the time of day.

USING THE KITCHEN TIMER

1. Press the Kitchen Timer button.
2. Use the Number buttons to set the length of time you want the timer to run.
3. Press Start to begin Kitchen Timer.
4. The display counts down and beeps when the time has elapsed.

The microwave does not turn on when the Kitchen timer is used.

SETTING THE CHILD PROTECTION LOCK

You can lock your microwave oven so it can't be used by unsupervised children.

1. Hold the "0" button and then press the "2" button. The display shows "Loc".
   At this point, the microwave oven cannot be used until it is unlocked. To unlock it, repeat step 1 above.

POWER SAVING FEATURE

1. After 5 minutes in standby status (after cooking time or in current time display mode), the display of the microwave oven is turned off.
2. At this time, press any key to return to the previous state, and to turn the display on again.
3. However, the power saving feature does not turn the display off in the following status.
4. In case of E-41, E-42, E-45, E-47

Cooking UTENSILS

Glass and glass-ceramic bowls and dishes - Use for heating or cooking.
- Microwavable browning dish - Use to brown the exterior of small items such as steaks, chops, or pancakes. Follow the directions provided with your browning dish.
- Microwavable plastic wrap - Use to retain steam. Leave a small opening for some steam to escape and avoid placing it directly on the food.
Wax paper - Use as a cover to prevent spattering.
- Paper towels and napkins - Use for short-term heating and covering; they absorb excess moisture and prevent spattering. Do not use recycled paper towels, which may contain metal and can catch fire.
- Paper plates and cups - Use for short-term heating at low temperatures. Do not use recycled paper, which may contain metal and can catch fire.
- Thermometers - Use only those labeled "Microwave Safe" and follow all directions. Check the food in several places. Conventional thermometers may be used once the food has been removed from the oven.

Limited use

• Aluminum foil - Use narrow strips of foil to prevent overcooking of exposed areas. Using too much foil can damage your oven, so be careful.
• Ceramic, porcelain, and stoneware - Use these if they are labeled "Microwave Safe". If they are not labeled, test them to make sure they can be used safely. Never use dishes with metallic trim.
  Plastic - Use only if labeled "Microwave Safe". Other plastics can melt.
• Straw, wicker, and wood - Use only for short-term heating, as they can be flammable.

Not recommended

Glass jars and bottles - Regular glass is too thin to be used in a microwave, and can shatter.
- Paper bags - These are a fire hazard, except for popcorn bags that are designed for microwave use.
Styrofoam plates and cups - These can melt and leave an unhealthy residue on food.
- Plastic storage and food containers - Containers such as margarine tubs can melt in the microwave.
- Metal utensils - These can damage your oven. Remove all metal before cooking.

Testing utensils

If you are not sure whether a dish is microwave-safe or not, you can perform this test:

1. Fill a 1 cup glass measuring cup with water and put it inside your oven, next to the dish you want to test.

1. Press the one minute+ button once to heat them for one minute at High power. The water should be warm and the dish you are testing should be cool. If the dish is warm, then it is absorbing microwave energy and is not acceptable for use in the microwave.

CookING TECHNIqUES

Not recommended

Stirring

Stir foods such as casseroles and vegetables while cooking to distribute heat evenly. Food at the outside of the dish absorbs more energy and heats more quickly, so stir from the outside to the center. The oven will turn off when you open the door to stir your food.

Arrangement

Arrange unevenly shaped foods, such as chicken pieces or chops, with the thicker, meatier parts toward the outside of the turntable where they receive more microwave energy. To prevent overcooking, place thin or delicate parts toward the center of the turntable.

Shielding

Shield food with narrow strips of aluminum foil to prevent overcooking. Areas that need shielding include poultry wing-tips, the ends of poultry legs, and corners of square baking dishes. Use only small amounts of aluminum foil. Larger amounts can damage your oven.

Turning

Turn foods over midway through cooking to expose all parts to microwave energy. This is especially important with large items such as roasts.

Standing

Foods cooked in the microwave build up internal heat and continue to cook for a few minutes after the oven stops. Let foods stand to complete cooking, especially foods such as roasts and whole vegetables. Roasts need this time to complete cooking in the center without overcooking the outer areas. All liquids, such as soup or hot chocolate, should be shaken or stirred when cooking is complete. Let liquids stand a moment before serving. When heating baby food, stir well and test the temperature before serving.

Adding moisture

Microwave energy is attracted to water molecules. Food that is uneven in moisture content should be covered or allowed to stand so that the heat disperses evenly. Add a small amount of water to dry food to help it cook.

General tips

• Dense foods, such as potatoes, take longer to heat than lighter foods. Foods with a delicate texture should be heated at a low power level to avoid becoming tough.
  Altitude and the type of cookware you are using can affect cooking time. When using a new recipe, use the minimum cooking time and check the food occasionally to prevent overcooking.
• Foods with a non-porous skin such as potatoes or hot dogs, should be pierced to prevent bursting.
• Frying with heating oil or fat is not recommended. Fat and oil can suddenly boil over and cause severe burns.
  Some ingredients heat faster than others. For example, the jelly inside a jelly doughnut will be hotter than the dough. Keep this in mind to avoid burns.
• Home canning in the microwave oven is not recommended because all harmful bacteria may not be destroyed by the microwave heating process.
• Although microwaves do not heat the cookware, the heat from the food is often transferred to the cookware. Always use pot holders when removing food from the microwave and instruct children to do the same.
• Making candy in the microwave is not recommended as candy can heat to very high temperatures. Keep this in mind to avoid injury.

Auto sensor cook

The Auto Sensor allows you to cook your food automatically by detecting the amount of moistures generated from the food while cooking.

• When cooking food, many kinds of moistures are generated. The Auto Sensor determines the proper time and power level by detecting these moistures from the food, eliminating the need to set the cooking time and power level.
• When you cover a container with its lid or plastic wrap during Sensor Cooking, the Auto Sensor will detect the moistures generated after the container has been saturated with steam.
• Shortly before cooking ends, the remaining cooking time will begin its count down. This will be a good time for you to rotate or stir the food for even cooking if it is necessary.
  Before auto sensor cooking food may be seasoned with herbs, spices or browning sauces. A word of caution though, salt or sugar may cause burn spots on food so these ingredients should be added after cooking.
• The More/Less function pad is used to increase or decrease cooking time. You should use this function to adjust the degree of cooking to suit your personal taste.

Utensils & cover for sensor cooking

• To obtain good cooking results with this function, follow the directions for selecting appropriate containers and covers in the charts in this book.
  Always use microwave-safe containers and cover them with their lids or with plastic wrap. When using plastic wrap, turn back one corner to allow steam to escape at the proper rate.
  Always cover with the lid intended for the utensil being used. If the utensil does not have its own lid, use plastic wrap.
• Fill containers at least half full.
• Foods that require stirring or rotating should be stirred or turned toward the end of the Sensor Cook cycle, after the time has started to count down on the display.

Important

It its not advisable to use the auto sensor cooking feature on a continuous cooking operation, i.e. one cooking operation immediately after another.
- Install the oven in a well ventilated location for proper cooling and airflow and to ensure the sensor will operate accurately.
- To avoid poor results, do not use the Auto sensor when the room ambient temperature is too high or too low.
- Do not use volatile detergent to clean your oven. Moisture resulting from this detergent may affect the sensor.
- Avoid placing the oven near high moisture or gas emitting appliances, since this will interfere with the proper performance of the Auto Sensor.
Always keep the inside of the oven clean. Wipe all spills with a damp cloth.
This oven is designed for household use only.

COOKING GUIDE

Guide for cooking meat in your microwave

• Place meat on a microwave-safe roasting rack in a microwave-safe dish.
• Start meat fat-side down. Use narrow strips of aluminum foil to shield any bone tips or thin meat areas.
• Check the temperature in several places before letting the meat stand the recommended time.
  The following temperatures are removal temperatures. The temperature of the food will rise during the standing time.

Food Cook time/Power level Directions
Roast beef bonelessUp to 4 lbs.	Cooking Time:8-12 min. / 0.5 kg for 50 °C -Rare9-13 min. / 0.5 kg for 55 °C -Medium10-15 min. / 0.5 kg for 65 °C -Well donePower Level:High (0) for first 5 min., thenMedium (5).	Place roast fat-side downon roasting rack. Cover with wax paper. Turn over when cooking time is half up. Let stand 10 min.
Porkbonelessor bone-inUp to 4 lbs.	Cooking Time:12-16 min. / 0.5 kg for 70 °CWell donePower Level:High (0) for first 5 min., thenMedium (5).	Place roast fat-side downon roasting rack. Cover with vented plastic wrap. Turn over when cooking time is half up. Let stand 10 min.

Guide for cooking poultry in your microwave

• Place poultry on a microwave-safe roasting rack in a microwave-safe dish.
  Cover poultry with wax paper to prevent spattering.
  Use aluminum foil to shield bone tips, thin meat areas, or areas that start to overcook.
• Check the temperature in several places before letting the poultry stand the recommended time.

Food Cook time/Power level Directions
Whole Chicken Up to 4 lbs.	Cooking Time: 7-10 min. / 0.5 kg 80 °C Power Level: Medium High (7).	Place chicken breast-side down on roasting rack. Cover with wax paper. Turn over when the cooking time is half up. Cook until juices run clear and meat near the bone is no longer pink. Let stand 5-10 min.
Chicken Pieces Up to 2 lbs.	Cooking Time: 7-10 min. / 0.5 kg 80 °C dark meat 75 °C light meat Power Level: Medium High (7).	Place chicken bone-side down on dish, with the thickest portions towards the outside of the dish. Cover with wax paper. Turn over when the cooking time is half up. Cook until juices run clear and meat near the bone is no longer pink. Let stand 5-10 min.

Guide for cooking seafood in your microwave

Cook fish until it flakes easily with a fork.
- Place fish on a microwave-safe roasting rack in a microwave-safe dish.
- Use a tight cover to steam fish. A lighter cover of wax paper or paper towel provides less steaming.
- Do not overcook fish; check it at minimum cooking time.

Food	Cook time/Power level	Directions
Steaks Cooking Time: Up to 0.7 kg	7-11 min. / 0.5 kg Power Level: Medium-High (7).	Arrange steaks on roasting rack with meaty portions towards the outside of rack. Cover with wax paper. Turn over and rearrange when cooking time is half up. Cook until fish flakes easily with a fork. Let stand 3-5 min.
Filletts Cooking Time: Up to 0.7 kg	4-8 min. / 0.5 kg Power Level: Medium-High (7).	Arrange fillets in a baking dish, turning any thin pieces under Cover with wax paper. If over 1/2 inch thick, turn over and rearrange when cooking time is half up. Cook until fish flakes easily with a fork. Let stand 2-3 min.
Shrimp Cooking Time: Up to 0.7 kg	4-61/2 min. / 0.5 kg Power Level: Medium-High (7).	Arrange shrimp in a baking dish without overlapping or layering. Cover with wax paper. Cook until firm and opaque, stirring 2 or 3 times. Let stand 5 min.

Cooking eggs in your microwave

• Never cook eggs in the shell, and never warm hard-cooked eggs in the shell; they can explode.
  Always pierce whole eggs to keep them from bursting.
  Cook eggs just until set; they become tough if overcooked.

Guide for cooking vegetables in your microwave

Vegetables should be washed just before cooking. Often, no extra water is needed. If dense vegetables such as potatoes, carrots and green beans are being cooked, add about 14 cup water.
- Small vegetables (sliced carrots, peas, lima beans, etc.) will cook faster than larger ones.
Whole vegetables, such as potatoes, acorn squash or corn on the cob, should be arranged in a circle on the turntable before cooking. They will cook more evenly if turned over after half the cooking time.
Always place vegetables like asparagus and broccoli with the stem ends pointing towards the edge of the dish and the tips toward the center.
- When cooking cut vegetables, always cover the dish with a lid or vented microwavable plastic wrap.
Whole, unpeeled vegetables such as potatoes, squash, eggplant, etc., should have their skin pricked in several spots before cooking to prevent them from bursting.
For more even cooking, stir or rearrange whole vegetables halfway through the cooking time.
Generally, the denser the food, the longer the standing time. (Standing time refers to the time necessary for dense, large foods and vegetables to finish cooking after they come out of the oven.) A baked potato can stand on the counter for five minutes before cooking is completed, while a dish of peas can be served immediately.

AUTO DEFROSTING GUIDE

Follow the instructions below when defrosting different types of food.

Food	Standard amount	Procedure
Roast beef, pork	2.5-6.0 lbs.	Start with the food placed fat side down. After each stage, turn the food over and shield any warm portions with narrow strips of aluminum foil.
Steaks, chops, fish	0.5-3.0 lbs.	After each stage, rearrange the food. If there are any warm or thawed portions of food, shield them with narrow flat pieces of aluminum foil. Remove any pieces of food that are nearly defrosted. Let stand, covered, for 5-10 minutes.
Ground meat 0	5-3.0 lbs. After	each stage, remove any pieces of food that are nearly defrosted. Let stand, covered with foil, for 5-10 minutes.
Whole chicken	2.5-6.0 lbs.	Remove giblets before freezing poultry. Start defroasting with the breast side down. After the first stage, turn the chicken over and shield any warm portions with narrow strips of aluminum foil. After the second stage, again shield any warm portions with narrow strips of aluminum foil. Let stand, covered, for 30-60
Chicken pieces	0.5-3.0 lbs. After each stage, rearrange or remove any pieces of food that are nearly defrosted. Let stand for 10-20 minutes.

Check foods when the oven signals. After the final stage, small sections may still be icy; let them stand to continue thawing. Do not defrost until all ice crystals have thawed. Shielding roasts and steaks with small pieces of foil prevents the edges from cooking before the center of the food has defrosted. Use narrow, flat, smooth strips of aluminum foil to cover the edges and thinner sections of the food.

RECIPES

Beef and barley stew

675 g beef stew cubes, cut into 12 -inch pieces

12 cup chopped onion

2 Tbs. all-purpose flour

1 Tbs Worcestershire sauce

1 can (380-405 g) beef broth

2 medium carrots, cut into 12 -inch slices (about 1 cup)

12 cup barley

1 bay leaf

14 tsp. pepper

1 pkg. (250-280 g) frozen peas, thawed

1. In a 2-quart casserole, combine beef, onion, flour, and Worcestershire; mix well.
   Cover with lid. Cook at High (0) for 6 to 8 minutes until beef is no longer pink, stirring once.
2. Stir in beef broth, carrots, barley, bay leaf, and pepper. Cover with lid. Cook at Medium for 1 to 112 hours until carrots and beef are tender, stirring 2 to 3 times.
3. Stir in peas. Cover with lid. Cook at Medium for 10 minutes. Let stand for 10 minutes. Remove bay leaf before serving.

Makes 6 servings.

Broccoli and cheese casserole

14 cup butter or margarine
14 cup chopped onion
1½ Tbs. flour
12tsp.salt
14 tsp. dry mustard
1/8 tsp. pepper
112 cups milk
14 cup chopped red pepper
225 g (2 cups) cheddar cheese, shredded
1 pkg. (250-280 g) frozen chopped broccoli, thawed
4 cups cooked spiral shaped pasta (225 g dry)
1. In a 2-quart casserole, cook butter and onion at High (0) for 1 to 2 minutes until onion is soft, stirring once.
2. Add flour, salt, mustard, and pepper; mix well. Cook at High (0) for 30 to 60 seconds until mixture boils. Stir in milk until smooth.
3. Stir in red pepper. Cook at High (0) for 2 to 3 minutes until mixture boils and thickens slightly, stirring twice. Stir in cheese until melted.
4. Add broccoli and pasta, mix well. Cover with lid. Cook at High (0) for 4 to 6 minutes until heated through, stirring once. Stir before serving. Makes 6 servings.

Warm potato salad

900 g small red potatoes, cut into 12 -inch pieces
4 slices bacon (uncooked), cut into 12 -inch pieces
14 cup chopped onion
2 tsp. sugar
1 tsp. salt
1 tsp. flour
1/2 tsp. celery seed
1/8 tsp. pepper
2½ Tbs. apple cider vinegar
1. In a 2-quart casserole, combine potatoes and 14 cup water. Cover with lid. Cook at High (0) until potatoes are tender (7-10 min.) stir twice. Drain and set aside to cool slightly.
2. In a medium bowl, cook bacon at High (0) until crisp (212 - 312) ; stir once. Place bacon on a paper towel. Reserve 1 Tbs. drippings.
3. Combine drippings and onion. Cover with plastic wrap; turn back a corner to vent steam. Cook at High (0) until tender (112 - 212) ; stir once.
4. Stir in sugar, salt, flour, celery seed, and pepper. Cook at High (0) until mixture boils (30-40 sec.). Stir in vinegar and 12 cup water. Cook at High (0) until liquid boils and thickens slightly (1-2 min.); stir once. Add bacon to dressing. Pour dressing over potatoes. Stir well." Makes 6 servings.

Black bean soup

1 cup chopped onion
1 clove garlic, minced
2 cans (420 g each) black beans, drained
1 can (390-450 g) stewed tomatoes, chopped
1 can (385-405 g) chicken broth
1 can (195-240 g) corn
1 can (110 g) chopped green chilies
1-2 tsp. ground cumin, or to taste
1. Place onion and garlic in a 3-quart casserole. Cover with lid. Cook at High (0) for 2 to 4 minutes until tender.
2. Add one can of beans, mash beans with a fork. Add remaining ingredients; mix well.
3. Cook uncovered, at High (0) for 10 minutes; stir. Reduce power to Medium and cook for 5 minutes. Stir before serving. Makes about 2 quarts.

TroUbLESHooTINGGUIDE

Before you call a repair person for your oven, check this list of possible problems and solutions.

Neither the oven's display nor the oven operate.

• Properly insert the plug into a grounded outlet.
  If the outlet is controlled by a wall switch, make sure the wall switch is turned on.
• Remove the plug from the outlet, wait ten seconds, then plug it in again.
• Reset the circuit breaker or replace any blown fuse.
  Plug another appliance into the outlet; if the other appliance doesn't work, have a qualified electrician repair the outlet.
  Plug the oven into a different outlet.

The oven's display works, but the power won't come on.

Make sure the door is closed securely.
- Check to see if packing material or other material is stuck to the door seal.
Check for door damage.
Press Cancel twice and re-enter all cooking instructions.

The power goes off before the set time has elapsed.

• If there has not been a power outage, remove the plug from the outlet, wait ten seconds, then plug it in again. If there was a power outage, the time indicator will display "BB:BB" Reset the clock and any cooking instructions.
• Reset the circuit breaker or replace any blown fuse.

The food is cooking too slowly.

• Make sure the oven is on its own 12A amp circuit line. Operating another appliance on the same circuit can cause a voltage drop. If necessary, move the oven to its own circuit.

You see sparks or arcing.

• Remove any metallic utensils, cookware, or metal ties. If using foil, use only narrow strips and allow at least one inch between the foil and interior oven walls.

The turntable makes noises or sticks.

Clean the turntable, roller ring and oven floor.

Make sure the turntable and roller ring are positioned correctly.

Using your microwave causes TV or radio interference.

• This is similar to the interference caused by other small appliances, such as hair dryers. Move your microwave further away from other appliances, like your TV or radio.

Error mESSaGE

• If "Error1" and "Error3" are displayed, please let oven cool for at least 5 minutes. If these messages are displayed frequently, please call our service line.
  If you open the door on the way to sensing, "Error4" will be displayed.
  If "Error2" is displayed, please call our service line immediately.

CarE aND CLEaNING

• Follow these instructions to clean and care for your oven.
• Keep the inside of the oven clean. Food particles and spilled liquids can stick to the oven walls, causing the oven to work less efficiently.
• Wipe up spills immediately. Use a damp cloth and mild soap. Do not use harsh detergents or abrasives.
• To help loosen baked on food particles or liquids, heat two cups of water (add the juice of one lemon if you desire to keep the oven fresh) in a four-cup measuring glass at High power for five minutes or until boiling. Let stand in the oven for one or two minutes.
• Remove the glass tray from the oven when cleaning the oven or tray. To prevent the tray from breaking, handle it carefully and do not put it in water immediately after cooking. Wash the tray carefully in warm sudsy water or in the dishwasher.
• Clean the outside surface of the oven with soap and a damp cloth. Dry with a soft cloth. To prevent damage to the operating parts of the oven, don't let water seep into the openings.
• Wash the door window with very mild soap and water. Be sure to use a soft cloth to avoid scratching.
• If steam accumulates inside or outside the oven door, wipe with a soft cloth. Steam can accumulate when operating the oven in high humidity and in no way indicates microwave leakage.
• Never operate the oven without food in it; this can damage the magnetron tube or glass tray. You may wish to leave a cup of water in the oven when it is not in use to prevent damage if the oven is accidentally turned on.

SpECIflCaTloNS
NoTE

moDEL mw6194ST / mw6194w /	mE6194ST
Power source 230 V ~ 50 Hz
Controls 10 power levels, including defrost
Timer 99 minutes, 99 seconds
Power consumption microwave 1500 Watts
Output power 1000 Watts (IEC-705)
Operating frequency 2450 MHz
Outside dimensions 660.4 (W) X 35	1.3 (H) X 460.5 (D)
Oven cavity dimensions 449 (W) X 275.1 (H) X 453.1 (D)
Volume 54 liter
Weight net 20 kg

25

NoTE NoTE

MW6194ST_XSG_DE68-03249B-03_EN.indd 26 2014-05-08 5:22:29

SAMSUNG

QUESTIONS OR COMMENTS

COUNTRY	CALL	OR VISIT US ONLINE AT
U.A.E 800-SAMSUNG (726-7864)		www.samsung.com/ae/support (English) www.samsung.com/ae_ar/support (Arabic)
OMAN 800-SAMSUNG (726-7864)
KUWAIT 183-2255 (183-CALL)
BAHRAIN 8000-4726
QATAR 800-2255 (800-CALL)
EGYET 08000-16580	726786	www.samsung.com/eg/support
ALGERIA 021 36	1100	www.samsung.com/in_africa/support
PAKISTAN	0800-Samsung (72678)	www.samsung.com/pk/support
TUNISIA	80-1000-12	www.samsung.com/in_africa/support
JORDAN 06 577 444	0800-22273	www.samsung.com/Levant/support (English)
SYRIA	18252273	www.samsung.com/iran/support
IRAN	021-8255	www.samsung.com/iran/support
MOROCCO	080 100 2255	www.samsung.com/in_africa/support
SAUDI ARABIA	920021230	www.samsung.com/sa/support www.samsung.com/sa_en/support (English)
TURKEY	444 77 11	www.samsung.com/fr/support
NIGERIA	0800-726-7864	www.samsung.com/africa_en/support
GHANA 0302-200077	0800-10077
Cote D'Ivoire	8000 0077	www.samsung.com/africa_fr/support
SENEGAL	800-00-0077
CAMEROON	7095-0077
KENYA	0800 545 545	www.samsung.com/support
UGANDA	0800 300 300
TANZANIA	0885 88 99 00
RWANDA 9999
BURUNDI	200
DRC	499999
SUDAN 1969
SOUTH AFRICA	0860 SAMSUNG (726 7864)
BOTSWANA 8007	260000
NAMIBIA	08 197 287 864
ZAMBIA	0211 350370
MOZAMBIQUE	847267864 / 827267864

DE68-03249B-03

MW6194ST

MW6194W

ME6194ST

Four micro-ondes

CoNSIGNeS de SeCURITe Importantly

lg = 1

f	alilalil alilal alilal
f	alilal alil alil alil alil
f	alilal alil alil alil alil
f	alilal alil alil alil alil
f	alilal alil alil alil alil
f	alilal alil alil alil alil
f	alilal alil alil alil alil
f	alilal alil alil alil alil
v	alilal alil alil alil alil
v	alilal alil alil alil alil
A	alilal alil alil alil alil
A	alilal alil alil alil
A	alilal alil alil alil
q	alilal alil alil alil
q	alilal alil alil
q	alilal alil alil alil
q	alilal alil alil alil
q	alilal alil alil alil
i	alilal alil alil alil
i	alilal alil alil alil
i	alilal alil alil alil
j	alilal alil alil alil
j	alilal alil alil alil
l	alilal alil alil alil
l	alilal alil alil alil
l	alilal alil alil alil
l	alilal alil alil alil
l	alilal alil alil alil
l	alilal alil alil alil
l	alilal alil alil alil
l	allal alil alil alil
l	allal alil alil alil
l	allal alil alil alil
l	allal alil alil alil
l	allal alil alil alil
l	allal alil alil alil
l	allal alil alil alil
l	allal alil alil alil

a 1000

aLlal 299511111111111111111111111111

(1)

Jauu Jauu juaa

L 1

pLs! 1

a a a a a a a a a a a a a a a a a a a a a a a a a a a a

gio g 50

auiiui 1jIleuJg jyJL aaiLi

g i 1

aLgJ 1

i

g 1

1.5.1.14.2.7.11

y

a1 + a2 + a_3 = 6

1

山

julihj

Jc Jg-aa1 aaaa;Jg<

✓

✓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

↓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✘

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✗

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

√

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

☑

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

\( \square \)

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

-

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

·

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

●

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

○

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

•

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

▪

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

×

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

*

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

①

A	A	A	A
√	√	√	√
√	√	√	√
√	√	√	√
√	√	√	√
√	√	√	√
√	√	√	√
√	√	√	√
√	√	√	√
√	√	√	√
√	√	√	√
√	√	√

√	√	√	√
	√	√	√
	√	√	√
	√	√	√
	√	√	√
	√	√	√
	√	√	√
	√	√	√
	√	√	√
	√	√	√
	√	√	√

√	√	√	√
√	√	√	√
√	√	√	√
√	√	√	√
√	√	√	√
√	√	√	√
√	√	√	√
√	√	√	√
√	√	√	√
√	√	√	√

√	√
	√
	√
	√
	√
	√
	√
	√
	√
	√
	√
	√
	√
	√
	√
	√
	√
	√	√

√	√	√	√ ###
√	√	√	√ ###
√			√ ###
√			√ ###

√	√		√ ∑g:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:
	√		√ ∑g:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:
√	√		√ ∑g:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:la:
√	√		√ ∑g:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:
√		√	√ ∑g:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g:la:g

aagg.5 1j joc a

gLuo 1

aepalgabagd gaae aeg

Luluo

L 100000000000000000000000000000000000000

JL 1

paleal paaas gaaa aaii gai j pleabn y

aLSSJQ

gab pae bala 8 aalalal y 8 y aalal aalal aalal aalal aalal

111 10

i

aio jlll sfo gao Jnlo paleall

j1 1

1993.51 1

aeg aeg

Lal 100

aai 1

aLwog jai Jcag 100

0Lc（UlogA）

yall 100 a100

jglal jajg jglal aal 5

L 5

aal 4yall no aolaoe gai oao gai clll aaii

200150g

Jgj 1000000000000000000000000000000000000000

1 1

(Le/1/2020L)Pause/Cancel

Sound.r

One Minute+

One Touch Sensor Cook j_1j_2

Melt Chocolate (S) Soften Cream Cheese

(1)

gall sll (j) Start jll lalol

cllJg

jediak ### jediak ### jediak ### jediak ### jediak ### jediak ### jediak ### jediak ### jediak ### jediak ### jediak ### jediak ### jediak ### jediak ### jediak ### jediak ### jediak ### jediak ### jediak ### jediak ### jediak ### jediak ### jediak ### jediak ### jediak ### jediak ###
plak###jali jali g###g k###k ### k###k ### k###k ### k###k ### k###k ### k###k ### k###k ### k###k ### k###k ### k###k ### k###k ### k###k ### k###k ### k###k ### k###k ### k###k ### k###k ### k###k ### k###k ### k###k ### k###k ### k###k ### k###k ### k###k ### k###k ### k###k #			A-2 d
g### g### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k### k###	(jb, j)		A-3d
	(kl, l)

g j 1

gai jai plall Jai (s gai Instant Cook, jai

JgLl l a Lbege Jll

111111111111111111111111111111111111

i 1

y

"105 Ibs aI 100000000000000000000000000000000000000000000000000000000

15.2.11 w.l.d. 1c w.l.d. h.v., c.e (f), a.s.s. f)

(“(Lb) Lbs” g “(JLs) ENTER” 0 JSL

111111111111111111111111111111111111111 0000000000000000000000000000000000000000000000000

1. ( \left{ {a : a \mid p \Rightarrow {p}^{a} = p}\right} \Rightarrow \left{ {a : a \mid p \Rightarrow {p}^{a} = p}\right} \Rightarrow \left{ {a : a \mid p \Rightarrow {p}^{a} = p}\right} \Rightarrow \left{ {a : a \mid p \Rightarrow {p}^{a} = p}\right} \Rightarrow \left{\ {a : a \mid p \Rightarrow {p}^{a} = p}\right} \Rightarrow \left{ {a : a \mid p \Rightarrow {p}^{a} = p}\right} \Rightarrow \left{ {a : a \mid p \Rightarrow {p}^{a} = p}\right} \Rightarrow \left{ {a \mid p \Rightarrow {p}^{a} = p}\right} \Rightarrow \left{ {a : a \mid p \Rightarrow {p}^{a} = p}\right} \Rightarrow \left{ {a : a \mid p \Rightarrow {p}^{a} = p}\right} \Rightarrow \left{ {a : a \mid P \Rightarrow P}\right} \Rightarrow \left{ {a : a \mid P \Rightarrow P}\right} \Rightarrow \left{ {a : a \mid P \Rightarrow P}\right} \Rightarrow \left{ {a : a \mid P \Rightarrow P}\right} \Rightarrow \left{ {a : a \mid P \Rightarrow T}\right} \Rightarrow \left{ {a : a \mid P \Rightarrow T}\right} \Rightarrow \left{ {a : a \mid P \Rightarrow T}\right} \Rightarrow \left{ {a : a \mid P \Rightarrow T}\right} \Rightarrow \left{ {a : a \mid P \Rightarrow S}\right} \Rightarrow \left{ {a : a \mid S}\right} \Rightarrow \left{ {a : a \mid S}\right} \Rightarrow \left{ {a : a \mid S}\right} \Rightarrow \left{ {a : a \mid S}\right} \Rightarrow \left{ {a : a \mid S}\right} \Rightarrow \left{ {\lambda ,P,Q,S,T}\right} \Rightarrow \left{ {\lambda ,P,Q,R}\right} \Rightarrow \left{ {\lambda ,P,Q,R}\right} \Rightarrow {\lambda }^{2}{P}^{2}{Q}^{2}{R}^{2}{S}^{2}{T}^{2}{T}^{2}{S}^{2}{T}^{2}{S}^{2}{T}^{2}{T}^{2}{T}^{2}{T}^{2}{T}^{2}{T}^{2}{T}^{2}{T}^{2}{T}^{2}{T}^{2}{T}^{2}{T}^{2}{T}^{2}{T}^{2}{T}^{2}{T}^{2}{T}^{2}{T}^{2}{T}^{2}{T}^{2}{108576456789000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

1

Paealll

1 1

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

10000000000000000000000000000000000000000000000

yai 1

pL 1yLgblg jgl (jlll) HJH JH Auto Reheat Jgge Jgge

aaii

"glus" aaiuui jaoeau (a) Start 1

jlll jll

aalal gaaal aal alal paaal jpaal paal (aalal gaaal) Power Level

1

golal (20) Start jll le 1

jll jleal alabw gabll (aBbI ginn) Power Level 0gssll

(1) LbI (gimn) Power Level

#

aegnnn 900 899,511 jne Jaoe aed jaeel "joeal gge" plasunl y

1jlllalai jaiilai jaiilai 0 jlllai

1000000000000000000000000000000000000

a1g aLyoLg

Lssj gaiy jaiy jaiy jaiy pbi jji jpi

"calal 10" plalal 10

J123456789010

10000000000000000000000000000000000000

Lol "Loc" 2" jll jiei aai ai iai ai jai 00" jll lcl

0

0.5L 0gSd1

aLJI jgj 0

1

y

a 1000

a 1

E-47g-E-45g-E-42g-E-41JL

(START) "Joo" (OFF) "Joo"

4

J 1

a a a a a a a a a a a a a a a a a a a a a a a a a a a a

"Microwave safe" 406

aaii aii jil y iij jil gijl piai jil Looj aegg kai go lqalaiai

gawwol "Microwave Safe" aoc Jia 15 1n 1aas gws w

s214 s21w011 g0g 13.1993,511 go gol

Lg i 1.

JLW

17

paleyjggljgwlss

gai jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jai gaijai gaijai gaijai gaijai gaijai gaijai gaijai gaijai gaijai gaijai gaijai

#

y 1000000000000000000000000000000000000000000000000000000000000000000000000000000000000

golw

#

123

aie piai jaiy jay gai yaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaliy jaliy jaliy jaliy jaliy jaliy jaliy jaliy jaliy jaliy jaliy jaliy jaliy

plebgl gao wui j

e 150

pab

Jn 11111111111111111111111111111111111111111

paleb

aLc aagg gssallalal ylls yolglal aocia gplal alp

1521

a aalgl gaaal glalagaaaagagaaal ylaaggaaal aalld

gai gai jia aizio gbi dlaoc gai plaoi yilalil gai bai plaoi gag 2 .
ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygi ygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iyogl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iygl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iyogl iy

jpln

glal aas y aalil llaa y taal plaley gbal "palaswly palll gall" dcl
gall lplaln no aiei
"plasiwu galsll galsll plall galsll .
gale plealll aeeell alaae eaeelll galsll gssse
gall cggg allll gssse n aeai aedll pae
"plasuwu galsll gial y wolld plawll ay aie .
gall sall gwl uy wolld gial y wolld plawll ay aie .
Lag Lg 1250000000000000000000000000000000000000000000000000000000000000000000000000000000000

Jl 1000000000000000000000000000000000000000000000000000000000000000000000000000000000

aaii jil lal aay aaiy aaiy jaiy jaiy

（20 1

g 153 8 Lue Jd

sll sllg 1

1

a

jglal jajllg jla JcJg jolal jaoLdSllg

gall 2000

i#

a. i. 15.2020 a. ii. 15.2020

Gaaa aalaaalaaalaaalaaalaaalaaalaaalaaalaaalaaalaaalaaalaaalaaalaaalaaalaaalaaalaaalaaalaaalaaalaaalaaalaaalaaalaaalaaalaaalaaalaaalaaalaaalaa

aie 49 aegg.5al 80 cooiu

Jgagaae aegyagabaaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaa

jillg,

aalaae aee 100000000000000000000000000000000000000

aagg gaae aae aee eae ae aee

111144444444444444444444444444444444444444

Paii Liay Lggl Jia jilao jaoaal baaill aaglll jbl

a

g 8g

a5gwlilwglwlllal gws

jolld1 gai aagg,511 0afoaunw yaoi wolld joldl jlc dow

gaaa aaeaaeaaee

JLLIILBLaIJIaIaIIg

gall bao jao jaoai aai jao 1iagai aai jao aai gai jai jai jai jai jai jai jai jai

golil

45.5Logistic 201,1381

1g

aag aalgbsos J5.0s0Jscglaall gaaal 10

p11

11000

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a aaa

ailll jublaalab

aai aai aai gai jai bai all ayabai all yabai all aai

aogaa aagaa gaa (gaa) aal

1

Sswll 10

1111000000000

aall

jS11 00000000000000000000

Jalal 0a aao

pI 1000

gaiy 1

Lg

1.0-1.0 1

j000000000000000000000000000000000000000000

1

gag aalaaa aalaaa aalaaa aalaaa aalaaa aalaaa

aai jai 8jai ai Lai

J 1

1

y 1

J 1

jlll jy 1000

Joo 2015

pSsLglo 10

a a 100

111 111 111 111 111

100 100

aaijai jai jai jai jai jai jai

a aagaae gai jao yalil jauo yuall 1, 1 1

100

gluol

Jauuui jaiy gss plao sll Jaaaoww gilgagll 8fll gabla Jaae

gJgJgJIg

1

p20

1JgJgJg（p>2f·aLc（5jg）aLc

(ρ1→20…r9) aIbIaIpbolalI yIy aIc

Gall 200（p）-0-（）

a1100（）

gai jai jai jai jai aai 10

1111 1111 1111 1111 1111 1

g 1

Gg 1

LgLg: a, a, a, 11 c, g, S, L, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a

aas1. aal 20 aag 1 - aal ( ) (gllc) High gannl g blln g

aai Jaaia aai jai 0aasjg (Jwog) Medium

1

1

A. B. C. D. E. F.

aee eae aee

J 1

a a

y

puii piig1g jg pniu w 5]j nai no aiaea a bgl g glgglgglg

111 111 111 111 111 111 111 111 111 111 111 111 111

J 1

aall a,1g,1g,1g,1g,1g,1g,1g,1g

Jus Jus jleagao jgai aal gajgai jay all jy
