USER MANUAL CE287DN SAMSUNG

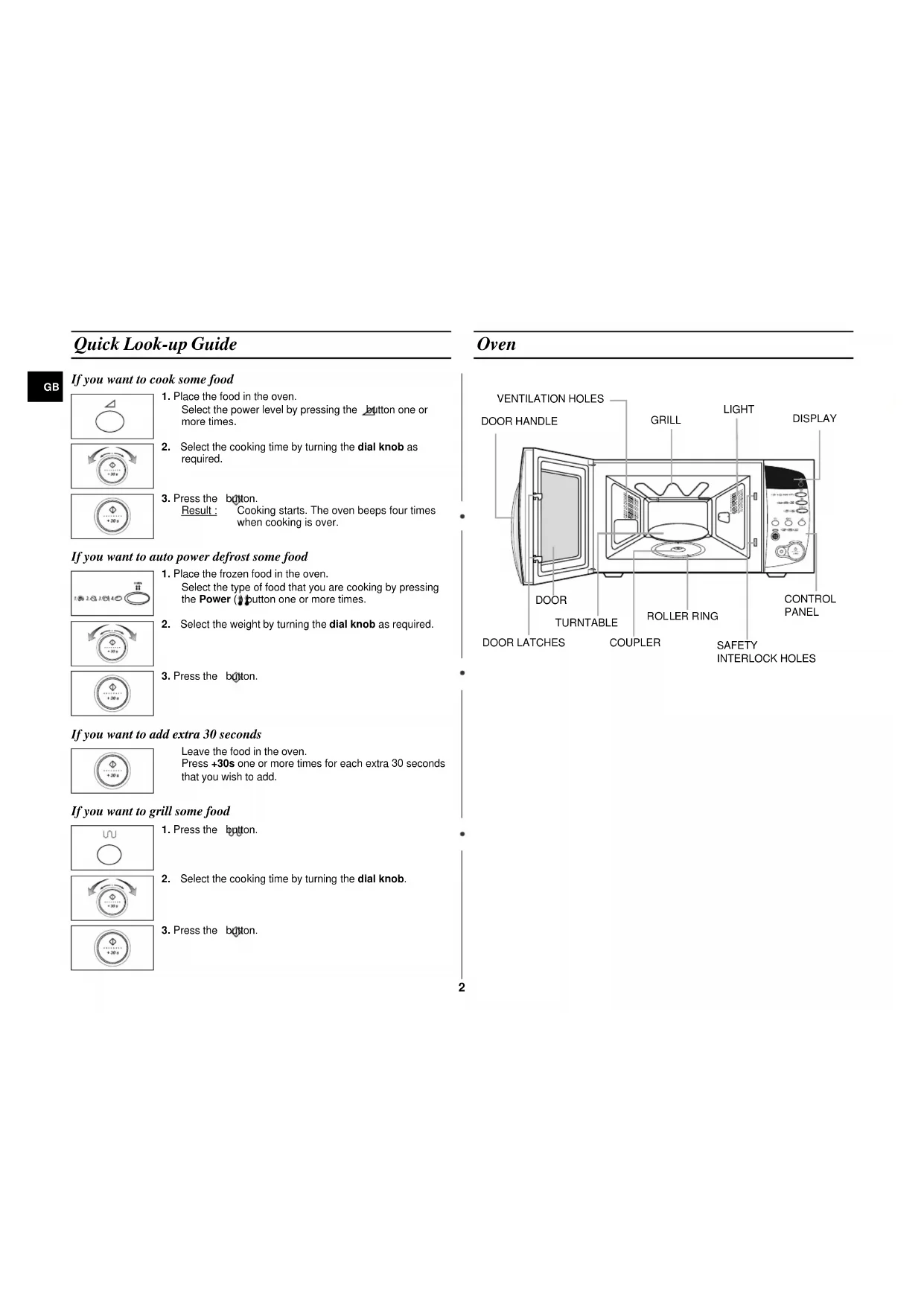

Quick Look-up Guide If you want to cook some food If you want to auto power defrost some food If you want to add extra 30 seconds If you want to grill some food Oven

1. Place the food in the oven.

Select the power level by pressing the button one or more times.

2. Select the cooking time by turning the dial knob as

Result : Cooking starts. The oven beeps four times when cooking is over.

1. Place the frozen food in the oven.

Select the type of food that you are cooking by pressing the Power ( ) button one or more times.

2. Select the weight by turning the dial knob as required.

3. Press the button.

Leave the food in the oven. Press +30s one or more times for each extra 30 seconds that you wish to add.

1. Press the button.

2. Select the cooking time by turning the dial knob.

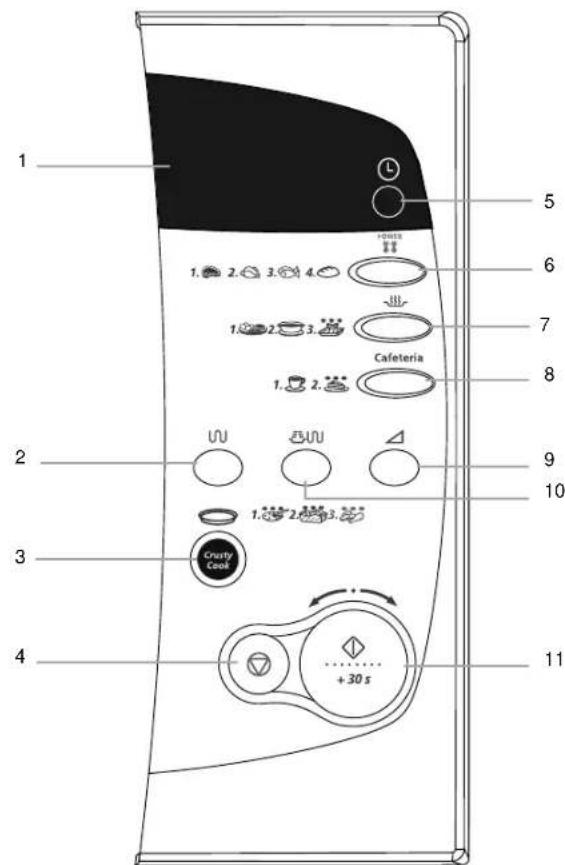

Control Panel Accessories Depending on the model that you have purchased, you are supplied with several accessories that can be used in a variety of ways. ☛ DO NOT operate the microwave oven without the roller ring and turntable. 1. DISPLAY2. GRILL MODE SELECTION3. AUTO CRUSTY COOK SELECTION4. STOP/CANCEL BUTTON5. CLOCK SETTING 6. AUTO POWER DEFROST BUTTON7. AUTO REHEAT SELECTION8. CAFETERIA SELECTION9. MICROWAVE/ POWER LEVEL MODE SELECTION10. COMBI MODE SELECTION11. START BUTTON/ DIAL KNOB (cook time, weight and serving size)

1. Coupler, already placed over the motor shaft in the base of the oven.Purpose :The coupler rotates the turntable.2. Roller ring, to be placed in the centre of the oven.Purpose :The roller ring supports the turntable.3. Turntable, to be placed on the roller ring with the centre fitting to the coupler.Purpose :The turntable serves as the main cooking surface; it can be easily removed for cleaning.4. Metal rack, to be placed on the turntable.Purpose :The metal rack can be used in grill and combination cooking.5. Crusty plate, see page 11 to 13.Purpose :The crusty plate when using auto crusty cook function or manual crusty cook function. jlY_^kuniUGGwGZGGmSGvGXXSGYWWYGGXYaWYGwt4

Using this Instruction Booklet You have just purchased a SAMSUNG microwave oven. Your Owner’s Instructions contain much valuable information on cooking with your microwave oven:

• Suitable accessories and cookware

• Useful cooking tips Inside the cover you will find a quick look-up guide explaining four basic cooking operations:

• Auto Power Defrosting of food

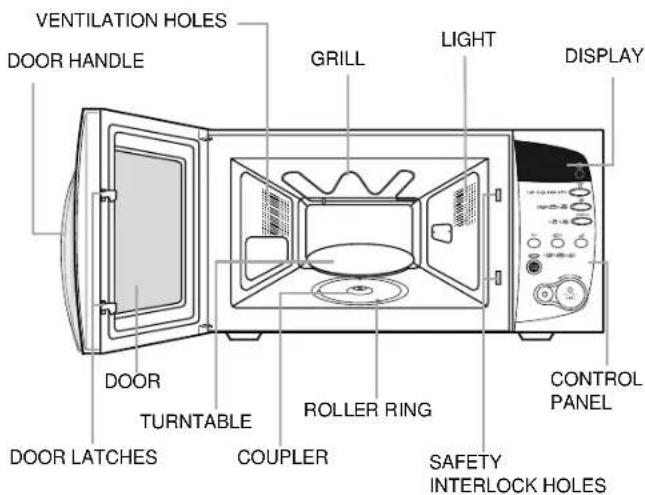

• Adding extra cooking time At the front of the booklet you will find illustrations of the oven, and more importantly the control panel, so that you can find the buttons more easily. The step-by-step procedures use four different symbols.

Failure to observe the following safety precautions may result in harmful exposure to microwave energy. (a) Under no circumstances should any attempt be made to operate the oven with the door open or to tamper with the safety interlocks (door latches) or to insert anything into the safety interlock holes. (b) Do not place any object between the oven door and front face or allow food or cleaner residues to accumulate on sealing surfaces. Ensure that the door and door sealing surfaces are kept clean by wiping after use first with a damp cloth and then with a soft dry cloth. (c) Do not operate the oven if it is damaged until it has been repaired by a qualified microwave service technician trained by the manufacturer. It is particularly important that the oven door closes properly and that there is no damage to the: (1) Door, door seals and sealing surfaces (2) Door hinges (broken or loose) (3) Power cable (d) The oven should not be adjusted or repaired by anyone other than a properly qualified microwave service technician trained by the manufacturer. Safety Precautions Important Safety Instructions. Read Carefully and keep for future reference. Before cooking food or liquids in your microwave oven, please check that the following safety precautions are taken.

• Dinnerware with gold or silver trimmings

• Skewers, forks, etc. Reason : Electric arcing or sparking may occur and may damage the oven.

• Airtight or vacuum-sealed bottles, jars, containers Ex) Baby food jars

• Airtight food. Ex) Eggs, nuts in shells, tomatoes Reason: The increase in pressure may cause them to explode. Tip: Remove lids and pierce skins, bags, etc.

3. DO NOT operate the microwave oven when it is empty.

Reason: The oven walls may be damaged. Tip: Leave a glass of water inside the oven at all times. The water will absorb the microwaves if you accidentally set the oven going when it is empty.

4. DO NOT cover the rear ventilation slots with cloths or paper.

Reason : The cloths or paper may catch fire as hot air is evacuated from the oven.

5. ALWAYS use oven gloves when removing a dish from the oven.

Reason: Some dishes absorb microwaves and heat is always transferred from the food to the dish.The dishes are therefore hot.

6. DO NOT touch heating elements or interior oven walls.

Reason : These walls may be hot enough to burn even after cooking has finished, even though they do not appear to be so. Do not allow inflammable materials to come into contact with any interior area of the oven. Let the oven cool down first.

7. To reduce the risk of fire in the oven cavity:

• Do not store flammable materials in the oven

• Remove wire twist ties from paper or plastic bags

• Do not use your microwave oven to dry newspapers If smoke is observed, keep the oven door closed and switch off or disconnect the oven from the power supply

8. Take particular care when heating liquids and baby foods.

• ALWAYS allow a standing time of at least 20 seconds after the oven has been switched off so that the temperature can equalize.

• Stir during heating, if necessary, and ALWAYS stir after heating.

• Take care when handling the container after heating. You may burn yourself if the container is too hot.

Safety Precautions(continued)

• A risk of delayed eruptive boiling exists.• To prevent delayed boiling and possible scalding, you should put a plastic spoon or glass stick into the beverages and stir before, during and after heating.Reason: During the heating of liquids the boiling point can be delayed; this means that eruptive boiling can start after the container is removed from the oven. You may scald yourself.• In the event of scalding, follow these FIRST AID instructions:* Immerse the scalded area in cold water for at least 10 minutes.* Cover with a clean, dry dressing.* Do not apply any creams, oils or lotions.• NEVER fill the container to the top and choose a container that is wider at the top than at the bottom to prevent the liquid from boiling over. Bottles with narrow necks may also explode if overheated.• ALWAYS check the temperature of baby food or milk before giving it to the baby.• NEVER heat a baby’s bottle with the teat on, as the bottle may explode if overheated.9. Be careful not to damage the power cable.• Do not immerse the power cable or plug in water and keep the power cable away from heated surfaces.• Do not operate this appliance if it has a damaged power cable or plug.10. Stand at arm’s length from the oven when opening the door.Reason: The hot air or steam released may cause scalding.11. Keep the inside of the oven clean.Reason: Food particles or spattered oils stuck to oven walls or floor can cause paint damage and reduce the efficiency of the oven.

12. You may notice a “Clicking” sound during operation(especially when the oven

is in defrosting).Reason : This sound is normal when the electrical power output is changing. 13. When the microwave oven is operating without any load, the power will be cut off automatically for safety. You can operate the oven normally after letting it stand for over 30 minutes.

IMPORTANT SAFETY INSTRUCTIONS

During cooking, you should look into the oven from time to time when food is being heated or cooked in disposable containers of plastic, paper or other combustible materials. IMPORTANT Young children should NEVER be allowed to use or play with the microwave oven. Nor should they be left unattended near the microwave oven when it is in use. Items of interest to children should not be stored or hidden just above the oven. Installing Your Microwave Oven Place the oven on a flat, level surface that strong enough to safely bear the weight of the oven. ❉ Never block the air vents as the oven may overheat and automatically switch itself off. It will remain inoperable until it has cooled sufficiently. ❉ For your personal safety, plug the cable into a 3-pin, 230 Volt, 50Hz, AC earthed socket. If the power cable of this appliance is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. ❉ Do not install the microwave oven in hot or damp surroundings like next to a traditional oven or radiator. The power supply specifications of the oven must be respected and any extension cable used must be of the same standard as the power cable supplied with the oven. Wipe the interior and the door seal with a damp cloth before using your microwave oven for the first time. 1. When you install your oven, make sure there is adequate ventilation for your oven by leaving at least 10 cm (4 inches) of space behind and, on the sides of the oven and 20 cm (8 inches) of space above and 85 cm(thirty three inches) of the floor.2. Remove all packing materials inside the oven.Install the roller ring and turntable.Check that the turntable rotates freely.3. This microwave oven has to be positioned so that plug is accessible. 20cm above 10cm behind 10cm on the side85cm ofthe floor jlY_^kuniUGGwG\GGmSGvGXXSGYWWYGGXYaWYGwt6

Setting the Time Your microwave oven has an inbuilt clock. The time can be displayed in either the 24-hour or 12-hour notation. You must set the clock:

• When you first install your microwave oven

• After a power failure ✉ Do not forget to reset the clock when you switch to and from summer and winter time. What to Do if You are in Doubt or Have a Problem If you have any of the problems listed below try the solutions given. ◆ This is normal.• Condensation inside the oven• Air flow around the door and outer casing• Light reflection around the door and outer casing• Steam escaping from around the door or vents◆ The oven does not start when you press the button.• Is the door completely closed?◆ The food is not cooked at all• Have you set the timer correctly and/or pressed the button?• Is the door closed?• Have you overloaded the electric circuit and caused a fuse to blow or a breaker to be triggered?◆ The food is either overcooked or undercooked• Was the appropriate cooking length set for the type of food?• Was an appropriate power level chosen?◆ Sparking and cracking occur inside the oven (arcing)• Have you used a dish with metal trimmings?• Have you left a fork or other metal utensil inside the oven?• Is aluminium foil too close to the inside walls?◆ The oven causes interference with radios or televisions• Slight interference may be observed on televisions or radios when the oven is operating. This is normal.To solve this problem, install the oven away from televisions, radios and aerials.• If interference is detected by the oven’s microprocessor, the display may be reset.To solve this problem, disconnect the power plug and reconnect it. Reset the time. ✉ If the above guidelines do not enable you to solve the problem, contact your local dealer or SAMSUNG after-sales service.

1. To display the time Then press the in the... button... 24-hour notation Once12-hour notation Twice

2. Turn the dial knob to set hour.

3. Press the button.

4. Turn the dial knob to set minute.

Cooking / Reheating The following procedure explains how to cook or reheat food. ALWAYS check your cooking settings before leaving the oven unattended. First, place the food in the centre of the turntable. Then, close the door ☛ Never switch the microwave oven on when it is empty. ✉ If you wish to heat a dish for a short period of time at maximum power(850W), simply press the +30s button once for each 30 seconds of cooking time. The oven starts immediately. Power Levels You can choose among the power levels below. ✉ If you select higher power level, the cooking time must be decreased. ✉ If you select lower power level, the cooking time must be increased. If you want to add the cooking time by turning dial knob. 1. Press the button.Result :The 850W (maximum cooking power) indications are displayed: Select the appropriate power level by pressing the button again until the corresponding wattage is displayed. Refer to the power level table.

2. Set the cooking time by turning the dial knob.

3. Press the button.Result :The oven light comes on and the turntable starts rotating.1) Cooking starts and when it has finished the oven beeps four times.2) The end reminder signal will beep 3 times(once every minute).3) The current time is displayed again.Power Level OutputMWO GRILL HIGH MEDIUM HIGHMEDIUMMEDIUM LOWDEFROST( ) LOW / KEEP WARMGRILLCOMBI I ( )COMBI II ( )COMBI III ( )850 W600 W450 W300 W180 W100 W 600 W450 W300 W1100 W1100 W1100 W1100 WTime Increasing Time Time Increasing Timeup to 1 min1 - 3 min3 - 10 min5 sec. unit 10 sec. unit 30 sec. unit 10 - 20 min20 - 40 min40 - 99 min1 min unit 2 min unit 5 min unit jlY_^kuniUGGwG^GGmSGvGXXSGYWWYGGXYaWYGwt8

Stopping the Cooking You can stop cooking at any time to check the food. ☛ You can also cancel any setting before starting by simply pressing Cancel ( ). Adjusting the Cooking Time You can increase the cooking time by pressing the +30s button once for each 30 seconds to be added. ☛ You can only adjust the time during cooking when the Microwave, Auto Reheat/Cook, Cafeteria, Auto Crusty Cook, Grill and Combi modes are selected. Using the Auto Reheat Feature The Auto Reheat feature has three pre-programmed cooking time. You do not need to set either the cooking times or the power level. You can adjust the number of servings by turning the dial knob. First, place the food in the centre of the turntable and close the door. ✉ Use only recipients that are microwave-safe. 1. To stop temporarily;Open the door.Result :Cooking stops. To resume cooking, close the door and press again. 2. To stop completely;Press the button Result :The cooking stops. If you wish to cancel the cooking settings, press the Cancel () button again. Press the +30s button once for each 30 seconds to be added. During the cooking to increase or decrease the cooking time of your food, turn the dial knob right or left.1. Select the type of food that you are cooking by pressing the Auto Reheat ( ) button once or more times.

2. Select the size of the serving by turning the dial knob.

(Refer to the table on the side.)3. Press the button.Result :Cooking starts. When it has finished.1) The oven beeps four times.2) The end reminder signal will beep 3 times (once every minute).3) The current time is displayed again. jlY_^kuniUGGwG_GGmSGvGXXSGYWWYGGXYaWYGwt9

Auto Reheat Settings The following table presents the various Auto Reheat Programmes, quantities, standing times and appropriate recommendations. Using the Cafeteria Feature With the Cafeteria feature, the cooking time is set automatically. You can adjust the number of servings by turning the dial knob. First, place the food in the centre of the turntable and close the door. Example: Press the Cafeteria button once times to reheat one cups of coffee and select the serving size by turning the dial knob. Refer to the table on the side. ✉ Use only recipients that are microwave-safe. Code/SymbolServing Type Portion Standing Time Recommendations Ready Meal(Chilled)300-350 g400-450 g3 min. Put on a ceramic plate and cover with microwave cling film. This programme is suitable for meals consisting of 3 components (e.g. meat with sauce, vegetables and a side dish like potatoes, rice or pasta). Soup/Sauce(Chilled)200-250 g300-350 g400-450 g3 min. Pour the soup/sauce into a deep ceramic soup plate or bowl. Cover during heating and standing time. Stir before and after standing time. Pasta Gratin(frozen)200 g400 g3 min. Pour the soup/sauce into a deep ceramic soup plate or bowl. Cover during heating and standing time. Stir before and after standing time. 1. Select the type of food that you are cooking by pressing the Cafeteria button once or more times.

2. Select the size of the serving by turning the dial knob.

3. Press the button.Result :Cooking starts. When it has finished:1) The oven beeps four times.2) The end reminder signal will beep 3 times (once every minute)3) The current time is displayed again. jlY_^kuniUGGwG`GGmSGvGXXSGYWWYGGXYaWYGwt10

Cafeteria Settings The following table presents Auto Programmes for reheating drinks and defrosting frozen cake pieces. It contains its quantities, standing times and appropriate recommendations. Programme no. 1 is running with microwave energy only. Programme no. 2 is running with a combination of microwaves and grill. Using the Auto Power Defrost Feature The Auto power Defrost feature enables you to defrost meat, poultry, fish. The defrost time and power level are set automatically. You simply select the programme and the weight. ✉ Use only dishes that are microwave-safe. First, place the frozen food in the centre of the turntable and close the door. ✉ You can also defrost food manually. To do so, select the microwave cooking/reheating function with a power level of 180W. Refer to the section entitled “ Cooking/Reheating” on page 7 for further details. Button Food Serving Size Standing Time Recommendations1 DrinksCoffee, milk,tea, water (room-temperature)150 ml(1 cup) 250 ml(1 mug)1-2 min. Pour into a ceramic cup (150 ml) or mug (250 ml) and place in the centre of turntable. Reheat uncovered. Stir carefully before and after standing time. Be careful while taking the cups out (see safety instructions for liquids).2 FrozenCake Pieces100 g (1pc)200 g(2pcs)300 g(2-3pcs)400 g(3-4pcs)500 g(4pcs)5-15 min. Put flat frozen cake pieces (-18°C) directly on metal rack. Put bigger pieces and muffins on turntable. Put one piece in the centre, put 2 pieces opposite to each other and 3-4 cake pieces in a circle. By the help of the heater the cake will be warmed and crisp up.This programme is suitable for cake pieces such as apple cake with crumble topping, streusel cake, cake with poppy seeds and muffins.It is not suitable for a whole cake, cake with cream filling and cake with chocolate topping.1. Select the type of food that you are cooking by pressing the Power Defrost( ) button one or more times.(Refer to the table on the next page for further details)2. Select the food weight by turning the dial knob.It is possible to set up to a maximum of 1500g3. Press the button.Result :◆ Defrosting begins.◆ The oven beeps half way through defrosting to remind you to turn the food over. ◆ Press button again to finish defrosting. jlY_^kuniUGGwGXWGGmSGvGXXSGYWWYGGXYaWYGwt11

Auto Power Defrost Settings The following table presents the various Auto Power Defrost programmes, quantities, standing times and appropriate recommendations. Remove all kinds of package material before defrosting. Place meat, poultry and fish on a ceramic plate. ✉ Select the Manual Defrosting function with a power level of 180 W if you want to defrost food manually. For further details on manual defrosting and defrosting time, refer to the page 20. Using the Auto Crusty Cook Function With the Auto Crusty Cook feature, the cooking time is set automatically. You can adjust the number of servings by turning the dial knob. First, place the crusty plate in the centre of the turntable and close the door. ✉ How to clean the Cruty Plate Clean the crusty plate with warm water and detergent and rinse off with clean water. ✉ Do not use a scrubbing brush or a hard sponge otherwise the top layer will be damaged. ❉ Please Note The crusty plate is not dishwasher-safe. Code Food Portion Standing Time Recommendations Meat 200 - 1500 g 20-60 min. Shield the edges with aluminium foil. Turn the meat over when the oven beeps. This programme is suitable for beef, lamb, pork, steaks, chops and minced meat.Poultry200 - 1500 g 20-60 min. Shield the leg and wing tips with aluminium foil. Turn the poultry over when the oven beeps. This programme is suitable for whole chicken and chicken portions. Fish 200 - 1500 g 20-50 min. Shield the tail of the whole fish with aluminium foil. Turn the fish over when the oven beeps. This programme is suitable for whole fishes and fish fillets.Bread/ Cake 125 - 625 g 5-20 min. Put bread on a piece of kitchen paper and turn over, as soon as the oven beeps. Place cake on a ceramic plate and if possible, turn over, as soon as the oven beeps. (Oven keeps operating and is stopped, when you open the door. This programme is suitable for all kinds of bread, sliced or whole, as well as for bread rolls and baguettes. Arrange bread rolls in a circle. This programme is suitable for all kinds of yeast cake, biscuit, cheese cake and puff pastry. It is not, suitable for short/crust pastry, fruit and cream cakes as well as for cake with chocolate topping.

1. Place the crusty plate directly on the turntable and preheat

it with highest Microwave-Grill-Combination.By pressing the Combi( ) button and set the preheat time (3 to 5 minutes) by turnung the dial knob.2. Press the button. ☛ Always use oven gloves to take out the crusty plate, as will become very hot.

3. Open the oven door.Place the food on the crusty plate.Close the door.

✉ Place the crusty plate on the metal rack (or turntable) in the microwave.

4. Select the type of food that you are cooking by pressing the Crusty Cook button once or more times.

5. Select the size of the serving by turning the dial knob.

(Refer to the table on the next page)6. Press the button.Result :Cooking starts. When it has finished:1) The oven beeps four times.2) The end reminder signal will beep 3 times (once every minute)3) The current time is displayed again. jlY_^kuniUGGwGXXGGmSGvGXXSGYWWYGGXYaWYGwt12

Using the Auto Crusty Cook Function (continued) The following table presents the various Auto Programmes of the Crisp function, quantities, standing times and appropriate recommendations. These Programmes are running with a combination of microwaves and grill. Before using the Crisp function, we recommend to preheat the crust plate on the turntable for 3 to 5 minutes, using a combination of 600W and grill. Use oven gloves while taking out! Using the Manual Crusty Cook Function This crusty plate allows you to brown food not only on the top with the grill, but also the bottom of the food turns crispy and brown due to the high temperature of the crusty plate. Several items which you can prepare on the crusty plate can be found in the chart (see next page). The crusty plate can also be used for bacon, eggs, sausages, etc. ✉ How to clean the Cruty Plate Clean the crusty plate with warm water and detergent and rinse off with clean water. ✉ Do not use a scrubbing brush or a hard sponge otherwise the top layer will be damaged. ❉ Please Note The crusty plate is not dishwasher-safe. Code / Food (-18°C)Serving Size Preheating Time Standing Time RecommendationsFrozen Pizza200 g300 g400 g5 min. - Preheat the crust plate using 600W + grill.Put pizza on crust plate. Put crust plate on rack.Frozen Baguettes150 g (1pc)250 g (2pcs)4 min. 2-3 Preheat the crust plate using 600W + grill.Put one baguette off-center on crust plate, put 2 baguettes side by side on the crust plate. This programme is suitable for baguettes with topping, (e.g. vegetables, ham and cheese) as well as pizza snacks.Frozen Chicken Nuggets125 g250 g4 min. - Preheat the crust plate using 600W + grill.Brush crust plate with one tbsp. oil. Distribute chicken nuggets evenly on crust plate. Turn over when the oven beeps. Push start button to continue cooking.

1. Place the crusty plate directly on the turntable and preheat

it with highest Microwave-Grill-Combination [600W+Grill( )] by following the times and instructions in the chart. ☛ Always use oven gloves to take out the crusty plate, as will become very hot.

2. Brush the plate with oil if you are cooking food, such as

bacon and eggs, in order to brown the food nicely. ❉ Please note that the crusty plate has a teflon layer which is not scratch-resistant. Do not use any sharp objects like a knife to cut on the crusty plate. ❉ Use plastic accessories to avoid scratches on the surface of the crusty plate or remove the food from the plate before cutting.

3. Place the food on the crusty plate.

☛ Do not place any objects on the crusty plate that are not heat-resistant; e.g. plastic bowels. ☛ Never place the crusty plate in the oven without turntable. 4. Place the crusty plate on the metal rack(or turntable) in the microwave.5. Select the appropriate cooking time and power.Refer to the table on the next page. jlY_^kuniUGGwGXYGGmSGvGXXSGYWWYGGXYaWYGwt13

Using the Manual Crusty Cook Function (continued) We recommend to preheat the crust plate directly on the turntable. Preheat the crusty plate with 600 W + Grill( )function and follow the times and instructions in the table. Choosing the Heating Element Position The heating element is used when grilling. There is only one position listed. We need to tell consumers when it should be placed in the vertlcal position.

• Horizontal position for grilling or combined microwave + grill cooking ☛ Only change the position of the heating element when it is cold and do not apply excessive force when placing it in the vertical position. Choosing the Accessories Use microwave-safe recipients; do not use plastic containers, dishes, paper cups, towels, etc. ✉ For further details on suitable cookware and utensils, refer to the Cookware Guide on page 16. Food Portion Preheaing Time Power Cooking Time RecommendationsBacon4 Slices (80g)3 min 600W+Grill3½-4 min Preheat crusty plate. Put slices side by side on crusty plate. Put crusty plate on the rack.Grilled Tomatoes200 g (2pcs)3 min 450W+Grill4½-5 min Preheat crusty plate.Cut tomatoes in halves.Put some cheese on top. Arrange in a circle on crusty plate. Put crusty plate on the rack.Burger (frozen)2 pieces (125g)3 min 600W+Grill7-7½ min Preheat crusty plate. Put frozen burger in a circle on crusty plate. Put crusty plate on the rack. Turn over after 4- 5 min.Baked Potatoes250 g500 g3 min 600W+Grill 5-6 min8-9 minPreheat crusty plate.Cut potatoes in halves.Put them on the crusty plate with the cut side to the bottom. Arrange in a circle. Put the plate on the rack.Fish Fingers (frozen)150 g(5 pcs) 300 g (10 pcs)4 min 600W+Grill7-8 min9-10 minPreheat crusty plate.Brush plate with 1 tbsp.oil. Put fish fingers in a circle on the plate. Turn over after 4 min (5 pcs) or after 6 min (10 pcs).Pizza (chilled)300-350 g 4 min 450W+Grill6½-7½ min Preheat crust plate. Put the chilled pizza on the plate. Put crust plate on rack.If you wish to select the combined cooking mode (grill and microwave), use only dishes that are microwave-safe and oven-proof. Metallic cookware or utensils may damage your oven.To set the heating element to the...Then...Horizontal position (grill or combined microwave + grill)◆ Pull the heating element towards you ◆ Push it upwards until it is parallel with the roof of the oven When cleaning the upper part inside the cavity, it will be convenient to turn heater downward by 45° and clean it. jlY_^kuniUGGwGXZGGmSGvGXXSGYWWYGGXYaWYGwt14

Grilling The grill enables you to heat and brown food quickly, without using microwaves. To this aim, a grill rack is supplied with your microwave oven. ✉ Do not worry if the heater turns off and on while grilling. This system is designed to prevent overheating of the oven. ☛ Always use oven gloves when touching the dishes in the oven, as they will be very hot. Check that the heating element is in the horizontal position. Combining Microwave and the Grill You can also combine microwave cooking with the grill, to cook quickly and brown at the same time. ☛ ALWAYS use microwave-safe and oven-proof cookware. Glass or ceramic dishes are ideal as they allow the microwaves to penetrate the food evenly. ☛ ALWAYS use oven gloves when touching the recipients in the oven, as they will be very hot. ✉ The maximum microwave power for the combined microwave and grill mode is 600W. 1. Preheat the grill to the required temperature, by pressing the Grill( ) button and set the preheat time by turning the dial knob.2. Press the button.3. Open the door and place the food on the rack.Close the door.4. Press the button.Result :The follwing indications are displayed:

5. Set the Grilling time by turning the dial knob.

The maximum grilling time is 60 minutes.6. Press the button.Result :Grilling cooking start. When it has finished1) The oven beeps four times.2) The end reminder signal will beep 3 times (once every minute).3) The current time is displayed again.1. Make sure that the heating element is in the horizontal position; refer to page 13 for further details.2. Open the oven door.Place the food on the rack and the rack on the turntable.Close the door.

3. Press the Combi ( ) button.

Result :The following indications are displayed: (microwave and grill mode)600W (out power) ✉ Select the appropriate power level by pressing the Combi ( ) button again until the corresponding power level is displayed. ☛ You cannot set the temperature of the grill.

4. Set the cooking time by turning the dial knob as required.

The maximum cooking time is 60 minutes.5. Press the button.Result :Combination cooking starts. When it has finished1) The oven beeps four times.2) The end reminder signal will beep 3 times (once every minute).3) The current time is displayed again. jlY_^kuniUGGwGX[GGmSGvGXXSGYWWYGGXYaWYGwt15

Switching the Beeper Off You can switch the beeper off whenever you want. Safety-Locking Your Microwave Oven Your microwave oven is fitted with a special Child Safety programme, which enables the oven to be “locked” so that children or anyone unfamiliar with it cannot operate it accidentally. The oven can be locked at any time.

1. Press the and buttons at the same time.

Result : ◆ The following indication is displayed. ◆ The oven does not beep each time you press a button.

2. To switch the beeper back on, press the and

buttons again at the same time. Result : ◆ The following indication is displayed. ◆ The oven operates with the beeper on again.

1. Press the and buttons at the same time.

Result : ◆ The oven is locked (no funtions can be selected). ◆ The display shows “L”.

2. To unlock the oven, press the and buttons again at

the same time. Result : The oven can be used normally. jlY_^kuniUGGwGX\GGmSGvGXXSGYWWYGGXYaWYGwt16

Cookware Guide To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry. The following table lists various types of cookware and indicates whether and how they should be used in a microwave oven.

:Recommended ✓✗:Use Caution ✗ :Unsafe Cookware Microwave- Safe Comments Aluminium foil ✓ ✗ Can be used in small quantities to protect areas against overcooking. Arcing can occur if the foil is too close to the oven wall or if too much foil is used. Browning plate ✓ Do not preheat for more than eight minutes. China and earthenware ✓ Porcelain, pottery, glazed earthenware and bone china are usually suitable, unless decorated with a metal trim. Disposable polyester cardboard dishes ✓ Some frozen foods are packaged in these dishes. Fast-food packaging

• Polystyrene cups containers

• Paper bags or newspaper

• Recycled paper or metal trims

Can be used to warm food. Overheating may cause the polystyrene to melt. May catch fire. May cause arcing. Glassware

Can be used, unless decorated with a metal trim. Can be used to warm foods or liquids. Delicate glass may break or crack if heated suddenly. Must remove the lid. Suitable for warming only. Metal

• Freezer bag twist ties

May cause arcing or fire. Paper

• Plates, cups, napkins and Kitchen paper

For short cooking times and warming. Also to absorb excess moisture. May cause arcing. Plastic

Particularly if heat-resistant thermoplastic. Some other plastics may warp or discolour at high temperatures. Do not use Melamine plastic. Can be used to retain moisture. Should not touch the food. Take care when removing the film as hot steam will escape. Only if boilable or oven-proof. Should not be airtight. Prick with a fork, if necessary. Wax or grease-proof paper ✓ Can be used to retain moisture and prevent spattering. jlY_^kuniUGGwGX]GGmSGvGXXSGYWWYGGXYaWYGwt17

Cooking Guide MICROWAVES Microwave energy actually penetrates food, attracted and absorbed by its water, fat and sugar content. The microwaves cause the molecules in the food to move rapidly. The rapid movement of these molecules creates friction and the resulting heat cooks the food. COOKING Cookware for microwave cooking: Cookware must allow microwave energy to pass through it for maximum efficiency. Microwaves are reflected by metal, such as stainless steel, aluminium and copper, but they can penetrate through ceramic, glass, porcelain and plastic as well as paper and wood. So food must never be cooked in metal containers. Food suitable for microwave cooking: Many kinds of food are suitable for microwave cooking, including fresh or frozen vegetables, fruit, pasta, rice, grains, beans, fish, and meat. Sauces, custard, soups, steamed puddings, preserves, and chutneys can also be cooked in a microwave oven. Generally speaking, microwave cooking is ideal for any food that would normally be prepared on a hob. Melting butter or chocolate, for example (see the chapter with tips, techniques and hints). Covering during cooking To cover the food during cooking is very important, as the evaporated water rises as steam and contributes to cooking process. Food can be covered in different ways: e.g. with a ceramic plate, plastic cover or microwave suitable cling film. Standing times After cooking is over, standing time for the food is important to allow the temperature to even out within the food. Cooking Guide for frozen vegetables Use a suitable glass pyrex bowl with lid. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer. Stir twice during cooking and once after cooking. Add salt, herbs or butter after cooking. Cover during standing time. Cooking Guide for rice and pasta Rice: Use a large glass pyrex bowl with lid - rice doubles in volume during cooking. Cook covered. After the cooking time is over, stir before standing time and add salt or add herbs and butter. Remark: the rice may not have absorbed all water after the cooking time is finished. Pasta: Use a large glass pyrex bowl. Add boiling water, a pinch of salt and stir well. Cook uncovered. Stir occasionally during and after cooking. Cover during standing time and drain thoroughly afterwards. Food Portion Power Time (min.) Standing Time(min.) Instructions Spinach 150g 600W 4½-5½ 2-3 Add 15 ml (1 tablespoon) cold water. Broccoli 300g 600W 9-10 2-3 Add 30 ml (2 tbsp.) cold water. Peas 300g 600W 7½-8½ 2-3 Add 15 ml (1 tbsp.) cold water. Green Beans 300g 600W 8-9 2-3 Add 30 ml (2 tbsp.) cold water. Mixed Vegetables (carrots/peas/ corn) 300g 600W 7½-8½ 2-3 Add 15 ml (1 tbsp.) cold water. Mixed Vegetables (Chinese style) 300g 600W 8-9 2-3 Add 15 ml (1 tbsp.) cold water. Food Portion Power Time (min.) Standing Time(min.) Instructions White Rice (parboiled) 250g 850W 16-17 5 Add 500 ml cold water. Brown Rice (parboiled) 250g 850W 21-22 5 Add 500 ml cold water. Mixed Rice (rice + wild rice) 250g 850W 17-18 5 Add 500 ml cold water. Mixed Corn (rice + grain) 250g 850W 18-19 5 Add 400 ml cold water. Pasta 250g 850W 11-12 5 Add 1000 ml hot water. Food Portion Power Time (min.) Standing Time(min.) Instructions jlY_^kuniUGGwGX^GGmSGvGXXSGYWWYGGXYaWYGwt18

Cooking Guide(continued) Cooking Guide for fresh vegetables Use a suitable glass pyrex bowl with lid. Add 30-45 ml cold water (2-3 tbsp.) for every 250 g unless another water quantity is recommended - see table. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer. Stir once during and once after cooking. Add salt, herbs or butter after cooking. Cover during a standing time of 3 minutes. Hint: Cut the fresh vegetables into even sized pieces. The smaller they are cut, the quicker they will cook. All fresh vegetables should be cooked using full microwave power (850 W). REHEATING Your microwave oven will reheat food in a fraction of the time that conventional ovens hobs normally take. Use the power levels and reheating times in the following chart as a guide. The times in the chart consider liquids with a room temperature of about +18 to +20°C or a chilled food with a temperature of about +5 to +7°C. Arranging and covering Avoid reheating large items such as joint of meat - they tend to overcook and dry out before the centre is piping hot. Reheating small pieces will be more successful. Power levels and stirring Some foods can be reheated using 850 W power while others should be reheated using 600 W, 450 W or even 300 W. Check the tables for guidance. In general, it is better to reheat food using a lower power level, if the food is delicate, in large quantities, or if it is likely to heat up very quickly (mince pies, for example). Stir well or turn food over during reheating for best results. When possible, stir again before serving. Take particular care when heating liquids and baby foods. To prevent eruptive boiling of liquids and possible scalding , stir before, during and after heating. Keep them in the microwave oven during standing time. We recommend putting a plastic spoon or glass stick into the liquids. Avoid overheating (and therefore spoiling) the food. It is preferable to underestimate cooking time and add extra heating time, if necessary. Heating and standing times When reheating food for the first time, it is helpful to make a note of the time taken for future reference. Always make sure that the reheated food is piping hot throughout. Allow food to stand for a short time after reheating - to let the temperature even out. The recommended standing time after reheating is 2-4 minutes, unless another time is recommended in the chart. Take particular care when heating liquids and baby food. See also the chapter with the safety precautions. REHEATING LIQUIDS Always allow a standing time of at least 20 seconds after the oven has been switched off to allow the temperature to even out. Stir during heating, if necessary, and ALWAYS stir after heating. To prevent eruptive boiling and possible scalding, you should put a spoon or glass stick into the beverages and stir before, during and after heating. Food Portion Time (min.) Standing Time (min.) Instructions Broccoli 250g 500g 4-4½ 8-8½ 3 Prepare even sized florets. Arrange the stems to the centre. Brussels Sprouts 250g 5½-6½ 3 Add 60-75 ml (5-6 tbsp.) water. Carrots 250g 4½-5 3 Cut carrots into even sized slices. Cauliflower 250g 500g 5-5½ 8½-9 3 Prepare even sized florets. Cut big florets into halves. Arrange stems to the centre. Courgettes 250g 3½-4 3 Cut courgettes into slices. Add 30 ml (2 tbsp.) water or a knob of butter. Cook until just tender. Egg Plants 250g 3½-4 3 Cut egg plants into small slices and sprinkle with 1 tablespoon lemon juice. Leeks 250g 4½-5 3 Cut leeks into thick slices. Mushrooms 125g 250g 1½-2 3-3½ 3 Prepare small whole or sliced mushrooms. Do not add any water. Sprinkle with lemon juice. Spice with salt and pepper. Drain before serving. Onions 250g 5½-6 3 Cut onions into slices or halves. Add only 15 ml (1 tbsp.) water. Pepper 250g 4½-5 3 Cut pepper into small slices. Potatoes 250g 500g 4-5 7½-8½ 3 Weigh the peeled potatoes and cut them into similar sized halves or quarters. Turnip Cabbage 250g 5-5½ 3 Cut turnip cabbage into small cubes. jlY_^kuniUGGwGX_GGmSGvGXXSGYWWYGGXYaWYGwt19

Cooking Guide(continued)

BABY FOOD: Empty into a deep ceramic plate. Cover with plastic lid. Stir well after reheating! Let stand for 2-3 minutes before serving. Stir again and check the temperature. Recommended serving temperature: between 30-40°C. BABY MILK: Pour milk into a sterilised glass bottle. Reheat uncovered. Never heat a baby's bottle with teat on, as the bottle may explode if overheated. Shake well before standing time and again before serving ! Always carefully check the temperature of baby milk or food before giving it to the baby. Recommended serving temperature: about 37°C. REMARK: Baby food particularly needs to be checked carefully before serving to prevent burns. Use the power levels and times in the next table as a guide lines for reheating. Reheating Baby Food and Milk Use the power levels and times in this table as guide lines for reheating. Reheating Liquids and Food Use the power levels and times in this table as a guide lines for reheating. Food Portion Power Time Standing Time (min.) Instructions Baby food (vegetables + meat) 190g 600W 30sec. 2-3 Empty into ceramic deep plate. Cook covered. Stir after cooking time. Stand for 2-3 minutes. Before serving, stir well and check the temperature carefully. Baby porridge (grain + milk + fruit) 190g 600W 20sec. 2-3 Empty into ceramic deep plate. Cook covered. Stir after cooking time. Stand for 2-3 minutes. Before serving, stir well and check the temperature carefully. Baby milk 100ml 200ml 300W 30-40sec. 50 sec to 1min. 2-3 Stir or shake well and pour into a sterilised glass bottle. Place into the centre of turn-table. Cook uncovered. Shake well and stand for at least 3 minutes. Before serving, shake well and check the temperature carefully. Food Portion Power Time (min.) Standing Time (min.) Instructions Drinks Coffee, milk, tea, water (room- temperature) 150ml (1 cup) 250ml (1 mug) 850W 1-1 ½ 1½ -2 1-2 Pour into a ceramic cup (150 ml) or mug (250 ml) and place in the centre of turntable. Reheat uncovered. Stir carefully before and after standing time. Be careful while taking the cups out (see safety instructions for liquids). Soup (chilled) 250g 850W 3-3½ 2-3 Pour into a deep ceramic plate. Cover with plastic lid. Stir well after reheating. Stir again before serving. Stew (chilled) 350g 600W 5 ½ -6 ½ 2-3 Put stew in a deep ceramic plate. Cover with plastic lid. Stir occasionally during reheating and again before standing and serving. Pasta with sauce (chilled) 350g 600W 4 ½ -5 ½ 3 Put pasta (e.g. spaghetti or egg noodles) on a flat ceramic plate. Cover with microwave cling film. Stir before serving. Filled pasta with sauce (chilled) 350g 600W 5-6 3 Put filled pasta (e.g. ravioli, tortellini) in a deep ceramic plate. Cover with plastic lid. Stir occasionally during reheating and again before standing and serving. Plated Meal (chilled) 350g 600W 5 ½ -6 ½ 3 Plate a meal of 2-3 chilled components on a ceramic dish. Cover with microwave cling-film. jlY_^kuniUGGwGX`GGmSGvGXXSGYWWYGGXYaWYGwt20

Cooking Guide(continued) MANUAL DEFROSTING Microwaves are an excellent way of defrosting frozen food. Microwaves gently defrost frozen food in a short period of time. This can be of great advantage, if unexpected guests suddenly show up. Frozen poultry must be thoroughly thawed before cooking. Remove any metal ties and take it out of any wrapping to allow thawed liquid to drain away. Put the frozen food on a dish without cover. Turn over half way, drain off any liquid and remove any giblets as soon as possible. Check the food occasionally to make sure that it does not feel warm. If smaller and thinner parts of the frozen food start to warm up, they can be shield by wrapping very small strips of aluminium foil around them during defrosting. Should poultry start to warm up on the outer surface, stop thawing and allow it to stand for 20 minutes before continuing. Leave the fish, meat and poultry to stand in order to complete defrosting. The standing time for complete defrosting will vary depending on the quantity defrosted. Please refer to the table below. Hint: Flat food defrosts better than thick and smaller quantities need less time than bigger ones. Remember this hint while freezing and defrosting food. For defrosting of frozen food with a temperature of about -18 to - 20 °C, use the following table as a guide. All frozen food should be defrosted using defrosting power level (180 W). Food Portion Time (min.) Standing Time (min.) Instructions Meat Minced beef Pork steaks 250g 500g 250g 6½ -7½ 13-14 7½ -8½ 5-25 Place the meat on a flat ceramic plate. Shield thinner edges with aluminium foil. Turn over after half of defrosting time! Poultry Chicken pieces Whole chicken 500g (2 pcs) 900g 14½-15½ 28-30 15-40 First, put chicken pieces first skin-side down, whole chicken first breast-side-down on a flat ceramic plate. Shield the thinner parts like wings and ends with aluminium foil. Turn over after half of defrosting time! Fish Fish fillets 200g (2 pcs) 400g (4 pcs) 6-7 12-13 5-15 Put frozen fish in the middle of a flat ceramic plate. Arrange the thinner parts under the thicker parts. Shield narrow ends with aluminium foil. Turn over after half of defrosting time! Fruits Berries 250g 6-7 5 - 10 Distribute fruits on a flat, round glass dish (with a large diameter). Bread Bread rolls (each about 50 g) Toast/ Sandwich German bread (wheat+ rye flour) 2 pcs 4 pcs 250g 500g ½-1 2-2½ 4½-5 8-10

Arrange rolls in a circle or bread horizontally on kitchen paper in the middle of turntable. Turn over after half of defrosting time! jlY_^kuniUGGwGYWGGmSGvGXXSGYWWYGGXYaWYGwt21

Cooking Guide(continued) GRILL The grill-heating element is located underneath the ceiling of the cavity. It operates while the door is closed and the turntable is rotating. The turntable's rotation makes the food brown more evenly. Preheating the grill for 4 minutes will make the food brown more quickly. Cookware for grilling: Should be flameproof and may include metal. Do not use any type of plastic cookware, as it can melt. Food suitable for grilling: Chops, sausages, steaks, hamburgers, bacon and gammon rashers, thin fish portions, sandwiches and all kinds of toast with toppings. IMPORTANT REMARK: Whenever the grill only mode is used, make sure that the grill-heating element is under the ceiling in the horizontal position and not on the back-wall in the vertical position. Please remember that food must be placed on the high rack, unless another instruction is recommended. MICROWAVE + GRILL This cooking mode combines the radiant heat that is coming from the grill with the speed of microwave cooking. It operates only while the door is closed and the turntable is rotating. Due to the rotation of the turntable, the food browns evenly. Three combination modes are available with this model: 600 W + Grill, 450 W + Grill and 300 W + Grill. Cookware for cooking with microwave + grill Please use cookware that microwaves can pass through. Cookware should be flameproof. Do not use metal cookware with combination mode. Do not use any type of plastic cookware, as it can melt. Food suitable for microwave + grill cooking: Food suitable for combination mode cooking include all kinds of cooked food which need reheating and browning (e.g. baked pasta), as well as foods which require a short cooking time to brown the top of the food. Also, this mode can be used for thick food portions that benefit from a browned and crispy top (e.g. chicken pieces, turning them over half way through cooking). Please refer to the grill table for further details. IMPORTANT REMARK: Whenever the combination mode (microwave + grill) is used, make sure that the grill heating element is under the ceiling in the horizontal position and not on the back-wall in the vertical position. The food should be placed on the high rack, unless another instruction is recommended. Otherwise it has to be placed directly on the turntable. Please refer to the instructions in the following chart. The food must be turned over, if it is to be browned on both sides. Grill Guide for frozen food Use the power levels and times in this table as guide lines for grilling. Fresh Food Portion Power 1. Side Time (min.)

Time (min.) Instructions Bread Rolls (each about 50 g) 2 pcs 4 pcs MW+ Grill 300W+ Grill 1-1½ 2-2½ Grill only 1-2 1-2 Arrange rolls in a circle on rack. Grill the second side of the rolls up to the crisp you prefer. Stand for 2-5 minutes. Baguettes + topping (tomatos, cheese, ham, mushrooms) 250-300 g (2pcs) 450 W + Grill 8-9 -- Put 2 frozen baguettes side by side on the rack. After grilling stand for 2-3 minutes. Gratin (vegetables potatoes) 400 g 450 W + Grill 13-14 -- Put frozen gratin into a small, round glass pyrex dish. Put the dish on the rack. After cooking stand for 2-3 minutes. Pasta (Cannelloni, Macaroni, Lasagne) 400 g 600 W + Grill 14-15 -- Put frozen pasta into a small flat rectangular glass pyrex dish. Put the dish directly on the turntable. After cooking stand for 2-3 minutes. Chicken Nuggets 250 g 450 W + Grill 5-5½ 3-3½ Put chicken nuggets on the rack. Oven Chips 250 g 450 W + Grill 9-11 4-5 Put oven chips evenly on baking paper on the rack. jlY_^kuniUGGwGYXGGmSGvGXXSGYWWYGGXYaWYGwt22

Cooking Guide(continued) Grill Guide for fresh food Preheat the grill with the grill-function for 4 minutes. Use the power levels and times in this table as guide lines for grilling. Fresh Food Portion Power 1. Side Time (min.)

Time (min.) Instructions Toast Slices 4 pcs (each 25g) Grill only 4-5 4½-5½ Put the toast slices side by side on the rack. Bread Rolls (already baked) 2-4 pieces Grill only 2-3 2-3 Put bread rolls first with the bottom side up in a circle directly on the turntable. Grilled Tomatoes 200 g (2pcs) 400 g (4pcs) 300 W + Grill 3½-4½ 6-7 -- Cut tomatoes into halves. Put some cheese on top. Arrange in a circle in a flat glass pyrex dish. Place it on the rack. Toast Hawaii (pineapple, ham, cheese slices) 2 pcs (300 g) 450 W + Grill 3½-4 -- Toast the bread slices first. Put the toast with topping on the rack. Put 2 toasts opposite directly on the rack. Stand for 2-3 minutes. Baked Potatoes 250 g 500 g 600 W + Grill 4½-5½ 8-9 -- Cut potatoes into halves. Put them in a circle on the rack with the cut side to the grill. Chicken Pieces

(2 pcs) 300 W + Grill 8-9 9-10 Prepare chicken pieces with oil and spices. Put them in a circle with the bones to the middle. Put one chicken piece not into the centre of the rack. Stand for 2-3 minutes. Lamb Chops (medium) 400 g (4pcs) Grill only 11-13 8-9 Brush the lamb chops with oil and spices. Lay them in a circle on the rack. After grilling stand for 2-3 minutes. Pork Steaks 250 g (2pcs)

+Grill 300W+ Grill 7-8 Grill only 6-7 Brush the pork steaks with oil and spices. Lay them in a circle on the rack. After grilling stand for 2-3 minutes. Baked Apples 1 apple (about 200g) 2 apples (about 400g) 300 W + Grill 4-4½ 6-7 -- Core the apples and fill them with raisins and jam. Put some almond slices on top. Put apples on a flat glass pyrex dish. Place the dish directly on the turntable. Fresh Food Portion Power 1. Side Time (min.)

Cooking Guide(continued) SPECIAL HINTS MELTING BUTTERPut 50 g butter into a small deep glass dish. Cover with plastic lid.Heat for 30-40 seconds using 850 W, until butter is melted.MELTING CHOCOLATEPut 100 g chocolate into a small deep glass dish.Heat for 3-5 minutes, using 450 W until chocolate is melted.Stir once or twice during melting. Use oven gloves while taking out!MELTNG CRYSTALLIZED HONEYPut 20 g crystallized honey into a small deep glass dish.Heat for 20-30 seconds using 300 W, until honey is melted.MELTING GELATINELay dry gelatine sheets (10 g) for 5 minutes into cold water.Put drained gelatine into a small glass pyrex bowl.Heat for 1 minute using 300 W.Stir after melting.COOKING GLAZE/ICING (FOR CAKE AND GATEAUX)Mix instant glaze (approximately 14 g) with 40 g sugar and 250 ml cold water.Cook uncovered in a glass pyrex bowl for 3 ½ to 4 ½ minutes using 850 W,until glaze/icing is transparent. Stir twice during cooking.COOKING JAMPut 600 g fruits (for example mixed berries) in a suitable sized glasspyrex bowl with lid. Add 300 g preserving sugar and stir well.Cook covered for 10-12 minutes using 850 W.Stir several times during cooking. Empty directly into small jamglasses with twist-off lids. Stand on lid for 5 minutes.COOKING PUDDINGMix pudding powder with sugar and milk (500 ml) by following the manufacturers instructions and stir well. Use a suitable sized glass pyrex bowl with lid. Cook covered for 6 ½ to 7 ½ minutes using 850 W.Stir several times well during cooking.BROWNING ALMOND SLICESSpread 30 g sliced almonds evenly on a medium sized ceramic plate.Stir several times during browning for 3 ½ to 4 ½ minutes using 600 W.Let it stand for 2-3 minutes in the oven. Use oven gloves while taking out! Cleaning Your Microwave Oven The following parts of your microwave oven should be cleaned regularly to prevent grease and food particles from building up:

• Inside and outside surfaces

• Turntable and Roller rings ☛ ALWAYS ensure that the door seals are clean and the door closes properly.

1. Clean the outside surfaces with a soft cloth and warm, soapy water.Rinse and

dry. 2. Remove any splashes or stains on the inside surfaces or on the roller ring with a soapy cloth. Rinse and dry.3. To loosen hardened food particles and remove smells, place a cup of diluted lemon juice on the turntable and heat for ten minutes at maximum power.4. Wash the dishwasher-safe plate whenever necessary. ✉ DO NOT spill water in the vents. NEVER use any abrasive products or chemical solvents.Take particular care when cleaning the door seals to ensure that no particles:

• Prevent the door from closing correctly ✉ Clean the microwave oven cavity right ofter each use with a mild detergent solution, but let the microwave oven cool down before cleaning in order to avoid injury. When cleaning the upper part inside the cavity, it will be convenient to turn heater downward by 45° and clean it. jlY_^kuniUGGwGYZGGmSGvGXXSGYWWYGGXYaWYGwt24

Storing and Repairing Your Microwave Oven A few simple precautions should be taken when storing or having your microwave oven serviced. The oven must not be used if the door or door seals are damaged:

• Distorted or bent oven casing Only a qualified microwave service technician should perform repair ☛ NEVER remove the outer casing from the oven. If the oven is faulty and needs servicing or you are in doubt about its condition:

• Unplug it from the wall socket

• Contact the nearest after-sales service centre ✉ If you wish to store your oven away temporarily, choose a dry, dust-free place. Reason: Dust and damp may adversely affect the working parts in the oven. ✉ This microwave oven is not intended for commercial use. Technical Specifications SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice. Model CE287DNPower source 230V ~ 50 HzPower consumptionMicrowave Grill Combined mode1300 W1100 W2400 WOutput power 100 W/850 W (IEC-705)Operating frequency 2450 MHzMagnetron OM75P(31)Cooling method Cooling fan motorDimensions (W x H x D)Outside Oven cavity489 x 275 x 398 mm330 x 211 x 329 mmVolume 23 literWeightNet 15 kg approx jlY_^kuniUGGwGY[GGmSGvGXXSGYWWYGGXYaWYGwt
