Product Type	Microwave Oven with Grill and Convection
Brand	Samsung
Model	CE1185GW
Microwave Power	900 W (max)
Power Levels	6 levels (100%, 67%, 50%, 33%, 20%, 11%)
Grill Power	Not specified, but operates independently or combined
Convection Temperature Range	40°C to 250°C (8 preset levels)
Combination Modes	Microwave+Grill (300W+Grill), Microwave+Convection (180W/200°C, 450W/200°C, 600W/220°C)
Power Supply	230 V ~ 50 Hz, AC
Capacity	Not specified in manual (typical 20-25 L)
Turntable Diameter	Not specified
Control Type	Electronic with Jog Dial and Select button
Display	Digital (24-hour clock)
Auto Cook Programs	5 (Ready Meal, Frozen Pizza, Chicken Pieces, Fresh Vegetables, Peeled Potatoes)
Power Defrost Programs	5 (Meat, Poultry, Fish, Bread/Cake, Fruit)
Special Functions	Steam Cleaning, Crust Plate, Auto Fast Preheat, +30s Quick Start, Child Safety Lock, Beeper Off, Manual Turntable Stop
Accessories Included	Coupler, Roller Ring, Turntable, High/Low Metal Racks, Clean Water Bowl, Crust Plate
Installation Clearance	10 cm behind and sides, 20 cm above, 85 cm from floor
Safety Features	Door safety interlocks, automatic shut-off if empty, overheating protection, child lock
Cleaning	Steam clean function and manual cleaning with mild detergent; do not use abrasive cleaners
Reparability	Only qualified technician should repair; do not remove outer casing

Frequently Asked Questions - CE1185GW SAMSUNG

How do I set the clock on my Samsung CE1185GW microwave?

Press the Start button, then turn the Jog Dial to set the hour. Press Start again, then turn the dial to set minutes. Press Start to confirm. The clock displays in 24-hour format.

How do I use the Auto Cook feature?

Press the Auto Cook button, then press Select to choose the food type (e.g., Ready Meal, Frozen Pizza). Turn the Jog Dial to select serving size, then press Start. The oven sets time and power automatically.

How do I defrost food using the Power Defrost feature?

Press the Power Defrost button, then press Select to choose food category (Meat, Poultry, Fish, etc.). Turn the Jog Dial to set weight, press Start. The oven beeps to remind you to turn food over.

How do I use the Steam Cleaning function?

Ensure oven is cool. Fill the water bowl to the marked line (about 30ml) and place it on the right side of the cavity. Close door, press Steam Clean button. After cycle, wipe interior with a dry towel. Do not use distilled water.

Can I use the Crust Plate? How?

Yes, preheat the crust plate in combination mode for 3-5 minutes (e.g., Convection 220°C + 600W). Use oven gloves as it gets very hot. Place food on it and cook. Clean with hot water and detergent; do not use abrasive sponges.

How do I combine microwave and grill or convection?

Press the Combi button, then press Select to choose mode: C1 (MW+Grill), C2 (MW+Convection 180W/200°C), C3 (450W/200°C), or C4 (600W/220°C). Set time and press Start.

How do I activate the Child Safety Lock?

Press and hold the Grill and Convection buttons simultaneously for about 1 second. 'L' displays. Repeat to unlock.

How do I switch off the beeper?

Press and hold the Microwave and Grill buttons together for about 1 second. The beeper is off. Repeat to turn it back on.

Can I stop the turntable from rotating?

Yes, press the Turntable On/Off button before starting cooking. The turntable stops rotating. Press again to resume rotation. Do not operate turntable without food.

How should I clean my microwave oven?

Use a soft cloth with warm soapy water for exterior and interior. For stubborn stains, heat a cup of diluted lemon juice on high for 10 minutes. Do not use abrasive cleaners or allow water into vents. Clean door seals regularly.

USER MANUAL CE1185GW SAMSUNG

Illustration of a microwave oven with a side panel and a mouse, set on a circular background with vegetables (no text or symbols)

Ghid rapid

RO

Daca doriti sa preparati un aliment

CE185UB_GEN-03190B_EN.fm Page 1 Wednesday, August 24, 2005 9:04 AM

MICROWAVE OVEN

Owner's Instructions and Cooking Guide

CE1185GW CE1185GB CE1185UB

"Quick" Look-up Guide 2

Using the Steam Cleaning 3

Control Panel 4

Oven 4

Accessories 5

Using this Instruction Booklet 5

Safety Precautions 6

Installing Your Microwave Oven 7

Setting the Time 8

Checking that Your Oven is Operating Correctly 8

How a Microwave Oven Works 9

What to Do if You are in Doubt or You have a Problem 9

Cooking/Reheating 10

Power Levels and Time Variations ....10

Stopping the Cooking 11

Adjusting the Cooking Time ....11

Using the Auto Cook Feature 12

Using the Power Defrost Feature ....13

Using Crust Plate 14

Auto fast Preheating the Oven 15

Cooking by Convection 15

Grilling 16

Choosing the Heating Element Position ....16

Choosing the Accessories 16

Cooking by Combination....17

Safety-locking Your Microwave Oven 17

Switching the Beeper Off 18

Manual Stop Turntable Function 18

Cookware Guide 19

Cooking Guide 20

Cleaning Your Microwave Oven 27

Storing and Repairing Your Microwave Oven 28

Technical Specifications 28

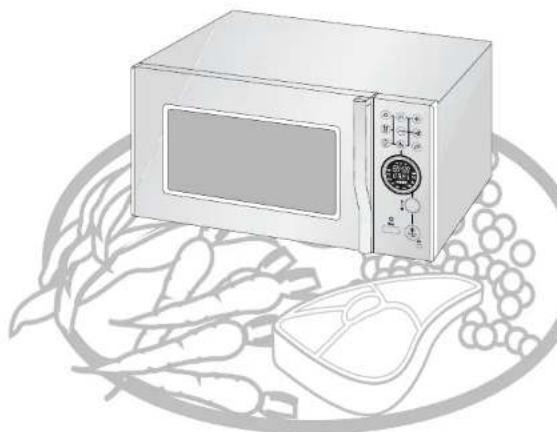

Illustration of a microwave oven with control panel and side view of food items (no text or symbols)

CE185UB_GEN-03190B_EN.fm Page 2 Wednesday, August 24, 2005 9:04 AM

"Quick" Look-up Guide

EN

I want to cook some food

1. Press the Microwave( □ ) button. Next : Press the blinking button.

2. Press the Select() button until the appropriate power level is displayed. Next: Turn the blinking dial.

3. Select the cooking time by turning the Jog Dial as required. Next: Press the blinking button.

4. Press Start( )button. Result: Cooking starts

When cooking has finished, the oven will beep and flash "0" four times. The oven will then beep one time per minute.

I want to add an extra 30 seconds

Leave the food in the oven. Press +30s( )button one or more times for each extra 30 seconds that you wish to add.

I want to Power defrost some food

1. Place the frozen food in the oven. Press the Power Defrost( ) button. Next : Press the blinking button.
2. Select the food category by pressing the Select( ) button, until the desired food category is selected. Next : Turn the blinking dial.
3. Select the weight by turning the Jog Dial as required. Next: Press the blinking button.
4. Press Start( )button. Result: Defrosting starts ◆ When cooking has finished, the oven will beep and flash "0" four times. The oven will then beep one time per minute.

2

CEL185UB_GEN-03190B_EN.fm Page 3 Wednesday, August 24, 2005 9:04 AM

Using the Steam Cleaning

The steam provided by steam clean system will soak the cavity surface. After using steam clean function, you can easily clean the cavity of oven.

Use this function only after the oven has completely cooled. (Room temperature)
Use normal water only, and no distilled water.
It will be more better if you do a deodorization function after using Steam cleaning.
If the door is opened during this operation « E-01 » will be displayed. (The water in the oven will be very hot due to the steam cleaning function.)

Warning!

• Water Bowl only can be use during * Steam Clean" mode.
• When cooking non-liquid itensm, remove water bowl because it will damage and cause fire to the microwave oven.

EN

1. Open the Door.

2. Fill with water following guide line inside the water bowl. (The line is about 30ml.)

3. Please attach the water bowl in right side of the oven

4. Close the door.

5. Press the Steam clean ( ) button. (Bulb does work during Steam cleaning time.)

6. Open the Door.

7. Please clean cavity of oven with dried dishtowel. Remove the turntable and only under rack with kitchen paper.

3

CE185UB_GEN-0319CB_EN.fm Page 4 Wednesday, August 24, 2005 9:04 AM

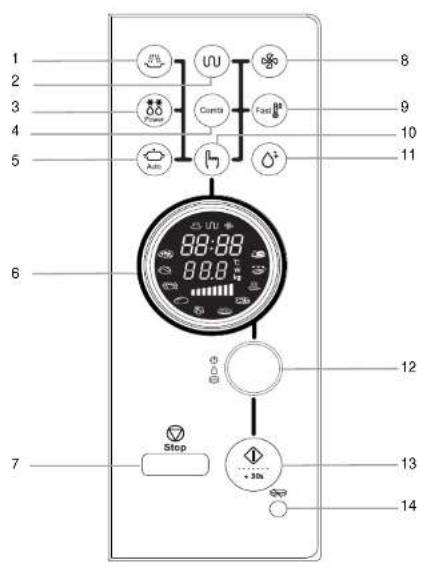

Control Panel Oven

1. MICROWAVE BUTTON
2. GRILL BUTTON
3. POWER DEFROST FEATURE
   MODE
4. COMBINED BUTTON
5. AUTO COOK FEATURE MODE
6. DISPLAY
7. STOP/CANCEL BUTTON

8. CONVECTION BUTTON

9. FAST PREHEAT SELECTION
   BUTTON

10. SELECT BUTTON
11. STEAM CLEAN BUTTON
12. JOG DIAL
13. START BUTTON
14. TURNTABLE ON/OFF BUTTON

4

Accessories

Depending on the model that you have purchased, you are supplied with several accessories that can be used in a variety of ways.

1. Coupler, to be placed correctly over the motor shaft in the base of the oven. Purpose: The coupler rotates the turntable.
2. Roller ring, to be placed in the center of the oven. Purpose: The roller ring supports the turntable.
3. Turntable, to be placed on the roller ring with the center fitting on to the coupler. Purpose: The turntable serves as the main cooking surface; it can be easily removed for cleaning.

4. Metal racks (High rack, Low rack), to be placed on the turntable. Purpose: The metal racks can be used to cook two dishes at the same time. A small dish may be placed on the turntable and a second dish on the rack. The metal racks can be used in grill, convection and combination cooking.

5. Clean water bowl, to be placed in the right side of the oven. Purpose: The water bowl can be used to clean.

6. Crust plate, to be placed on the turntable. Purpose: The crust plate is used to brown food better in the microwave or grill combination cooking modes and to keep pastry and pizza dough crisp.

Using this Instruction Booklet

Thank you for purchasing a SAMSUNG microwave oven. Your Owner's Instructions contains much valuable information on cooking with your new microwave oven:

• Safety precautions
  • Accessories and cookware
• Useful cooking tips

Inside the cover you will find a quick look-up guide explaining three basic cooking operations:

• Cooking (microwave mode)
• Defrosting
- Adding an extra 30 seconds, if the dish is inadequately cooked or requires additional reheating

At the end of the booklet you will find illustrations of the oven, and more importantly the control panel, so that you can find the buttons more easily.

The illustrations in the step-by-step procedures use two different symbols.

Important Note

EN

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

Failure to observe the following safety precautions may result in harmful exposure to microwave energy.

(a) Under no circumstances should any attempt be made to operate the oven with the door open or to tamper with the safety interlocks (door latches) or to insert anything into the safety interlock holes.
(b) Do not place any object between the oven door and front face, or allow food or cleaner residues to accumulate on sealing surfaces. Ensure that the door and door sealing surfaces are kept clean by wiping after use with first a damp cloth and then a final wipe with a soft dry cloth.
(c) Do not operate the oven if it is damaged until it has been repaired by a qualified microwave service technician trained by the manufacturer. It is particularly important that the oven door closes properly and that there is no damage to the:

(1) Door, door seals and sealing surfaces
(2) Door hinges (broken or loose)

(3) Power cable

(d) The oven should not be adjusted or repaired by anyone other than a properly qualified microwave service technician trained by the manufacturer.

5

Safety Precautions

EN

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Before cooking food or liquids in your microwave oven, please check that the following safety precautions are taken.

1. DO NOT use any metallic cookware in the microwave oven:
   • Metallic containers
   • Dinnerware with gold or silver trimmings
   • Skewers, forks, etc.
   Reason: Electric arcing or sparking may occur and may damage the oven.

2. DO NOT heat:

3. Airtight or vacuum-sealed bottles, jars, containers. Ex) Baby food jars
   • Airtight food. Ex) Eggs, nuts in shells, tomatoes
   Reason: The increase in pressure may cause them to explode.
   Tip: Remove lids and pierce skins, bags, etc.

4. DO NOT operate the microwave oven when it is empty.

Reason: The oven walls may be damaged.

Tip: Leave a glass of water inside the oven at all times. The water will

absorb the microwaves if you accidentally set the oven going when it is empty.

1. DO NOT cover the rear ventilation slots with cloths or paper.

Reason: The cloths or paper may catch fire as hot air is evacuated from the

oven.

1. ALWAYS use oven gloves when removing a dish from the oven.

Reason: Some dishes absorb microwaves and heat is always transferred from

the food to the dish. The dishes are therefore hot

1. DO NOT touch heating elements or interior oven walls.

Reason: These walls may be hot enough to burn skin even after cooking is

finished, oven though they do not appear to be so. Keep away from hot

point. Do not allow inflammable materials to come into contact with any

Interior area of the oven. Let the oven cool down first.

1. To reduce the risk of fire in the oven cavity

- Do not store flammable materials in the oven

- Remove wire twist ties from paper or plastic bags

- Do not use your microwave oven to dry newspapers

- If smoke is observed, keep the oven door closed and switch off or disconnect

the oven from the power supply.

1. Take particular care when heating liquids and baby foods

• ALWAYS allow a standing time of at least 20 seconds after the oven has been

switched off to allow the temperature to equalize.

- Stir during heating if necessary and ALWAYS stir after heating.

• To prevent eruptive boiling and possible scalding, you should stir before,

during, and after heating.

• In the event of scalding, follow these FIRST AID instructions:
* Immerse hand in cold water for at least 10 minutes.
* Cover with clean, dry dressing
* Do not apply any creams, oils or lotions.
- NEVER fill the container to the top and choose a container that is wider at the top than at the bottom to prevent the liquid from boiling over. Bottles with narrow necks may also explode if overheated.
• ALWAYS check the temperature of baby food or milk before giving it to the
baby.
- NEVER heat a baby's bottle with the teat on, as the bottle may explode if overheated.
- During microwave heating of beverages, there are results in delayed eruptive boiling, therefore care has to be taken when handling the container.

1. Be careful not to damage the power cable.
2. Do not immerse power cable or plug in water and keep power cable away from heated surfaces.

- Do not operate this appliance if it has a damaged power cable or plug.

1. Stand at arm's length from the oven when opening the door. Reason: The hot air or steam released may cause scalding

2. Keep the inside of the oven clean.

3. Clean the inside of the oven right after each use with a mild detergent solution, but let the microwave oven cool down before cleaning in order to avoid injury. Reason: Food particles or spattered oils stuck to oven walls or floor can cause the damage of painting and reduce the efficiency of the oven.

4. "Clicking" sound might be noticed while operating, especially in defrosting mode. Reason: When the power output is changing electrically, you may hear that sound. This is normal.

5. If the microwave oven is operating without any load, the power will cut off automatically for safety. After standing for over 30 min, you can operate the oven normally.

- Do not worry is the oven continues to work after cooking has finished. Reason: This product is designed to fan for some minutes, not operating microwave oven(MWO), to cool down the inner electronic parts when the stop button is pressed or the door is opened after finishing cooking in case that the oven operates for some minutes in cooking(MWO, GRILL, CONVECTION, MWO+GRILL, MWO+CONVECTION). When cooking has finished, the oven will beep and flash "0" four times. The oven will then beep one time per minute.

CE185UB_GEN-0319CB_EN.fm Page 7 Wednesday, August 24, 2005 9:04 AM

Safety Precautions (continued)

IMPORTANT SAFETY INSTRUCTIONS

During cooking, you should look into the oven from time to time when food is being heated or cooked in disposable containers of plastic paper or other combustible material.

WARNING:

Do not use the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

WARNING:

It is hazardous for anyone other than a compereent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING:

Liquids and other foods must not be heated in sealed containers since they are liable to explode.

WARNING:

Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

WARNING:

Oven casing and door will get hot during convection and combination cooking.

DO NOT operate the microwave oven without the coupler, roller ring and turntable.

Installing Your Microwave Oven

This microwave oven can be placed almost anywhere (kitchen work surface or shelf, movable trolley, table).

1. When you install your oven, make sure there is adequate ventilation for your oven by leaving at least 10 cm (4 inches) of space behind, and on the sides of the oven and 20 cm (8 inches) of space above the oven and 85 cm (33 inches) of the floor.

2. Remove all packing materials inside the oven. Install the roller ring and turntable. Check that the turntable rotates freely.

3. This microwave oven has to be positioned so that plug is accessible.

Never block the air vents as the oven may overheat and automatically switch itself off. It will remain inoperable until it has cooled sufficiently.
For your personal safety, plug the cable into a 3-pin, 230 Volt, 50Hz, AC earthed socket. If the power cable of this appliance is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
Do not install the microwave oven in hot or damp surroundings like next to a traditional oven or radiator. The power supply specifications of the oven must be respected and any extension cable used must be of the same standard as the power cable supplied with the oven. Wipe the interior and the door seal with a damp cloth before using your microwave oven for the first time.

EN

7

CE185UB_GEN-0319CB_EN.fm Page 8 Wednesday, August 24, 2005 9:04 AM

Setting the Time

EN

Your microwave oven has an inbuilt clock. The time can be displayed the only 24-hour notation. You must set the clock:

- When you first install your microwave oven

• After a power failure

Do not forget to reset the clock when you switch to and from summer or winter time.

1. Turn the Jog Dial to set the hour. Next : Press the blinking button.

2. Press the start( )button. Next : Turn the blinking dial.

3. Turn the Jog Dial to set the minute. Next : Press the blinking button.

4. When the right time is dispeayed, press the start( )button. Result: The time is displayed whenever you are not using the microwave oven.

Checking that Your Oven is Operating Correctly

The following simple procedure enables you to check that your oven is working correctly at all times. If you are in doubt, refer to the section entitled "What to Do if You are in Doubt or Have a Problem" next the page.

The oven must be plugged into an appropriate wall socket. The turntable must be in position in the oven. If a power level other than the maximum (100% - 900 W) is used, the water takes longer to boil.

Open the oven door by pulling the handle on the right side of the door. Place a glass of water on the turntable. Close the door.

Press the start( )button and set the time to 4 or 5 minutes, by pressing the start( )button the appropriate number of times.

Result: The oven heats the water for 4 or 5 minutes. The water should then be boiling.

8

How a Microwave Oven Works

Microwaves are high-frequency electromagnetic waves; the energy released enables food to be cooked or reheated without changing either the form or the colour.

You can use your microwave oven to:

• Defrost

• R e h e a t

• C o o k

Cooking Principle

1. The microwaves generated by the magnetron reflected at cavity and are distributed uniformly as the food rotates on the turntable. The food is thus cooked evenly.

2. The microwaves are absorbed by the food up to a depth of about 1 inch (2.5 cm). Cooking then continues as the heat is dissipated within the food.

3. Cooking times vary according to the container used and the properties of the food:

• Quantity and density
• Water content
- Initial temperature (refrigerated or not)

As the centre of the food is cooked by heat dissipation, cooking continues even when you have taken the food out of the oven. Standing times specified in recipes and in this booklet must therefore be respected to ensure:

• Even cooking of the food right to the centre
• The same temperature throughout the food

What to Do if You are in Doubt or You have a Problem

Becoming familiar with a new appliance always takes a little time. If you have any of the problems listed below, try the solutions given. They may save you the time and inconvenience of an unnecessary service call.

◆ The following are normal occurrences.

• Condensation inside the oven
• Air flow around the door and outer casing
• Light reflection around the door and outer casing
• Steam escaping from around the door or vents

◆ The food is not cooked at all

• Have you set the timer correctly and pressed the Start( )button?
• Is the door closed?
• Have you overloaded the electric circuit and caused a fuse to blow or a

breaker to be triggered

◆ The food is either overcooked or undercooked

• Was the appropriate cooking length set for the type of food?
  • Was an appropriate power level chosen?

◆ Sparking and cracking occur inside the oven (arcing)

• Have you used a dish with metal trimmings?
• Have you left a fork or other metal utensil inside the oven?
• Is aluminium foil too close to the inside walls?

◆ The oven causes interference with radios or televisions

• Slight interference may be observed on televisions or radios when the oven is
  operating. This is normal.
  * Solution: Install the oven away from televisions, radios and aerials
• If interference is detected by the oven's microprocessor, the display may be

reset.

* Solution: Disconnect the power plug and reconnect it. Reset the time.

If the above guidelines do not enable you to solve the problem, then contact your local Samsung customer service centre.

Please have the following information read;

• The model and serial numbers, normally printed on the rear of the oven
• Your warranty details
  • A clear description of the problem

Then contact your local dealer or SAMSUNG aftersales service.

CE185UB_GEN-03190B_EN.fm Page 10 Wednesday, August 24, 2005 9:04 AM

Cooking/Reheating

EN

The following procedure explains how to cook or reheat food.

ALWAYS check your cooking settings before leaving the oven unattended.

Open the door. Place the food in the centre of the turntable. Close the door. Never switch the microwave oven on when it is empty.

1. Press the Microwave( □ ) button.

Result: The following indications are displayed:

( ) (microwave mode)

Next : Press the blinking button.

1. Select the appropriate power level by pressing the Select button until the corresponding output power is displayed. Refer to the power level table below for further details. Next: Turn the blinking dial.

2. Set the cooking time by turning the Jog Dial • Example: For a cooking time of 3 minutes, 30 seconds, turn the jog dial to the right to set 3:30. Result: The cooking time is displayed. Next : Press the blinking button.

3. Press the Start( ) button. Result: The oven light comes on and the turntable starts rotating. Cooking starts and when it has finished: ◆ The oven will beep and flash "0" four times The oven will then beep one time per minute

If you would like to know the current power level of the oven cavity, press Select( ) button once. If you would like to change the power level during cooking, press the Select( ) button twice or more times to select the desired power level.

Quick Start:

If you wish to heat a dish for a short period of time at maximum power (900W), you can also simply press the +30s ( ◇ ) button once for each 30 seconds of cooking time. The oven starts immediately.

Power Levels and Time Variations

The power level function enables you to adapt the amount of energy dissipated and thus the time required to cook or reheat your food, according to its type and quantity. You can choose between six power levels.

Power Level Percentage Output
HIGH	100 %	900 W
MEDIUM HIGH	67 %	600 W
MEDIUM	50 %	450 W
MEDIUM LOW	33 %	300 W
DEFROST	20 %	180 W
LOW	11 %	100 W

The cooking times given in recipes and in this booklet correspond to the specific power level indicated.

If you select a... Then the cooking time must be...

Higher power levelLower power level

DecreasedIncreased

10

CEL185UB_GEN-03190B_EN.fm Page 11 Wednesday, August 24, 2005 9:04 AM

Stopping the Cooking

You can stop cooking at any time so that you can:

• Check the food
• Turn the food over or stir it
• Leave it to stand

To stop the cooking... Then..
Temporarily Open the door.	Result: Cooking stops.To resume cooking, close the door again and press the Start( ) button.
Completely Press the	Stop( Ⓞ) button. Result: Cooking stops.If you wish to cancel the cooking settings, press the Stop( ) button again.

Adjusting the Cooking Time

Like traditional cooking, you may find that, depending on the food's characteristics or your tastes, you have to adjust the cooking times slightly. You can:

• Check how cooking is progressing at any time simply by opening the door
• Increase or decrease the remaining cooking time

1. To increase the cooking time of your food, press the +30s( )button once for each 30 seconds that you wish to add.
   • Example: To add three minutes, press the +30s(◇) button six times.
2. During the cooking, to increase or decrease the cooking time of your food, turn the Jog Dial right or left.
3. During the cooking, to increase or decrease the cooking time of your food, turn the Jog Dial right or left.

EN

11

Using the Auto Cook Feature

EN

The five Auto Cook(✗) features include/provide pre-programmed cooking times. You do not need to set either the cooking times or the power level.

You can adjust the size of the serving by turning the Jog Dial.

Use only recipients that are microwave-safe.

Open the door. Place the food in the centre of the turntable. Close the door.

1. Press the Auto Cook( ) button. Next: Press the blinking button.

2. Select the type of food that you are cooking by pressing the Select ( ) button. Refer to the table on the following page for a description of the various pre-programmed settings. Next: Turn the blinking dial.

3. Select the size of the serving by turning the Jog Dial. Next: Press the blinking button.

4. Press the Start( )button. Result: The food is cooked according to the pre-programmed setting selected.

When cooking has finished, the oven will beep and flash "0" four times. The oven will then beep one time per minute.

The following table presents the various Auto Cook Programmes, quantities, standing times and appropriate recommendations. Programmes no 1, 4 and 5 are running with microwave energy only. Programmes no 3 is running with a combination of microwaves and grill. Programmes no 2 is running with a combination of microwaves and convection.

Code Food Serving		Standing Time	Recommendations
	Size
	Ready Meal(chilled)	0.3-0.35 kg0.4-0.45 kg0.5-0.55 kg	3min. Put on a ceramic plate and cover with ml microwave cling film. This programme is suitable for meals consisting of 3 components (e.g. meal with sauce, vegetables and a side dish like potatoes, rice or pasta).
	Frozen Pizza	0.3-0.4 kg0.45-0.55 kg0.6-0.7 kg	- Place one frozen pizza (-18°C) on the low rack, place two frozen pizzas on the low and high rack
	Chicken Pieces	0.2-0.3 kg(1pc)0.4-0.5 kg(2pcs)0.6-0.7 kg(3pcs)0.8-0.9 kg(3-4pcs)	2-3min. Brush the chicken pieces with oil and spice them with pepper, salt and paprika. Put them in a circle on the high rack with the skin-side down.Turn over, as soon as the beep sounds.
	Fresh Vegetables	0.2-0.25 kg0.3-0.35 kg0.4-0.45 kg0.5-0.55 kg0.6-0.65 kg0.7-0.75 kg	2-3 min. Weigh the vegetables after washing, cleaning and cutting into similar size. Put them into a glass bowl with lid. Add 30 ml (2 tablespoons) water when cooking for 200-250 g, add 45 ml (3 tablespoons) for 300-450 g and add 60-75 ml (4-5 tablespoons) for 500-750 g.Stir after cooking. When cooking higher quantities stir once during cooking.
	Peeled Potatoes	0.3-0.35 kg0.4-0.45 kg0.5-0.55 kg0.6-0.65 kg0.7-0.75 kg	2-3 min. Weigh the potatoes after peeling, washing and cutting into a similar size. Put them into a glass bowl with lid.Add 45 ml (3 tablespoons) water when cooking 300-450g, add 60ml (4 tablespoons) for cooking 500-750 g.

CE185UB_GEN-03190B_EN.fm Page 13 Wednesday, August 24, 2005 9:04 AM

Using the Power Defrost Feature

The Power Defrost( feature enables you to defrost meat, poultry, fish, bread, cake and fruit. The defrost time and power level are set automatically. You simply select the programme and the weight.

Use only containers that are microwave-safe.

Open the door. Place the frozen food on a ceramic in the centre of the turntable. Close the door.

1. Press the Power Defrost ( ^** ) button. Next : Press the blinking button.
2. Select the type of food that you are cooking by pressing the Select ( ) button. Refer to the table on the following page for a description of the various pre-programmed settings. Next: Turn the blinking dial.

3. Select the food weight by turning the Jog Dial. Next : Press the blinking button.

4. Press Start( ) button. Result:

◆ Defrosting begins.

◆ The oven beeps through defrostling to remind you to turn the food over.

1. Press the Start) again to finish defrosting. Result: When cooking has finished, the oven will beep and flash "0" four times. The oven will then beep one time per minute.

You can also defrost food manually. To do so, select the microwave function with a power level of 180 W. Refer to the section entitled "Defrosting" on page 23 for further details.

The following table presents the various Power Defrost programmes, quantities, standing times and appropriate recommendations. Remove all kind of package material before defrosting. Place meat, poultry and fish on a ceramic plate.

Code Food	Serving Size	Standing Time	Recommendations
	Meat	0.2~2kg 20-90 min. Shield the edges with aluminium foil. Tum the meat over, when the oven beeps. This programme is suitable for beef, lamb, pork, steaks, chops and minced meat.
	Poultry	0.2~2kg 20-90 min. Shield the leg and wing tips with aluminium foil. Tum the poultry over, when the oven beeps. This programme is suitable for whole chicken as well as for chicken piecos.
	Fish	0.2~2kg 20-60 min. Shield the tail of a whole fish with aluminium foil. Turn the fish over, when the oven beeps. This programme is suitable for whole fishes as well as for fish fillets.
	Bread/ Cake	0.12~1kg 10-60 min. Put bread or cake on a piece of kitchen paper and turn over, as soon as the oven beeps (oven keeps operating and is stopped, when you open the door). This programme is suitable for all kinds of bread, sliced or whole, as well as for bread rolls and baguettes. Arrange bread rolls in a circle. This programme is suitable for all kinds of yeast cake, biscuit, cheese cake and puff pastry. It is not suitable for short/crust pastry, fruit and cream cakes as well as for cake with chocolate topping.
	Fruit	0.1~0.6kg 5-20 min. Spread fruits evenly into a flat glass dish or use a flat ceramic plate. This programme is suitable for all kinds of fruit.

EN

13

Using Crust Plate

EN

Normally when cooking in microwave oven, using grill or microwave mode in grill/convection ovens, foods like pastries and pizza become soggy from button side. Using the Samsung Crust plate helps to gain a crispy cookde result of your food.

The crust plate can also be used for bacon, eggs, sausages, etc.

Before using the crust plate, preheat it by selecting the combination mode for 3 to 5 minutes:

• Combination of convection (220°C) and microwaves. (600 W power level)
• Combination of grill and microwaves (300 W power level)
• See page 17 respectively.

1. Preheat the crust plate, as described above.

- Use oven gloves at all times as the crust plate will become very hot.

1. Brush the plate with oil if you are cooking food, such as bacon and eggs, in order to brown the food nicely.
2. Place the food on the crust plate.
3. Do not place any recipients on the crust plate that are not heat-resistant (plastic bowls for example).
4. Place the crust plate on the turntable in the microwave oven.

5. Never place the crust plate in the oven without the turntable.

6. Press the Combl button. Next : Press the blinking button.

7. Select the appropriate Combination mode by pressing the Select() button. Next: Turn the blinking dial.

8. Set the cooking time by turning the Jog Dlal until the appropriate cooking time is displayed. Next : Press the blinking button.
9. Press the Start( ) button. Result: Cooking starts. ◆ When cooking has finished, the oven will beep and flash "0" four times. The oven will then beep one time per minute.

How to clean the Crust plate

The best way to clean the crust plate is to wash it with hot water and detergent. Then rinse if off with clean water. Do not use a scrubbing brush or a hard sponge otherwise the top layer will be damaged.

As the crust plate has a Teflon layer, if you use it incorrectly, it can be damaged.
- Never cut the food on the plate. Remove the food from the plate before to cutting into slices.
- Turn the food over preferably with a plastic or wooden spatula.

Auto fast Preheating the Oven

For convection cooking, it is recommended that you preheat the oven to the appropriate temperature before placing the food in the oven. When the oven reaches the requested temperature, it is maintained for approximately 10 minutes; it is then switched off automatically. Check that the heating element is in the correct position for the type of cooking that you require.

1. Press the Auto Fast Preheat(==g*) button. Next: Press the blinking button.

2. Press the Select (J) button one or more times to set the temperature. Result: The following indications are displayed: 250°C(temperature)

Next: Press the blinking button

1. Press the Start( )button. Result: The oven is preheated to the requested temperature.

Upon arrival at the preset temperature, the oven beeps 6 times and the temperature is kept for 10 minutes.

◆ After 10 minutes, the beeps 4 times and the operation stops.

In case the inner temperature has reached the preset temperature, the beep 6 times when setting the temperature and the preset temperature is kept for 10 minutes.
If you would like to know the current temperature of oven cavity, press Auto Fast Preheat(+) button.

Cooking by Convection

The convection mode enables you to cook food in the same way as in a traditional oven. The microwave mode is not used. You can set the temperature, as required, in a range varying from 40^ C to 250^ C in eight preset levels. The maximum cooking time is 60 minutes.

If you wish to Auto Fast Preheat the oven.
• Always use oven gloves when touching the recipients in the oven, as they will be very hot.
- You can get better cooking and browning, if you use the low rack.

Check that the heating element is in the horizontal position and that the turntable is in position. Open the door and place the recipient on the low rack and set on turntable.

1. Press the Convection (✗) button. Next: Press the blinking button.
2. Press the Select( ) button once or more times to set the temperature.

Result: The following indications are displayed:

(convection mode)

250°C (temperature)

Next : Tum the blinking dial.

1. Set the cooking time by turning the Jog Dial. Next : Press the blinking button.
2. Press the Start( )button.

Result: Cooking starts:

When cooking has finished, the oven will beep and flash "0" four times. The oven will then beep one time per minute.

You can check the temperature at any time by pressing the Auto Fast Preheat( ^1 ) but to n.

CEL185UB_GEN-03190B_EN.fm Page 16 Wednesday, August 24, 2005 9:04 AM

Grilling

EN

The grill enables you to heat and brown food quickly, without using microwaves.

• Always use oven gloves when touching the recipients in the oven, as they will be very hot.

- You can get better cooking and grilling results, if you use the high rack.

Check that the heating element is in the horizontal position, and that the appropriate rack is in position.

1. Open the door and place the food on the rack.

2. Press the Grill (1) button. Result: The following indications are displayed:

Next: Tum the blinking dial.

- You cannot set the temperature of the grill.

1. Set the grilling time by tuning the Jog Dial. • The maximum grilling time is 60 minutes. Next : Press the blinking button.

2. Press the Start( ) button. Result: Grilling starts: ◆ When cooking has finished, the oven will beep and flash "0" four times. The oven will then beep one time per minute.

Choosing the Heating Element Position

The heating element is used when grilling.

The heating element is used when cooking food by convection, grilling or spit roasting. It can be placed in one of two positions:

• Horizontal position for convection cooking and grilling

Only change the position of the heating element when it is cold and do not apply excessive force when placing it in the vertical position.

To set the heating element to the...	Then...
Vertical position	◆ Pull down on the heating element◆ Push it towards the back of the oven until it is parallel with the back wall
Horizontal position (convection cooking and grilling)	◆ Pull the heating element towards you◆ Push it upwards until it is parallel with the ceiling (top) of the oven

Choosing the Accessories

Traditional convection cooking does require cookware. You should, however, use only cookware that you would use in your normal oven. Microwave-safe containers are not usually suitable for convection cooking; don't use plastic containers, dishes, paper cups, towels, etc. If you wish to select a combined cooking mode (microwave and grill or convection), use only recipients that are microwave-safe and oven-proof. Metallic cookware or utensils may damage your oven

For further details on suitable cookware and utensils, refer to the Cookware Guide on page 19.

CE185UB_GEN-03190B_EN.fm Page 17 Wednesday, August 24, 2005 9:04 AM

Cooking by Combination

You can also combine microwave cooking with the grill or convection, to cook quickly and brown at the same time.

ALWAYS use microwave-safe and oven-proof cookware. Glass or ceramic dishes are ideal as they allow the microwaves to penetrate the food evenly. ALWAYS use oven gloves when touching the recipients in the oven, as they will be very hot.

You can improve cooking and grilling, if you use the high rack. Open the door. Place the food on the rack best suited to the type of food to be cooked. Place the rack on the turntable. Close the door.

1. Press the Combi button. Next : Press the blinking button.
2. Select the appropriate Combination mode by pressing the Select (1) button. Refer to the combination mode and power level table below for further details. Next: Turn the blinking dial.
3. Set the cooking time by turning the Jog Dial. The maximum cooking time is 60 minutes. Next: Press the blinking button.
4. Press the Start( )button. Result:

◆ Combination cooking starts.
When cooking has finished, the oven will beep and flash "0" four times. The oven will then beep one time per minute.

Mode Power Level

C 1	Microwave(300w) + Grill
C 2	Microwave(180w) + Convection (200°C)
C 3	Microwave(450w) + Convection (200°C)
C 4	Microwave(600w) + Convection (220°C)

Safety-locking Your Microwave Oven

Your microwave oven is fitted with a special Child Safety programme, which enables the oven to be "locked" so that children or anyone unfamiliar with it cannot operate it accidentally. The oven can be locked at any time.

1. Press the Grill and Convection buttons at the same time(about one second). Result:

- The oven is locked. - The follow indication is display "L".

1. Press the Grill and Convection buttons at the same time (about one second). Result: The oven can be used normally.

EN

17

CE185UB_GEN-03190B_EN.fm Page 18 Wednesday, August 24, 2005 9:04 AM

Switching the Beeper Off

EN

You can switch the beeper off whenever you want.

1. Press the Microwave( ) and Grill (U) buttons at the same time (about one second). Result: The oven does not beep to indicate the end of a function.

1. To switch the beeper back on, press the Microwave( ) and Grill ( ) buttons again at the same time (about one second). Result: The oven operates normally.

Manual Stop Turntable Function

The turntable on/off( ) button enables you to use large dishes which fill the whole oven by stopping the turntable from rotating (only manual cooking mode).

The results will be less satisfactory in this case as the cooking is less even. We recommend that you turn the dish by hand halfway through the cooking process.

Warning! Never operate the turntable without food in the oven. Reason: This may cause fire or damage to the unit.

1. Press the Turntable on/off ( ≈ ) button. Result: The turntable will not rotate.

1. To switch the turntable rotating back on, press the Turntable on/off ( ) button again. Result: The turntable will rotate.

Do not press the Turntable on/off( ) button during the cooking process. Cancel the cooking phase, before pressing the turntable On/Off( is button.

18

Cookware Guide

To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used.

Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry. The following table lists various types of cookware and indicates whether and how they should be used in a microwave oven.

Cookware Microwave-	Safe	Comments
Aluminium foil	x	Can be used in small quantities to protect areas against overcooking. Arcing can occur if the foil is too close to the oven wall or if too much foil is used.
Crust plate		Do not preheat for more than 8minutes.
China and earthenware		Porcelain, pottery, glazed earthenware and bone china are usually suitable, unless deco-rated with a metal trim.
Disposable polyester cardboard dishes		Some frozen foods are packaged in these dishes.
Fast-food packaging
Polystyrene cups containersPaper bags or newspaperRecycled paper or metal trims	x x	Can be used to warm food. Overheating may cause the polystyrene to melt.May catch fire.May cause arcing.
Glassware
Oven-to-table wareFine glasswareG la s s j a		Can be used, unless decorated with a metal trim.Can be used to warm foods or liquids.Delicate glass may break or crack if heated suddenly.Mast remove the lid. Suitable for warming only.
Metal
D l s h e s x Freezer bag twist ties	x	May cause arcing or fire.

Paper
• Plates, cups, napkins and Kitchen paper	√	For short cooking times and warming. Also to absorb excess moisture.
• Recycled paper	✗	May cause arcing.
Plastic
• Containers	√	Particularly if heat-resistant thermoplastic. Some other plastics may warp or discolour at high temperatures. Do not use Melamine plas-tic.
• C l l n g f √ l	√	Can be used to retain moisture. Should not touch the food. Take care when removing the film as hot steam will escape.
• Freezer bags	√ ✗	Only if boilable or oven-proof. Should not be airtight. Prick with a fork, if necessary.
Wax or grease-proof paper	√	Can be used to retain moisture and prevent spattering.

√ :Recommended
√X:Use Caution
X : Unsafe

EN

Cooking Guide

EN

MICROWAVES

Microwave energy actually penetrates food, attracted and absorbed by its water, fat and sugar content.

The microwaves cause the molecules in the food to move rapidly. The rapid movement of these molecules creates friction and the resulting heat cooks the food.

COOKING

Cookware for microwave cooking:

Cookware must allow microwave energy to pass through it for maximum efficiency. Microwaves are reflected by metal, such as stainless steel, aluminium and copper, but they can penetrate through ceramic, glass, porcelain and plastic as well as paper and wood. So food must never be cooked in metal containers.

Food suitable for microwave cooking:

Many kinds of food are suitable for microwave cooking, including fresh or frozen vegetables, fruit, pasta, rice, grains, beans, fish, and meat. Sauces, custard, soups, steamed puddings, preserves, and chutneys can also be cooked in a microwave oven. Generally speaking, microwave cooking is ideal for any food that would normally be prepared on a hob. Melting butter or chocolate, for example (see the chapter with tips, techniques and hints).

Covering during cooking

To cover the food during cooking is very important, as the evaporated water rises as steam and contributes to cooking process. Food can be covered in different ways: e.g. with a ceramic plate, plastic cover or microwave suitable cling film.

Standing times

After cooking is over food the standing time is important to allow the temperature to even out within the food.

Cooking Guide for frozen vegetables

Use a suitable glass pyrex bowl with lid. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer.

Stir twice during cooking and once after cooking. Add salt, herbs or butter after cooking. Cover during standing time.

Food Portion Power Time			(min.)	Standing Time(min.)	Instructions
Spinach 0.15kg	600W 5-8	2-3 Add	15 ml (1 tablespoon)		cold water.
Broccoli	0.3kg	600W	8-9	2-3	Add 30 ml (2 tbsp.) cold water.
Peas 0.3kg 600	W 7-8 2-3	Add 15	ml (1 tbsp.) cold		water.
Green Beans	0.3kg	600W	712 - 812	2-3	Add 30 ml (2 tbsp.) cold water.

Food	Portion	Power	Time (min.)	Standing Time(min.)	Instructions
Mixed Vegetables (carrots/poas/ corn)	0.3kg	600W 7-8	2	3 Add 15 ml	(1 tbsp.) cold water.
Mixed Vegetables (Chinese style)	0.3kg	600W	712 - 812	2-3	Add 15 ml (1 tbsp.) cold water.

Cooking Guide for rice and pasta

Rice: Use a large glass pyrex bowl with lid – rice doubles in volume during cooking. Cook covered. After the cooking time is over, stir before standing time and salt or add herbs and butter. Remark: The rice may not have absorbed all water after the cooking time is finished.

Pasta: Use a large glass pyrex bowl. Add boiling water, a pinch of salt and stir well. Cook uncovered. Stir occasionally during and after cooking. Cover during standing time and drain thoroughly afterwards.

Food	Portion	Power	Time (mln.)	Standing Time(mln.)	Instructions
White Rice (parboiled)	0.25kg0.37kg	900W	15-16 1712 - 1812	5	Add 500 ml cold water.Add 750 ml cold water.
Brown Rice (parboiled)	0.25kg0.37kg	900W	20-2122-23	5	Add 500 ml cold water.Add 750 ml cold water.
Mixed Rice (rice + wild rice)	0.25kg	900W 16	17	5 Add	500 ml cold water.
Mixed Corn (rice + grain)	0.25kg	900W	17-18	5	Add 400 ml cold water.
Pasta	0.25kg	900W	10-11	5	Add 1000 ml hot water.

Cooking Guide (continued)

Cooking Guide for fresh vegetables

Use a suitable glass pyrex bowl with lid. Add 30-45 ml cold water (2-3 tbsp.) for every 250 g unless another water quantity is recommended – see table. Cook covered for the minimum time – see table. Continue cooking to get the result you prefer. Stir once during and once after cooking. Add salt, herbs or butter after cooking. Cover during a standing time of 3 minutes.

Hint: Cut the fresh vegetables into even sized pieces. The smaller they are

cut, the quicker they will cook.

All fresh vegetables should be cooked using full microwave power (900W).

Food Portion Time		(min.)	Standing Time (min.)	Instructions
Broccoli 0.25kg	0.5kg	41⁄2-57-8	3 Prepare even sized florets.Arrange the stems to the centre.
Brussels Sprouts	0.25kg	6-61⁄2 3 Add 60-75 ml (5-6 tbsp.) water.
Carrots 0.25kg 41⁄2-5 3 Cut carrots into even sized slices.
Cauliflower 0.25kg	0.5kg	5-51⁄271⁄2-81⁄2	3 Prepare even sized florets. Cut big florets into halves. Arrange stems to the centre.
Courgettes 0.25kg	4-41⁄2 3 Cut courgettes into slices. Add 30 ml (2 tbsp.) water or a knob of butter. Cook until just tender.
Egg Plants	0.25kg	31⁄2-4	3 Cut egg plants into small slices and sprinkle with 1 tablespoon lemon juice.
Leeks 0.25kg 4-41⁄2 3 Cut leeks into thick slices.
Mushrooms 0.12kg	0.12kg	11⁄2-221⁄2-3	3 Prepare small whole or sliced mushrooms. Do not add any water. Sprinkle with lemon juice. Spice with salt and pepper. Drain before serving.
Onions	0.25kg	5-51⁄2 3 Cut onions into	slices or halvos.Add only 15 ml (1 tbsp.) water.
Pepper	0.25kg	41⁄2-5	3 Cut pepper into small slices.
Potatoes	0.25kg0.5kg	4-57-8	3 Weigh the peeled potatoes and cut them into similar sized halves or quarters.
Turnip Cabbage	0.25kg	51⁄2-6	3 Cut turnip cabbage into small cubes.

REHEATING

Your microwave oven will reheat food in a fraction of the time that conventional ovens and hobs normally take.

Use the power levels and reheating times in the following chart as a guide. The times in the chart consider liquids with a room temperature of about +18 to +20°C or a chilled food with a temperature of about +5 to +7°C.

Arranging and covering

Avoid reheating large items such as joint of meat - they tend to overcook and dry out before the centre is piping hot. Reheating small pieces will be more successful.

Power levels and stirring

Some foods can be reheated using 900 W power while others should be reheated using 600 W, 450 W or even 300 W.

Check the tables for guidance.

In general, it is better to reheat food using a lower power level, if the food is delicate, in large quantities, or if it is likely to heat up very quickly (mince pies, for example). Stir well or turn food over during reheating for best results. When possible, stir again before serving.

Take particular care when heating liquids and baby foods. To prevent eruptive boiling of liquids and possible scalding, stir before, during and after heating. Keep them in the microwave oven during standing time. We recommend putting a plastic spoon or glass stick into the liquids. Avoid overheating (and therefore spoiling) the food. It is preferable to underestimate cooking time and add extra heating time, if necessary.

Heating and standing times

When reheating food for the first time, it is helpful to make a note of the time taken - for future reference.

Always make sure that the reheated food is piping hot throughout.

Allow food to stand for a short time after reheating - to let the temperature even out. The recommended standing time after reheating is 2-4 minutes, unless another time is recommended in the chart.

Take particular care when heating liquids and baby food. See also the chapter with the safety precautions.

REHEATING LIQUIDS

Always allow a standing time of at least 20 seconds after the oven has been switched off to allow the temperature to even out. Stir during heating, if necessary, and ALWAYS stir after heating. To prevent eruptive boiling and possible scalding, you should put a spoon or glass stick into the beverages and stir before, during and after heating.

Cooking Guide (continued)

EN

REHEATING BABY FOOD

BABY FOOD

Empty into a deep ceramic plate. Cover with plastic lid. Stir well after reheating! Let stand for 2-3 minutes before serving. Stir again and check the temperature. Recommended serving temperature: between 30-40°C.

BABY MILK

Pour milk into a sterilised glass bottle. Reheat uncovered. Never heat a baby's bottle with teat on, as the bottle may explode if overheated. Shake well before standing time and again before serving! Always carefully check the temperature of baby milk or food before giving it to the baby. Recommended serving temperature: ca. 37°C.

REMARK:

Baby food particularly needs to be checked carefully before serving to prevent burns. Use the power levels and times in the next table as a guide lines for reheating.

Reheating Baby Food and Milk
Use the power levels and times in this table as guide lines for reheating.

Food	Portion	Power	Time	Standing Time(min.)	Instructions
Baby food (vegetables + meat)	0.19kg	600W 30sec.	2-3 Empty into ceramic deep plate. Cook covered. Stir after cooking time. Stand for 2-3 minutes. Before serving, stir well and check the temperature carefully.
Baby porridge (grain + milk + fruit)	0.19kg	600W	20sec.	2-3	Empty into ceramic deep plate. Cook covered. Stir after cooking time. Stand for 2-3 minutes. Before serving, stir well and check the temperature carefully.
Baby milk 0.1kg	0.2kg	300W	30-40sec. 1min. to 1min. 10sec.	2-3 Stir or shake well and pour into a sterilised glass bottle. Place into the centre of tumtable. Cook uncovered. Shake well and stand for at least 3 minutes. Before serving, shake well and check the temperature carefully.

Reheating Liquids and Food
Use the power levels and times in this table as a guide lines for reheating.

Food Portion Power Time (min.)				Standing Time (min.)	Instructions
Drinks(coffee,tea and water)	0.15kg(1 cup)0.3kg(2 cups)0.4kg(3 cups)0.6kg(4 cups)	900W	1-1 12 2-2 12 3-3 12 3 12 -4	1-2	Pour into cups and reheatuncovered: 1 cup in the centre,2 cups opposite of each other,3 cups in a circle. Keep inmicrowave oven during standingtime and stir well.
Soup(chilled)	0.25kg0.35kg0.45kg0.55kg	900W	2 12 -33-3 12 3 12 -44 12 -5	2-3	Pour Into a deep ceramic plate ordeep ceramic bowl. Cover withplastic lid. Stir well afterreheating. Stir again beforeserving.
Stew(chilled)	0.35kg	600W	4 12 -5 12	2-3	Put stew in a deep ceramic plate.Cover with plastic lid. Stiroccasionally during reheatingand again before standing andserving.
Pasta with sauce(chilled)	0.35kg	600W	3 12 -4 12	3	Put pasta (e.g. spaghetti or eggnoodles) on a flat ceramic plate.Cover with microwave cling film.Stir before serving.
Filled pasta with sauce(chilled)	0.35kg	600W	4-5	3	Put filled pasta (e.g. ravioli,tortellini) in a deep ceramic plate.Cover with plastic lid. Stiroccasionally during reheatingand again before standing andserving.
Plated Meal(chilled)	0.35kg0.45kg0.55kg	600W	4 12 -5 12 5 12 -6 12 6 12 -7 12	3	Plate a meal of 2-3 chilledcomponents on a ceramic dish.Cover with microwave cling-film.
Cheese Fonduready-to-serve(chilled)	0.4kg	600W	6-7 1-2	Put the ready-to-serve cheesefondue in a suitable sized glasspyrax bowl with lid.Stir occasionally during and afterreheating.Stir well before serving.

Cooking Guide (continued)

DEFROSTING

Microwaves are an excellent way of defrosting frozen food. Microwaves gently defrost frozen food in a short period of time. This can be of great advantage, if unexpected guests suddenly show up.

Frozen poultry must be thoroughly thawed before cooking. Remove any metal ties and take it out of any wrapping to allow thawed liquid to drain away.

Put the frozen food on a dish without cover. Turn over half way, drain off any liquid and remove any giblets as soon as possible. Check the food occasionally to make sure that it does not feel warm.

If smaller and thinner parts of the frozen food start to warm up, they can be shield by wrapping very small strips of aluminium foil around them during defrosting.

Should poultry start to warm up on the outer surface, stop thawing and allow it to stand for 20 minutes before continuing.

Leave the fish, meat and poultry to stand in order to complete defrosting. The standing time for complete defrosting will vary depending on the quantity defrosted. Please refer to the table below.

Hint: lat food defrosts better than thick and smaller quantities need less time than bigger ones. Remember this hint while freezing and defrosting food.

For defrosting of frozen food with a temperature of about -18 to -20°C, use the following table as a guide.

All frozen food should be defrosted using defrosting power level (180 W).

Food Portion Time		(min.)	Standing Time (min.)	Instructions
Meat
Minced beef	0.25kg	6-7	15-30 Place the meat on a flat ceramic plate. Shield thinner edges with aluminium foil. Turn over after half of defrosting time!
	0.5kg	10-12
Pork steaks	0.25kg	7-8
Poultry
Chicken pieces	0.5kg(2pcs)	12-14	15-60 First, put chicken pieces first skin-side down, whole chicken first breast-side-down on a flat ceramic plate. Shield the thinner parts like wings and ends with aluminium foil. Turn over after half of defrosting time!
Whole chicken	1.2kg	28-32
Fish
Fish fillets/	0.2kg	6-7	10-25 Put frozen fish in the middle of a flat ceramic plate. Arrange the thinner parts under the thicker parts. Shield narrow ends with aluminium foil. Turn over after half of defrosting time!
Whole fish	0.4kg	11-13
Fruits
Berries	0.3kg	6-7	5-10	Spread fruit on a flat, round glass dish (with a large diameter).
Bread
Bread rolls(each ca. 50 g)	2pcs	1-112	5-20 Arrange rolls in a circle or bread vertically(like a tower) on kitchen paper in the middle of turntable. Turn over after half of defrosting time!
	4pcs	212-3
Toast/Sandwich	0.25kg	4-412
German bread(wheat + rye flour)	0.5kg	7-9

EN

23

Cooking Guide (continued)

EN

GRILL

The grill-heating element is located underneath the ceiling of the cavity. It operates while the door is closed and the turntable is rotating. The turntable's rotation makes the food brown more evenly. Preheating the grill for 4 minutes will make the food brown more quickly.

Cookware for grilling:

Should be flameproof and may include metal. Do not use any type of plastic cookware, as it can melt.

Food suitable for grilling:

Chops, sausages, steaks, hamburgers, bacon and gammon rashers, thin fish portions, sandwiches and all kinds of toast with toppings.

IMPORTANT REMARK:

Whenever the grill only mode is used, make sure that the grill-heating element is under the ceiling in the horizontal position and not on the back-wall in the vertical position. Please remember that food must be placed on the high rack, unless another instruction is recommended.

MICROWAVE + GRILL

This cooking mode combines the radiant heat that is coming from the grill with the speed of microwave cooking. It operates only while the door is closed and the turntable is rotating. Due to the rotation of the turntable, the food browns evenly.

Cookware for cooking with microwaves + grill

Please use cookware that microwaves can pass through. Cookware should be flameproof. Do not use metal cookware with combination mode. Do not use any type of plastic cookware, as it can melt.

Food suitable for microwaves + grill cooking:

Food suitable for combination mode cooking include all kinds of cooked food which need reheating and browning (e.g. baked pasta), as well as foods which require a short cooking time to brown the top of the food. Also, this mode can be used for thick food portions that benefit from a browned and crispy top (e.g. chicken pieces, turning them over half way through cooking). Please refer to the grill table for further details.

IMPORTANT REMARK:

Whenever the combination mode (microwave + grill) is used, make sure that the grill heating element is under the ceiling in the horizontal position and not on the back-wall in the vertical position. The food should be placed on the high rack, unless another instruction is recommended. Otherwise it has to be placed directly on the turntable. Please refer to the instructions in the following chart.

The food must be turned over, if it is to be browned on both sides.

Grill Guide for fresh food

Preheat the grill with the grill-function for 3 minutes.

Use the power levels and times in this table as guide lines for grilling.

Fresh Food Portion Power 1. Side				2. Side Time (min.)	Instructions
			Time (min.)
Toast Slices 4 pcs(each0.25kg)		Grill only	3 12 -4 12 3-4	Put toast slices side by side on the rack.
Grilled Tomatoes	0.2kg(2pcs)0.4kg(4pcs)	300W + Grill	4-55 12 -6 12	- Cut tomatoes into halves.Put some cheese on top.Arrange in a circle in a flat glass pyrex dish. Place it on the high rack.Stand for 2-3 minutes.
Tomato-Cheese Toast	4 pcs(0.3kg)	300W + Grill	4 12 -5 12	- Toast the bread slices first.Put the toast with topping on the high rack.Stand for 2-3 minutes
Baked Apples 2 apples(ca.0.4kg)4 apples(ca.0.8kg)		300W + Grill	6 12 -7 12 11-13	- Core the apples and fill them with raisins and jam. Put some almond slices on top.Put apples on a flat glass pyrex dish.Place the dish directly on the low rack.

Cooking Guide (continued)

Grill Guide for fresh food (continued)

Fresh Food Portion Power 1. Side			Time (mln.)	2. Side Time (mln.)	Instructions
Chicken Pieces	0.5kg (2pcs)0.9kg (3-4pcs)	300W + Grill	10-1112-13	9-1011-12	Brush chicken pieces with oil and spices. Put them in a circle on the high rack.Stand for 2-3 minutes
Lamb Chops (medium)	0.4kg (4pcs)	Grill only	10-12	8-9	Brush the lamb chops with oil and spices. Lay them in a circle on the high rack. After grilling stand for 2-3 minutes.
Pork Steaks	0.4kg (2pcs)	MW + Grill	300W+ Grill8-9	Grill only8-9	Brush the pork steaks with oil and spices.Lay them in a circle on the high rack. After grilling stand for 2-3 minutes.
Roast Fish 0	4-0.5kg 300W + Grill		6-7 7-8	Brush skin of whole fish with oil and add herbs and spices. Put two fishes side by side (head to tail) on the high rack.Stand for 2-3 minutes.

CONVECTION

Cooking with convection is the traditional and well known method of cooking food in a traditional oven with hot air.

The heating element and the fan are situated on the back-wall, so that the hot air is circulating.

Cookware for convection cooking:

All conventional ovenproof cookware, baking tins and sheets – anything you would normally use in a traditional convection oven – can be used.

Food suitable for convection cooking:

All biscuits, individual scones, rolls and cakes should be made by this mode as well as rich fruit cakes, choux pastry and souffles.

MICROWAVES + CONVECTION

This mode combines the microwave energy with the hot air and is therefore reducing the cooking time while giving the food a brown and crispy surface.

Cooking with convection is the traditional and well known method of cooking food in an oven with hot air circulated by a fan on the back-wall.

Cookware for cooking with microwaves + convection:

Should be able to let the microwaves pass through. Should be ovenproof (like glass, pottery or china without metal trims); similar to the cookware described under MW + Grill.

Food suitable for microwave + convection cooking:

All kinds of meats and poultry as well as casseroles and gratin dishes, sponge cakes and light fruit cakes, pies and crumbles, roast vegetables, scones and breads.

Convection Guide for fresh food like Bread Rolls, Bread and Cake Preheat the convection with the preheating function to the desired temperature, unless we recommend not to preheat the oven-see table.

Use the power levels and times in this table as guide lines for convection cooking.

Food Portion Power Time			(mln.)	Instructions
BREAD ROLLS
Bread Rolls (ready baked)	4-6 pcs (each ca. 0.05kg)	Only convection 180°C	2-3 Put bread rolls in a circle on the low rack.Use oven gloves while taking out!Stand 2-3 minutes.
Marble Cake/Lemon cake (fresh dough)	0.7kg 180 W + 220°C without preheating!		24-26 Put the fresh dough in a rectangular glass or black metal baking dish (length 25 cm).Put the cake on the low rack.Stand for 5-10 minutes.
Filled Puff Pastries(chilled)	0.25kg (5pcs)	Only convection 220°C	15-20 Fill fresh puff pastry dough with e.g. ham, sausages, cheese or vegetables.Put them on baking paper in a circle on the high rack.
Muffins (fresh dough)	6 x 70 g (0.4-0.45kg)	180 W + 200°C	14-16 Fill the fresh dough evenly in a ceramic muffin-dish, suitable for 6 medium sized muffins, or use 6 small, round glass pyrex dishes.Put the dish on the low rack.Stand for 5 min.

EN

Cooking Guide (continued)

EN

Convection guide for frozen food like Bread Rolls, Bread, Cake and Pastry

Preheat the convection with the preheating function until the desired temperature is reached, unless we recommend not to preheat the oven-see table.

Use the power levels and times in this table as guide lines for baking.

Food Portion	Power Time		(min.)	Instructions
Baguettes / Garlic Bread (pre-baked)	0.2-0.25kg (1pc)	180 W + 200°C	6-7 P	Put the frozen baguette on baking paper on the low rack. After baking stand for 2-3 minutes.

Convection guide for frozen Pizza, Pasta, Chips and Nuggets Preheat the convection with the preheating function until the desired temperature is reached, unless we recommend not to preheat the oven-see table.

Use the power levels and times in this table as guide lines for baking.

Food Portion Power Time			(mln.)	Instructions
Pasta(Lasagne orCanneloni)	0.4kg 450	W +200°Cwithoutpreheating!	20-22	Put into a suitable sized glass pyrex dish or leave in the original packaging (take care that this is suitable for microwaves and oven heat).Put frozen lasagne on the low rack.After cooking stand for 2-3 minutes.
Pasta(Macaroni,Tortellini)	0.4kg 450	W +200°Cwithoutpreheating!	16-18	Put into a suitable sized glass pyrex dish or leave in the original packaging (take care that this is suitable for microwaves and oven heat).Put frozen pasta gratin on the low rack.After cooking stand for 2-3 minutes.
ChickenNuggets	0.25kg 450	W +200°C	612-712	Put chicken nuggets on the low rack.After cooking stand for 2-3 minutes.

CE185UB_GEN-0319CB_EN.fm Page 27 Wednesday, August 24, 2005 9:04 AM

Cooking Guide (continued)

SPECIAL HINTS

MELTING BUTTER

Put 50 g butter into a small deep glass dish. Cover with plastic lid. Heat for 30-40 seconds using 900 W, until butter is melted.

MELTING CHOCOLATE

Put 100 g chocolate into a small deep glass dish. Heat for 3-5 minutes, using 450 W until chocolate is melted. Stir once or twice during melting. Use oven gloves while taking out!

MELTING CRYSTALLIZED HONEY

Put 20 g crystallized honey into a small deep glass dish. Heat for 20-30 seconds using 300 W, until honey is melted.

MELTING GELATINE

Lay dry gelatine sheets (10 g) for 5 minutes into cold water. Put drained gelatine into a small glass pyrex bowl. Heat for 1 minute using 300 W. Stir after melting.

COOKING GLAZE/ICING (FOR CAKE AND GATEAUX)

Mix instant glaze (approximately 14 g) with 40 g sugar and 250 ml cold water. Cook uncovered in a glass pyrex bowl for 3 ½ to 4 ½ minutes using 900 W, until glaze/icing is transparent. Stir twice during cooking.

COOKING JAM

Put 600 g fruits (for example mixed berries) in a suitable sized glass pyrex bowl with lid. Add 300 g preserving sugar and stir well. Cook covered for 10-12 minutes using 900 W. Stir several times during cooking. Empty directly into small jam glasses with twist-off lids. Stand on lid for 5 minutes.

COOKING PUDDING

Mix pudding powder with sugar and milk (500 ml) by following the manufacturers instructions and stir well. Use a suitable sized glass pyrex bowl with lid. Cook covered for 6 ½ to 7 ½ minutes using 900 W. Stir several times well during cooking.

BROWNING ALMOND SLICES

Spread 30 g sliced almonds evenly on a medium sized ceramic plate. Stir several times during browning for 3 ½ to 4 ½ minutes using 600 W. Let it stand for 2-3 minutes in the oven. Use oven gloves while taking out!

Cleaning Your Microwave Oven

The following parts of your microwave oven should be cleaned regularly to prevent grease and food particles from building up:

• Inside and outside surfaces
• Door and door seals
- Turntable and Roller rings

ALWAYS ensure that the door seals are clean and the door closes properly.
Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the of the appliance and possibly result in a hazardous situation.

1. Clean the outside surfaces with a soft cloth and warm, soapy water. Rinse and dry.
2. Remove any splashes or stains on the inside surfaces or on the roller ring with a soapy cloth. Rinse and dry.
3. To loosen hardened food particles and remove smells, place a cup of diluted lemon juice on the turntable and heat for ten minutes at maximum power.
4. Wash the dishwasher-safe plate whenever necessary.

DO NOT spill water in the vents. NEVER use any abrasive products or chemical solvents. Take particular care when cleaning the door seals to ensure that no particles:

• Accumulate
• Prevent the door from closing correctly

☑ Clean the microwave oven cavity right offer each use with a mild detergent solution, but let the microwave oven cool down before cleaning in order to avoid injury.
The instructions for cooking ranges, hobs and ovens shall state that a steam cleaner is not to be used.

CE185UB_GEN-0319CB_EN.fm Page 28 Wednesday, August 24, 2005 9:04 AM

Storing and Repairing Your Microwave Oven

EN

A few simple precautions should be taken when storing or having your microwave oven serviced.

The oven must not be used if the door or door seals are damaged:

• Broken hinge
  • Deteriorated seals
  • Distorted or bent oven casing

Only a qualified microwave service technician should perform repairs.

NEVER remove the outer casing from the oven. If the oven is faulty and needs servicing or you are in doubt about its condition:
• Unplug it from the wall socket
F NEVER remove the outer casing from t
NEVER
needs servicing or you are in doubt about
The following table is a simple diagram and contains no textual content.
• Unplug it from the wall socket

- Contact the nearest after-sales service centre

If you wish to store your oven away temporarily, choose a dry, dust-free place.

- Reason: Dust and damp may adversely affect the working parts in the oven

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]

[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

1. THE TEM OF 100% ELL (in R, 2019)

3405_MP: N=1819.63.PA.MI Page 25 WCheshin

(1)

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

1. 2017年1月1日

using and Repairing Your M

ing and Repairing Your Mr

(1) 2017年1月1日

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

[Non-Text]

•

A simple precautions should be taken w

1.1

owave oven serviced.

(1) 2017年1月1日（星期六）

even must not be used if the door or do

often must not be used if the door or door

(1) 本说明仅供参考。

(1) 2014

• Breaker lines

- Broken hinge

• Determinated results

- Determinated Seats

• Distorted on hot oven opening

• Distorted or bent oven casting

a qualified microwave service technician

a qualified microwave service technician

(二) 2017年1月1日

2、《公司章程》的修订内容：

- Contract the payment after sale payment

- Contact the nearest after-sales service

1. If you wish to store your own home today

- If you wish to store your oven away tempor.

free place

free place.

- Reason: Dust and damp may adv

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text.

(no text)

English

English

45% Correct Prescription of This Product

Correct Disposal of This Product

(×) (Waste Electrical & Electronic Equipment)

人

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

The Ground Truth image displays a single, solid horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a fill-in-the-blank placeholder. Therefore, the OCR result is inconsistent with the Ground Truth.

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

CE185UB_GEN-03190B_EN,in Page 32 Wednesday, August 24, 2005 9:04 AM

ELECTRONICS

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Tel : 0870 SAMSUNG (7267864) (United Kingdom)

Tel : [phone] (Republic of Ireland)

www.samsung.com/uk
