Blizzard Smart mobile airconditioner user manual | gebruikershandleiding | manuel d’utilisation manual de usuario | Bedienungsanleitung WATCH THE INSTRUCTION MOVIES32 Thank you for choosing Duux. We’re so glad you decided to read the instructions to your new Duux smart mobile airconditioning! Many users casually dismiss instructions and seek to gure it out on their own. But studies show that people who read instructions will get up to speed more quickly and eciently than those who poke around with trial and error. At Duux we believe in the importance of a comfortable and healthy living environment. Enhancing your well-being by designing appealing, functional and eective products is the passion that drives us every day. With our range of innovative air treatment products we aim to provide you the best possible indoor air quality. Unproductive working days, sweaty dinners or sleepless nights. Summers are getting longer and hotter each year, meaning it’s time for a new best friend that’ll make those days a lot more enjoyable. Meet Blizzard: a mobile airco with front output for extra ecient cooling. Its unconventional design makes it a true eye catcher, and the wheels and handles on both sides allow you move it wherever you want. So you’ll always stay cool. Read this manual carefully to get the most out of your Blizzard mobile airconditioner.

1. Product overview 4

2. Installation and use 5

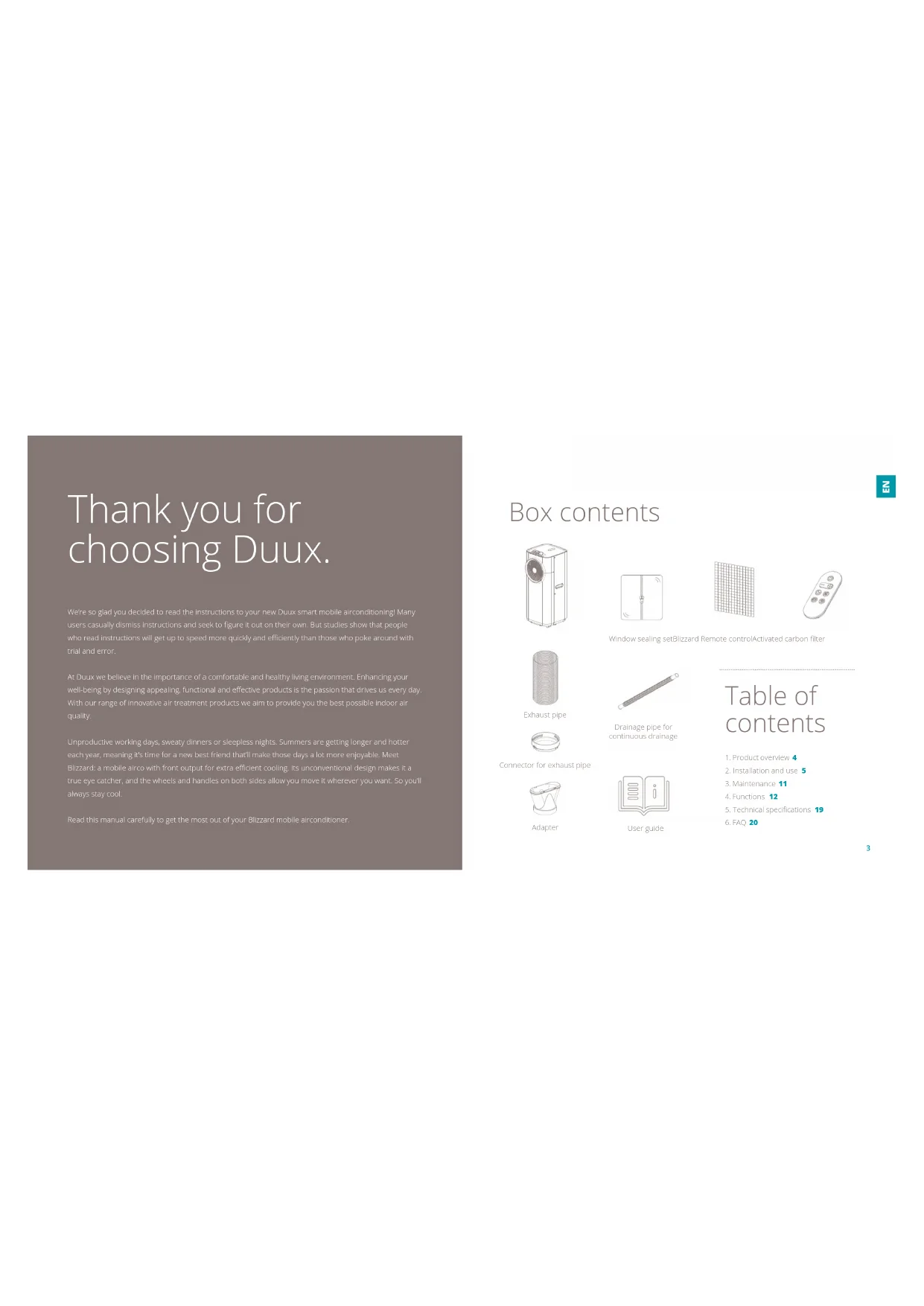

Connector for exhaust pipe Adapter User guide Box contents Drainage pipe for continuous drainage Exhaust pipe Window sealing setBlizzard Remote controlActivated carbon lter54 when it has been tilted (e.g. during cleaning).

• Only use the device in the upright position on a at level surface (even during transport) and at least 50cm from any objects.

• Do not use the device in a potentially explosive environment containing combustible liquids, gases or dusts.

• Do not use the device in the vicinity of ammable or explosive substances or fuels. Never use any paint, cleaning sprays, anti-insect sprays or similar near the unit; this could deform the plastic or cause electrical damage.

• Ensure that there is at least 50cm between the sides of the device and any ammable, heating materials.

• Do not place objects on the device or restrict air inlet/outlet.

• Avoid the device from splashing water.

• Closely supervise any children and pets when the device is in use.

• This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Keep children away from playing with the device.

• Cleaning and user maintenance shall not be

1. Product overview 2. Installation and use

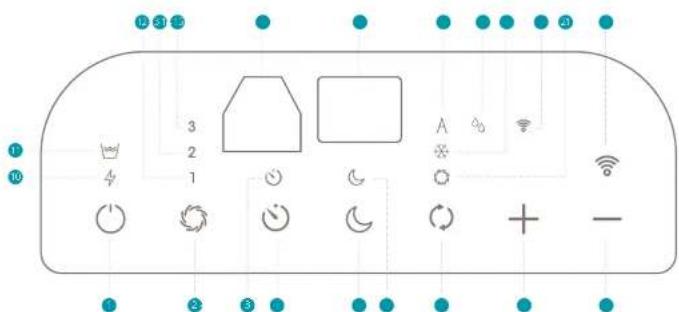

Control panel Remote control holder Air outlet Exhaust hose Accessoires Adaptor - for insertion over hose and into window spacer (or into hole in the wall/window). Connector for exhaust pipe Remote control Active carbon lter Drain tube for continuous drainage Window kit Water stopper/ drainage point Cord storage Ventilation grille Ventilation grille Air inlet Ventilation grille

Read before installation

• This appliance is lled with Propane gas R290. Strictly follow the manufacturer’s instruction concerning use and repairs.

• Before using the device, please carefully read the entire instruction manual

• Do not install, operate or store the device in a room smaller than 7m² (DXMA04) / 10m² (DXMA05). This is due to the propane gas in the air conditioner. If it is stored in a space that is too small, this can cause a risk of explosion. General cautions

• For indoor use only.

• Do not use in cabinet, closets, boats, caravans or similar locations.

• Do not use the device in swimming pools, washrooms or similar wet areas.

• Leave the device to stand for 12hours before connecting to the mains supply after transport or

damage to the appliance, cord or plug or if the device is malfunctioning or if there are signs of any other defect. Return the complete product to the point of purchase or to a certied electrician for inspection and/or repair. Always ask for original parts. The device (incl. cord and plug) may only be opened and/or repaired by properly authorized and qualied persons.

• Only a licensed professional is allowed to dismantle or modify the device.

• This device is to be used only for its prescribed purpose. Any other use is deemed to be a cause of misuse. The user/operator, not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

made by children without supervision.

• Switch o and unplug the device when not in use.

• Never leave a functioning device unsupervised.

• Do not pull the unit along by the cord.

• Avoid over-twisting, -coiling, -pulling the power cord. Never use nylon or iron wire to tide the power cord.

• Make sure that the plug and socket remain visible and accessible at all the time.

• Do not use extension cords.

• Never reach to retrieve the unit if it has fallen in water. In such case, immediately pull the plug from the mains and have the unit checked before using it again.

• If the supplied power cord is damaged it must be replaced by an electrician or qualied person to avoid any hazard.

• The mains supply must conrm to the specication shown on the rating label on the back of the device.

• The appliance shall be installed in accordance with national wiring regulations.

• Do not exceed the recommended room size for max. eciency.

• Close doors and windows for optimal eciency.

• Keep curtains or blinds closed during the sunniest hours of the day.

• Once the room has reached the desired conditions, reduce the setting for temperature and ventilation.

• Do not turn on the device if you have discovered Read these warnings carefully

• This device contains R290 refrigerant. R290 is a refrigerant that complies with the relevant European directives. Never puncture the refrigerant circuit. R290 is ammable (GWP3)!

• Do not use any products other than those recommended by the manufacturer to speed up the defrosting process or for cleaning.

• The device must be stored in a room with no continuously working sources of ignition (for example: open re, a working gas appliance or a working electric heating element).

• Do not pierce or burn any part of the device’s cooling circuit. Do not place any light on the device.

• The device must be stored in such a way that no mechanical damage can occur. Refrigerants cannot contain any odour, so you cannot smell signs of a gas leak.

• National gas regulations must be observed.

• Keep the ventilation grills free from obstructions. Anyone involved in working on or penetrating a refrigerant circuit must be in possession of a current valid certicate issued by an industry- approved body authorised to do so. Installation of the window kit Blizzard is a portable air conditioner that may be moved from room to room. Please refer to the seperate instructions on how to install the included window sealing set.98

Mounting of the exhaust pipe

• Use only the hose provided and clip exhaust hose to the back of the air conditioner

• Avoid kinks and bends in the exhaust hose as this will cause expelled moist air to build up causing the unit to overheat and shut down. Figures below will show the correct position.

• The hose may be extended from 300mm to 1500mm but for maximum eciency use the shortest length possible. Installation of the carbon lter Carefully remove the upper grill at the back of the air conditioner. Remove the lter from the unit. Remove the active carbon lter from its plastic bag. Insert the active carbon lter into the back of the unit. Re-t the lter inside the unit. Place the grill back on the air conditioner.

Remove the lid. Place the battery according to the instructions on the lid with the correct polarity. Close the lid. Opmerking:

• Only use 1x CR2032 3V batteries

• Non-rechargeable batteries are not to be recharged

• Exhausted batteries are to be removed from the remote control and safely disposed of

• If the remote control is to be stored unused for a long period, the battery should be removed

• The supply terminals are not to be short-circuited. Installation of the remote control

Warning! The length of the exhaust pipe is specially designed according to the specication of this product. Do not replace or prolong it with your own private hose as this could cause the unit to malfunction.1110

Always unplug the air conditioner from the mains before cleaning. To maximize the eciency of the air conditioner, clean regularly. Cleaning the body Use a soft, damp cloth to wipe the body clean. Never use aggressive chemicals, gasoline, detergents, chemically treated cloths, or other cleansing solutions. These all could possibly hurt the casing material. Cleaning the lter Use a vacuum cleaner or tap the lter lightly to remove loose dust and dirt from the lters and then rinse thoroughly under running water (no hotter than 40⁰C). Dry thoroughly before replacing.

Note: Never operate the unit without the lter. Long term storage

• Drain any remaining water in the unit

• Operate the unit in ventilation mode only for a few hours to thoroughly dry the inside.

• Clean or change the lter.

• Unplug and store the power cord.

• Cover the device in a close carton or bag (not hotter than 40⁰C). Dry thoroughly before storing.

• Do not store the device in a room smaller than 7m² (DXMA04) / 10m² (DXMA05). This is due to the propane gas in the air conditioner. If it is stored in a space that is too small, this can cause a risk of explosion. Attention! when the outside temperature is warm for a long period of time, this heat will also be noticeable in the house. Furniture, bedding, curtains, carpets and the like can retain a lot of heat. As a result, the air conditioner may need longer to cool the room. Tips and recommendations Neem voor het verkrijgen van het hoogste rendement van de airconditioner de volgende aanbevelingen in acht:

• To obtain the highest air conditioner eciency, observe the following recommendations:

• Close windows and doors in the room to be air conditioned. The only exception is installation through a hole in the wall. In this case, it is recommended to leave a door or window ajar to ensure ventilation.

• Do not use the device in rooms with high humidity (e.g. laundry rooms).

• Protect the room from direct sunlight by closing the curtains and/or partially closing the blinds, thus ensuring highly economical operation (Fig. 21).

• Do not use the device outdoors.

• Make sure there are no heat sources in the room.

• Make sure that the air conditioner is placed on a at oor.

• Do not place items on top of the air conditioner.

• Do not obstruct the air inlets. Attention: never use the air conditioner without a lter. This will lead to dust particles on the ribs which you will not be able to remove later. Tip: clean the lter every 2 weeks. A clean lter improves the operation of the air conditioner! You can remove dust particles from the lter using a dry cloth or through careful use of a vacuum cleaner.1312

• Higher than 22⁰C, the unit will operate in cooling mode.

• Higher than 20⁰C but below or equal to 22⁰C, the unit will operate in ventilation mode. Indicators of the functions in progress are shown simultaneously. Note: The display window shows the ambient room temperature from 0⁰C to 50⁰C. To turn the unit o, press ON/OFF button again Select operation mode Press the MODE button to select the preferred operation mode: automatic, cooling, fan or dehumidify. The indicator of your selected mode will illuminate. Cooling mode When the air conditioner is in cooling mode, it cools the room. The compressor is then switched on. When the air conditioner has reached the desired temperature, it will switch to ventilation mode. Ventilation mode In ventilation mode, the air conditioner will only ventilate. It circulates the air in the room, which has a cooling eect. The compressor will not switch on in this mode. Automatic mode When the AUTO mode is active, the ventilation speed is automatically selected based on the ambient temperature (the relevant indicator lights up). The SPEED button is locked in AUTO mode. Setting the temperature Press ‘Temperature up’ or ‘Temperature down’ button to regulate the temperature according to your preference. The display window will show the desired temperature as you press ‘Temperature up’ or ‘Temperature down’ button. In stand-by mode, it will always show the ambient temperature. The default factory setting of this machine is 24⁰C for cooling.

The unit will shut down automatically when NIGHT mode is running for more than 12 hours. Note: the night mode is not available while the machine is operating in AUTO, Fan (ventilation) or Dehumidication mode. Note: In night mode, the display will automatically dim after a few seconds. Press any key to reactive the control panel. Self-diagnosis This machine is equipped with self-diagnosis software. If the device is not working, the LCD display will show “E1” or “E2”. When this occurs, please contact your point of purchase. All the above functions can also be performed with the supplied remote control. This remote control requires a cell battery CR2032 to operate. Note:

• To prolong the lifespan of the compressor, please wait at least 3 minutes before re-switching on the device after switching o.

• The cooling system will switch o if the ambient temperature is lower than the set one. However, the ventilation keeps operating on the set level. If the ambient temperature rises above the selected level, the cooling will return to work. Adjusting the ventilation speed Press the SPEED button to choose the ventilation speed you prefer: high, medium or low. The indicator of high, medium or low ventilation will illuminate. Setting the timer By pressing the TIMER button without using the other functions, you can activate a start delay. For example, if you set the timer to ‘2’, the unit will automatically start after 2 hours. Press the TIMER button to set a time-out (1 to 24 hours, the timer indicator will illuminate). When the set time has been reached, the machine will turn o automatically. The LCD display will show the hour(s) you set as you press the TIMER button. Night mode When pressing the NIGHT mode button in cooling mode, the set temperature will increase with 1⁰C after one hour, another 1⁰C after two hours and then stays at that temperature. In NIGHT mode, the ventilation will remain at low speed. By pressing the NIGHT mode button again, the temperature and ventilation speed will return to the previous settings.

Drainage During the process of cooling, some water will be extracted from the air into the unit. If the reservoir is full, both of the compressor and motor will switch o and the units will buzz (press any button to turn it o). The WATER FULL indicator will ash to show you.In this case, please empty the water by following the steps below: Turn o the air conditioner and avoid moving it when the water tank is full. Put a container (a water tray for example) underneath the drain hole. Remove the drain knob & rubber plug from the drain hole and allow the water to drain out. When the container is almost full, close the drain hole with the rubber plug and empty the water tray. Repeat until the unit is fully empty. Replace the rubber plug andrmly tighten the drain knob. Switch on the device - the full water indicator should not be ashing anymore. If you wish to operate the unit without the need to empty the water tank (continuous drainage), please follow these steps:

• Remove the drain knob and rubber plug and retain for future use.

• Connect the drain tube supplied to the water outlet as shown and locate the other end into a

• The drain tube may be extended by adding an extension tube and using a suitable connector. Note:

• The drain must be at or below the outlet level.

• The FULL WATER indicator will be disabled in this mode of drainage.1716 WiFi mode Press and hold the button for 5 seconds to activate the WiFi mode. The indicator will ash and start searching for devices to pair. Once connected, the will turn solid. WiFi and APP operation Scan below QR code to download the Duux APP or search DUUX APP in the App Store or Google Play Store. Once installed, enter your e-mail address and complete the registration. Connect to WiFi Once registered, click “add duux device” on the main screen or use the “+” button in the top right corner to add a new device., Search for “Blizzard” and press to continue Connect to your preferred WiFi network and enter the corresponding password Follow the instructions in the app to complete the pairing process. Note: if you experience any problems with connecting or using the app, please refer to the FAQ in the app menu. APP STORE PLAY STORE

Notes1918 Cold arctic air delivered through an unconventional design.

5. Technical specications

The appearance and specication of the device may be changed without notice. Eective area: 25/28m² Display: Digital LED Air volume: 440/410m³/hr Refrigirant: R290 Cooling capacity: 10.000/12.000btu/h Power consumption: 1-1150/1350W Control panel: Soft touch Timer: 0-24h Model no.: DXMA04/05 Noise level: 53-63dBa 394 mm394 mm846 mm846 mm

The airconditioner does not turn on. What should I do? - Please check if the air conditioner is plugged in - Please check for a possible power failure - Please check if the WATER FULL indicator is blinking. If so, empty the water tank. - Please check if the room temperature is below the set temperature. In that case, the device will not cool. The device seems to have little eect. What is wrong or how can I improve this? - Please check if direct sunlight is entering the room. Close all curtain to keep the warmth outside. - Close doors and windows - Many people in the room rises the room temperature which makes it harder to reach the desired temperature - Please check if there is something is the room that could produce a lot of heat (e.g. microwave) - Please check if the air intake or output are blocked - Please check if the room temperature is below the set temperature. In that case, the device will not cool. The unit makes a lot of noise. What is wrong? Please check if the device is on a stable surface and not positioned unevenly. This could cause the compressor to make loud noise. The compressor doesn’t work. What is wrong? It could be possible that the overheat protection of the compressor is on. Wait a few minutes for the temperature to drop. I see an error code. What does it mean? See below table with error codes and their explanations. In all cases, please contact your point of sale of local service point for repair.

E1 Resin head sensor on the evaporator broke down E2 Copper head sensor on the discharge tube broke down E3 Temperature Control (TC) sensor wire is loose or broke down. The compressor and fan motor will stop. E4 When the TC sensor wire senses the temperature is > or = 130oC for more than 5 seconds. The compressor and fan motor stop. The European directive 2012 / 19 / CE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. How can I extend the lifespan of the compressor? To extend the lifespan of the compressor, wait at least 3 minutes after switching o the device before switching it on again. Why doesn’t the device switch o when the set temperature has been reached? The cooling system switches o when the ambient temperature is lower than the set temperature. However, the ventilation continues to operate according to the set value. If the ambient temperature rises above the selected value, cooling becomes active again.

• The drain tube may be extended by adding an extension tube and using a suitable connector.
