USER MANUAL PDB9040E PROGRESS

Campana extractora Exaustor

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a solar panel (no text or symbols present)

COMANDI

Modelli PDB6050E, PDB9050E:

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Modelli PDB6050E, PDB9050E:

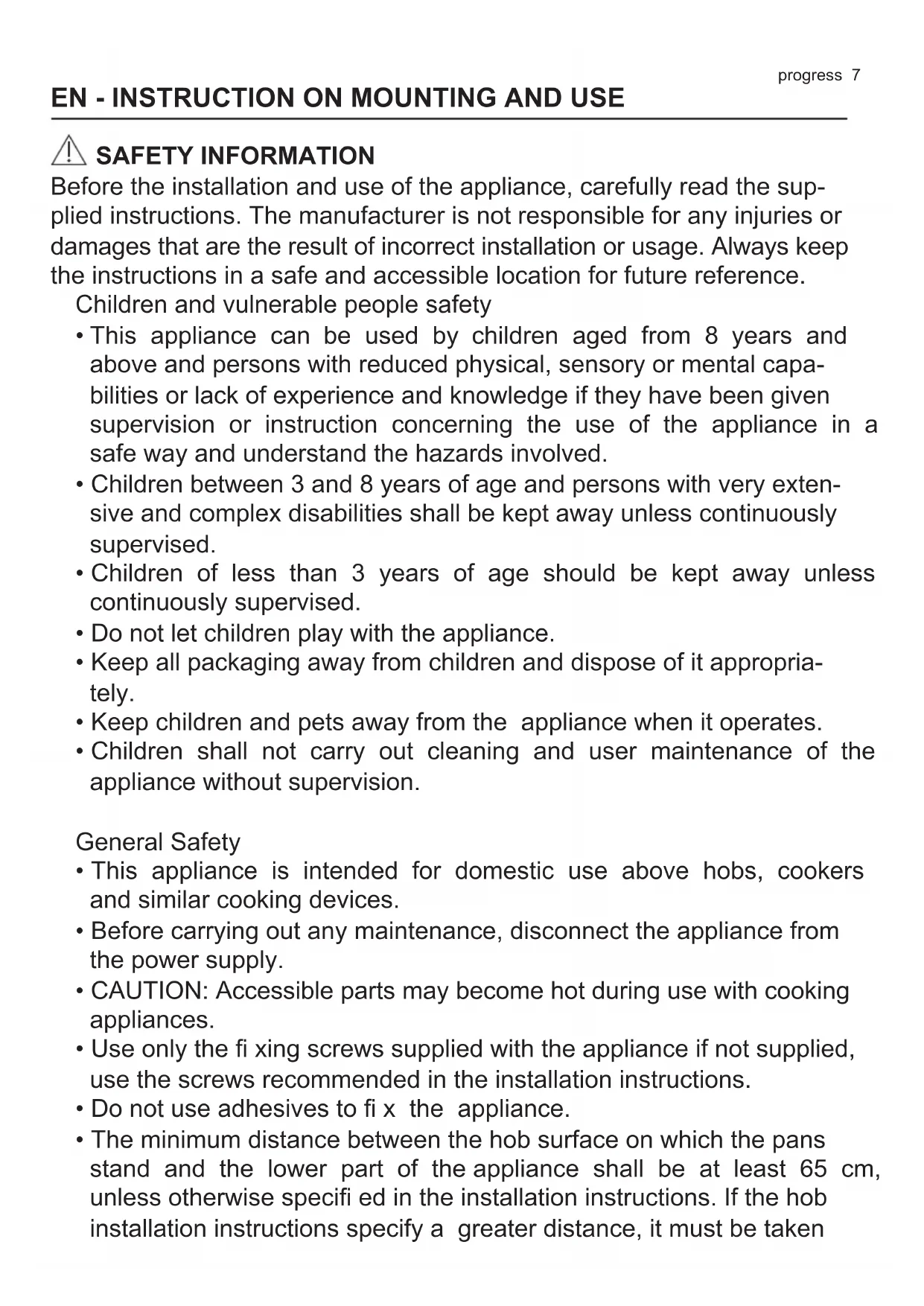

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away unless continuously supervised.
• Children of less than 3 years of age should be kept away unless continuously supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep children and pets away from the appliance when it operates.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

General Safety

• This appliance is intended for domestic use above hobs, cookers and similar cooking devices.
• Before carrying out any maintenance, disconnect the appliance from the power supply.
• CAUTION: Accessible parts may become hot during use with cooking appliances.

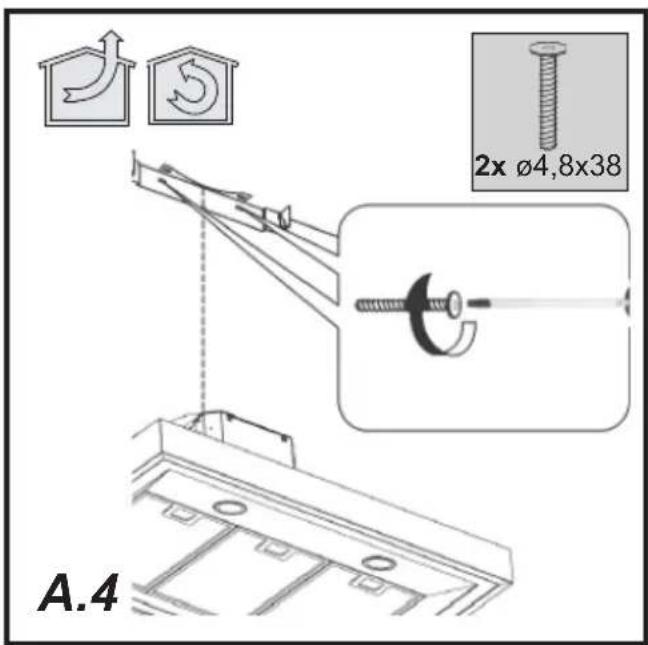

• Use only the fixing screws supplied with the appliance if not supplied, use the screws recommended in the installation instructions.
• Do not use adhesives to fix the appliance.

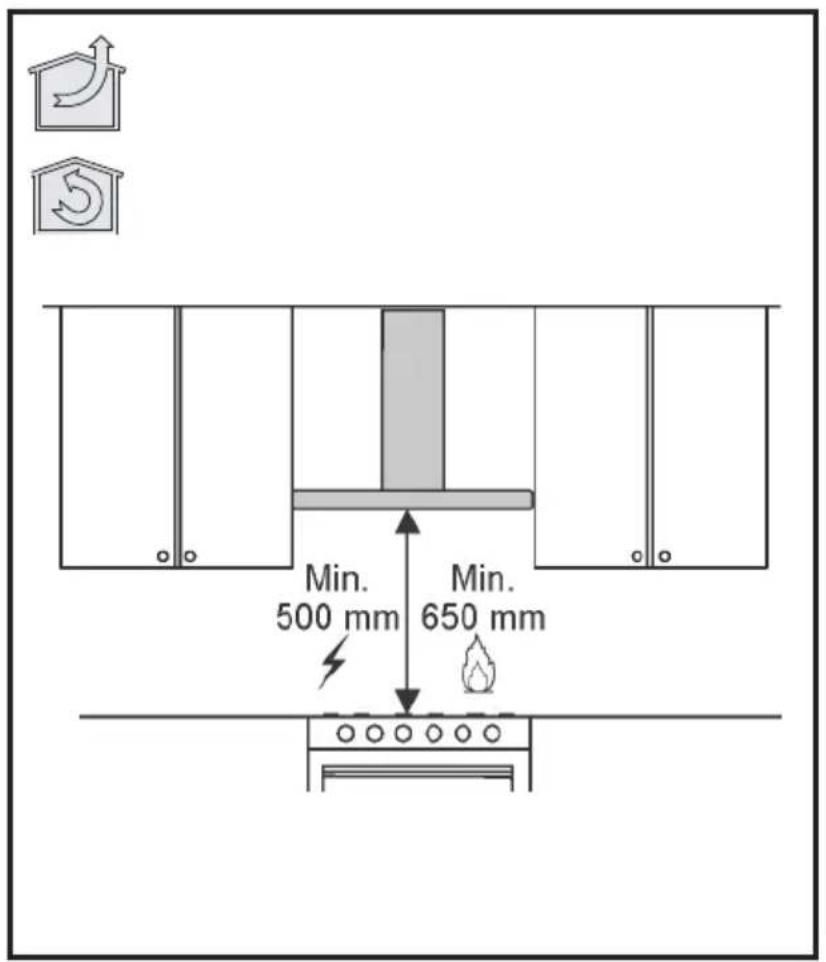

• The minimum distance between the hob surface on which the pans stand and the lower part of the appliance shall be at least 65 cm, unless otherwise specified in the installation instructions. If the hob installation instructions specify a greater distance, it must be taken

into account.

- The discharge of air must comply with local authorities regulations.

- Ensure good air ventilation in the room where the appliance is installed to avoid the backflow of unwanted gases into the room from appliances burning gas or other fuels, including open fi res.

- Make sure that the ventilation openings are not blocked and the air collected by the appliance is not conveyed into a duct used to exhaust smoke and steam from other appliances (central heating systems, thermosiphons, water-heaters, etc.).

- When the appliance operates with other appliances the maximum vacuum generated in the room should not exceed 0.04 mbar.

- Make sure not to cause damage to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.

- If the appliance is connected directly to the power supply, the electrical installation must be equipped with an isolating device that allows to disconnect the appliance from the mains at all poles. Complete disconnection must comply with conditions specified in the overvoltage category III. The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

- Do not fl ambé under the appliance.

- Do not use to exhaust hazardous or explosive materials and vapours.

- Clean the appliance regularly to prevent the deterioration of the surface material.

- Clean the appliance with a soft cloth regularly.

- Do not use a steam cleaner, water spray, harsh abrasive cleaners or sharp metal scrapers to clean the surface of the appliance. Use only neutral detergents.

- Clean grease fi Iters regularly (at least every 2 months) and remove grease deposits from the appliance to prevent the risk of fi re.

- Use a cloth or brush to clean the interior of the appliance.

SAFETY INSTRUCTIONS

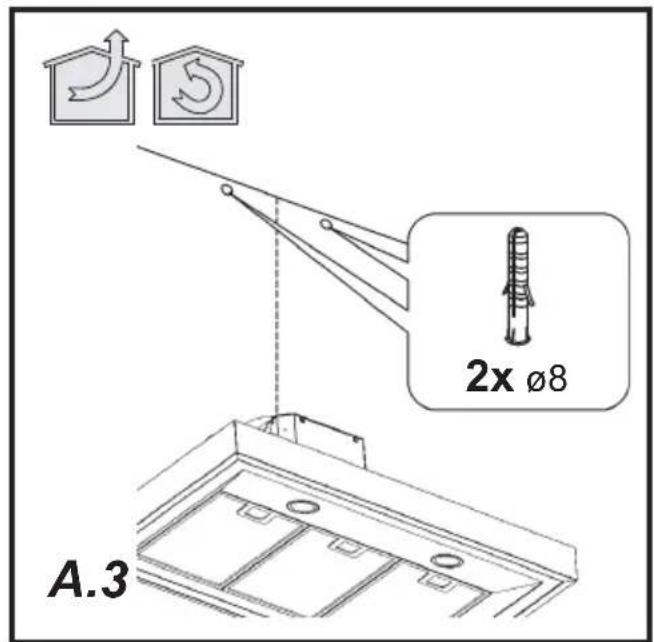

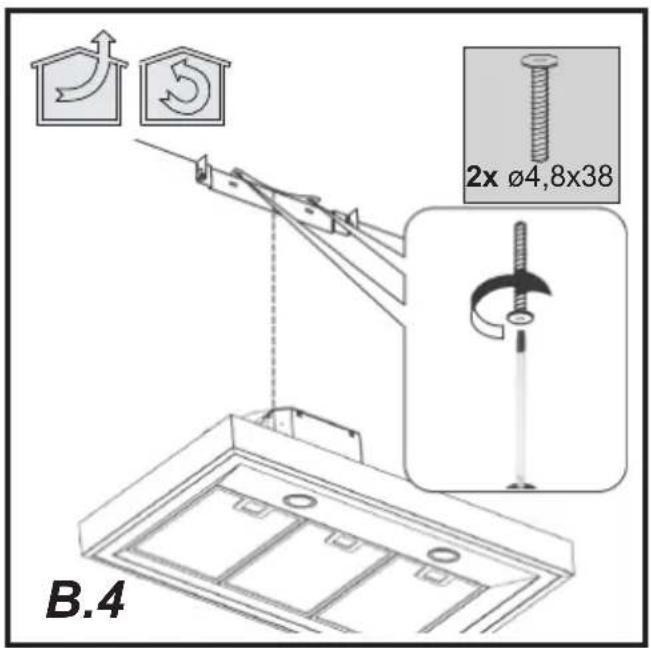

Installation

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

• Only a qualified person must install this appliance.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
- Before installing the appliance remove all the packaging, the labelling and the protective film.
- Do not install the exhaust air into a wall cavity, unless the cavity is designed for that purpose.

Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• If the symbol (☐) is not printed on the rating plate, the appliance must be earthed.
• Always use a correctly installed hockproof socket.
• Do not let the electricity mains cable tangle.
• Do not use multi-plug adapters and extension cables.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable can make the terminal become too hot.
• Connect the appliance at the end of the installation. Make sure that there is access to the mains after the installation.

Use

WARNING!

Risk of injury, burns and electric shock.

• This appliance is for cooking purpose only. Do not use the appliance for other purpose.
• Do not change the specification of this

appliance.

• Do not operate the appliance with wet hands or when it has contact with water.
• Use only the accessories supplied with the appliance.
• Keep flames or heated objects away from fats and oils during cooking and frying.
• Do not use uncovered electric grates.
• Do not use the appliance as a storage surface.
• Do not use magnifying glasses, binoculars or similar optical devices to look directly at the lighting of the appliance.

Service

• To repair the appliance contact an Authorised Service Centre.
- Use original spare parts only.

Disposal

WARNING! Risk of injury or suffocation.

• Contact your municipal authority for information on how to discard the appliance correctly.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

ENVIRONMENT CONCERNS

Recycle the materials with the symbol

. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose

appliances marked with the symbol with the household waste.

Return the product to your local recycling facility or contact your municipal office department for household waste or the shop where you purchased this product.

10 progress

INSTALLATION METHODS

Filtering or ducting version?

The hood may be in fi ltering or in ducting version. Decide from the outset which type is to be installed.

For better efficiency, we recommend installing the hood in the ducting version (if possible).

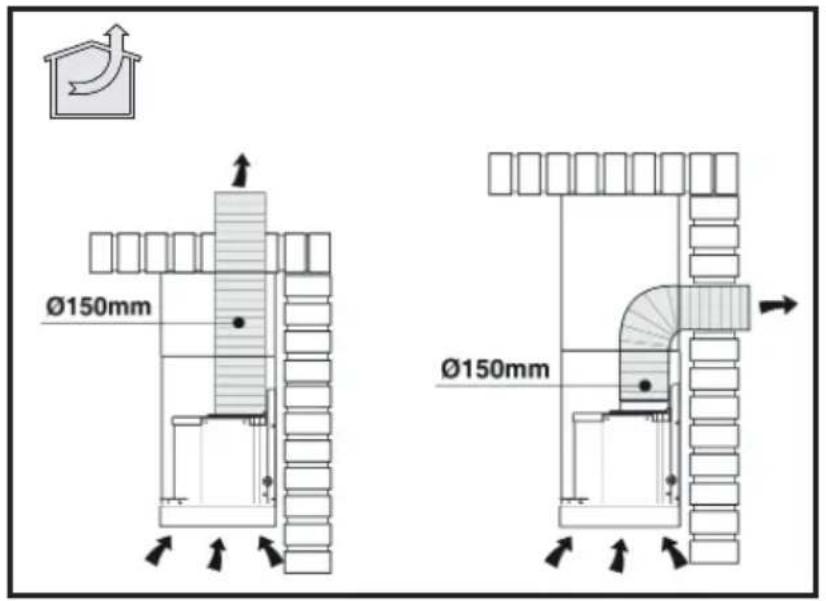

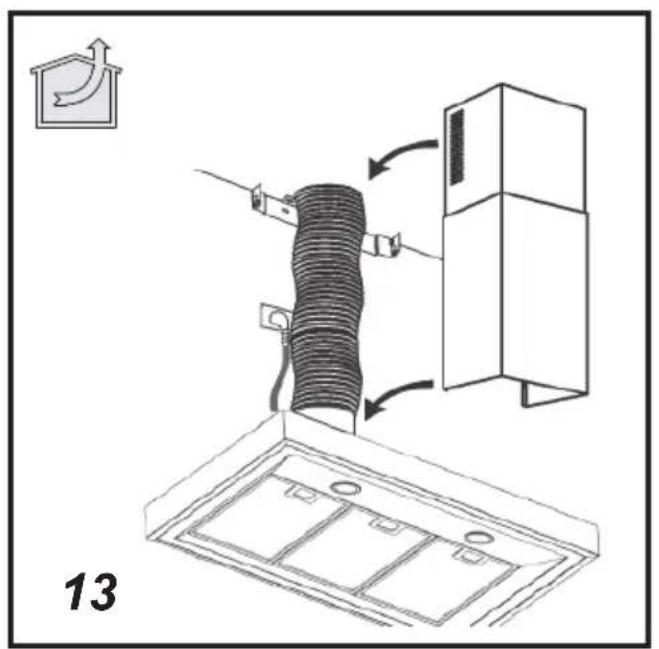

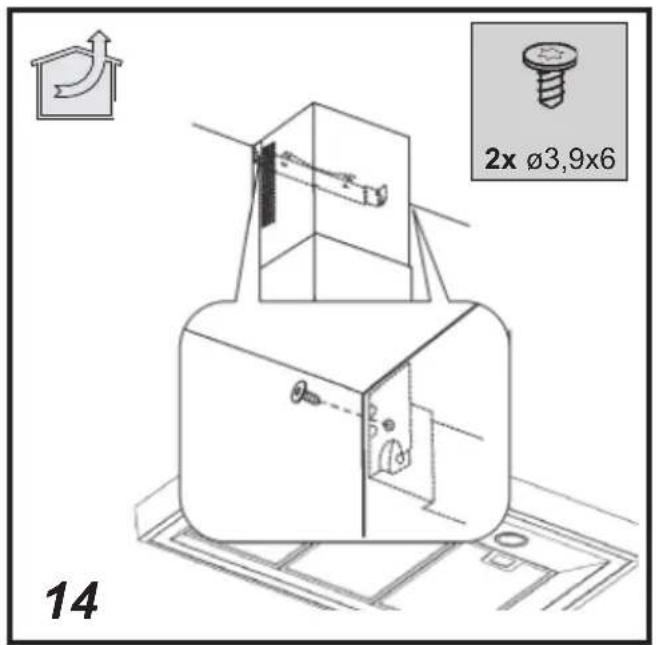

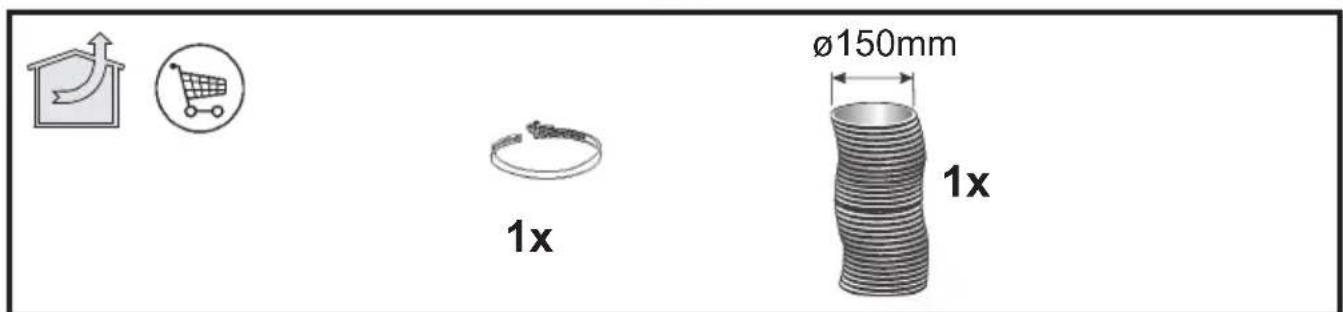

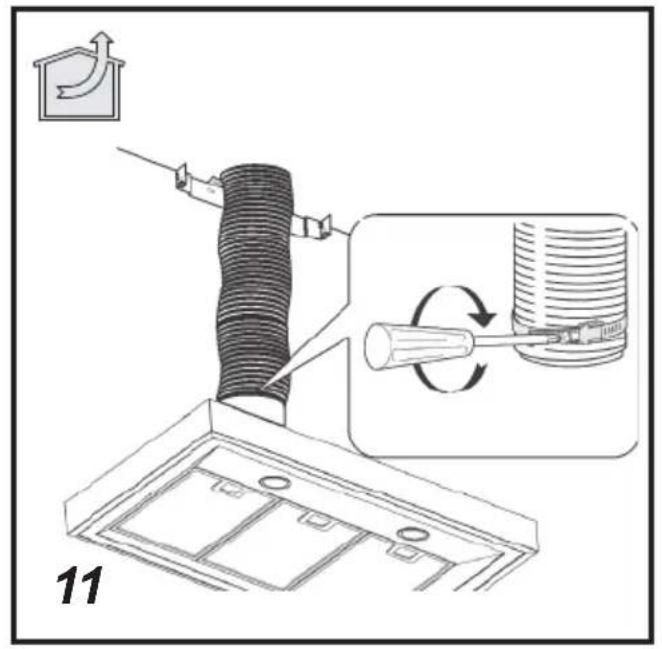

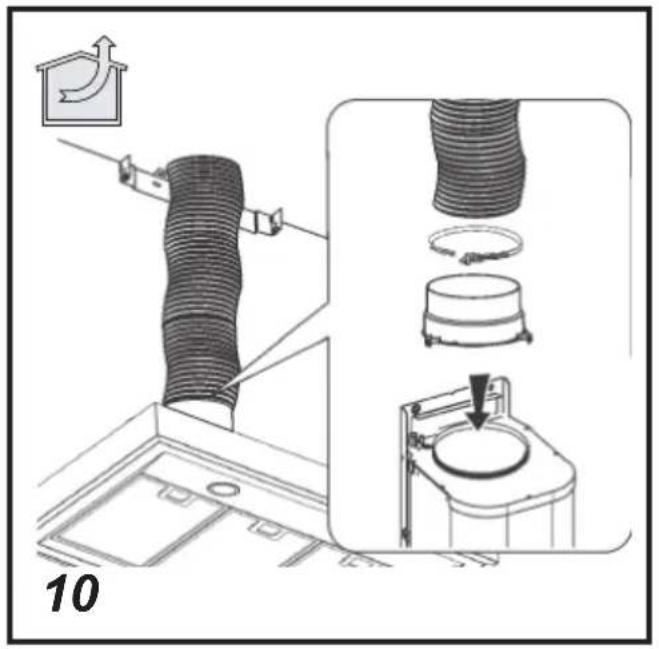

Ducting version.

The hood purifi es the air and evacuates it to the outside through an exhaust duct.

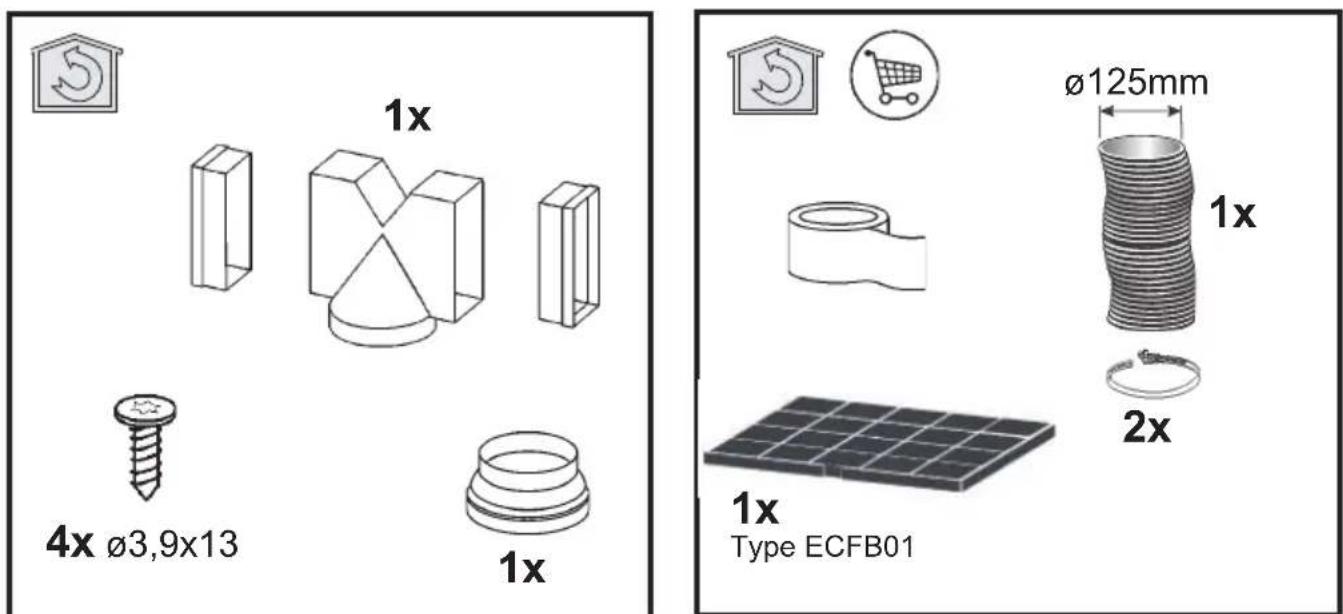

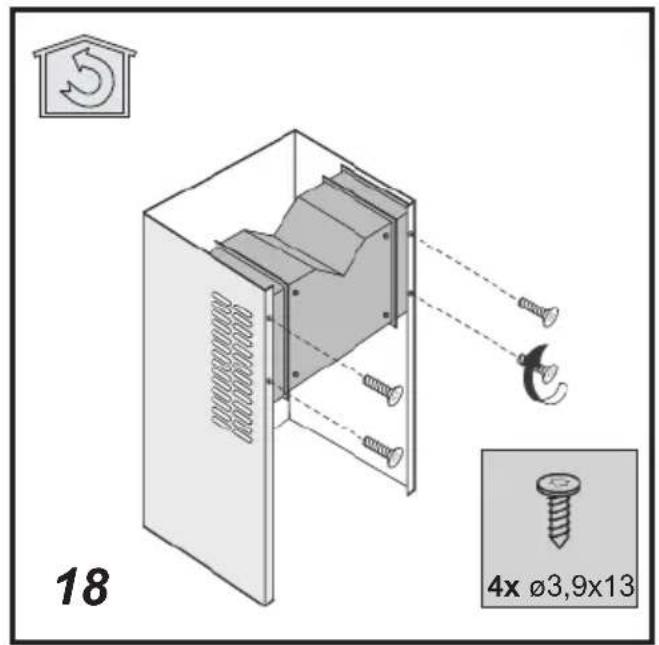

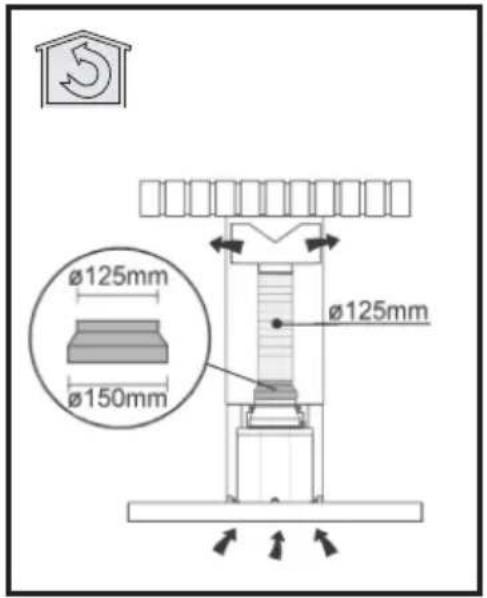

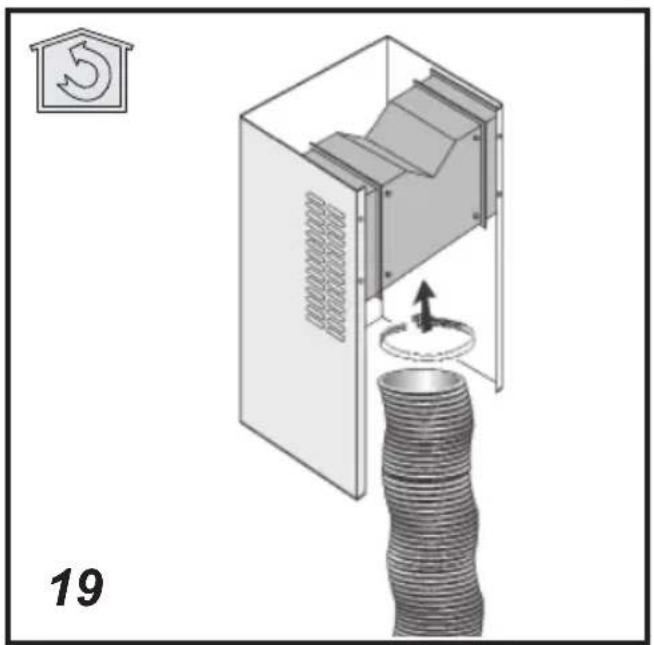

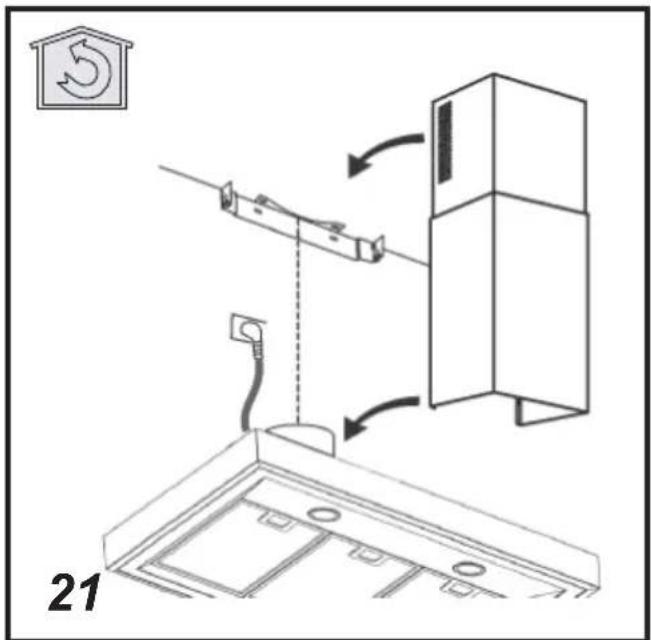

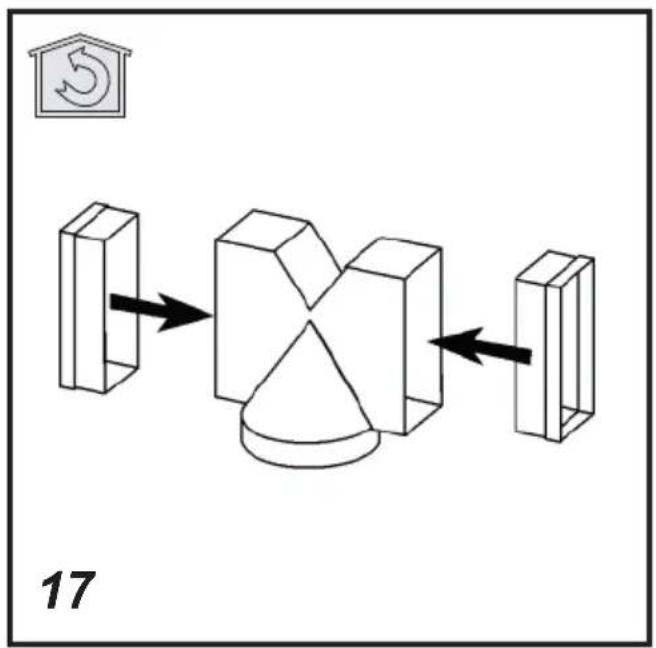

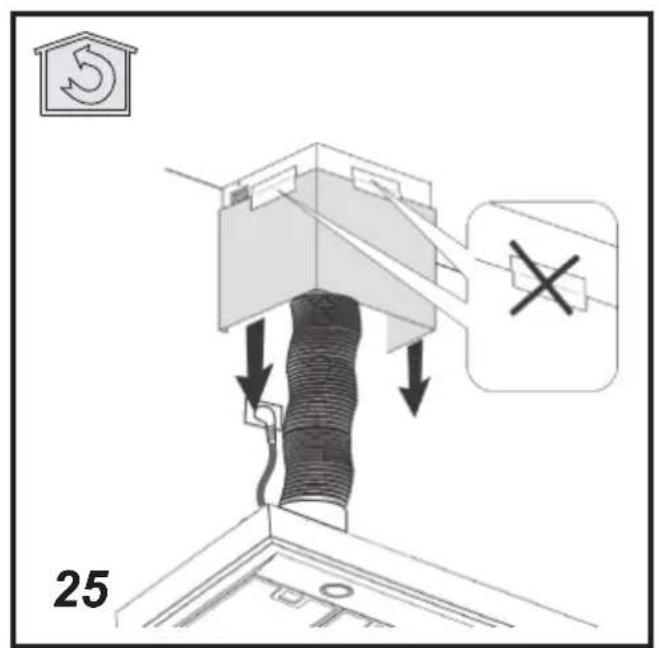

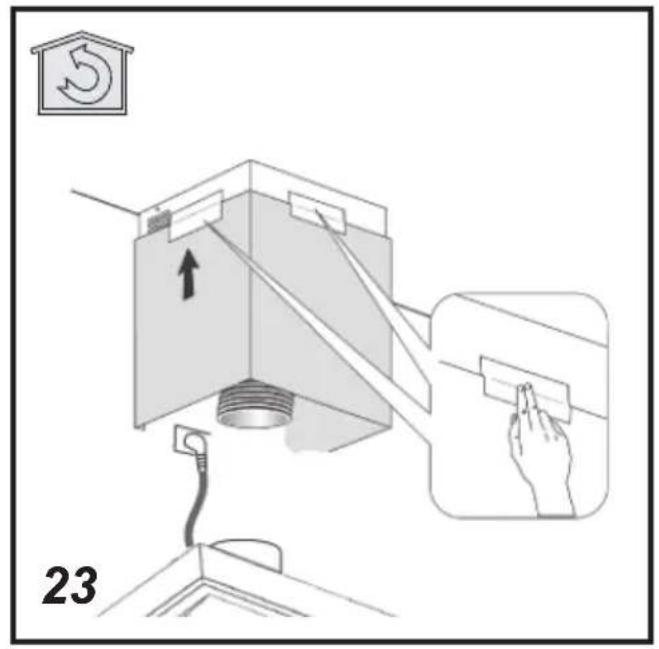

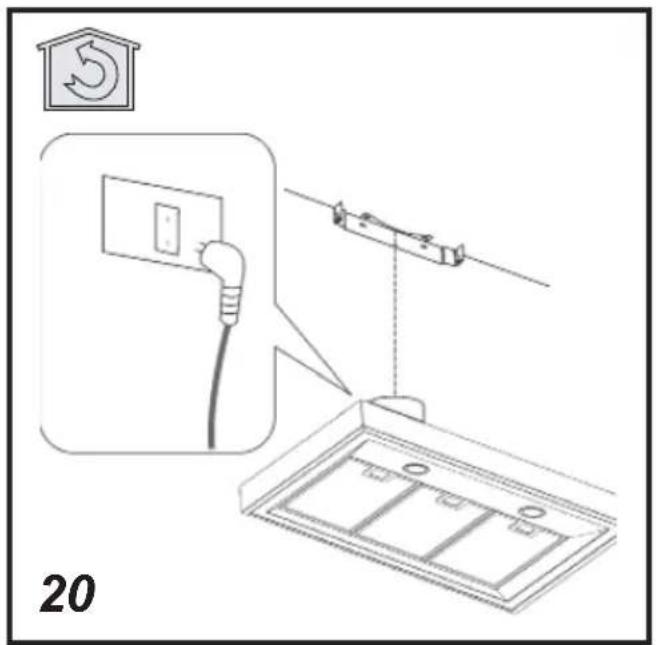

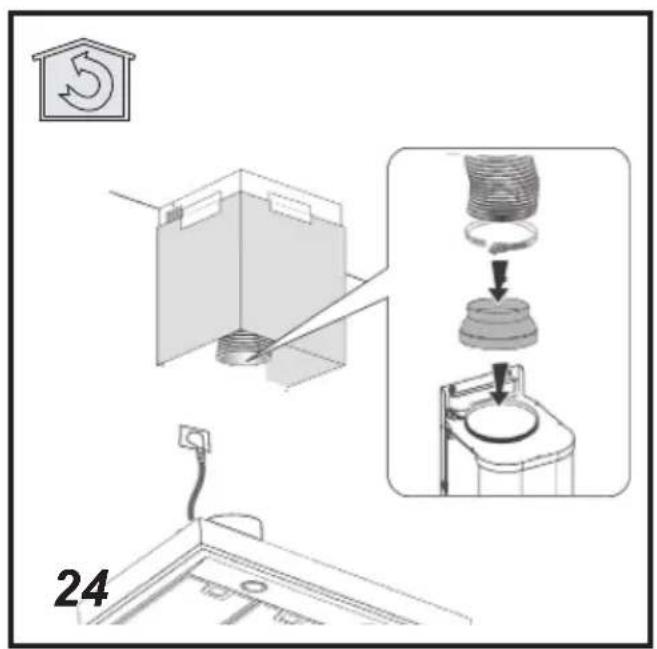

Filtering version

The hood purifi es the air and recycles the clean air back into the room.

MAINTENANCE

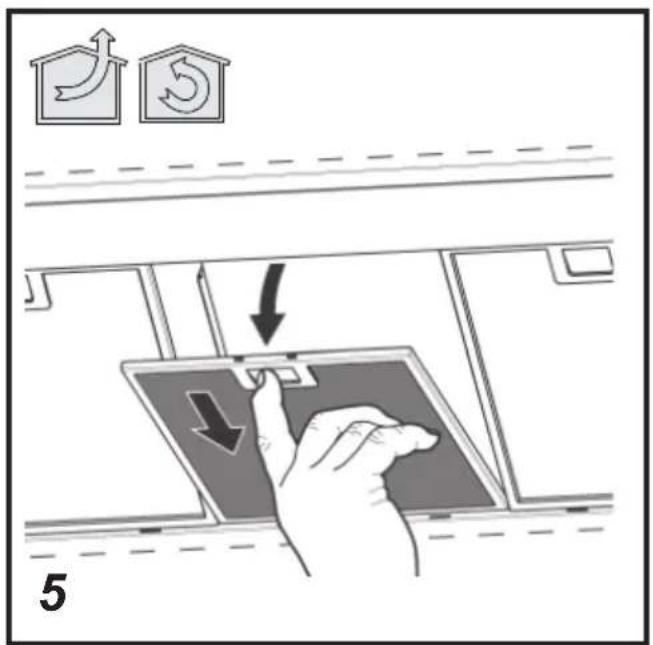

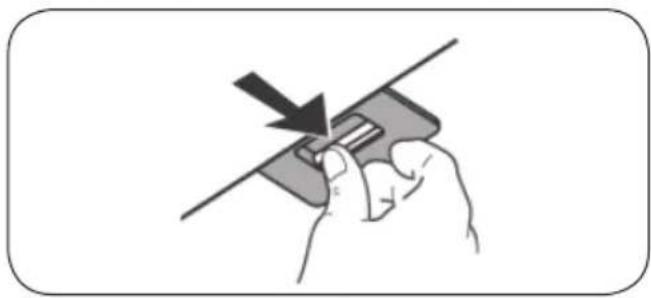

Clean grease fi Iters in relation to use, at least every 2 months to prevent the risk of fi re. Hand wash or clean in a dishwasher using a neutral detergent. If washing in the dishwasher, possible discoloration of the fi Iters does not in any way compromise their functioning.

Hand holding a small electronic component with a black arrow indicating direction (no text or symbols)

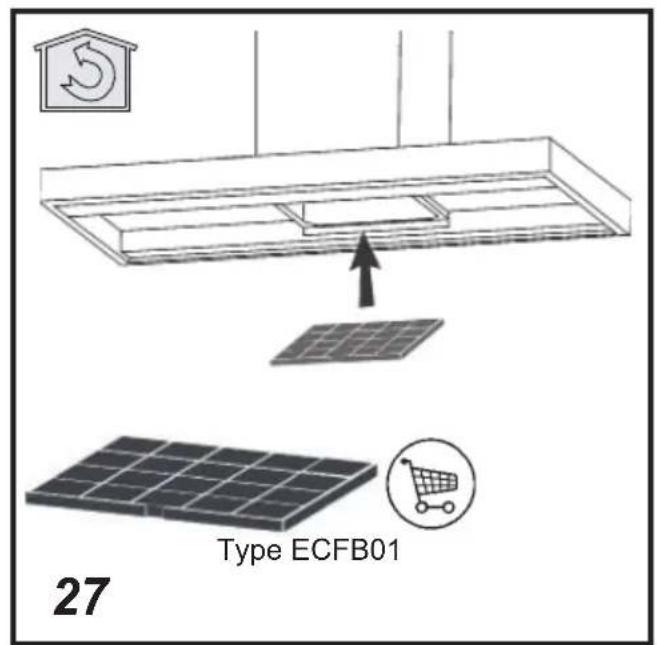

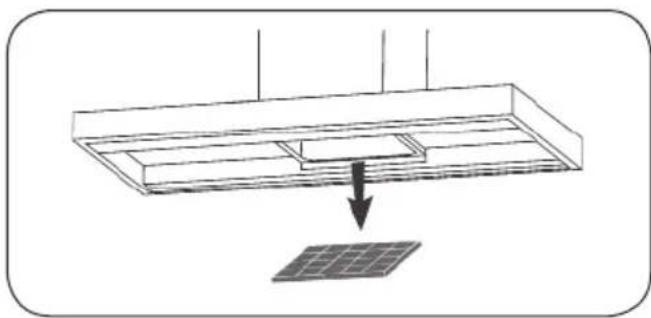

The activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a grid array (no text or symbols present)

CONTROLS

Models PDB6050E, PDB9050E:

A - Light switch.
B - First speed motor ON/OFF switch.
C - Second speed switch.
D - Third speed switch.

Models PDB6040E, PDB9040E :

1 : fi rst speed motor.
0 : motor ON/OFF.
2:second speed switch.

Disconnect the hood from the electricity.

Models PDB6040E, PDB9040E :

Warning! Prior to touching the light bulbs ensure they are cooled down.

Replace it with lamps of the same type (CANDLE LED 4W, 220-240V, E14, ø37mm).

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Models PDB6050E, PDB9050E: If the light spot is damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

INFORMATIONS DE SÉCURITÉ

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a grid array (no text or symbols present)

COMMANDES

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Models PDB6050E, PDB9050E:

INSTALLATIONSMETHODEN

UMLUFT- ODER ABLUFTVERSION?

Hand holding a small electronic component with a black arrow indicating direction (no text or symbols)

Diagram showing a solar panel installation with an arrow pointing to it, no text or symbols present.

BEDIENELEMENTE

Modelle PDB6050E, PDB9050E:

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Modelle PDB6050E, PDB9050E:

AFVOER OF RECIRCULATIE?

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a grid-patterned panel (no text or symbols present)

BEDIENINGEN

Modellen PDB6050E, PDB9050E:

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Modellen PDB6050E, PDB9050E:

Illustration of a hand holding a card with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram of a solar panel installation with a downward arrow indicating the component (no text or symbols present)

MANDOS

Modelos PDB6050E, PDB9050E:

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Modelos PDB6050E, PDB9050E:

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Diagram of a solar panel installation with a downward arrow indicating the component (no text or symbols present)

COMANDOS

Modelos PDB6050E, PDB9050E:

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Modelos PDB6050E, PDB9050E:

Hand holding a small electronic component with a downward arrow indicating compression (no text or symbols)

Diagram of a ceiling-mounted panel with a downward arrow pointing to a solar panel (no text or symbols present)

ΧΕΙΡΙΣΤΗΡΙΑ

Hand holding a small electronic component with a black arrow indicating direction (no text or symbols)

Угольный фильтр.

Diagram showing a solar panel installation with a downward arrow indicating direction (no text or symbols present)

ОРГАНЫ УПРАВЛЕНИЯ

Модели PDB6050E, PDB9050E:

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Модели PDB6050E, PDB9050E:

Hand holding a small electronic component with a downward arrow indicating compression (no text or symbols)

Diagram of a solar panel installation with a downward arrow indicating the component (no text or symbols present)

KONTROLLER

PDB6050E, PDB9050E Modelleri:

PDB6040E, PDB9040E Modelleri:

(LED CANDLE W4, V240-220, 14E, mm37ø)

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

PDB6050E, PDB9050E موديل

Hand holding a small electronic component with a downward arrow indicating compression (no text or symbols)

Diagram showing a solar panel installation with a downward arrow indicating direction (no text or symbols present)

اعتبارات بينية

Hand holding a small electronic component with a black arrow indicating direction (no text or symbols)

Diagram showing a solar panel installation with an arrow indicating downward motion (no text or symbols present)

KOMMANDON

Modeller PDB6050E, PDB9050E:

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Modeller PDB6050E, PDB9050E:

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a solar panel (no text or symbols present)

KONTROLLER

Modeller PDB6050E, PDB9050E:

Hand holding a small electronic component with an arrow indicating direction (no text or symbols)

Diagram of a solar panel installation with a downward arrow indicating direction (no text or symbols)

OHJAIMET

Malli PDB6050E, PDB9050E:

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Malli PDB6050E, PDB9050E:

Hand holding a small electronic component with a downward arrow indicating compression (no text or symbols)

Diagram of a solar panel installation with a downward arrow indicating direction (no text or symbols)

BETJENING

Modellieme PDB6050E, PDB9050E:

Close-up of a single incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Modellieme PDB6050E, PDB9050E:

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a grid array (no text or symbols present)

STEROWANIE

Modele PDB6050E, PDB9050E:

Hand holding a card with a diagonal line and arrow indicating compression (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a grid-patterned panel (no text or symbols present)

KEZELŐSZERVEK

PDB6050E, PDB9050E modellek:

Close-up of a single white incandescent light bulb (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

PDB6050E, PDB9050E modellek:

Illustration of a hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a grid-patterned panel (no text or symbols present)

COMENZI

Modele PDB6050E, PDB9050E:

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Modele PDB6050E, PDB9050E:

Hand holding a small electronic component with a black arrow indicating force or direction (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a grid-patterned panel (no text or symbols present)

NAREDBI

Modeli PDB6050E, PDB9050E:

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a grid-patterned surface (no text or symbols)

OVLÁDAČE

Modele PDB6050E, PDB9050E:

- Zapnite svetlo.

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Modele PDB6050E, PDB9050E:

Illustration of a hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Diagram of a solar panel installation with a downward arrow indicating the component (no text or symbols present)

PŘÍKAZY

Modele PDB6050E, PDB9050E:

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Modele PDB6050E, PDB9050E:

Illustration of a hand holding a small electronic component with a downward arrow indicating compression (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a grid-patterned panel (no text or symbols)

UPRAVLJALNI GUMBI

Modeli PDB6050E, PDB9050E:

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Modeli PDB6050E, PDB9050E:

Hand holding a small electronic component with a black arrow indicating direction (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a grid array (no text or symbols present)

KOMANDIMET

Modelet PDB6050E, PDB9050E:

Close-up of a single white incandescent light bulb with a pointed tip and small metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Modelet PDB6050E, PDB9050E:

Hand holding a small electronic component with a black arrow indicating force or direction (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a grid array (no text or symbols present)

УПРАВЛЕНИЯ

Модели PDB6050E, PDB9050E:

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Модели PDB6050E, PDB9050E:

Hand holding a small electronic component with a black arrow indicating direction (no text or symbols)

Diagram showing a solar panel installation with an arrow pointing to it, no text or symbols present.

118 progress

КОНТРОЛИ

Модели PDB6050E, PDB9050E:

Модели PDB6040E, PDB9040E :

1: Прва брзина на моторот.
0: Моторот е исклучен.
2: Втора брзина на моторот.

: ИСКЛУЧЕНИ светла

: ВКЛУЧЕНИ светла

1 2

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Модели PDB6050E, PDB9050E:

UPUTSTVA ZA BEZBED NOST

Instalacija

Hand holding a small electronic component with a downward arrow indicating compression (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a solar panel (no text or symbols present)

КОМАНДЕ

Modeli PDB6050E, PDB9050E:

A - Upali svetlo.

B - Sklopka Uključi/lsključi, prva brzina motora.

Hand holding a small electronic component with a black arrow indicating force or direction (no text or symbols)

Diagram of a solar panel installation with a downward arrow indicating the component (no text or symbols present)

JUHIKUD

Modelid PDB6050E, PDB9050E:

Hand holding a small electronic component with a downward arrow indicating compression (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a grid-patterned panel (no text or symbols present)

ЕЛЕМЕНТИ КЕРУВАННЯ

Моделі PDB6050E, PDB9050E:

Close-up of a white LED light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Моделі PDB6050E, PDB9050E:

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Diagram of a solar panel installation with a downward arrow indicating the component (no text or symbols present)

БАСКАРУ ЭЛЕМЕНТТЕРИ

Моделі PDB6050E, PDB9050E:

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Моделі PDB6050E, PDB9050E:

FILTRĒJOŠAIS VAI UZSŪCOŠAIS VEIDS?

Illustration of a hand holding a small electronic component with a downward arrow indicating compression (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a solar panel (no text or symbols present)

VADĪBAS ELEMENTI

Modelis PDB6050E, PDB9050E:

Illustration of a hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a grid-patterned panel (no text or symbols present)

VALDYMAS

Modeliai PDB6050E, PDB9050E:

EN Warning! Before proceeding with installation, read the Safety Warnings.

Warning! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Warning sign with exclamation mark, crossed-out human figure, and two male figures

Ø150mm Ø150mm

Ø125mm Ø150mm Ø125mm

Min. 500 mm Min. 650 mm

Warning sign with exclamation mark and a stylized glove illustration

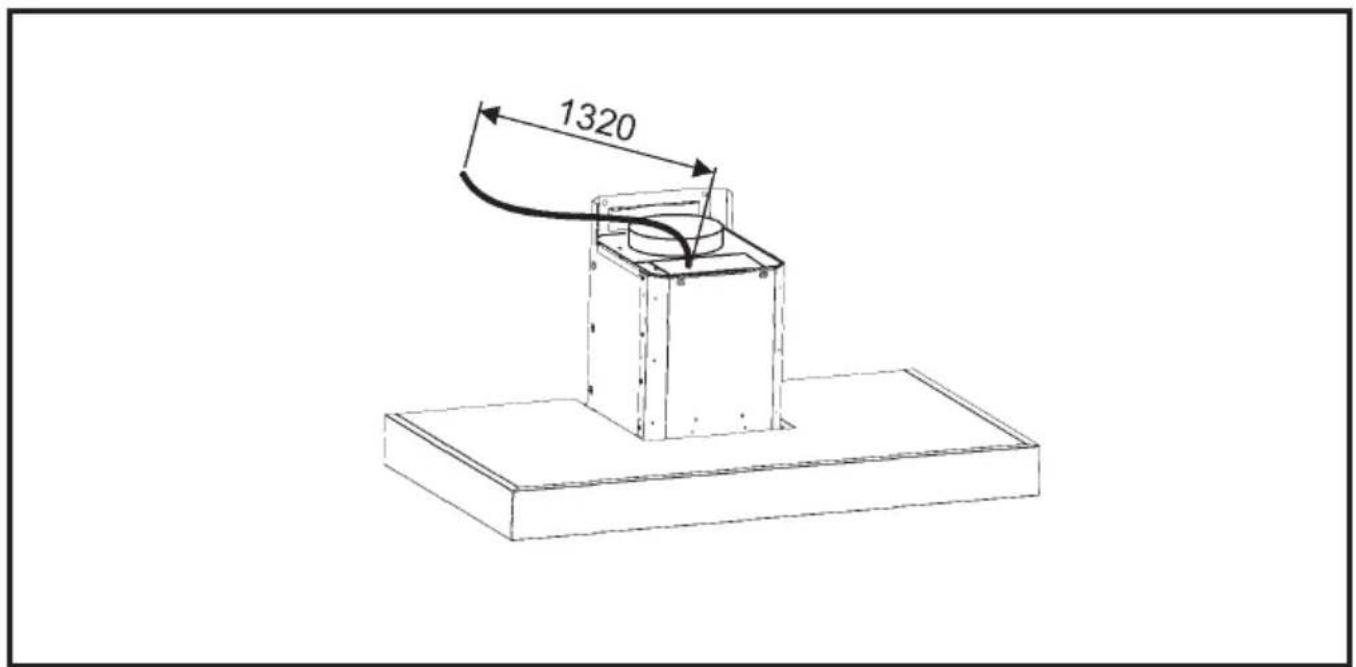

1320

8x Ø4,8x38 8x Ø8 1x 1x 2x Ø3,9x6 2x Ø3,9x9,5 1x 1x

1x 4x Ø3,9x13 1x 1x Type ECFB01 Ø125mm 1x 2x

1x ø150mm 1x

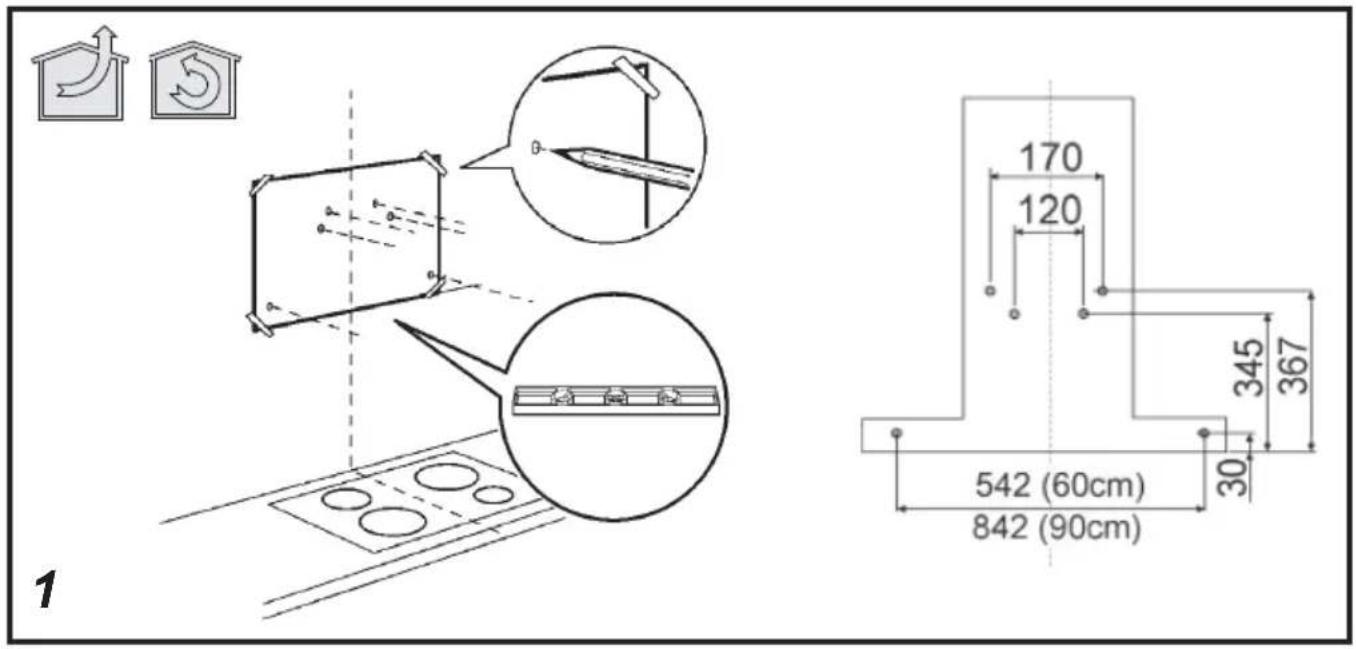

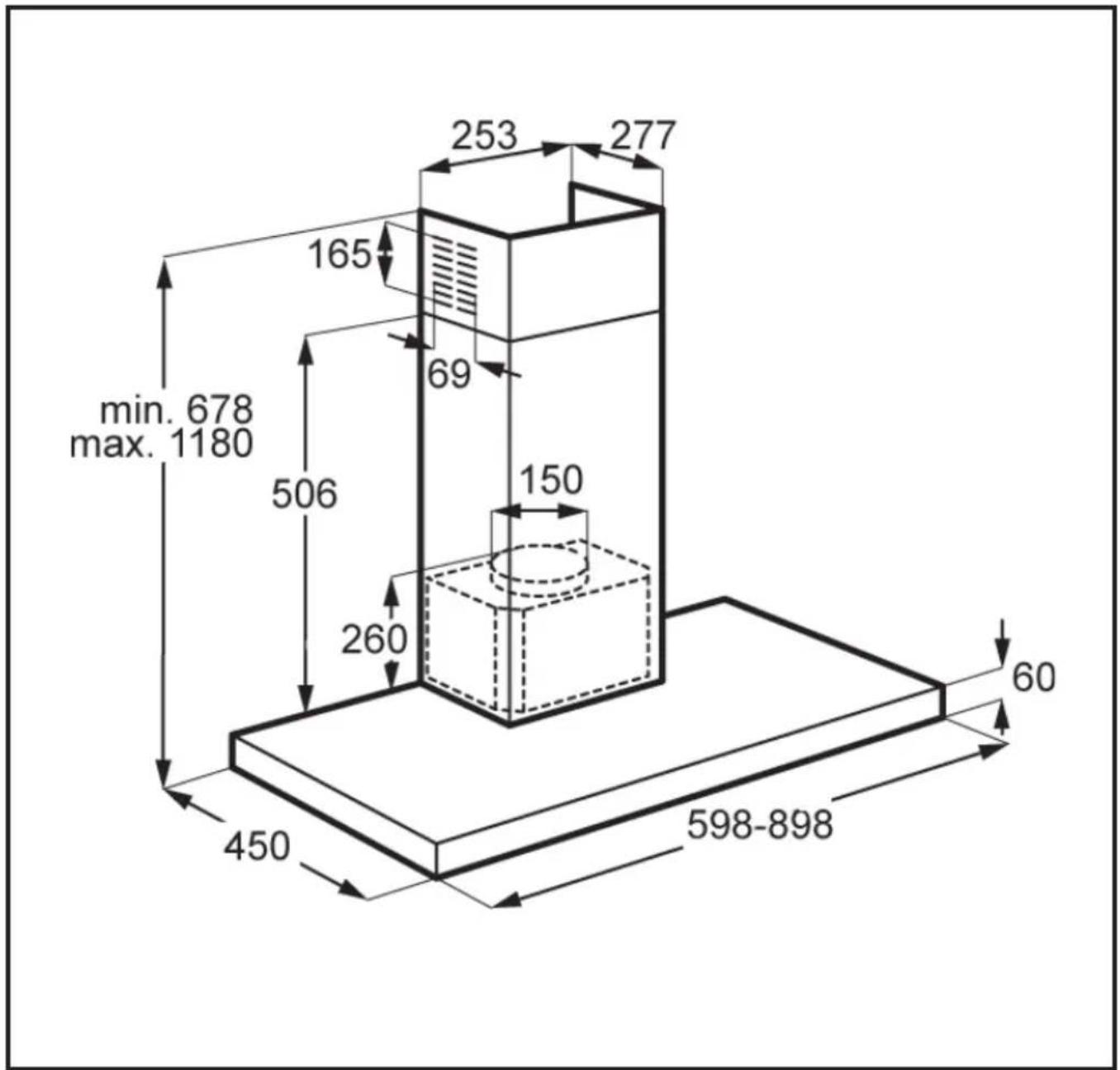

1 170 120 345 367 542 (60cm) 842 (90cm)

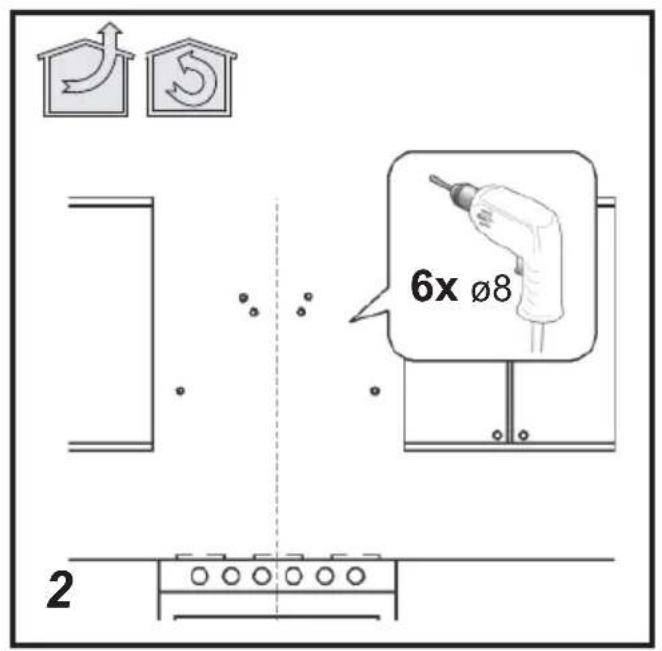

6x Ø8 2

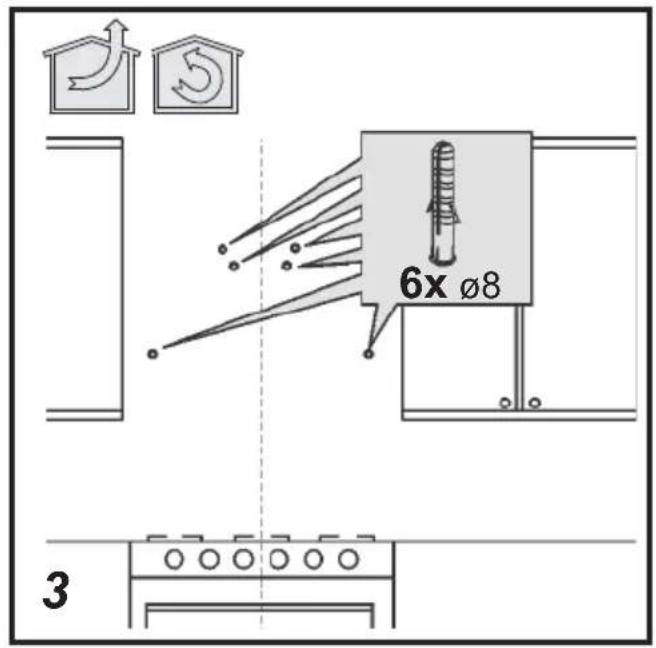

6x Ø8 3

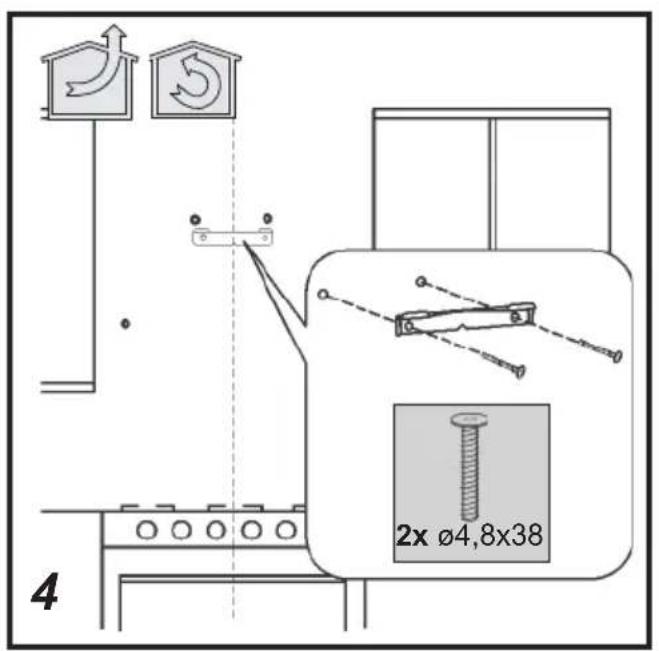

2x ø4,8x38 4

5

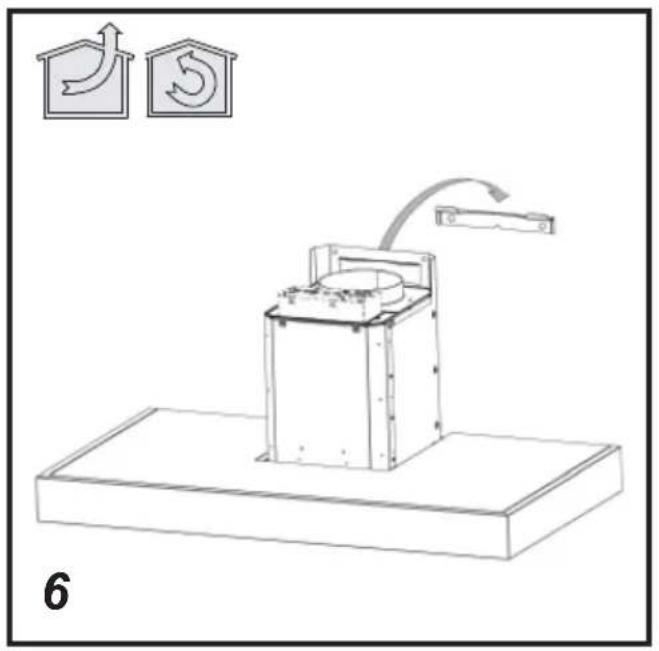

Line drawing of a mechanical device with a lever and two inset diagrams showing directional flow (no text or symbols)

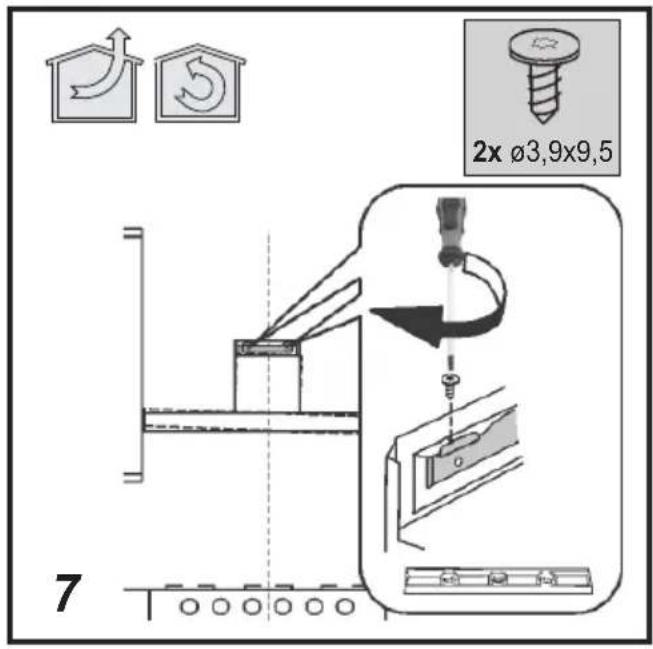

2x Ø3,9x9,5 7

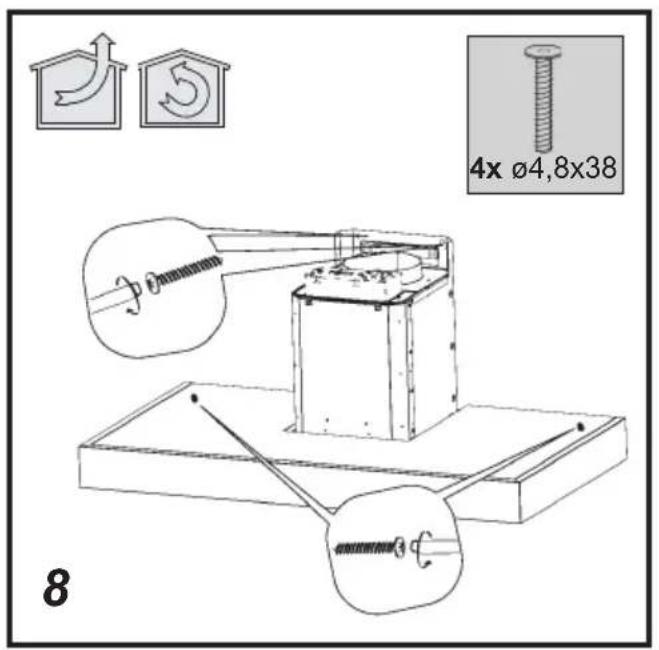

4x ø4,8x38 8

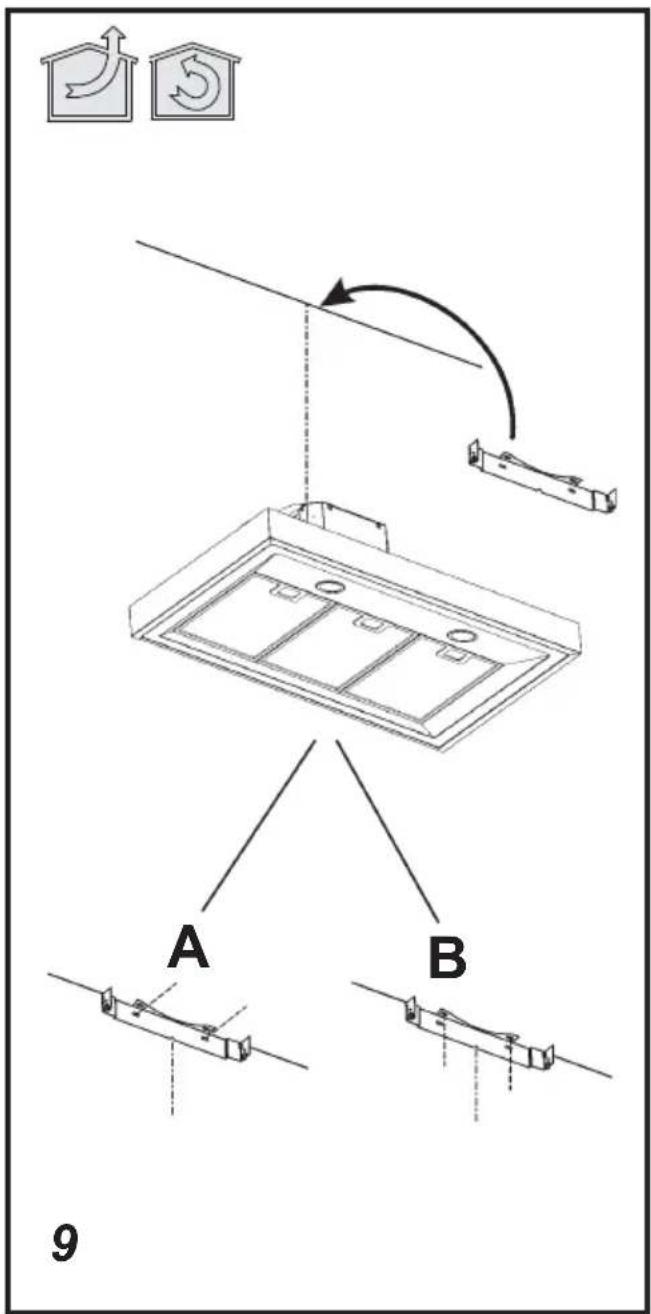

A B 9

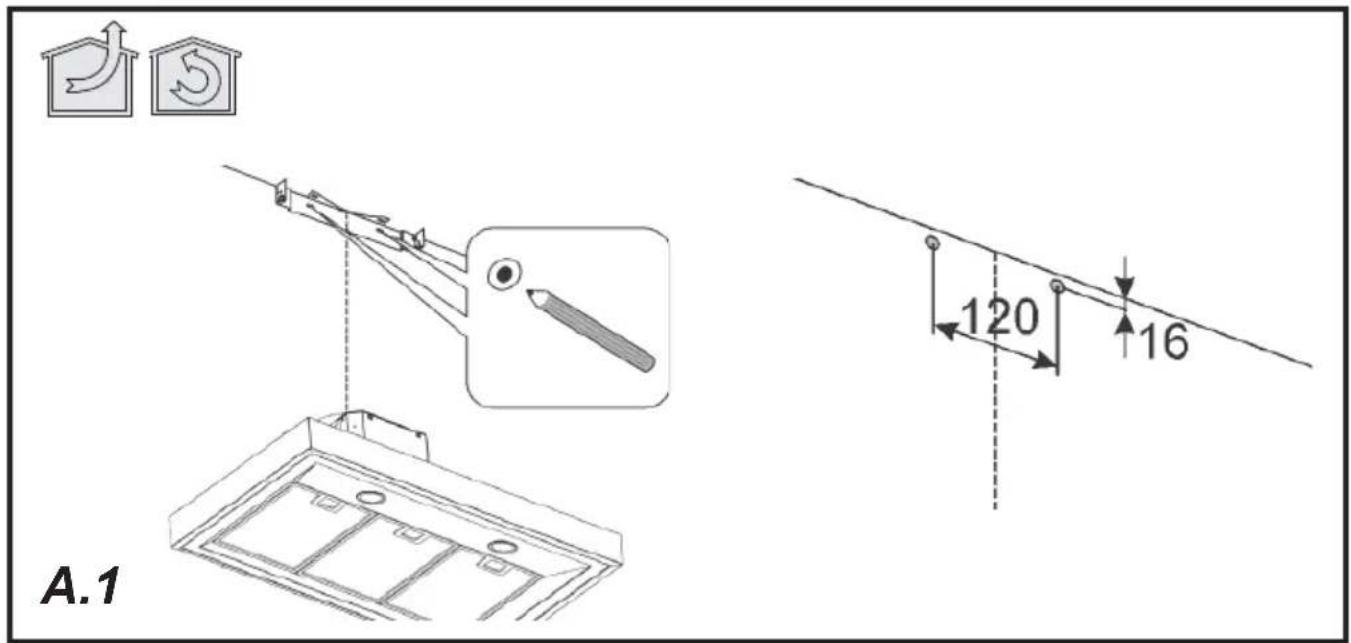

A.1 120 16

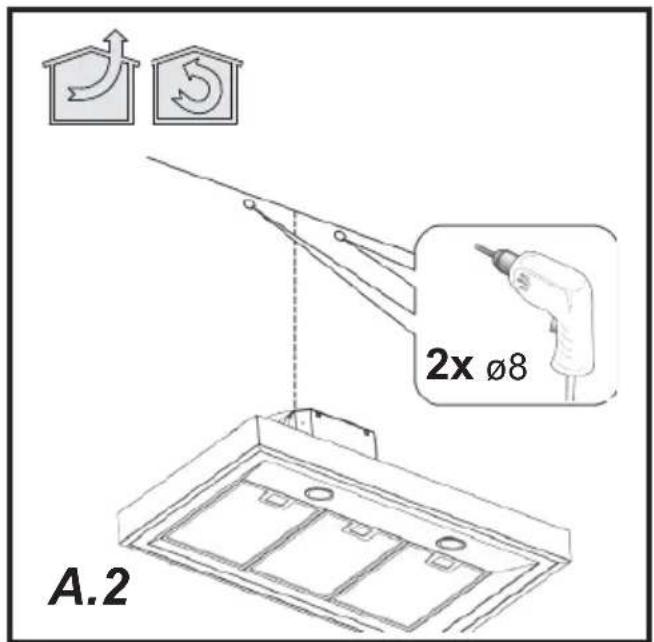

2x Ø8 A.2

2x ø8 A.3

2x ø4,8x38 A.4

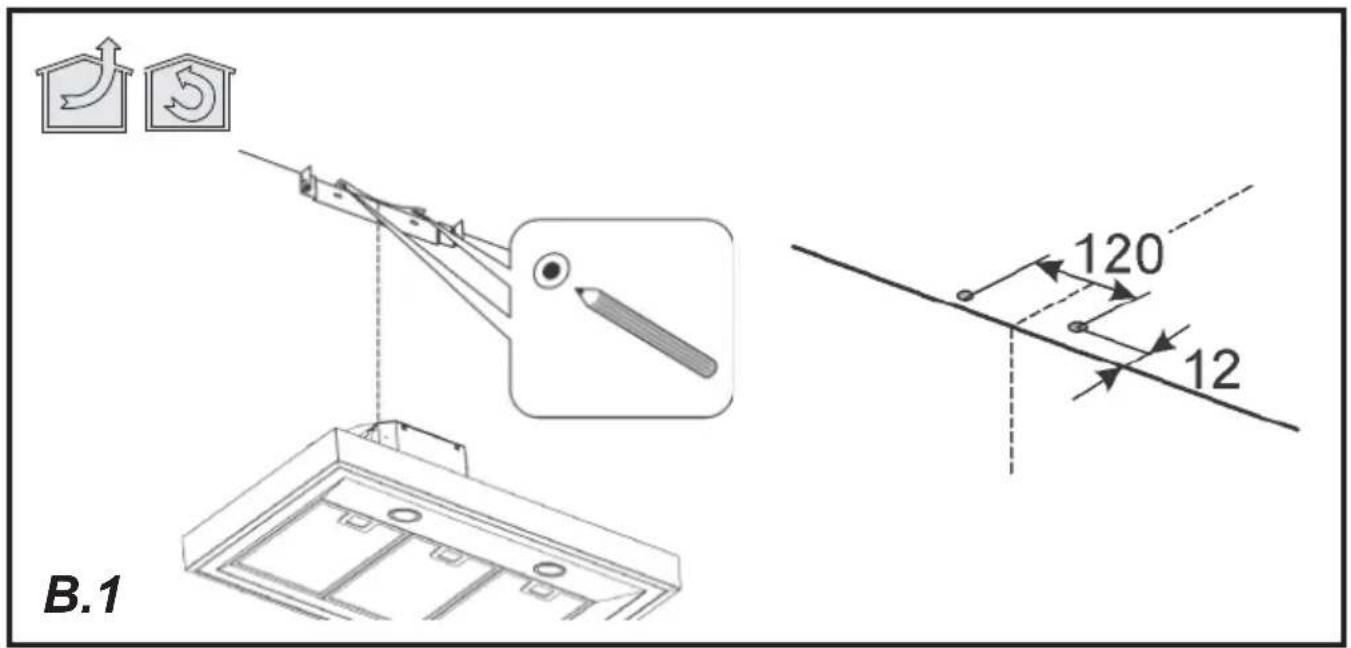

B.1 120 12

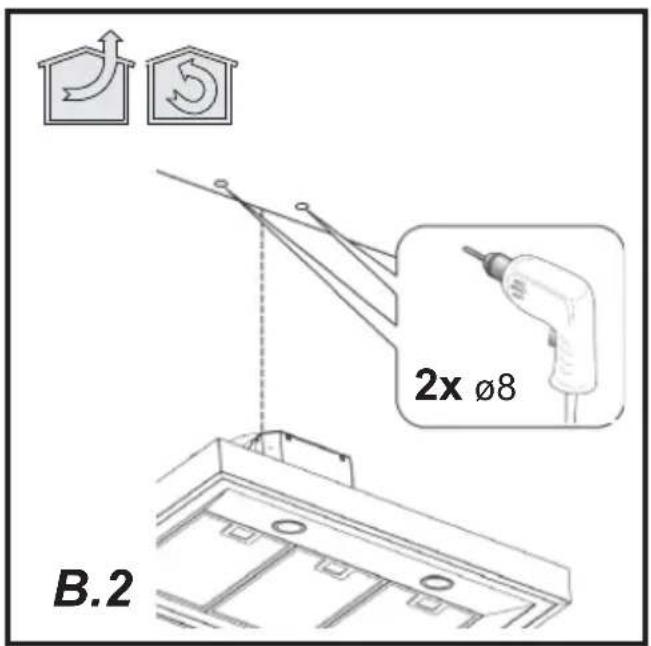

2x Ø8 B.2

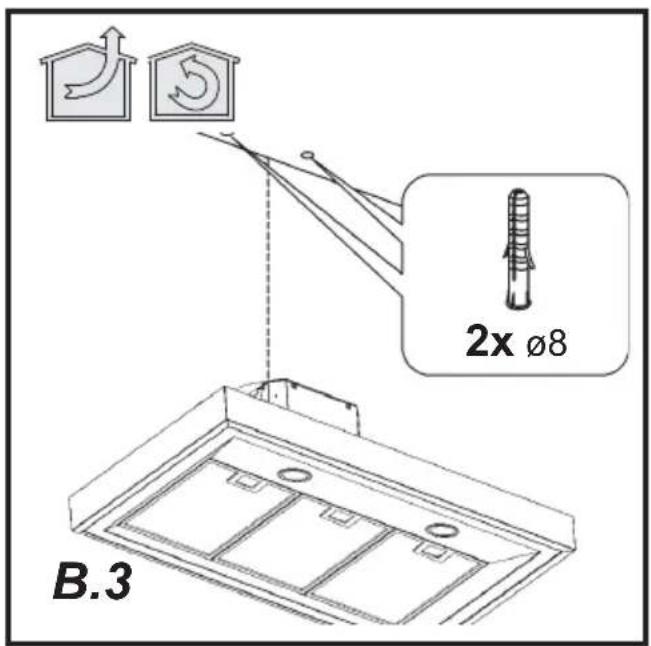

2x Ø8 B.3

2x ø4,8x38 B.4

Diagram showing a coiled hose assembly with a component being inserted into a container, labeled '10' (no text or symbols on the diagram itself)

Technical diagram showing a mechanical assembly with labeled components and a magnified view of the process.

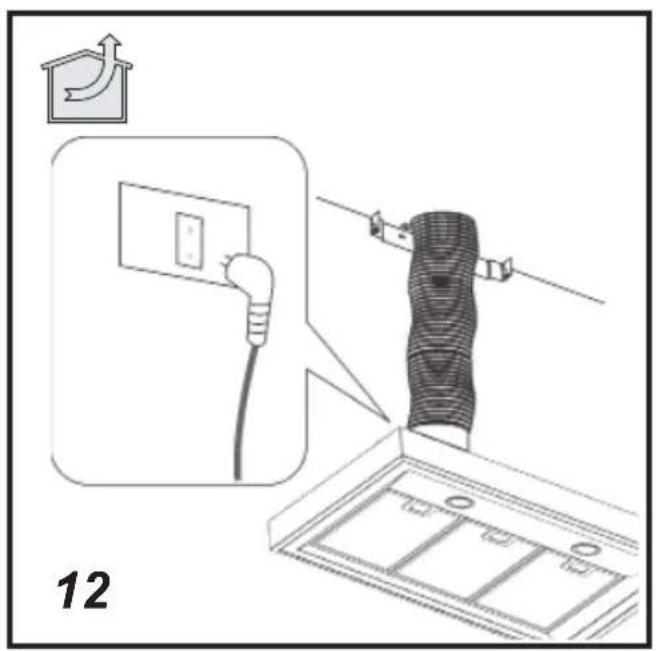

12

13

2x ø3,9x6 14

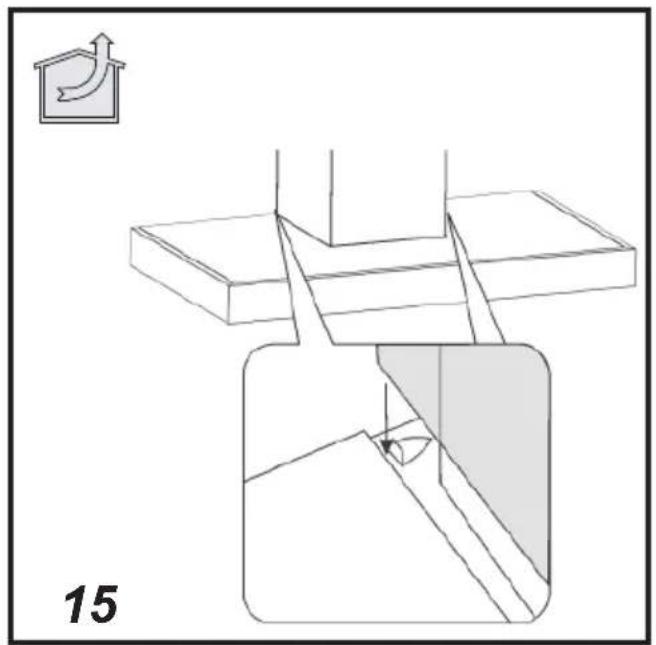

Technical line drawing of a mechanical assembly with a bracket and housing, no text or symbols present

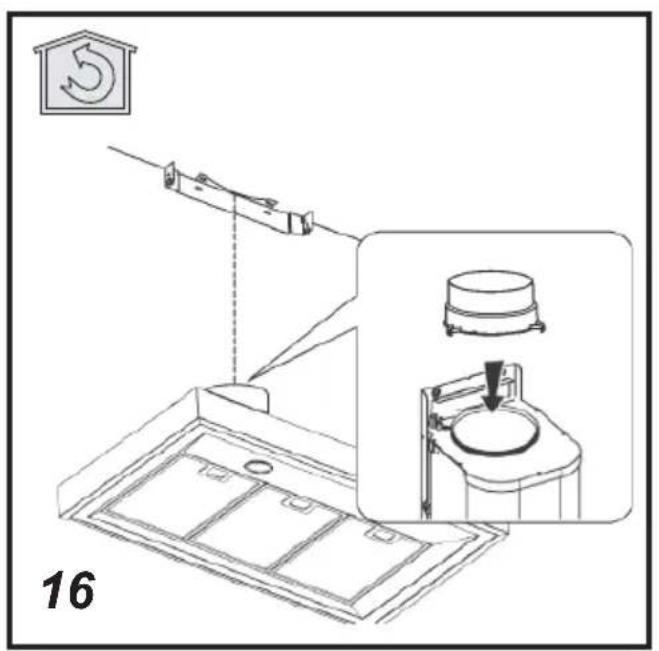

16

18 4x Ø3,9x13

Diagram of a mechanical device with a stack of cylindrical components and an open housing, showing internal structure and airflow direction (no text or symbols)

20

Diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or movement.

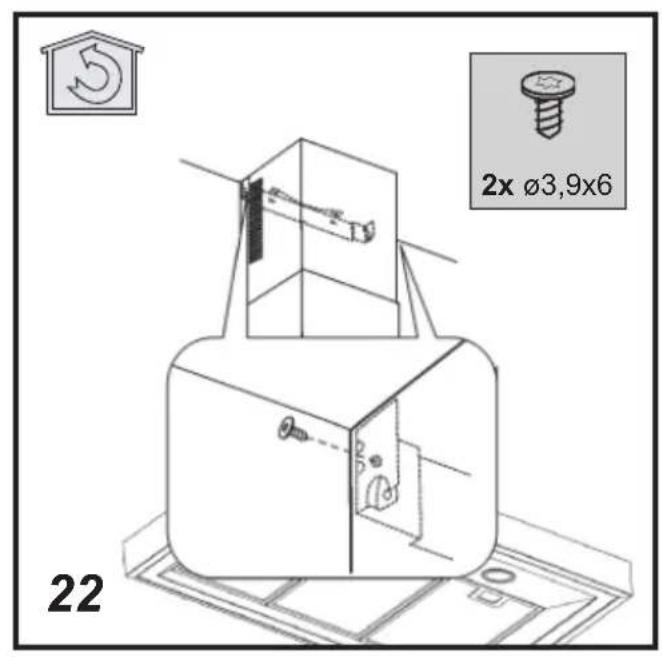

2x Ø3,9x6 22

23

Diagram illustrating a home appliance installation procedure with labeled components and steps

25

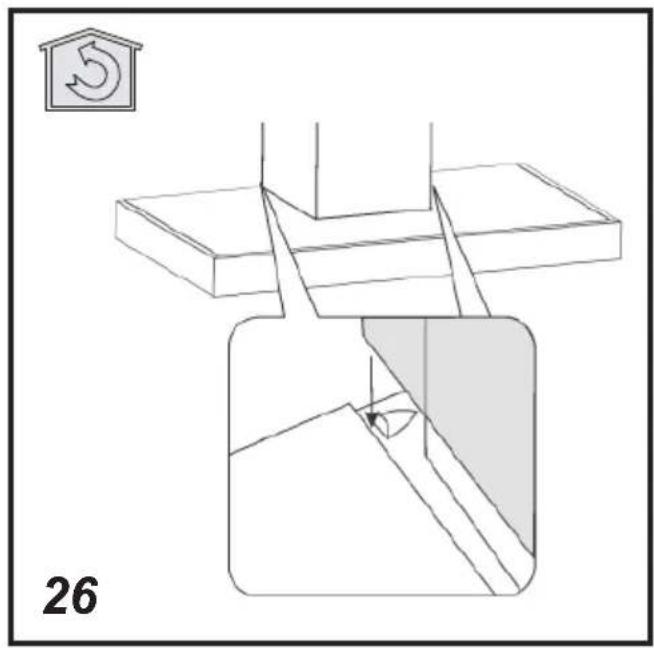

Technical line drawing of a mechanical assembly with no visible text or symbols

Type ECFB01 27
