USER MANUAL DSXMS60 SONY

FM/AM Digital Media Player

Operating Instructions ____ GB

The model and serial numbers are located on the bottom of the unit.

Record the serial number in the space provided below.

Refer to these numbers whenever you call upon your Sony dealer regarding this product.

Model No. DSX-MS60 Serial No.

To cancel the demonstration (DEMO) display, see page 6.

Be sure to install this unit in the console of the boat for safety. For installation and connections, see, the supplied installation/connections manual.

Warning

FOR UNITED STATES CUSTOMERS. NOT APPLICABLE IN CANADA, INCLUDING IN THE PROVINCE OF QUEBEC.

POUR LES CONSOMMATEURS AUX ÉTATS-UNIS. NON APPLICABLE AU CANADA, Y COMPRIS LA PROVINCE DE QUÉBEC.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

For the State of California, USA only

Perchlorate Material – special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate Perchlorate Material: Lithium battery contains perchlorate

Notice for customers: the following information is only applicable to equipment sold in countries applying EU Directives

The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Applicable accessory: Remote commander

Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems)

This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources.

In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment.

For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries.

For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

HD Radio ^TM is a proprietary trademark of iBiquity Digital Corp.

The “SAT Radio Ready” logo indicates that this product will control a satellite radio tuner module (sold

separately). Please see your nearest authorized Sony dealer for details on the satellite radio tuner module.

“SAT Radio,” “SAT Radio Ready,” the SAT Radio and SAT Radio Ready logos and all related marks are trademarks of Sirius XM Radio Inc. and XM Satellite Radio Inc.

ZAPPIN and Quick-BrowZer are trademarks of Sony Corporation.

WALKSTAN®

"WALKMAN" and "WALKMAN" logo are registered trademarks of Sony Corporation.

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.

iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

Note on the lithium battery

Do not expose the battery to excessive heat such as direct sunlight, fire or the like.

Warning if your boat's ignition has no ACC position

Be sure to set the Auto Off function (page 20). The unit will shut off completely and automatically in the set time after the unit is turned off, which prevents battery drain. If you do not set the Auto Off function, press and hold SOURCE/OFF until the display disappears each time you turn the ignition off.

Table of Contents

Getting Started

Resetting the unit. 6

Canceling the DEMO mode ..... 6

Preparing the card remote commander ..... 6

Setting the clock 6

Detaching the front panel 7

Attaching the front panel 7

Location of controls and basic operations

Main unit. 8

Card remote commander RM-X151 ..... 10

Searching for a track....11

Searching a track by name

— Quick-BrowZer™ 11

Searching a track by listening to track passages

— ZAPPIN™ 12

Radio

Storing and receiving stations ..... 12

Storing automatically — BTM ..... 12

Storing manually....12

Receiving the stored stations ..... 13

Tuning automatically 13

RDS 13

Overview....13

Setting CT....14

USB devices

Playing back a USB device ..... 14

Display items 15

Repeat play 16

Shuffle play....16

iPod

Playing back iPod .... 16

Display items 17

Repeat play 18

Shuffle play....18

Other functions

Changing the sound settings 19

Adjusting the sound characteristics ..... 19

Customizing the equalizer curve — EQ3 .... 19

Adjusting setup items — SET 19

Memory backup 20

Using optional equipment. 21

Auxiliary audio equipment....21

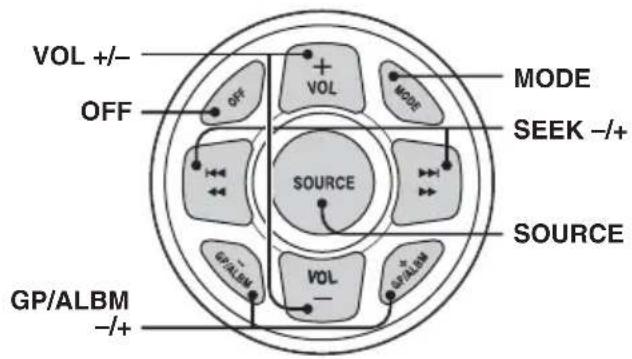

Marine remote commander RM-X60M/X11M 21

Additional Information

Precautions 22

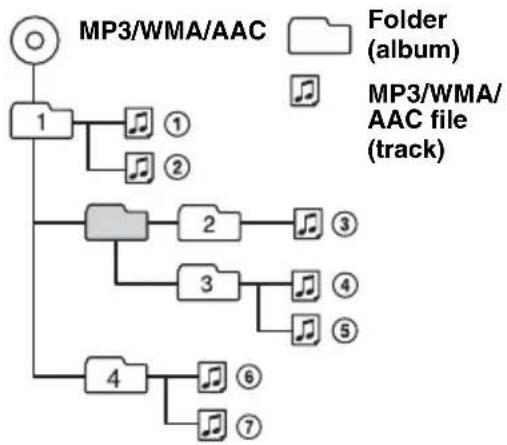

Playback order of MP3/WMA/AAC

files. 22

About Device Inside Alert 22

About iPod 22

Maintenance 22

Removing the unit. 23

Specifications 24

Troubleshooting 25

Error displays/Messages.... 26

Support site

If you have any questions or for the latest support information on this product, please visit the web site below:

• Models and manufacturers of compatible digital audio players
  • Supported MP3/WMA/AAC files

Getting Started

Resetting the unit

Before operating the unit for the first time, or after replacing the boat battery or changing the connections, you must reset the unit.

Detach the front panel (page 7) and press the RESET button (page 8) with a pointed object, such as a ball-point pen.

Note

Pressing the RESET button will erase the clock setting and some stored contents.

Canceling the DEMO mode

You can cancel the demonstration display which appears during turning off.

1 Press and hold the select button.
The setup display appears.

2 Press the select button repeatedly until "DEMO" appears.

3 Rotate the control dial to select "DEMO-OFF."

4 Press and hold the select button.

The setup is complete and the display returns to normal reception/play mode.

Preparing the card remote commander

Remove the insulation film.

Line drawing of a device with a paper clip and two circular buttons (no text or symbols)

Tip

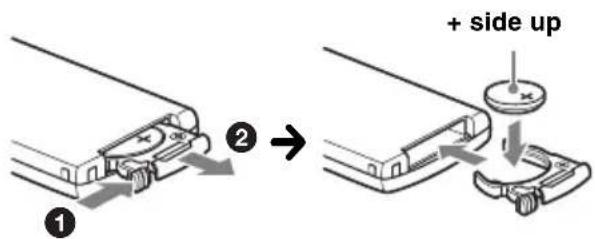

For how to replace the battery, see page 22.

Setting the clock

The clock uses a 12-hour digital indication.

1 Press and hold the select button.
The setup display appears.

2 Press the select button repeatedly until "CLOCK-ADJ" appears.

3 Press +▶▶I.

The hour indication flashes.

4 Rotate the control dial to set the hour and minute.

To move the digital indication, press -I◄◄/ +►►I.

5 After setting the minute, press the select button.

The setup is complete and the clock starts.

To display the clock, press DSPL. Press DSPL again to return to the previous display.

Tip

You can set the clock automatically with the RDS feature (page 14).

Detaching the front panel

You can detach the front panel of this unit to prevent theft.

Caution alarm

If you turn the ignition switch to the OFF position without detaching the front panel, the caution alarm will sound for a few seconds. The alarm will only sound if the built-in amplifier is used.

1 Press and hold SOURCE/OFF.

The unit is turned off.

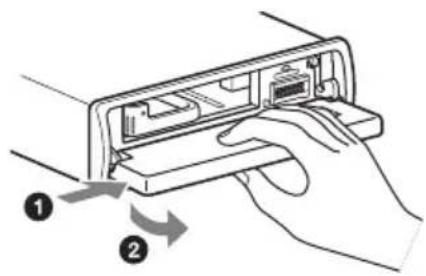

2 Press OPEN.

The front panel is flipped down.

3 Slide the front panel to the right, then gently pull out the left end of the front panel.

Diagram showing hand operating a device with labeled arrows indicating process flow

Notes

• Do not drop or put excessive pressure on the front panel and display window.
• Do not subject the front panel to heat/high temperature or moisture. Avoid leaving it in a moored boat.
• If "DEVICE INSIDE" appears in the display or the Device Inside Alert LED flashes, detach the front panel and remove the USB device or iPod.

Attaching the front panel

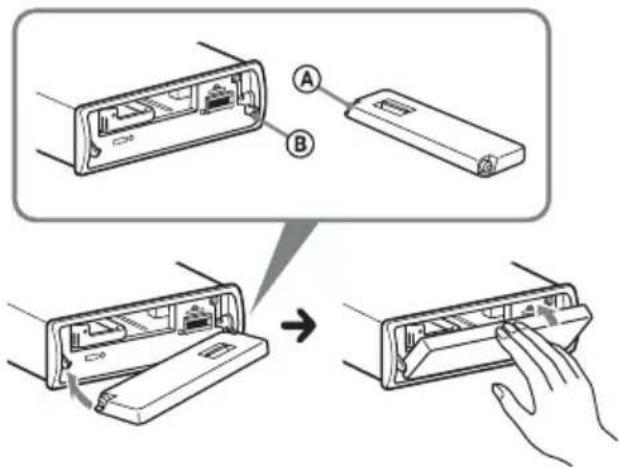

Place the hole Ⓐ of the front panel onto the spindle Ⓑ on the unit, then lightly push the left side in.

Press SOURCE/OFF on the unit to operate the unit.

Diagram showing device port status change from internal to external states, with labeled parts A and B indicating state transitions.

Note

Do not put anything on the inner surface of the front panel.

Location of controls and basic operations

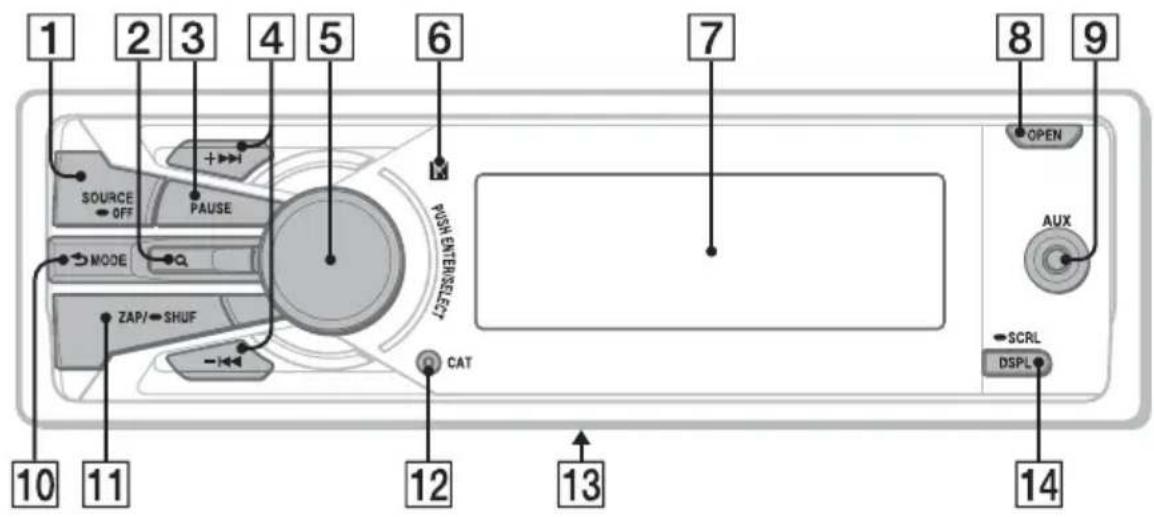

Main unit

1 2 3 4 5 6 7 8 9 SOURCE OFF PAUSE PUSH ENTERSEN OPEN AUX MODE ZAP/←SHUF CAT SCRL DSPL 10 11 12 13 14

Front panel removed This section contains instructions on the location

15 16 17 18 PUSH OPEN DEVICE MODE

of controls and basic operations.

For details, see the respective pages.

① SOURCE/OFF button*

Press to turn on the power/change the source (Radio/USB/AUX).

Press for 1 second to turn off the power.

Press for 2 seconds or more to turn off the power and the display disappears.

2 (BROWSE) button* 2 page 11, 13

To list up (Radio); enter the Quick-BrowZer™ mode (USB).

3 PAUSE button

To pause playback. To cancel, press again.

4 + ▶▶▶I/- ◀◀◀ buttons

Radio:

To tune in stations automatically (press); find a station manually (press and hold).

USB:

To skip tracks (press); skip tracks continuously (press, then press again within about 1 second and hold); fast-forward/ reverse a track (press and hold).

5 Control dial/select button page 19 To adjust volume (rotate); select setup items (press and rotate).

6 Receptor for the card remote commander

7 Display window

8 OPEN button page 7

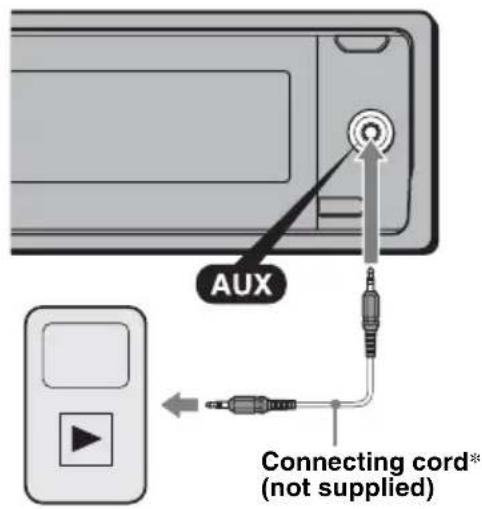

9 AUX input jack page 21 To connect a portable audio device.

10 (BACK)/MODE* ^1 page 11, 12, 19 To return to the previous display/select the radio band (FM/AM).

11 ZAP/SHUF button page 12, 16, 18 To enter ZAPPIN™ mode (press); select shuffle play mode (press and hold).

12CAT* 3 button To select the SAT radio category.

13 Frequency select switch (located on the bottom of the unit) See “Frequency select switch” in the supplied installation/connections manual.

14 DSPL (display)/SCRL (scroll) button page 13, 15, 17 To change display items (press); scroll the display item (press and hold).

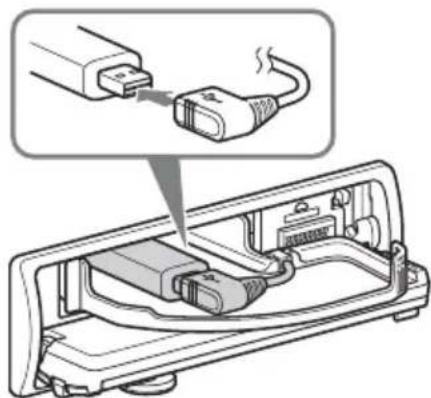

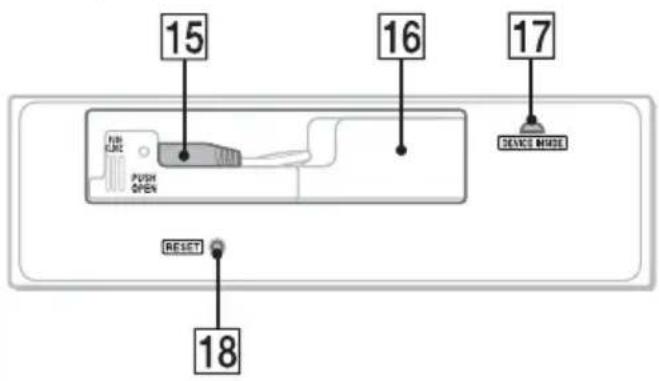

15 USB port (located on the TUNE TRAY) page 15, 16 To connect to the USB device.

16 TUNE TRAY page 14, 16 Tray unit to place a USB device or an iPod.

17 Device Inside Alert LED page 22 18 RESET button page 6

*1 If an HD Radio tuner or SAT tuner is connected: when (SOURCE/OFF) is pressed, the connected device ("HD," "XM" or "SR") will appear in the display. Furthermore, if (MODE) is pressed, you can switch the HD Radio tuner band or SAT tuner band. *2 If an HD Radio tuner or SAT tuner is connected: the list will include the HD Radio or SAT Radio accordingly. *3 When the SAT tuner is connected.

About AUX cap When not using the AUX input jack (9), use the supplied AUX cap to prevent water entering. Keep the AUX cap out of the reach of children to prevent accidental swallowing.

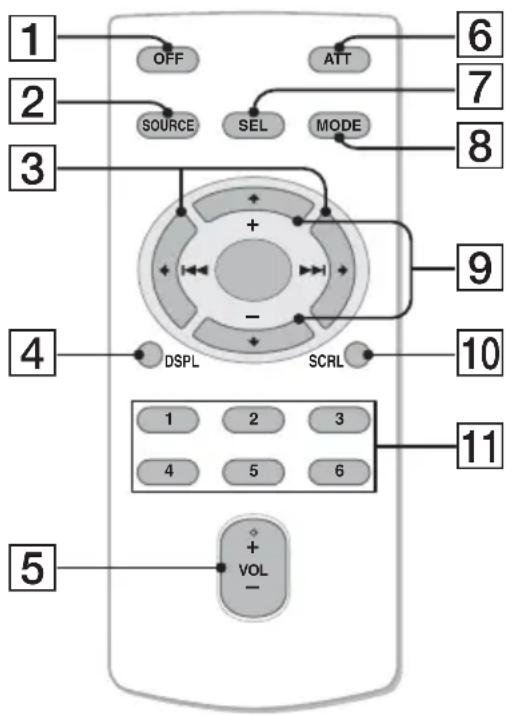

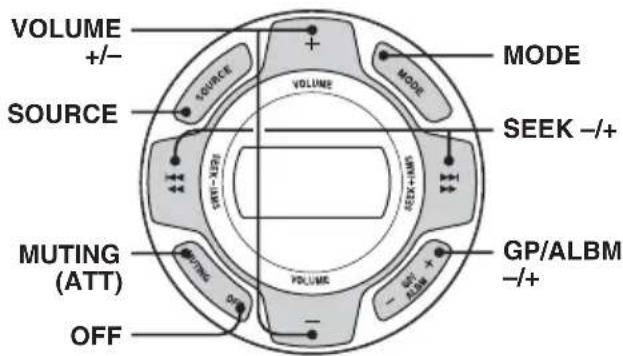

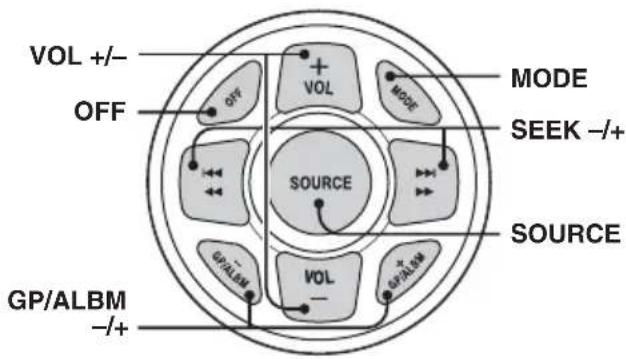

Card remote commander RM-X151

1 2 3 4 5 OFF SOURCE SELECT MODE + - DSPL SCRL ATT 6 7 8 9 10 11 + + VOL -

Remove the insulation film before use (page 6).

1 OFF button

To turn off; stop the source.

2 SOURCE button* 1

To turn on; change the source (Radio/USB/AUX).

3 ← (I◄◄) / → (►►I) buttons

To control Radio/USB, the same as -|◀◀/+▶▶▶ on the unit.

Setup, sound setting, etc., can be operated by .

4 DSPL (display) button

To change display items.

5 VOL (volume) +* 2/- button

To adjust volume.

6 ATT (attenuate) button

To attenuate the sound. To cancel, press again.

7 SEL (select) button

The same as the select button on the unit.

8 MODE button* 1

Press to select the radio band (FM/AM).

9↑ (+)/↓ (-) buttons

To control USB, skip albums.

Setup, sound setting, etc., can be operated by

10 SCRL (scroll) button

To scroll the display item.

11 Number buttons

To receive stored stations (press); store stations (press and hold).

*1 If an HD Radio tuner or SAT tuner is connected: when SOURCE is pressed, the connected device ("HD," "XM" or "SR") will appear in the display. Furthermore, if MODE is pressed, you can switch the HD Radio tuner band or SAT tuner band.

*2 This button has a tactile dot.

Note

If the unit is turned off and the display disappears, it cannot be operated with the card remote commander unless SOURCE/OFF on the unit is pressed to activate the unit first.

Searching for a track

Searching a track by name — Quick-BrowZer™

You can search for a track in a USB device easily by category.

(BROWSE) Control dial/ select button SOURCE = 0% PAUSE MODE ZAF/→1HUF (BACK) +▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶◀

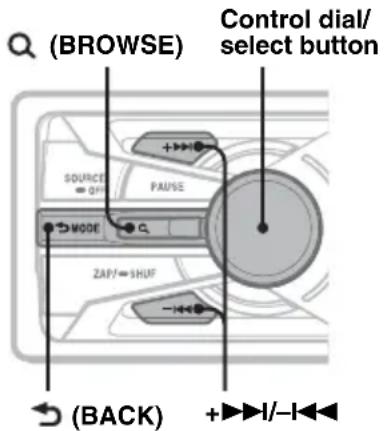

1 Press Q (BROWSE).
The unit enters the Quick-BrowZer mode, and the list of search categories appears.
2 Rotate the control dial to select the desired search category, then press it to confirm.
3 Repeat step 2 until the desired track is selected.

Playback starts.

To return to the previous display

Press ↩ (BACK).

To exit the Quick-BrowZer mode

Press Q (BROWSE).

Note

When entering the Quick-BrowZer mode, the repeat/shuffle setting is canceled.

Searching by skip items — Jump mode

When many items are in a category, you can search the desired item quickly.

1 Press +▶▶ in Quick-BrowZer mode. The following display appears.

JUMP A B

A Current item number
B Total item number in the current layer

Then the item name will appear.

2 Rotate the control dial to select the desired item, or one near the desired item. It skips in steps of 10% of the total item number.
3 Press the select button. The display returns to the Quick-BrowZer mode and the selected item appears.
4 Rotate the control dial to select the desired item and press it. Playback starts if the selected item is a track.

To cancel Jump mode

Press (BACK) or -

Searching a track by listening to track passages — ZAPPIN™

While playing back short track passages in a USB device in sequence, you can search for a track you want to listen to.

ZAPPIN mode is suitable for searching for a track in shuffle or shuffle repeat mode.

Select button (BACK) SOURCE OFF PAUSE MODE ZAP/→ SOUTF ZAP

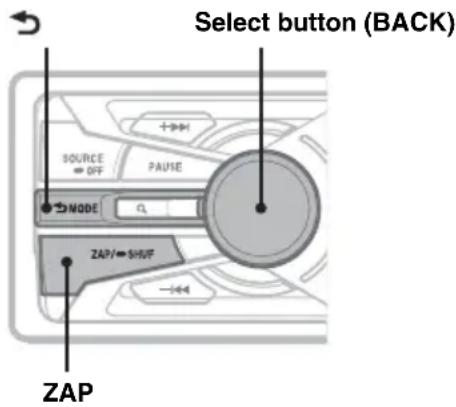

1 Press ZAP/SHUF during playback.

After “ZAPPIN” appears in the display, playback starts from a passage of the next track.

The passage is played for the set time, then a click sounds and the next passage starts.

Track

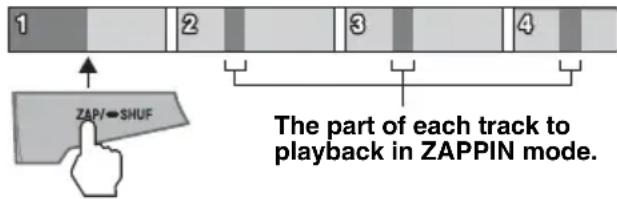

1 2 3 4 ZAP/←SHUF The part of each track to playback in ZAPPIN mode.

2 Press the select button or ZAP/SHUF when a track you want to listen is played back.

The track that you select returns to normal play mode from the beginning.

To search a track by ZAPPIN mode again, repeat steps 1 and 2.

Tips

• You can select the playback time from about 6 seconds/15 seconds/30 seconds (page 20). You cannot select the passage of the track to playback.
• Press +▶▶I/-◀◀ in ZAPPIN mode to skip a track.
• Pressing (BACK) also confirms a track to playback.

Radio

Storing and receiving stations

Caution

When tuning in stations while driving, use Best Tuning Memory (BTM) to prevent an accident.

Storing automatically — BTM

1 Press SOURCE/OFF repeatedly until "TUNER" appears.
To change the band, press MODE repeatedly. You can select from FM1, FM2, FM3, AM1 or AM2.

2 Press and hold the select button.

The setup display appears.

3 Press the select button repeatedly until "BTM" appears.

4 Press +▶▶I.

The unit stores stations in order of frequency in the preset list.

A beep sounds when the setting is stored.

Storing manually

1 While receiving the station that you want to store, press (BROWSE).
The preset list appears.
2 Rotate the control dial to select the preset number.
3 Press and hold the select button until "MEMORY" appears.
(with the card remote commander)

1 While receiving the station that you want to store, press and hold a number button (① to ⑥) until "MEMORY" appears.

Note

If you try to store another station on the same number button, the previously stored station will be replaced.

Receiving the stored stations

You can select a station to receive via a list.

1 Select the band, then press Q (BROWSE).

The preset list appears.

2 Rotate the control dial until the desired station appears.

LIST 1 875

3 Press the select button to receive the station.

The display returns to normal reception mode.

(with the card remote commander)

1 Select the band, then press a number button (① to ⑥).

Tuning automatically

1 Select the band, then press +▶▶I/ -I◀◀ to search for the station.

Scanning stops when the unit receives a station. Repeat this procedure until the desired station is received.

Tip

If you know the frequency of the station you want to listen to, press and hold +▶▶I/-I◀◀ to locate the approximate frequency, then press +▶▶I/-I◀◀ repeatedly to fine adjust to the desired frequency (manual tuning).

RDS

Overview

FM stations with Radio Data System (RDS) service send inaudible digital information along with the regular radio program signal.

Display items

A FM1 B

A Radio band, Function, Frequency, Preset number
Program service name, Clock, Frequency*, Preset number

* While receiving the RDS station, “*” is displayed on the left of the frequency indication.

To change display items A, B, press DSPL.

RDS services

This unit automatically provides RDS services as follows:

CT (Clock Time)

The CT data from the RDS transmission sets the clock.

Notes

• Depending on the country/region, not all RDS functions may be available.
• RDS will not work if the signal strength is too weak, or if the station you are tuned to is not transmitting RDS data.

Setting CT

1 Set "CT-ON" in setup (page 20).

Notes

• The CT function may not work even though an RDS station is being received.
• There might be a difference between the time set by the CT function and the actual time.

USB devices

For details on the compatibility of your USB device, visit the support site.

Support site

• MSC (Mass Storage Class) type USB devices compliant with the USB standard can be used.
• Corresponding codec is MP3 (.mp3), WMA (.wma) and AAC (.m4a).
• Backup of data in a USB device is recommended.

Notes

• Connect the USB device after starting the engine. Depending on the USB device, malfunction or damage may occur if it is connected before starting the engine.
• Do not place a cellular phone or a device with wireless communication functions on the TUNE TRAY, as it may not receive phone signals or communication may be terminated.
• Do not leave a USB device in a moored boat, as malfunction may result.

Playing back a USB device

1 Press OPEN.

The front panel is flipped down.

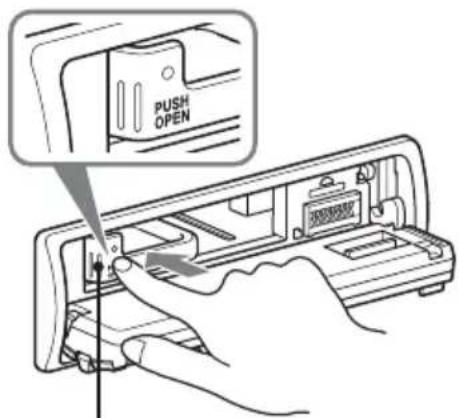

2 Press PUSH OPEN on the TUNE TRAY.

The TUNE TRAY opens slowly.

PUSH OPEN

TUNE TRAY

3 Connect the USB device to the USB port.

Diagram showing a plug inserted into an electronic device with cable, no text or symbols present

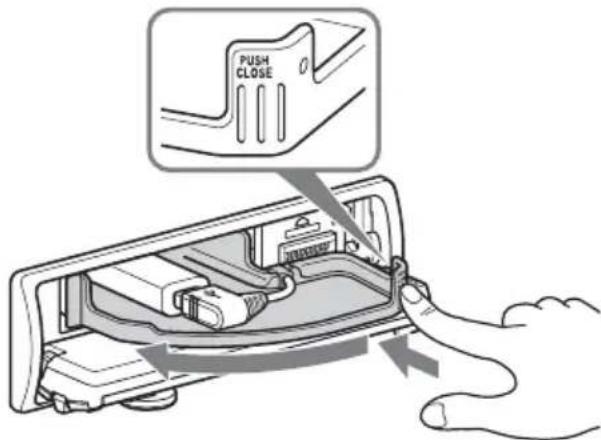

4 Slide in the TUNE TRAY by pressing CLOSE on the TUNE TRAY until it locks shut.

PUSH CLOSE

5 Close the front panel.

Playback starts.

If a USB device is already connected, to start playback, press SOURCE/OFF repeatedly until "USB" appears.

Press SOURCE/OFF for 1 second to stop playback.

Removing the USB device

1 Stop the USB device playback.
2 Press OPEN.
3 Press PUSH OPEN on the TUNE TRAY.
4 Remove the USB device.
5 Slide in the TUNE TRAY, and close the front panel.

Notes

• Do not remove the USB device during playback, otherwise USB data may be damaged.
• Do not place non-USB devices on the TUNE TRAY, or foreign objects, such as coins, keys, cards, liquids, etc.
• Do not place a flammable object such as a lighter on the TUNE TRAY, as this may cause smoke, fire, or other accident.

• Capacity of the tray: Approx. 65 × 17 × 118 ~mm (2^9/16 × ^21/_32 × 4^5/8 in) (w/h/d)

• If the size of the USB device alone or combined with the USB cable cannot be placed easily in the TUNE TRAY, the device may be exceeding the tray capacity. Do not slide in the TUNE TRAY or the USB cable forcefully.

• For "WALKMAN" users, use of the optional adaptor XA-50WM is recommended. It is designed for use with this unit only, and should not be used with the other USB devices.
• This unit cannot recognize USB devices via a USB hub.
• Slide in the TUNE TRAY and close the front panel before playback, as damage may result in the case of an obstruction in the boat, etc.
• If the front panel does not fully open because of the console shape at the installation position, detach the front panel and open the TUNE TRAY manually. For how to detach the front panel, see page 7.
• It is extremely dangerous to connect or remove the USB device while driving.

Display items

A Source, Track name, Artist name, Album name

BTrack name, Artist name, Album number*, Album name, Track number/Elapsed playing time, Clock

* Album number is displayed only when the album is changed.

To change display items A, B, press DSPL.

Notes

• Displayed items will differ, depending on the USB device, recorded format and settings. For details, visit the support site.
• The maximum number of displayable data is as follows.

– folders (albums): 128

– files (tracks) per folder: 500

• It may take time for playback to begin, depending on the amount of recorded data.
• During playback or fast-forward/reverse of a VBR (Variable Bit Rate) MP3/WMA/AAC file, elapsed playing time may not display accurately.
• Playback of the following MP3/WMA/AAC files is not supported.

- lossless compression

– copyright-protected

- DRM (Digital Rights Management) files are not supported.

Repeat play

1 During playback, press and hold the select button.
The setup display appears.
2 Press the select button repeatedly until the "REPEAT" appears.
3 Rotate the control dial to select the play mode.
4 Press and hold the select button.

The setup is complete and the display returns to normal play mode.

Select To play

REPEAT-TRK track repeatedly.

REPEAT-ALB album repeatedly.

To return to normal play mode, select "REPEAT-OFF."

Shuffle play

1 During playback, press and hold ZAP/SHUF.

The lower half of the display starts flashing.

2 Press ZAP/SHUF repeatedly until the desired setting appears.

USB SHUF

Select To play

ALBUM album in random order.

DEVICE device in random order.

After 3 seconds, the setting is complete.

To return to normal play mode, select "OFF."

iPod

For details on the compatibility of your iPod, see "About iPod" on page 22 or visit the support site.

In these Operating Instructions, “iPod” is used as a general reference for the iPod functions on the iPod, unless otherwise specified by the text or illustrations.

Support site

• Do not place a cellular phone or a device with wireless communication functions on the TUNE TRAY, as it may not receive phone signals or communication may be terminated.
• Do not leave an iPod in a moored boat, as malfunction may result.

Playing back iPod

Before connecting the iPod, turn down the volume of the unit.

1 Press OPEN.

The front panel is flipped down.

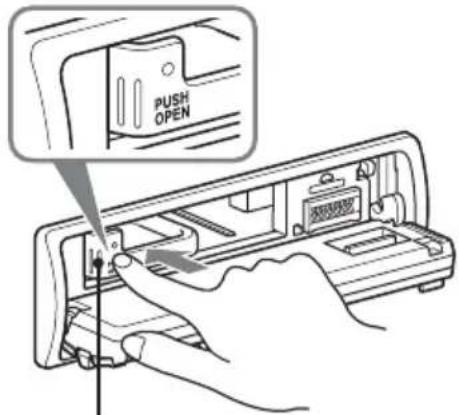

2 Press PUSH OPEN on the TUNE TRAY.

The TUNE TRAY opens slowly.

PUSH OPEN

TUNE TRAY

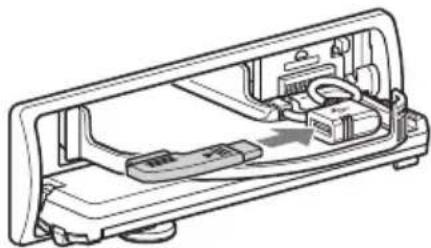

3 Connect the supplied adaptor to the USB port.

Technical line drawing of a car interior frame with visible components and no text or symbols

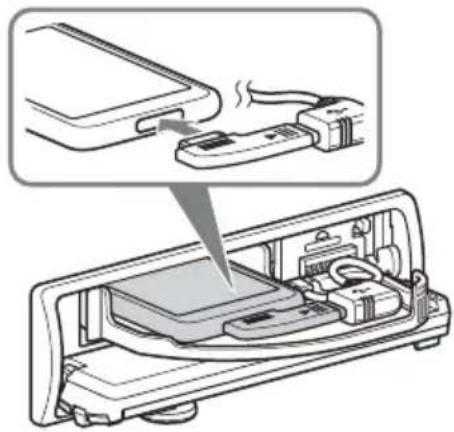

4 Connect the iPod to the supplied adaptor.

Diagram showing a device being inserted into a device casing, with an inset close-up of the component (no text or symbols visible)

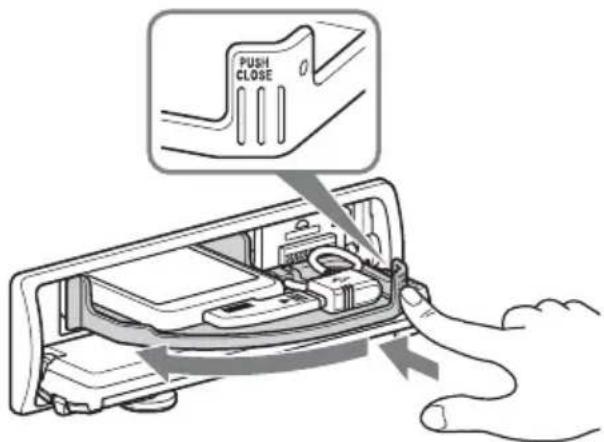

5 Slide in the TUNE TRAY by pressing CLOSE on the TUNE TRAY until it locks shut.

PUSH CLOSE

6 Close the front panel.

The iPod will turn on automatically, and the display will appear on the iPod screen as below.*

Simple black checkmark inside a rectangular border (no text or symbols)

The tracks on the iPod start playing automatically from the point last played. If an iPod is already connected, to start playback press SOURCE/OFF repeatedly until "USB" appears. ("IPOD" appears in the display when iPod is recognized.)

* Display differs depending on the iPod, or may not appear in the case of an iPod touch being connected.

7 Adjust the volume.

Press SOURCE/OFF for 1 second to stop playback.

Removing the iPod

1 Stop the iPod playback.

2 Press OPEN.

3 Press PUSH OPEN on the TUNE TRAY.

4 Remove the iPod.

5 Slide in the TUNE TRAY, and close the front panel.

Notes

• Do not remove the iPod during playback, otherwise data may be damaged.
• Do not place non-iPod devices on the TUNE TRAY, or foreign objects, such as coins, keys, cards, liquids, etc.
• Do not place a flammable object such as a lighter on the TUNE TRAY, as this may cause smoke, fire, or other accident.
• For iPod users, use the supplied adaptor XA-50IP. It is designed for use with this unit only, and should not be used with the other USB devices.
• This unit cannot recognize iPod via a USB hub.
• Slide in the TUNE TRAY and close the front panel before playback, as damage may result in the case of an obstruction in the boat, etc.
• If the front panel does not fully open because of the console shape at the installation position, detach the front panel and open the TUNE TRAY manually. For how to detach the front panel, see page 7.
• It is extremely dangerous to connect or remove the iPod while driving.

Tips

• When the ignition key is turned to the ACC position, and the unit is on, the iPod will be recharged.
• If the iPod is disconnected during playback, "NO DEV" appears in the display of the unit.

Resuming mode

When the iPod is connected, the mode of this unit changes to resuming mode and playback starts in the mode set by the iPod.

In resuming mode, repeat/shuffle play does not function.

Display items

A Source, Track name, Artist name, Album name
BTrack name, Artist name, Album name, Track number/Elapsed playing time, Clock

To change display items A, B, press DSPL.

Tip

When album/podcast/genre/artist/playlist is changed, its item number appears momentarily.

Note

Some letters stored in iPod may not be displayed correctly.

Repeat play

1 During playback, press and hold the select button.
The setup display appears.
2 Press the select button repeatedly until the "REPEAT" appears.
3 Rotate the control dial to select the play mode.
4 Press and hold the select button.
The setup is complete and the display returns to normal play mode.

Select To play

REPEAT-TRK track repeatedly.

REPEAT-ALB album repeatedly.

REPEAT-PCS podcast repeatedly.

REPEAT-ART artist repeatedly.

REPEAT-PLY playlist repeatedly.

REPEAT-GNR genre repeatedly.

To return to normal play mode, select “REPEAT-OFF.”

Shuffle play

1 During playback, press and hold ZAP/SHUF.
The lower half of the display starts flashing.

2 Press ZAP/SHUF repeatedly until the desired setting appears.

IPOD SHUF

Select To play

ALBUM album in random order.

PODCAST podcast in random order.

ARTIST artist in random order.

PLAYLIST playlist in random order.

GENRE genre in random order.

DEVICE device in random order.

After 3 seconds, the setting is complete.

To return to normal play mode, select "OFF."

Other functions

Changing the sound settings

Adjusting the sound characteristics

1 Press the select button repeatedly until the desired item appears.
2 Rotate the control dial to adjust the selected item.
3 Press ← (BACK).

The setting is complete and the display returns to normal reception/play mode.

The following items can be set (follow the page reference for details):

EQ3

Selects an equalizer curve from 7 music types (XPLOD, VOCAL, EDGE, CRUISE, SPACE, GRAVITY, CUSTOM or OFF).

DSO (Dynamic Soundstage Organizer)

Creates a more ambient sound field.

To select the DSO mode: "1," "2," "3" or "OFF."

The larger the number, the more enhanced the effect.

LOW ^1 , MID ^1 , HIGH ^*1 (page 19)

BALANCE

Adjusts the sound balance between the left and right speakers.

FADER

Adjusts the relative level between the front and rear speakers.

SUB*2 (Subwoofer volume)

Adjusts the subwoofer volume.

AUX LV*3 (AUX level)

Adjusts the volume level for each connected auxiliary equipment: “+18 dB” – “0 dB” – “-8 dB.”

This setting negates the need to adjust the volume level between sources.

*1 When EQ3 is activated.
*2 When the audio output is set to "SUB-OUT" (page 20).
“ATT” is displayed at the lowest setting, and can be adjusted up to 21 steps.
*3 When AUX source is activated (page 21).

Customizing the equalizer curve — EQ3

“CUSTOM” of EQ3 allows you to make your own equalizer settings.

1 Select a source, then press the select button repeatedly to select "EQ3."
2 Rotate the control dial to select "CUSTOM."
3 Press the select button repeatedly until "LOW," "MID" or "HIGH" appears.
4 Rotate the control dial to adjust the selected item.

The volume level is adjustable in 1 dB steps, from -10 dB to +10 dB.

LOW + 6dB

Repeat steps 3 and 4 to adjust the equalizer curve.

To restore the factory-set equalizer curve, press and hold the select button before the setting is complete.

5 Press ↩ (BACK).

The setting is complete and the display returns to normal reception/play mode.

Tip

Other equalizer types are also adjustable.

Adjusting setup items — SET

1 Press and hold the select button.
The setup display appears.
2 Press the select button repeatedly until the desired item appears.
3 Rotate the control dial to select the setting (example "ON" or "OFF").
4 Press and hold the select button.
The setup is complete and the display returns to normal reception/play mode.

Note

Displayed items will differ, depending on the source and setting.

The following items can be set (follow the page reference for details):

continue to next page →

CLOCK-ADJ (Clock Adjust) (page 6)

CT (Clock Time)

Activates the CT function: “ON,” “OFF” (page 13, 14).

BEEP

Activates the beep sound: "ON," "OFF."

AUX-A\* 1 (AUX Audio)

Activates the AUX source display: "ON," "OFF" (page 21).

AUTO OFF

Shuts off automatically after a desired time when the unit is turned off: “NO,” “30S (Seconds),” “30M (Minutes),” “60M (Minutes).”

SUB/REAR\*1

Switches the audio output: “SUB-OUT” (subwoofer), “REAR-OUT” (power amplifier).

DEMO (Demonstration)

Activates the demonstration: "ON," "OFF."

DIMMER

Changes the display brightness.

• “AT”: to dim the display automatically when you turn lights on. (Available only when the illumination control lead is connected.)
• “ON”: to dim the display.
• “OFF”: deactivate the dimmer.

CONTRAST

Adjusts the contrast for a clear view of the display, suitable for the installed viewing angle. The contrast level is adjustable in 7 steps.

LV-METER (Level Meter)

Activates the level meter: "ON," "OFF."

A.SCRL (Auto Scroll)

Scrolls long items automatically: "ON," "OFF."

REPEAT (page 16, 18)

• “ON”: to only tune into stations with stronger signals.
• “OFF”: to tune normal reception.

MONO\*2 (Monaural Mode)

Selects monaural reception mode to improve poor FM reception: "ON," "OFF."

ZAP.TIME (Zappin Time)

Selects the playback time for the ZAPPIN function.

• “ZAP.TIME-1 (about 6 seconds),”
  "ZAP.TIME-2 (about 15 seconds),"
  "ZAP.TIME-3 (about 30 seconds)."

LPF\*3 (Low Pass Filter)

Selects the subwoofer cut-off frequency: "OFF," "80Hz," "100Hz," "120Hz," "140Hz," "160Hz."

SUB\*3(Subwoofer Phase)

Selects the subwoofer phase: “NORM,” “REV.”

HPF (High Pass Filter)

Selects the front/rear speaker cut-off frequency: "OFF," "80Hz," "100Hz," "120Hz," "140Hz," "160Hz."

LOUD (Loudness)

Reinforces bass and treble for clear sound at low volume levels: "ON," "OFF."

DM+

Activates the DM+ function: "ON," "OFF."

BTM (page 12)

*1 When the unit is turned off.
*2 When FM is received.
*3 When the audio output is set to "SUB-OUT."

Memory backup

Your last settings are stored automatically. Sound settings (except volume), setup items (except clock) and tuner presets are stored in the internal memory of the unit.

Using optional equipment

Auxiliary audio equipment

By connecting an optional portable audio device to the AUX input jack (stereo mini jack) on the unit and then simply selecting the source, you can listen on your speakers. The volume level is adjustable for any difference between the unit and the portable audio device. Follow the procedure below:

Connecting the portable audio device

1 Turn off the portable audio device.
2 Turn down the volume on the unit.
3 Connect to the unit.

AUX Connecting cord* (not supplied)

* Be sure to use a straight type plug.

Adjust the volume level

Be sure to adjust the volume for each connected audio device before playback.

1 Turn down the volume on the unit.
2 Press SOURCE/OFF repeatedly until "AUX" appears.
After that, "AUX FRONT IN" appears.
3 Start playback of the portable audio device at a moderate volume.
4 Set your usual listening volume on the unit.
5 Adjust the input level (page 19).

Marine remote commander RM-X60M/X11M

Location of controls

The corresponding buttons on the marine remote commander control the same functions as those on this unit.

RM-X60M

VOLUME +/- SOURCE MUTING (ATT) OFF SOURCE VOLUME MODE MODE SEEK -/+ SEEK+LAMP POLUME GP/ALBM -/+

RM-X11M

VOL +/- OFF OFF SOURCE MODE SEEK -/+ SOURCE VOL + + VOL MODE GP/ALBM + GP/ALBM GP/ALBM -/+

The following controls on the marine remote commander require a different operation from the unit.

• VOLUME (VOL) +/- button(s)
The same as the control dial on the unit.

- GP/ALBM -/+ button(s) Radio:

To receive stored stations.

USB:

To skip albums.

- MUTING button

To attenuate the sound. (The same as ATT on the card remote commander.)

Additional Information

Precautions

• Cool off the unit beforehand if your boat has been moored in direct sunlight.
  • Power antenna (aerial) extends automatically.

Playback order of MP3/WMA/AAC files

About Device Inside Alert

If you turn the ignition switch to the OFF position without removing the USB device or iPod, "DEVICE INSIDE" will appear in the display.

DEVICE INSIDE

Open the front panel to remove the USB device or iPod.

If the front panel is detached when the ignition is turned off.

The Device Inside Alert LED flashes.

Simple line drawing of a person lying down with a sun icon above (no text or symbols)

Tip

For how to remove the USB device or iPod, see page 15 (USB), 17 (iPod).

Note

The Device Inside Alert will only sound if the built-in amplifier is used.

About iPod

- You can connect to the following iPod models. Update your iPod devices to the latest software before use.

Made for

• iPod touch (3rd generation)
• iPod touch (2nd generation)
• iPod touch (1st generation)
• iPod classic
• iPod with video
• iPod nano (5th generation)
• iPod nano (4th generation)
• iPod nano (3rd generation)
• iPod nano (2nd generation)

• iPod nano (1st generation)

• “Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.

• Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.

Maintenance

Replacing the lithium battery of the card remote commander

Under normal conditions, the battery will last approximately 1 year. (The service life may be shorter, depending on the conditions of use.) When the battery becomes weak, the range of the card remote commander becomes shorter. Replace the battery with a new CR2025 lithium battery. Use of any other battery may present a risk of fire or explosion.

① ② → + side up

Notes on the lithium battery

• Keep the lithium battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor.
• Wipe the battery with a dry cloth to assure a good contact.
• Be sure to observe the correct polarity when installing the battery.
• Do not hold the battery with metallic tweezers, otherwise a short-circuit may occur.

WARNING

Battery may explode if mistreated. Do not recharge, disassemble, or dispose of in fire.

Fuse replacement

When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.

Pure electrical circuit lines without any symbols

Fuse (10 A)

Cleaning the connectors

The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, detach the front panel (page 7) and clean the connectors with a cotton swab. Do not apply too much force. Otherwise, the connectors may be damaged.

Line drawing of a hand inserting a component into a device (no text or symbols)

Main unit

Line drawing of a hand holding a small electronic device (no text or symbols)

Back of the front panel

Notes

• For safety, turn off the ignition before cleaning the connectors, and remove the key from the ignition switch.
• Never touch the connectors directly with your fingers or with any metal device.

Removing the unit

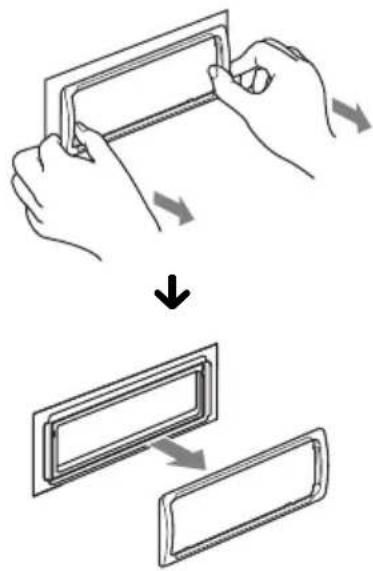

1 Remove the protection collar.

① Detach the front panel (page 7).
②Pinch both edges of the protection collar, then pull it out.

Illustration showing a hand holding a rectangular object with arrows indicating rotation, and two views of a rectangular panel being rotated (no text or symbols present)

2 Remove the unit.

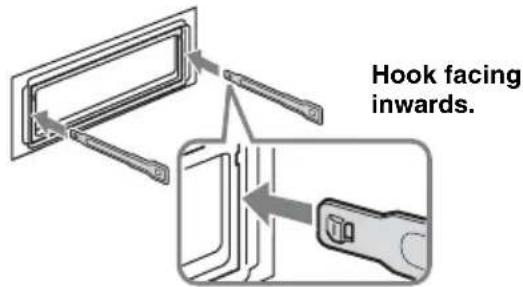

①Insert both release keys simultaneously until they click.

Hook facing inwards.

②Pull the release keys to unseat the unit.

Pure mechanical component diagram without any text, numbers, or symbols

③Slide the unit out of the mounting.

Technical line drawing of a rectangular electronic component with a gray arrow indicating direction (no text or symbols)

Specifications

FOR UNITED STATES CUSTOMERS. NOT APPLICABLE IN CANADA, INCLUDING IN THE PROVINCE OF QUEBEC.

POUR LES CONSOMMATEURS AUX ÉTATS-UNIS. NON APPLICABLE AU CANADA, Y COMPRIS LA PROVINCE DE QUÉBEC.

AUDIO POWER SPECIFICATIONS

CEA2006 Standard

Power Output: 17 Watts RMS × 4 at

4 Ohms < 1% THD+N

SN Ratio: 80 dBA

(reference: 1 Watt into 4 Ohms)

Tuner section

FM

Tuning range:

87.5 - 108.0 MHz (at 50 kHz step)

87.5 - 107.9 MHz (at 200 kHz step)

FM tuning interval: 50 kHz/200 kHz switchable

Antenna (aerial) terminal:

External antenna (aerial) connector

Intermediate frequency: 150 kHz

Usable sensitivity: 10 dBf

Selectivity: 75 dB at 400 kHz

Signal-to-noise ratio: 70 dB (mono)

Separation: 40 dB at 1 kHz

Frequency response: 20 - 15,000 Hz

AM

Tuning range:

531 - 1,602 kHz (at 9 kHz step)

530 - 1,710 kHz (at 10 kHz step)

AM tuning interval: 9 kHz/10 kHz switchable

Antenna (aerial) terminal:

External antenna (aerial) connector

Intermediate frequency: 25 kHz

Sensitivity: 26 μV

USB Player section

Interface: USB (Full-speed)

Maximum current: 500 mA

Power amplifier section

Output: Speaker outputs

Speaker impedance: 4 - 8 ohms

Maximum power output: 52 W × 4 (at 4 ohms)

General

Outputs:

Audio outputs terminal (front, sub/rear switchable)

Power antenna (aerial) relay control terminal

Power amplifier control terminal

Inputs:

BUS control input terminal

BUS audio input terminal

Remote controller input terminal

Antenna (aerial) input terminal

Telephone ATT control terminal

Illumination control terminal

Low: ±10 dB at 60 Hz (XPLOD)

Mid: ±10 dB at 1 kHz (XPLOD)

High: ±10 dB at 10 kHz (XPLOD)

Power requirements: 12 V DC boat battery (negative ground (earth))

Dimensions: Approx. 178 × 50 × 180 mm

(7^1/8× 2× 7^1/8 in) (w/h/d)

Mounting dimensions: Approx. 182 × 53 × 163 mm

(7^1/4 × 2^1/8 × 6^1/2 in) (w/h/d)

Mass: Approx. 1.0 kg (2 lb 4 oz)

Supplied accessories*:

Card remote commander: RM-X151

USB connector for iPod XA-50IP

Parts for installation and connections (1 set)

Optional accessories/equipment*:

Marine remote commander: RM-X60M,

RM-X11M

BUS cable (supplied with an RCA pin cord):

Source selector: XA-C40

HD Radio™ tuner: XT-100HD

Walkman adaptor XA-50WM

* Accessories/equipment other than the marine remote commander RM-X60M/X11M are not waterproof. Do not subject them to water.

Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information.

Design and specifications are subject to change without notice.

Troubleshooting

The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures.

If the problem is not solved, visit the following support site.

Support site

No power is being supplied to the unit.

• Check the connection or fuse.
• If the unit is turned off and the display disappears, it cannot be operated with the remote commander. →Turn on the unit.

The power antenna (aerial) does not extend.

The power antenna (aerial) does not have a relay box.

No sound.

• The ATT function is activated, or the Telephone ATT function (when the interface cable of a telephone is connected to the ATT lead) is activated.
• The position of the fader control “FADER” is not set for a 2-speaker system.

No beep sound.

• The beep sound is canceled (page 20).
- An optional power amplifier is connected and you are not using the built-in amplifier.

The contents of the memory have been erased.

• The RESET button has been pressed.
  →Store again into the memory.
• The power supply lead or battery has been disconnected or it is not connected properly.

Stored stations and correct time are erased. The fuse has blown.

Makes noise when the position of the ignition is switched.

The leads are not matched correctly with the boat's accessory power connector.

During playback or reception, demonstration mode starts.

If no operation is performed for 5 minutes with "DEMO-ON" set, demonstration mode starts. Set "DEMO-OFF" (page 20).

The display disappears from/does not appear in the display window.

• The dimmer is set “DIMMER-ON” (page 20).
• The display disappears if you press and hold SOURCE/OFF.
  →Press SOURCE/OFF on the unit until the display appears.
  • The connectors are dirty (page 23).

The Auto Off function does not operate.

The unit is turned on. The Auto Off function activates after turning off the unit.

→Turn off the unit.

DSO does not function.

- Depending on the type of boat interior or type of music, DSO may not have a desirable effect.

Radio reception

The stations cannot be received.

The sound is hampered by noises.

• The connection is not correct.
  Connect a power antenna (aerial) control lead (blue) or accessory power supply lead (red) to the power supply lead of a boat's antenna (aerial) booster (only when your boat has built-in FM/AM antenna (aerial)).
  →Check the connection of the boat antenna (aerial).
  →If the auto antenna (aerial) will not go up, check the connection of the power antenna (aerial) control lead.
  →When the DSO mode is on, the sound is sometimes hampered by noises. Set the DSO mode to “OFF” (page 19).

Preset tuning is not possible.

• Store the correct frequency in the memory.
  • The broadcast signal is too weak.

Automatic tuning is not possible.

• Setting of the local seek mode is not correct.
  →Tuning stops too frequently: Set “LOCAL-ON” (page 20).
  →Tuning does not stop at a station: Set “LOCAL-OFF” (page 20).
• The broadcast signal is too weak. →Perform manual tuning.

During FM reception, the "ST" indication flashes.

• Tune in the frequency accurately.
• The broadcast signal is too weak. →Set “MONO-ON” (page 20).

An FM program broadcast in stereo is heard in monaural.

The unit is in monaural reception mode. →Set “MONO-OFF” (page 20).

USB playback

You cannot play back items via a USB hub.

This unit cannot recognize USB devices via a USB hub.

Cannot play back items.

A USB device does not work. →Reconnect it.

The USB device takes longer to play back.

The USB device contains files with a complicated tree structure.

continue to next page →

The display items do not scroll.

• A large number of characters may not scroll.
- “A.SCRL” is set to “OFF.”
→Set "A.SCRL-ON" (page 20).
→Press and hold DSPL (SCRL).

A beep sounds.

During playback, the USB device has been disconnected.

→Before disconnecting a USB device, make sure to stop playback first for data protection.

The sound is intermittent.

The sound may be intermittent at a high-bit-rate of more than 320 kbps.

Error displays/Messages

CHECKING

The unit is confirming the connection of a USB device. Wait until confirming the connection is finished.

DEVICE INSIDE

If you turn the ignition switch to the OFF position without removing the USB device or iPod, "DEVICE INSIDE" will appear in the display.

ERROR

USB device was not automatically recognized. →Reconnect it again.

FAILURE (Illuminates until any button is pressed.) The connection of speakers/amplifiers is incorrect. See the installation/connections manual of this model to check the connection.

FAILURE (Illuminates for about 1 second.)

When the SAT tuner is connected, storing an SAT radio channel into a preset failed.

→Be sure to receive the channel that you want to store, then try it again.

HUB NO SUPRT (HUB Not Support) USB hub is not supported on this unit.

L. SEEK +/-

The local seek mode is on during automatic tuning.

NO DEV (No Device)

USB is selected as source without a USB device connected. A USB device or a USB cable has been disconnected during playback. →Be sure to connect a USB device and USB cable

NO MUSIC

The USB device does not contain a music file. →Connect a USB device with a music file in it.

NO NAME

A album/artist/track name is not written in the track.

OFFSET

There may be an internal malfunction.

→Check the connection. If the error indication remains on in the display, consult your nearest Sony dealer.

OVERLOAD

USB device is overloaded.

→Disconnect the USB device, then change the source by pressing SOURCE/OFF.
→Indicates that the USB device is out of order, or an unsupported device is connected.

READ

The unit is reading all track and album information on the USB device.

→Wait until reading is complete and playback starts automatically.

RESET

USB device cannot be operated due to a problem. →Press the RESET button (page 6).

USB NO SUPRT (USB Not Support)

The connected USB device is not supported. →For details on the compatibility of your USB device, visit the support site.

“LLLL” 77707 r

During reverse or fast-forward, you have reached the beginning or the end of the USB device and you cannot go any further.

“—”

The character cannot be displayed with the unit.

If these solutions do not help improve the situation, consult your nearest Sony dealer.

WALKSTAN®

Appareil principal 8

Simple line drawing of a device with a paper clip and two circular buttons (no text or symbols)

Conseil

Diagram showing a hand inserting a device into a device with labeled arrows indicating process steps.

Remarques

Diagram showing device port status change from internal to external states, with labeled parts A and B indicating state transitions.

Remarque

2 Touche Q (BROWSE)\* page 11, 13

10 (BACK)/MODE\* 1 page 11, 12, 19

La lecture commence.

A F M I B

PUSH OPEN

TUNE TRAY

Diagram showing a plug inserted into an electronic device with cable, no text or symbols present

La lecture commence.

PUSH OPEN

TUNE TRAY

Technical line drawing of a car interior frame with visible components and a directional arrow (no text or symbols)

Diagram showing a device being inserted into a device casing, with an inset close-up of the component (no text or symbols visible)

LOW + 6dB

REPEAT (page 16, 18)

VOLUME +/- SOURCE MUTING (ATT) OFF SOURCE VOLUME MODE MODE SEEK -/+ VOLUME - SEEK +/- GP/ALBM -/+

RM-X11M

VOL +/- OFF OFF + VOL MODE SEEK -/+ SOURCE SOURCE GP/ALBM -/+ + VOL + GP/ALBM

Line drawing of a hand inserting a component into a device (no text or symbols)

Appareil principal

Line drawing of a hand holding a battery with a screwdriver (no text or symbols)

Illustration of hands holding a rectangular object with directional arrows indicating movement (no text or symbols)

↓

Diagram showing two rectangular panels with a bidirectional arrow between them (no text or symbols)

Pure mechanical assembly diagram showing a rectangular component with mounting flanges and directional arrows indicating motion (no text or symbols)

Isometric line drawing of a rectangular electronic component with a gray arrow indicating direction (no text or symbols)

Simple line drawing of a device with a paper clip and two circular buttons (no text or symbols)

Sugerencia

Diagram showing a hand inserting a device into a device with labeled arrows indicating process steps.

Notas

Diagram showing device port status change from internal to external states, with labeled parts A and B indicating state transitions.

Nota

PUSH OPEN

TUNE TRAY

Diagram showing a plug inserted into an electronic device with cable, no text or symbols present

PUSH OPEN

TUNE TRAY

Technical line drawing of a car interior showing dashboard, steering wheel, and rear-mounted sensors (no text or labels)

Diagram showing a device being inserted into a device chassis, with no visible text or symbols.

IPOD SHUF

LOW + 6dB

AUX-A\* 1 (Audio AUX)

VOLUME +/- SOURCE MUTING (ATT) OFF SOURCE VOLUME MODE MODE SEEK -/+ SEEK +/MP POLUME GP/ALBM -/+

RM-X11M

VOL +/- OFF OFF SOURCE MODE SEEK -/+ SOURCE VOL + + VOL MODE GP/ALBM GP/ALBM + GP/ALBM GP/ALBM -/+

Simple line drawing of a room with a lamp and sun icon (no text or symbols)

Sugerencia

Pure electrical circuit lines without any symbols

Fusible (10 A)

Line drawing of a hand inserting a plug into a device (no text or symbols)

Unidad principal

Line drawing of a hand holding a small electronic device with a screwdriver (no text or symbols)

Illustration showing a hand holding a rectangular object with arrows indicating rotation, and two views of a rectangular object with directional arrows (no text or symbols)

Technical line drawing of a mechanical bracket with directional arrows indicating motion (no text or symbols)

Technical line drawing of a rectangular mechanical component with a downward arrow indicating compression or dislocation (no text or symbols)

Especificaciones

9 kHz/10 kHz intercambiable

Terminal de antena: conector de antena externa

Graves: ±10 dB a 60 Hz (XPLOD)

Medios: ±10 dB a 1 kHz (XPLOD)

Agudos: ±10 dB a 10 kHz (XPLOD)

If you have any questions/problems regarding this product, try the following:

1 Read Troubleshooting in these Operating Instructions.
2 Reset the unit.

Note: Stored data may be erased.

3 Please contact (U.S.A. only);

Call 1-800-222-7669

URLhttp://www.SONY.com
