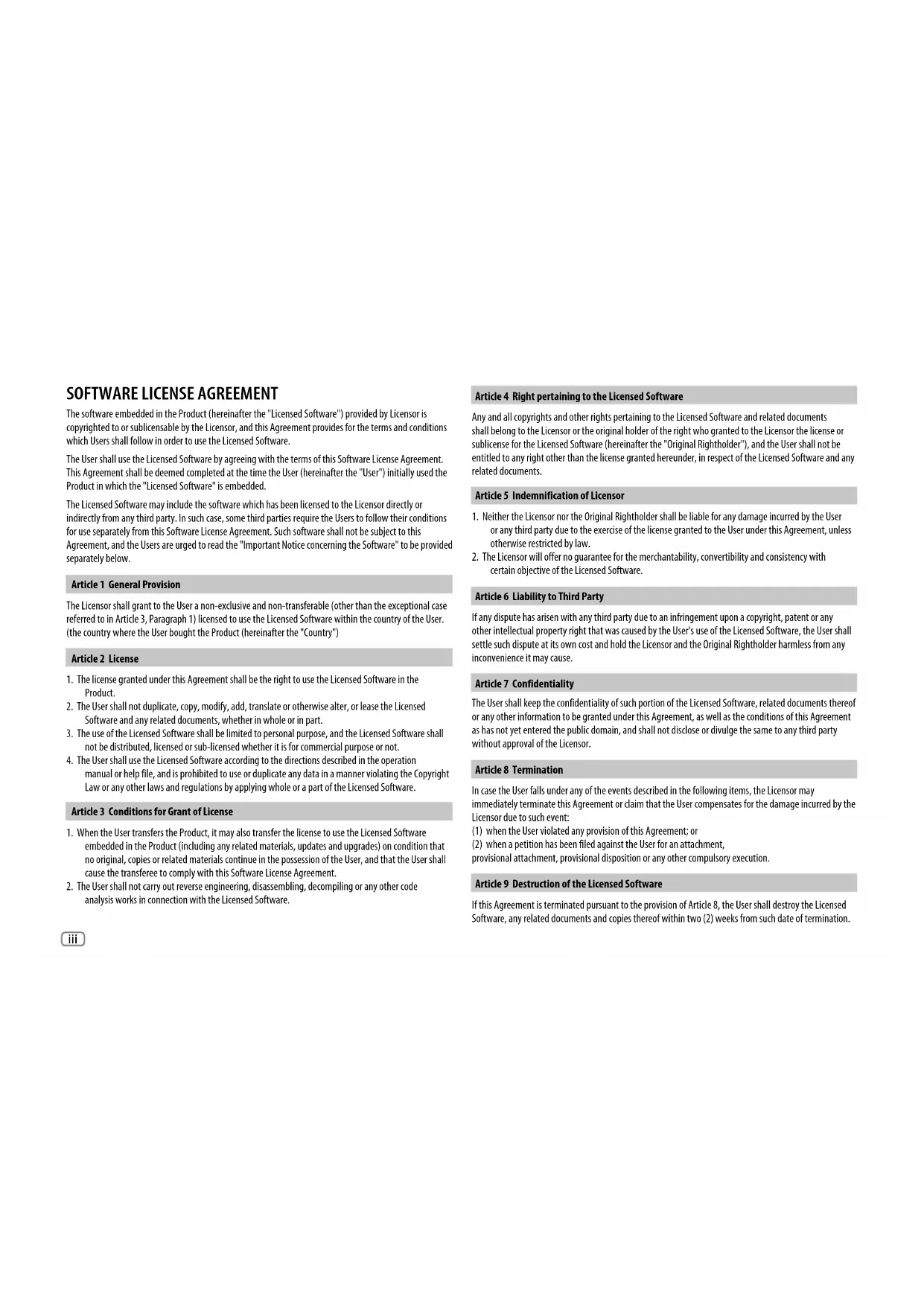

The software embedded in the Product (hereinafter the "Licensed Software") provided by Licensor is copyrighted to or sublicensable by the Licensor, and this Agreement provides for the terms and conditions which Users shall follow in order to use the Licensed Software. The User shall use the Licensed Software by agreeing with the terms of this Software License Agreement. This Agreement shall be deemed completed at the time the User (hereinafter the "User") initially used the Product in which the "Licensed Software" is embedded. The Licensed Software may include the software which has been licensed to the Licensor directly or indirectly from any third party. In such case, some third parties require the Users to follow their conditions for use separately from this Software License Agreement. Such software shall not be subject to this Agreement, and the Users are urged to read the "Important Notice concerning the Software" to be provided separately below. Article 1 General Provision The Licensor shall grant to the User a non-exclusive and non-transferable (other than the exceptional case referred to in Article 3, Paragraph 1) licensed to use the Licensed Software within the country of the User. (the country where the User bought the Product (hereinafter the "Country") Article 2 License

1. The license granted under this Agreement shall be the right to use the Licensed Software in the

Software and any related documents, whether in whole or in part.

3. The use of the Licensed Software shall be limited to personal purpose, and the Licensed Software shall

not be distributed, licensed or sub-licensed whether it is for commercial purpose or not.

4. The User shall use the Licensed Software according to the directions described in the operation

manual or help file, and is prohibited to use or duplicate any data in a manner violating the Copyright Law or any other laws and regulations by applying whole or a part of the Licensed Software. Article 3 Conditions for Grant of License

1. When the User transfers the Product, it may also transfer the license to use the Licensed Software

embedded in the Product (including any related materials, updates and upgrades) on condition that no original, copies or related materials continue in the possession of the User, and that the User shall cause the transferee to comply with this Software License Agreement.

2. The User shall not carry out reverse engineering, disassembling, decompiling or any other code

analysis works in connection with the Licensed Software. Article 4 Right pertaining to the Licensed Software Any and all copyrights and other rights pertaining to the Licensed Software and related documents shall belong to the Licensor or the original holder of the right who granted to the Licensor the license or sublicense for the Licensed Software (hereinafter the "Original Rightholder"), and the User shall not be entitled to any right other than the license granted hereunder, in respect of the Licensed Software and any related documents. Article 5 Indemnification of Licensor

1. Neither the Licensor nor the Original Rightholder shall be liable for any damage incurred by the User

or any third party due to the exercise of the license granted to the User under this Agreement, unless otherwise restricted by law.

2. The Licensor will offer no guarantee for the merchantability, convertibility and consistency with

certain objective of the Licensed Software. Article 6 Liability to Third Party If any dispute has arisen with any third party due to an infringement upon a copyright, patent or any other intellectual property right that was caused by the User's use of the Licensed Software, the User shall settle such dispute at its own cost and hold the Licensor and the Original Rightholder harmless from any inconvenience it may cause. Article 7 Confidentiality The User shall keep the confidentiality of such portion of the Licensed Software, related documents thereof or any other information to be granted under this Agreement, as well as the conditions of this Agreement as has not yet entered the public domain, and shall not disclose or divulge the same to any third party without approval of the Licensor. Article 8 Termination In case the User falls under any of the events described in the following items, the Licensor may immediately terminate this Agreement or claim that the User compensates for the damage incurred by the Licensor due to such event: (1) when the User violated any provision of this Agreement; or (2) when a petition has been filed against the User for an attachment, provisional attachment, provisional disposition or any other compulsory execution. Article 9 Destruction of the Licensed Software If this Agreement is terminated pursuant to the provision of Article 8, the User shall destroy the Licensed Software, any related documents and copies thereof within two (2) weeks from such date of termination. JS_KWD_KDC_X303_KN_C.indd iiiJS_KWD_KDC_X303_KN_C.indd iii 4/6/2018 11:26:21 AM4/6/2018 11:26:21 AMData Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm)

Article 10 Protection of Copyright

1. The copyright and all the other intellectual property rights

relating to the Licensed Software shall belong to the Licensor and the Original Rightholder, and in no event shall they be under the ownership of the User.

2. The User shall, whenever it uses the Licensed Software,

comply with any laws relating to the copyright and other intellectual property rights. Article 11 Export Restriction

1. It is prohibited to export the Licensed Software and any

related documents outside the country of the User (including transmission thereof outside the country of the User via Internet of other communication tools).

2. The User shall understand that the Licensed Software shall be

subject to the export restrictions adopted by the country of User and any other countries.

3. The User shall agree that the software will be subject to any

and all applicable international and domestic laws (including the export control regulation of the country of User and any other countries, and any restrictions concerning the end-users, the use by end-users and importing countries to be provided by the country of User and any other countries, and any other governmental authorities). Article 12 Miscellaneous

1. In the event any part of this Agreement is invalidated by

operation of law, the residual provisions shall continue in force.

2. Matters not stipulated in this Agreement or any ambiguity or

question raised in the construction of this Agreement shall be provided or settled upon good-faith consultation between the Licensor and the User.

3. The Licensor and the User hereby agree that this Agreement

is governed by the laws of Japan, and any dispute arising from, and relating to the rights and obligations under, this Agreement shall be submitted to the exclusive jurisdiction of the Tokyo District Court for its first instance. Important Notice concerning the Software -jansson Copyright (c) 2009-2012 Petri Lehtinen <petri@digip.org> Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/ or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. -cJSON Copyright (c) 2009 Dave Gamble Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/ or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. -CMP The MIT License (MIT) Copyright (c) 2014 Charles Gunyon Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/ or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. JS_KWD_KDC_X303_KN_C.indd ivJS_KWD_KDC_X303_KN_C.indd iv 4/6/2018 11:26:21 AM4/6/2018 11:26:21 AMData Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm)

• To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warnings and Cautions in this manual.

• Please keep the manual in a safe and accessible place for future reference. WARNING

• Do not operate any function that takes your attention away from safe driving.

• Do not ingest the battery, Chemical Burn Hazard. The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. Caution Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.

• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level. General:

• Avoid using the external device if it might hinder safe driving.

• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.

• Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit.

• If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.

• USB rating is indicated on the main unit. To view, detach the faceplate. (Page 3)

• Depending on the types of cars, the antenna will automatically extend when you turn on the unit with the antenna control wire connected (page 40). Turn off the unit or change the source to STANDBY when parking at a low ceiling area. Remote control (RC-406):

• Do not leave the remote control in hot places such as on the dashboard.

• The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or equivalent type.

• The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like. CONTENTS BEFORE USE 2 BASICS 3 GETTING STARTED 4 1 Select the display language and cancel the demonstration 2 Set the clock and date 3 Set the initial settings RADIO 6 CD/USB/iPod/ANDROID 8 AUX 10 Pandora® 11 iHeartRadio® 12 Spotify 13 SiriusXM® Radio 14 BLUETOOTH® 17 AUDIO SETTINGS 25 DISPLAY SETTINGS 28 LEARNING STEERING REMOTE CONTROL 30 REFERENCES 31 Maintenance More information TROUBLESHOOTING 35 INSTALLATION/ CONNECTION 38 SPECIFICATIONS 42 How to read this manual

• Operations are explained mainly using buttons on the faceplate of .

• English indications are used for the purpose of explanation. You can select the display language from the [FUNCTION] menu. (Page 5)

• [XX] indicates the selected items.

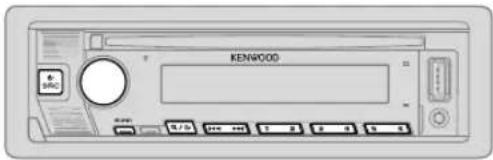

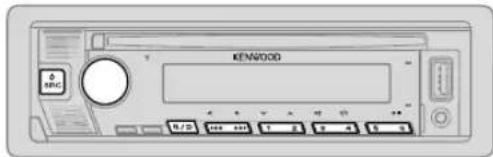

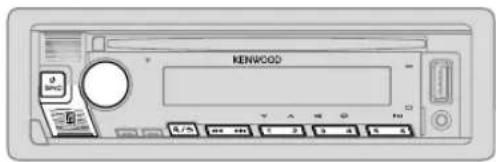

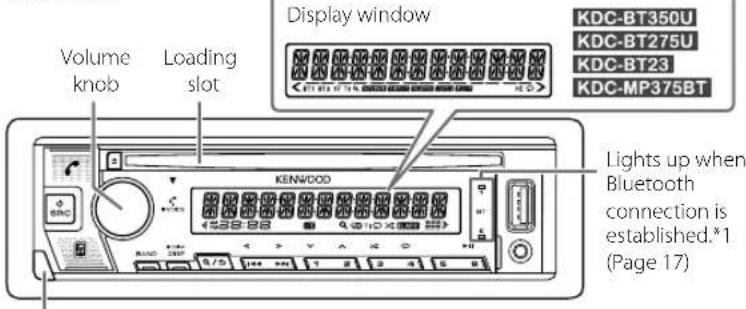

ENGLISH BASICS To On the faceplate On the remote control Turn on the power Press B SRC.

• Press and hold to turn off the power.*2 Press and hold SRC to turn off the power. ( Pressing SRC does not turn on the power. ) Adjust the volume Turn the volume knob. Press VOL or VOL .

• Press and hold VOL to continuously increase the volume to 15. Press ATT during playback to attenuate the sound.

• Press again to cancel. Select a source Press B SRC repeatedly. Press SRC repeatedly. Change the display information*3 Press DISP repeatedly. (Page 33, 34) ( Not available ) *1 Only for / / / . *2 For : The power will automatically turn off after 20 minutes when in standby mode (Auto Power Off). *3 For : You can also turn off the display information by pressing DISP repeatedly. (Page 34) Remote control (RC-406) (supplied for ) Attach How to reset Detach Faceplate How to replace the battery Remote sensor (Do not expose to bright sunlight.) Pull out the insulation sheet when using for the first time. Reset the unit within 5 seconds after detaching the faceplate. Volume knob Loading slot Detach button Display window Lights up when Bluetooth connection is established.*1 (Page17) / / : Can be remotely controlled with an optionally purchased remote control. / / / : Remote control functions are not available. JS_KWD_KDC_X303_KN_EN_6th.indd 3JS_KWD_KDC_X303_KN_EN_6th.indd 3 4/6/2018 11:26:36 AM4/6/2018 11:26:36 AM4 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) GETTING STARTED Select the display language and cancel the demonstration When you turn on the power for the first time (or [FACTORY RESET] is set to [YES] , see page5), the display shows: “SEL LANGUAGE” “PRESS” “VOLUME KNOB” 1 Turn the volume knob to select [ENG] (English) or [SPA] (Spanish), then press the knob. [ENG] is selected for the initial setup. Then, (except for ) the display shows: “CANCEL DEMO” “PRESS” “VOLUME KNOB”. 2 Press the volume knob again. [YES] is selected for the initial setup. 3 Press the volume knob again. “DEMO OFF” appears. Set the clock and date

Press B SRC repeatedly to enter STANDBY. 2 Press the volume knob to enter [FUNCTION]

3 Turn the volume knob to select an item (see the following table), then press the knob. 4 Repeat step 3 until the desired item is selected or activated. 5 Press and hold to exit. To return to the previous setting item, press

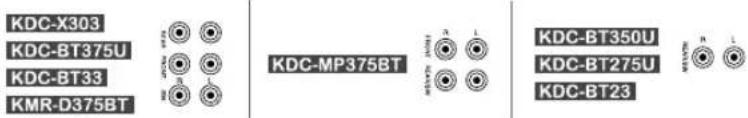

[REAR]/[SUB-W]: Selects whether rear speakers or a subwoofer are connected to the line out terminals on the rear (through an external amplifier). (Page 41)

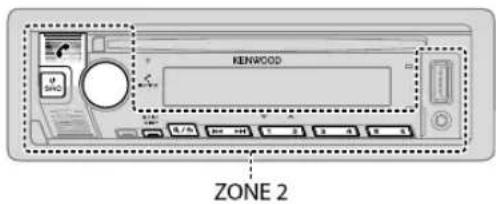

• [ZONE 2] illumination changes to light blue color when you enter [FUNCTION], irregardless of the [EASY MENU] setting.

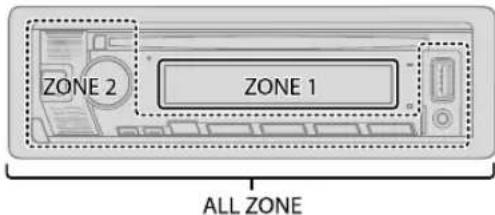

• Refer to the illustration on page 28 for zone identification. [TUNER SETTING] [PRESET TYPE] [NORMAL]: Memorizes one station for each preset button in each band (FM1/FM2/FM3/AM). ; [MIX]: Memorizes one station or SiriusXM channel for each preset button, regardless of the selected band or SiriusXM channel. [SYSTEM] [KEY BEEP] [ON]: Activates the keypress tone. ; [OFF]: Deactivates. [SOURCE SELECT] [PANDORA SRC] [ON]: Enables PANDORA/PANDORA BT in source selection. ; [OFF]: Disables. (Page 11) [IHEART SRC] [ON]: Enables IHEARTRADIO in source selection. ; [OFF]: Disables. (Page 12) [SPOTIFY SRC] [ON]: Enables SPOTIFY/SPOTIFY BT in source selection. ; [OFF]: Disables. (Page 13) [BUILT-IN AUX] [ON]: Enables AUX in source selection. ; [OFF]: Disables. (Page 10) [CD READ] [1]: Automatically distinguishes between audio file disc and music CD. ; [2]: Forces to play as a music CD. No sound can be heard if an audio file disc is played.

See page 30 for details.

[UPDATE SYSTEM] [F/W UP xxxx] [YES]: Starts upgrading the firmware. ; [NO]: Cancels (upgrading is not activated). For details on how to update the firmware, visit <www.kenwood.com/cs/ce/>. [FACTORY RESET] [YES]: Resets the settings to default (except the stored station). ; [NO]: Cancels. [CLOCK] [CLOCK DISPLAY] (Except for ) [ON]: The clock time is shown on the display even when the unit is turned off. ; [OFF]: Cancels. [ENGLISH] Select the display language for [FUNCTION] menu and music information if applicable. By default, [ENGLISH] is selected. [ESPANOL] Register the marine remote ID (for ) Applicable only when you connect KENWOOD Marine Remote Control unit (KCA-RC55MR, optional accessory) to this unit.

• For connection, see “Connecting external components” on page 41.

• Refer also to the supplied instruction manual of the KENWOOD Marine Remote Control unit for more information. JS_KWD_KDC_X303_KN_EN_6th.indd 5JS_KWD_KDC_X303_KN_EN_6th.indd 5 4/6/2018 11:26:38 AM4/6/2018 11:26:38 AM6 ENGLISH Data Size: B6L (182 mm x 128 mm)Book Size: B6L (182 mm x 128 mm) RADIO

• “ST” lights up when receiving an FM stereo broadcast with sufficient signal strength.

• The unit switches to FM alarm automatically when receiving an alarm signal from FM broadcast. Search for a station

Press B SRC repeatedly to select RADIO. 2 Press BAND repeatedly (or press #FM+/

AM– on the remote control) to select FM1/FM2/FM3/AM. 3 Press S / T (or press S / T (+) on the remote control) to search for a station. You can store up to 18 stations for FM and 6 stations for AM.

• To store a station: Press and hold one of the number buttons (1 to 6).

• To select a stored station: Press one of the number buttons (1 to 6) (or press one of the number buttons (1 to 6) on the remote control). Direct Access Tuning (using the remote control) 1 Press DIRECT to enter Direct Access Tuning. 2 Press the number buttons to enter a station frequency. 3 Press ENT IW to search for a station.

• To cancel, press or DIRECT.

• If no operation is done for 10 seconds after step 2, Direct Access Tuning is automatically canceled. GETTING STARTED Preparation: Press B SRC repeatedly to enter STANDBY, then press the volume knob to enter [FUNCTION]

Remote control ID list is displayed.

[YES] indicates that this ID is already registered.

[NO] indicates that this ID is available. 2 Turn the volume knob to select an available ID [REMID1]

• Press ENTER to register as [REM ID1]

• Press SRC to register as [REM ID2]

• Press DISP to register as [REM ID3]

Once the ID is registered, “COMPLETED” appears. To delete the registered ID 1 Turn the volume knob to select an item, then press the knob. [SYSTEM] [REM SETTING]

2 Turn the volume knob to select the ID to delete [ID1 DELETE]

[ID3 DELETE] , then press the knob. 3 Turn the volume knob to select [YES] to delete the selected ID, and select [NO] to cancel.

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press and hold to exit. To return to the previous setting item, press

Default: [XX] [TUNER SETTING] [SEEK MODE] Selects the searching method for S / T buttons when pressed. [AUTO1]: Automatically search for a station. ; [AUTO2]: Search for a preset station. ; [MANUAL]: Manually search for a station. [AUTO MEMORY] [YES]: Automatically starts memorizing 6 stations with good reception. ; [NO]: Cancels.

• Selectable only if [NORMAL] is selected for [PRESET TYPE]. (Page 5) [MONO SET] [ON]: Improves the FM reception, but the stereo effect will be lost. ; [OFF]: Cancels. [NEWS SET] (For ) [ON]: The unit will temporarily switch to News Programme if available. ; [OFF]: Cancels. [REGIONAL] (For ) [ON]: Switches to another station only in the specific region using the “AF” control. ; [OFF]: Cancels. [AF SET] (For ) [ON]: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor. ; [OFF]: Cancels. RADIO [TI] [ON]: Allows the unit to temporarily switch to Traffic Information if available (“TI” lights up). ; [OFF]: Cancels. [PTY SEARCH] (For / / / /

to start searching. [CLOCK] [TIME SYNC] [ON]: Synchronizes the unit’s time to the Radio Broadcast Data System/ Radio Data System station time. ; [OFF]: Cancels.

[PTY SEARCH] is selectable only when the band is FM1/FM2/FM3.

• If the volume is adjusted during reception of traffic information or news bulletin, the adjusted volume is memorized automatically. It will be applied the next time traffic information or news bulletin is turned on. JS_KWD_KDC_X303_KN_EN_6th.indd 7JS_KWD_KDC_X303_KN_EN_6th.indd 7 4/6/2018 11:26:38 AM4/6/2018 11:26:38 AM8 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) CD/USB/iPod/ANDROID To On the faceplate On the remote control Play back/pause Press 6 IW. Press ENT IW. Reverse/Fast-forward*4 Press and hold S / T. Press and hold S / T (+). Select a track/file Press S / T. Press S / T (+). Select a folder*5 Press 2 / 1 . Press #FM+/ AM–. Repeat play*4*6 Press 4 repeatedly. [TRACK REPEAT]

FLAC file [FILE REPEAT]

[REPEAT OFF] : iPod Random play*4*6 Press 3 repeatedly. [DISC RANDOM]

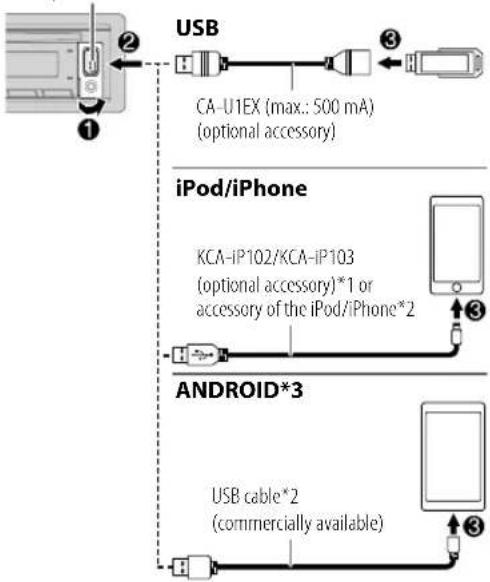

[RANDOM OFF] : MP3/WMA/AAC/WAV/FLAC file or iPod Press and hold 3 to select [ALL RANDOM] .*7 *1 KCA-iP102: 30-pin type, KCA-iP103: Lightning type *2 Do not leave the cable inside the car when not used. *3 You can control Android device using the Android device itself via other media player application installed in the Android device. *4 Not applicable for ANDROID. *5 For CD: Only for MP3/WMA/AAC files. This does not work for iPod/ANDROID. *6 For iPod: Applicable only when [MODE OFF] is selected. (Page 9) *7 For CD: Only for MP3/WMA/AAC files. Start playback The source changes automatically and playback starts.

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Select music drive While in USB source, press 5 repeatedly. Stored songs in the following drive will be played back.

• Selected internal or external memory of a smartphone (Mass Storage Class).

• Selected drive of a multiple drive device. Settings to use KENWOOD Remote application KENWOOD Remote application is designed to control the KENWOOD car receiver’s operations from the iPhone/iPod (via USB input terminal).

• For / / / , “R.APP” indicator on the display window lights up when KENWOOD Remote application is connected. Preparation:

• Install the latest version of KENWOOD Remote application on your device before connecting.

• For more information, visit <www.kenwood.com/cs/ce/>. You can make the settings in the same way as connection via Bluetooth. (Page23) Listen to TuneIn Radio/TuneIn Radio Pro While listening to TuneIn Radio or TuneIn Radio Pro, connect the iPod/ iPhone to the USB input terminal of the unit.

• The unit will output the sound from these applications. Select control mode While in iPodUSB source (or iPodBT source), press 5 repeatedly. [MODE ON] : Control iPod using the iPod itself. However, you can still perform play/pause, file skip, fast-forward or fast-reverse from this unit. [MODE OFF] : Control iPod from this unit. Select a file from a folder/list For iPod, applicable only when [MODE OFF] is selected. 1 Press . 2 Turn the volume knob to select a folder/list, then press the knob. 3 Turn the volume knob to select a file, then press the knob. Quick search (applicable only for CD and USB source) If you have many files, you can search through them quickly. Turn the volume knob quickly to browse through the list quickly. Skip search (applicable only for iPod USB source or iPod BT source) Press S / T to search at a preset skip search ratio. (Page 10)

• Pressing and holding S / T searches at a 10% ratio. Alphabet search (applicable only for iPodUSB source or iPod BT source) You can search for a file according to the first character. 1 Turn the volume knob quickly to enter character search. 2 Turn the volume knob to select the character.

” to search for a character other than A to Z, 0 to 9. 3 Press S / T to move to the entry position.

• You can enter up to 3 characters. 4 Press the volume knob to start searching.

• Not available if Random Play is selected.

• Not applicable for iPod USB and ANDROID source. Other settings

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item, press

Default: [XX] [USB] [MUSIC DRIVE] [DRIVE CHANGE]: The next drive ([DRIVE 1] to [DRIVE 4]) is selected automatically and playback starts. Repeat steps 1 to 3 to select the following drives. [SKIP SEARCH] [0.5%]/[1%]/[5%]/[10%]: While listening to iPod USB source (or iPod BT source), selects the skip search ratio over the total files. Preparation:

• Select [ON] for [BUILT-IN AUX]

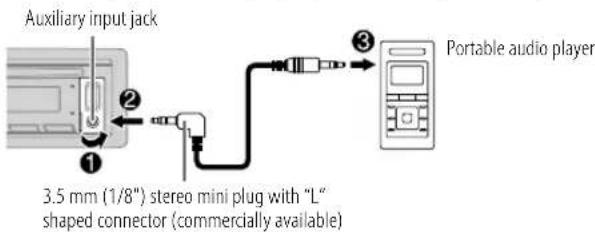

Connect a portable audio player (commercially available). Portable audio player

3.5 mm (1/8") stereo mini plug with “L”

shaped connector (commercially available) Auxiliary input jack 2 Press B SRC repeatedly to select AUX. 3 Turn on the portable audio player and start playback. Set the AUX name While listening to a portable audio player connected to the unit... 1 Press the volume knob to enter [FUNCTION]

[TV] 5 Press and hold to exit. To return to the previous setting item, press

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Pandora® Preparation: Install the latest version of the Pandora application on your device (iPhone/iPod touch), then create an account and log in to Pandora.

• Select [ON] for [PANDORASRC]

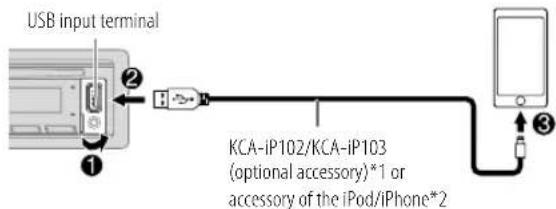

Start up the Pandora application on your device. 2 Connect your device to the USB input terminal. USB input terminal KCA-iP102/KCA-iP103 (optional accessory)*1 or accessory of the iPod/iPhone*2 3 Press B SRC repeatedly to select PANDORA. Broadcast starts automatically. To On the faceplate On the remote control Play back/pause Press 6 IW. Press ENT IW. Skip a track Press T. Press T (+). Select thumbs up or thumbs down*3 Press 2 / 1 . Press #FM+/ AM–. *1 KCA-iP102: 30-pin type, KCA-iP103: Lightning type *2 Do not leave the cable inside the car when not used. *3 If thumbs down is selected, the current track is skipped. Create and store a new station

[FROM TRACK] , then press the knob. A new station is created based on the current artist or current song. 4 Press and hold one of the number buttons (3, 4 or 5) to store. To select a stored station: Press one of the number buttons (3, 4 or 5). Search for a registered station

Press . 2 Turn the volume knob to select an item, then press the knob. [SORT BYDATE] : According to the registered date

: By alphabetical order 3 Turn the volume knob (or press J/K on the remote control) to select the desired station. 4 Press the volume knob (or press ENT IW on the remote control) to confirm. To cancel, press and hold . Bookmark current song information Press and hold the volume knob. “BOOKMARKED” appears and the information is stored to your device.

• The bookmark is available on your Pandora account but not on this unit. Delete a station While listening to PANDORA... 1 Press . 2 Turn the volume knob to select [STATION DEL] , then press the knob. 3 Turn the volume knob to select

• Select [ON] for [IHEART SRC]

Start up the iHeartAuto application on your device. 2 Connect your device to the USB input terminal. USB input terminal KCA-iP102/KCA-iP103 (optional accessory)*1 or accessory of the iPod/iPhone*2 3 Press B SRC repeatedly to select IHEARTRADIO. Broadcast starts automatically *1 KCA-iP102: 30-pin type, KCA-iP103: Lightning type *2 Do not leave the cable inside the car when not used. To On the faceplate On the remote control Play back/pause Press 6 IW. Press ENT IW. Skip a track for custom station Press T. Press T (+). Select thumbs up or thumbs down Press 2 / 1 . ( Not available ) Create a new/custom station Press and hold 1. ( Not available ) Scan for live station 1 Press and hold 2 to start scanning. 2 Press and hold 2 again to listen to the station. ( Not available ) Search and store a station

Press . 2 Turn the volume knob to select a category, then press the knob. 3 Turn the volume knob (or press J/K on the remote control) to select the desired station. 4 Press the volume knob (or press ENT IW on the remote control) to confirm. When a city list appears, you can search cities in alphabetical order by turning the volume knob quickly. To cancel, press and hold

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Spotify Preparation: Install the latest version of the Spotify application on your device (iPhone/ iPod touch), then create an account and log in to Spotify.

• Select [ON] for [SPOTIFY SRC]

Start up the Spotify application on your device. 2 Connect your device to the USB input terminal. USB input terminal KCA-iP102/KCA-iP103 (optional accessory)*1 or accessory of the iPod/iPhone*2 3 Press B SRC repeatedly to select SPOTIFY. Broadcast starts automatically To On the faceplate On the remote control Play back/pause Press 6 IW. Press ENT IW. Skip a track Press S*3 / T. Press S*3 / T (+). Select thumbs up or thumbs down *4 Press 2 / 1 . Press #FM+/ AM–. Start radio Press and hold 5. ( Not available ) Repeat play*5 Press 4 repeatedly. [REPEAT ALL], [REPEAT ONE]*3, [REPEATOFF] ( Not available ) To On the faceplate On the remote control Random play*5 Press 3 repeatedly *3.

[SHUFFLE ON], [SHUFFLEOFF]

( Not available ) *1 KCA-iP102: 30-pin type, KCA-iP103: Lightning type *2 Do not leave the cable inside the car when not used. *3 Available for premium account users only. *4 This feature is available for tracks in Radio only. If thumbs down is selected, the current track is skipped. *5 Available for tracks in Playlists only. Save favorite song information While listening to the Radio on Spotify... Press and hold the volume knob. “SAVED” appears and the information is stored to “Your Music” or “Your Library” on your Spotify account. To unsave, repeat the same procedure. “REMOVED” appears and the information is removed from “Your Music” or “Your Library” on your Spotify account. Search for a song or station

Press . 2 Turn the volume knob to select a list type, then press the knob. The list types displayed differ depending on the information sent from Spotify. 3 Turn the volume knob (or press J/K on the remote control) to select the desired song or station. 4 Press the volume knob (or press ENT IW on the remote control) to confirm. You can browse through the list quickly by turning the volume knob quickly. To cancel, press and hold

Press B SRC repeatedly to select SIRIUSXM. 2 Press BAND repeatedly to select a band. 3 Press . “ ” lights up. 4 Turn the volume knob to select a category, then press the knob. If “ALL CHANNELS” is selected, all the available channels will be shown. 5 Turn the volume knob to select a channel, then press the knob. (or) Press S / T to search for a channel manually.

• Pressing and holding S / T changes the channel rapidly. If a locked channel or a mature channel is selected, a pass code input screen appears. Enter the pass code to receive the channel. (Page16) Direct Access Tuning (using the remote control) 1 Press DIRECT to enter Direct Access Tuning. 2 Press the number buttons to enter a channel number. 3 Press ENT IW to search for the channel.

• To cancel, press or DIRECT.

• If no operation is done for 10 seconds after step 2, Direct Access Tuning is automatically canceled. Only SiriusXM® brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required. For more information, visit <www.siriusxm.com>. Preparation: 1 Connect the optional SiriusXM Vehicle Tuner (commercially available). Antenna Expansion port on the rear panel SiriusXM Vehicle Tuner 2 Check your Radio ID for activation. The SiriusXM Radio ID is required for activation and can be found by tuning to Channel 0 as well as on the label found on the SiriusXM Vehicle Tuner and its packaging. The Radio ID does not include the letters I, O, S or F. 3 Activate the subscription. For users in the U.S.A.: Online: Go to <www.siriusxm.com> Phone: Call 1-866-635-2349 For users in Canada: Online: Go to <www.siriusxm.ca/subscribe-now> Phone: Call 1-877-438-9677 4 Press B SRC repeatedly to select SIRIUSXM to start updating. JS_KWD_KDC_X303_KN_EN_6th.indd 14JS_KWD_KDC_X303_KN_EN_6th.indd 14 4/6/2018 11:26:40 AM4/6/2018 11:26:40 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) SmartFavorites and TuneStart™ User stored channels are recognized as SmartFavorite channels*. The SiriusXM Vehicle Tuner automatically buffers the broadcast content in the background.

• SmartFavorites feature is available with SXV200 or later SiriusXM Vehicle Tuner.

• SXV300 (and later) SiriusXM Vehicle Tuner can use all 18 stored channels as SmartFavorites. The SXV200 SiriusXM Vehicle Tuner can use 6 stored channels from the current band as SmartFavorites. When you select a SmartFavorite channel, you can rewind and replay up to 30 minutes of any of the missed news, talk, sports or music content.

• Playback starts from the beginning of the song if [TUNE START] is set to [ON] (page 16) for most music channels stored as a SmartFavorite. Press one of the number buttons (1 to 6) to select a stored channel. TuneScan™ You can get a short preview of the songs that you have missed on each of your SmartFavorites music channels or a music channel currently tuned into. Press and hold BAND to start scanning the first 6 seconds of the recorded music contents.

• To listen to the current song, press the volume knob to stop scanning. The unit continues playing the current song.

• To select the previous/next song, press S / T.

• To cancel scanning, press and hold the volume knob. Playback returns to the channel before you entered TuneScan. SiriusXM® Radio (for / / / ) SiriusXM Keymode Press and hold the volume knob to change the keymode (channel or replay). (Default: Channel keymode)

” lights up when replay keymode is selected. When channel keymode is selected... To On the faceplate On the remote control Select a channel Press S / T. Press S / T (+). Change a channel rapidly Press and hold S /

Press and hold S / T (+). Store a channel of the current band Press and hold one of the number buttons (1 to 6). ( Not available ) Select a stored channel of the current band Press one of the number buttons (1 to 6). Press one of the number buttons (1 to 6). When replay keymode is selected... To On the faceplate On the remote control Play back/pause Press 6 IW. Press ENT IW. Skip backward/ forward Press S / T. Press S / T (+). Rewind/Fast- forward Press and hold S /

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press and hold to exit. To return to the previous setting item, press

Default: [XX] [SIRIUS XM] [SEEK MODE] Selects the tuning method for S / T buttons when pressed. [CHANNEL]: Manually search for a channel. ; [PRESET]: Search for a preset channel of the selected band. [CHANNEL LOCK] To unlock settings:

to move to the entry position.

Repeat steps 1 and 2 to enter the current pass code. (Initial pass code is 0000.)

Press the volume knob to confirm. [CODESET]

to move to the entry position.

Repeat steps 1 and 2 to enter a new 4-digit pass code.

Press the volume knob to confirm.

Repeat steps 1 to 4 to reconfirm the pass code.

• Make a note of the new pass code to enter channel lock settings for next time. [LOCK SETTING] [MATURE CH]: Selects the SiriusXM-defined lock setting. ; [USER DEFINED]: Selects the individual channels the user wants to lock. ; [OFF]: Cancels. [CHANNEL EDIT]*1

Turn the volume knob to select a channel you want to lock, then press the knob. “L” appears in front of the channel number.

Press and hold to exit. [CHANNEL CLEAR]*1 [YES]: Clears all the locked channels. ; [NO]: Cancels. [TUNE START]*2 [ON]: All qualified music channels in the SmartFavorites will start playback from the beginning of the song. ; [OFF]: Cancels. [SIGNAL LEVEL] Shows the strength ([NO SIGNAL]/[WEAK]/[GOOD]/[STRONG]) of the current received signal. [BUFFER USAGE] Shows the memory usage ([0%] to [100%]) for Replay buffer. [SXM RESET] [YES]: Resets all SiriusXM settings to default. ; [NO]: Cancels. *1 Displayed only when [LOCK SETTING] is set to [USER DEFINED]. *2 Available only if the connected SiriusXM Vehicle Tuner is SXV200 or later that supports SmartFavorites. SiriusXM® Radio (for / / / ) JS_KWD_KDC_X303_KN_EN_6th.indd 16JS_KWD_KDC_X303_KN_EN_6th.indd 16 4/6/2018 11:26:40 AM4/6/2018 11:26:40 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Depending on the operating system and the firmware version of your mobile phone, Bluetooth features may not work with this unit. Pair and connect a Bluetooth device for the first time

Press B SRC to turn on the unit. 2 Search and select the name of your receiver (“KDC-X3 ”/“KDC-BT3 ”/“KDC-BT3 /BT2 ”/ “KDC-MP3 ”/“KMR-D3 ”) on the Bluetooth device. “PAIRING” “PASS XXXXXX” “Device name” “PRESS” “VOLUME KNOB” appears on the display.

• For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching. 3 Press the volume knob to start pairing. “PAIRING OK” appears when pairing is completed. Once pairing is completed, Bluetooth connection is established automatically.

• / / / : “BT1” and/or “BT2” indicator on the faceplate lights up.

/ / / : “BT1” and/or “BT2” on the display window lights up.

• This unit supports Secure Simple Pairing (SSP).

• Up to five devices can be registered (paired) in total.

• Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit. To delete the paired device, see [DEVICE DELETE] on page21.

• A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time. However, while in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices. (Page22)

• Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually.

• Refer to the instruction manual of the Bluetooth device for more information. BLUETOOTH® BLUETOOTH — Connection Supported Bluetooth profiles – Hands-Free Profile (HFP) – Advanced Audio Distribution Profile (A2DP) – Audio/Video Remote Control Profile (AVRCP) – Serial Port Profile (SPP) – Phonebook Access Profile (PBAP) Supported Bluetooth codecs – Sub Band Codec (SBC) – Advanced Audio Coding (AAC) Connect the microphone Adjust the microphone angle Secure using cord clamps (not supplied) if necessary. Microphone input jack Microphone (supplied) Rear panel JS_KWD_KDC_X303_KN_EN_6th.indd 17JS_KWD_KDC_X303_KN_EN_6th.indd 17 4/6/2018 11:26:40 AM4/6/2018 11:26:40 AM18 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Auto Pairing When you connect iPhone/iPod touch to the USB input terminal, pairing request (via Bluetooth) is automatically activated. Press the volume knob to pair once you have confirmed the device name. Automatic pairing request is activated only if: – Bluetooth function of the connected device is turned on.

[AUTO PAIRING] is set to [ON] . (Page21) BLUETOOTH — Mobile phone Receive a call When there is an incoming call:

ZONE 2 illuminates in green color and flashes.

• The unit answers the call automatically if [AUTO ANSWER] is set to a selected time. (Page19) During a call:

ZONE 1 illuminates according to the settings made for [DISPLAY] (page

29) and ZONE 2 illuminates in green color.

• If you turn off the unit or detach the faceplate, Bluetooth is disconnected. The following operations may differ or be unavailable depending on the connected phone. To On the faceplate On the remote control First incoming call... Answer a call Press or the volume knob or one of the number buttons (1 to 6). Press

While talking on the first incoming call... Answer another incoming call and hold the current call Press . Press . Reject another incoming call Press

While having two active calls... End current call and activate held call Press

Swap between the current call and held call Press . Press . Adjust the phone volume*1 [00]

Turn the volume knob during a call. Press VOL *2 or VOL during a call. Switch between hands- free and private talk modes*3 Press 6 IW during a call. ( Not available ) *1, *2, *3: See page 19. BLUETOOTH® JS_KWD_KDC_X303_KN_EN_6th.indd 18JS_KWD_KDC_X303_KN_EN_6th.indd 18 4/6/2018 11:26:41 AM4/6/2018 11:26:41 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) *1 This adjustment will not affect the volume of the other sources. *2 Press and hold VOL to continuously increase the volume to 15. *3 Operations may vary according to the connected Bluetooth device. Improve the voice quality While talking on the phone... 1 Press the volume knob to enter [FUNCTION]

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item, press

Default: [XX] [MIC GAIN] [–10] to [+10] ([–4]): The sensitivity of the microphone increases as the number increases. [NR LEVEL] [–5] to [+5] ([0]): Adjust the noise reduction level until the least noise is being heard during a phone conversation. [ECHO CANCEL] [–5] to [+5] ([0]): Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation. Make the setting for answering a call

[30] , or select [OFF] to cancels. (Default: [OFF]

5 Press and hold to exit. To return to the previous setting item, press

BLUETOOTH® Make a call You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature. 1 Press to enter Bluetooth mode. “(First device name)” appears.

• If two Bluetooth phones are connected, press again to switch to the other phone. “(Second device name)” appears. 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press and hold to exit. To return to the previous setting item, press

[CALL HISTORY] (Applicable only if the phone supports PBAP.)

• “I” indicates call received, “O“ indicates call made, “M” indicates call missed.

• Press DISP to change the display category (NUMBER or NAME).

• “NO DATA” appears if there is no recorded call history or call number.

Turn the volume knob quickly to enter alphabet search mode (if the phonebook contains many contacts). The first menu (ABCDEFGHIJK) appears.

, then press the knob. Select “1” to search with numbers and select “ ” to search with symbols.

• The phonebook of the connected phone is automatically transferred to the unit when pairing.

• Contacts are categorized as: HM (home), OF (office), MO (mobile), OT (other), GE (general)

• This unit can display only non-accent letters. (Accent letters such as “Ú” are shown as “U”.) [NUMBER DIAL]

Turn the volume knob to select a number (0 to 9) or character ( , #, +).

to move the entry position. Repeat steps 1 and 2 until you finish entering the phone number.

Press the volume knob to call. (or using the remote control)

Press the number buttons (0 to 9) to enter the phone number.

Press to call. [VOICE] Speak the name of the contact you want to call or the voice command to control the phone functions. (See “Make a call using voice recognition”.) [LOW]/[MID]/[FULL]: Shows the strength of the battery.* [NO SIGNAL]/[LOW]/[MID]/[MAX]: Shows the strength of the current received signal.*

• Functionality depends on the type of the phone used. Make a call using voice recognition

Press and hold to activate the voice recognition of the connected phone. 2 Speak the name of the contact you want to call or the voice command to control the phone functions.

• Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details. Settings in memory Store a contact in memory You can store up to 6 contacts into the number buttons (1 to 6). 1 Press to enter Bluetooth mode. 2 Turn the volume knob to select [CALL HISTORY]

[NUMBERDIAL] , then press the knob. 3 Turn the volume knob to select a contact or enter a phone number. If a contact is selected, press the volume knob to show the phone number. 4 Press and hold one of the number buttons (1 to 6). “STORED” appears when the contact is stored. To erase a contact from the preset memory, select [NUMBER DIAL] in step 2 and store a blank number. Make a call from memory

Press to enter Bluetooth mode. 2 Press one of the number buttons (1 to 6). 3 Press the volume knob to call. “NO MEMORY” appears if there is no contact stored. JS_KWD_KDC_X303_KN_EN_7th.indd 20JS_KWD_KDC_X303_KN_EN_7th.indd 20 4/6/2018 11:41:26 AM4/6/2018 11:41:26 AMENGLISH

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press and hold to exit. To return to the previous setting item, press

Default: [XX] [BT MODE] [PHONE SELECT]* Selects the phone or audio device to connect or disconnect.

” appears in front of the device name when connected.

” appears in front of the current playback audio device. [AUDIO SELECT]* [DEVICE DELETE]

Turn the volume knob to select a device to delete, then press the knob.

to move the entry position. Repeat steps 1 and 2 until you finish entering the PIN code.

Press the volume knob to confirm. [RECONNECT] [ON]: The unit is automatically reconnected when the last connected Bluetooth device is within the connectable range. ; [OFF]: Cancels. [AUTO PAIRING] [ON]: The unit is automatically paired with the supported Bluetooth device (iPhone/iPod touch) when it is connected through USB input terminal. Depending on the operating system of the connected device, this function may not work. ; [OFF]: Cancels.

• You can only connect a maximum of two Bluetooth phones and one Bluetooth audio device at any time. BLUETOOTH® [INITIALIZE] [YES]: Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.). ; [NO]: Cancels. Bluetooth test mode You can check the connectivity of the supported profile between the Bluetooth device and the unit.

• Make sure there is no Bluetooth device paired. 1 Press and hold . “PLEASE PAIR YOUR PHONE PIN 0000” appears on the display. 2 Search and select the name of your receiver (“KDC-X3 ”/“KDC-BT3 ”/ “KDC-BT3 /BT2 ”/“KDC-MP3 ”/“KMR-D3 ”) on the Bluetooth device. 3 Operate the Bluetooth device to confirm pairing. “TESTING” flashes on the display. The connectivity result (OK or NG) appears after the test. PAIRING: Pairing status HF CNT: Hands-Free Profile (HFP) compatibility AUD CNT: Advanced Audio Distribution Profile (A2DP) compatibility PB DL: Phonebook Access profile (PBAP) compatibility To cancel test mode, press and hold B SRC to turn off the unit. JS_KWD_KDC_X303_KN_EN_6th.indd 21JS_KWD_KDC_X303_KN_EN_6th.indd 21 4/6/2018 11:26:42 AM4/6/2018 11:26:42 AM22 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) BLUETOOTH — Audio While in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices. Audio player via Bluetooth

Press B SRC repeatedly (or press SRC on the remote control) to select BTAUDIO.

• Pressing enters BT AUDIO directly. 2 Operate the audio player via Bluetooth to start playback. To On the faceplate On the remote control Play back/pause Press 6 IW. Press ENT IW. Select group or folder Press 2 / 1 . Press #FM+/ AM–. Reverse skip/ Forward skip Press S / T. Press S / T (+). Reverse/Fast- forward Press and hold S / T. Press and hold S / T (+). BLUETOOTH® To On the faceplate On the remote control Repeat play Press 4 repeatedly. [ALLREPEAT], [FILEREPEAT], [REPEATOFF] ( Not available ) Random play Press and hold 3 to select [ALLRANDOM]

Press 3 to select [RANDOMOFF]. ( Not available ) Select a file from a folder/list Refer to “Select a file from a folder/list” on page9. ( Not available ) Switch between connected Bluetooth audio devices Press 5.* ( Not available )

• Pressing the “Play” key on the connected device itself also causes switching of sound output from the device. Operations and display indications may differ according to their availability on the connected device. JS_KWD_KDC_X303_KN_EN_6th.indd 22JS_KWD_KDC_X303_KN_EN_6th.indd 22 4/6/2018 11:26:42 AM4/6/2018 11:26:42 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) [ANDROID LIST]* Selects the Android smartphone to use from the list. [STATUS] Shows the status of the selected device. [IOS CONNECTED]: You are able to use the application using the iPhone/ iPod connected via Bluetooth or USB input terminal. [IOS NOT CONNECTED]: No IOS device is connected to use the application. [ANDROID CONNECTED]: You are able to use the application using the Android smartphone connected via Bluetooth. [ANDROID NOT CONNECTED]: No Android device is connected to use the application.

• Displayed only when [ANDROID] of [SELECT] is set to [YES]. Listen to iPhone/iPod via Bluetooth You can listen to the songs on the iPhone/iPod via Bluetooth on this unit. Press B SRC repeatedly to select iPodBT.

• You can operate the iPod/iPhone in the same way as iPod/iPhone via USB input terminal. (Page8)

• If you plug in an iPhone/iPod to the USB input terminal while listening to iPodBT source, the source automatically changes to iPodUSB. Press B SRC to select iPodBT if the device is still connected via Bluetooth. BLUETOOTH® Settings to use KENWOOD Remote application KENWOOD Remote application is designed to control the KENWOOD car receiver’s operations from the iPhone/iPod (via Bluetooth or via USB input terminal) or Android smartphone (via Bluetooth).

• For / / / , “R.APP” indicator on the display window lights up when KENWOOD Remote application is connected. Preparation:

• Install the latest version of KENWOOD Remote application on your device before connecting.

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item, press

Default: [XX] [REMOTE APP] [SELECT] Selects the device (IOS or ANDROID) to use the application. [IOS] [YES]: Selects iPhone/iPod to use the application via Bluetooth or connected via USB input terminal. ; [NO]: Cancels. If IOS is selected, select iPod BT source (or iPod USB source if your iPhone/iPod is connected via USB input terminal) to activate the application.

• The connectivity of the application will be interrupted or disconnected if: – You change from iPod BT source to any playback source connected via the USB input terminal. – You change from iPod USB source to iPod BT source. [ANDROID] [YES]: Selects Android smartphone to use the application via Bluetooth. ; [NO]: Cancels. JS_KWD_KDC_X303_KN_EN_6th.indd 23JS_KWD_KDC_X303_KN_EN_6th.indd 23 4/6/2018 11:26:42 AM4/6/2018 11:26:42 AM24 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Internet radio via Bluetooth You can listen to internet radio (Pandora, iHeartRadio and Spotify) on the iPhone/iPod touch/Android device via Bluetooth on this unit.

• Make sure the USB input terminal is not connected to any device. Listen to Pandora Preparation: Select [ON] for [PANDORA SRC]

[SOURCE SELECT] . (Page5) 1 Start up the Pandora application on your device. 2 Connect your device via Bluetooth connection. (Page17) 3 Press B SRC repeatedly to select PANDORA (for iPhone/iPod) or PANDORA BT (for Android device). The source switches and broadcast starts automatically.

• You can operate Pandora in the same way as Pandora via USB input terminal. (Page11) Listen to iHeartRadio Preparation: Select [ON] for [IHEART SRC]

[SOURCE SELECT] . (Page5) 1 Start up the iHeartAuto application on your device. 2 Connect your device via Bluetooth connection. (Page17) 3 Press B SRC repeatedly to select IHEARTRADIO. The source switches and broadcast starts automatically.

• You can operate iHeartRadio in the same way as iHeartRadio via USB input terminal. (Page12) BLUETOOTH® Listen to Spotify Preparation: Select [ON] for [SPOTIFY SRC]

[SOURCE SELECT] . (Page5) 1 Start up the Spotify application on your device. 2 Connect your device via Bluetooth connection. (Page17) 3 Press B SRC repeatedly to select SPOTIFY (for iPhone/iPod) or SPOTIFY BT (for Android device). The source switches and broadcast starts automatically.

• You can operate Spotify in the same way as Spotify via USB input terminal. (Page13) JS_KWD_KDC_X303_KN_EN_6th.indd 24JS_KWD_KDC_X303_KN_EN_6th.indd 24 4/6/2018 11:26:42 AM4/6/2018 11:26:42 AMENGLISH

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. (or using the remote control) 1 Press AUD to enter [AUDIO CONTROL]

Default: [XX] [AUDIO CONTROL] [SUB-W LEVEL] [LEVEL –50] to [LEVEL +10] ([LEVEL 0]): Adjusts the subwoofer output level. [EASYEQ] Adjusts your own sound settings.

• The settings are stored to [USER] in [PRESET EQ].

• The settings made may affect the current settings of [MANUAL EQ]. [SW]: [LEVEL –50] to [LEVEL +10] (Default: [LEVEL 0] [BASS]: [LEVEL –9] to [LEVEL +9] [LEVEL 0] [MID]: [LEVEL –9] to [LEVEL +9] [LEVEL 0] [TRE]: [LEVEL –9] to [LEVEL +9] [LEVEL 0]) [MANUAL EQ] Adjusts your own sound settings for each source.

• The settings are stored to [USER] in [PRESET EQ].

• The settings made may affect the current settings of [EASYEQ]. [62.5HZ] [LEVEL] [LEVEL–9] to [LEVEL+9] ([LEVEL0]): Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.) [BASS EXTEND] [ON]: Turns on the extended bass. ; [OFF]: Cancels. [100HZ]/[160HZ]/ [250HZ]/[400HZ]/ [630HZ]/[1KHZ]/ [1.6KHZ]/[2.5KHZ]/ [4KHZ]/[6.3KHZ]/ [10KHZ]/[16KHZ] [LEVEL –9] to [LEVEL +9] ([LEVEL 0]): Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.) [Q FACTOR] [1.35]/[1.50]/[2.00]: Adjusts the quality factor. [PRESET EQ] [NATURAL]/[ROCK]/[POPS]/[EASY]/[TOP40]/[JAZZ]/[POWERFUL]/ [USER]: Selects a preset equalizer suitable to the music genre. (Select [USER] to use the settings made in [EASY EQ] or [MANUAL EQ].) [BASS BOOST] [LV1] to [LV5]: Selects your preferred bass boost level. ; [OFF]: Cancels. [LOUDNESS] [LV1]/[LV2]: Selects your preferred low or high frequencies boost to produce a well-balanced sound at low volume. ; [OFF]: Cancels. [SUBWOOFER SET] [ON]: Turns on the subwoofer output. ; [OFF]: Cancels. [FADER] [R15] to [F15] ([0]): Adjusts the front and rear speaker output balance. [BALANCE] [L15] to [R15] ([0]): Adjusts the left and right speaker output balance. [VOLUME OFFSET] [–15] to [+6] ([0]): Presets the initial volume level of each source by comparing to the FM volume level. (Before adjustment, select the source you want to adjust.) JS_KWD_KDC_X303_KN_EN_6th.indd 25JS_KWD_KDC_X303_KN_EN_6th.indd 25 4/6/2018 11:26:42 AM4/6/2018 11:26:42 AM26 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) AUDIO SETTINGS [SOUND EFFECT] [SOUND RECNSTR] (Sound reconstruction) (Not applicable for RADIO source, AUX source and SIRIUS XM source.) [ON]: Creates realistic sound by compensating the high-frequency components and restoring the rise-time of the waveform that are lost in audio data compression. ; [OFF]: Cancels. [SPACE ENHANCE] (Not applicable for RADIO source.) [SML]/[MED]/[LRG]: Virtually enhances the sound space. ; [OFF]: Cancels. [SND REALIZER] [LV1]/[LV2]/[LV3]: Virtually makes the sound more realistic. ; [OFF]: Cancels. [STAGE EQ] [LOW]/[MID]/[HI]: Virtually adjusts the sound position heard from the speakers. ; [OFF]: Cancels. [DRIVE EQ] [ON]: Boosts the frequency to reduce the noise heard from outside the car or running noise of the tyres. ; [OFF]: Cancels. [SPEAKER SIZE] The frequency and slope settings are automatically set for the crossover of the selected speaker. [FRONT] [SIZE] [3.5”]/[4”]/[4.75”]/[5”]/[6.5”]/[6.75”]/[7”]/[4×6]/ [5×7]/[6×8]/[6×9]/[7×10]: Selects according to the connected speaker size for optimum performance. [TWEETER] [SMALL]/[MIDDLE]/[LARGE]: Selects according to the size range of the connected tweeter for optimum performance. ; [NONE]: Not connected. [REAR] [3.5”]/[4”]/[4.75”]/[5”]/[6.5”]/[6.75”]/[7”]/[4×6]/[5×7]/[6×8]/ [6×9]/[7×10]: Selects according to the connected speaker size for optimum performance. ; [NONE]: Not connected. [SUBWOOFER] [6.5”]/[8”]/[10”]/[12”]/[15” OVER]: Selects according to the connected speaker size for optimum performance. ; [NONE]: Not connected. [X ‘ OVER] [TWEETER] [FRQ]

[1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[5KHZ]/

[6.3KHZ]/[8KHZ]/[10KHZ]/[12.5KHZ]: Adjusts the crossover frequency for the tweeter speaker. [GAIN LEFT] [–8] to [0]: Adjusts the output volume of the left tweeter. [GAIN RIGHT] [–8] to [0]: Adjusts the output volume of the right tweeter.

[FRONT HPF] [F-HPF FRQ]

[30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/ [90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/ [220HZ]/[250HZ]: Adjusts the crossover frequency for the selected speakers (high pass filter). ; [THROUGH]: All signals are sent to the selected speakers. [F-HPF SLOPE] [–6DB]/[–12DB]/[–18DB]/[–24DB]: Adjusts the crossover slope. (Selectable only if a setting other than [THROUGH] is selected for [F - HPF FRQ].) [F-HPF GAIN] [–8] to [0]: Adjusts the output volume of the selected speaker. [REAR HPF] [R-HPF FRQ] (Refer to [FRONT HPF] settings above.) [R-HPF SLOPE] [R-HPF GAIN]

[SUBWOOFER LPF] [SW LPF FRQ]

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) AUDIO SETTINGS [SW LPF SLOPE] [–6DB]/[–12DB]/[–18DB]/[–24DB]: Adjusts the crossover slope. (Selectable only if a setting other than [THROUGH] is selected for [SW LPF FRQ].) [SW LPF PHASE] [REVERSE] (180°)/[NORMAL] (0°): Selects the phase of the subwoofer output to be in line with the speaker output for optimum performance.

[–8] to [0]: Adjusts the output volume of the subwoofer. [DTA SETTINGS] For settings, see “Digital Time Alignment settings” on the right column. [CAR SETTINGS]

• (For / / / ) The following item is selectable only if [SWITCH PREOUT] is set to [SUB-W] (page 4):

• The following item is selectable only if [SUBWOOFER SET] is set to [ON] (page25):

• The following item is selectable only if a setting other than [NONE]

selected for [TWEETER]

[X ‘ OVER] Digital Time Alignment settings Digital Time Alignment sets the delay time of the speaker output to create a more suitable environment for your vehicle.

• For more information, see “Determining the value for [DISTANCE] and [GAIN]

[DTA SETTINGS] ” on page 28. [DTA SETTINGS] [POSITION] Selects your listening position (reference point). [ALL]: Not compensating ; [FRONT RIGHT]: Front right seat ; [FRONT LEFT]: Front left seat ; [FRONT ALL]: Front seats [DISTANCE] [0FT] to [20.01FT]: Fine adjust the distance to compensate. (Before making an adjustment, select the speaker you want to adjust.) [GAIN] [–8DB] to [0DB]: Fine adjust the output volume of the selected speaker. (Before making an adjustment, select the speaker you want to adjust.) [DTA RESET] [YES]: Resets the settings ([DISTANCE] and [GAIN]) of the selected [POSITION] to default. ; [NO]: Cancels. [CAR SETTINGS] Identify your car type and rear speaker location in order to make the adjustment for [DTA SETTINGS]. [CAR TYPE] [COMPACT]/[FULL SIZE CAR]/[WAGON]/[MINIVAN]/[SUV]/ [MINIVAN(LONG)]: Selects the type of vehicle. ; [OFF]: Not compensating. [R-SP LOCATION] Selects the location of the rear speakers in your vehicle to calculate the furthest distance from the listening position selected (reference point).

• [DOOR]/[REAR DECK]: Selectable only when [CAR TYPE] is selected as [OFF], [COMPACT], [FULL SIZE CAR], [WAGON] or [SUV].

• [2ND ROW]/[3RD ROW]: Selectable only when [CAR TYPE] is selected as [MINIVAN] or [MINIVAN(LONG)]. JS_KWD_KDC_X303_KN_EN_6th.indd 27JS_KWD_KDC_X303_KN_EN_6th.indd 27 4/6/2018 11:26:42 AM4/6/2018 11:26:42 AM28 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) AUDIO SETTINGS

• Before making an adjustment for [DISTANCE] and [GAIN]

select the speaker you want to adjust: [FRONT LEFT]

[SUBWOOFER] – You can only select [REAR LEFT]

[REAR RIGHT] and [SUBWOOFER] if a setting other than [NONE] is selected for [REAR] and [SUBWOOFER]

[CAR SETTING] is selectable only if a setting other than [NONE] is selected for [REAR]

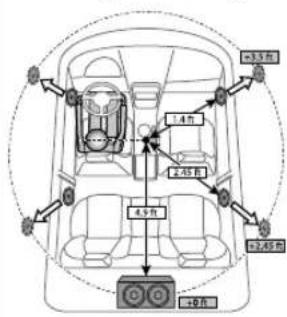

Determining the value for [DISTANCE] and [GAIN] of [DTA SETTINGS] If you specify the distance from the center of the currently set listening position to every speaker, the delay time will be automatically computed and set.

Determines the center of the currently set listening position as the reference point.

Measures the distances from the reference point to the speakers.

Calculates the differences between the distance of the furthest speaker (rear speaker) and other speakers.

Sets the [DISTANCE] calculated in step 3 for individual speakers.

Adjusts [GAIN] for individual speakers. Example: When [FRONT ALL] is selected as the listening position DISPLAY SETTINGS Zone identification for color settings and brightness settings Zone identification for brightness setting Set the dimmer Press and hold DISP (DIM) to turn on or off the dimmer.

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) DISPLAY SETTINGS [DIMMER] Dims the illumination. [ON]: Dimmer is turned on. [OFF]: Dimmer is turned off. [DIMMER TIME]: Set the dimmer on and off time.

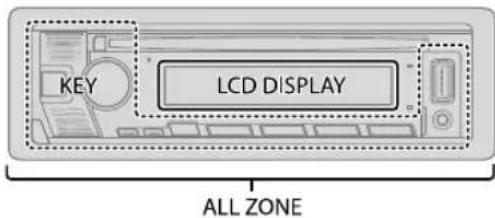

Select a zone. (See the illustration on page 28.)

[LVL00] to [LVL31]: Set the brightness level for the selected zone. [TEXT SCROLL] [ONCE]: Scrolls the display information once. ; [AUTO]: Repeats scrolling at 5-second intervals. ; [OFF]: Cancels. [LEVEL METER] (For / / / ) [ON]: Shows the level meter on the display window (as shown below). ; [OFF]: Cancels. Level meter Other settings

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press and hold to exit. To return to the previous setting item, press

Default: [XX] [DISPLAY] [COLOR SELECT] (For / / / ) Selects illumination colors for [ALL ZONE], [ZONE 1] and [ZONE 2] separately.

Default: / / : [VARIABLE SCAN] : [INITIAL COLOR] To make your own color, select [CUSTOM R/G/B]. The color you have made will be stored in [CUSTOM R/G/B].

Press the volume knob to enter the detailed color adjustment.

to select the color ([R]/[G]/[B]) to adjust.

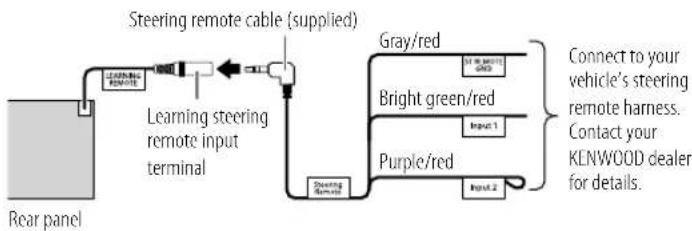

(for ) You can control the unit with the steering remote control keys on your vehicle. After connection, you can configure the control keys according to your preference.

• You can only make this configuration if your vehicle is equipped with the electrical steering remote control.

• If the steering remote control in your car is not compatible, configuration may not be completed and an error message may appear. (Page 35) Make the connection Configure the control keys

Press B SRC repeatedly to enter STANDBY. 2 Press the volume knob to enter [FUNCTION]

[K## NONE] : No function has been assigned. 6 Turn the volume knob to select any key from the key list to assign the function, then press the knob. “PRESS KEY TO ASSIGN K##” appears. 7 Press and hold any control keys on your steering remote control which you want to assign. A list of key functions will appear on the display. [NONE] (default)/ [ATT]

[ENTER] 8 Turn the volume knob to select a function to assign, then press the knob. The selected key function is assigned to the steering remote control key you have selected in step 7. The display returns to the key list as on step 5.

[K## (Function)] : When certain function has been assigned to a key. 9 Repeat steps 6, 7 and 8 to assign other control keys. 10 Press and hold to exit. To reassign the control keys

Press B SRC repeatedly to enter STANDBY. 2 Press the volume knob to enter [FUNCTION]

When [FACTORY RESET] is set to [YES] (page 5), it will also reset the learning steering remote control. Steering remote cable (supplied) Learning steering remote input terminal Rear panel Gray/red Bright green/red Purple/red Connect to your vehicle’s steering remote harness. Contact your KENWOOD dealer for details. JS_KWD_KDC_X303_KN_EN_6th.indd 30JS_KWD_KDC_X303_KN_EN_6th.indd 30 4/6/2018 11:26:43 AM4/6/2018 11:26:43 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) REFERENCES Maintenance Cleaning the unit Wipe off dirt on the faceplate with a dry silicone or soft cloth. Cleaning the connector Detach the faceplate and clean the connector gently with a cotton swab. Be careful not to damage the connector. Handling discs

• Do not touch the recording surface of the disc.

• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.

• Do not use any accessories for the disc.

• Clean from the center of the disc and move outward.

• Clean the disc with a dry silicone or soft cloth. Do not use any solvents.

• When removing a disc from this unit, pull it out horizontally.

• Remove burrs from the center hole and disc edge before inserting a disc. More information For: – Latest firmware updates and latest compatible item list – KENWOOD original application – Any other latest information Visit <www.kenwood.com/cs/ce/>. General

• This unit can only play the following CDs:

• For detailed information and notes about the playable audio files, visit <www.kenwood.com/cs/ce/audiofile/>. Connector (on the reverse side of the faceplate) Playable files

• Playable USB device file system: FAT12, FAT16, FAT32 Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or devices. The AAC (.m4a) file in a CD encoded by iTunes cannot be played on this unit. Unplayable discs

• Discs that are not round.

• Discs with coloring on the recording surface or discs that are dirty.

• Recordable/ReWritable discs that have not been finalized.

• 8 cm CD. Attempting to insert using an adapter may cause malfunction. About USB devices

• You cannot connect a USB device via a USB hub.

• Connecting a cable whose total length is longer than 5 m may result in abnormal playback.

• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1.5 A. About iPod/iPhone

• Via USB input terminal: Made for – iPod touch (5th and 6th generation) – iPod nano (7th generation) – iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X

• Via Bluetooth: Made for – iPod touch (5th and 6th generation) – iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X

• It is not possible to browse video files on the “Videos” menu in [MODE OFF]. JS_KWD_KDC_X303_KN_EN_6th.indd 31JS_KWD_KDC_X303_KN_EN_6th.indd 31 4/6/2018 11:26:43 AM4/6/2018 11:26:43 AM32 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) REFERENCES

• The song order displayed on the selection menu of this unit may differ from that of the iPod/ iPhone.

• You cannot operate iPod if “KENWOOD” or “ ” is displayed on iPod.

• Depending on the version of the operating system of the iPod/iPhone, some functions may not operate on this unit. About Android device

• This unit supports Android OS 4.1 and above.

• Some Android devices (with OS 4.1 and above) may not fully support Android Open Accessory (AOA) 2.0.

• If the Android device supports both mass storage class device and AOA 2.0, this unit always playback via AOA 2.0 as priority. About Pandora

• Pandora is only available in certain countries. For more information, visit <www.pandora.com/legal>.

• Because Pandora is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired, or some or all of the services may become unavailable.

• Some functions of Pandora cannot be operated from this unit.

• For issues using the application, please contact Pandora at <pandora-support@pandora.com>. About iHeartRadio

• iHeartRadio® is a third-party service, therefore the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.

• Some iHeartRadio® functionality cannot be operated from this unit. About Spotify

• Spotify application supports: – iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus (iOS 8 or above) – iPod touch (5th and 6th generation) – Android OS 4.0.3 or above

• Spotify is a third party service, therefore the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.

• Some functions of Spotify cannot be operated from this unit.

• For issues using the application, please contact Spotify at <www.spotify.com>. About Bluetooth

• Depending on the Bluetooth version of the device, some Bluetooth devices may not be able to connect to this unit.

• This unit may not work with some Bluetooth devices.

• Signal conditions vary, depending on the surroundings. About Program Type For Radio Broadcast Data System: [SPEECH]: [NEWS], [INFORM] (information), [SPORTS], [TALK], [LANGUAGE], [REL TALK] (religious talk), [PERSNLTY] (personality), [PUBLIC], [COLLEGE], [HABL ESP] (spanish talk), [WEATHER] [MUSIC]: [ROCK], [CLS ROCK] (classic rock), [ADLT HIT] (adult hits), [SOFT RCK] (softrock), [TOP 40], [COUNTRY], [OLDIES], [SOFT], [NOSTALGA] (nostalgia), [JAZZ], [CLASSICL] (classical), [R & B] (rhythm and blues), [SOFT R&B] (soft rhythm and blues), [REL MUSC] (religious music), [MUSC ESP] (spanish music), [HIP HOP] For Radio Data System: [SPEECH]: [NEWS], [AFFAIRS], [INFO] (information), [SPORT], [EDUCATE], [DRAMA], [CULTURE], [SCIENCE], [VARIED], [WEATHER], [FINANCE], [CHILDREN], [SOCIAL], [RELIGION],

[PHONE IN], [TRAVEL], [LEISURE], [DOCUMENT]

[MUSIC]: [POP M] (music), [ROCK M] (music), [EASY M] (music), [LIGHT M] (music), [CLASSICS], [OTHER M] (music), [JAZZ], [COUNTRY], [NATION M] (music), [OLDIES], [FOLK M] (music) The unit will search for the Program Type categorized under [SPEECH] or [MUSIC] if selected. JS_KWD_KDC_X303_KN_EN_6th.indd 32JS_KWD_KDC_X303_KN_EN_6th.indd 32 4/6/2018 11:26:43 AM4/6/2018 11:26:43 AMENGLISH

• If the information is unavailable or not recorded, “NO TEXT”, “NO INFO”, or other information (eg. station name) appears or display will be blank. Main display Clock time Level meter (page 29) Source name Display information: Main display STANDBY Source name Date back to the beginning RADIO Frequency Date back to the beginning For FM Radio Broadcast Data System/FM Radio Data System stations only: Station name/Program type Radio text Radio text+ Radio text+ song title/Radio text+ artist Frequency Date back to the beginning CD or USB For CD-DA: Disc title/Artist Track title/Artist Playing time Date back to the beginning For MP3/WMA/AAC/WAV/FLAC files: Song title/Artist Album title/Artist Folder name File name Playing time Date back to the beginning iPod USB/iPod BT When [MODE OFF] is selected (page 9): Song title/Artist Album title/Artist Playing time Date back to the beginning Source name Display information: Main display ANDROID Source name Date back to the beginning PANDORA/ PANDORA BT Station name Shared/Radio Song title Artist Album title Playing time Date back to the beginning IHEARTRADIO Station name Song title/Artist Date back to the beginning SPOTIFY/ SPOTIFY BT Context title Song title Artist Album title Playing Time Date back to the beginning SIRIUS XM Channel number Channel name Artist Song title Content information Category name Date back to the beginning BT AUDIO Song title/Artist Album title/Artist Playing time Date back to the beginning AUX Source name Date back to the beginning JS_KWD_KDC_X303_KN_EN_6th.indd 33JS_KWD_KDC_X303_KN_EN_6th.indd 33 4/6/2018 11:26:43 AM4/6/2018 11:26:43 AM34 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Change the display information (for

• If the information is unavailable or not recorded, “NO TEXT”, “NO INFO”, or other information (eg. station name) appears or display will be blank. Main display Source name Display information: Main display STANDBY Source name/Clock Clock Turns off the display* back to the beginning RADIO Source name/Clock Frequency Clock Turns off the display* back to the beginning For FM Radio Broadcast Data System/FM Radio Data System stations only: Source name/Clock Station name/Program type Radio text Radio text+ Radio text+ song title/Radio text+ artist Frequency Clock Turns off the display* back to the beginning CD or USB For CD-DA: Source name/Clock Disc title/Artist Track title/Artist Playing time Clock Turns off the display* back to the beginning For MP3/WMA/AAC/WAV/FLAC files: Source name/Clock Song title/Artist Album title/Artist Folder name File name Playing time Clock Turns off the display* back to the beginning iPod USB/iPod BT When [MODE OFF] is selected (page 9): Source name/Clock Song title/Artist Album title/Artist Playing time Clock Turns off the display* back to the beginning Source name Display information: Main display ANDROID Source name/Clock Clock Turns off the display* back to the beginning PANDORA/ PANDORA BT Source name/Clock Station name Shared/Radio Song title Artist Album title Playing time Clock Turns off the display* back to the beginning IHEARTRADIO Source name/Clock Station name Song title/Artist Clock Turns off the display* back to the beginning SPOTIFY/ SPOTIFY BT Source name/Clock Context title Song title Artist Album title Playing Time Clock Turns off the display* back to the beginning BT AUDIO Source name/Clock Song title/Artist Album title/Artist Playing time Clock Turns off the display* back to the beginning AUX Source name/Clock Clock Turns off the display* back to the beginning

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Symptom Remedy General Sound cannot be heard. • Adjust the volume to the optimum level.

• Check the cords and connections.

“MISWIRING CHECK WIRING

THEN PWR ON” appears. Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.

“PROTECTING SEND SERVICE”

appears. Send the unit to the nearest service center. Source cannot be selected. Check the [SOURCESELECT] setting. (Page

• Sound cannot be heard.

• The unit does not turn on.

• Information shown on the display is incorrect. Clean the connectors. (Page 31) The unit does not work at all. Reset the unit. (Page 3) Correct characters are not displayed.

• This unit can only display uppercase letters, numbers, and a limited number of symbols.

• Depending on the display language you have selected (page 5), some characters may not be displayed correctly. (For

Setting/deleting the remote control ID is unsuccessful. Turn the power off, then turn on the power and perform the operation again.(Page 5) (For

“ERROR”/”FAILED” Your steering remote controller is not compatible, learning may not be completed. Consult your car audio dealer for details. Radio

• Radio reception is poor.

• Static noise while listening to the radio. Connect the antenna firmly. TROUBLESHOOTING Symptom Remedy CD/USB/iPod Disc cannot be ejected. Press and hold to forcibly eject the disc. Be careful not to drop the disc when it is ejected. If this does not solve the problem, reset the unit (page 3). Noise is generated. Skip to another track or change the disc. “PLEASE EJECT” appears. Reset the unit (page 3). If this does not solve the problem, consult your nearest service center. Playback order is not as intended. The playback order is determined by the order in which files were recorded (disc) or the file name (USB). Elapsed playing time is not correct. This depends on the recording process earlier (disc/USB). “READING” keeps flashing. • Do not use too many hierarchical levels and folders.

• Reload the disc or reattach the device (USB/iPod/ iPhone). “UNSUPPORTED DEVICE” appears.

• Check whether the connected USB device is compatible with this unit and ensure the file systems are in supported formats. (Page 31)

• Reattach the USB device. “UNRESPONSIVE DEVICE” appears. Make sure the USB device is not malfunction and reattach the USB device.

SUPPORTED” appears. This unit cannot support a USB device connected via a USB hub.

• The source does not change to “USB” when you connect a USB device while listening to another source.

• “USB ERROR” appears. The USB port is drawing more power than the design limit. Turn the power off and unplug the USB device. Then, turn on the power and reattach the USB device. If this does not solve the problem, turn the power off and on (or reset the unit) before replacing with another USB device. JS_KWD_KDC_X303_KN_EN_6th.indd 35JS_KWD_KDC_X303_KN_EN_6th.indd 35 4/6/2018 11:26:46 AM4/6/2018 11:26:46 AM36 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Symptom Remedy CD/USB/iPod The iPod/iPhone does not turn on or does not work.

• Check the connection between this unit and iPod/iPhone.

• Disconnect and reset the iPod/iPhone using hard reset. “LOADING” appears when you enter search mode by pressing

This unit is still preparing the iPod/iPhone music list. It may take some time to load, try again later. “NO DISC” Insert a playable disc into the loading slot. “TOC ERROR” Make sure the disc is clean and inserted properly. “NA FILE” Make sure the media (disc/USB) contain supported audio files. (Page 31) “COPY PRO” A copy-protected file is played (disc/USB). “NO DEVICE” Connect a device (USB), and change the source to USB again. “NO MUSIC” Connect a device (USB) that contains playable audio files. “iPod ERROR” • Reconnect the iPod.

• Reset the iPod. ANDROID

• Sound cannot be heard during playback.

• Sound output only from the Android device.

• Reconnect the Android device.

• Launch any media player application on the Android device and start playback.

• Relaunch the current media player application or use another media player application.

• Restart the Android device.

• If this does not solve the problem, the connected Android device is unable to route the audio signal to unit. (Page 32)

• If USB connection does not work, connect the Android device via Bluetooth or through auxiliary input jack. “NO DEVICE” or “READING” keeps flashing.

• Reconnect the Android device.

• If USB connection does not work, connect the Android device via Bluetooth or through auxiliary input jack. Symptom Remedy ANDROID Playback is intermittent or sound skips. Turn off the power saving mode on the Android device.

• Make sure Android device contains playable audio files.

• Reconnect the Android device.

• Restart the Android device. Pandora “ADD ERROR” New station creation is unsuccessful. “CHECK DEVICE” Check the Pandora application on your device. “NO SKIPS” The skip limit has been reached. “NO STATIONS” No stations are found. “STATION LIMIT” The number of registered stations has reached its limit. Retry after deleting unnecessary stations from your device. “UPGRADE APP” Make sure you have installed the latest version of the Pandora application on your device. “CONNECT ERROR” Communication is unstable. “RATING ERROR” Registration of thumbs up/thumbs down has failed due to insufficient network connectivity. “THUMBS N/A” Registration of thumbs up/thumbs down is not allowed. “LICENSE ERROR” You try to access from a country which Pandora is not deliverable. iHeartRadio Station cannot be selected. If “Explicit Content” in [Account Settings] is checked in the web version of iHeartRADIO, custom stations become unavailable. “NOT CONNECTED” Link to the application is impossible. TROUBLESHOOTING JS_KWD_KDC_X303_KN_EN_6th.indd 36JS_KWD_KDC_X303_KN_EN_6th.indd 36 4/6/2018 11:26:46 AM4/6/2018 11:26:46 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) TROUBLESHOOTING Symptom Remedy SiriusXM® Radio “CODE ERROR” Make sure you have entered the correct pass code. (Page 16) “NO CONTENT” There is insufficient content to start TuneScan. “SCAN CANCEL” TuneScan has been aborted. Bluetooth® No Bluetooth device is detected.

• Search from the Bluetooth device again.

• Reset the unit. (Page 3) Pairing cannot be made. • Make sure you have entered the same PIN code to both the unit and Bluetooth device.

• Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. (Page 17) Echo or noise is heard during a phone conversation.

• Adjust the microphone unit’s position. (Page 17)

• Check the [ECHO CANCEL] setting. (Page 19) Phone sound quality is poor.

• Reduce the distance between the unit and the Bluetooth device.

• Move the car to a place where you can get a better signal reception. Voice calling method is not successful.

• Use voice calling method in a more quiet environment.

• Reduce the distance from the microphone when you speak the name.

• Make sure the same voice as the registered voice tag is used. Sound is being interrupted or skipped during playback of a Bluetooth audio player.

• Reduce the distance between the unit and the Bluetooth audio player.

• Turn off, then turn on the unit and try to connect again.

• Other Bluetooth devices might be trying to connect to the unit. Symptom Remedy Spotify “DISCONNECTED” USB is disconnected from the head unit. Please make sure the device is connected properly through USB. “CONNECTING” • Connected via USB input terminal: The device is connecting to the head unit. Please wait.

• Connected via Bluetooth: The Bluetooth is disconnected. Please check Bluetooth connection and make sure both the device and unit are paired and connected. “CHECK APP” The Spotify application is not connected properly or user is not login. End the Spotify application and restart. Then, log in to your Spotify account. SiriusXM® Radio

CODE?” The selected channel is locked. Enter the correct pass code to unlock. (Page 16) “CHAN UNSUB” The selected channel is unsubscribed. Call 1-866-635-2349 in the U.S.A. or 1-877-438-9677 in Canada to subscribe. (Page 14) “CH UNAVAIL” The selected channel is unavailable. For more information about the SiriusXM channel lineup, visit <www.siriusxm.com>. “CHECK ANTENNA” Check that the antenna and its connection are in good condition. “CHECK TUNER” Make sure the SiriusXM Vehicle Tuner is connected to the unit. “NO SIGNAL” Make sure the antenna is mounted outside the vehicle. “SUBSCRIPTION UPDATED

CONTINUE.” Your subscription is updated. Press the volume knob to continue. JS_KWD_KDC_X303_KN_EN_6th.indd 37JS_KWD_KDC_X303_KN_EN_6th.indd 37 4/6/2018 11:26:46 AM4/6/2018 11:26:46 AM38 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) TROUBLESHOOTING Symptom Remedy Bluetooth® The connected Bluetooth audio player cannot be controlled.

• Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP). (Refer to the instructions of your audio player.)

• Disconnect and connect the Bluetooth player again. “NOT SUPPORT” The connected phone does not support Voice Recognition feature or phonebook transfer. “NO ENTRY”/“NO PAIR” There is no registered device connected/found via Bluetooth. “ERROR” Try the operation again. If “ERROR” appears again, check if the device supports the function you have tried. “NO INFO”/“NO DATA” Bluetooth device cannot get the contact information.

“BT ERROR” Reset the unit and try the operation again. If this does not solve the problem, consult your nearest service center. “SWITCHING NG” The connected phones might not support phone switching feature. The Bluetooth connection between the Bluetooth device and the unit is unstable. Delete the unused registered Bluetooth device from the unit. (Page 21) Warning

• The unit can only be used with a 12 V DC power supply, negative ground.

• Disconnect the battery’s negative terminal before wiring and mounting.

• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.

• To prevent short circuit: – Insulate unconnected wires with vinyl tape. – Be sure to ground this unit to the car’s chassis again after installation. – Secure the wires with cable clamps and wrap vinyl tape around the wires that comes into contact with metal parts to protect the wires. Caution

• For safety’s sake, leave wiring and mounting to professionals. Consult the car audio dealer.

• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.

• Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.

• Mount the unit at an angle of less than 30º.

• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle’s fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.

• Keep all cables away from heat dissipate metal parts.

• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.

• If the fuse blows, first make sure the wires are not touching car’s chassis, then replace the old fuse with one that has the same rating. INSTALLATION/CONNECTION JS_KWD_KDC_X303_KN_EN_8th.indd 38JS_KWD_KDC_X303_KN_EN_8th.indd 38 6/6/2018 10:04:26 AM6/6/2018 10:04:26 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Part list for installation (A) Faceplate (×1) (B) Trim plate (×1) (C) Mounting sleeve (×1) (D) Wiring harness (×1) (E) Extraction key (×2) (F) Screws* M5 × 7 mm (×4) M5 × 6 mm (×4) M4 × 8 mm (×1)

Remove the key from the ignition switch, then disconnect the terminal of the car battery.

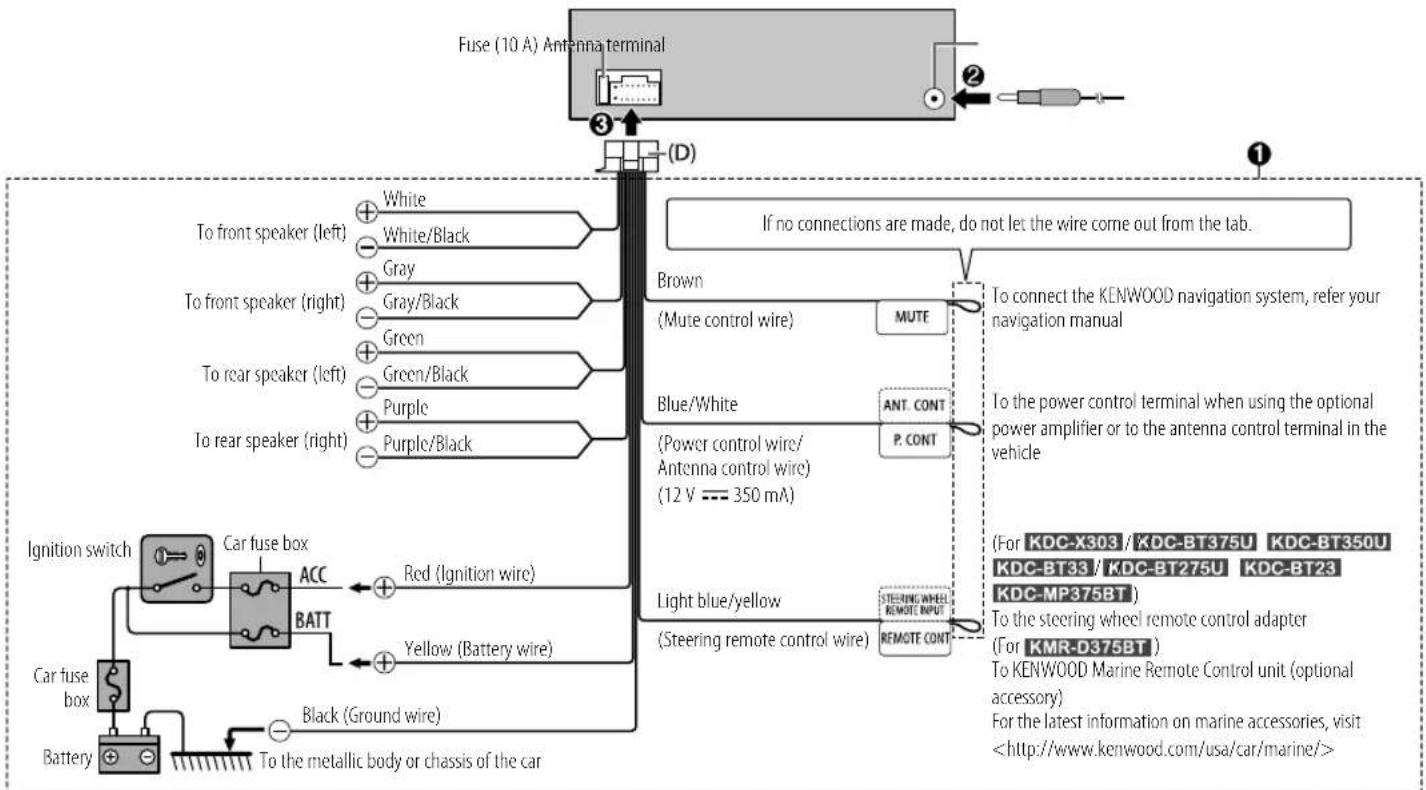

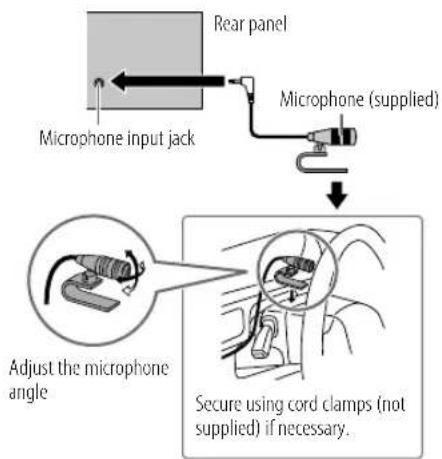

Connect the wires properly. See “Wiring connection” on page 40.

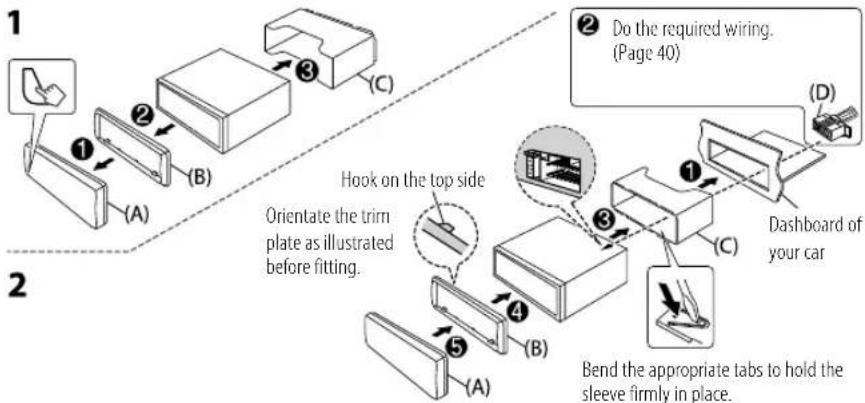

Install the unit to your car. See “Installing the unit (in-dash mounting)”.

Connect the terminal of the car battery.

SRC to turn on the power.

Detach the faceplate and reset the unit within 5 seconds. (Page3) Removing the unit

Fit the catch pin on the extraction keys into the holes on both sides of the trim plate, then pull it out.

Insert the extraction keys deeply into the slots on each side, then follow the arrows as shown on the illustration. Installing the unit (without mounting sleeve)

Remove the mounting sleeve and trim plate from the unit.

Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (supplied/commercially available). Use only the specified screws. Using wrong screws might damage the unit. Do the required wiring. (Page 40) Bend the appropriate tabs to hold the sleeve firmly in place. Hook on the top side Orientate the trim plate as illustrated before fitting. Dashboard of your car INSTALLATION/CONNECTION Installing the unit (in-dash mounting) JS_KWD_KDC_X303_KN_EN_ff.indd 39JS_KWD_KDC_X303_KN_EN_ff.indd 39 19/6/2018 12:18:32 PM19/6/2018 12:18:32 PM40 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Wiring connection Brown (Mute control wire) To connect the KENWOOD navigation system, refer your navigation manual To the power control terminal when using the optional power amplifier or to the antenna control terminal in the vehicle (For

To the steering wheel remote control adapter (For

To KENWOOD Marine Remote Control unit (optional accessory) For the latest information on marine accessories, visit <http://www.kenwood.com/usa/car/marine/> Light blue/yellow (Steering remote control wire) To the metallic body or chassis of the car Black (Ground wire) Yellow (Battery wire) Red (Ignition wire) Purple/Black Purple Green/Black Gray/Black White/Black White Gray Green Car fuse box Ignition switch To front speaker (left) To rear speaker (left) To front speaker (right) To rear speaker (right) Car fuse box Blue/White (Power control wire/ Antenna control wire) (12 V 350 mA) Fuse (10 A) Antenna terminal If no connections are made, do not let the wire come out from the tab. IMPORTANT We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer. INSTALLATION/CONNECTION Battery JS_KWD_KDC_X303_KN_EN_6th.indd 40JS_KWD_KDC_X303_KN_EN_6th.indd 40 4/6/2018 11:26:47 AM4/6/2018 11:26:47 AMENGLISH

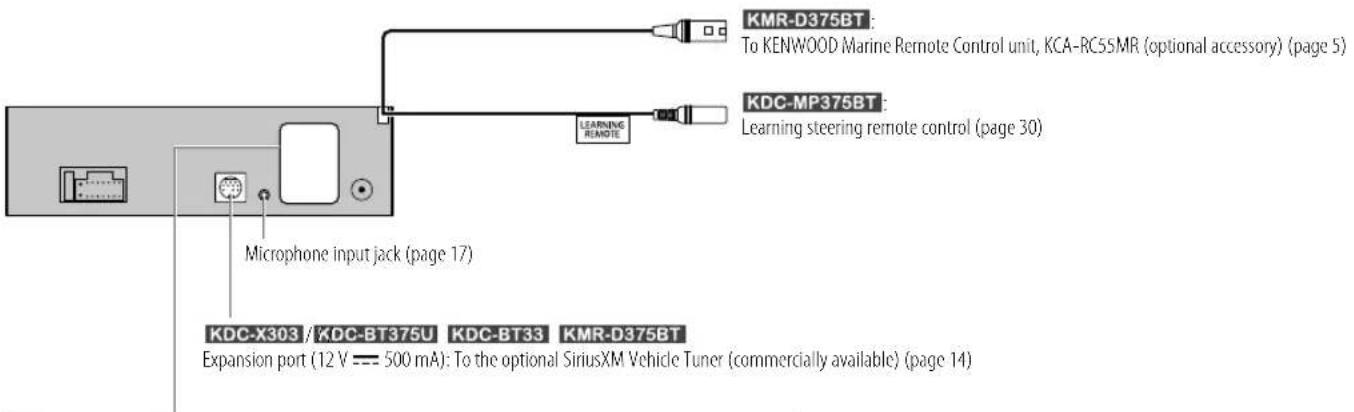

To KENWOOD Marine Remote Control unit, KCA-RC55MR (optional accessory) (page 5) INSTALLATION/CONNECTION Output terminals When connecting to an external amplifier, connect its ground wire to the car’s chassis to avoid damaging the unit. JS_KWD_KDC_X303_KN_EN_6th.indd 41JS_KWD_KDC_X303_KN_EN_6th.indd 41 4/6/2018 11:26:47 AM4/6/2018 11:26:47 AM42 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) SPECIFICATIONS Tuner FM Frequency Range

87.9 MHz — 107.9 MHz (200 kHz step)

87.5 MHz — 108.0 MHz (50 kHz step)

Usable Sensitivity (S/N = 30 dB, Dev 22.5 kHz)

8.2 dBf (0.71 μV/75 Ω)

Quieting Sensitivity (S/N = 46 dB, Dev 40 kHz)

17.2 dBf (2.0 μV/75 Ω)

Frequency Response (±3 dB) 30 Hz — 15 kHz Signal-to-Noise Ratio (MONO) 64 dB Stereo Separation (1 kHz) 40 dB AM Frequency Range 530 kHz — 1 700 kHz (10 kHz step) Usable Sensitivity (S/N = 20 dB) 29 dBμ (28.2 μV) CD player Laser Diode GaAIAs Digital Filter (D/A) 8 times over sampling Spindle Speed 500 rpm — 200 rpm (CLV) Wow & Flutter Below measurable limit Frequency Response (±1 dB) 20 Hz — 20 kHz Total Harmonic Distortion (1 kHz) 0.01 % Signal-to-Noise Ratio (1 kHz) 97 dB Dynamic Range 92 dB Channel Separation 90 dB CD player MP3 Decode Compliant with MPEG-1/2 Audio Layer-3 WMA Decode Compliant with Windows Media Audio AAC Decode AAC-LC “.aac” files USB USB Standard USB 1.1, USB 2.0 (Full speed) File System FAT12/16/32 Maximum Supply Current DC 5 V

CD: 2 500 mV/10 kΩ load Preout Impedance ≤ 600 Ω SPECIFICATIONS General Operating Voltage 12 V DC car battery Installation Size (W × H × D) 182 mm × 53 mm × 155.5 mm (7-3/16" × 2-1/16" × 6-1/8") Net Weight (includes Trimplate, Mounting Sleeve)

[DISPLAY] [EASY MENU] (Pour / / /

[SUBWOOFER LPF] [SWLPFFRQ]

[ON]: [6:00PM] ; [OFF]: [6:00AM]

[SUBWOOFER LPF] [SWLPFFRQ]

[ON]: [6:00PM] ; [OFF]: [6:00AM]

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.

• Apple, iPhone, iPod, iPod nano, iPod touch, and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.

• Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.

• iHeartRadio® and iHeartAuto™ are trademarks owned by iHeartMedia, Inc. All uses are authorized under license.

• Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.

• SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB.

• Android is a trademark of Google LLC.

• The “AAC” logo is a trademark of Dolby Laboratories.

• The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners. libFLAC Copyright (C) 2000-2009 Josh Coalson Copyright (C) 2011-2013 Xiph.Org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: - Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. - Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. - Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. JS_KWD_KDC_X303_KN_C.indd 2JS_KWD_KDC_X303_KN_C.indd 2 4/6/2018 11:26:21 AM4/6/2018 11:26:21 AM
