Please read the following operating precautions before use. Yamaha will not be held responsible for any damage and/or injury caused by not following the cautions below.

1. To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.
2. Install the speakers in a cool, dry, clean place - away from windows, sources of heat, sources of excessive vibration, dust, moisture or cold. Avoid sources of electrical humming (e.g., transformers and motors). To prevent fire or electric shock, do not expose the speakers to rain or water.
3. To prevent the enclosure from warping or discoloring, do not expose the speakers to direct sunlight or excessive humidity.
4. Avoid installing the speakers where foreign objects may fall onto them and/or where they may be exposed to liquid dripping or splashing.

5. Do not place the following objects on top of the speakers:

6. Other components, as they might damage or discolor the surface of the speakers.

7. Burning objects (e.g., candles), as they might cause fire, damage to the speakers or personal injury.

8. Containers of liquid, as they might spill and cause electric shock to the user or damage to the speakers.

9. Do not place the speakers where they are liable to be knocked over or struck by falling objects. Stable placement will also ensure better sound performance.

10. Placing the speakers on the same shelf or rack as the turntable can result in feedback.
11. Do not insert a hand or object into the port or pick up the speaker by holding the port, as it may cause personal injury or damage to the speaker.
12. Any time you note distortion, reduce the volume control on your amplifier to lower setting. Never allow your amplifier to be driven into "clipping". Otherwise, the speakers may be damaged.

13. When using an amplifier with a rated output power higher than the nominal input power of the speakers, care should be taken not to exceed the maximum input of the speakers.

14. Do not attempt to clean the speakers with chemical solvents as this might damage the finish. Use a clean, dry cloth.

15. Do not attempt to modify or fix the speakers. Contact qualified Yamaha service personnel when service is needed. The cabinet should never be opened for any reason.
16. As this unit is heavy, whenever it is moved, two people are required to transport it safely.
17. Secure placement or installation is the owner's responsibility. Yamaha is not liable for accidents caused by improper placement or installation of speakers.

This unit's speakers use magnets. Do not place items that are sensitive to magnetism, such as CRT-type TVs, clocks, credit cards, floppy disks, etc., on or beside this unit.

Taking care of this unit

Polish finish

Use of a piano cleaning cloth is recommended.

For heavy dirt, use a soft cloth that has been dampened and wrung out thoroughly.

Other finish

When you wipe this unit, do not use chemical solvents (alcohol, thinner, etc.), which might damage the finish.

Use a clean, dry cloth. For heavy dirt, dampen a soft cloth in detergent diluted with water, wring it out, and clean this unit with the cloth.

Information for users on collection and disposal of old equipment:

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accordance with your national legislation.

By disposing of these products correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

For business users in the European Union:

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union:

This symbol is only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Contents

Precautions..

Features. 1

Frequency characteristic. 1

Port plug 2

Placing the speakers. 2

Connecting to your amplifier. 4

Attaching the protectors 5

Specifications. 5

Features

• 30~cm 3way bookshelf type speaker
  Z Y L. Diaphragm (ZYLON is a registered trademark of TOYOBO Co., Ltd. in Japan.)

R.S. Chamber (Resonance Suppression Chamber)
- Acoustic Absorber
Twisted Flare Port

Frequency characteristic

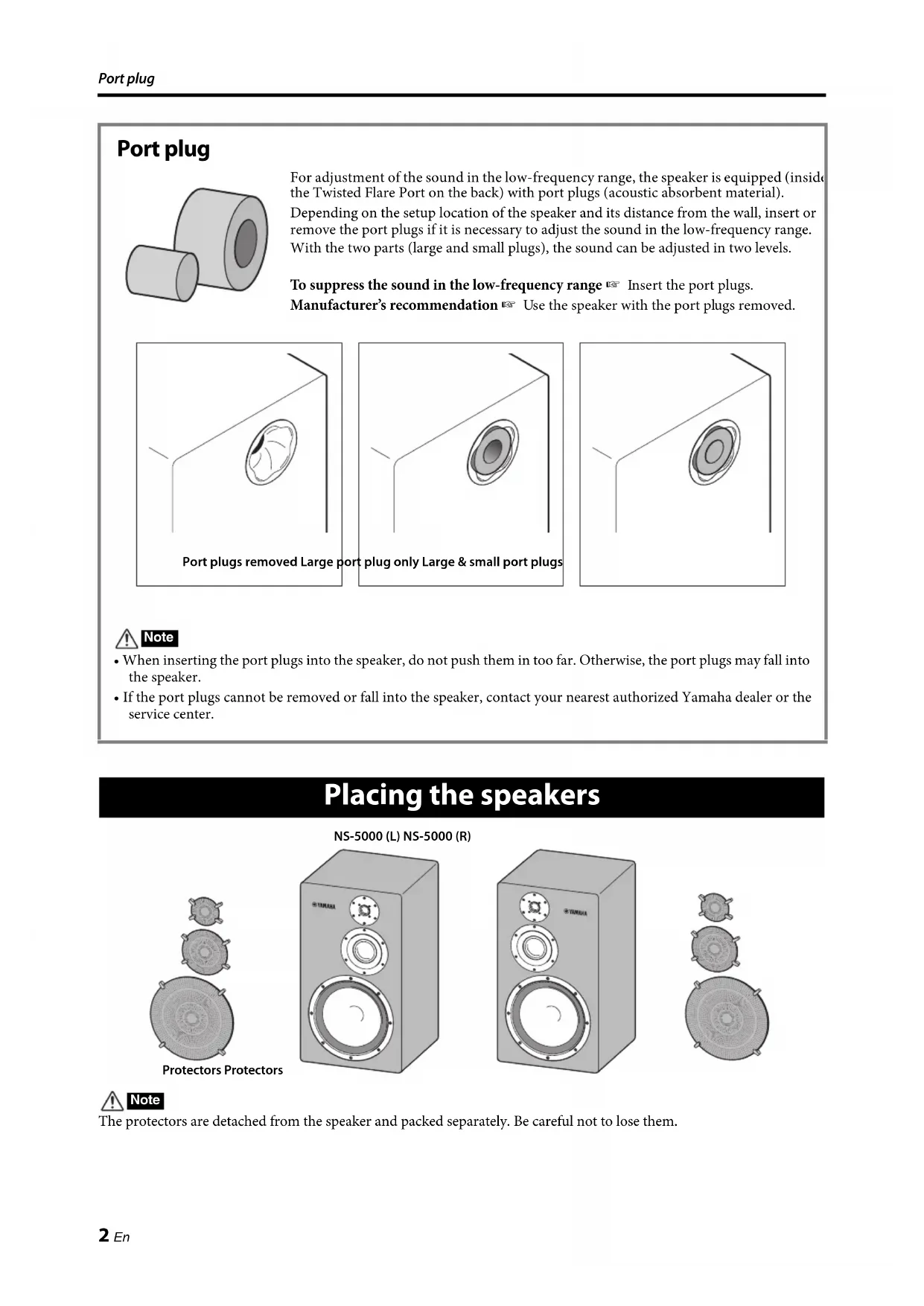

Port plug

For adjustment of the sound in the low-frequency range, the speaker is equipped (inside the Twisted Flare Port on the back) with port plugs (acoustic absorbent material). Depending on the setup location of the speaker and its distance from the wall, insert or remove the port plugs if it is necessary to adjust the sound in the low-frequency range. With the two parts (large and small plugs), the sound can be adjusted in two levels.

To suppress the sound in the low-frequency range Insert the port plugs. Manufacturer's recommendation Use the speaker with the port plugs removed.

Port plugs removed Large port

plug only Large & small port plugs

Note

• When inserting the port plugs into the speaker, do not push them in too far. Otherwise, the port plugs may fall into the speaker.
  If the port plugs cannot be removed or fall into the speaker, contact your nearest authorized Yamaha dealer or the service center.

Placing the speakers

NS-5000 (L) NS-5000 (R)

Protectors Protectors

Note

The protectors are detached from the speaker and packed separately. Be careful not to lose them.

Using as 2ch stereo speakers

Better stereo images will be obtained when the speakers are slightly angled in towards the listener.

In rooms with unusual shapes or containing obstacles, effective stereo playback can be achieved by changing the positions and orientations of the speakers as necessary or reversing the positions of the left and right speakers.

Precautions when positioning the speakers

The speaker is constructed with the majority of the weight located in its upper portion, and is thus susceptible to falling over if proper care is not taken to ensure its stability. If the speaker tips over, the speaker or other personal property may be damaged or an individual may be injured (possibly even fatally injured).

For safe and proper use of the speaker:

• Position the speaker in a location that is solid, level, smooth, and low (with respect to the floor).

• Do not push or apply pressure to the side of the speaker when moving, or lean objects against the side of the speaker.

• Do not sit on or set objects on top of the speaker. Vibrations or jolts associated with earthquakes and other phenomena or activities may cause the speaker to fall over. For safety reasons, using commercially available products that increase stability of the speaker is recommended (metal fittings or chains, etc.).

Note

• Be sure to have another person support it.

• Move the speaker by lifting it from the left and right sides and the bottom.

• Since the polish finish side surfaces are slick, the speaker may slip and fall, causing injuries.

• Touching the speaker drive units at the front may damage them.

• When placing the speaker on the speaker stand, etc., be sure not to pinch your hands or fingers, otherwise injuries may result.

• Pay extra attention to avoid scratching the speaker's surface.

• Be careful not to apply force to the side of the speaker, otherwise the speaker may fall causing damage to the speaker or personal injury.
• To avoid accidents resulting from tripping over loose speaker cables, affix them to the floor.
• Placing this unit too close to a CRT TV set might impair picture color or create a buzzing noise. In this case, move the speakers away from the TV. This is not an issue with LCD and plasma TVs.

Connecting to your amplifier

Before making connections, make sure that the amplifier is switched off.

Connections

You need a commercially available speaker cable.

#

The size and/or material of a speaker cable affects on the sound quality. Therefore, we recommend you to purchase a high-quality speaker cable to exert the performance of this unit.

Note

• Connect the (+) terminals on the amplifier and the speakers using one side of the cable. Connect the (-) terminals on both components using the other side of the cable.
• Connect the speakers to the left (L) and right (R) terminals of your amplifier, making sure not to reverse the polarity (+, -). If one speaker is connected with reversed polarity, the sound will be unnatural and lack bass.
• When using an amplifier with a rated output power higher than the nominal input power of the speaker, care should be taken never to exceed the speaker's maximum input.
• The speaker may be damaged if certain sounds are continuously output at high volume level. For example, if sine waves from a test disc, bass sounds from electronic instruments, etc., are continuously output, or when the stylus of a turntable touches the surface of a disc, reduce the volume level to prevent the speaker from being damaged.
• Please refer to the owner's manual that came with your amplifier or receiver.

■How to connect the speaker cables

1 Remove 15mm (5 / 8^ ) of insulation from each end of the cables, and twist the exposed conductors together neatly and tightly, as shown left.
2Loosen the terminal knob.
3Insert the bare wire.
4Tighten the knob and secure the cable.
5 Test the firmness of the connection by pulling lightly on the cable at the terminal.

Note

• Do not let the bare speaker wires touch each other as this could damage the speaker or the amplifier, or both of them.
• Do not insert the insulation coating into the hole. The sound may not be produced.

When using a banana plug

1 Tighten the terminal knob.
2Simply insert the banana plug into the terminal.

Attaching the protectors

The speaker and the protectors are packed separately.

To attach the protector, line up the salients (magnet) on the reverse side of the protector with the corresponding pegs.

Note

• When removing or attaching the protector, be careful not to touch the drive units, and not to exert excessive force with any tools.
• Do not touch or apply impact to the speaker's diaphragm. Otherwise, the speaker may malfunction.
• When removing the protectors, be careful that they do not hit the speaker. Otherwise, the surface of the speaker may be scratched.
• Use both hands when removing or attaching the protectors to prevent them from falling. Otherwise, the speaker or floor may be damaged or injuries may result.
• Be careful not to pinch your hands or fingers when removing or attaching the protectors.
• If the speaker is used with the protectors removed, carefully store the removed protectors on a flat surface so they do not become deformed. Be sure to store the protectors out of the reach of children so that they will not damage them.

Specifications

Type 3way bookshelf Non-magnetic shielding type

Driver .Woofer: 30 cm (12") cone type Midrange: 8 cm (3-1/4") dome type Tweeter: 3 cm (1-1/4") dome type

Impedance Nominal 6 Ω

Frequency response 26 Hz -40 kHz (-10 dB) -100 kHz (-30 dB)

Nominal input power 200 W

Maximum input power 600 W

Sensitivity. 88 dB/2.83 V, 1 m

Crossover frequency. 750 Hz, 4.5 kHz

Dimensions (W x H x D) 395 x 690 x 381 mm (15-1/2" x 27-1/8" x 15")

Weight. 35 kg (77.2 lbs.)

• The contents of this manual apply to the latest specifications as of the publishing date. To obtain the latest manual, access the Yamaha website then download the manual file.

• Care should be taken not to exceed the input power values noted above.

The rating label that states the serial number, etc., is affixed to the bottom of the speakers.

• The left speaker and the right speaker have the same serial number.
