USER MANUAL SMA 500 A1 SILVERCREST

13. Warranty information ................................................................................ 40SilverCrest SMA 500 D1 English - 23 Congratulations! By purchasing the SilverCrest SMA 500 D1 milk frother, hereinafter referred to as milk frother, you have opted for a high-quality product. Familiarise yourself with the milk frother before using it for the first time and read these operating instructions carefully. Observe the safety instructions and only use the milk frother in the manner described in these operating instructions and for the indicated fields of application. Keep these operating instructions in a safe place. Hand over all documents in the event that you pass on the milk frother to a third party.

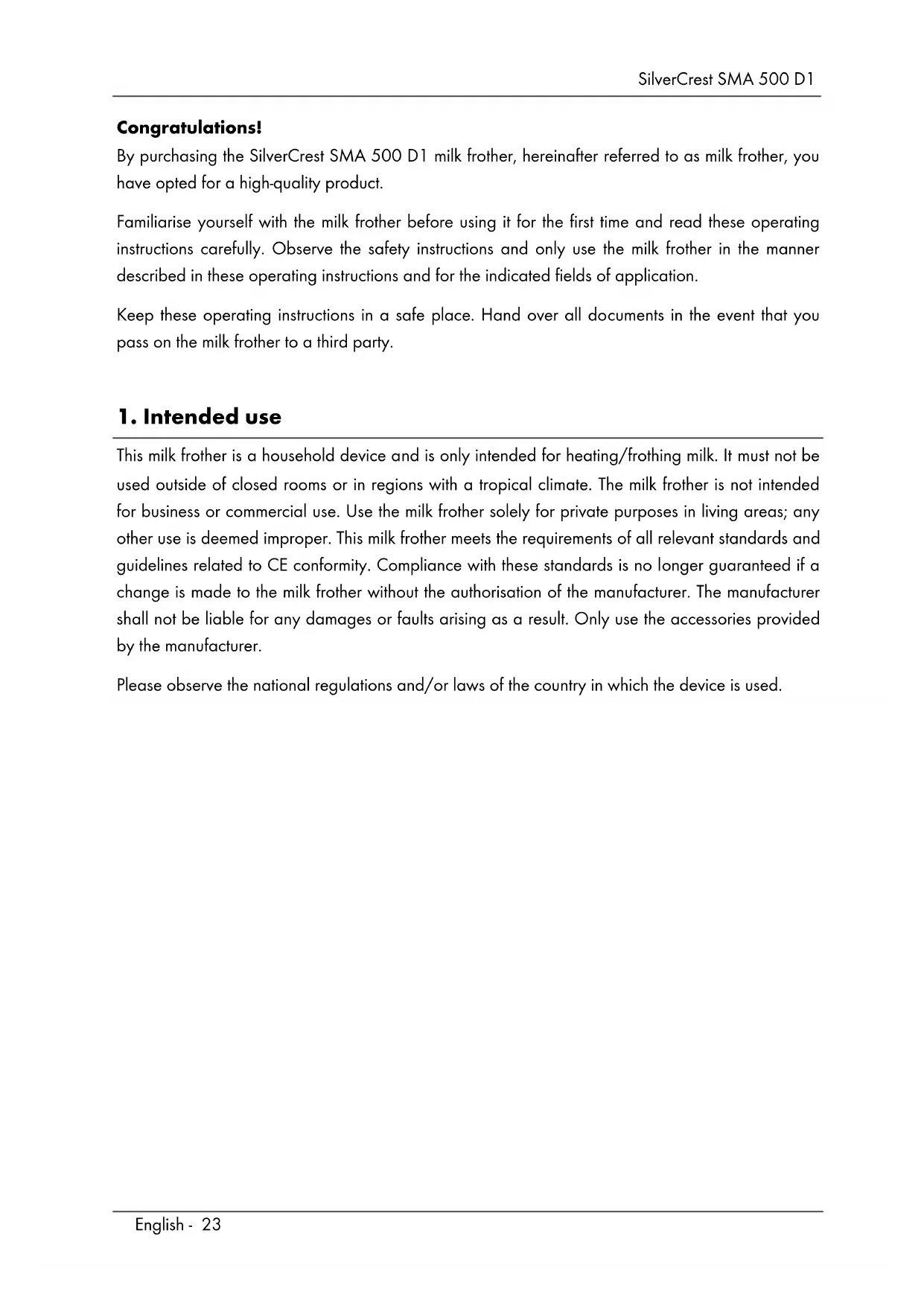

This milk frother is a household device and is only intended for heating/frothing milk. It must not be used outside of closed rooms or in regions with a tropical climate. The milk frother is not intended for business or commercial use. Use the milk frother solely for private purposes in living areas; any other use is deemed improper. This milk frother meets the requirements of all relevant standards and guidelines related to CE conformity. Compliance with these standards is no longer guaranteed if a change is made to the milk frother without the authorisation of the manufacturer. The manufacturer shall not be liable for any damages or faults arising as a result. Only use the accessories provided by the manufacturer. Please observe the national regulations and/or laws of the country in which the device is used.SilverCrest SMA 500 D1

Unpack the milk frother and all of the accessories. Remove all packaging materials and check all of the components for completeness and signs of damage. If any parts are missing or damaged, please contact the manufacturer.

• Device base with power cable

• These operating instructions These operating instructions also have a cover that can be unfolded. The inside of the cover provides a schematic of the SilverCrest milk frother SMA 500 D1 and all controls. This cover page can remain unfolded while you read other sections of the operating instructions. This provides you with a reference to the controls at all times. The numbers identify the following parts/functions:

Whisk A (for stirring to ensure even heating)

Manufacturer TARGA GmbH Designation SilverCrest SMA 500 D1 Power supply 220–240 V~, 50/60 Hz Power consumption 500 W Capacity Froth: max. 150 ml Heat and stir: max. 300 ml Dimensions (H x W x D) approx. 20.6 x 15.0 x 10.9 cm Weight approx. 940 g (overall) The specifications and design are subject to change without notice.

4. Safety instructions

Before using the milk frother for the first time, please read the following instructions carefully and observe all warnings, even if you are familiar with using electronic and household devices. Keep these operating instructions in a safe place for future reference. If you give the milk frother away or sell it, please ensure that you also pass on this manual. It is part of the milk frother. Explanation of symbols used DANGER! This icon, together with the word ‘Danger’, indicates an impending dangerous situation which, if not prevented, can lead to serious injuries or even death. WARNING! This icon indicates important information for the safe operation of the milk frother and user safety. DANGER! This icon indicates impending danger to health due to an electric shock, which may result in a risk of death and/or damage to property.SilverCrest SMA 500 D1

Danger, hot surface! DANGER! This symbol warns against injuries/burns related to the hot surfaces. This icon indicates products that have been tested in relation to their physical and chemical composition and that in accordance with EC 1935/2004 have been regarded as harmless to health in terms of contact with foodstuffs. This icon indicates that further information on the topic is available. Foreseeable misuse

• Only heat the canister (7) with the base (11) developed for this purpose. Do not under any circumstances place it on a hob to heat it and do not use the base of any other milk frother.

• Do not use the canister (7) for other liquids; only use it for milk.

• Always use fresh milk. Do not consume any milk that has been sitting in the canister (7) for a long period of time.

• Do not reheat milk that has cooled. Pour away old milk. The milk frother should not be operated with an external timer or a separate remote control system. Children and people with disabilities

• This milk frother may be used by children aged eight and over and by people with reduced physical, sensory or mental abilities or who lack experience and knowledge, provided that they are supervised or have been instructed in the safe use of the device and understand the resulting dangers.

• Children must not play with the milk frother.SilverCrest SMA 500 D1 English - 27

• Cleaning and maintenance by the user may not be performed by children, unless they are over eight years of age and supervised.

• Children under eight years of age are to be kept away from the milk frother and the power cable (12). DANGER! The packaging material is not a toy. Children must not play with the plastic bags. There is a risk of suffocation. Store the milk frother out of reach of children.

General safety instructions DANGER of burn injuries

• Never touch the housing of the canister (7) during and immediately after operation. Only use the handle (6) to hold or carry the canister (7).

• Hot steam can escape when heating milk. Make sure not to burn yourself. Wear an oven glove, if necessary. Turn the canister (7) so that the steam is directed away from you.

The surface of the heating element is still hot after use.

Only clean the canister (7) once it has cooled down completely.

Fill the canister (7) up to the interior MAX marking. If you pour in too much milk, it can boil over and cause burn injuries and damage to property.SilverCrest SMA 500 D1

• Only operate the milk frother with the lid (2) on. Otherwise milk can escape and cause burn injuries and damage to property.

Do not remove the lid (2) when the milk frother is being used.

WARNING of damage to property

• Only use the canister (7) with the correspond base (11).

• Do not put any objects on the base (11).

• Only operate the milk frother on a flat, stable and fire-proof surface. If the milk frother is not placed on a level surface, it can tip over and cause damage to property and under certain circumstances may also cause burn injuries.

• Never leave the milk frother unattended when in use.

• Unplug the plug from the socket when the milk frother is unattended. DANGER of electric shock

• The power cable (12) must not be damaged. Never replace a damaged power cable (12). Instead contact the service department (see ‘Warranty information’ section). If the power cable (12) is damaged, there is a risk of electric shock.

• If the connecting cable of this device is damaged, it must be replaced by the manufacturer, their service department or by a similarly qualified person in order to prevent any hazards.SilverCrest SMA 500 D1 English - 29

• Never open the housing of the base (11), as this does not contain any parts to be maintained. If the housing is open, there is a risk of electric shock.

• If you notice any smoke, unusual noises or smells, switch off the milk frother immediately and remove the plug from the socket. In a case like this, you must stop using the milk frother until it has been checked by a specialist. Do not inhale smoke possibly caused by a burning device. If you have inhaled smoke, consult a physician. Inhaling smoke can be harmful to your health.

• Ensure that the power cable (12) cannot be damaged by sharp edges or hot surfaces.

• Ensure that the power cable (12) is not jammed or squashed.

• The milk frother must always be disconnected from the mains if left unattended, prior to assembly and disassembly or cleaning.

• Never remove the plug from the socket by pulling the power cable (12); only ever pull the plug.

• If you find visible damage on the milk frother or the power cable (12), switch off the milk frother immediately, remove the plug from the socket and contact the service department (see ‘Warranty information’ section).

• Only plug the base (11) into a power socket that is properly installed and easily accessible and whose mains voltage corresponds with the rating plate specifications. Following connection, the power socket must continue to be easily accessible so that the plug can be quickly removed in an emergency.SilverCrest SMA 500 D1

• Never immerse the base (11) or the canister (7) in water or any other liquid. If liquid enters into the base (11), remove the plug from the socket and contact the service department (see ‘Warranty information’ section).

DANGER of fire Fill the canister (7) up to the MIN marking with milk. If you do not pour in enough milk, there is a risk of fire due to overheating.

All contents of these operating instructions are subject to copyright law and are provided to the user solely as a source of information. Any form of copying or reproduction of data and information without the express written permission of the author is prohibited. This also concerns commercial use of the content and data. The text and illustrations correspond to the technical standards at the time of printing. Subject to alterations.

Remove the SMA 500 D1 milk frother and all accessories from the packaging and check the completeness of the delivery. Remove all protective films as well as the ILAG sticker, which you can find inside the canister (7). Keep the packaging material away from children and dispose of it in an environmentally-friendly manner.SilverCrest SMA 500 D1 English - 31

Before you prepare milk for consumption for the first time, you must first clean the milk frother in order to remove dust and any remnants of the packaging material. Follow the procedure described in the ‘Maintenance/cleaning’ section. DANGER of electric shock Keep the base (11) away from water. There is danger of electric shock. WARNING – Risk of burns Only operate the milk frother with the lid (2) on. The surface of the heating element is still hot after use. WARNING – Risk of injury Always use fresh milk. Do not consume milk that has been sitting in the canister (7) for a long period of time. Please note: If you lift the canister (7) off the base (11) during operation, the preparation process stops automatically. Place the canister (7) onto the base (11) again and restart the process using the On/Off button (9). You can conveniently store the whisk (4, 5) that is not currently in use in the whisk holder (1). This is located on the underside of the lid (2).

7.1 Functions of the On/Off button

The On/Off button (9) is used to select the operating mode of the milk frother. Press the On/Off button (9) as many times as necessary for the LED display (8, 10, 13, 14) to indicate the required operating mode. If the On/Off button (9) is not pressed for approximately three seconds, the flashing LED display (8, 10, 13, 14) turns to a solid light and the selected operating mode starts. Once the programme for the selected operating mode is complete, the milk frother will automatically switch off. The programme length depends on the chosen operating mode and the amount of liquid used.

7.2 Function of the whisks (4, 5)

The milk frother has four different operating modes. In operating mode 1, two different milk products can be made by using different whisks (4, 5). Select the operating mode that best suits your preference. Operating mode 1 max. 150 ml Firm, warm froth Choose this operating mode to create warm milk froth with a firm consistency. Operating mode 1 max. 300 ml Heat up and stir milk Choose this operating mode to heat up milk. Operating mode 2 max. 150 ml Warm and creamy froth Choose this operating mode to create warm, creamy, fine- pored milk froth. Operating mode 3 max. 150 ml Heat up milk with less froth Choose this operating mode to create warm, creamy, fine- pored milk froth with a more liquid milk content. Operating mode 4 max. 150 ml Cold frothing Choose this operating mode to create cold, creamy milk froth.SilverCrest SMA 500 D1 English - 33

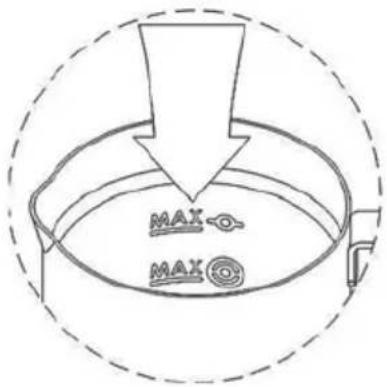

7.4 MIN and MAX markings

There are three markings indicated inside the canister (7).

• The MIN marking (not shown) indicates the minimum fill capacity.

7.5 Tips on how to make good milk froth

Please note that the frothing quality depends on the milk used and can vary greatly. We recommend using cow’s milk. Other types of milk behave differently during the frothing process. This can result in milk overflowing out of the milk frother. It is best to use milk with a fat content of 3.5 per cent. Low-fat milk and skimmed milk do not froth well. The milk should be cool. Do not try to froth the milk a second time if you do not like the milk froth the first time. This is because the milk can burn. If you find the milk froth to be too liquidy, we recommend leaving it to rest for around 30 seconds. During this time, the liquid milk can sink down and the milk froth achieves a better consistency.

• Take the canister (7) off the base (11) and pour milk up to the MIN marking inside the canister (7). The volume of the milk increases during the frothing process. Only pour milk up to the lower MAX marking in order to prevent the milk froth from overflowing.

• Place the lid (2) onto the canister (7).

• Place the canister (7) onto the base (11). You can make three types of hot milk froth as described in section 7.3:SilverCrest SMA 500 D1

• Use the On/Off button (9) to select operating mode 1. The white LED (14) flashes and whisk B (5) begins to turn after approximately three seconds. The process of creating milk froth begins.

• Use the On/Off button (9) to select operating mode 2. The white LED (8) flashes and whisk B (5) begins to turn after approximately three seconds. The process of creating milk froth begins.

• Use the On/Off button (9) to select operating mode 3. The white LED (13) flashes and whisk B (5) begins to turn after approximately three seconds. The process of creating milk froth begins.

• As soon as the milk is ready, the milk frother automatically switches off and the white LED (8, 13, 14) flashes; it then goes out again after a short time. You can stop the preparation process at any time by briefly pressing the On/Off button (9).

• Wait around 30 seconds until any remaining fluid milk settles at the bottom of the canister (7).

• Lift the canister (7) off the base (11), remove the lid (2) and use the milk froth as you wish.

• Wait two to three minutes before using the milk frother again.

7.7 Making cold milk froth

• Insert whisk B (5) up to the stop on the drive shaft inside the canister (7).

• Take the canister (7) off the base (11) and pour milk up to the MIN marking inside the canister (7). The volume of the milk increases during the frothing process. Only pour milk up to the lower MAX marking in order to prevent the milk froth from overflowing.

• Use the On/Off button (9) to select operating mode 4. The white LED (10) flashes and whisk B (5) begins to turn after approximately three seconds. The process of creating milk froth begins.

• As soon as the milk is ready, the milk frother automatically switches off and the white LED (10) flashes; it then goes out again after a short time. You can stop the preparation process at any time by briefly pressing the On/Off button (9).

• Wait around 30 seconds until any remaining fluid milk settles at the bottom of the canister (7).

• Lift the canister (7) off the base (11), remove the lid (2) and use the milk froth as you wish.SilverCrest SMA 500 D1 English - 35

7.8 Heating milk evenly

• Insert whisk A ( 4 ) up to the stop on the drive shaft inside the canister (7).

• Take the canister (7) off the base (11) and pour milk up to the MIN marking inside the canister (7). Only pour milk up to the upper MAX marking in order to prevent the hot milk from overflowing.

• Use the On/Off button (9) to select operating mode 1. The white LED (14) flashes and whisk A (4) begins to turn after approximately three seconds; this ensures even heating.

• As soon as the milk is hot, the milk frother automatically switches off and the white LED display (14) flashes; it then goes out again after a short time. You can stop the preparation process at any time by briefly pressing the On/Off button (9).

• Lift the canister (7) off the base (11), remove the lid (2) and use the hot milk as you wish.

• Wait two to three minutes before using the milk frother again.SilverCrest SMA 500 D1

7.9 Ideas for using milk froth

You can use your freshly made milk froth in various beverages. We have included some recipes for you here. Viennese Blend Freshly brewed coffee Hot milk Milk froth Place the same amount of freshly brewed black coffee and hot milk into a large cup until there is about one centimetre to the rim of the cup. Pour in the freshly made milk froth. Latte Macchiato 150 ml milk for the milk froth 1 portion of espresso (25–30 ml) Use the milk to make fresh milk froth and pour the froth into a latte macchiato glass until the glass is three quarters full. Next, slowly and carefully pour the espresso into the milk froth. Those who like strong coffee can add an extra portion of espresso at this stage. Ideally, the espresso has now collected in the centre. The liquid milk is at the bottom and the top of the drink is crowned by a thick layer of froth. If there is any leftover milk froth and space in the glass, you can carefully add it to the rest of the milk froth. Carajillo – A Spanish drink combining coffee with a shot 1 cup of espresso 1 cl brandy or rum 1–2 cl egg liqueur 1 heaped teaspoon of fine cane sugar Milk froth Stir the espresso with the brandy and dissolve the cane sugar in it. Put the egg liqueur into a large glass and then very slowly slide the espresso over a spoon onto the egg liqueur. This creates two layers in the glass. Fill the glass with the freshly made milk froth. Coffee with nut nougat cream 1 cup of freshly brewed coffee 2 teaspoons of nut nougat cream Milk froth Stir the nut nougat cream directly into the freshly brewed coffee, provided it is still very hot. Pour in the freshly made milk froth. If you like, you can stir some chilli powder into your coffee and sprinkle a little bit onto the milk froth. Enjoy!SilverCrest SMA 500 D1 English - 37

8. Maintenance/cleaning

DANGER of electric shock Always remove the plug from the power socket before beginning to clean the base (11). Otherwise, there is a risk of electric shock. Do not pour or spray any liquids onto the base (11) or immerse it into water or any other liquids. Otherwise, there is a risk of electric shock and a fire hazard due to short circuits. DANGER of burn injuries Wait until the canister (7) has cooled down completely before cleaning it. Otherwise you could burn yourself.

WARNING of damage to property Do not use any scratching or abrasive cleaning agents or abrasive objects (such as a metal scourer) for cleaning purposes. Otherwise the milk frother may be damaged. Never clean the canister (7) under running water. When cleaning, please make sure that no water gets into the canister (7) from underneath or through the control panel! Do not clean the milk frother (7) and its accessories in the dishwasher, as this may cause irreparable damage.

Ideally, cleaning is carried out directly after the canister (7) cools down. This way, any milk residues cannot dry.

8.1 Simple cleaning process:

• Leave the whisk (4, 5) that was used in place.

• Fill the canister (7) with water considering the MIN and MAX markings and place the lid (2) onto it.

• Allow the milk frother to run for around 30 seconds.

• Next, rinse the canister (7) with plenty of clean water and rinse the lid (2) under running water.

8.2 Thorough cleaning process:

• Remove the power cable (12) from the power socket.

• Remove the whisk (4, 5) that was used.

• Clean the interior of the canister (7) with warm water and some washing up-liquid. Use a sponge or a soft cloth. Make sure to remove milk residue in and around the whisk drive shaft. Next, rinse the canister (7) with plenty of clean water.

• Remove the cover seal (3) from the lid (2) and clean the two parts in mild rinse water. Rinse with clean water, dry both parts thoroughly and position the cover seal (3) back on the lid (2).

• Clean whisks A and B (4, 5) in mild rinse water and rinse with clean water.

• Next, rinse the canister (7) with plenty of clean water and rinse the lid (2) under running water.

• Clean the outer surfaces, the base (11) and the power cable (12) with a soft, damp cloth, using a mild detergent for stubborn stains. Dry all of the parts thoroughly.SilverCrest SMA 500 D1

WARNING of damage to property After cleaning and before using the device again, ensure that the contact area on the underside of the canister (7) is absolutely dry and free from any detergent residue. If not, placing the canister (7) on the base (11) can cause a short circuit, which in turn will result in a defective milk frother.

9. Storing the device when not in use

If the milk frother is not going to be used for a longer period of time, store it in a safe, clean and dry place.

• Before storing the device, clean it thoroughly as described in the previous section.

If your milk frother does not work as usual, use the following instructions to try and solve the problem. If working through the following tips does not eliminate the fault, please contact our hotline (see the ‘Warranty information’ section).

10.1 The milk frother is not working

• The plug is not inserted. Insert the plug into the power socket.

• The power socket is faulty. Try the milk frother in another power socket that you know definitely works.

• The milk frother is not switched on. Press the On/Off button (9) to switch on the milk frother.

• The milk frother has overheated and the overheating protection is preventing the device from switching on. If this is the case, the white LEDs (8, 13, 14) will stay on. Wait until the milk frother has cooled down. Pour milk up to the MIN marking inside the milk frother to prevent this from happening. Now remove the canister (7) from the base (11) for a moment.

• The inserted whisk (4,5) does not rotate. The whisk drive axle may be stuck due to milk residues. Remove the plug and fill the canister (7) with some lukewarm water. Leave the water in for some time and then try to rotate the whisk drive axle several times with your hand. Pour out the water. The milk frother should now work again.

10.2 The milk in the canister won’t froth

• Check whether whisk B (5) is inserted. Insert whisk B (5), if necessary.

• Whisk B (5) is not securely in place on the whisk drive shaft. Push whisk B (5) up to the stop on the whisk drive shaft.

• Please note that the frothing quality depends on the milk used and can vary greatly. See section “7.5 Tips on how to make good milk froth”.SilverCrest SMA 500 D1 English - 39

11. Environmental and waste disposal information

Devices marked with this symbol are subject to the European Directive 2012/19/EU. Electrical and electronic devices may not be put in the household waste, but must be disposed of via designated public disposal centres. By properly disposing of the old device, you can avoid environmental damage and hazards to health. Further information regarding proper disposal of the old device can be obtained from your local authority or the shop where you purchased the device. Make sure the packaging is disposed of in an environmentally friendly manner. Cardboard packaging can be put out for waste-paper collection or taken to public collection points for recycling. The plastic packaging used for your device is collected by your local waste management company and disposed of in an environmentally-friendly manner. Please pay attention to the labels on packaging materials when you separate waste; these are marked with abbreviations (a) and numbers (b) that mean the following: 1–7: Plastics/20–22: Paper and cardboard/80–98: Composite materials.

12. Marks of conformity

This product fulfils the requirements specified in the applicable European and national policies. This product’s conformity has been verified. The declarations and documents are stored with the manufacturer. You can download the full EU declaration of conformity at the following link: https://www.targa.gmbh/downloads/conformity/321579_1901.pdfSilverCrest SMA 500 D1

Warranty of TARGA GmbH Dear Customer, This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below. Warranty conditions The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate. Warranty period and legal warranty rights The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge. Scope of warranty The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced. Submitting warranty claims To ensure speedy handling of your complaint, please note the following:SilverCrest SMA 500 D1 English - 41 - Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline. - Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase. - If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.

Manufacturer Please note that the following address is not a service address. First contact the service point stated above. TARGA GmbH Coesterweg 45 59494 Soest GERMANYSilverCrest SMA 500 D1
