Product type	Pushchair
Brand	Cosatto
Model	Wow
Recommended age	From birth to 4 years (or up to 20 kg)
Maximum child weight	20 kg (seat); 9 kg (carrycot); 13 kg (car seat)
Usage	Daily walks
Carrycot compatibility	Yes, Wow Continental carrycot (sold separately)
Car seat compatibility	Yes, with adaptor and Cosatto seats (sold separately)
Seat orientation	Forward-facing or parent-facing
Backrest recline	Multiple adjustable positions
Harness	5-point, height and tension adjustable
Bumper bar	Removable, with fabric cover
Hood	Removable, with visibility window
Rain cover	Included
Shopping basket	Maximum capacity 5 kg
Handle	Height adjustable (multiple positions)
Brake	Foot brake
Rear suspension	Adjustable (firm/soft)
Safety standard	BS EN 1888-2:2018
Maintenance	Clean metal and plastic parts with a soft cloth and mild detergent; follow the washing labels for fabrics
Spare parts available	Yes, on the Cosatto website (seat, hood, harness, wheels, etc.)

Frequently Asked Questions - Wow COSATTO

How to fold the chassis of the Cosatto Wow pushchair?

To fold the chassis, make sure the seat is forward-facing and the backrest is fully upright. Press the main release button and pull both levers backwards, then lower the handle until it locks automatically. Set the handle to the lowest position for a compact size.

Can I use the pushchair from birth?

Yes, in fully reclined seat mode or with the optional Wow Continental carrycot. For a newborn, recline the backrest fully until they can sit up unassisted.

What is the maximum weight supported by the basket?

The basket supports up to 5 kg of evenly distributed items. Do not exceed this limit to avoid compromising stability.

How to clean the seat cover?

The cover is removable. Remove it following the instructions (unclip straps, unzip, etc.) and wash it according to the washing label. Do not use abrasive detergents, bleach, or alcohol.

Is the pushchair compatible with other car seat brands?

No, the chassis is only compatible with Cosatto-approved car seats and the specific adaptor (sold separately).

How to adjust the harness height?

Open the top zipper to access the shoulder strap attachments. Detach them and reinsert them at the desired height. Make sure the straps are positioned correctly relative to the child's shoulders.

Can I run or skate with this pushchair?

No, the product is not suitable for running, rollerblading, or skateboarding. It is designed for normal walking.

How to maintain the wheels and brakes?

Regularly inspect the wheels, brakes, and locks. Clean with a damp cloth. For joints, apply a light silicone lubricant spray (not oil or grease).

What is the maximum child weight in carrycot mode?

In carrycot mode, the maximum child weight is 9 kg and they must be unable to sit up alone, roll over, or get on all fours.

Where can I buy spare parts?

For the UK and Ireland, order from cosatto.com/service-centre/spares. Elsewhere, contact the local distributor via cosatto.com/stockists or email [e-mail].

USER MANUAL Wow COSATTO

(EN) Spare part list diagram

40

(EN) Instruction diagram

41 - 48

(FR) Schéma d'instructions, (DE) Anleitungsdiagramm, (IT) Diagramma di istruzioni,

(PT) Diagrama de instruções, (RU) Схема к инструкции, (ZH) 说明图, (ES) Diagrama de instrucciones

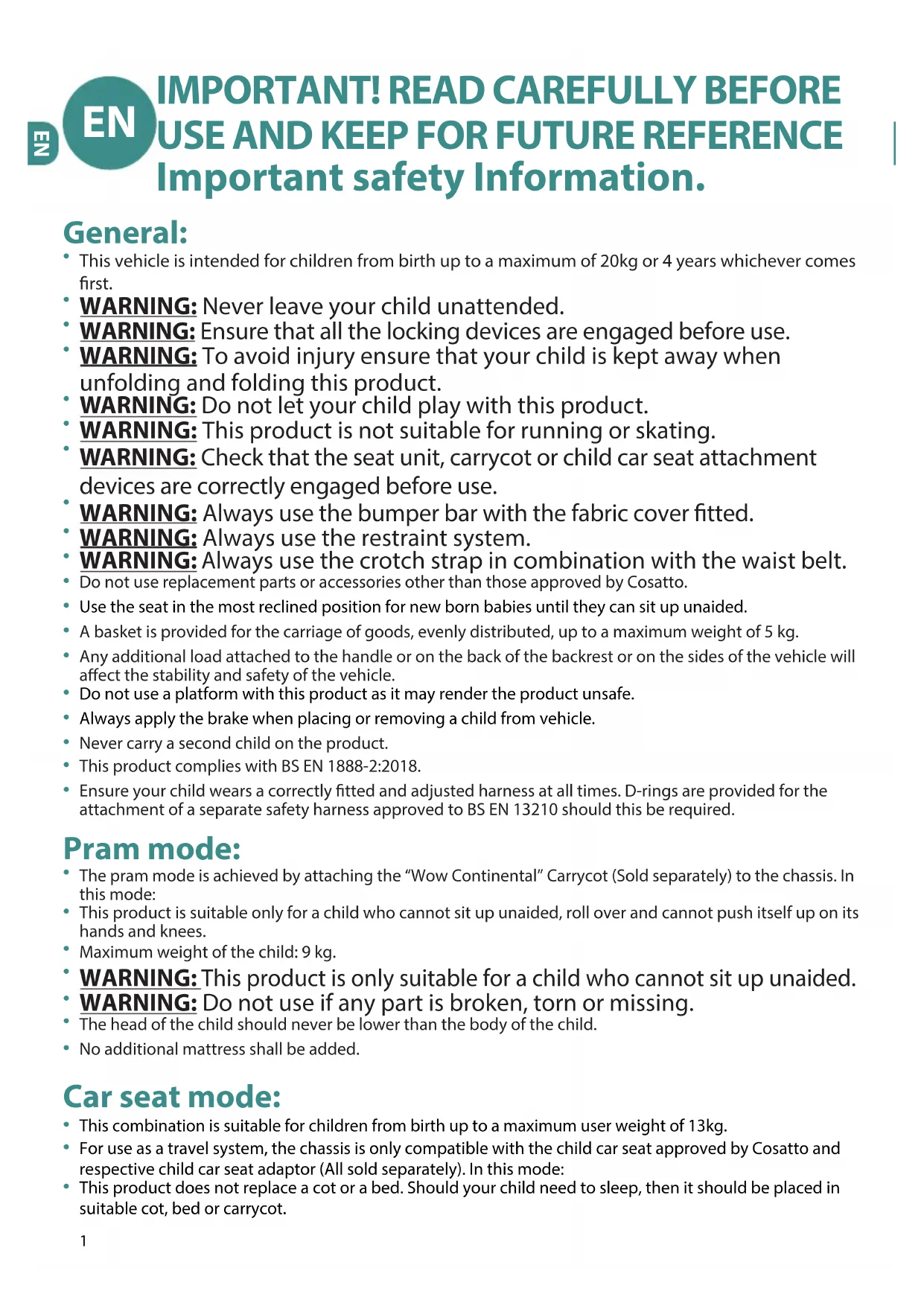

General:

• This vehicle is intended for children from birth up to a maximum of 20kg or 4 years whichever comes first.
  • WARNING: Never leave your child unattended.
  • WARNING: Ensure that all the locking devices are engaged before use.
• WARNING: To avoid injury ensure that your child is kept away when unfolding and folding this product.
  • WARNING: Do not let your child play with this product.
  • WARNING: This product is not suitable for running or skating.
• WARNING: Check that the seat unit, carrycot or child car seat attachment devices are correctly engaged before use.
  WARNING: Always use the bumper bar with the fabric cover fitted.
  • WARNING: Always use the restraint system.
• WARNING: Always use the crotch strap in combination with the waist belt.
• Do not use replacement parts or accessories other than those approved by Cosatto.
• Use the seat in the most reclined position for new born babies until they can sit up unaided.
• A basket is provided for the carriage of goods, evenly distributed, up to a maximum weight of 5 kg.
• Any additional load attached to the handle or on the back of the backrest or on the sides of the vehicle will affect the stability and safety of the vehicle.
• Do not use a platform with this product as it may render the product unsafe.
  • Always apply the brake when placing or removing a child from vehicle.
• Never carry a second child on the product.
  • This product complies with BS EN 1888-2:2018.
• Ensure your child wears a correctly fitted and adjusted harness at all times. D-rings are provided for the attachment of a separate safety harness approved to BS EN 13210 should this be required.

Pram mode:

• The pram mode is achieved by attaching the "Wow Continental" Carrycot (Sold separately) to the chassis. In this mode:
• This product is suitable only for a child who cannot sit up unaided, roll over and cannot push itself up on its hands and knees.
  • Maximum weight of the child: 9 kg.
  • WARNING: This product is only suitable for a child who cannot sit up unaided.
• WARNING: Do not use if any part is broken, torn or missing.
  • The head of the child should never be lower than the body of the child.
  • No additional mattress shall be added.

Car seat mode:

• This combination is suitable for children from birth up to a maximum user weight of 13kg.
• For use as a travel system, the chassis is only compatible with the child car seat approved by Cosatto and respective child car seat adaptor (All sold separately). In this mode:
• This product does not replace a cot or a bed. Should your child need to sleep, then it should be placed in suitable cot, bed or carrycot.

Travel companion:

• Remove all packaging materials before giving the travel companion to child.
• Remove the travel companion from your child before putting them to sleep.

Cosatto changing bag (sold separately):

• A coordinating changing bag can be purchased separately, suitable for the carriage of 2 kg of goods.
- Do not attach the changing bag to the vehicle as it will affect the stability of the vehicle.

Visual language key:

!xx	Refer to warning XX
	Correct action
	Incorrect action
	Audible sound

	Repeat action x times
	General action arrow
	Lock
	Unlock

	Press and hold
	Check
	Continue to step XX
	Repeat on other side

Part list:

Please refer to diagrams:

P1: Chassis P6: Seat unit

P2: Rear wheel (x2) P7: Raincover

P3: Front wheel (x2) P8: Travel companion

P4: Seat unit hood P9*: Cosatto footmuff (sold separately)

P5: Bumper bar P10* Cosatto changing bag (sold separately)

Replacement parts:

The replacement parts shown below are available for your product. For UK & Ireland customers, order through our website: http://www.cosatto.com/service-centre/spares

For customer outside UK & Ireland, contact information for your local distributor can be found on http://www.cosatto.com/stockists

If you require any further assistance, please contact us at [e-mail]

S1: Seat unit S8: Crotch pad

S2: Seat unit hood S9: Front wheel

S3: Headhugger S10: Rear wheel

S4: Chest pad (set)

S11: Raincover

S5: Bumper bar S11: Auto lock

S6: Bumper bar cover

S13: Bumper bar cap (x2)

S7: Harness

S14: Travel companion

Fitting & operation information:

Please refer to the instruction diagrams (P. 41 - 48):

Chassis 1- Opening:

Release the autolock (a) and lift the handle upwards until the chassis locks into position (b).

Check the chassis has locked in place.

2- Adjusting handle position:

Front wheel 3- Fitting:

4- Removing:

Rear wheel 5- Fitting:

6- Removing:

Brake 7- Applying:

8- Releasing:

Front wheel swivel

9- Applying:

lock

10- Releasing:

Rear Suspension 11- Firm:

12- Soft:

Basket 13- Accessing rear compartment:

Chassis 14- Closing:

NOTE: The chassis cannot be closed in pram mode or car seat mode.

To close with seat unit fitted, the seat unit must be forward facing and in the most upright recline position.

While pressing the primary release button (a), pull both secondary levers (b) back.

Press down on the handle (c) until the autolock retains the chassis in the folded position (d).

Adjust the handle to the lowest position (See Step 2) for the most compact fold.

Seat unit

15- Note: The seat unit can be fitted forward or rearward facing.

16- Fitting:

17- Removing:

Harness 18- Opening:

19- Closing:

20- Adjusting the strap length:

Slide the strap adjustor to suitable length (a, b & c).

21- Adjusting the shoulder strap position:

Unfasten the top access zip to gain access to shoulder strap retainers (a).

Adjust the shoulder strap position (b & c).

22- Satisfactory shoulder strap position:

23- Harness tension:

Always make sure that the harness is correctly tensioned to ensure maximum protection for your child.

You should only be able to insert 2 fingers between the shoulder strap and waist strap.

NOTE: Winter/ Summer clothing can make a difference to the size of your child.

24- Removing:

Unfasten the top access zip to gain access to shoulder strap retainers (See step 21).

Push the shoulder strap retainers through the backrest (a).

Push the crotch strap retainer through the seat (b).

Rotate the "C" clip to expose its opening (c) and slide the waist strap out of the clip (d).

Refitting is a reversal of this procedure.

Backrest 25- Adjusting the seat unit recline angle:

WARNING: Never adjust the seat unit with your child in the seat.

Bumper bar cap 26- Removing:

27- Fitting:

Bumper bar 28- Fitting:

29- Opening:

30- Removing:

31- Removing the bumper bar fabric cover:

The bumper bar fabric cover can be removed for cleaning.

Refitting is a reversal of this procedure.

Calf support 32-Adjusting:

Cosatto footmuff (sold separately)

33- Open the harness (See Step 18) and remove the headhugger, chest pads & crotch pad (a). Push the harness straps through the footmuff (b).

Attach the footmuff fabric fasteners to the rear of the backrest (c).

Refit the headhugger, chest pads & crotch pad then close the harness (See step 19).

Removing is a reversal of this procedure.

Seat unit hood 34- Fitting:

Removing is a reversal of this procedure.

35- Opening:

Sun visor 36- Opening:

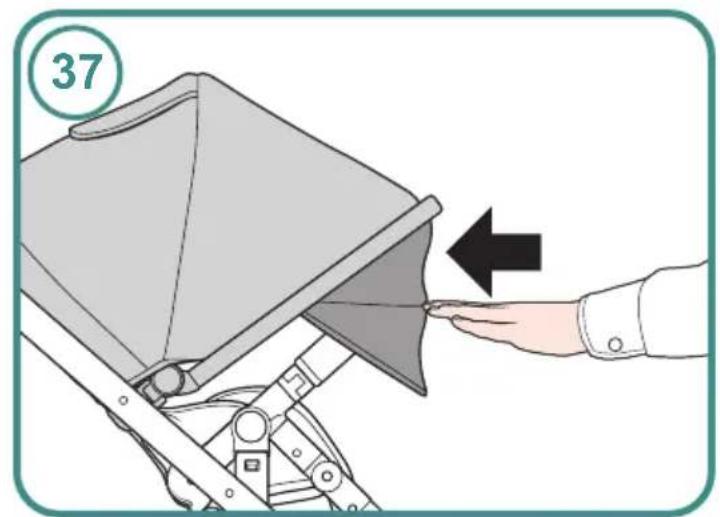

37- Closing:

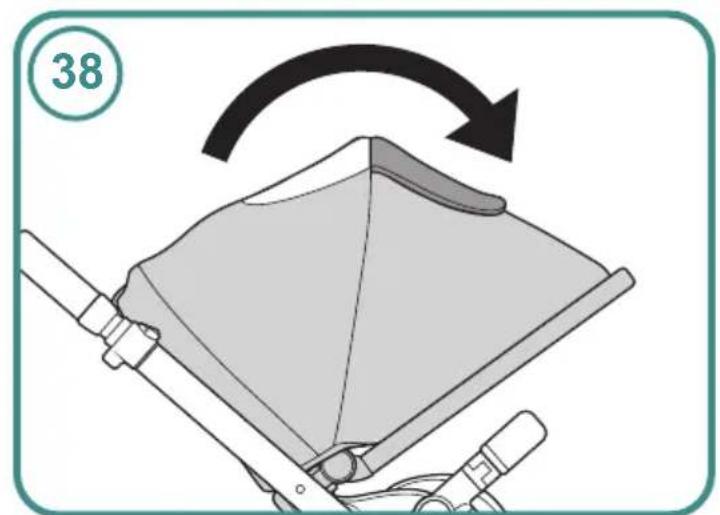

Viewing window 38- Opening:

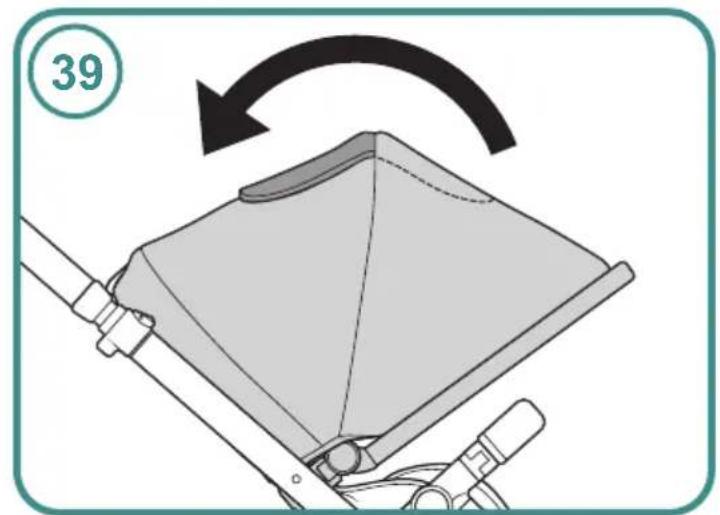

(style may vary) 39- Closing:

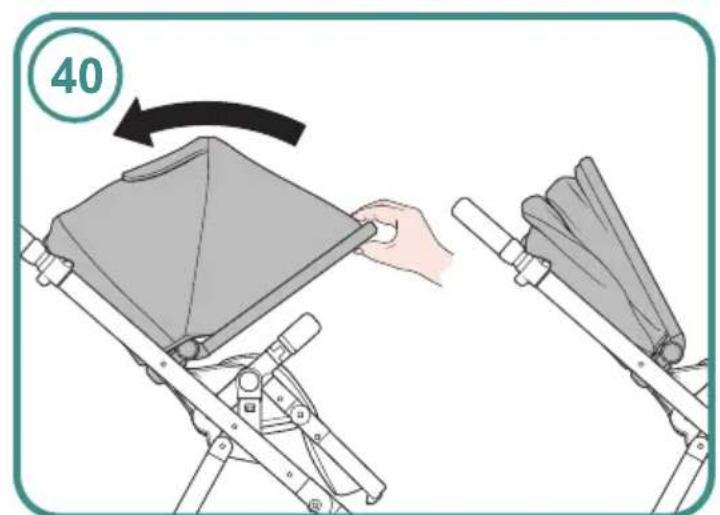

Seat unit hood 40- Closing:

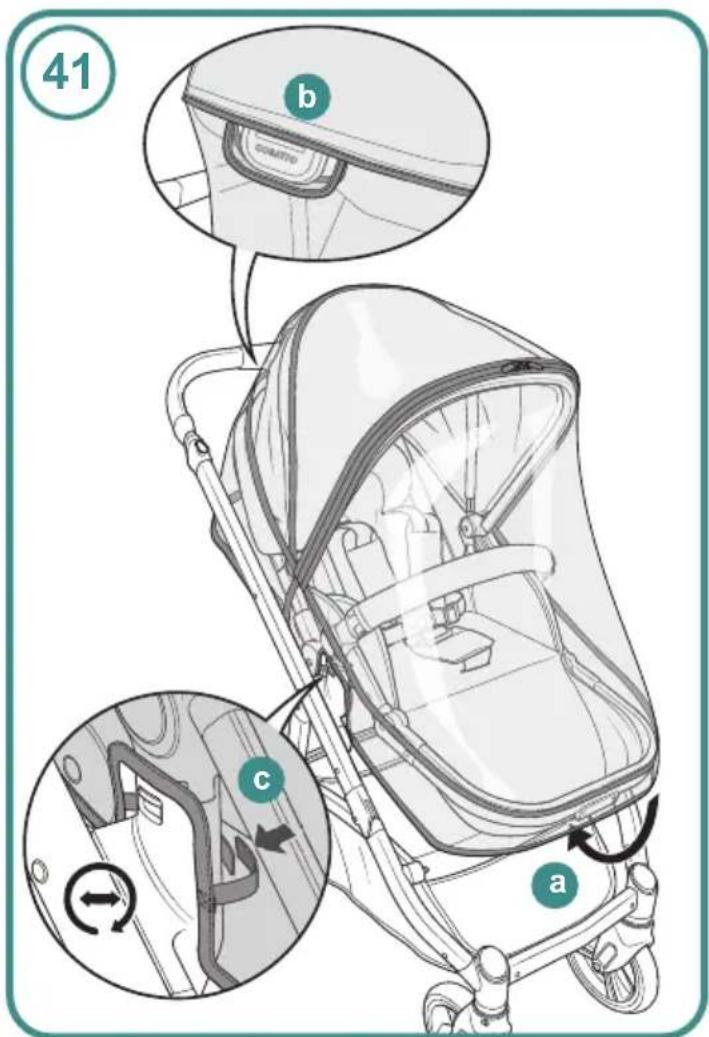

Raincover 41 - Fitting:

Removing is a reversal of this procedure.

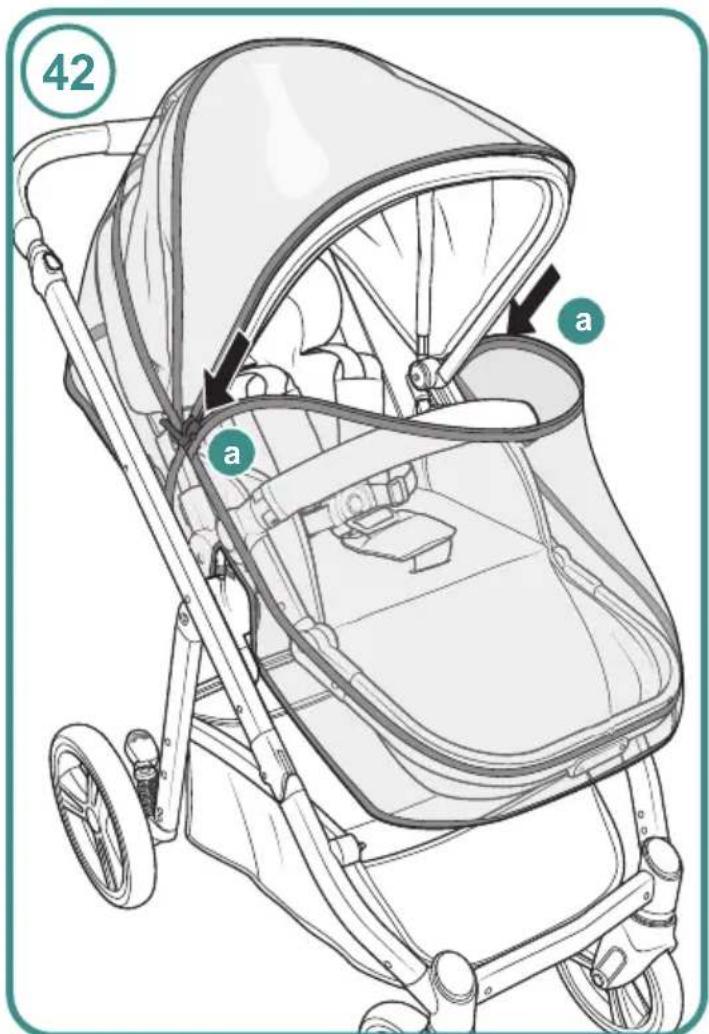

42- Using the access zip:

Seat cover

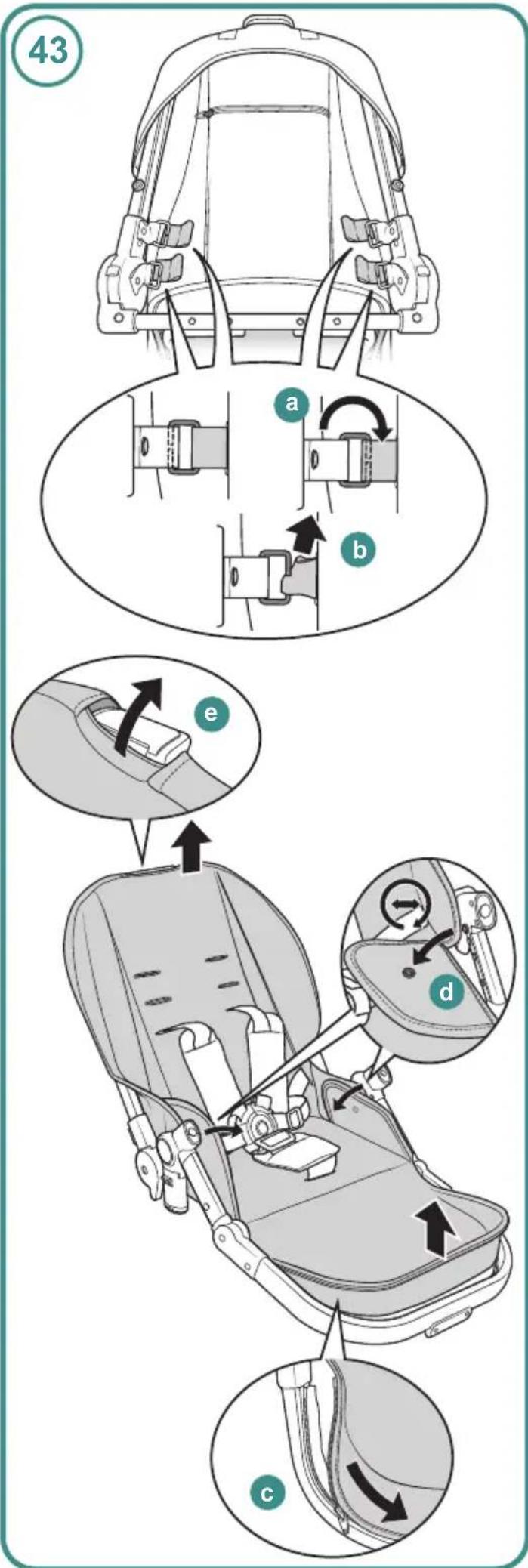

43- Removing the fabric cover for cleaning:

Prior to removing the fabric cover, remove the hood (See step 34).

Rotate the "C" clip to expose its opening (a) and slide the strap out of the clip (b) on the 4 anchorage points.

Unfasten the calf support zip (c).

Disconnect the side wing from the seat unit frame (d).

Lift the fabric cover over the recline adjustment lever and away from the seat unit frame (e).

Refitting is a reversal of this procedure.

Care & maintenance:

• Your travel system has been designed to meet comprehensive safety standards, and with correct use and maintenance will give many years of trouble free performance.
• Storage - Always store your travel system dry. Storing a damp travel system will encourage mildew to form, so always wipe away any moisture with a soft cloth and allow to dry thoroughly before storing. Never leave in sunlight for prolonged periods - some fabrics may fade.
• Cleaning - Refer to wash care labels on soft goods for cleaning instructions. Plastic and metal parts may be sponged clean with warm water and a mild detergent. Never clean with abrasive, ammonia based, bleach based or spirit type cleaner.
• Wear & Tear - Continual impact can cause damage. The chassis is strong but will weaken should the back wheels be bumped down stairs or kerbs. Tyres will wear with use and wheel units should be replaced if necessary. If your child wears hard shoes these might damage the soft fabric.
• Maintenance - Regularly inspect the locking devices, brakes, wheels, harness assembly, catches, seat adjusters, joints and fixtures to ensure they are secure and in full working order. They should move freely at all times and minimum maintenance should be required. However a regular light application of a spray lubricant e.g. silicone (do not use oil or grease) will extend the life of your travel system and make opening and folding easier. Your travel system should be serviced and reconditioned before using it for a second baby, or after 18 months, whichever is the sooner.
