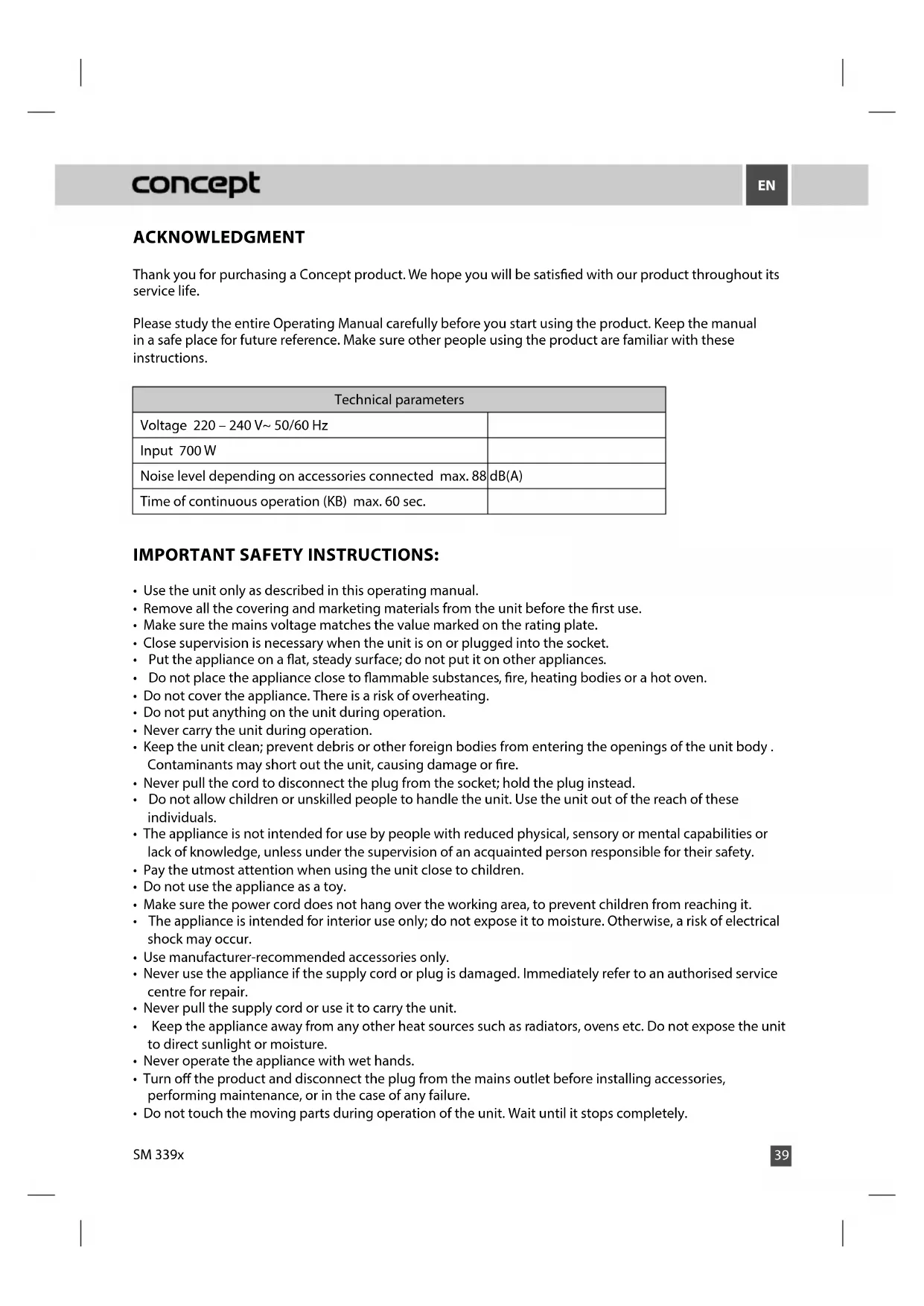

Thank you for purchasing a Concept product. We hope you will be satisfied with our product throughout its service life.

Please study the entire Operating Manual carefully before you start using the product. Keep the manual in a safe place for future reference. Make sure other people using the product are familiar with these instructions.

Technical parameters
Voltage 220 – 240 V~ 50/60 Hz
Input 700 W
Noise level depending on accessories connected max. 88	dB(A)
Time of continuous operation (KB) max. 60 sec.

IMPORTANT SAFETY INSTRUCTIONS:

• Use the unit only as described in this operating manual.
• Remove all the covering and marketing materials from the unit before the first use.
• Make sure the mains voltage matches the value marked on the rating plate.
• Close supervision is necessary when the unit is on or plugged into the socket.
• Put the appliance on a flat, steady surface; do not put it on other appliances.
• Do not place the appliance close to flammable substances, fire, heating bodies or a hot oven.
• Do not cover the appliance. There is a risk of overheating.
• Do not put anything on the unit during operation.
• Never carry the unit during operation.
• Keep the unit clean; prevent debris or other foreign bodies from entering the openings of the unit body. Contaminants may short out the unit, causing damage or fire.
• Never pull the cord to disconnect the plug from the socket; hold the plug instead.
• Do not allow children or unskilled people to handle the unit. Use the unit out of the reach of these individuals.
• The appliance is not intended for use by people with reduced physical, sensory or mental capabilities or lack of knowledge, unless under the supervision of an acquainted person responsible for their safety.
• Pay the utmost attention when using the unit close to children.
• Do not use the appliance as a toy.
• Make sure the power cord does not hang over the working area, to prevent children from reaching it.
• The appliance is intended for interior use only; do not expose it to moisture. Otherwise, a risk of electrical shock may occur.
• Use manufacturer-recommended accessories only.
• Never use the appliance if the supply cord or plug is damaged. Immediately refer to an authorised service centre for repair.
• Never pull the supply cord or use it to carry the unit.
• Keep the appliance away from any other heat sources such as radiators, ovens etc. Do not expose the unit to direct sunlight or moisture.
• Never operate the appliance with wet hands.
• Turn off the product and disconnect the plug from the mains outlet before installing accessories, performing maintenance, or in the case of any failure.
• Do not touch the moving parts during operation of the unit. Wait until it stops completely.

EN

concept

• The appliance is intended for domestic use only, not for commercial use.
- Do not immerse the power cord, plug, or appliance in water or any other liquid.
- Check the appliance and power cord for damage regularly. Never switch on a damaged appliance.
- Prevent loose hair and garments from hanging close to the openings and moving parts of the appliance.
- Before plugging the unit in or unplugging it from the wall outlet, make sure the switch is OFF.
• Always take extra care when handling the blades and slicers. They are very sharp and could cause an injury.
- Turn the unit off, disconnect the power cord from the wall outlet, and allow the unit to cool before cleaning.

- The unit contains sharp parts. Extra care should be taken while cleaning the unit.

- Do not let the power cord hang loosely over the edge of the work area. Make sure the power cord does not touch hot surfaces.

- Do not let the unit hang loosely on the power cord.

- Do not use the unit without correctly mounted accessories.

- Do not let the appliance run when empty.

- Do not repair the appliance yourself. Refer to an authorised service centre instead.

- This appliance may be used by children 8 years of age and older and by persons with physical or mental impairments or by inexperienced persons if they are properly supervised or have been informed about how to use of the product in a safe manner and understand the potential dangers. Children must not play with the appliance. This appliance may be cleaned by children 8 years of age and older if they are properly supervised. Keep this appliance and the power cord out of reach of children younger than 8 years of age.

Failure to follow the manufacturer's instructions may lead to refusal of warranty repair.

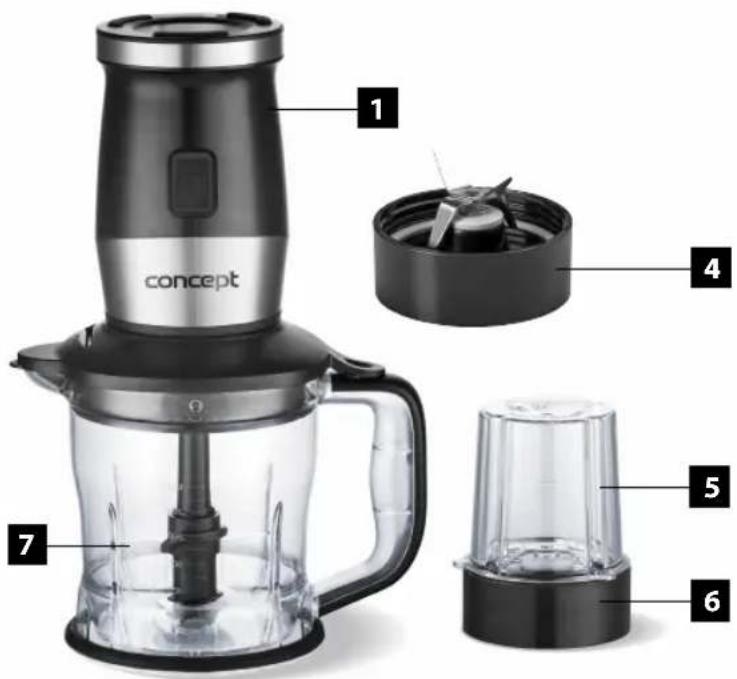

PRODUCT DESCRIPTION

1. Body of the unit
2. Blender jars
3. Blender jars lid
4. Blender blade part
5. Container of the mill
6. Mill blade part
7. Chop container

my of the unit nder jars nder jars lid nder blade part container of the mill blade part op container concept 1 2 3 4 5 6 7

OPERATING INSTRUCTIONS

CAUTION

Prior to using a new unit, wipe the surface with a wet cloth and wash the removable accessories in warm water due to hygienic reasons.

The unit has a built-in safety catch. The motor can be switched on only if the accessories are properly mounted. Do not bypass the safety mechanism!

- Never leave the appliance unattended while it is running or connected to the mains.

- Some parts may keep moving for a while immediately after the motor has been switched off and the power cord disconnected from the socket. Wait until the accessories stop completely and only then open the lid.

MIXING

BLENDER IS DESIGNED FOR PROCESSING FRUIT AND VEGETABLE

1. Put the ingredients into the mixing jar (2) and screw in the blade assembly (4) to close the jar.
2. Put the mixing jar (2) onto the blender unit (1), so that the pins on the mixing jar (2) slip into the holes on the blender body (1) and turn the mixing jar (2) clockwise until an audible click is heard.
3. Uncoil the entire cord and plug into the outlet.
4. Press and hold the PULSE button to start blending. Release the PULSE button to stop blending.
5. When you finish blending, unplug the cord from the outlet.
6. Separate the mixing jar (2) from the body of the appliance (1).
7. Unscrew the blade assembly (4) and replace it with the jar cover (3). If you open the cap, you can drink directly from the jar.

CHOPPING

The chopping bowl is suitable for chopping meat, cheese, onions, herbs, garlic, carrots, walnuts, almonds, dried plums, etc.

Do not attempt to chop extremely hard foodstuffs such as nutmeg, coffee beans, or cereals. Items like meat, cheese, onions, garlic, carrots, or frozen food must be cut before chopping.

Remove the stems from herbs and all nutshells.

Remove bones, cartilage and tendons from the meat.

1. Fill the chopping bowl (7) with the ingredients and close it with the cover that holds the transmission.

2. Mount the unit body (1) on the lid with the transmission.

3. Uncoil the whole length of the power cord. Make sure it does not touch any nearby sources of heat. Insert the plug into the electric voltage socket.

4. Hold the body (1) with one hand and the chopping container (7) with the other.

5. Press and hold the PULSE button to start chopping. Release the PULSE button to stop chopping.

6. Switch the unit off after chopping. Use the release buttons to disconnect the unit body (1) from the lid with the transmission. Disconnect the cable from the socket.

7. Wipe the lid with the transmission using a wet cloth. Do not immerse in water or wash in running water!

Close-up of a black and transparent blender with handle and internal components (no visible text or symbols)

Recommended amount of food and preparation times

Food Maximum quantity Approximate cutting time
Meat (1 cm pieces) 200 g		15 s
Cheese (1 cm pieces) 200 g		15 s
Nuts 200 g		15 s
Herbs 40 g		10 s
Onions 200 g		15 s
Garlic 40 g		10 s
Carrots (1 cm pieces) 200 g		15 s
Hard-boiled eggs	2 eggs 15 s
Bread (1 cm pieces)	1 slice 15 s

MILLING

1. Put food in the mill container (5), do not exceed the marked maximum level, and close it by screwing in the mill blade part (6).
2. Put the mill container (5) on the body of the blender (1) so the latches on the container (5) fall into the holes on the body of the blender (1) and turn the container of the blender (2) clockwise until an audible click is heard.
3. Unroll the entire power cord and insert the plug into the mains.
4. Press and hold the PULSE button to start blending. Release the PULSE button to stop blending.
5. After the grinding process sis done, unplug the power cord from the mains.
6. Remove the mill container (5) from the body of the appliance (1).

CLEANING AND MAINTENANCE

Prior to any cleaning or change of the extensions, make sure the power cord is disconnected from the socket.

• Never immerse the motor part (1) or the power cord in water.
• Wipe the body of the unit (1) using a wet cloth only.
• Wash the replaceable parts in tepid water with detergent and rinse in clean water. Do not use pot scourers, abrasive agents or solvents to clean the appliance.

SERVICING

Any extensive maintenance or repair that requires access to the inner parts of the product must be performed by an expert service centre.

ENVIRONMENTAL PROTECTION

• Packaging materials and obsolete appliances should be recycled.
• The transport box may be disposed of as sorted waste.
• Polyethylene bags shall be handed over for recycling.

APPLIANCE RECYCLING AT THE END OF ITS SERVICE LIFE:

A symbol on the product or its packaging indicates that this product should not go into household waste. It must be taken to the collection point of an electric and electronic equipment recycling facility. By making sure this product is disposed of properly, you will help prevent the negative effects on the environment and human health that would otherwise result from inappropriate disposal of this product. You can learn more about recycling this product from your local authorities, a household waste disposal service or in the shop where you bought this product.

This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.
