USER MANUAL F6706 FESTINA

Setting the time and date 17

Using the chronograph 18

Chronograph reset (incl. after replacing battery) 19

Tachymeter 20

Precautions and useful information 21

Technical data 25

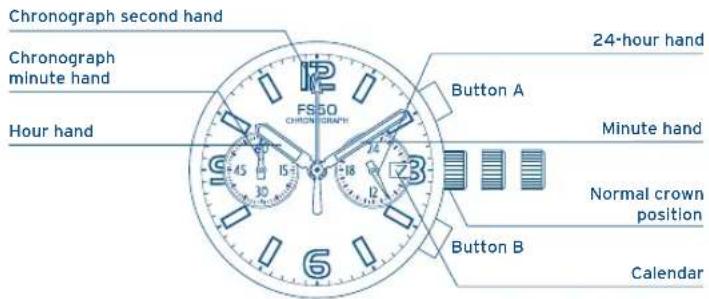

MAIN COMPONENTS

IFMFS50/51

Chronograph second hand Chronograph minute hand Hour hand 24-hour hand Button A Minute hand Normal crown position Button B Calendar

IFMFS50/51

SETTING THE TIME AND DATE

[To set the time]

1. Pull the crown out to the 2nd position so that the second hand stops at "O" position.
2. Turn the crown to set the hour and minute hands.
3. After the date has been set, push the crown back to the normal position.

[To set the date]

1. Pull the crown out to the 1st position (1).
2. Turn the crown clockwise to set the date.
   * If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change on the following day.
3. After the date has been set, push the crown back to the normal position.

IFMFS50/51

USING THE CHRONOGRAPH

- This chronograph is able to measure and display time in 1/1 second units up to a maximum of 1 hour.

[Measuring time with the chronograph]

1. The chronograph can be started and stopped each time button A is pressed.
2. To reset, press button B and the chronograph second and minute hands return to their "O" positions.

Allowing the chronograph function to run constantly over a long period of time (months) will reduce battery life.

IFMFS50/51

CHRONOGRAPH RESET

This procedure should be performed when the chronograph second hand does not return to the 0 second position after the chronograph has been reset, and including after the battery has been replaced.

1. Pull the crown out to the 2nd position (2).
2. Press button A to set the chronograph second hand to the "O" position.
3. The chronograph hands can be advanced rapidly by continuously pressing button A.
4. Once the hands have been zeroed, reset the time and return the crown to its normal position.

* Do not return crown to normal position while chronograph second hand returns to 12:00 ("O" position). Hand stops on the way when crown are returned to normal position and these positions are recognized as 12:00 ("O" position).

IFMFS50/51

TACHYMETER \*

The Tachymeter is the device which measures the speed of an automobile. Knowing is how many seconds the car covers a distance of 1km, the meter can measure the approximate average speed per hour during a journey (up to the maximum measurable range of tachymeter is 60 seconds).

If the chronograph is started at the same time as measurement, and stopped after 1km, the average speed per hour can be determined according to the position of the second hand. If the car covers the distance of 1km in 45 seconds, the average hourly speed during the journey will be about 80 km.

* Not available on all models.

IFMFS50/51

PRECAUTIONS AND USEFUL INFORMATION

	INDICATION			USE
Degree of water resistance	DIAL CASE		Spray, sweat, light rain, washing, etc.	Swimming, etc.
A	-	-	NO	NO
B	WATER RESISTANT 30M (3ATM)	WATER RESISTANT	YES	NO
C	WATER RESISTANT 50M (5ATM)	WATER RESISTANT	YES	YES
D	WATER RESISTANT 100M (10ATM)	WATER RESISTANT	YES	YES
E	WATER RESISTANT (20ATM) or more	WATER RESISTANT	YES	YES

In order to prevent water coming into contact with the internal mechanism, never pull the crown out when the watch is wet.

IFMFS50/51

IN WATER		WATER-RESISTANCE CHARACTERISTICS
Skin-diving	Scuba
NO	NO	Not water resistant. Must be kept
NO	NO	Average water resistance. Can withstand spray, sweat, light rain, washing, etc. during daily use
NO	NO	Can be worn while swimming but not diving
YES	NO	Suitable for skin-diving.
YES	YES	Suitable for scuba-diving.
Always keep the crown in its normal position.Full tighten crown screw lock.

Contact with water may cause a deterioration in the quality of some leather straps.

IFMFS50/51

PERIODIC INSPECTION

In order to guarantee long trouble-free operation, it is advisable to have the watch checked by an Authorised Assistance Centre once every two years.

TEMPERATURE

Do not leave the watch exposed to direct sunlight or temperature extremes for long periods of time. Long exposure, in fact, may adversely affect the operation of the watch and actually shorten battery life, causing it to gain or lose time and affect its other functions. Impact This watch can withstand normal everyday impacts and shocks and those normally imparted by non-contact sports. Serious damage, however, may result if the watch is dropped or subjected to severe shock.

MAGNETIC FIELDS

This watch is antimagnetic up to 60 gauss, and is therefore not affected by magnetic fields produced by normal domestic appliances. If used near strong magnetic fields, its operation may be temporarily affected.

STATIC ELECTRICITY

The integrated circuits present inside the watch are sensitive to static electricity. If the watch is exposed to intense electrical fields, the time display may temporarily lose some of its accuracy.

IFMFS50/51

CHEMICALS AND GASES

Avoid wearing the watch in the presence of strong gases or chemical substances. Parts of the watch may discolour, dissolve or even break if brought into contact with benzol or petroleum based products such as solvents, thinners, detergent, adhesives etc. Pay special attention to avoiding contact with chemicals.

The watch case and strap may discolour if they come into contact with mercury from a broken thermometer or other equipment.

KEEPING THE WATCH CLEAN

Use an absorbent soft cloth to clean off any dirt or damp from the watch glass. Wearing the watch when the strap or back of the case is dirty can cause skin irritation.

Metal bands: use a toothbrush and soapy warm to wash the dirt off.

Plastic or rubber straps: wash with water. Do not use solvents.

Leather straps: gently rub the face of the strap using a soft dry cloth.

Clean the opposite side with a cloth and alcohol.

KEEP BATTERIES OUT OF THE REACH OF CHILDREN

If a battery is accidentally swallowed, consult a doctor immediately.

IFMFS50/51

TECHNICAL DATA

[Time standard]

Type of quartz: Tuning fork type quartz crystal

Frequency: 32.768Hz

Accuracy: +/-20 s/month worn under normal circumstances.

[Function]

CAL.FS50/51: Chronograph 1/1 sec. basis(Up to 59 min. 59 sec.)

Powercell Saving Reset Mechanism (PSRM)

Over-loading Compensation Device (OLCD)

Digital Frequency Control (DFC) for time adjustment

* In order to improve the product, the technical specifications may be modified without prior notice.

IFMFS50/51

IFMFS50/51

MANUEL D'INSTRUCTION CHRONOMETRE

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.
