USER MANUAL FCMO 4507 TM WH Fulgor Milano

MARTEDÌ 11/24/2015IT

D.M.Y. Y.M.D. M.D.Y.

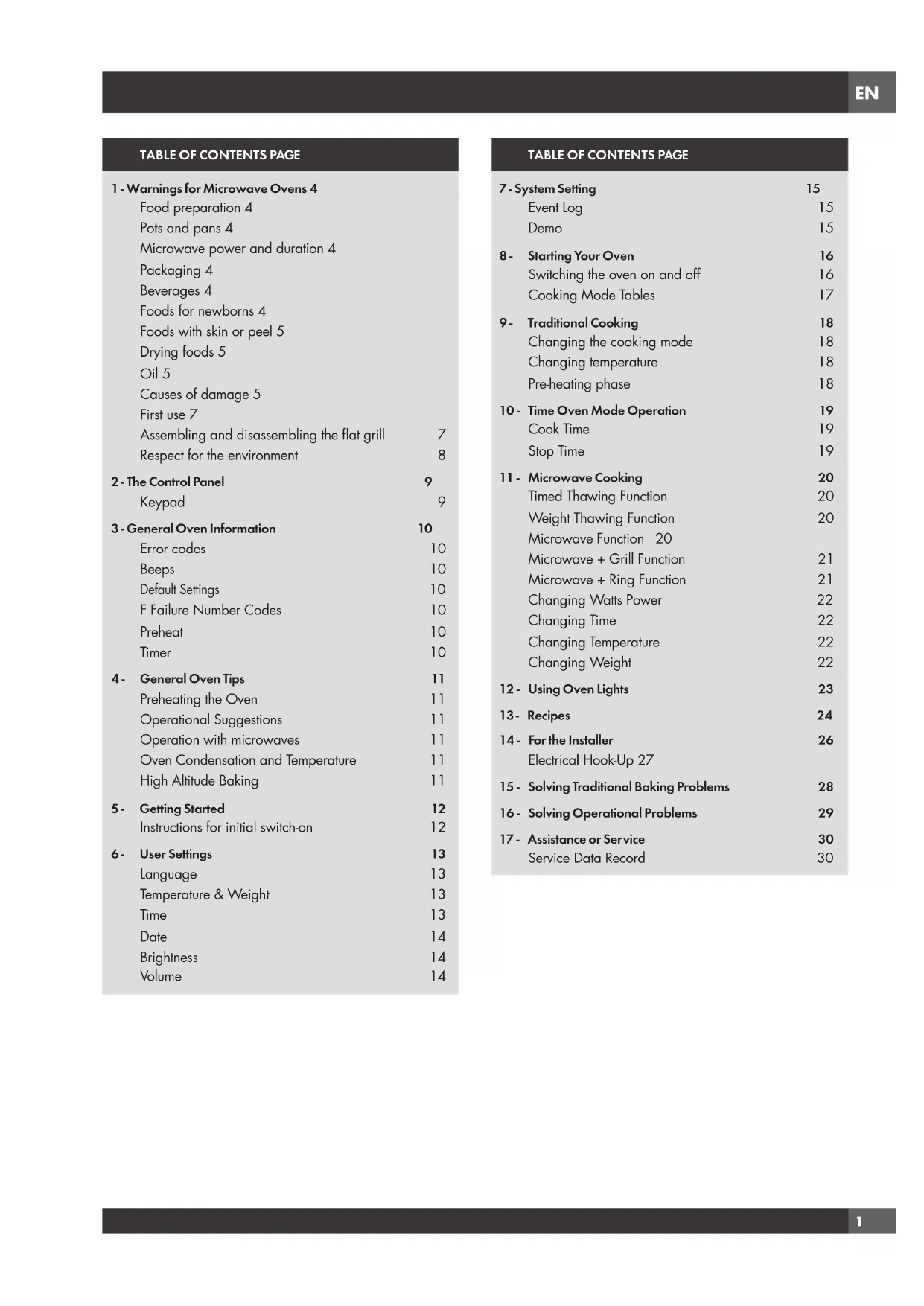

1 - Warnings for Microwave Ovens 4

Food preparation 4 Pots and pans 4 Microwave power and duration 4 Packaging 4 Beverages 4 Foods for newborns 4 Foods with skin or peel 5 Drying foods 5 Oil 5 Causes of damage 5 First use 7 Assembling and disassembling the flat grill 7 Respect for the environment 8

Preheating the Oven 11 Operational Suggestions 11 Operation with microwaves 11 Oven Condensation and Temperature 11 High Altitude Baking 11

5 - Getting Started 12

Instructions for initial switch-on 12

Switching the oven on and off 16 Cooking Mode Tables 17

9 - Traditional Cooking 18

Changing the cooking mode 18 Changing temperature 18 Pre-heating phase 18

Timed Thawing Function 20 Weight Thawing Function 20 Microwave Function 20 Microwave + Grill Function 21 Microwave + Ring Function 21 Changing Watts Power 22 Changing Time 22 Changing Temperature 22 Changing Weight 22

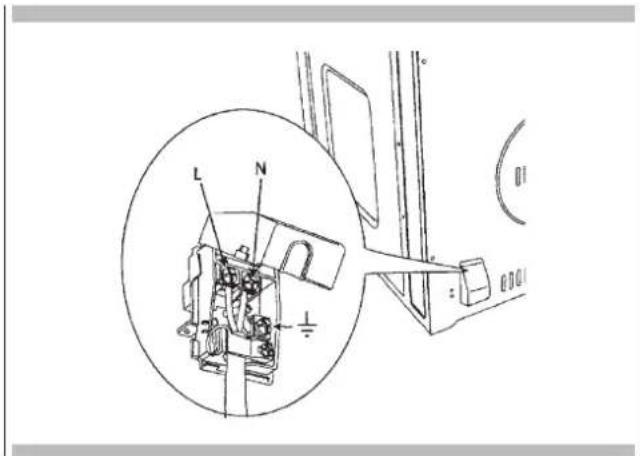

Electrical Hook-Up 27

15 - Solving Traditional Baking Problems 28

16 - Solving Operational Problems 29

Dear Customer, We would like to thank you and congratulate you on your choice. This new product has been carefully designed and built using top quality materials, and meticulously tested to ensure that it meets all your culinary requirements. Please read and observe these simple instructions, which will enable you to achieve excellent results from the very first time you use it. This state-of-the-art appliance comes to you with our very best wishes. THIS PRODUCT IS DESIGNED FOR DOMESTIC USE.

DERIVING FROM INCORRECT INSTALLATION OR

HEATING ELEMENT CAUSES OVERHEATING OF THE

• If the door or the gasket seals of the door are damaged, the oven may not gb be used until it repaired by a qualified service technician;

• It dangerous for anyone other than a service technician to perform any maintenance or repairs that involve the removal of any cover that protects against exposure to microwaves;

• Liquids or other foods must not be heated in air- tight contains because they could explode;

• Children may not use the oven without supervision until they have been adequately instructed in its safe use and understand the dangers of using it incorrectly;

• Only use untensils that are appropriate for microwave ovens;

• When heating food in plastic or paper containers, check the oven frequently because of the risks of fire;

• If you see smoke coming out, turn off the appliance or remove its plug and keep the door closed to extinguish any flames;

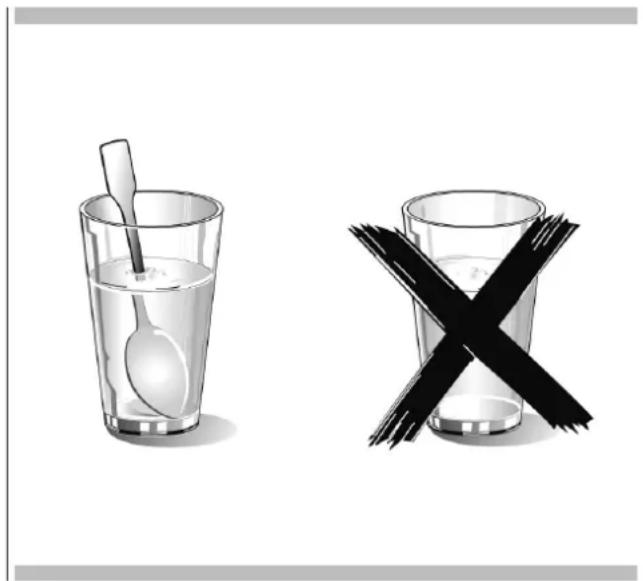

• Heating beverages in the microwave oven can cause a delayed boil-over, so be careful when handling the container;

• The contents of baby bottles and baby food in jars must be mixed or shaken and their temperature must be checked before feeding to avoid scalding; IMPORTANT INSTRUCTIONS

Read carefully and keep for future useEN

• Eggs in the shell and whole hardboiled eggs must not be heated in microwave ovens because they could explode even after the end of heating in the microwave;

• A detailed explanation for cleaning the gasket seals of the doors of the cavity and adjacent parts;

• The oven must be cleaned periodically and all food residues must be removed;

• Failure to keep the oven clean could cause deterioration of the surfaces that could reduce the life of the appliance and cause dangerous conditions;

• Do not use rough abrasives or sharp metal scrapers to clean the glass door of the oven because they could scratch the surface and cause the glass to shatter.

• Do not use steam cleaners to clean the appliance.EN

1 - Warnings for Microwave Ovens

Food preparation Danger of fire! Only use the microwave function for the preparation of food to be eaten. Any other uses can be dangerous or cause damage. For example, heated slippers or pillows filled with grain or cereals can catch fire even after several hours. Pots and pans Danger of injury! Porcelain and ceramic crockery can have small holes in the handles and cover. There can be cavities hidden behind these holes. If water gets into these cavities, the crockery could break. Do not use crockery that is unsuitable for microwave ovens. Danger of burns! The heat of the food can heat the dish. Always use a pot holder to remove dishes and accessories from the cooking chamber. Microwave power and duration Danger of fire! Never set values that are too high for the microwave power or the cooking time. The food could catch fire and damage the appliance. Follow the rules in these instructions. Packaging Danger of fire! Never heat food in thermal packaging. Food in containers made of plastic, paper or other inflammable materials must be watched constantly. Danger of burns! Air-tight packaging can explode. Follow the instructions shown on the package. Always use a pot holder to remove dishes. Beverages Danger of burns! When heating liquids, boiling can be delayed. This means that the boiling temperature has been reached without forming the typical little steam bubbles. Even a slight knock can cause the sudden overflow of liquid or sprays. When heating liquids, always put a spoon in the container to avoid delayed boiling. Danger of explosion! Never heat beverages or other types of food in covered containers. Never heat alcoholic beverages excessively. Foods for newborns Danger of burns! Never heat baby foods in a covered container. Always remove the cover or nipple. When finished heating, always carefully shake or mix so that the heat is evenly distributed. Test the temperature before giving the food to the baby.EN

Foods with skin or peel Danger of burns! Never cook eggs in the shell. Never heat hard-boiled eggs because they could explode even after the microwave is turned off. This also goes for molluscs and crustaceans. In the case of fried eggs, first pierce the yolk. In the case of foods with a hard peel or skin like apples, tomatoes, potatoes or sausage, the peel or skin could explode. Pierce the peel or skin before cooking. Drying foods Danger of fire! Never dry food in the microwave. Foods with low water content Danger of fire! Never defrost or heat foods with low water content, like bread, for too long or at an excessive power. Oil Danger of fire! Never use the microwave to heat just oil. Causes of damage Juice leaking from fruit When preparing sweets containing very juicy fruit, do not overfill the baking dish. Fruit juices that overflow the baking dish can leave indelible stains. Technical breakdown Never use enamelled baking dishes in the microwave because it could cause a technical breakdown. Cooling with the door of the appliance open The cooking chamber must only be cooled with the door closed. Check that nothing is stuck on the door of the appliance. Even if the door is only ajar, nearby cabinets can be damaged over time. Very dirty gasket seal If the gasket seal is very dirty, the door of the appliance does not close correctly during operation. The surfaces of nearby cabinets can be damaged. Always keep the gasket seal clean. Using the door of the appliance as a support surface Do not rest or lean on the open door of the appliance and do not put dishware or accessories on it. Using the microwave without food in the chamber Only turn on the microwave after you have put the food in the cooking chamber. Without food inside, the appliance can become overloaded. The only exception allowed are brief tests of dishware (in this regard, see the warnings about pots and pans). Moist foods Do not leave moist foods in the cooking chamber for extended periods of time.EN

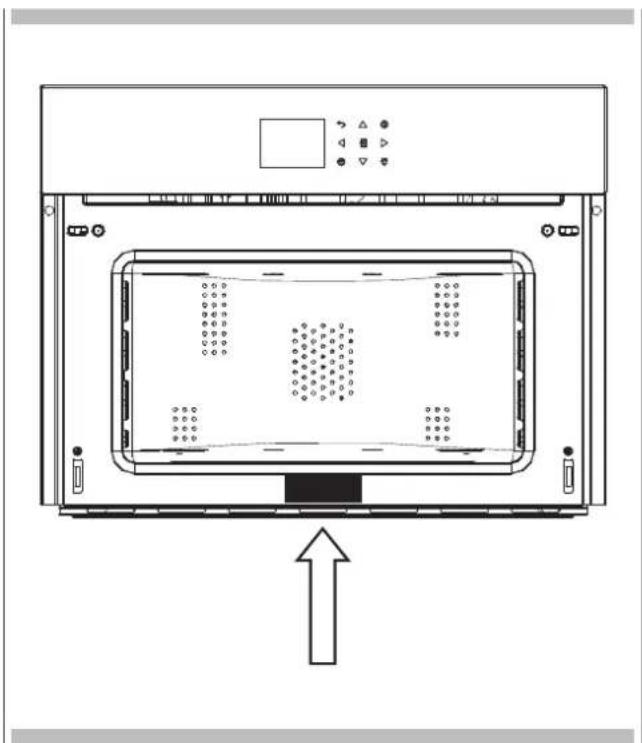

IMPORTANT The oven’s identification plate is even accessible when the appliance is installed. This identification plate, which is visible when you open the door, shows all the information you will need when requesting replacement parts for the appliance.EN

IMPORTANT As a safety precaution, before cleaning the oven, always disconnect the plug from the outlet or remove the appliance’s power cord. In addition, avoid using acid or alkaline substances such as lemon, vinegar, salt, tomatoes, etc.). Avoid using products containing chlorine, acids or abrasives, especially for cleaning the painted walls. First use The oven should be thoroughly cleaned with soap and water and carefully rinsed. Heat the oven for about 30 minutes at the maximum temperature; this eliminates all the residual manufacturing oils that could cause unpleasant odours during cooking. Use the circular plus fan function without accessories in the oven. Before using the accessories for the first time, clean them carefully with a very hot alkaline washing solution and a soft cloth. Assembling and disassembling the flat grill To remove the flat grill, pull the grill towards you until it stops and then lift, by pulling upwards, until it comes completely out. To put the flat grill back in, insert it at a 45-degree angle and then position it horizontally and push it all the way in to the end of the grill track. If the flat grill has a drip-pan (tray), to remove it, lift slightly and slide it towards you. To reinsert it, slide it back until it is correctly seated.EN

Respect for the environment The documentation for this appliance is printed on paper bleached without chlorine or recycled paper to contribute to protecting the environment. The packaging was designed to prevent damage to the environment; they are ecological products that can be recovered or recycled. Recycling the packing saves raw materials and reduces the volume of industrial and domestic waste. THE PACKING MATERIAL is 100% recyclable and marked with the recycling symbol. Dispose of in conformity with local law. The packing material (plastic bags, polystyrene parts, etc.) must be kept out of the reach of children because it is potentially dangerous. THIS APPLIANCE is marked in conformity with European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). By making sure that this product is disposed of correctly, the user contributes to preventing potential negative consequences for the environment and health. THE SYMBOL on the product or accompanying documentation indicates that this product must not be treated as domestic waste but must be delivered to a suitable collection point for the recycling of electrical and electronic equipment. DISPOSAL MUST BE MADE in conformity with local laws on waste disposal. FOR ADDITIONAL INFORMATION about the treatment, recovery and recycling of this product, contact the local office of competence, the domestic waste collection service or the store where the product was purchased. BEFORE SCRAPPING, make it unusable by cutting the electrical cord.EN

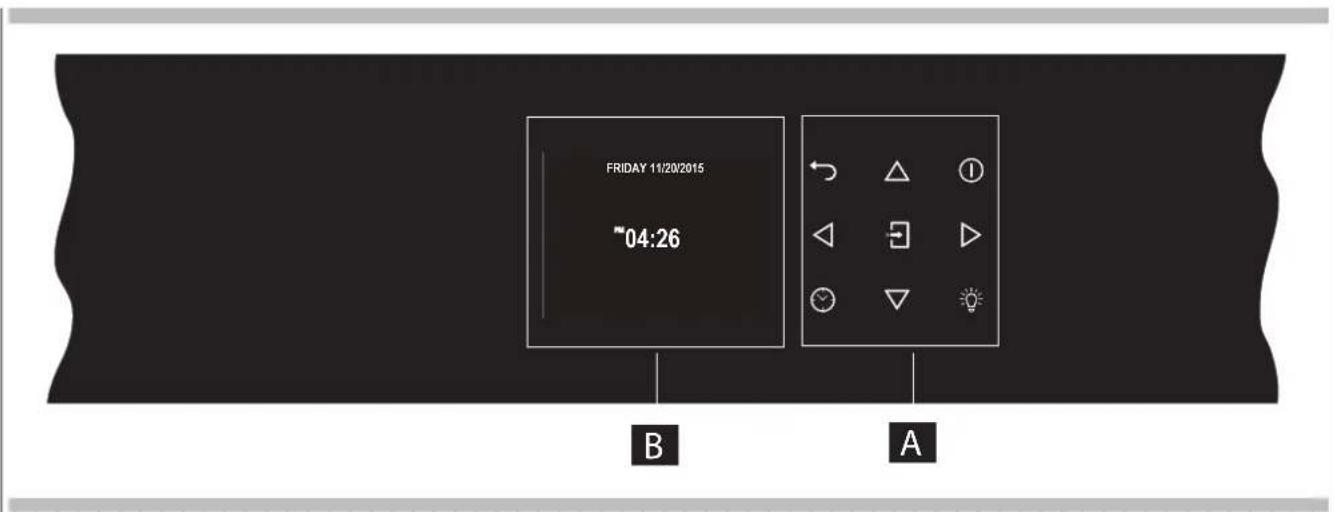

Keypad To operate the key, press gently. The keypad will not work if more than one key is pressed at the same time.Movement arrowsReturn to previous display page. Keep pressed to return to Home pageSwitches the oven on and off.Confirms the settings and starts cooking operations. When pressed during a cooking operation, the function is placed in pause. Press again to restart.To set the timer.Enter the functions menu during cooking.Switches the inner oven light on and off. Your appliance could vary slightly compared to the illustrations below. - Keypad - Display screen FRIDAY 11/20/2015 04:26

Error codes This code appears in the event of the electronic control indicating a fault. When the error appears, the current function is blocked. If the type of error is related to a safety function, the oven becomes unusable and every time a start attempt is made, the same error appears (in which case call in the after- sales service), while if the error relates to a minor fault, after being restarted the oven can be used for the functions that do not involve the faulty part (e.g., a heating element). Beeps Confirms that the command has been received after a key has been pressed. It also indicates that a time function has been completed (e.g. Timer or Timed Cooking). During the execution of a recipe, an acoustic signal warns the user that the oven is waiting for operation by the user (e.g., insert the dish or turn it over). Beeps also signal an oven fault. Default Settings The cooking modes automatically select a suitable temperature when the cooking mode is selected, these can be changed when a different one is needed. F Failure Number Codes These codes are displayed when the electronic control detects a problem in the oven or in the electronics. The error code is recorded in the Error Log in the Setup menu. This error can be communicated to the service technician so he/she can understand the possible cause of the problem in advance. Preheat Whenever a cooking mode is set and the oven is heating, the preheating starts, during this period, the instantaneous temperature is displayed together with the thermometer icon. As soon as the 100% is reached, the control sounds an “end of preheat” tone and the current temperature value disappears. Timer WARNING The timer on your oven does not turn the appliance on or off, its only purpose is to alert you through the buzzer. When you want to turn off the oven automatically, use the end-of- cooking or delayed cooking function. NOTE: Pressing the OFF button does not reset or stop the timer.

and set the desired time using the arrows and confirm with the button . To switch the selection between hours and minutes use the arrows

2. The time can be set from 1 minute to 12 hours and 59

minutes and, when set, the remaining time is always visible in the bottom status bar until the time expires or is reset.

3. To change or cancel the time set, you must reset the timer

by pressing and holding the button for a few seconds.

4. Timer format is usually HR:MIN, switching into MIN:SEC

during the last minute.

5. When the time expires, the display shows 00:00 and the

buzzer will sound for one minute or until the button

pressed. Before using your oven for the first time remove all packing and foreign materials from the oven(s). Any material of this sort left inside may melt or burn when the appliance is used.EN

• Selecting a higher temperature does not shorten the preheat time.

• Preheating is necessary for good results when baking cakes, cookies, pastry and breads.

• Preheating will help to sear roasts and seal in meat juices.

• Place oven racks in their proper position before preheating.

• During preheating, the selected cooking temperature is always displayed.

• A beep will confirm that the oven is preheated and the “detected temperature” will turn off. Operational Suggestions

• Do not set pans on the open oven door.

• Use the interior oven lights to view the food through the oven door window rather than opening the door frequently. Operation with microwaves The microwaves are transformed into heat inside foods. The microwave oven can be used by itself or in combination with other types of heating. This section contains information about the dishware and instructions for setting the microwave oven.

WARNINGS FOR DISHWARE

Suitable dishware You can use heat-resistant dishware made of glass, glass ceramic, porcelain, ceramic or refractory plastics. These materials are permeable to microwaves. It is also possible to use normal plates. In this way, it won’t be necessary to transfer the food. Dishware with gold or silver decorations can only be used if the manufacture guarantees that they can be used in microwave ovens. Remember that, when using the oven in microwave mode, the dish must be placed on the rotating plate. When using the oven in combination mode, it is preferable to place the dish to be cooked on the low, round grill, supported so that it is centred on the rotating plate. Unsuitable dishware Metal dishware cannot be used. Metal is not permeable to microwaves. Food in metal containers will remain cold. Warning! Metal components, such as spoons in glasses, must stay at least 2 cm from the walls of the oven and the inside of the door. In fact, sparks could seriously damage the inside of the glass door. Warning! The flat grill must be removed when using the microwave and combined modes. Use it only with traditional oven functions.

esting dishware Never turn on the microwave oven before you have put in the food. The only exception allowed is testing dishware. If you unsure if your dishware can be used in the microwave oven, we recommend performing the following test: place the empty pot in the appliance for ½ - 1 minute at the maximum power. Check the temperature. The pat must be cold or slightly warm. If it is hot or there are sparks, the pot is not suitable. Oven Condensation and Temperature

• It is normal for a certain amount of moisture to evaporate from the food during any cooking process. The amount depends on the moisture content of the food. The moisture may condense on any surface cooler than the inside of the oven, such as the control panel.

• Your new oven has an electronic temperature sensor that allows maintaining an accurate temperature. High Altitude Baking

• When cooking at high altitude, recipes and cooking time will vary from the standard.EN

Instructions for initial switch-on Once the oven has been connected to the power supply for the first time, the control automatically prepares for setting a number of user settings, which remain stored in case of any subsequent switch-on. NOTE: Both at the first and subsequent connections to the power supply, the door lock mechanism performs a calibration run – in this phase, always keep the door closed.

• Temperature & Weight

• Date Refer to the USER SETTING paragraph for setting instructions. After making the user settings, the control moves automatically to the “Standby” display page. 04 : 26

With the oven on, select the icon and confirm with the key to enter the SETTINGS menu. This menu permits personalizing the settings of your oven. To make access, no active cooking or any set time functions must be in progress.NOTE: The Setting menù can never be set if any time function is already set: first delete all the active time functions.1. Press the keys to select the sub menu and confirm by means of the key. SETUP

SETTING 2. Use this menu to change the following settings: Press the keys or to select the setting or change a sub menu from among the six available ones and confirm by means of the key.

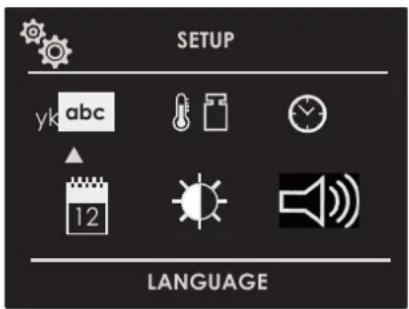

abc SETUP LANGUAGE Language Press the arrow key to select a language from among those available, and confirm with the key.Temperature & WeightPress the arrow key and to select one of the two temperature options “°C/°F” or weight options Kg/ib and confirm with the key.

Time Press the arrow key to select the time format between the options “12h AM/PM or 24h” and confirm with the key. Subsequently, set the time using the arrows and confirm with the key. 12h 24h

Date Press the arrow key to select the date format from among the options “D.M.Y. – Y.M.D. – M.D.Y.” and confirm with the key. Subsequently set the value using the arrows and confirm with the key.

D.M.Y. Y.M.D. M.D.Y.

11/20/2015 Brightness Press the arrow key to choose which luminosity setting to change between ON or STANDBY, then by means of the arrows select the required degree of luminosity and confirm with the key.

STAND-BY LOW MID HIGH DARK MID HIGH Volume Press the arrow to select the desired volume level and confirm by pressing the key. LEVEL LOW MID HIGHEN

With the oven on, select the icon and confirm with the key to enter the SETTINGS menu. This menu permits setting a number of parameters or special functions. It also permits accessing the error events list.

1. Press the keys to select the sub menu and confirm with

the key. SETUP SERVICE

2. Use this menu to change the following settings:

Press the keys to select the item to be set or to be displayed from among the three available ones and confirm with the key. EVENT LOGS MAIN VOLTAGE SYSTEM DEMO OM 15 Event Log The menu permits checking any recorded errors. These codes can be notified to the after-sales service. 01 12/11/2015 07:06 CODE: F10305 EVENT LOGS 02 17/11/2015 13:17 CODE: F10305 Demo The purpose of this function is to set the DEMO mode, which makes the oven useless for cooking but automatically performs a demonstration of functions.

key. After about 30 seconds, the oven starts to operate in this mode. To temporarily stop the DEMO function, simply keep any key pressed for a few seconds until the oven switches to standby. To start it again, press the key. To disable the function, enter the DEMO display page and set OFF. Confirm using the key. NOTE: Once set, the function remains enabled even if the oven is disconnected from the power mains. DEMO ONEN

and press the key Select the appropriate cooking mode according to the food to be cooked using the arrows and confirm with the key .

2. On this display page, it is still possible to change the

cooking mode by using the keys.

3. If the proposed temperature is correct, confirm with the

key to start cooking, otherwise, if the key is not pressed within 10 seconds, the oven switches to automatic mode and the cooking mode icon becomes animated. Switching the oven on and off IMPORTANT

• The key does not stop the function.

• After switching off the oven, the cooling fan could continue to operate until the inner parts of the oven have cooled down. Press to switch the oven on and press again to switch it off. The oven returns to standby mode.EN

Cooking Mode Tables Traditional Cooking

9 - Traditional Cooking

Changing the cooking mode 1. During untimed cooking, a cooking pause can be set by pressing the key. All the settings of the suspended cooking operation remain stored and can be reactivated by pressing the same key again.2. To change the cooking mode while the oven is working, press the key and then the , key. At this point, another cooking mode can be selected from among those available in the group by means of the arrows

Changing temperature IMPORTANT

• At the end of a function, the display screen shows the residual compartment heat temperature from the standby page.1. From the cooking mode preview display page, the temperature can be changed by means of the arrows subsequently confirming by means of the key.2. Once cooking has started, the temperature can in any case be changed, at any time, by means of the arrows

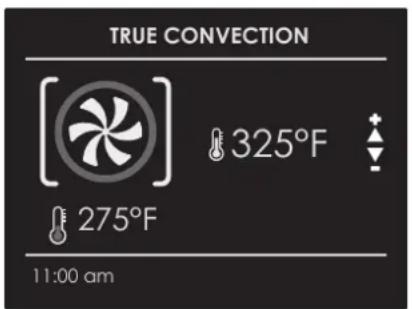

Pre-heating phase While the oven is in pre-heating phase, the instantaneous temperature is displayed underneath the cooking mode icon. 325°F 275°F 11:00 am TRUE CONVECTION

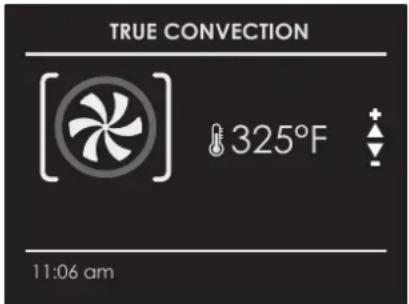

Just as soon as the set temperature is reached, an acoustic signal is heard and the instantaneous temperature indication disappears. 325°F 11:06 am TRUE CONVECTION

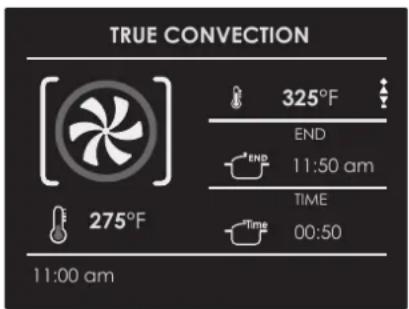

Be sure that the time-of-day clock is displaying the correct time. The timed mode turns off the oven at the end of the cook time. CAUTION Never leave food in the oven for more than one hour before and after cooking. This could deteriorate the properties of the food itself. NOTE: The maximum cooking time that can be set is 12 h. Cook Time Use the “Cook Time” function to operate the oven for a determinate period of time. The oven starts immediately and switches off automatically once the time has expired. To Set a Timed Mode

1. Select the cooking mode and temperature.

2. There are two ways to set the function.

a) Select to set the duration and press . b) Select to set the stop time and press .

3. After selecting one of the two above options, set the time by

means of the arrows and confirm with the key.

4. After pressing the

key, cooking starts and the time cooking information is shown on the display page.

END TIME 11:50 am 00:50 5 After cooking, the oven switches off and an acoustic signal warns that cooking has terminated. To change the cooking time when the oven is already operating, simply press the e key and enter the new cooking time before pressing the key again. Stop Time Use the “Stop Time” function to delay the start of timed cooking. Enter the cooking stop time and the oven will automatically calculate the start time. The oven switches on and off automatically. To Delay the Start of a Timed Mode 1 First of all set the required timed cooking as indicated in the “COOK TIME” paragraph. 2 Select to set the stop time and press . 3 Set the cooking stop time by means the arrows and confirm by means of the key. 4 After pressing the key, the function positions in standby and the postponed cooking details are shown on the screen.

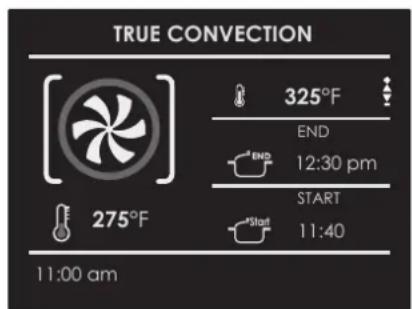

END START 12:30 pm 11:40 Start After cooking, the oven switches off and an acoustic signal warns that cooking has terminated. To change the cooking time and stop time when the oven is already operating, simply press the key and enter the new cooking time or cooking stop time and press the key again.EN

11 - Microwave Cooking

NOTE: it is essential to carefully read the instructions and warnings to ensure correct use. ATTENTION Microwave functions will not start until the door has been closed. If the door is opened while the oven is on, the oven will go into pause mode and the message “DOOR OPEN” will appear on the display. To restart the function, the door needs to be closed. The function can be paused at any time using the key

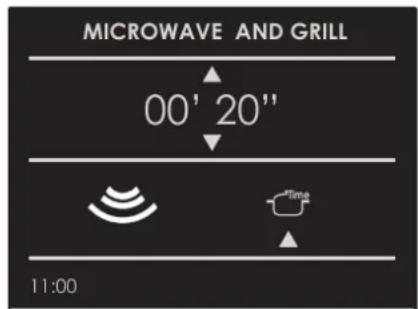

00’ 20” Time 11:00 Once the function has been started, a countdown will be shown on the display. The time can be changed at any time using the arrows and . When thawing is complete, the message “DEFROSTING FINISHED” will appear on the display. Weight Thawing Function Select the weight thawing icon using the arrows and press the key .

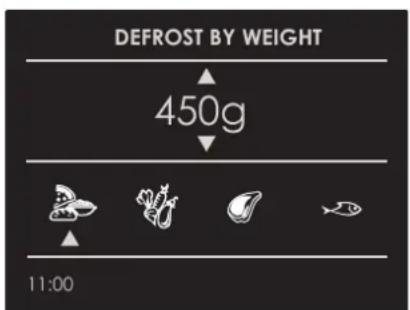

450g 11:00 Select the type of meal using the arrows and , then set the weight using the arrows and , finally start thawing using the key

Following are types of meals and relative weights that can be set: MEAL MIN Weight (g) MAX Weight (g) Bread Pizza Pasta Dishes 100 600 Vegetables 100 1000 Meat 100 1500 Seafood 100 800 The thawing time is calculated completely automatically and without needing to set any time parameters, based on the set type of meal and weight. When thawing is complete, the message DEFROSTING FINISHED will appear on the display. Microwave Function Select the Microwave function icon using the arrows and press the key . If you wish to start the function immediately with a preset time of 30 sec and a preset output of 900W, press the key . MICROWAVE COOKING 00’ 30” Time 11:00 MICROWAVE COOKING 900W Time 11:00EN

If you wish to personalise the time and output, open the sub- menu managed as follows:

• TIME: Select the icon and use the keys and to personalise the time.

start cooking. Once cooking has started, a countdown will be shown on the display. The time can be changed at any time using the arrows and . At the end of cooking, the message “END COOKING” will appear on the display. Microwave + Grill Function Select the Microwave+Grill function icon using the arrows and press the key , then set the thawing time using the arrows and . If you wish to start the function immediately with the preset time and a preset output of 300W, press the key .

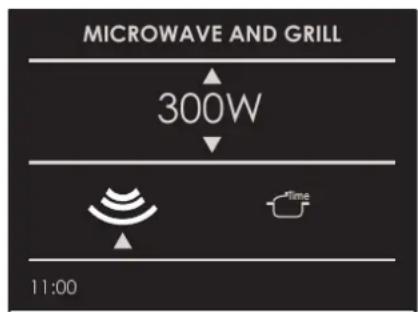

300W Time 11:00 If you wish to personalise the output, open the sub-menu managed as follows:

• MICROWAVE OUTPUT: Select the icon and use the keys and to select the microwave output setting from the 3 possible levels, 150W - 300W - 450W. Once the new parameter has been set, press the key to start cooking. Once cooking has started, a countdown will be shown on the display. The time can be changed at any time using the arrows and . At the end of cooking, the message “END COOKING” will appear on the display. Microwave + Ring Function Select the Microwave+Ring function icon using the arrows and press the key , then set the thawing time using the arrows and . If you wish to start the function immediately with the preset time and a preset temperature of 100°C, with a preset microwave output of 300W, press the key .

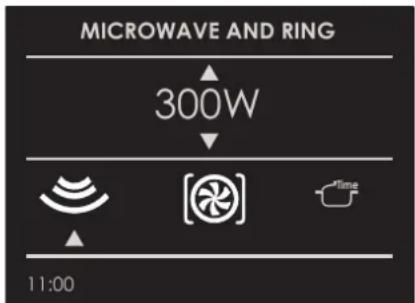

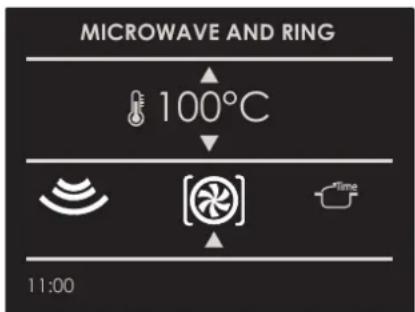

300W 11:00 Time If you wish to personalise the temperature and output, open the sub-menu managed as follows:

• TEMPERATURE: Select the icon and use the keys and to personalise the temperature between 50°C and 200°C.

• MICROWAVE OUTPUT: Select the icon and use the keys and to select the microwave output setting from the 3 possible levels, 150W - 300W - 450W.EN

Once the new parameters have been set, press the key to start cooking. Once cooking has started, a countdown will be shown on the display. The time can be changed at any time using the arrows and . At the end of cooking, the message “END COOKING” will appear on the display. Changing Watts Power Press the icon and press the key Select the microwave icon and change the power wattage by means the arrows and confirm with the key

Changing Time Press the icon and press the key Select the time icon and change the time value by means the arrows and confirm with the key

Changing Temperature (only available for microwave and ring) Press the icon and press the key Select the cooking mode icon and change the setting temperature by means the arrows and confirm with the key . Changing Weight (only available for defrost by weight) Press the icon and change the weight by means the arrows and confirm with the key .EN

A single light key activates the lights. Touch to turn lights on or off . Oven lights turn on automatically when the door is opened. When an oven is in use, oven lights turn on automatically when a mode is started. Oven lights will turn off automatically when the oven mode is cancelled. NOTE: Once switched on, the lights go off automatically after 3 minutes. To switch them back on, press the key or open the door.EN

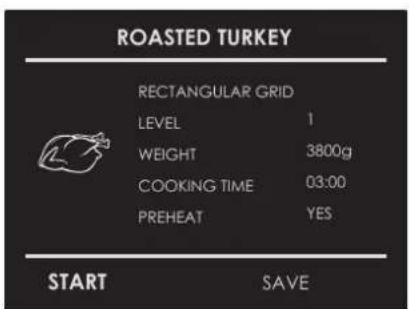

Select an already-set recipe:

1. Switch the oven, select the icon and press the button .

2. Using the arrows select the list between “PRESET” or

“PERSONAL” and confirm by means of the key.

3. Choose the type of food to be cooked using the arrows

and the arrows and confirm by means of the key.

choose between “FRESH” or “FROZEN” or in other cases between “WHOLE” or “IN PEICES” and confirm with the key.

5. Select the required recipe by means of the arrows

and confirm using the key.

6. When the recipe is selected, the following display page

appears on the screen: SAVE ROASTED TURKEY START

RECTANGULAR GRIDLEVELWEIGHTCOOKING TIMEPREHEAT

13800g03:00YES The Recipe function of your oven gives you the chance to cook food without having to set the oven manually every time. By selecting a “SET” recipe, the cooking mode, the temperature and the time are automatically set according to the recipe selected from the menu. Recipe List Type of Food Food condition Recipes List Information displayed

7. To start the recipe, confirm with the key.

During a recipe, a number of acoustic and visual messages will ask you to perform the following operations. Simply follow the instructions on the screen.

8. Upon termination, the oven switches off and an acoustic

and visual signal warns that the recipe has terminated. Saving a personalized recipe: Once a recipe has been selected, the “Time” and “Weight” setting can be changed and the recipe can be saved among the “PERSONAL” ones.

1. Once a recipe has been selected, press the key

and confirm by means of the key.

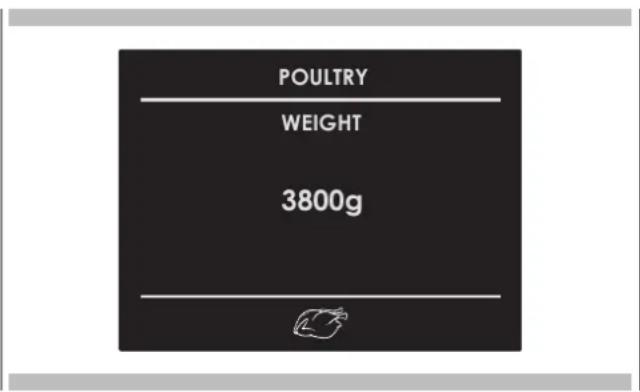

2. To change the weight, enter the desired weight by means of

the arrows and confirm by means of the key. POULTRY 3800g WEIGHT

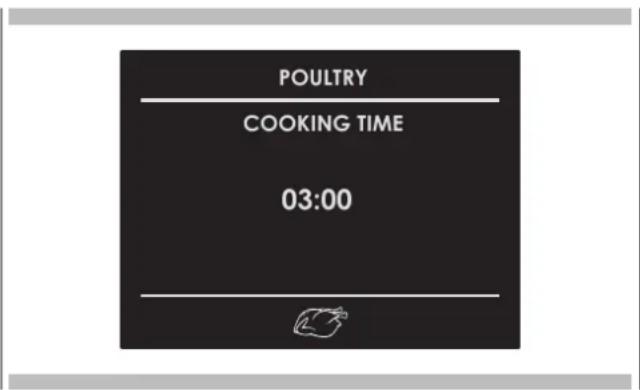

3. The oven switches automatically to the cooking time. To

change this time, use the arrows and confirm again by means of the key. POULTRY 03:00 COOKING TIME

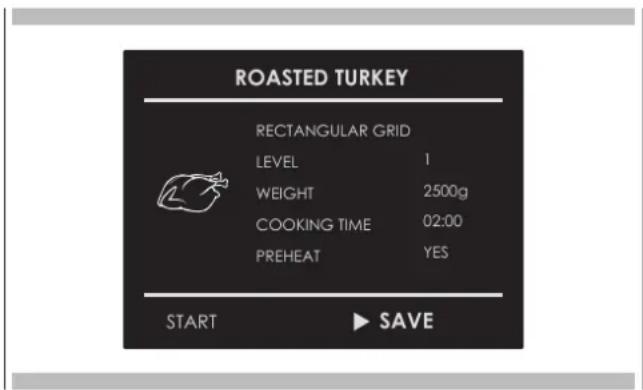

4. At this point, the recipe can be saved in the list of

“PERSONAL” recipes by selecting “SAVE” and confirming by means of the key. SAVE ROASTED TURKEY START RECTANGULAR GRID LEVEL WEIGHT COOKING TIME PREHEAT

2500g 02:00 YES NOTE: If the time and weight values are changed and not saved straight away, at the end of the recipe, a message appears which asks whether you want to save it.

5. To start the recipe press the key.

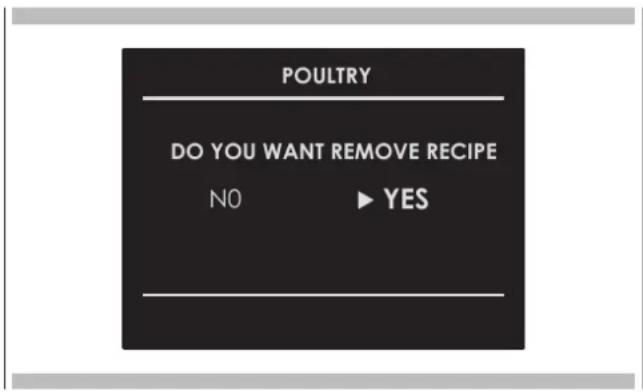

Cancelling a Personalized recipe:

1. To eliminate a recipe from the list of personalized recipes,

and select the choice and confirm with the key. POULTRY YES

DO YOU WANT REMOVE RECIPE

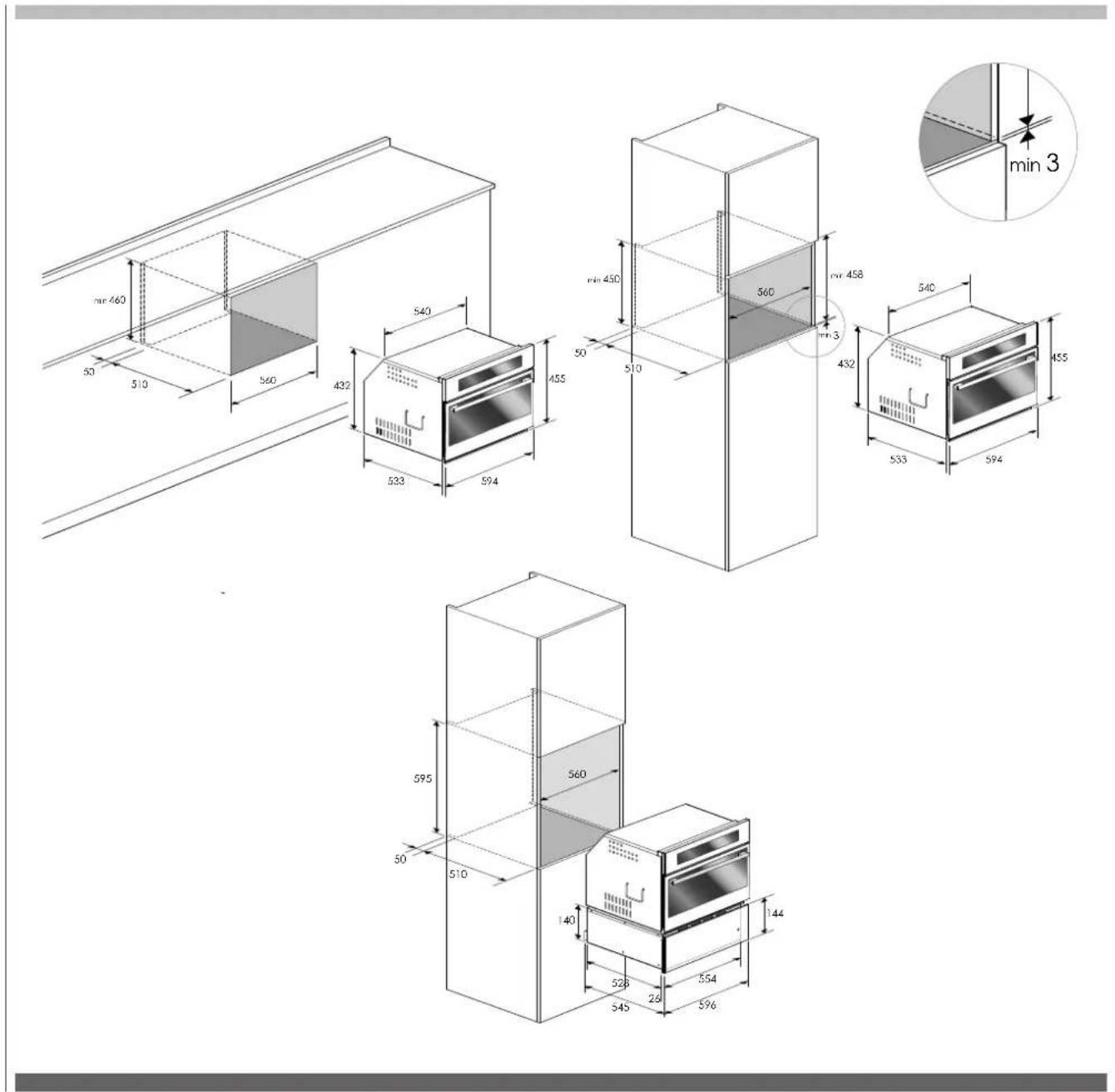

Install the oven in the counter The oven must be installed under a cook top, in a column, or combined with the relative food-warmer drawer. The dimensions of the space must be those shown in figure. The cabinet material must be able to withstand the heat. The oven must be centred within the walls of the cabinet and fixed with the screws and bushings that are provided.

TECHNICAL DATA Power supply 220-240 V~, 50 Hz Maximum absorbed power 3200 W Microwave power 900 W Grill 1500 W Hot air 1500 W Microwave frequency 2450 MHz Electrical Hook-Up Before making the electrical hook-up, make sure that:

• the characteristics of the electrical system satisfy what is shown on the serial number plate applied to the front of the oven;

• the electrical system has an effect earth connection conforming to standards and current law. The earth connection is required by law. The cable must not, at any point, reach a temperature greater than 50 °C above the ambient temperature. This oven must be connected to the supply by a supply cord fitted with an appropriately rated plug that is compatible with the socket-outlet fitted to the final sub-circuit in the fixed wiring that is intended to supply this oven. If a fixed appliance does not have a power cord and plug, or another device that ensures disconnection from the mains, with an opening distance of the contacts that allows complete disconnection under the conditions of excessive voltage category III, such disconnection devices must be provided in the power supply mains conforming to the installation rules. The omnipolar socket or switch must be easy to reach when the appliance is installed. NOTE: The manufacturer declines all liability if the usual accident prevention standards and the above instructions are not followed. TYPE AND MINIMUM DIAMETER OF THE CABLES SASO H05RR-F 3x1,5 mm² H05RR-F 3x2,5 mm² H05VV-F 3x1,5 mm² H05VV-F 3x2,5 mm² H05RN-F 3x1,5 mm² H05RN-F 3x2,5 mm² H05V2V2-F 3x1,5 mm² H05V2V2-F 3x2,5 mm²EN

15 - Solving Traditional Baking Problems

With either Bake or Convection Bake, poor results can occur for many reasons other than a malfunction of the oven. Check the chart below for causes of the most common problems. Since the size, shape and material of baking utensils directly affect the baking results, the best solution may be to replace old baking utensils that have darkened and warped with age and use. Baking Problem Cause Food browns unevenly - Oven not preheated - Aluminum foil on oven rack or oven bottom - Baking utensil too large for recipe - Pans touching each other or oven walls Food too brown on bottom - Oven not preheated - Using glass, dull or darkened metal pans - Incorrect rack position - Pans touching each other or oven walls Food is dry or has shrunk excessively - Oven temperature too low - Oven not preheated - Oven door opened frequently - Tightly sealed with aluminum foil - Pan size too small Food is baking or roasting too slowly - Oven temperature too low - Oven not preheated - Oven door opened frequently - Tightly sealed with aluminum foil - Pan size too small Pie crusts do not brown on bottom or have soggy crust - Baking time not long enough - Using shiny steel pans - Incorrect rack position - Oven temperature is too low Cakes pale, flat and may not be done inside - Oven temperature too low - Incorrect baking time - Cake tested too soon - Oven door opened too often - Pan size may be too large Cakes high in middle with crack on top - Baking temperature too high - Baking time too long - Pans touching each other or oven walls - Incorrect rack position - Pan size too small Pie crust edges too brown - Oven temperature too high - Edges of crust too thinEN

16 - Solving Operational Problems

Before contacting service, check the following to avoid unnecessary service charges. Oven Problem Problem Solving Steps Other F__ Error appears in the display window. Remove power and turn it back on again after a few seconds. If condition persists, note the code number (in the EVENT LOG list) and contact service. The oven display stays OFF Turn off power at the main power supply (fuse or breaker box). Turn breaker back on. If condition persists, call an authorized service. Cooling fan continues to run after oven is turned off The fan turns off automatically when the electronic components have cooled sufficiently. Oven is not heating Check the circuit breaker or fuse box to your house. Make sure there is proper electrical power to the oven. Make sure the oven temperature has been selected. Oven is not cooking evenly Refer to cooking charts for recommended rack position. Always reduce recipe temperature by 25°F (15°C) when baking with Convection Bake mode. Clock and timer are not working properly Make sure there is proper electrical power to the oven. See the Clock sections on pages 10 and 13. Excessive moisture Convection modes will eliminate any moisture in oven (this is one of the advantages of convection).EN

Before contacting service, please check “Troubleshooting.” It may save you the cost of a service call. If you still need help, follow the instructions below. When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request. Service Data Record For authorized service or parts information see paragraph “WARRANTY for Home Appliances”. For serial tag location see Page 5. Now is a good time to write this information in the space provided below. Keep your invoice for warranty validation. Service Data Record Model Number _________________________________ Serial Number __________________________________ Date of Installation or Occupancy __________________FR
