USER MANUAL F7DMW24S2 Fulgor Milano

READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Clearances and Dimensions

For SAFETY CONSIDERATIONS do not install drawer in any combustible cabinetry, which is not in accordance with the stated clearances and dimensions on pages 3 - 5. See Figures 1 - 7.

Unpacking Your Drawer Microwave

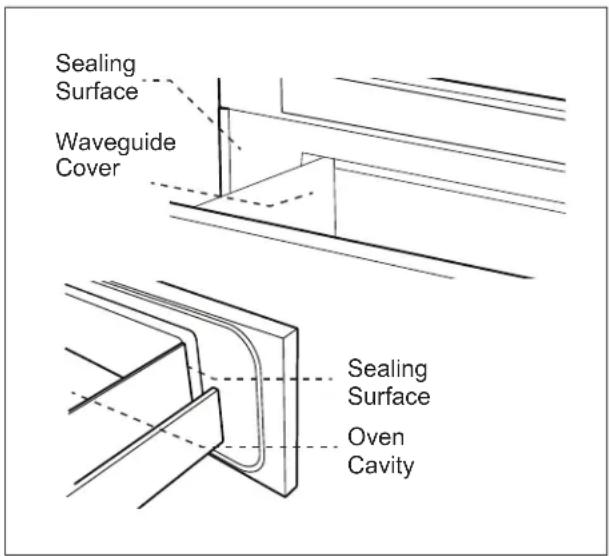

• Remove all packing materials from inside the drawer. DO NOT REMOVE THE WAVEGUIDE COVER, which is located on the ceiling of the microwave cavity.
• Check the drawer for any damage, such as misaligned or bent drawer, damaged drawer seals and sealing surfaces, broken or loose drawer guides and dents inside the cavity or on the front side of the drawer. If there is any damage, do not operate the microwave and contact your dealer or a FULGOR MILANO AUTHORIZED SERVICER.

Sealing Surface Waveguide Cover Sealing Surface Oven Cavity

Important Notes to the Installer

• Read all of the Installation Manual before installing the Drawer Microwave.
• Remove all packing material before connecting the electrical supply.
• Observe all governing codes and ordinances.
• Be sure to leave these instructions with the consumer.

Important Notes to the Consumer

Keep this manual with your Use & Care Manual for future reference.

• As when using any microwave oven generating heat, there are certain safety precautions you should follow. These are listed in the Use & Care Manual. Read all and follow carefully.
• Be sure your Drawer Microwave is installed and grounded properly by a qualified installer or service technician.

Important Safety Instructions

WARNING If the information in this manual is not followed exactly, a fire or electrical shock may result that could cause property damage, personal injury or death.

WARNING To reduce the risk of tipping, the Drawer Microwave must be secured by a properly installed Anti-Tip block.

• This Drawer Microwave must be electrically grounded in accordance with local codes.
• Make sure the wall coverings and the cabinets around the Drawer Microwave can withstand the heat generated by the appliance.

WARNING - Never leave children alone or unattended in the area where a Drawer Microwave is in use. Never leave the drawer open when the microwave is unattended.

WARNING - Stepping, leaning or sitting on the drawer may result in serious injuries and can also cause damage to the Drawer Microwave.

• Do not use the Drawer Microwave as a storage space. This creates a potentially hazardous situation.
• Check that the time-of-day is in the display. If not, touch STOP/CLEAR for safety reasons and to prevent unintended use.

Clearances and Dimensions

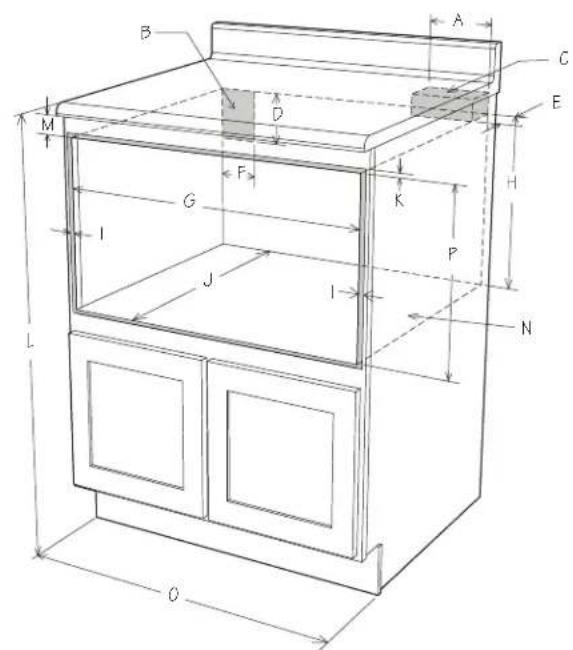

• Dimensions that are shown in Figure 1 must be used. Given dimensions provide minimum clearance. Locate electrical outlet in the shaded area in the upper left-hand corner of the cutout. See Figure 10.
• Contact surface must be solid and level. Pay special attention to the floor on which the Drawer Microwave will sit. The floor of the opening should be constructed of plywood strong enough to support the weight of the oven (about 100 lbs/45 kg).
• Check location where the Drawer Microwave will be installed for proper electrical supply.
• Your oven can be built into a cabinet or wall by itself or under a gas or electric wall oven.

• Be sure that the clearance of the floor between the wall oven and the Drawer Microwave is a minimum of 2" (5 mm).

• The microwave interior will easily accommodate a 9" x 13" oblong dish or a bag of microwave popcorn.

• The oven can also be mounted flush. Please see instructions for flush mounting.

Standard Mount and Measurements

A	6" (152.4 mm)
B	Suggested electrical outlet location*
C	Anti-Tip block
D	5" (127 mm)
E	3 12 " (89 mm)
F	4" (101.6 mm)
G	22 18 " (562 mm) opening
H	14 13 /16" (376.3 mm) to bottom of Anti-Tip block
I	Allow 7/8" (22.2 mm) overlap
J	23 12 " (597 mm) minimum depth
K	Allow 3/16" (4.76 mm) overlap
L	36" (914.4 mm) countertop height
M	Allow 1/8" (3.18 mm) minimum space
N	Floor must support 100 lb (45 kg)
O	24" (610 mm) cabinet minimum
P	15 9/16" (395.3 mm) opening

B A C D E M F G K H I P J I N L O

Figure 1

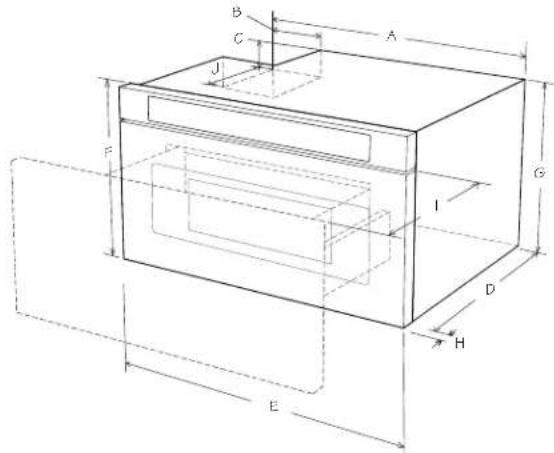

A 215/8" (549.3 mm)
B 411/16" (119 mm)
c 1 3/4" (44.5 mm)
D 217/8" (555.6 mm)
E 237/8" (606.43 mm)
F 157/8" (403.22 mm)
G 1419/32" (370.69 mm)
H 19/64" (29 mm) door thickness
1 15" (381 mm) auto drawer opening
J 4" (101.6 mm)

A B C J F G I D H E

Figure 2

Figures 1 and 2 contain measurements for reference when planning the drawer's location.

This Drawer Microwave can be installed below any electric or gas wall oven.

* Can also be installed using an electrical outlet in an adjacent cabinet within the area where the provided electrical cord can reach. Power cord access hole in cabinet should be a minimum 1 1/2" (38 mm) diameter hole and deburred of all sharp edges.

IMPORTANT Always allow sufficient power cord length to the electrical outlet to prevent tension.

Always check electrical codes for requirements.

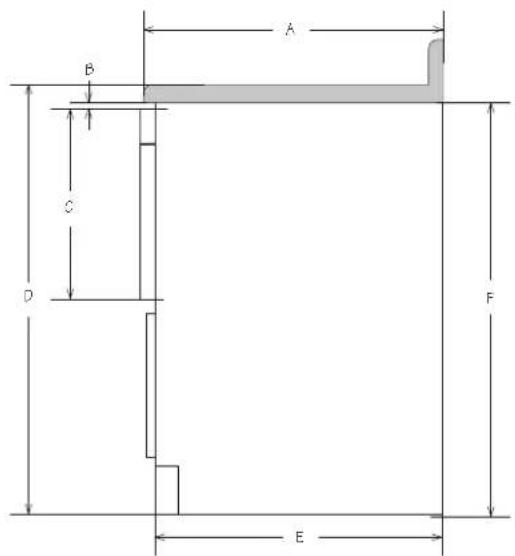

Figure 3 represents a typical standard cabinet. If installed in custom cabinets with extended countertops, take into account visibility and access to controls. See Figure 4.

A	25" (635 mm)
B	12 " (12.7 mm) minimum
C	15 78 " (403.22 mm)
D	36" (914.4 mm)
E	24" (609.6 mm)
F	34 12 " (876.3 mm)

A B C D F E

Figure 3

Move oven location downward for extended countertops Extended countertops

Figure 4

Flush Mount and Measurements

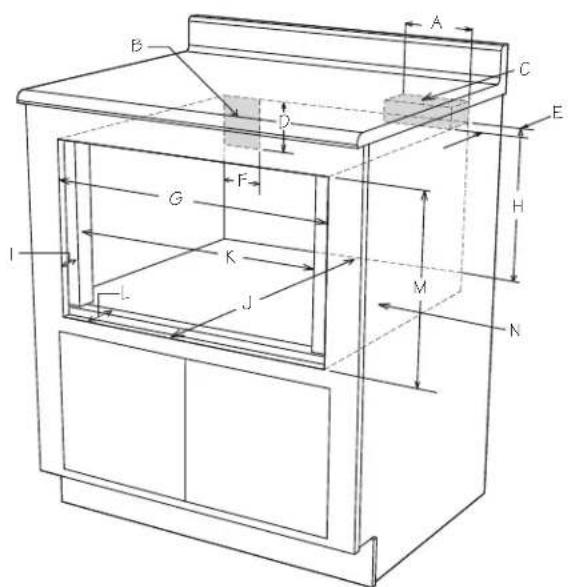

Prepare cabinet opening as shown in Figures 5, 6, 7.

A	6" (152.4 mm)
B	Suggested electrical outlet location
C	Anti-Tip block
D	5" (127 mm)
E	3 12 " (89 mm)
F	4" (101.6 mm)
G	24 18 " (612.78 mm)
H	14 ^13 /16" (376.2 mm) to bottom of Anti-Tip block
I	1%64" (29 mm)
J	23 12 " (597 mm) minimum depth
K	22 18 " (562 mm)
L	1%64" (29 mm) to front of shelf
M	16 18 " (409.58 mm) opening
N	Floor must support 100 lb (45 kg)

A B C D E F G H I K L J M N

Figure 5

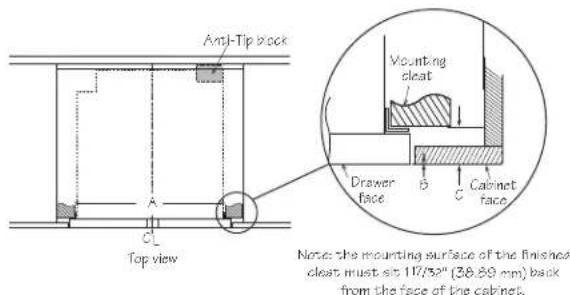

A 221/8" (562 mm) mounting cleat opening width
B O" flush
C 19/64" (29 mm) front of cleat to cabinet face

Anti-Tip block Mounting cleat Drawer face B C Cabinet face Top view Note: the mounting surface of the finished cleat must sit 17/32" (38.89 mm) back from the face of the cabinet.

Figure 6

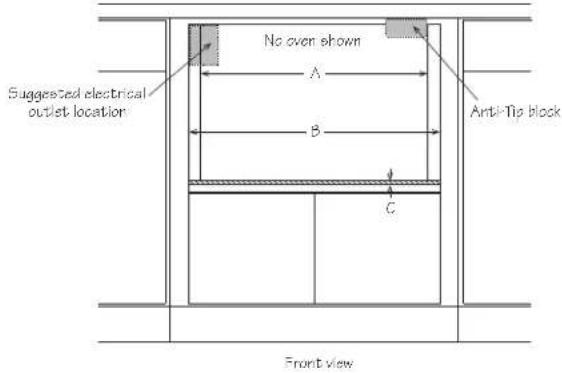

A 221/8" (562 mm) mounting cleat opening width
B 24 ^1 /8" (612.78 mm) flush opening width
c 1/8" (3.2 mm) from opening to top of shelf

Suggested electrical outlet location No oven shown A B Anti-Tip block C Front view

Figure 7

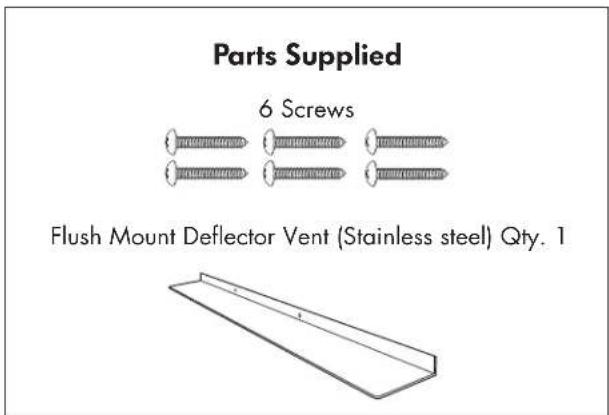

Parts Supplied 6 Screws Flush Mount Deflector Vent (Stainless steel) Qty. 1

Install deflector as shown in Figure 8A and 8B.

Shelf detail showing the deflector vent during installation. Position deflector vent and mark holes. Pre drill using a 1/16" (1.57 mm) bit before mounting.

Pure technical line drawing of a structural beam with supports (no text or symbols)

Figure 8A

Shelf detail showing the deflector vent installed.

Simple line drawing of a shelf with a horizontal shelf and vertical supports (no text or symbols)

Figure 8B

Anti-Tip Block

Normal Installation Steps

Anti-Tip Block Installation Instructions

To reduce the risk of tipping of the drawer, the Anti-Tip block must be properly installed located 14 ^13 /16-inches (376.2 mm) above the floor on which the Drawer Microwave will sit. The 6" (152.4 mm) Anti-Tip block must be provided by the installer. See Figure 1. The Anti-Tip block prevents serious injury that might result from spilled hot liquids.

If the appliance is ever moved to a different location, the Anti-Tip block must also be moved and installed. When installed to the wall, make sure that the screws completely penetrate the dry wall and are secured in wood or metal so that the block is totally stable. When fastening, be sure that the screws do not penetrate electrical wiring or plumbing.

6" Anti-Tip block 3 1/2"

Figure 9

Electrical Outlet

The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp. or more protected electrical supply. It is recommended that a separate circuit serving only this appliance be provided.

The drawer is equipped with a 3-prong grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. Should you only have a 2-prong outlet, have a qualified electrician install a correct wall receptacle.

Note: If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service technician.

* Can also be installed using an electrical outlet in an adjacent cabinet within the area where the provided electrical cord can reach.

Always check electrical codes for requirements.

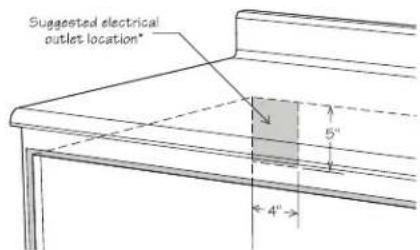

Suggested electrical outlet location" 4" 5"

Figure 10

Grounding Instructions

This appliance must be grounded. The Drawer Microwave is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded in accordance with the National Electrical Code and local codes and ordinances. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current.

WARNING – Improper use of the grounding plug can result in a risk of electric shock. Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the appliance.

Permanent and Correct Installation
3-Prong plug

Grounding pin

3-Prong receptacle
Grounded receptacle box

Standard Mount Drawer Installation

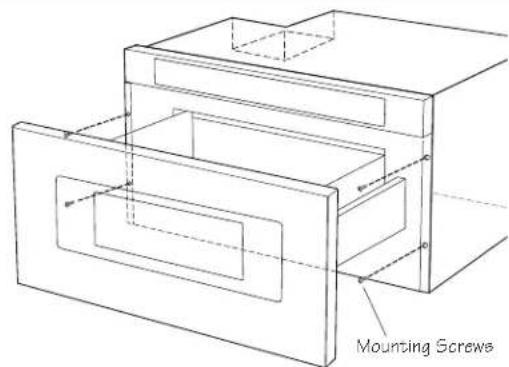

1. Place the drawer adjacent to the wall or cabinet opening. Plug the power supply cord into the electrical outlet.
2. Carefully guide the drawer into the prepared opening. Avoid pinching the cord between the oven and the wall.
3. Slide the drawer all the way until the mounting flange is flush with the face of the cabinet. See Figure 11.
4. Open the drawer. Using the 4 holes on the drawer as a template, pre-drill the cabinet using a 1/16" bit. See Figure 11.
5. Secure the drawer with the 6 screws supplied.

Mounting Screws

Figure 11

Flush Mount Drawer Installation

1. Prepare cabinet opening as shown in Figures 5, 6, 7.
2. Install deflector as shown in Figure 8A.
3. Place the drawer adjacent to the wall or cabinet opening. Plug the power supply cord into the electrical outlet.
4. Carefully guide the drawer into the prepared opening. Avoid contact with the sides of the cutout opening and also pinching the cord between the oven and the wall.
5. Slide the drawer all the way back until the mounting flanges touch the cleats mounted in the cabinet opening.
6. Open the drawer. Using the 4 holes on the drawer as a template, pre drill the cabinet using a 1/16'' (1.57 mm) bit. See Figure 11.

Model and Serial Number Location

The nameplate includes model and serial number. Open the Drawer Microwave fully. The label is beyond the back wall of the microwave cavity facing up from the flat surface.

Care, Cleaning and Maintenance

Refer to the Use & Care Manual for cleaning instructions.

Before You Call for Service

Read the BEFORE YOU CALL and operating instruction sections in your Use & Care Manual. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this microwave.

Refer to the warranty in your Use & Care Manual for Fulgor Milano's toll-free service number and address. Please call or write if you have inquiries about your microwave product and/or need to order parts.

Avertissement important

L'INSTALLATION ET LE SERVICE DOIVENT SE FAIRE PAR UN TECHNICIEN QUALIFIÉ.

IMPORTANT : GARDEZ CE MANUEL D'INSTALLATION POUR CONSULTATION PAR VOTRE INSPECTEUR LOCAL DE SERVICES ÉLECTRIQUES.

LISEZ CES INSTRUCTIONS ET CONSERVEZ-LES POUR RÉFÉRENCE ULTÉRIEUREE.

B A C E M F G K H P J I N L O

Schéma 1

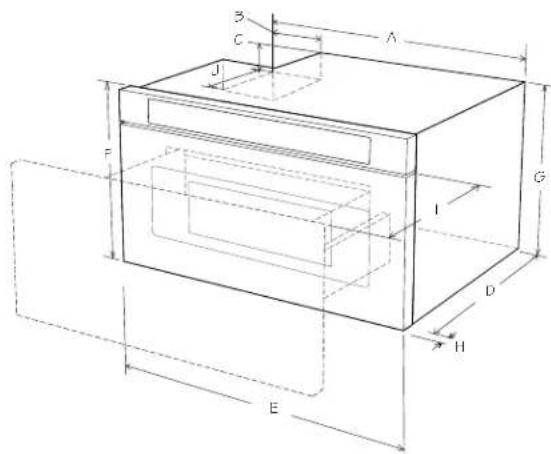

A 215/8" (549,3 mm)
B 411/16" (119 mm)
C 13/4" (44,5 mm)
D 217/8" (555,6 mm)
E 237/8" (606,43 mm)
F 157/8" (403,22 mm)
G 1419/32" (370,69 mm)
H Épaisseur de la porte 19/64 po (29 mm)
I Ouverture tiroir 15 po (381 mm)
J 4 po (101,6 mm)

A B C J F G I D H E

Schéma 2

A B C D E F G H I K L J M N

Schéma 5

Line drawing of a cabinet shelf with an open shelf and a closed shelf (no text or symbols)

Schéma 8A

Line drawing of a cabinet or shelf structure with no visible text, numbers, or symbols

Schéma 8B
