J620 - Wristwatch JAGUAR - Free user manual and instructions

Brand	Jaguar
Model	J620
Product type	Quartz wristwatch
Power supply	Battery 395 (SR927SW)
Accuracy	+20/-10 seconds per month
Display	Hour, minute, second hands (3 o'clock position) and date (12 o'clock position)
Chronograph functions	1/10 second counter, minute counter up to 30 minutes, central second counter, hour counter after 30 minutes
Quick date correction	Yes, via crown in position II
Time setting	Pull crown to position III, turn to set, push in at exact second
Date setting after battery change	Set the day before the date first, then set time to display current date
Adjusting chronograph hands	Pull crown to position III, press A and B simultaneously for 2 seconds, then adjust each hand
Chronograph - basic function	Press A to start/stop, press B to reset to zero
Chronograph - totalization	Succession of Start/Stop to accumulate times
Chronograph - split time	Press B to display split time without stopping chronograph
Maintenance	Selective collection of end-of-life electrical and electronic equipment
Manual	Free download in PDF format, available in multiple languages
Calendar	Do not correct date between 9:00 PM and 12:00 AM to avoid skipping

Frequently Asked Questions - J620 JAGUAR

How to set the time on my Jaguar J620 watch?

Pull the crown to position III (the second hand stops). Turn the crown to set the current time. Push the crown back to position I at the exact second to synchronize the second hand.

How to set the date on the Jaguar J620?

Pull the crown to position II (the watch continues to run). Turn the crown until the current date is displayed. Push the crown back to position I. Avoid correcting the date between 9:00 PM and 12:00 AM.

How to use the chronograph in basic mode?

Make sure the crown is in position I. Press pusher A to start timing. Press A again to stop. Press B to reset the hands to zero.

How to use the chronograph with totalization?

Press A to start. Press A to stop. Press A again to restart. Repeat to accumulate times. Press B to reset to zero.

How to measure a split time with the chronograph?

During timing, press pusher B to display the split time (the hands stop). Release B to let the hands catch up to the ongoing time. Timing continues in the background.

How to adjust the chronograph hands if they are not at zero?

Pull the crown to position III. Press pushers A and B simultaneously for at least 2 seconds. Use A to adjust the second counter hand, B to move to the next hand. Repeat for each hand. Push the crown back to position I.

Which battery to use for the Jaguar J620 watch?

The watch uses a 395 battery (diameter 9.5 mm, thickness 2.6 mm, reference SR927SW).

What to do after changing the battery of the Jaguar J620?

Pull the crown to position II, turn to display the day before the current date. Push back to position I. Pull to position III, turn to display the current date then the exact time. Push back to position I at the exact second.

Why not set the date between 9 PM and 12 AM on the Jaguar J620?

During this phase, the calendar is automatically engaging. If you correct the date, the mechanism may not advance to the next day at midnight. It is preferable to set the date outside this time range.

Where to find the user manual for the Jaguar J620 watch?

The manual is available free in PDF format on the website notice-facile.com. You can download it or request a translation in your language.

USER MANUAL J620 JAGUAR

-Brief specifications 18
- Description of the display and control buttons 19
- Setting the time / date 20 - 23
-Operation of the chronograph. 24-29

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

Brief specifications

Timc/Date

• Hour hand
• Minute hand
• Small second hand (position 3h)
• Date (position 12h)

Chronograph

1/10 second counter / hour counter after 30 minutes (position 6h)
- Minute counter up to 30 minutes (position 9h)
- Centre stop-second

General

Battery type: 395 (diameter 9.5mm x 2.6mm / SR 927 SW)
Accuracy: +20 / -10 seconds per month

Description of the display and control buttons

Setting the time

Setting the date (quick mode)

^1 *Pull out the crown to position III (the watch stops).
Turn the crown until you reach the correct time 8.45.
*Push the crown back into position I.

Please note:

*In order to set the time to the exact second, must be pulled out when the second hand is in position 60 (I).

Once the hour and minute hands have been set, 3 must be pushed back into position I at the exact second.

Pull out the crown to position II (the watch continues to run).
Turn the crown until the correct date appears.
Push the crown back into position I.

Please note:

The date can be changed during the date changing phase between 9.00 PM and 12.00 PM; please note that the date must be set to the date of the following day as in this case the automatic date changing does not occur at midnight.

Setting the date/time following a battery change

Example:

-Date/time on the watch: 1/1:25 AM
Present date/time: 8.30PM

Pull out the crown to position II (the watch continues to run).
Turn the crown until yesterday's date appears.

↓

*Pull out the crown to position III (the watch stops).
Turn the crown until the correct date appears.
5 **Continue to turn the crown until the correct time 8.30 PM appears.

Push the crown back into position I.

Please note:

To set your watch to the exact second, please refer to the chapter entitled «setting the time».
*Please observe the AM/PM clock rhythm.

Chronograph:

The minute counter measures 30 minutes per rotation.
The center stop-second measures 60 seconds per rotation.
- The 1/10 second counter measures 1 second per rotation. After 30 minutes this counter works as hour counter. The how counter measures 10 hours per rotation.

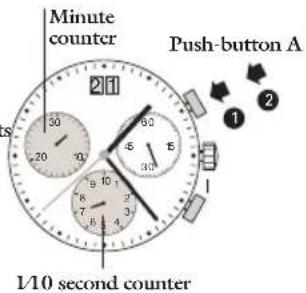

Chronograph: basic function

(start / stop / rcst)

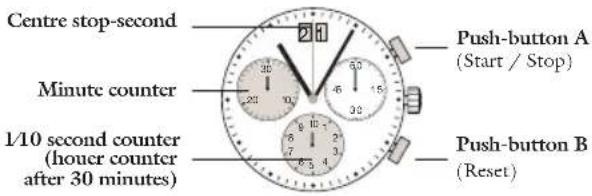

Control buttonsDisplay elements

Example:

Please note:

Before using the chronograph functions, please ensure that: the crown is in position I (= normal position). the 3 chronograph hands are precisely at zero position following activation of pushbutton B. Should this not be the case, the positions of the hands must be adjusted (see the chapter entitled «adjusting the chronograph hands to zero position»).

1 Start: Press push-button A.
Stop: to stop the timing, press push-button A. once more and read the three chronograph hands: 4min/38sec/7/10 sec

Zero positioning: Prcess push-button B.

(The three chronograph hands will be reset to their zero positions).

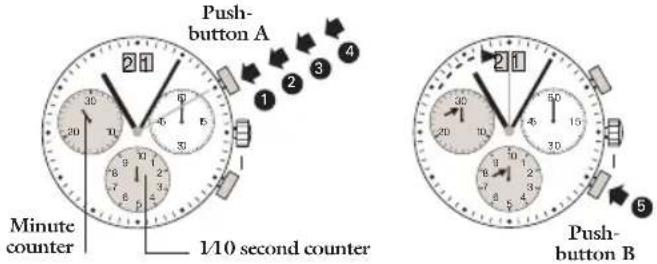

Chronograph: accumulated timing

Example:

1 Start: (start timing)
Stop: (c.g. 15 min 5 sec following 1)
Restart: (timing is resumed)
*Stop: (c.g. 13 min 5 sec following) = 28 min 10 sec (The accumulated measured time is show

The three chronograph hands are returned to their zero positions.

Please note:

• Following 4 , the accumulation of the timing can be continued by pressing push button A (Restart / Stop, Restart / Stop,...)

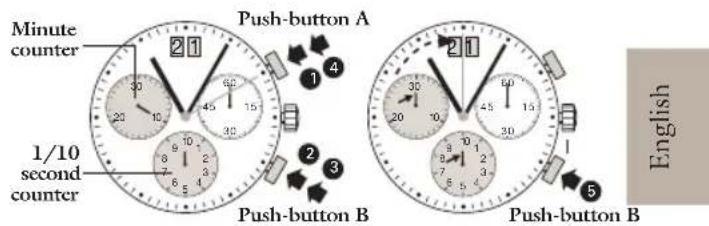

Chronograph: intermediate or interval timing

Example:

1 Start: (start timing)
Display interval: c.g. 10 minutes 10 seconds (timing continues in the background)
3 Making up the measured time: (the 3 chronograph hands are quickly advanced to the ongoing measured time).
4 Stop: (Final time is displayed)

5 Reset:

The 3 chronograph displays are returned to their zero position

Please note:

• Following 3 further intervals or intermediates can be displayed by pressing push-button B (display interval / make up measured time, ...)

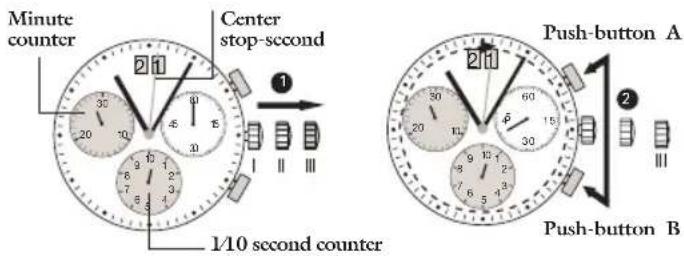

Adjusting the chronograph hands to zero position

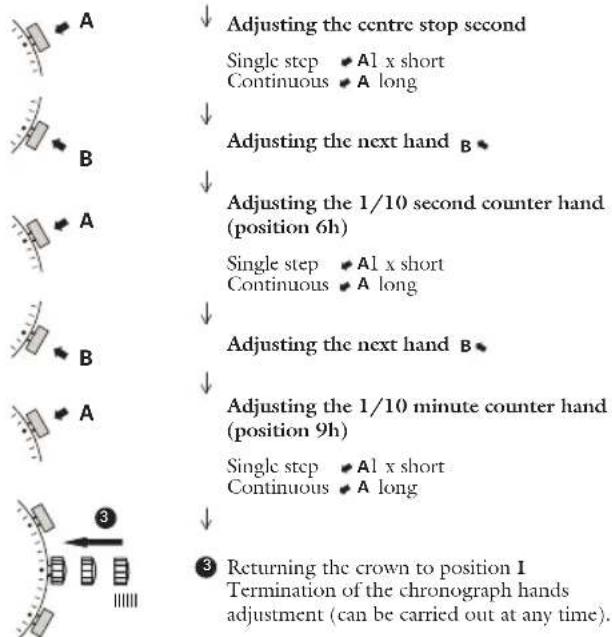

Example:

One or several chronograph hands are not in their correct zero positions and have to be adjusted (e.g. following a battery change).

Pull out the crown to position III (all 3 chronograph hands are in their correct or incorrect zero position).

2 Kcp push Buttons A and B deprocessed simultaneously for at least 2 seconds (the centre stopsecond rotates by 360^ corrective mode is activated).
