Product type	Quartz wristwatch with chronograph
Brand	Jaguar
Model	J653
Movement	Quartz
Display	Analog: hour, minute, second hands; chronograph counters (hours at 6 o'clock, minutes at 9 o'clock, seconds at center)
Main functions	Time, date, chronograph with Start/Stop/Reset functions, totalization, intermediate times
Power supply	Battery (type not specified, standard for quartz watch)
Time setting	Crown in position III (stop second hand)
Quick date correction	Crown in position II
Date/time setting after battery change	6-step procedure: position II, set date previous day, position III, current date, current time, reposition
Chronograph: start/stop	Push button A: Start/Stop; Push button B: Reset
Chronograph: intermediate times	Push button B for display, A for split
Adjusting chronograph hands to zero position	Pull crown III, press A and B simultaneously for 2s, correct step by step with A or continuous, B to go to next hand
Care and cleaning	Clean with a soft, dry cloth. Avoid contact with water, chemicals and magnetic fields
Safety	Keep out of reach of children. Do not expose to extreme temperatures
Recycling	Compliant with WEEE regulations. Dispose of at an approved collection point or at your retailer
Reparability	For any repair, entrust to an authorized watchmaker. Do not attempt to open the watch yourself
General information	User manual available in multiple languages. For any questions, consult the manufacturer's website

Frequently Asked Questions - J653 JAGUAR

How to set the time on my Jaguar J653 watch?

Pull the crown to position III (the second hand stops). Turn the crown to display the desired time. Push the crown back to position I to restart.

How to use the chronograph?

Press push button A to start and stop timing. Press push button B to reset the chronograph hands to zero.

How to measure intermediate times?

When the chronograph is running, press push button B to display an intermediate time (timing continues in the background). Press B again to catch up with elapsed time.

How to reset the chronograph hands to zero if they are not aligned?

Pull the crown to position III. Press push buttons A and B simultaneously for at least 2 seconds. One hand rotates 360°: you are in correction mode. Use A to adjust step by step (brief press) or continuously (hold). B allows you to move to the next hand. Push the crown back to position I to finish.

How to quickly set the date?

Pull the crown to position II. Turn it until the correct date appears. Push the crown back to position I. Caution: avoid setting the date between 9 PM and midnight if the calendar is changing.

How to set the date and time after a battery change?

Pull the crown to position II and set the day before the current date. Then pull to position III and set the current date and then the time. Push back to position I. Respect the 24-hour cycle.

Is my watch waterproof?

The manual does not specify the water resistance level. As a precaution, avoid any contact with water. Do not wear the watch in the shower or while swimming.

How to maintain my watch?

Clean the case and crystal with a soft, dry cloth. Avoid chemicals, perfumes and magnetic fields. Have the water resistance checked by a watchmaker every two years.

What to do if my watch stops?

Check if the battery is depleted. Replace it with an identical battery (type not specified, take it to a watchmaker). If the problem persists, consult a professional.

Where can I find spare parts or have my watch repaired?

Contact an authorized watchmaker or Jaguar retailer. Do not attempt to repair the watch yourself. For recycling, dispose of it at a WEEE collection point.

USER MANUAL J653 JAGUAR

• Description of the display and control buttons. 14
  -Chronograph 15
  -Setting the time 20
  -Setting the date (quick mode) 21
• Setting the date time following a battery change. 22

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of life cycle watch making

products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point.

The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

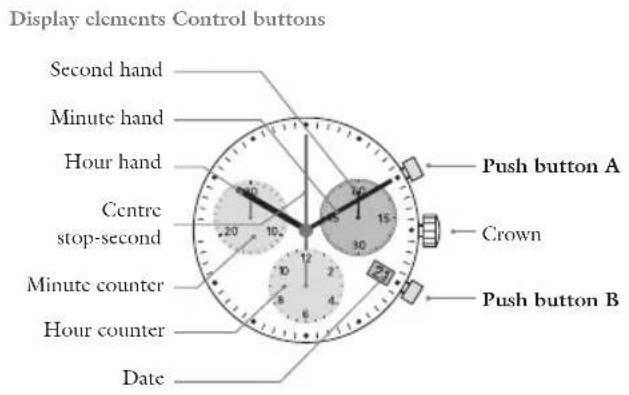

Description of the dislay and control buttons

Chronograph: Basic function

START/STOP/RESET

Example:

① Start: Press push button A.
Stop: to stop the timing, press pushbutton A once more and read the three chronograph hand: 1h / 20min / 10scc
③ Zero positioning:

Press push-button B. (The three chiorograph hands will be reset to their zero positions).

Chronograph: Accumulated timing

Minute counter

Hour counter Hour counter

Example: Example:

① Start: (start timing)
② Stop: (c.g. 15 min 5 sec following ①)
Restart: (timing is resumed)
*Stop:c.g.13 min 5 scc following 28 min 10 sec (the accumulated measured time is shown).

⑤ Reset:

The three chronograph hands are returned to their zero positions

Pushbutton B

Please note:

Following*4, the accumulation of the timing can be continued by pressing push button A (Rstart/Stop, Rstart/ Stop,...)

Chronograph Intermediate or interval timing

Start: (start timing)
Display interval: c.g. 10 minutes, 10 seconds (timing continues in the background).
Making up the measured time: (the 3 chronograph hands are quickly advanced to the ongoing measured time).
Stop: (Final time is displayed)
④ Reset:

The 3 chronograph hands are returned to their zero position.

Please note:

Following 6 further intervals or intermediates can be displayed by pressing push-button B (display interval/make up measured time,...)

Adjusting the chronograph hands to zero position

Minute counter Center stop-second

Example:

One or several chronograph hand are not in their correct zero positions and have to be adjusted (c.g. following a battery change).

Pull out the crown to position III (all 3 chronograph hands are in their correct or incorrect zero position).
2 Keep push Buttons A and B depressed simultaneously for at least 2 seconds (the centre stop-second rotates by 360^ -corrective mode is activated)

Adjusting the centre stop second: Single step A1 x short Continuous long

Adjusting the next hand

Adjusting the hour counter hand (position 6h)

Single step A1 x short

Continuous long

Adjusting the next hand B

Adjusting the minute counter hand (position 9h)

Single step dA short

Continuous Long

Returning the crown to position 1 Termination of the chronograph hands adjustment (can be carried out at any time)

Setting the time

Setting the date (quick mode)

① Pull out the crown to position III * (the watch stops).
② Turn the crown until you reach the correct time 8:45.
Push the crown back into position I.*

Pull out the crown to position II (the watch continues to run).
Turn the crown until the correct date 1 appears.
Push the crown back into position I.

Please note: Please note:

In order to set the time to the exact * second, ① must be pullet out when the second hand is in position "60" (I). Once the hour and minute hands have been set, ③ must be pushed back into position I at the exact second.

During the date changing phase between 9 PM and 12 PM; the date must be set to the date of the following day.

Setting the date/time

Following a battery change

Example:

Date/time on the watch:17/1:25 AM Present date/time:4/8:30PM

Pull out the crown to position II (the watch continues to run).
Turn the crown until yesterday's date appears 3.

Pull out the crown to position ^ 喜 III (the watch stops).
Turn the crown until the correct date appears.
5* Continue to turn the crown * until the correct time 8:30 PM appears.
Push the crown back into position 1.

Please note:

To set your watch to the exact * second please refer to the chapter entitled "setting the time".
* Please observe the AM/PM clock * rhythm.
