USER MANUAL TDW 450 WH THOMSON

6~11 10~20 7~14 1,0~2,0

23~34 41~60 29~42 4,1~6,0

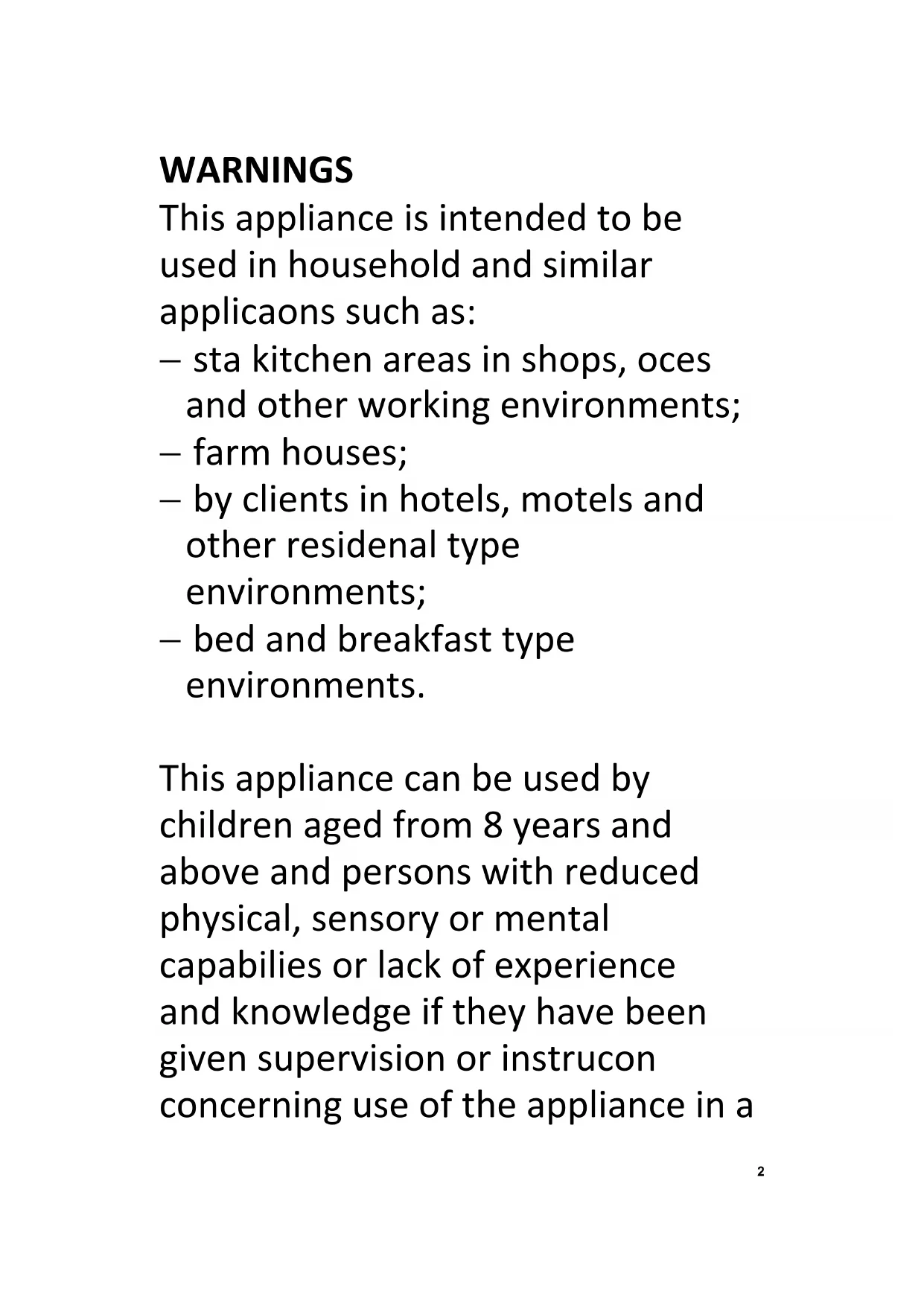

GB2 WARNINGS This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a3 safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. For the details concerning the method and frequency of cleaning, please see section “Cleaning and maintenance” on pages 19&20. The door should not be left in the open position since this could present a tripping hazard.4

WARNING: Knives and other

utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position. The new hose-sets supplied with the appliance are to be used; old hose-sets should not be reused. For the details on how to load the dishwasher please see section “Loading” on pages 10-13. The minimum permissible inlet water pressure is 0.04 MPa. The maximum permissible inlet water pressure is 1 MPa. The plug must be remained easily5 accessible after installation of the appliance. The maximum number of place settings to be washed by this

The dishwasher must only be used for the washing of household dishes and cooking utensils. Never disconnect the appliance from the mains socket by pulling on the mains cord, always grasp the plug. Never touch the dishwasher when barefoot or with wet hands or feet. Do not open the door during a wash cycle as hot steam and water may be ejected. If you are discarding an old appliance with a lock / latch fitted to the door, ensure that it is in a disabled condition to avoid the entrapment of children when playing. Do not let children climb on the dishwasher door or place any heavy object on it while it is open, as this could unbalance the appliance.

dishwasher is 10 place settings.6 DESCRIPTION

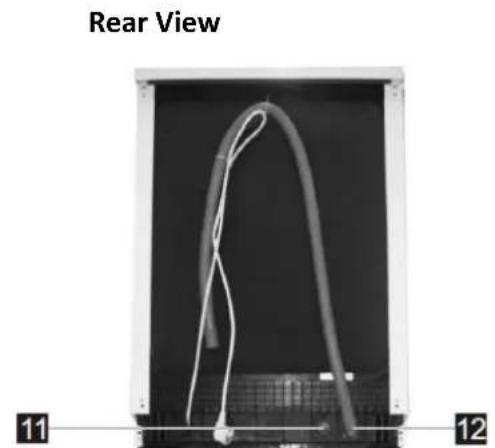

Front View (Interior) Rear View

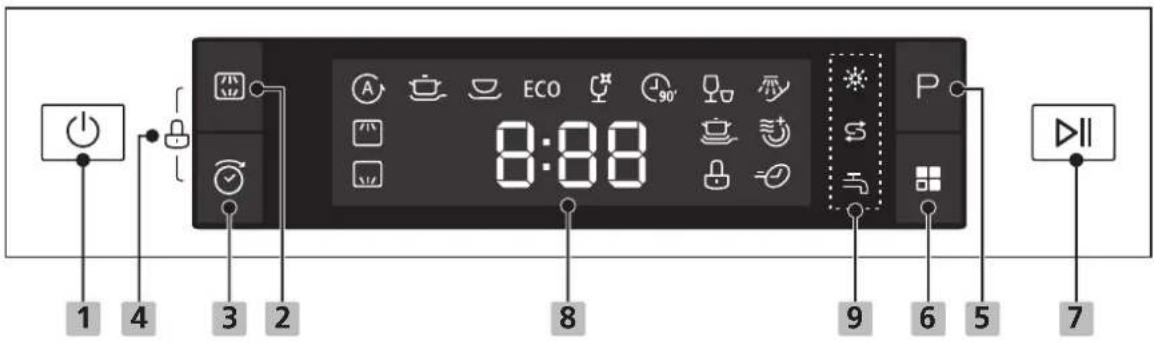

Allow you to designate the washing program to the upper or lower basket.

3. Delayed start button

To show washing program time and indicator lights:

minutes Rapid Soak To show dual spray indicator lights Designate the washing program to the upper ( ) or lower ( ) basket. To show extra cleaning function indicator light To show extra dry and express function indicator light To show child lock function indicator light To show delayed start time, water hardness setting and error codes

Before connecting your dishwasher to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding.

WARNING: Disconnect electrical power before installing your dishwasher.

INSTALLATION INSTRUCTIONS Your dishwasher can be installed in various locations in your kitchen as long as there is space and accessibility to connect your dishwasher to the water/drainage and electrical supply. Do not connect an extension lead to the appliance to avoid potential safety hazards. Connecting to the Mains Water Supply Inlet hose (Cold water supply)

The water inlet hose from the machine terminates in a 3/4" female connector. The water supply should therefore terminate in a similar male connector and should have a stopcock close by in the pipe.

Connect the straight connector of the inlet hose to the water supply securely ensuring that the washers are securely in place at both ends of the hose.

Water Pressure For best operating results, incoming water pressure should be between 0.04 MPa and 1MPa. Incoming water supply for the dishwasher is controlled by a ‘pressure switch’, so if the household water pressure is low, dishwasher fill time will increase or may not operate.

WARNING: Please close the hydrant after using.

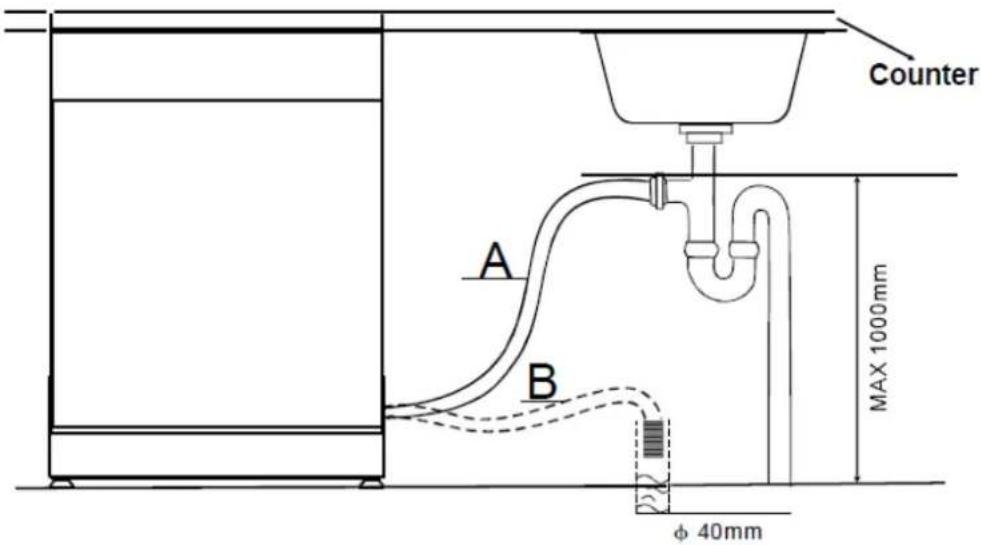

Connecting to the water outlet Insert the drain hose into a drainage pipe or standpipe. The end of the hose should be dropped into a drainage pipe, the maximum height of which should be 1000 mm above the base of the dishwasher. The end of the hose must not be immersed in water to avoid the back flow of it. To allow for an air gap around the end of the drain hose, the diameter of the standpipe should be at least 40 mm.9

If leaks are detected, immediately shut the water supply and check the hose connections fully. Re-tighten the connections if necessary. If for any reason you are unable to stop the leak yourself please seek advice from a qualified plumber. Levelling Place the dishwasher on an even, stable surface. It is very important that the dishwasher is perfectly levelled in order to avoid it to malfunction. You can level the dishwasher by adjusting the feet at the base of the appliance. OPERATION Your dishwasher cleans by spraying a mixture of clean water and detergent (under pressure) against the soiled surface of dishes. The water is pumped through a rotating spray arm, drained through a filter removing food and soiled particles and pumped back through the spray arm. Soiled water is pumped out and replaced with clean water at the end of each cycle (how many times depends on the cycle being used). NOTE: Hard water conditions will adversely affect washability performance of your dishwasher. Hard water conditions will also contribute to “Lime” (white film substance) deposits and/or “Scaling” on the stainless steel surface of the dishwasher tub and heater element located in the sump underneath the removable filter screen. To minimise these conditions, it is recommended to periodically operate/rinse the inside of the dishwasher (empty) using 1 cup of white vinegar (at least once a week).1

General Warnings and Recommendations Before using the dishwasher for the first time, it is advisable to read the following recommendations concerning dish types to be washed and their loading. Before loading the dishes into the baskets it is necessary to: Remove coarse food remains, e.g. bones, which may clog the filter or damage the wash pump. Soak any pots or pans with burnt-on food remains on the bottom then load them into the basket. There is no need to pre-wash the dishes under running water before loading them into the basket. WARNINGS: Make sure that the dishes are securely in place so that they cannot tip over or obstruct the rotation of the spray arms during the washing cycle. Containers such as cups, bowls, glasses and pots should always be loaded with the opening facing downwards and with any cavities at an angle, to allow the water to drain out. Do not stack dishes. Do not place glasses too close together because they may knock against each other and break. Load large items which are most difficult to clean into the lower basket. Make sure that the items being washed are dishwasher-safe. Items which are not dishwasher-safe: Wooden dishes, pots or pans Handcrafted items Plastic dishes (except when marked dishwasher-safe) Dishes and objects in copper, tin, zinc or brass Aluminium dishes Silverware Glass and crystal Decorated items Loading the Baskets

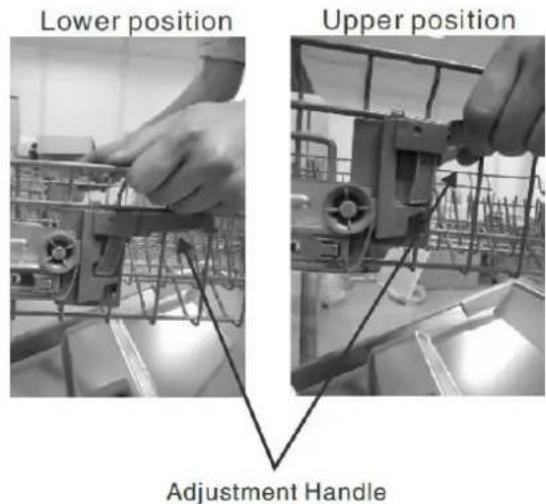

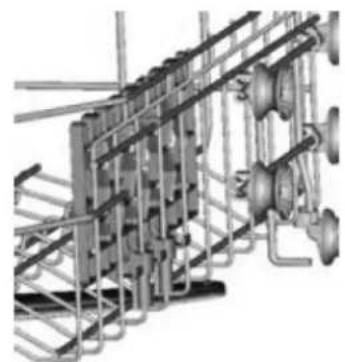

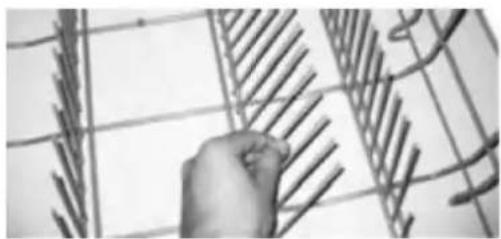

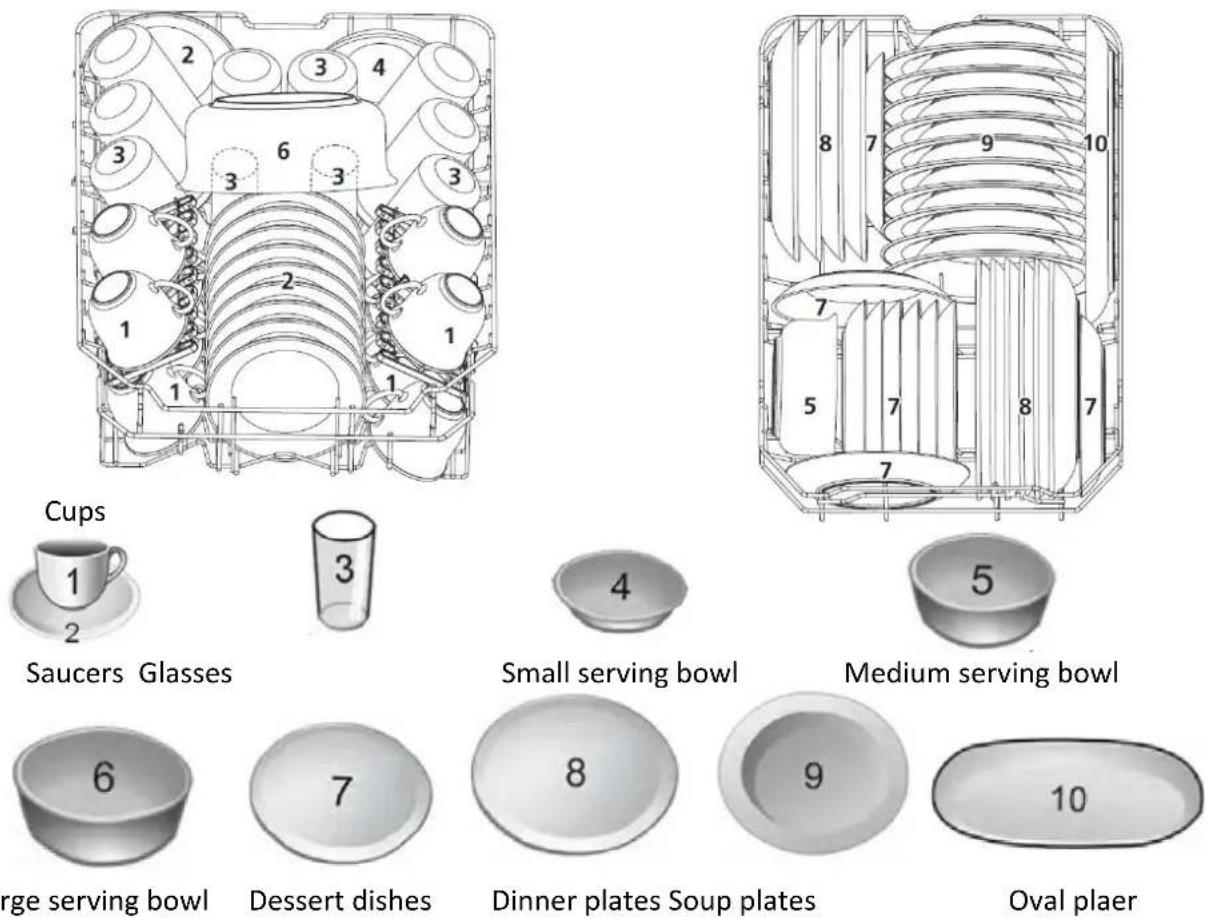

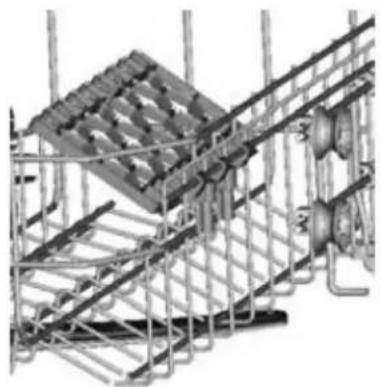

Loading the upper and lower baskets The upper basket is designed to hold delicate and light items such as glasses, cups, saucers, serving bowls and shallow pans. The lower basket is designed to take saucepans, lids, plates, salad bowls, cutlery etc. Serving dishes and large lids should be arranged around the edge of the basket, ensuring that the upper spray arm can turn freely. Arrange items so that water can reach all surfaces.11 Upper Basket Lower Basket Cups Saucers Glasses Small serving bowl Medium serving bowl Large serving bowl Dessert dishes Dinner plates Soup plates Oval platter The upper basket is equipped with two cup shelves. For reduced loads, the additional cup shelves can be folded down if not required as shown below. To make full use of the space in the lower basket when large dishes are loaded, the lower basket has tilting plate supports which can be stowed horizontally.12 Adjusting the upper basket The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper/lower basket. The height of the upper basket can be adjusted by lifting the handle on either side of the basket, see pictures below: Loading the cutlery rack Arrange the cutlery in the rack. The top spray arm must not be blocked by items. Take care during loading to avoid injury from the knife blades.

Using the Water Softener The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will be formed on the utensils. This appliance is equipped with a water softener which uses a salt specifically designed to eliminate the minerals from the water. CAUTION: Only use salt specially formulated for domestic dishwashers. Do not use table salt as it contains insoluble substances which may damage the water softening system. Fill the salt container before starting the washing programme. In this way, the excess saline solution will be immediately removed by the water; the prolonged presence of salt water inside the tank may lead to corrosion. If you plan to use dishwasher tablets for your washing needs, then you do not require to use salt or rinse agent but please note that the refill salt indicator light will remain illuminated on the control panel. This is quite normal and will not affect the operation of your dishwasher.

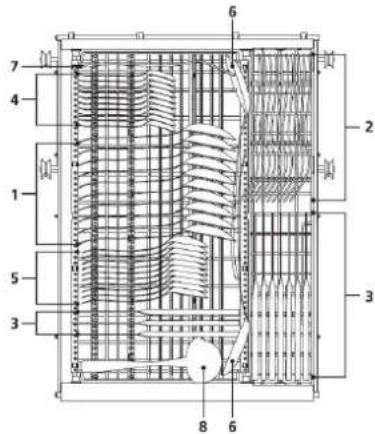

Both parts of rack are flat. Positions of cutlery rack

Both parts of rack are flat.

Left part is flat whilst right part is tilted.

Right part of rack is removed.14 Adjusting the salt consumption

1. Switch on the dishwasher.

2. Enter the status of salt consumption by holding down until the value “H3” (factory

setting) appears on the display.

3. While the value shows on the display, repeatedly press to adjust the setting from H1

to H6 to suit the water hardness.

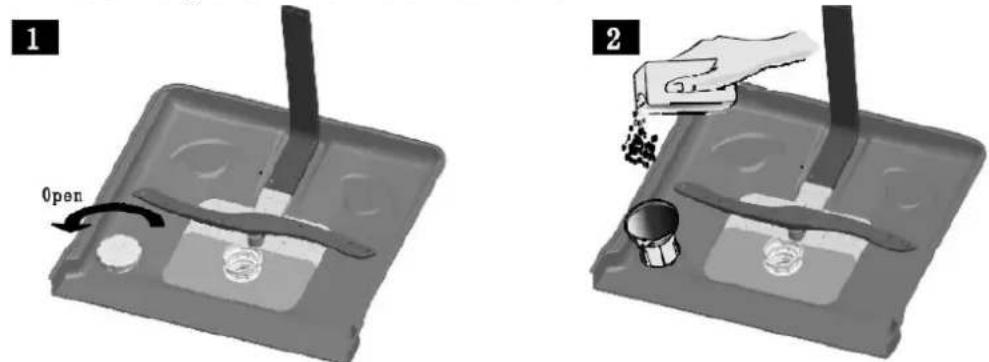

NOTE: 1 °dH=1.25 ºClarke=1.78 ºfH=0.178mmol/l °dH: German degree °fH: French degree °Clarke: British degree Filling with salt Unscrew the cap from the salt container by turning it anticlockwise. Place the supplied funnel so the end fits into the opening of the salt container. Load about 1.5kg of salt into the salt container. Screw the cap back clockwise. NOTE: The salt container must only be refilled when the refill salt indicator light illuminates. Depending on how fully the salt dissolves, the refill salt indicator light may still be on even though the salt container is filled. The setting will be validated automatically after a few seconds if you do not press again.15 Using the Rinse Aid and Detergent Dispensers Function of the rinse aid and detergent The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. WARNING! Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance. The chemical ingredients that compose the detergent are necessary to remove, crush and dispense all dirt out of the dishwasher. WARNINGS! Proper use of detergent Use only detergent specifically made for dishwasher use. Keep your detergent fresh and dry. Do not put powdered detergent into the dispenser until you are ready to wash dishes. Dishwasher detergent is corrosive! Keep it out of the reach of children. Filling the rinse aid dispenser

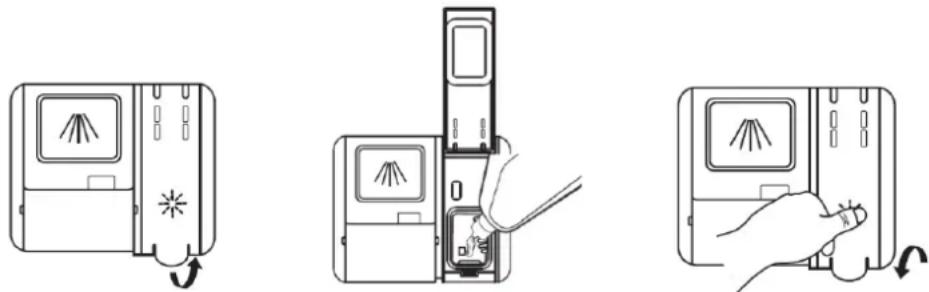

1. Remove the rinse aid dispenser cap by lifting up the tab.

2. Pour the rinse aid into the dispenser, being careful not to overfill.

Adjusting the rinse aid dispenser To achieve a better drying performance with limited rinse aid, the dishwasher is designed to adjust the consumption by user. Follow the below steps:

1. Power on the dishwasher.

2. Within 60 seconds after powering on the dishwasher, press and hold for

about 5 seconds and then press to enter the setting mode. The display will show d3.

3. Repeatedly press to select the proper setting.

4. The setting will be confirmed if there is no operation in about 5 seconds.16

1. Slide the control to the right

to open the detergent dispenser cap.

1. Add detergent into the compartment.

3. Close the cap by sliding it to the

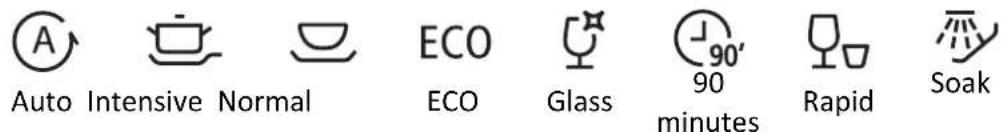

front and pressing it down.17 Washing Programmes Programme Degree of soil Cycle Description Recommended quantity of detergent pre-wash / main wash Washing time (min.) Energy (Kwh) Water (L) Rinse Aid needed? Auto Auto sensing wash, for lightly, normally or heavily soiled loads Pre-wash (45°C) Auto wash (45°C -55°C) Rinse Rinse(65°C) Drying 5/30 g (or 3 in 1)

0.9-1.3 9.5-13 Yes Intensive For extremely soiled crockery and normally soiled pots, pans, dishes, etc. Pre-wash (50°C) Wash (60°C) Rinse Rinse Rinse(70°C) Drying 5/30 g (or 3 in 1)

Yes Normal For normal soiled loads, such as pots, glasses and lightly soiled pans Pre-wash (45°C) Wash (55°C) Rinse Rinse (65°C) Drying 5/30 g (or 3 in 1)

Yes *Eco Standard daily cycle for normal soiled loads, such as pots, plates and glasses Pre-wash Wash (45°C) Rinse (65°C) Drying 5/30 g (or 3 in 1)

Yes Glass For lightly soiled loads that need no excellent drying efficiency Pre-wash Wash (40°C) Rinse Rinse (60°C) Drying

Yes 90 minutes For lightly soiled loads that need no excellent drying efficiency Wash (65°C) Rinse Rinse (65°C) Drying 25 g

Yes Rapid A shorter wash for lightly soiled loads and quick wash Wash (45°C) Rinse(50°C) Rinse (55°C) 20 g

Soak To rinse out loosen soil particles from the dishes Pre-wash N/A

• Testing programme for EN 50242 The information for comparability test in accordance with EN 50242 is as follows: Capacity: 10 settings Position of upper basket: Low position Rinse aid setting: 6 Softener setting: H3 5/30 g (or 3 in 1)18 NOTE:

1. The washing time may vary depending on the incoming water temperature and the

ambient temperature.

2. The power consumption in left-on mode is 0.49W (door open), in off-mode it is 0.45W.

Starting the Dishwasher

1. Turn the water tap on.

2. Open the dishwasher door.

3. Check the filters.

Ensure they are clean and properly positioned. See “Cleaning and maintenance” section.

4. Check that there is rinse aid and salt.

Ensure that the spray arms can rotate freely.

6. Add the required amount of detergent into the dispenser according to the “Washing

7. Press to switch on the dishwasher.

8. Select the desired washing programme by repeatedly pressing P.

The corresponding programme indicator light will illuminate on the display.

Delay timer: The delay timer allows you to delay the start of a washing programme from 1 hour to a maximum of 24 hours. Repeatedly press until the desired start delay time is shown on the display, e.g. H:03 for a 3-hour delay. Once the delay timer has been set, to activate the function. press To cancel the delayed start, press and then repeatedly press until the display shows “H:00”.

9. If you want to activate other functions, repeatedly press until the

desired function indicator light illuminates. The extra dry function can only be used with the Intensive, Normal, Eco, Glass and 90 min programmes. When this function is activated, the dishwasher will increase temperature at the end of a washing programme to improve drying. The express function can only be used with the Intensive, Normal, Eco, Glass and 90 min programmes. When this function is activated, the dishwasher will reduce the running time while slightly increasing water and energy consumption.

The extra cleaning function can only be used with the Intensive, Normal, Eco,Glass and 90 min programs. When this function is activated, the dishwasher will increase temperature during main wash. Choose this function for better cleaning performance and energy and water consumption will be increased.

10. Repeatedly press to select the upper, lower or both baskets to be sprayed

during a washing cycle. The corresponding indicator light (s) will illuminate on the display.

11. Start the washing program by pressing .

If you forget to turn on the water tap, after 1-2 minutes the water inlet warning

12. At the end of the washing programme, the dishwasher will buzz and automatically

13. Wait for about 15 minutes before you open the dishwasher door in order to avoid

The washing cycle will not start if the dishwasher door is left open or not properly closed. Do not open the door when the dishwasher is working since hot water may be ejected, which could cause scalding. Adding extra crockery

1. Without switching off the machine, press to pause. Open the door, taking care to

2. Place the crockery inside the dishwasher.

3. Close the door and perss . The cycle will start from the point at which it was interrupted.

Modifying a washing programme in progress If a mistake was made during the washing programme selection process it is possible to change the programme.

2. Press and hold P for about 3 seconds. You will hear a beep.

3. Repeatedly press P to select a new programme.

The new programme indicator light will illuminate.

4. Press to start the

program. indicator light will illuminate. avoid the escaping steam. Child lock function The function allows you to lock the buttons on the control panel. Children will not be able to accidentally start the dishwasher by pressing any button. To activate this function, press and hold and simultaneously until the lock indicator light illuminates. To deactivate this function, press and hold the two buttons simultaneously until the lock indicator light goes out.20 Cleaning the Filter Unit The filter unit consists of a main filter (1), central filter (2) and micro filter (3). To disassemble the filters Turn the filter unit anticlockwise to unlock the filters from the appliance. Lift up the filter unit and then separate the filters. Rinse them under running water using a soft brush. Clean the filters regularly. Replace the filter unit by turning them clockwise until they lock into position. CAUTION: Never operate the dishwasher without the filters. Cleaning the Door Use a damp cloth to clean the edge around the door. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner. Cleaning the Spray Arms The spray arms can be easily removed for periodic cleaning of the nozzles, to prevent possible clogging. To remove the upper and lower spray arms, hold and unscrew or pull them out. Wash the spray arms under running water and attach them back in place, checking that the rotary movement is in no way impeded.

CLEANING AND MAINTENANCE

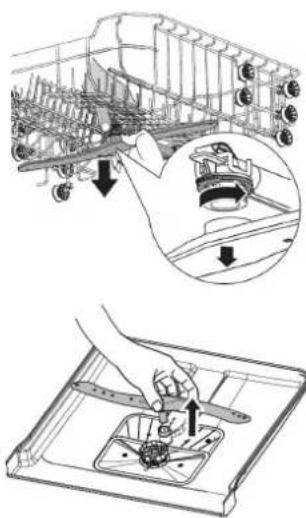

Always switch off and unplug the appliance before cleaning. Do not use chemical solvents or strong detergents as these may damage the cosmetic finish. Clean the outer surfaces and the tank of the dishwasher with a damp cloth.2

Frost Precautions Avoid placing the dishwasher in a location where the temperature is below 0°C. If this is unavoidable, empty the dishwasher, close the door, disconnect the water inlet pipe and empty it. TROUBLESHOOTING Problem Possible Causes Solutions Dishwasher will not start. Fuse blown, or the circuit breaker tripped Replace fuse or reset circuit breaker. Remove any other appliance sharing the same circuit with the dishwasher. Power supply is not turned on. Make sure the dishwasher is turned on and the door is closed securely. Make sure the power cord is properly plugged into the wall socket. The door has not been properly closed. Close the door securely. Water not pumped from dishwasher Kink in drain hose Check drain hose. Filter clogged Check the filters (see “Cleaning the Filter Unit”). Kitchen sink clogged Check kitchen sink to make sure it is draining well. If kitchen sink is not draining, you may ask a plumber to check it. Suds in the tub Improper detergent Use only the detergent special for dishwasher to avoid suds. If this occurs, open the door and let the suds evaporate. Close the door securely then start the soak wash cycle to drain the water out. Repeat if necessary. Spilled rinse aid Always wipe up rinse aid spills immediately. Stained tub interior Detergent with colourant is used. Make sure the detergent does not contain any colourant. White film over the inside surface Hard water minerals To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent for the risk of foaming or suds. There are rust stains on the The cutlery is not corrosion resistant.2

cutlery. No programme has run after dishwasher salt was added. Traces of salt have got into the wash cycle. Always run the rapid washing programme. Add dishwasher salt with no crockery in the dishwasher. The dishwasher is noisy. Dishes are rattling against each other. The spray arms are knocking against the dishes. Refer to “Loading the Basket” to rearrange the dishes. The dishes are not clean. The dishes have not been arranged properly. Refer to “Loading the Baskets”. The washing programme selected is too gentle. Select a more intensive programme. Refer to “Washing Programmes”. Not enough detergent has been used or it is unsuitable. Use more detergent or change the detergent. The spray arms are clogged. Rearrange the items so that the spray arms can rotate freely. The filters are not clean or not in the correct position. Clean and/or position the filters correctly. Streaking and staining on the dishes The rinse aid dispenser setting is not high enough. Adjust the rinse aid dispenser setting. The dishes are not quite dry. Improper loading Refer to “Loading the Baskets”. The rinse aid has run out or too little is being used. Increase or refill the amount of rinse aid. Wrong programme selection Choose a programme with long washing time.23 Error codes When some malfunctions occur, the display will show the following error codes to warn you: Error code Meaning Possible cause

Longer inlet time. Tap is not opened, or water inlet is restricted, or water pressure is too low.

Overflow Some dishwasher parts are leaking.

Failure of orientation of distributary valve Open circuit or break of distributary valve. Call a qualified service agent. WARNING! If overflow occurs, turn off the main water supply before calling service.2

PRODUCT FICHE This product fiche has been setup in conformity with EU Regulation No 1059/2010. Brand Thomson Model

Energy efficiency class ❶ A++ Annual energy consumption ❷ 211kWh/annum Energy consumption of the standard cleaning cycle

Power consumption of off-mode 0.45W Power consumption of left-on mode (door open) 0.49W ‘Left-on mode’ duration 30 minutes Annual water consumption ❸ 2240 litres Drying efficiency class ❹

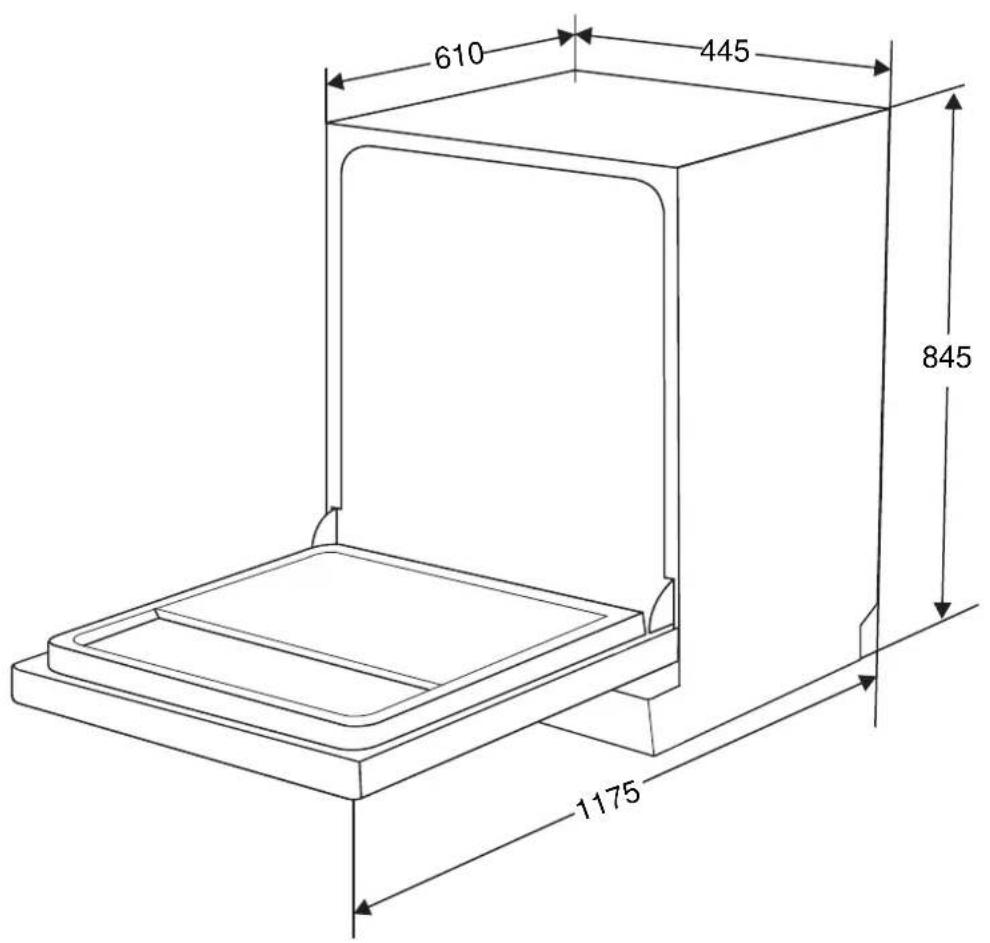

Standard cleaning cycle ❺ Eco 45°C Programme duration of the standard cleaning cycle 195 minutes Noise level 46 dB(A) re 1 pW Mounting Free standing Height 845mm Width 448mm Depth (with connectors) 610mm Power consumption 1760W-2100W Rated voltage / frequency 220-240V~ 50Hz Water pressure (flow pressure) 0.4-10 bar = 0.04-1 Mpa

NOTE: ❶A+++ (highest efficiency) to D (lowest efficiency) ❷Energy consumption “211” kWh per year, based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used. ❸Water consumption “2240” litres per year, based on 280 standard cleaning cycles. Actual water consumption will depend on how the appliance is used. ❹A (highest efficiency) to G (lowest efficiency) ❺This programme is suitable for cleaning normally soiled tableware and it is the most efficient programme in terms of combined energy and water consumption for that type of tableware. The device meets the European standards and the directives in the current version at delivery: LVD 2014/35/EU EMC 2014/30/EU ErP 2009/125/EC

The above values have been measured in accordance with standards under specified operating conditions, amount of detergents, etc. The manual is based on the European Union’s standards and rules.

THOMSON is a trademark of Technicolor or its Affiliates used under license by DARTY.

DISPOSAL As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment. You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life. Contact your local authority to learn about disposal and recycling. The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.
