TDW 45 SILVER - Dishwasher THOMSON - Free user manual and instructions

Brand	Thomson
Model	TDW 45 SILVER
Product type	Freestanding dishwasher
Number of place settings	10 place settings

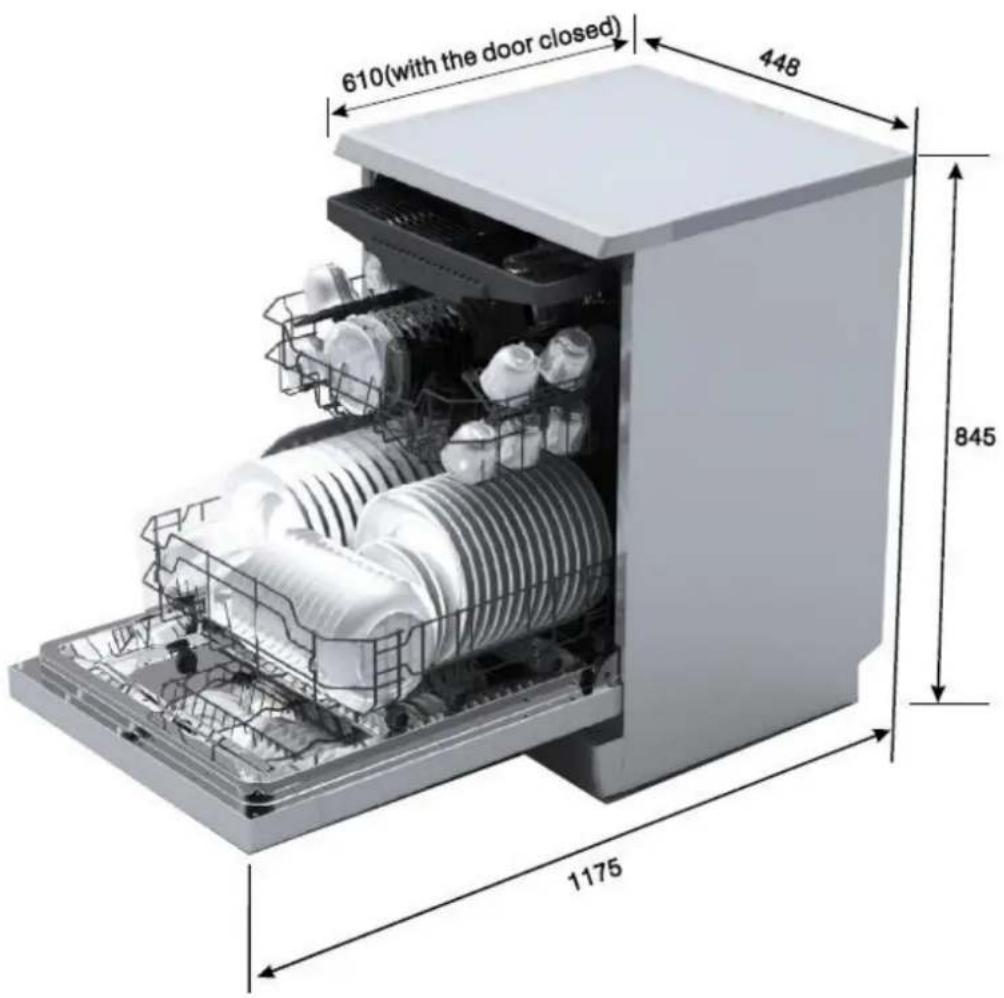

Dimensions (H x W x D)	845 x 448 x 610 mm
Weight	Approximately 40 kg
Electrical supply	220-240 V ~ 50 Hz, 1760-2100 W
Energy class	A++
Annual energy consumption	211 kWh/year
Annual water consumption	2240 litres/year
Noise level	46 dB(A)
Wash programs	Auto, Intensive, Normal, Eco, Glasses, 90 minutes, Express, Rinse
Special functions	Delay start (1-24h), extra drying, spray arm selection, child lock
Water softener	Adjustable from H1 to H6, with salt reservoir
Detergent and rinse aid dispenser	Yes, adjustable
Admissible water pressure	0.04 - 1 MPa (0.4 - 10 bar)
Installation type	Freestanding
Maintenance and cleaning	Washable filters, removable spray arms, door and seal cleaning
Safety	Child lock, mandatory grounding, automatic stop at end of cycle
Common spare parts	Rinse aid salt, rinse aid liquid, detergent, filters, spray arms
General information	Manual available in FR, EN, ES, NL; 100 pages; product code: TDW 45 SILVER

Frequently Asked Questions - TDW 45 SILVER THOMSON

Why does my Thomson TDW 45 SILVER dishwasher not start?

Check that the fuse or circuit breaker has not tripped, that the appliance is powered on, and that the door is properly closed. If the problem persists, refer to the troubleshooting guide on page 22.

What to do if water does not drain from the dishwasher?

Ensure the drain hose is not kinked, the filter is not clogged, and the kitchen sink drains properly. Clean the filters as indicated on page 20.

Why is there foam inside my dishwasher?

Only use special dishwasher detergent. If foam appears, open the door, let it evaporate, then run a rinse cycle. Avoid overfilling the rinse aid dispenser.

How to remove stains on interior surfaces or a white film?

For dye stains, check that the detergent does not contain dyes. For white film (limescale), clean the interior with a damp sponge and a little dishwasher detergent. Wear gloves.

Why is my dishwasher noisy during operation?

Noise may come from dishes knocking together or spray arms hitting objects. Rearrange the dishes following the loading instructions on pages 11-13.

What to do if dishes are not clean after a cycle?

Check the dish arrangement, the selected program (too mild), the amount of detergent, and the condition of filters and spray arms. Refer to the troubleshooting guide on page 22.

How to interpret error codes E1 and E4?

Code E1 indicates water intake takes too long: check the tap, pressure, and blockage. Code E4 signals overflow: turn off the water supply before calling a repair technician.

How to adjust the water softener on the TDW 45 SILVER?

Hold down the P button until 'H3' flashes, then press ▷II several times to choose the setting suitable for your water hardness (H1 to H6). Confirm with the P button.

What type of salt to use and when to add it?

Only use special dishwasher salt, never table salt. Add salt when the salt indicator light comes on. Pour about 1.5 kg into the reservoir before a wash cycle.

How to load the baskets for optimal washing?

Place the dirtiest items in the lower basket (pots, plates), and more delicate ones in the upper basket (glasses, cups). Orient hollows downward and do not block spray arms. See pages 11-13.

USER MANUAL TDW 45 SILVER THOMSON

Cutaway view of a white kitchen appliance showing internal compartments and casing (no text or symbols visible)

Black-and-white photo of a flexible cable or hose mounted on a dark panel, with no visible text or symbols.

liquide de rinçage

Cropped image showing two labeled computer keys with icons: one with a power button and another with symbols like 'P', 'E', and directional arrows.

Alimentaon

Double aspersion

Coiled white cable with a small metallic connector at the end (no text or symbols visible)

Line drawing of a hand holding a tool with a handle (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Industrial piping system with multiple valves and ductwork (no visible text or labels)

Hand holding a white object over a grid of white lines, no text or symbols visible

Close-up of hands assembling or adjusting a mechanical component with a grid-like structure (no visible text or symbols)

Posion supérieure

Industrial machinery setup with a hand operating a component, no visible text or symbols

Poignée de réglage

Row of eight different kitchen utensils in a row, including spoons, platters, and spoons (no text or symbols visible)

3D rendering of a blue industrial machine with mesh grid and control panel (no text or symbols visible)

Exterior view of a blue industrial container with metal grating and blue piping (no text or symbols visible)

3D rendering of a teal-colored industrial machine tray with mesh structure (no visible text or symbols)

Illustration of a hand pouring granular material into a tray with a small container and a glass on the side (no text or symbols)

Illustration of a bottle with a glass cap and a coin, no text or symbols present

Illustration of a hand pressing down on a device with a scroll wheel (no text or symbols)

Illustration showing a hand holding a document with a pen and a circular icon, indicating a change or modification.

Illustration of a satellite and electronic device with no visible text or symbols

Cropped image showing a toolbar with icons for crossed-out, refresh, and timer functions, alongside a partial circular symbol labeled '1'.

Diagram showing three labeled arrows pointing to a mechanical component: a spring-like structure, a flat plate, and a cylindrical container.

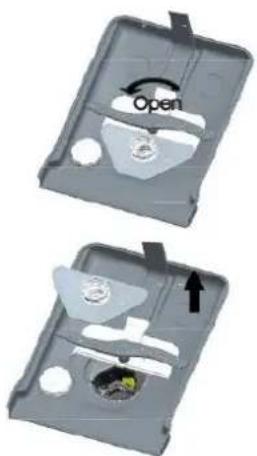

Démontage des Itres

Interior view of a rectangular electronic device with internal components and a black arrow pointing to a section (no visible text or symbols)

Mechanical device with open lever and curved arms, no visible text or symbols

INSTALLATION INSTRUCTIONS....8

Connecng to the Mains Water Supply 8

Levelling 9

OPERATION 9

General Warnings and Recommendations....9

Loading the Baskets....10

Using the Water Soener....13

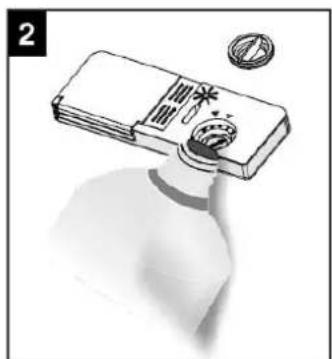

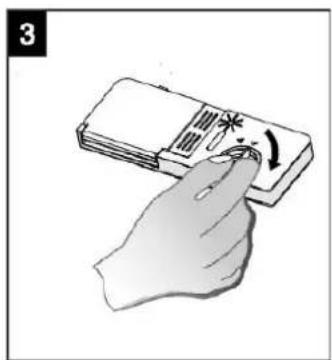

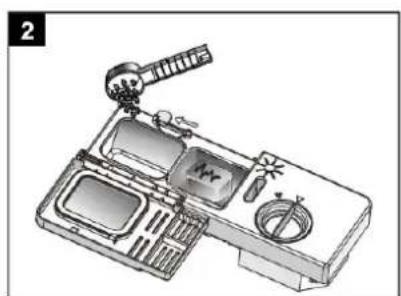

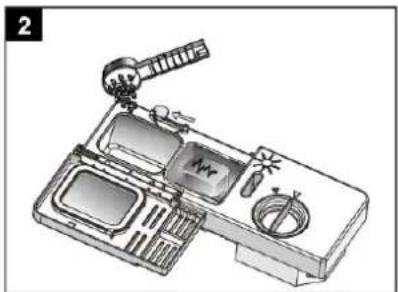

Using the Rinse Aid and Detergent Dispensers ....14

Washing Programmes....16

Starng the Dishwasher....17

CLEANING AND MAINTENANCE....19

Cleaning the Filter Unit ....19

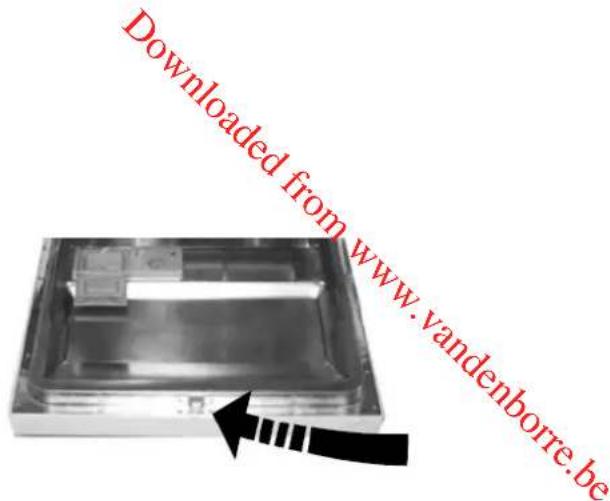

Cleaning the Door....20

Cleaning the Spray Arms....20

Frost Precauons....20

TROUBLESHOOTING....21

ERROR CODES....22

TECHNICAL DATA SHEET......23

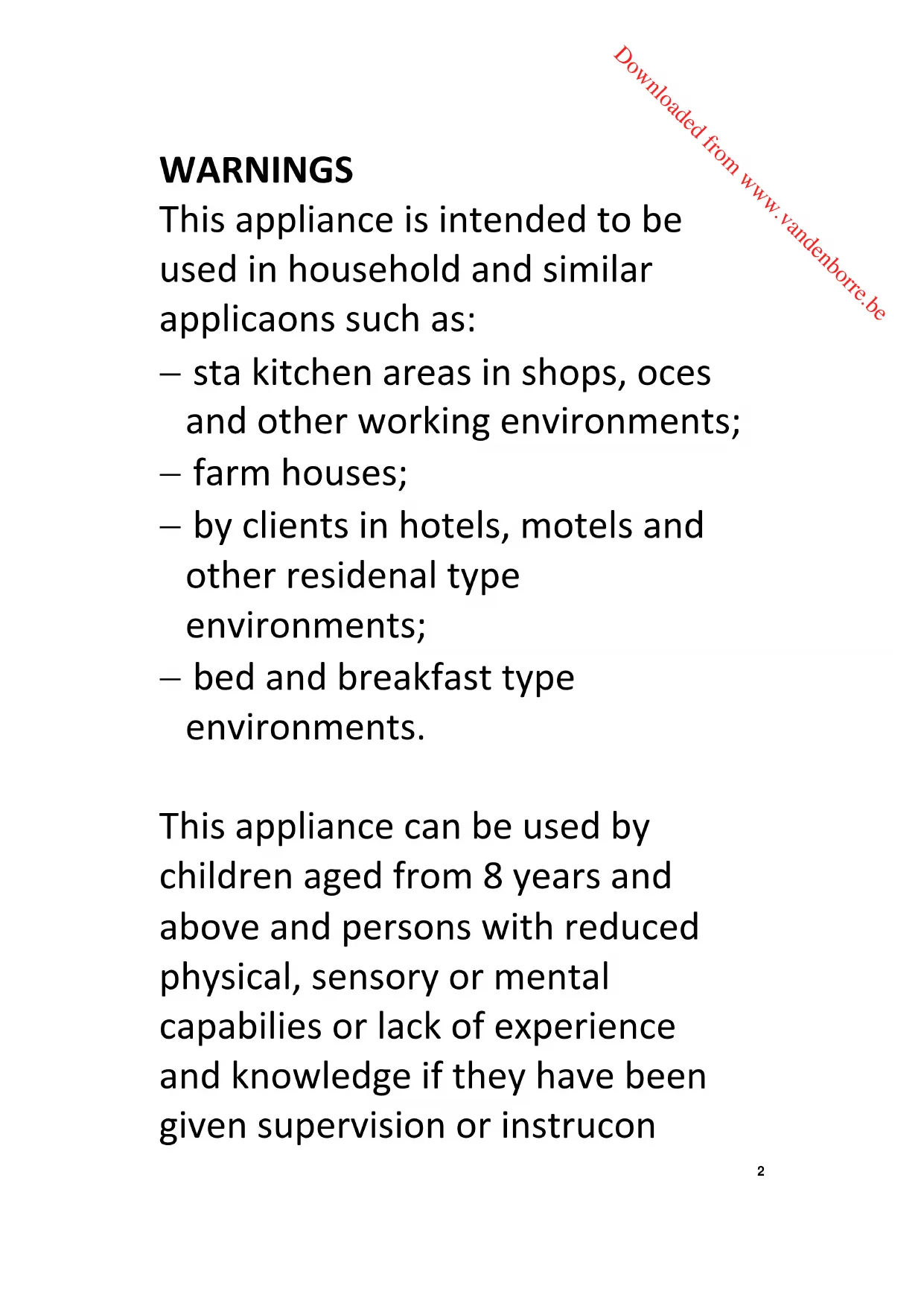

WARNINGS

This appliance is intended to be used in household and similar applicaons such as:

• sta kitchen areas in shops, oces and other working environments;
• farm houses;
  – by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instrucon

concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

For the details concerning the method and frequency of cleaning, please see secon “Cleaning and maintenance” on page 19&20.

The door should not be le in the

open posion since this could present a tripping hazard.

WARNING: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal posion.

The new hose-sets supplied with the appliance are to be used; old hose-sets should not be reused.

For the details on how to load the dishwasher please see secon "Loading" on pages 10&13.

The minimum permissible inlet water pressure is 0.04 MPa. The maximum permissible inlet

water pressure is 1 MPa.

The plug must be remained easily accessible aer installaon of the appliance.

The maximum number of place sengs to be washed by this dishwasher is 10 place sengs.

IMPORTANT SAFETY INSTRUCTIONS

• The dishwasher must only be used for the washing of household dishes and cooking utensils.
• Never disconnect the appliance from the mains socket by pulling on the mains cord, always grasp the plug.
• Never touch the dishwasher when barefoot or with wet hands or feet.
• Do not open the door during a wash cycle as hot steam and water may be ejected.
• If you are discarding an old appliance with a lock / latch ed to the door, ensure that it is in a disabled condion to avoid the entrapment of children when playing.
• Do not let children climb on the dishwasher door or place any heavy object on it while it is open, as this could unbalance the appliance.

DESCRIPTION

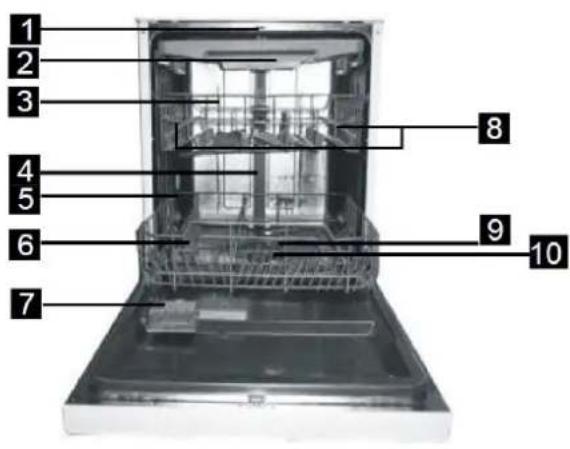

Front View (Interior)

1 2 3 4 5 6 7 8 9 10

1. Top spray arm
2. Cutlery rack
3. Upper basket
4. Inner pipe
5. Lower basket
6. Salt container

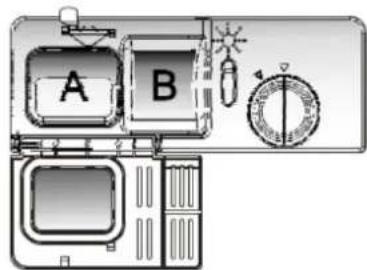

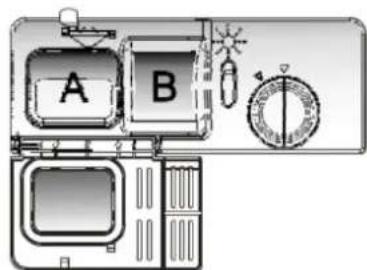

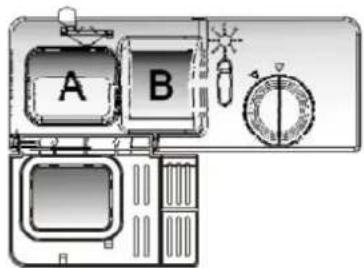

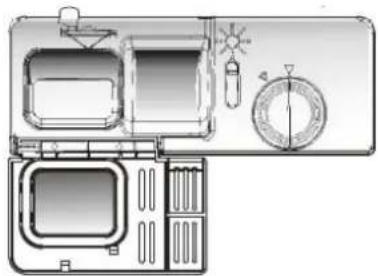

7. Detergent / rinse aid dispenser

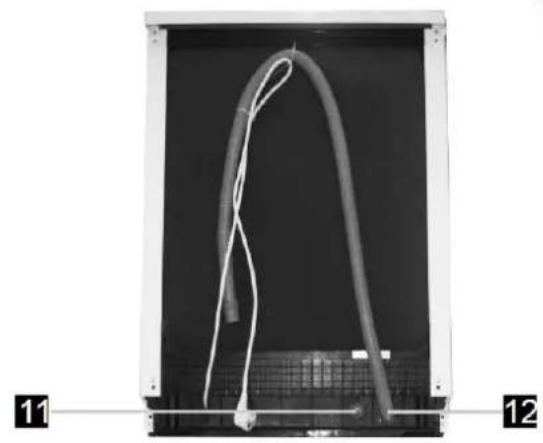

Rear View

Black-and-white photo of a flexible cable or wire installation with a grid base, no visible text or symbols

1. Cup shelves
2. Lower spray arm
3. Filter assembly
4. Water inlet valve
5. Drain hose

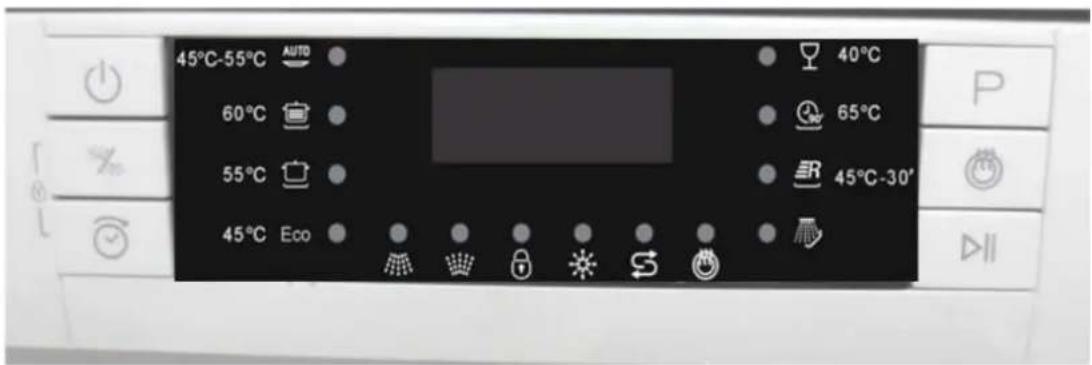

Control Panel

Overview

45°C-55°C AUTO 60°C 55°C 45°C Eco 40°C 65°C 45°C-30° P DII

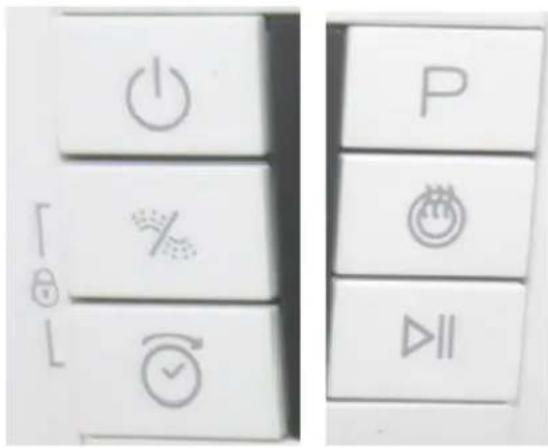

Buons on the le and right sides of control panel

Close-up of a computer keyboard key showing power, refresh, and control buttons with icons

Power

Dual spray

- allows you to designate the washing programme to the upper or lower basket.

Delay start

selecng a washing programme

Extra dry

Start/Pause

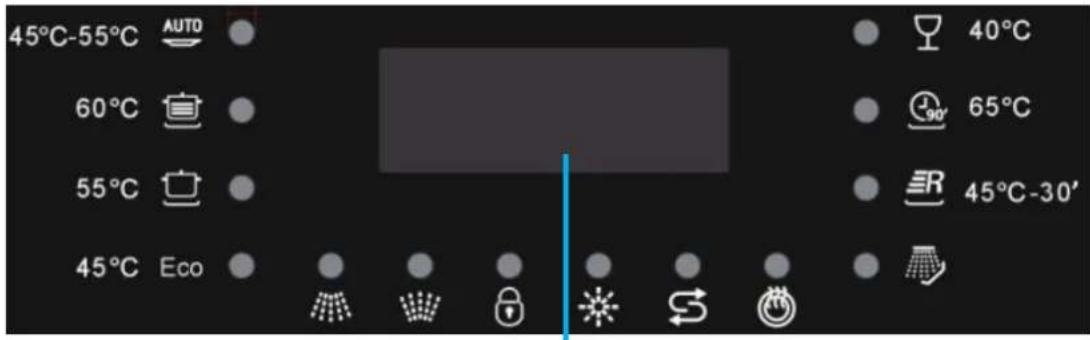

The middle part of the control panel

45°C-55°C AUTO 60°C 55°C 45°C Eco 40°C 65°C 45°C-30'

Display

Indicator lights of washing programmes:

Auto

Intensive

Normal

Eco wash

Glass

90 minutes

Rapid

Soak

Other indicator lights:

Upper spray

Lower spray

Child lock

Rell rinse aid

Rell salt

Extra dry

BEFORE INSTALLING YOUR DISHWASHER

Before connecng your dishwasher to the power supply, check that the voltage stated on the rang label of your appliance corresponds to the voltage in your home. The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding.

WARNING: Disconnect electrical power before installing your dishwasher.

INSTALLATION INSTRUCTIONS

Your dishwasher can be installed in various locaons in your kitchen as long as there is space and accessibility to connect your dishwasher to the water/drainage and electrical supply.

Do not connect an extension lead to the appliance to avoid potenal safety hazards.

Connecng to the Mains Water Supply

Inlet hose (Cold water supply)

Coiled white cable with connectors, no visible text or symbols

The water inlet hose from the machine terminates in a 3/4" female connector. The water supply should therefore terminate in a similar male connector and should have a stopcock close by in the pipe.

Line drawing of a hand holding a tool, no text or symbols present

Connect the straight connector of the inlet hose to the water supply securely ensuring that the washers are securely in place at both ends of the hose.

Water Pressure

For best operang results, incoming water pressure should be between 0.04 MPa and 1MPa. Incoming water supply for the dishwasher is controlled by a ‘pressure switch’, so if the household water pressure is low, dishwasher ll me will increase or may not operate.

WARNING: Please close the hydrant aer using.

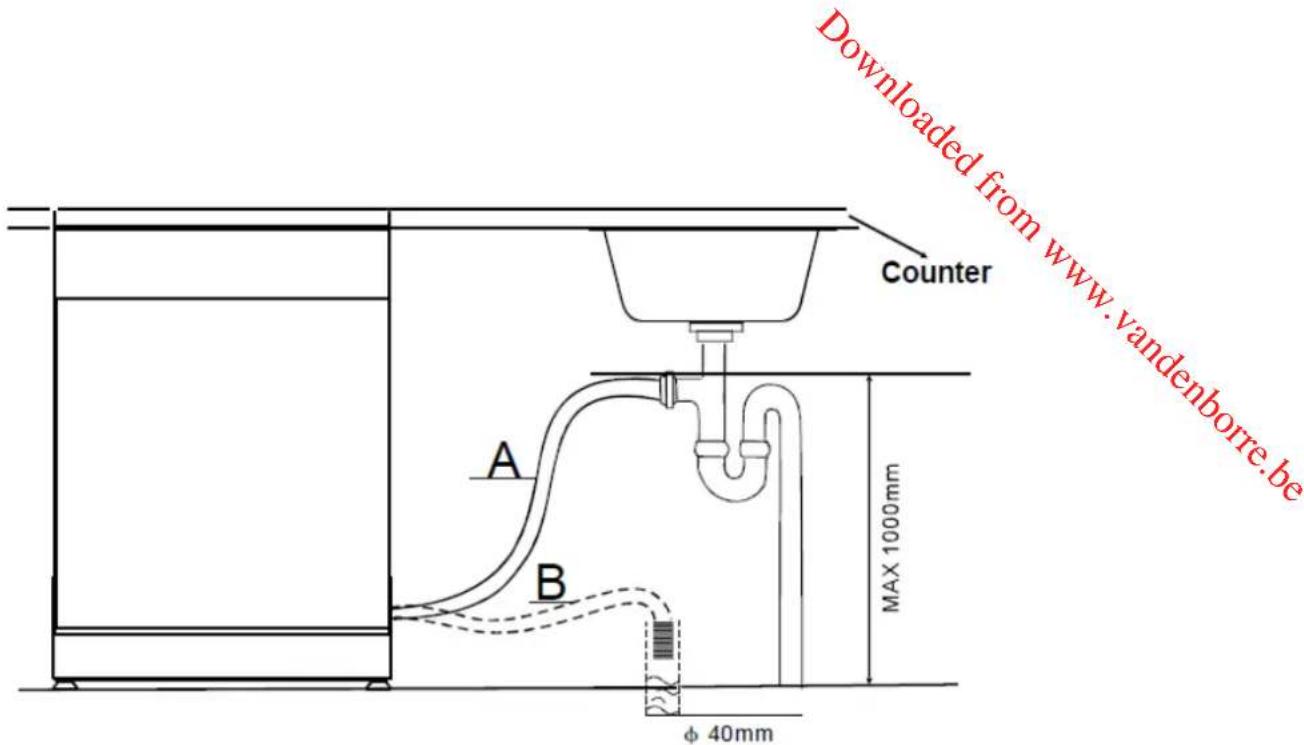

Connecng to the water outlet

Insert the drain hose into a drainage pipe or standpipe.

The end of the hose should be dropped into a drainage pipe, the maximum height of which should be 1000 mm above the base of the dishwasher. The end of the hose must not be immersed in water to avoid the back ow of it.

To allow for an air gap around the end of the drain hose, the diameter of the standpipe should be at least 40 mm.

Downloaded from www.vandenborre.be Counter A B MAX 1000mm φ 40mm

If leaks are detected, immediately shut the water supply and check the hose connecons fully. Re-ghten the connecons if necessary.

If for any reason you are unable to stop the leak yourself please seek advice from a qualified plumber.

Levelling

Place the dishwasher on an even, stable surface.

It is very important that the dishwasher is perfectly levelled in order to avoid the dishwasher to malfuncon. You can level the dishwasher by adjusng the base feet.

OPERATION

Your dishwasher cleans by spraying a mixture of clean water and detergent (under pressure) against the soiled surface of dishes. The water is pumped through a rotang spray arm, drained through a liter removing food and soiled parcles and pumped back through the spray arm.

Soiled water is pumped out and replaced with clean water at the end of each cycle (the number of mes depends on the cycle being used).

NOTE:

Hard water condions will adversely aect washability performance of your dishwasher. Hard water condions will also contribute to “Lime” (white lm substance) deposits and/or “Scaling” on the stainless steel surface of the dishwasher tub and heater element located in the sump underneath the removable lter screen.

To minimise these condions, it is recommended to periodically operate/rinse the inside of the dishwasher (empty) using 1 cup of white vinegar (at least once a week).

General Warnings and Recommendations

Before using the dishwasher for the rst me, it is advisable to read the following recommendations concerning dish types to be washed and their loading.

Before loading the dishes into the baskets it is necessary to:

• Remove coarse food remains, e.g. bones, which may clog the liter or damage the wash pump.
• Soak any pots or pans with burnt-on food remains on the boom then load them into the basket.

There is no need to pre-wash the dishes under running water before loading them into the basket.

WARNINGS:

• Make sure that the dishes are securely in place so that they cannot p over or obstruct the rotaon of the spray arms during the washing cycle.
• Containers such as cups, bowls, glasses and pots should always be loaded with the opening facing downwards and with any cavies at an angle, to allow the water to drain out.
• Do not stack dishes.
• Do not place glasses too close together because they may knock against each other and break.
• Load large items which are most difficult to clean into the lower basket.
• Make sure that the items being washed are dishwasher-safe.

Items which are not dishwasher-safe:

• Wooden dishes, pots or pans
• Handcraed items
• Plasc dishes (except when marked dishwasher-safe)
• Dishes and objects in copper, n, zinc or brass
• Aluminium dishes
• Silverware
• Glass and crystal
• Decorated items

Loading the Baskets

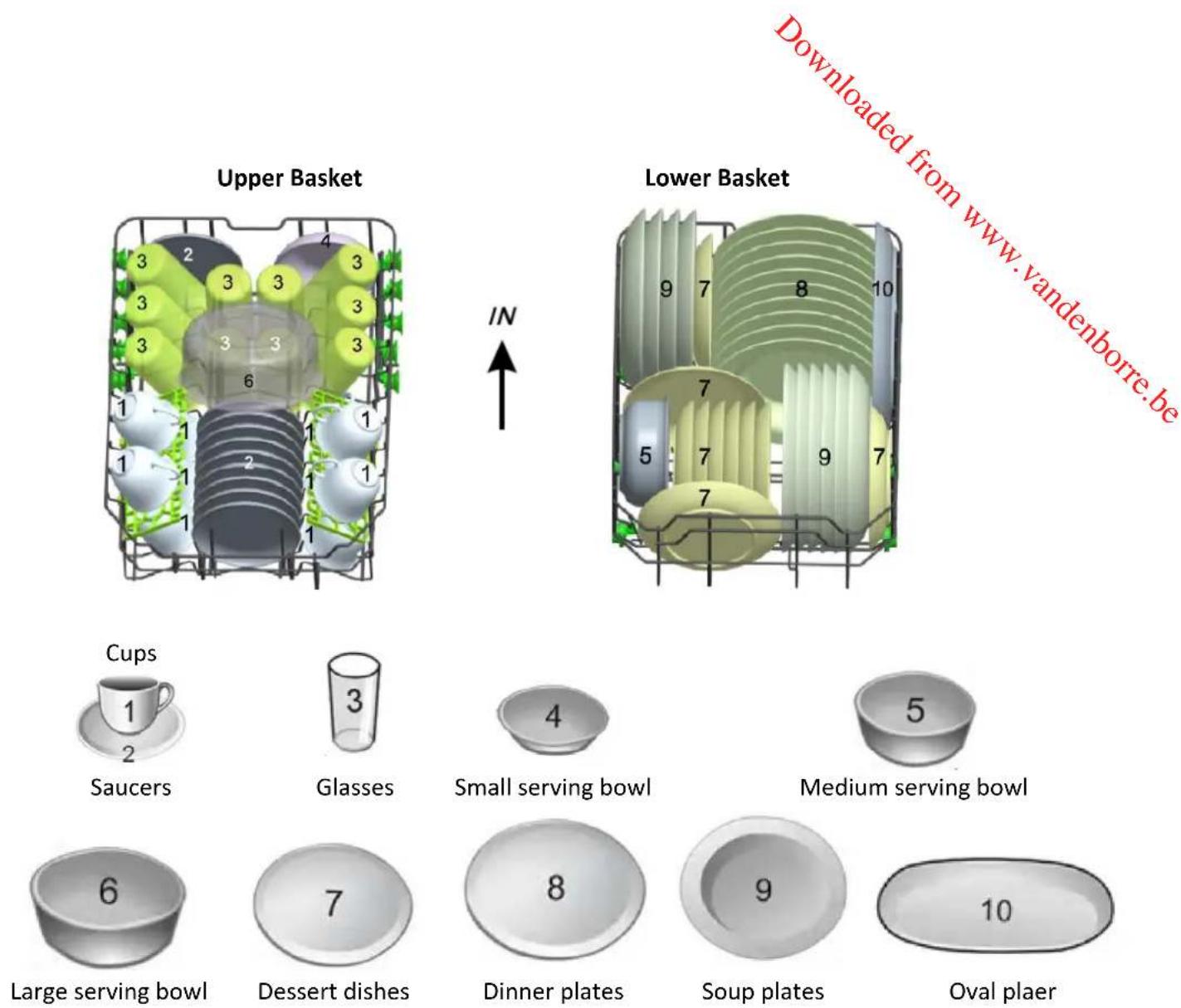

Loading the upper and lower baskets

The upper basket is designed to hold delicate and light items such as glasses, cups, saucers, serving bowls and shallow pans.

The lower basket is designed to take saucepans, lids, plates, salad bowls, cutlery etc. Serving dishes and large lids should be arranged around the edge of the basket, ensuring that the upper spray arm can turn freely.

Arrange items so that water can reach all surfaces.

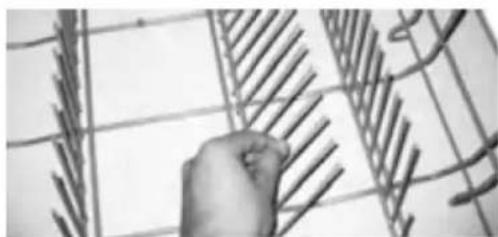

The upper basket is equipped with two cup shelves.

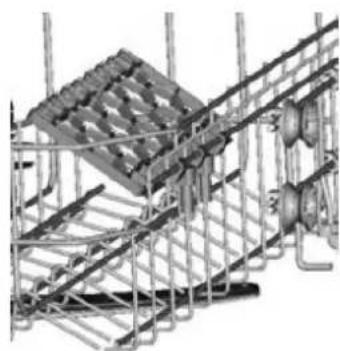

For reduced loads, the additional cup shelves can be folded down if not required as shown below.

Technical line drawing of a mechanical structure with no visible text or symbols

Mechanical assembly diagram showing interconnected pipes and components (no text or labels visible)

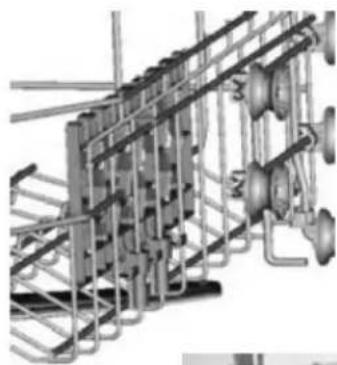

To make full use of the space in the lower basket when large dishes are loaded, the lower basket has Ing plate supports which can be stowed horizontally.

Hand holding a grid of abstract shapes, possibly tools or diagrams (no text or symbols visible)

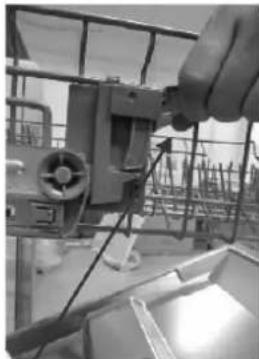

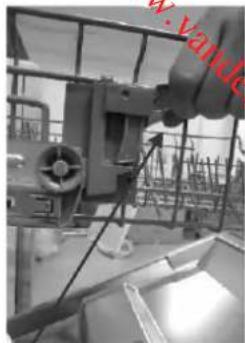

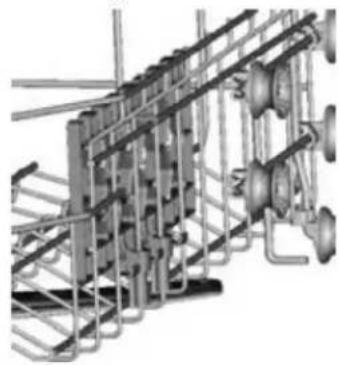

Adjusng the upper basket

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper/lower basket. The height of the upper basket can be adjusted by liing the handle on either side of the basket, see pictures below:

Loading the cutlery rack

Arrange the cutlery in the rack.

The top spray arm must not be blocked by items.

Take care during loading to avoid injury from the knife blades.

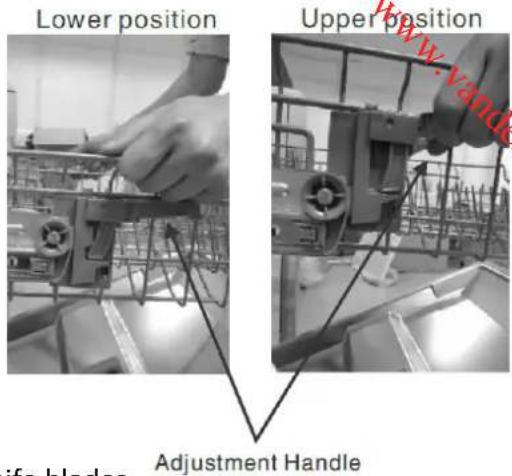

Lower position Upper position Adjustment Handle

7 4 1 5 3 8 2 3 6

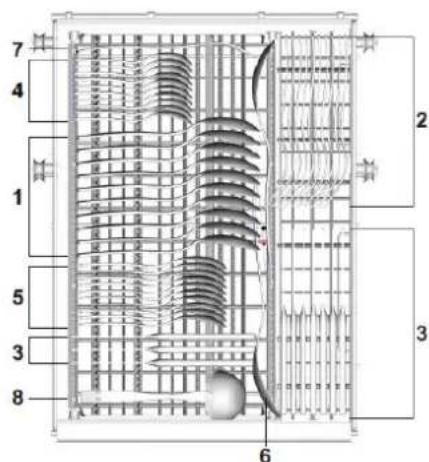

1. Soup spoons
2. Forks
3. Knives
4. Teaspoons
5. Dessert spoons
6. Serving spoons
7. Serving forks
8. Gravy ladles

Row of metallic kitchen utensils including spoon, fork, knife, spoon handle, and spoon handle (no text or symbols)

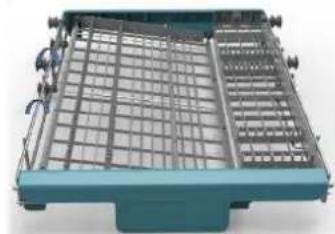

2 Positions of cutlery rack:

3D rendering of a teal-colored industrial machine or container with grid structure (no visible text or symbols)

Le part is lted while right part is at.

3D rendering of a teal industrial machine with grid and control panel (no visible text or symbols)

Le and right parts are at.

3D rendering of a blue industrial machine with grid and frame structure (no visible text or symbols)

Using the Water Soener

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will be formed on the utensils. This appliance is equipped with a water soener which uses a salt specifically designed to eliminate the minerals from the water.

CAUTION:

• Only use salt specially formulated for domesc dishwashers.
• Do not use table salt as it contains insoluble substances which may damage the water soening system.
• Fill the salt container before starng the washing programme. In this way, the excess saline soluon will be immediately removed by the water; the prolonged presence of salt water inside the tank may lead to corrosion.

- If you plan to use dishwasher tablets for your washing needs, then you do not require to use salt or rinse agent but please note that the roll salt indicator light will remain illuminated on the control panel. This is quite normal and will not act the operaon of your dishwasher.

Adjusng the salt consumpon

1. Aer the dishwasher is switched on, enter the status of adjusting the salt consumption by holding down ▷|| unl the value "H3" (factory seng) ashes on the display.
2. While the value is ashing, repeatedly press suit the water hardness. ▷II to adjust the seng from H1 to H6 to
3. Press to conrm the seng.

WATER HARDNESS				Display	Salt consumpon (gram/cycle)
°dH	°fH	°Clarke	mmol/l
0~5	0~9	0~6	0~0.94	H1	0
6~11	10~20	7~14	1.0~2.0	H2	9
12~17	21~30	15~21	2.1~3.0	H3	12
18~22	31~40	22~28	3.1~4.0	H4	20
23~34	41~60	29~42	4.1~6.0	H5	30
35~55	61~98	43~69	6.1~9.8	H6	60

NOTE:

1^ = 1.25^ = 1.78^ = 0.178mmol / l

° dH: German degree
° fH: French degree
° Clarke: Brish degree

Filling with salt

1 Unscrew the cap from the salt container by turning it anclockwise.
2 Place the supplied funnel so the end to into the opening of the salt container. Load about 1.5kg of salt into the salt container.

1

3D diagram of a mechanical component with an open section and a labeled arrow (no text or symbols present)

2

Illustration of a hand pouring granular material into a tray with a small bowl and a container (no text or symbols)

Screw the cap back clockwise.

NOTE: The salt container must only be relied when the rell salt indicator light illuminates. Depending on how fully the salt dissolves, the rell salt indicator light may sll be on even though the salt container is lled.

Using the Rinse Aid and Detergent Dispensers

The rinse aid helps the dishes dry faster and prevents the formaon of scale deposits and staining. It is automatically added to the water during the nal rinse cycle.

The detergent and rinse aid dispensers are located on the inner part of the door: the detergent dispenser is on the le, and the rinse aid dispenser is on the right.

Line drawing of a portable refrigerator with front panel, side arm, and dashboard (no text or symbols)

Adding the rinse aid

1 Rotate the dispenser cap anclockwise and remove it.
2 Add the rinse aid unl the container is full.

- The opcal level indicator on the side of the cap should be completely dark.

3 Replace the cap and turn it clockwise.

Illustration showing a hand holding a stack of documents with a scroll, marked with a rotation arrow indicating clockwise motion.

Illustration of a bottle with a glass cap and a small sphere above it, no text or symbols present.

Illustration of a hand pressing down on a device with a scroll wheel (no text or symbols)

NOTE: Rell the rinse aid when the opcal level indicator becomes clear again, or when the rinse aid indicator light illuminates.

Adjusng the rinse aid dispenser seng

The factory seng for the dishwasher is 4 and you can choose among 6 sengs.

The amount of rinse aid dispensed is proporcional to the selector posion.

1. To adjust the rinse aid seng, remove the dispenser cap.

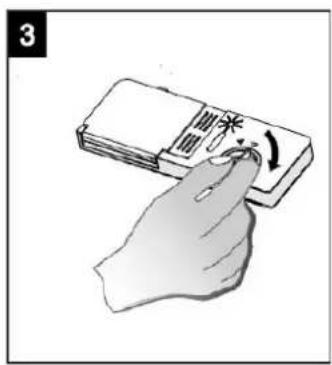

2. Use a screwdriver (not supplied) to rotate the rinse aid selector to the desired posion.

3. Replace the cap and turn it clockwise.

NOTE: The amount of rinse aid must be increased if the washed dishes appear dull or feature circular stains. If the dishes are scky or have white streaks, it is necessary to reduce the rinse aid seng.

5 4 3 2 8 MAX

Adding the detergent

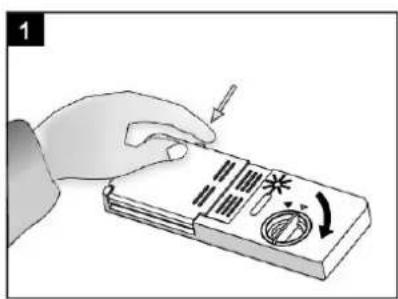

1 To open the detergent dispenser cap, gently press the release buon.

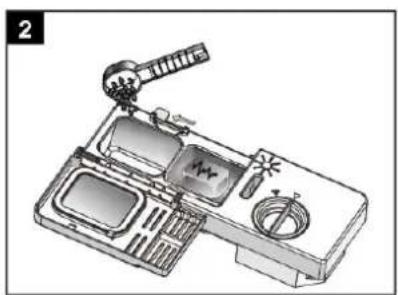

2 Add the detergent and close the cap carefully.

Illustration showing a hand holding a document with a pen, featuring a warning symbol and arrows indicating action or change.

Technical line drawing of a mechanical device with labeled components (no readable text or symbols)

A B

A detergent for main wash cycle
B detergent for pre-wash cycle

NOTE: Use only detergent specifically formulated for dishwashers. For opmal washing results it is important to use a good quality detergent.

NOTE: To achieve beer drying performance, it is recommended to use a Rinse Aid when using an 3-in-1 or all-in-one tablet.

Washing Programmes

Programme	Degree of soil	Cycle Descripon	Recommended quantity of detergent pre-wash / main wash	Washing me (min.)	Energy (Kwh)	Water (L)	Rinse Aid needed?
Auto	Auto sensing wash, for lightly, normally or heavily soiled loads	Pre-wash (45°C)Auto wash (45°C -55°C)Rinse Rinse(65°C)Drying	3/22 g (or 3 in 1)	150	0.9-1.3	9.5-13	Yes
Intensive	For extremely soiled crockery and normally soiled pots, pans, dishes, etc.	Pre-wash (50°C)Wash (60°C)Rinse Rinse Rinse(70°C)Drying	3/22 g (or 3 in 1)	170	1.4	15.5	Yes
Normal	For normal soiled loads, such as pots, glasses and lightly soiled pans	Pre-wash (45°C)Wash (55°C)Rinse Rinse (65°C)Drying	3/22 g (or 3 in 1)	180	1.1	12	Yes
*Eco	Standard daily cycle for normal soiled loads, such as pots, plates and glasses	Pre-washWash (45°C)Rinse (65°C)Drying	3/22 g (or 3 in 1)	195	0.74	8	Yes
Glass	For lightly soiled loads that need no excellent drying eciency	Pre-washWash (40°C)Rinse Rinse (60°C)Drying	3/22 g (or 3 in 1)	1 25	0.75	12	Yes
90 minutes	For lightly soiled loads that need no excellent drying eciency	Wash (65°C)Rinse Rinse (65°C)Drying	25 g	90	1.15	11.5	Yes
Rapid	A shorter wash for lightly soiled loads and quick wash	Wash (45°C)Rinse (50°C)Rinse (55°C)	20 g	30	0.70	10	No
Soak	To rinse out loosen soil parcles from the dishes	Prewash	NA	15	0.02	3.5	No

* Tesng programme for EN 50242
The informaon for comparability test in accordance with EN 50242 is as follows:

- Capacity: 10 sengs

- Posion of upper basket: Low posion

- Rinse aid seng: 6

NOTE:

1. The washing me may vary according to the incoming water temperature and the environmental temperature.
2. The power consumpon in le-on mode is 0.49W (door open), in o-mode it is 0.45W. Le-on mode duraon: Power will be cut o automacally aer 30 minutes once a cycle is nished.

Starng the Dishwasher

1. Turn the water tap on.
2. Open the dishwasher door.
3. Check the Iters.

- Ensure they are clean and properly posioned. See “Cleaning and maintenance” secon.

1. Check that there is rinse aid and salt.
2. Load the dishes.

- Ensure that the spray arms can rotate freely.

1. Add the required amount of detergent into the dispenser according to the "Washing Programmes" chart.

2. Close the dishwasher door securely.

3. Press ⏻ to switch on the dishwasher.

- The ECO programme indicator light will illuminate and the display will show the washing me.

1. Select the desired washing programme by repeatedly pressing P.

- The corresponding washing programme indicator light will illuminate.

45°C-55°C AUTO 60°C 55°C 45°C Eco

40°C 65°C 45°C-30'

- Delay mer: The delay mer allows you to delay the start of a washing programme from 1 hour to a maximum of 24 hours.

Repeatedly press url the desired start delay me is shown on the display, e.g. H:03 for a 3-hour delay.

Once the delay mer has been set, press to octave the funcon.

To cancel the delayed start, rst press then repeatedly press unl the display shows "H:00".

1. If you want to acvate extra drying funcon, press indicator light will illuminate.

and the corresponding

• This funcon can only be used with Intensive, Normal, ECO, Glass and 90 minutes programmes.

• When this funcon is acvated, the dishwasher will increase temperature at the end of a washing programme to improve drying.

• Repeatedly press 📋 to select the upper, lower or both baskets to be sprayed during a washing cycle.

- The corresponding indicator light (s) will illuminate.

1. Start the washing programme by pressing
2. The selected programme indicator light will ash.
3. At the end of the washing programme, the dishwasher will buzz and automacally stop.
4. Wait for about 15 minutes before you open the dishwasher door in order to avoid burns.
5. Unload the dishes.

The washing cycle will not start if the dishwasher door is le open or not properly closed.

Do not open the door when the dishwasher is working since hot water may be ejected, which could cause scalding.

Adding extra crockery

1. Without switching o the machine, press ▷II to pause.
2. Open the door, taking care to avoid the escaping steam.
3. Place the crockery inside the dishwasher.
4. Close the door and press ▷II. The cycle will start from the point at which it was interrupted.

Modifying a washing programme in progress

If a mistake was made during the washing programme selecon process it is possible to change the programme.

1. Press ▷ to pause.
2. Press and hold P for about 3 seconds. You will hear a beep.
3. Repeatedly press P to select a new programme.

- The new programme indicator light will illuminate.

1. Press ▷II to start the programme.

Child lock funcon

The funcon allows you to lock the buons on the control panel. Children will not be able to accidentally start the dishwasher by pressing any buon.

To acvate the funcon, press and hold

simultaneously unl the lock indicator light

lluminate.

To deacvate the funcon, press and hold the two buons

simultaneously unl the lock indicator light

out.

Cropped image showing a grid of icons including a crossed-out tree, a checkmark, and a clock symbol, with partial text visible on the left.

CLEANING AND MAINTENANCE

Always switch o and unplug the appliance before cleaning.

Do not use chemical solvents or strong detergents as these may damage the cosmec nish.

Clean the outer surfaces and the tank of the dishwasher with a damp cloth.

Cleaning the Filter Unit

The Iter unit consists of a main Iter (1), central Iter (2) and micro Iter (3).

Diagram showing three labeled arrows pointing to a mechanical component: a spring-like structure, a flat plate, and a cylindrical container.

To disassemble the Iters

Turn the Iter unit anclockwise to unlock the Iters from the appliance.

Li up the Iter unit and then separate the Iters.

Rinse them under running water using a so brush.

Clean the Iters regularly. Replace the Iter unit by turning them clockwise until they lock into posion.

CAUTION: Never operate the dishwasher without the Iters.

Open

Cleaning the Door

Use a damp cloth to clean the edge around the door.

To avoid penetraon of water into the door lock and electrical components, do not use a spray cleaner.

Downloaded from www.vandenborre.be

Cleaning the Spray Arms

The spray arms can be easily removed for periodic cleaning of the nozzles, to prevent possible clogging.

To remove the upper and lower spray arms, hold and unscrew or pull them out.

Wash the spray arms under running water and each them back in place, checking that the rotary movement is in no way impeded.

Mechanical device with a curved handle and labeled 'Open' (no other text or symbols)

Frost Precauons

Avoid placing the dishwasher in a locaon where the temperature is below 0^ C. If this is unavoidable, empty the dishwasher, close the door, disconnect the water inlet pipe and empty it.

TROUBLESHOOTING

Problem	Possible Causes	Soluons
Dishwasher will not start.	Fuse blown, or the circuit breaker tripped	Replace fuse or reset circuit breaker.Remove any other appliances sharing the same circuit with the dishwasher.
	Power supply is not turned on.	Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket.
	The door has not been properly closed.	Close the door securely.
Water not pumped from dishwasher	Kink in drain hose	Check drain hose.
	Filter clogged	Check the Iters (see “Cleaning the Filter Unit”).
	Kitchen sink clogged	Check kitchen sink to make sure it is draining well. If kitchen sink is not draining, you may ask a plumber to check it.
Suds in the tub	Improper detergent	Use only the detergent special for dishwasher to avoid suds. If this occurs, open the door and let the suds evaporate. Close the door securely then start the soak wash cycle to drain the water out. Repeat if necessary.
	Spilled rinse aid	Always wipe up rinse aid spills immediately.
Stained tub interior	Detergent with colourant is used.	Make sure the detergent does not contain any colourant.
White lm over the inside surface	Hard water minerals	To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves.Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.
There are rust stains on the cutlery.	The cutlery is not corrosion resistant.
	No programme has run aer dishwasher salt was added.Traces of salt have got into the wash cycle.	Always run the rapid washing programme.Add dishwasher salt with no crockery in the dishwasher.
The dishwasher is noisy.	Dishes are raling against each other. The spray arms are knocking against the dishes.	Refer to “Loading the Baskets” to rearrange the dishes.
The dishes are not clean.	The dishes have not been arranged properly.	Refer to “Loading the Basket”.
	The washing programme selected is too gentle.	Select the Intensive programme. Refer to “Washing Programmes”.
	Not enough detergent has been used or it is unsuitable.	Use more detergent or change the detergent.
	The spray arms are clogged.	Rearrange the items so that the spray arms can rotate freely.
	The Iters are not clean or not in the correct posion.	Clean and/or posion the Iters correctly.
Streaking and staining on the dishes	The rinse aid dispenser seng is not high enough.	Adjust the rinse aid dispenser seng.
The dishes are not quite dry.	Improper loading	Refer to “Loading the Baskets”.
	The rinse aid has run out or too lile is being used.	Increase or rell the amount of rinse aid.
	Wrong programme selecon	Choose a programme with long washing me.

Error codes

When some malfuncons occur, the display will show the following error codes to warn you:

Error code	Meaning	Possible cause
E1	Longer inlet me.	Tap is not opened, or water inlet is restricted, or water pressure is too low.
E4	Overow	Some dishwasher parts are leaking.

WARNING!

If overow occurs, turn o the main water supply before calling service.

TECHNICAL DATA SHEET

Sheet of household dishwasher according to EU Directive 1059/2010:

Brand	Thomson
Type / Descripon	TDW 45 WH, TDW 45 SILVER
Standard place sengs	10
Energy eciency class 1	A++
Annual energy consumpon 2	211kWh/annum
Energy consumpon of the standard cleaning cycle	0.7 kWh/cycle 4
Power consumpon of o-mode	0.45W
Power consumpon of le-on mode (door open)	0.49W
Annual water consumpon 3	2240 litres
Drying eiciency class 4	A
Standard cleaning cycle 5	Eco 45°C
Programme duraon of the standard cleaning cycle	195 minutes
Noise level	46 dB(A) re 1 pW
Mounng	Freestanding
Height	845mm
Width	448mm
Depth (with connectors)	610mm
Power consumpon	1760-2100W
Rated voltage / frequency	220-240V~ 50Hz
Water pressure (ow pressure)	0.4-10 bar = 0.04-1 Mpa

NOTE:

① A+++ (highest eciency) to D (lowest eciency)
② Energy consumpon “211” kWh per year, based on 280 standard cleaning cycles using cold water II and the consumpon of the low power modes. Actual energy consumpon will depend on how the appliance is used.
③ Water consumpon “2240” litres per year, based on 280 standard cleaning cycles. Actual water consumpon will depend on how the appliance is used.
4 A (highest eciency) to G (lowest eciency)
⑤ This programme is suitable for cleaning normally soiled tableware and it is the most efficient programme in terms of combined energy and water consumption for that type of tableware.

The device meets the European standards and the directives in the current version at delivery:

• LVD 2006/95/EC
• EMC 2004/108/EC
• ErP 2009/125/EC

The above values have been measured in accordance with standards under specified operang conditions, amount of detergents, etc.

The manual is based on the European Union's standards and rules.

610(with the door closed) 448 845 1175

Thomson is a trademark of Technicolor.

We apologise for any inconvenience caused by minor inconsistencies in these instrucons, which may occur as a result of product improvement and development.

Downloaded from www.vandenborre.be NL 2 5 6 8 8

INHOUDSOPGAVE

WAARSCHUWINGEN 2

BELANGRIJKE VEILIGHEIDSINSTRUCTIES 5

BESCHRIJVING....6

VOORDAT U UW VAATWASSER INSTALLEERT 8

INSTALLATIE-INSTRUCTIES 8

PROBLEEMOPLOSSING....20

Foutcodes.... 21

PRODUCTFICHE....22

WAARSCHUWINGEN

Interior view of a device with curved white cables and a grid-patterned base, labeled 11 and 12 (no text or symbols on the diagram itself)

Cropped image showing two computer keyboard keys with icons: one with a power button and another with symbols like 'P', '×', and directional arrows.

Aan/uit

Dubbel sproeier

Coiled white cable with a small metallic connector at the end (no text or symbols visible)

Line drawing of a hand holding a tool with a handle (no text or symbols)

Technical illustration of a mechanical assembly with steel framework and gears (no text or symbols)

Mechanical assembly diagram showing interconnected pipes and valves (no text or labels)

Hand holding a white object over a grid of white geometric shapes (no text or symbols visible)

Close-up of a hand operating a mechanical device with wires and components (no visible text or symbols)

Hogere stand

Industrial machinery setup with a worker operating machinery (no visible text or symbols)

Hendel

Row of eight different kitchen utensils in a row, including spoons, fork, spoon, and spoon (no text or symbols)

Three views of a blue industrial machine frame with grid and metal components (no text or symbols visible)

3D mechanical component with a labeled 'Open' arrow indicating a specific part (no other text or symbols)

2

Illustration of a hand pouring granular material into a container with a small bowl and a coin on the side (no text or symbols)

Technical line drawing of a portable refrigerator with front panel, side panel, and scale (no text or symbols)

Illustration of a bottle with a cleaning tool and a small inset showing a magnified view (no text or symbols)

Illustration of a hand pressing down on a device with a scroll wheel (no text or symbols)

Illustration showing a hand holding a document with a pen, featuring icons and text elements including a star and arrow.

Technical illustration of a mechanical device with labeled components (no text or symbols present)

A B 4

Cropped image showing a toolbar with icons for rotation, refresh, and timer, alongside a partial view of a left-side symbol.

REINIGING EN ONDERHOUD

Interior view of a rectangular electronic device with internal components and a black arrow pointing to a section (no visible text or symbols)

Mechanical device with a vertical support and horizontal arms, labeled 'Open' with an arrow indicating rotation (no text or symbols beyond the label)

Close-up of a flexible cable or wire with a curved filament inside a transparent frame, labeled 11 and 12 at the bottom (no text or symbols on the cable itself)

detergente

Cropped image showing two computer keyboard keys with icons: one with power button, the other with P, a crossed-out smiley symbol, and another with triangle and double equality symbols.

Alimentación

Doble aspersión

Coiled white cable with a small connector at the tip (no text or symbols visible)

Line drawing of a hand holding a faucet handle (no text or symbols)

Technical line drawing of a structural framework with beams and supports (no text or symbols)

Mechanical assembly diagram showing interconnected pipes and gears (no text or labels)

Hand holding a hand against a grid background with diagonal lines (no text or symbols visible)

Ajuste del cesto superior

Close-up of a hand operating a wireframe game board with a small object on top (no visible text or symbols)

Posición alta

Industrial machinery setup with fan and conveyor system (no visible text or symbols)

Asa de ajuste

Technical diagram of a mechanical or electrical component with numbered parts and internal structure annotations

Row of eight different types of kitchen utensils including spoons, platters, and spoons (no text or symbols)

3D rendering of a metal grid-based platform with control knobs and a blue base (no text or symbols visible)

3D rendering of a teal-colored industrial machine or grid structure with blue cables (no text or symbols visible)

3D rendering of a mechanical cage or rack unit with grid pattern and mounting brackets (no visible text or symbols)

Illustration of a hand pouring granular material into a tray with a small container (no text or symbols)

Technical line drawing of a portable refrigerator with front panel, side arm, and dashboard (no text or symbols)

Illustration of a cleaning tool with a bottle and a magnifying glass (no text or symbols)

Hand pressing a button on a device with a scroll, no text or symbols visible

Illustration showing a hand using a smartphone to press a document with a screwdriver, indicating a change or modification.

Illustration of a vintage scientific instrument with labeled components (no text or symbols present)

A B

Cropped image showing a diagram with symbols and arrows, possibly indicating process or status indicators.

LIMPIEZA Y MANTENIMIENTO

Diagram showing three labeled arrows pointing to a mechanical component: a cylindrical part, a spring-like structure, and a cylindrical container.

Two 3D-rendered mechanical components with no visible text or symbols, showing internal parts and a directional arrow (no readable text or symbols)

Interior view of a stainless steel tray with a black arrow pointing to a small component (no text or symbols visible)

Mechanical device with open lid and rotation arrow (no text or symbols)

Darty Holdings SNC © Bondy 93140 France 16/03/2015
