USER MANUAL F1055 BLACK & DECKER

Register your product online at www.prodprotect.com/applica, for a chance to WIN $100,000! For US residents only

When using your iron, basic safety precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING.
Use iron only for its intended use.
To protect against a risk of electric shock, do not immerse the iron in water or other liquids.
The iron should always be turned to "0" before plugging or unplugging from outlet. Never yank cord to disconnect from outlet; instead grasp plug and pull to disconnect.
Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around the iron when storing.
Always disconnect iron from electrical outlet when filling with water or emptying and when not in use.
- Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron, take it to a qualified serviceman for examination and repair. Incorrect reassembly can cause a risk of electric shock when the iron is used.
- Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while connected or on an ironing board.
Burns can occur from touching hot metal parts, hot water or steam. Use caution when you turn a steam iron upside down- there may be hot water in the reservoir.

SPECIAL INSTRUCTIONS

To avoid a circuit overload, do not operate another high-wattage appliance on the same circuit.
If an extension cord is absolutely necessary, a 15-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

POLARIZED PLUG

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel. In Latin America, by an authorized service center.

Product may vary slightly from what is illustrated.

Symbols

Dry

Steam/Blast of Steam

Spray

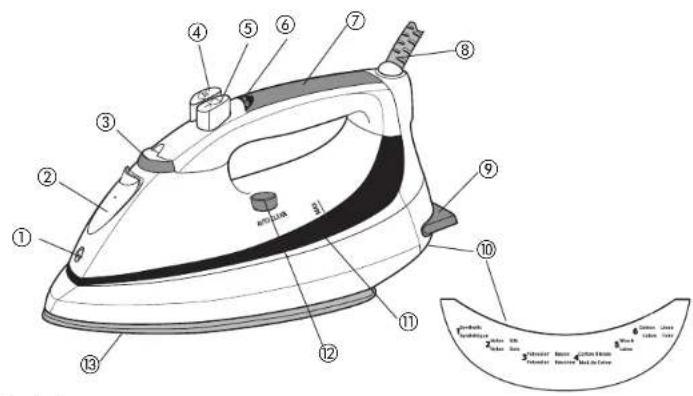

1. Spray nozzle
2. Water-fill cover
3. Fabric-select dial
4. Steam button
5. Spray button
6. On/auto off indicator light
7. Comfort GripTM handle
8. 360^ pivoting cord
9. Anti-slip, rubberized heel
10. Fabric guide
11. Water tank
    12.AUTO CLEAN button
12. Soleplate

How to Use

This appliance is intended for household use only.

GETTING STARTED

Remove any labels, stickers or tags attached to the body or soleplate of the iron.

Note: Use ordinary tap water for ironing. Do not use water processed through a home softening system

Important: For optimum performance, let the iron stand for 90 seconds before beginning to iron.

FILLING WATER TANK

1. With iron on flat surface with soleplate down, open water-fill cover (A).
2. Tilt the iron and using a clean measuring cup, pour water into opened chamber until water reaches the MAX level mark on the side of the water tank. Do not overfill.
3. Close the water-fill cover.

1. Plug in the iron. The on indicator light illuminates (B). Once the iron reaches the selected temperature, the light goes off. The light will then cycle on an off during ironing.

Note: If you need to add water while ironing, unplug the iron and follow above steps.

Tip: If unsure of a garment's fiber, test a small area (on an inside seam or hem) before ironing.

3-WAY AUTOMATIC SHUTOFF

The automatic shutoff feature in your iron works as follows:

• Once the iron reaches appropriate temperature, it will turn off after 30 seconds of inactivity if left on its soleplate or tipped over on its side. If left vertically on its heel rest, it will shut off after 8 minutes (C).

The AUTO OFF light starts blinking red to let you know that the iron has stopped heating (D).
- As soon as you pick up the iron, it will start heating again. Wait for iron to reheat completely before resuming operation.

SMART STEAM® TECHNOLOGY

The Smart Steam® system automatically produces steam when you turn the fabric-select dial between settings 4 and 6. The higher the setting, the more powerful the steam.

SURGE OF STEAM

Horizontal

Use to remove stubborn creases.

1. With the water tank filled to the MAX mark, set fabric-select dial to appropriate setting (between 4 and 6) for your fabric. See fabric guide under the heel rest and read garment's label to help you determine fabric type (E).
2. Be sure there is water in the reservoir. Steam is automatically turned off between settings 0 and 3.
3. For best performance, use surge of steam at 5-second intervals (F).
4. When finished ironing, turn the fabric-select dial to 0 and unplug the iron.

Important: Always stand the iron on its heel rest when powered on but not in use.

Vertical

Use for removing wrinkles from hanging clothes and drapes.
1. Be sure the water tank is filled to the MAX mark.
2. Hang the garment to be steamed on a clothes hanger. (Curtains or drapes can be steamed once they are hung.)
3. Set the fabric-select dial to appropriate setting (between 4 and 6) for your fabric.
4. Hold the iron close to, but not touching, the fabric.

1. Pull the fabric tight in your free hand and pump the button as you move the iron over the fabric (G).

USING SPRAY

Use to dampen tough wrinkles at any setting (H).

1. Be sure the iron is filled with water.
2. On first use, pump the button several times.

ANTI-DRIP SYSTEM

The anti-drip system prevents water spotting at low temperatures.

DRY IRONING

1. Turn the fabric selection dial to setting 1, 2, or 3 iron without steam (J). The Smart SteamTM system will automatically turn off.
2. To dry iron at higher settings, empty the water from the reservoir to prevent steaming.

EMPTYING WATER TANK (OPTIONAL)

Note: It is not necessary to empty the water after each use.

1. Unplug the iron and let it cool.
2. To release the water, hold the iron over a sink with the tip pointing down and to one side. Water will empty out of the water-fill opening (K).

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service personnel.

CLEANING OUTSIDE SURFACES

1. Make sure iron is unplugged and has cooled completely. Wipe the soleplate and outer surfaces with a soft cloth dampened with water. Add mild household detergent. Never use abrasives, heavy-duty cleansers, vinegar or scouring pads that may scratch or discolor the iron.
2. After cleaning, steam iron over an old cloth to remove any residue from the steam vents.

AUTO CLEANING

To keep the steam vents free of any buildup, about once a month follow these instructions:

1. Fill the water tank well below the MAX line. Plug in the iron.
2. Turn the fabric-select dial to 6 and stand the iron on its heel rest. Allow it to heat until the on indicator light goes out and comes on again.
3. Turn fabric selection dial to 0, unplug the iron and hold over a sink with the soleplate facing down.

1. Press and hold the AUTO CLEAN button. Be careful, as hot water and steam will come out of the steam vents (L). Continue to hold the AUTO CLEAN button until all the water has emptied. If necessary, rock iron side-to-side and front-to-back.
2. When finished, release the button, stand the iron on its heel rest and plug it in. Heat for about 2 minutes to dry out any remaining water.

STORING YOUR IRON

1. Unplug the iron and allow it to cool.
2. Check that the selector is set to 0.
3. Store vertically on its heel to prevent water leaking from the soleplate.

IMPORTANT MISES EN GARDE

For service, repair or any questions regarding your appliance, call the appropriate 800 number on cover of this book. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

One-Year Limited Warranty

(Appplies only in the United States and Canada)

What does it cover?

• Any defect in material or workmanship provided; however, Applica's liability will not exceed the purchase price of product.

For how long?

One year after date of purchase.

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of date of sale.
• Visit the online service website at www.prodprotect.com/applica, or call toll-free 1-800-231-9786, for general warranty service.
  If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
  Glass parts and other accessory items that are packed with the unit
  Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

• This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.

JNECESITA AYUDA?

Black & Decker is a trademark of The Black & Decker Corporation, Towson, Maryland, USA

Marca registrada de The Black & Decker Corporation, Towson, Maryland, E.U.
