USER MANUAL AC901 INVENTUM

4. Operation of the air conditioner page 30

5. Cleaning and maintenance page 31

6. Problems and remedies page 32

7. Technical specifications page 32

General terms and conditions of service and warranty page 65 Deutsch Français

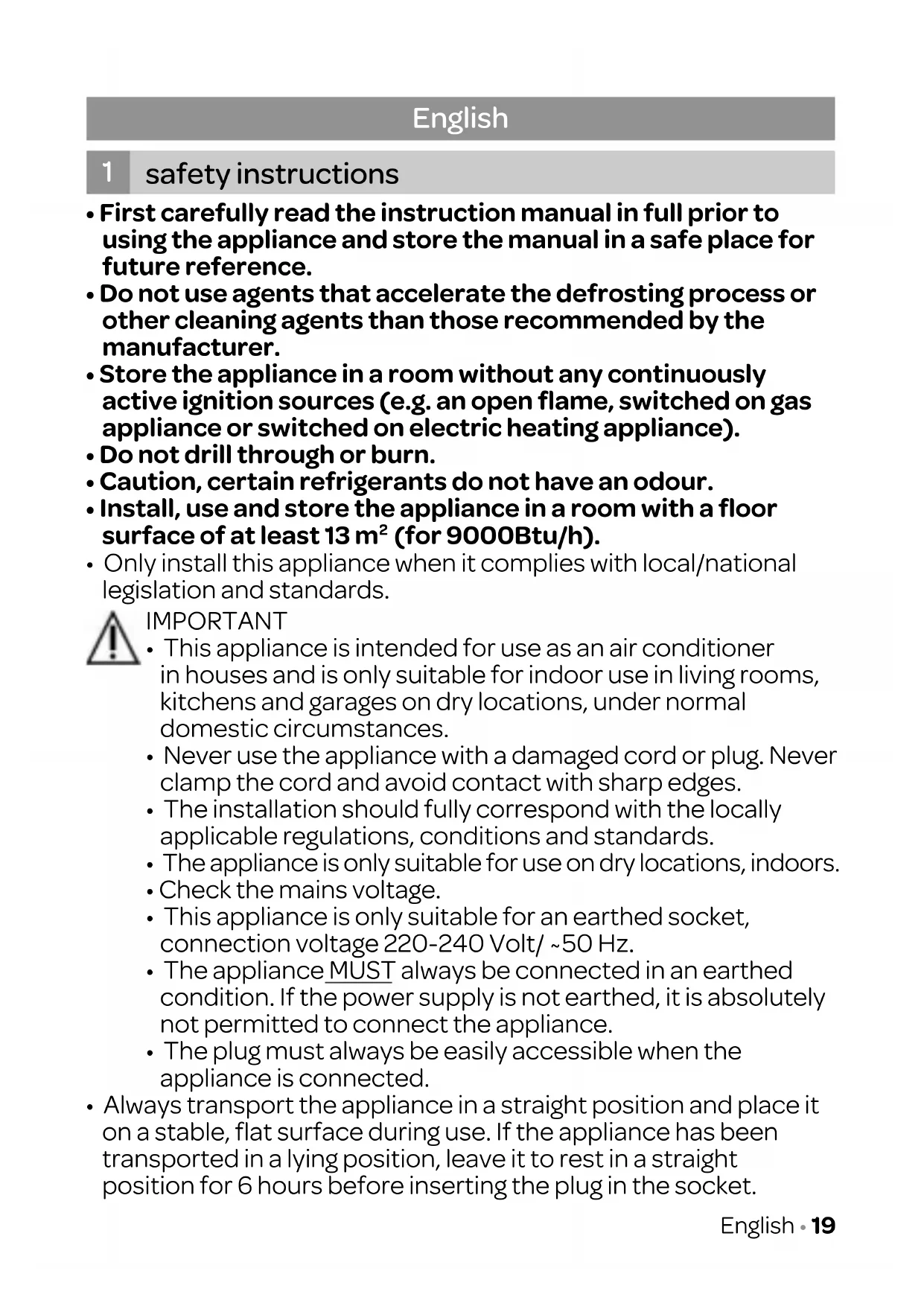

• First carefully read the instruction manual in full prior to using the appliance and store the manual in a safe place for future reference.

• Do not use agents that accelerate the defrosting process or other cleaning agents than those recommended by the manufacturer.

• Store the appliance in a room without any continuously active ignition sources (e.g. an open flame, switched on gas appliance or switched on electric heating appliance).

• Do not drill through or burn.

• Caution, certain refrigerants do not have an odour.

• Install, use and store the appliance in a room with a floor surface of at least 13 m

• Only install this appliance when it complies with local/national legislation and standards. IMPORTANT

• This appliance is intended for use as an air conditioner inhouses and is only suitable for indoor use in living rooms, kitchens and garages on dry locations, under normal domestic circumstances.

• Never use the appliance with a damaged cord or plug. Never clamp the cord and avoid contact with sharp edges.

• The installation should fully correspond with the locally applicable regulations, conditions and standards.

• The appliance is only suitable for use on dry locations, indoors.

• Check the mains voltage.

• This appliance is only suitable for an earthed socket, connection voltage 220-240 Volt/ ~50 Hz.

• The appliance MUST always be connected in an earthed condition. If the power supply is not earthed, it is absolutely not permitted to connect the appliance.

• The plug must always be easily accessible when the appliance is connected.

• Always transport the appliance in a straight position and place it on a stable, flat surface during use. If the appliance has been transported in a lying position, leave it to rest in a straight position for 6 hours before inserting the plug in the socket.20 • English

• Have the electrical system checked by a recognised expert if you are not certain that everything is in order.

• Install the appliance on a sturdy, flat floor that is strong enough to carry a weight of up to 50 kg. Installation on a weak or uneven floor could result in damage to your properties or personal injury.

• Never cover the air inlets and outlets.

• Empty the water reservoir via the water drain point, before moving the appliance.

• Never allow the appliance to come into contact with chemicals.

• Do not insert fingers or objects in the openings of the appliance.

• Never allow the appliance to come into contact with water. Donot spray the appliance with water or submerge it in water to prevent short-circuiting.

• Always first remove the plug from the socket before the appliance or a part thereof must be cleaned or replaced.

• NEVER connect the appliance using an extension cord. If there isno earthed socket available, have one installed by a recognised electrician.

• For reasons of safety, always be careful when there are children near this appliance, same as with any other electrical appliance.

• Do not use the appliance if the plug, cord or appliance are damaged, or if the appliance no longer functions properly or if it is damaged in any other way. If this is the case, consult the retailer or our maintenance service. Never replace the plug or cord yourself.

• Always remove the plug from the socket when the appliance isnot being used.

• Only have a damaged electricity cord replaced by the supplier oran authorised person/service point.

• Keep the appliance out of reach of children. Children do not see the dangers associated with handling electrical appliances. Therefore, never allow children to operate electrical appliances without supervision. Keep the appliance and cord out of reach ofchildren younger than 8 years of age.

• The appliance can be used by children of 8 years and older and bypersons with limited physical, sensory or mental capacities orlack of experience or knowledge, provided they use the appliance under supervision or have been instructed about its safe use and understand the hazards it may involve.

• Children must not play with the appliance.

• The appliance must not be cleaned or maintained by children, unless this is done under supervision.English • 21 CAUTION!

• Never close the room where this appliance is used in such a way that it is fully airtight. This prevents vacuum from being created in this room. Negative pressure (=vacuum) could disrupt the safe operation of geysers, extractor hoods, ovens, etc.

• Non-observance of the instructions could invalidate the warranty on the appliance.

• Always lift the appliance with two persons.

• Always make sure the appliance is placed on an sturdy, flat surface.

• Do not leave the appliance unsupervised when it is working.

• If you want to move the appliance, make sure the appliance isswitched off. Use both hands when moving the appliance.

• Never use the appliance with components that are not recommended or supplied by the manufacturer.

• Do not pull the cord and/or appliance to remove the plug from thewall socket. Never touch the appliance with wet or damp hands.

• If the appliance does not function after it has been switched on, it is possible that the fuse or earth leakage circuit breaker has been activated in the electrical distribution box. The group may be overloaded or an earth leakage current may have occurred.

• In case of a breakdown, never make repairs yourself; a tripped safety device in the appliance could indicate a defect that cannot be remedied by removing or replacing this safety device. Only original parts should be used.

• Never submerge the appliance, cord or plug in water.

• This appliance is only suitable for household use. If the appliance is not used as intended, no compensation can be claimed in case of defects or accidents and the warranty will be invalidated.

• If you decide not to use the appliance any more due to a defect, we recommend cutting off the cord after removing the plug from the socket. WARNING Specific information for appliances with R290 refrigerant gas.

• Thoroughly read all warnings.

• When defrosting and cleaning the appliance, only use tools recommended by the manufacturer.

• Place the appliance in a room without any continuously active ignition sources (e.g. an open flame, switched on electric or gas appliance).

• Do not drill through or burn.22 • English

• Install, use and store the appliance in a room with a floor surface of at least 13 m

• This appliance contains 160 grams of R290 refrigerant gas (seethe information plate at the rear of the appliance).

• R290 is a refrigerant gas that is in accordance with the European environmental directives. Never drill through any part of the cooling circuit.

• If the appliance is installed, operated or stored in a room without ventilation, the room should be made in such a way that accumulation of refrigerant as a result of a leak is prevented. This could lead to a fire or explosion hazard due to the ignition of the refrigerant by an electric heating appliance, stove or other ignition source.

• Store the appliance in such a way that mechanical failures are prevented.

• Persons operating or working at the cooling circuit, must be in the possession of a suitable certificate from an authorised organisation, so that these persons are authorised to handle refrigerants in a safe way in accordance with the specifications that apply within the industry.

• Repairs may only be performed as recommended by the manufacturer of the appliance. Maintenance and repairs that require assistance from other trained personnel, must be performed under the supervision of a person who knows how to use combustible refrigerants. REFRIGERANT (CE) N 842/2006: This air conditioner contains the refrigerant R290. The quantity of refrigerant is less than 1 kg and is contained in a closed cooling circuit. The refrigerant does not have an ozone depletion potential. It is, however, a greenhouse gas according to the Kyoto protocol and could therefore contribute to global warming when released into the atmosphere. Only trained technicians with a suitable refrigerant certificate are permitted to fill or empty the appliance. If used correctly and when the refrigerant circuit is undamaged, your air conditioner does not have to be refilled with refrigerant. GWP: R290: 3.English • 23 Specific information for appliances with R290/R32 refrigerant gas

• Carefully read all warnings.

• When defrosting and cleaning the appliance, do not use other tools than those recommended by the manufacturer.

• Place the appliance in a room with no ignition sources (you could think of: open fire, gas appliances or electric appliances that could cause sparks).

• Do not drill through and do not burn.

• Refrigerant gases can be odourless.

• R290/R32 is a refrigerant gas that complies with the European environmental directives. Never drill through any part ofthe cooling circuit.

• When installing, using or storing the appliance in an non-ventilated room, the room must be designed in such a way that leaking refrigerant gas cannot accumulate. This can prevent the occurrence of fire or explosions due to the ignition of the refrigerant gas by electric stoves, burners or other ignition sources.

• Store the appliance in such a way that no mechanical defects can occur.

• Persons working at or with the refrigerant circuit should have the correct certification issued by a recognised organisation that guarantees expertise in the handling of refrigerants in accordance with specific certification agreements in the industry.

• In the event of repairs, always observe the recommendations from the manufacturer.

• Maintenance and repair activities that require assistance from other qualified personnel, must be performed under the supervision of a person who is certified in the handling of combustible refrigerants.

• Do not use agents to accelerate the defrosting process or clean than those recommended by the manufacturer.

• The appliance should be stored in a room with no continuously active ignition sources (such as: open fire, an operating gas appliance or an operating electric heater).

• Do not drill through or burn.

• Take into account that refrigerants can be odourless.

• Always observe national laws and legislation.

• Do not block the ventilation holes.

• Store the appliance in such a way that no mechanical damages can be caused.

• Apply a warning that the appliance should be stored in a properly ventilated room, the dimensions of which correspond with the space specified for use.

• All persons involved with working at or dismantling a refrigerant circuit, must be in possession of a valid certificate by an evaluating body recognised by the industry, showing their competence in safely handling refrigerants in accordance with recognised certification agreements in the industry.

• Maintenance may only be performed in accordance with the recommendations from the manufacturer of the equipment.

• Maintenance and repair activities that require assistance from other qualified personnel, must be performed under the supervision of a competent person who is certified in the handling of combustible refrigerants.

• The appliance must be installed, used and stored in a room with a floor area of more than 13 m

WARNING: This system contains refrigerant under very high pressure.

The system may only be maintained by qualified personnel.

1. Transport of equipment containing combustible refrigerants (Appendix CC.1)

Observe the transport instructions.

2. Marking equipment with signs (Appendix CC.2)

Observe local regulations.

3. Disposal of equipment containing combustible refrigerants (Appendix CC.3)

Observe national regulations.

4. Storage of equipment/appliances (Appendix CC.4)

Store equipment in accordance with instructions from the manufacturer.

5. Storage of packaged (unsold) equipment (Appendix CC.5)

The storage packaging must have such a sturdy design that no refrigerant can start to leak when the equipment is mechanically damaged in the packaging. Local regulations determine the maximum number of appliances that can be stored in one room.

6. Information about maintenance (Appendix DD.3)

1) Check the surrounding area

Prior to working at systems containing combustible refrigerants, safety checks are required to make sure that the risk of ignition islimited to a minimum. When repairing cooling systems, take the following precautions before performing work at the system.24 • English

2) Working procedure

Perform work in accordance with a regulated procedure to minimize the risk of released combustible gases or vapours during the work.

3) General work area

Inform all maintenance personnel and others working in the vicinity of the nature of the work to be performed. Avoid working in enclosed spaces. Demarcate the area around the workplace. Make sure the work area is safe by checking for the presence of combustible material and ignition sources.

4) Check for the presence of refrigerant

Check the area prior and during the work with a suitable refrigerant detector, which will warn the technician for the presence of possibly combustible ambient air. Only use leak detection equipment that is suitable for use with combustible refrigerants, i.e. free from sparks, adequately guarded or intrinsically safe.

5) Keep a fire extinguisher within reach

If hot work must be performed at cooling equipment or related parts, suitable extinguishing agents should be present within reach. Immediately next tot he filling area, mount a powder extinguisher or CO2 extinguisher.

6) Keep ignition sources at a distance

Anyone performing work at a cooling system whereby pipes (once) containing combustible refrigerant are laid bare, may notuse ignition sources that could cause a fire or an explosion. Keep all possible ignition sources, including lighted cigarettes, sufficiently far removed from the place of installation, repair or disposal, where combustible refrigerant could be released inthe environment. Check prior to performance of the work that there are no combustible materials or ignition sources inthe area around the equipment. Hang warning signs with the text “Smoking prohibited”.

7) Provide ventilation

Work in the open air or ensure that the work area is sufficiently ventilated before you open the system or perform hot work. Continuously ensure sufficient ventilation during the performance of the work. The ventilation should blow away any released refrigerant to a safe place and preferable discharge it to the outdoor air.

8) Check the cooling equipment

Replace electric components only by equivalent parts that meet the correct specifications. Always observe the manufacturer’s guidelines for maintenance and repair. In case of doubt, contact the technical support service of the manufacturer for support. Check installations using combustible refrigerants regarding the following: - The filling volume should correspond with the dimensions of the room in which the refrigerant containing components are installed; - The ventilation equipment and exhausts should work properly and may not be blocked. - If an indirect cooling circuit is being used, the secondary circuit must be checked for the presence of refrigerant; - All markings on the equipment must be visible and legible. Repair in advance all markings and signs that have become illegible; - Cooling pipes and components containing refrigerant must be installed in such a way that they are unlikely exposed to substances that may affect them, provided the components are not made of materials that are inherently resistant to corrosion or are adequately protected against corrosion.

9) Check electrical appliances

In the event of repair and maintenance of electrical components, always first check them for safety and observe the inspection procedures for the components. If there is a failure that could jeopardise safety, no electrical power supply may be connected tothe circuit before this failure has been resolved. If the failure cannot immediately be resolved, but the appliance must remain operational, a suitable temporary solution must be achieved. Always report this to the owner of the equipment, sothatall involved parties are informed. Safety checks in advance include:

• Discharging condensers: this should be done in a safe way to prevent the creation of sparks;

• Check that there are no live electrical components and wires lying bare when filling, draining or flushing the system;

• Check that the continuity of the earthed connections is guaranteed.

7. Repairs to guarded components (Appendix DD.4)

1) When performing repairs to guarded components, disconnect all electrical power supplies from the equipment being

work on, before removing the cover plates, etc.. If it is absolutely necessary to keep the power supply switched on during maintenance to the equipment, a permanently active leak detector should be installed at the most critical point to warn for the occurrence of possibly hazardous situations. 2) Pay extra attention to the following, to make sure that the housing is not changed in such a way during work at electrical components that the protection level is affected. You could think of damaged cables, making too many attachments per connection, clamps that do not meet the original specifications, damaged seals, incorrect assembly of gaskets, etc. Make sure the equipment is firmly attached. Check that seals and sealing materials are still sufficiently able to prevent penetration of combustible ambient air. Onlyuse replacement parts that meet the manufacturer’s specifications. CAUTION: The use of silicone containing sealing agents could disrupt the operation of some types of leak detection equipment. Intrinsically safe components do not have to be disconnected before working at them.English • 25

8. Repairs to intrinsically safe components (Appendix DD.5)

Do not connect permanently inductive or capacitive loads to the circuit without checking if the allowed voltages and currents for the equipment used are exceeded as a result. Intrinsically safe components are the only types of component at which you are allowed to work while they are live in the presence of flammable ambient air. Only use test equipment with the correct certifications. Only replace components by parts that correspond with the manufacturer’s specifications. The use of deviating parts could cause fire when refrigerant escapes to the ambient air as a result of a leak.

9. Cables (Appendix DD.6)

Check that the cables are not exposed to wear, corrosion, excessive pressure, vibrations, sharp edges or other negative ambient influences. When checking, also consider the consequences of ageing and constant vibration of compressors or fans.

10. Detection of combustible refrigerants (Appendix DD.7)

Never use potential ignition sources when looking for or tracing refrigerant leaks. Do not use a halogen lam (or any other detector with an open flame).

11. Leak detection methods (Appendix DD.8)

The following leak detection methods may be used for systems containing combustible refrigerants. Preferably use electronic leak detectors to detect combustible refrigerants. Sometimes the sensitivity of such equipment isnot sufficient, or they must be recalibrated. (Always calibrate detection equipment in a room that is free from refrigerant.) Check that the detector is not a potential ignition source and that it is suitable for the refrigerant used. Adjust the leak detection equipment at a percentage of the refrigerant’s LFL (lower flammable limit) and calibrate the equipment to the refrigerant used and the correct gas percentage (maximum 25%). Leak detection liquids are also suitable for use with most refrigerants, but avoid the use of chlorinated substances, as the chlorine could also react with the refrigerant and affect the copper piping. If a leak is suspected, all open flames must be extinguished or removed. If a refrigerant leak is found that requires soldering, all refrigerant should first be drained from the system, or the refrigerant should be isolated (by means of valves) in a section of the system away from the leak. Then flush the system with oxygen free nitrogen (OFN), both prior to and during the soldering process.

12. Draining and emptying (Appendix DD.9)

When opening a cooling circuit in order to perform repairs - as well as for all other purposes - the correct regulations and procedures should be observed at all times. In addition, always try to work as safely as possible, due to the flammability ofthe refrigerants. For that reason, always use the following procedure:

• Remove the refrigerant;

• Flush the circuit with inert gas;

• Flush once more with inert gas;

• Open the circuit by sawing or soldering. Collect the refrigerant in a suitable storage container. Flush the system with OFN (oxygen free nitrogen) to make the system safe. It is possible that you must repeat this process a few times. Never use compressed air or oxygen to flush a system. Flush the vacuum system by allowing OFN to flow into it and then fill the system with OFN until the operating pressure is achieved. Then allow this to escape to the atmosphere and make the system vacuum again. Repeat this process until there is no more refrigerant in the system. After the last OFN flush, the system must be de-aerated to atmospheric pressure to make the work possible. This is an absolute condition when soldering work has to take place at the piping. Ensure that the exhaust of the vacuum pump is not in the vicinity of ignition sources and that the surrounding area is sufficiently ventilated.

13. Filling procedures (Appendix DD.10)

In addition to the standard procedures when filling, also observe the following requirements. - When using the filling equipment, prevent different refrigerants from getting mixed. Hoses and pipes must be as short aspossible to minimise the amount of refrigerant that they contain. - Always place cylinders upright. - Earth the cooling system before filling the system with refrigerant. - Mark the system when it is filled (if this has not yet been done). - Ensure the cooling system is not excessively filled. Perform a pressure test with OFN (oxygen free nitrogen) before filling the system. Check the system for leaks after filling, butbefore commissioning. Always perform a final leak test before leaving the location.

14. Decommissioning (Appendix DD.11)

In order to perform this procedure, it is essential that the technician has fully familiarised himself with the equipment and allits parts. It is always recommended to drain and dispose the refrigerants used safely. Prior to the work, always take an oil and refrigerant sample when reuse of the drained refrigerant requires prior analysis. It is essential to check whether there isa power supply present, before starting the work. a) Familiarize yourself with the equipment and its operation. b) Disconnect the electrical connection between the system nd the power supply. c) Prior to starting the work, check that the following items have been met:

• All required mechanical provisions are present, e.g. to handle the refrigerant cylinders;

• All personal protective equipment is present and is used correctly;

• There is always a competent person present who supervises the draining process;26 • English

• All draining equipment and storage cylinders comply with the applicable standards. d) Preferably pump empty the cooling system, if this is possible. e) If pumping empty is not possible, use a suitable distributor to remove as much refrigerant as possible from the different sections of the system. f) Place the cylinder on the weighing scale before draining starts. g) Start the draining system and work in accordance with the manufacturer’s instructions. h) Never fill cylinders by more than is permitted. (Maximum 80% liquid volume).

i) Never exceed the maximum operating pressure of the cylinder, not even briefly.

j) When the cylinders are filled correctly and the process has been completed, immediately remove all cylinders and equipment from the location and close all valves of the equipment. k) Never fill drained refrigerant in another cooling system, before cleaning and checking it.

15. Marks (Appendix DD.12)

Apply markings on the equipment stating that it has been decommissioned and that the refrigerant has been removed. Write the date on the marking, as well as your name. Apply markings on the equipment indicating that the equipment contains combustible refrigerant.

16. Draining (Appendix DD.13)

When removing refrigerant from a system, for maintenance or decommissioning, it is recommended to remove all refrigerants to a safe location. When draining refrigerant, only use cylinders that are suitable for storing refrigerant. Ensure there are sufficient cylinders available to store the entire volume of the cooling system. Only use cylinders that are suitable for storing the refrigerant to be drained and apply markings indicating which refrigerant they contain (i.e. use special storage cylinders). The cylinders must be complete, including properly functioning overpressure valves and valves. Pump empty storage cylinders empty and cool them, if possible, before gas is stored in them. The draining system must be in a good condition and have a manual describing the equipment used, and must be suitable forcollecting combustible refrigerants. In addition, a calibrated weighing scale should be available that is working correctly. All hoses should be provided with coupling that work correctly and are free from leaks. Prior to using the draining system, check that it is in a good conditions, well maintained and that all accompanying electrical components are sufficiently guarded to prevent ignition in the event of a refrigerant leak. In case of doubt, consult the manufacturer. Hand in the collected refrigerant in the correct storage cylinder at the refrigerant supplier and ask for a receipt for the submitted waste materials. Do not mix refrigerants in the draining system and certainly not in the cylinders. If compressors or compressor oils must be removed, first empty the appliance to a level at which no combustible refrigerant remains in the lubricant. Emptying should take place before the compressor is sent back to the supplier. The compressor body may only be heated electrically in order to accelerate the process (not with an open flame). When oil must be removed from a system, do this in a safe way. This product is labelled with this crossed out wheel bin symbol in accordance with European Directive 2012/19/EC to indicate that it must not be disposed of with your other household waste. Due to the presence of hazardous substances, mixtures or components, electrical and electronic devices that are not subject to selective sorting are potentially dangerous to the environment and human health. Please check your local city office or waste disposal service for the return and recycling of this product.English • 27 appliance description

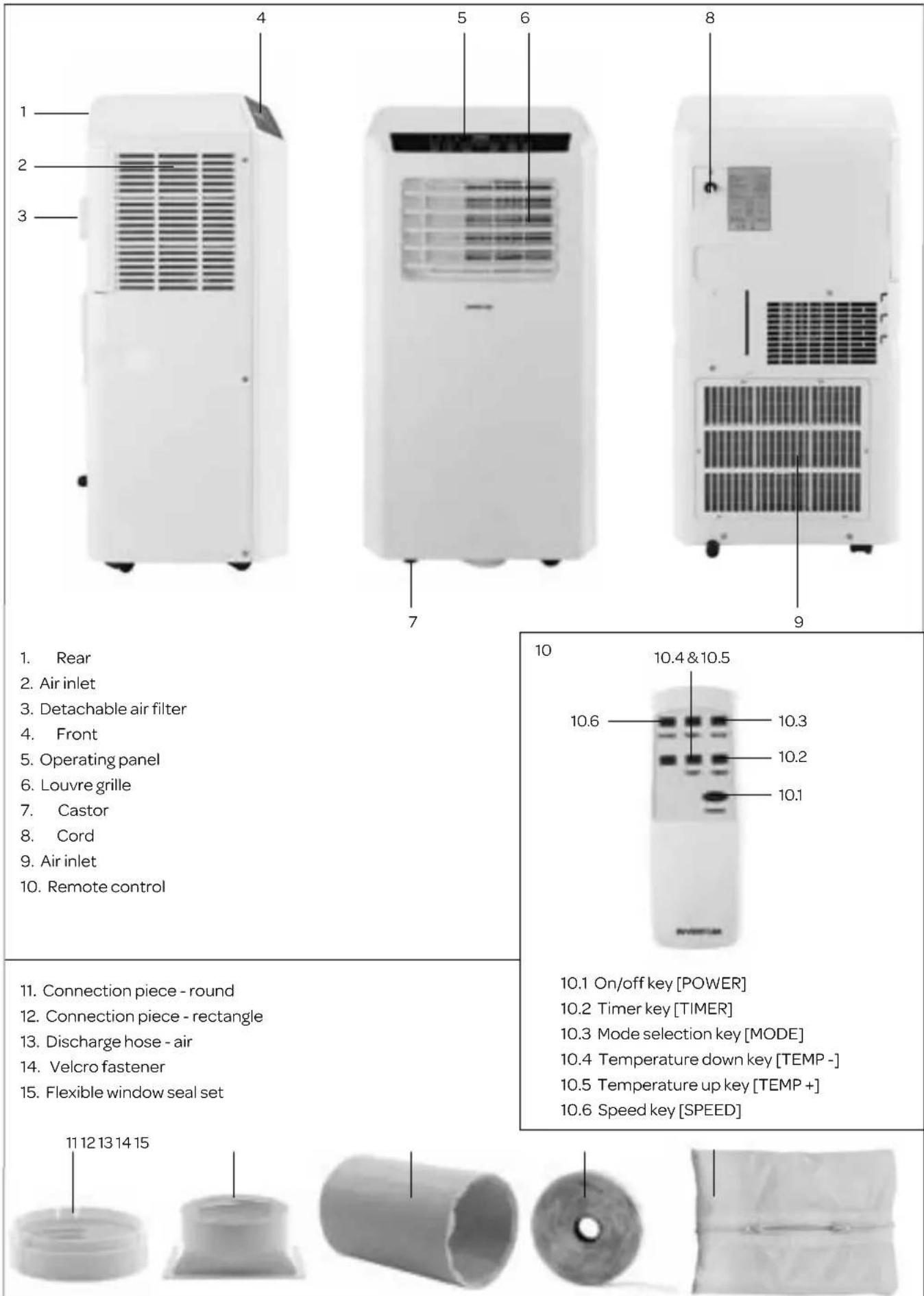

10.1 On/off key [POWER]

10.2 Timer key [TIMER]

10.3 Mode selection key [MODE]

15. Flexible window seal set

Follow these instructions when using the appliance for the first time: Carefully unpack the air conditioner and all accessories and remove all packaging material and any promotional stickers. Keep the packaging (plastic bags and cardboard) out of the reach of children. After unpacking the appliance, check it for external damage that may have occurred during transport. Place the appliance on a sturdy, flat surface and make sure there is enough space all around for sufficient ventilation. Check that all mentioned accessories have been supplied. Clean the air conditioner with a slightly damp cloth. 30 cm 30 cm Prior to connecting the appliance, check that:

• the connection voltage corresponds with what is stated on the information plate;

• the socket and cord are suitable for the appliance;

• the plug of the cord fits in the socket;

• the appliance is placed on a stable and flat surface. INSTALLATION A mobile air conditioner must be placed on a flat surface with sufficient room all around. Do not block the air outlet and ensure a free space of minimum 30 cm around the air conditioner. After placing the appliance in a straight position, allow it to stand for at least 2 hours before inserting the plug in the socket. drain opening b ac

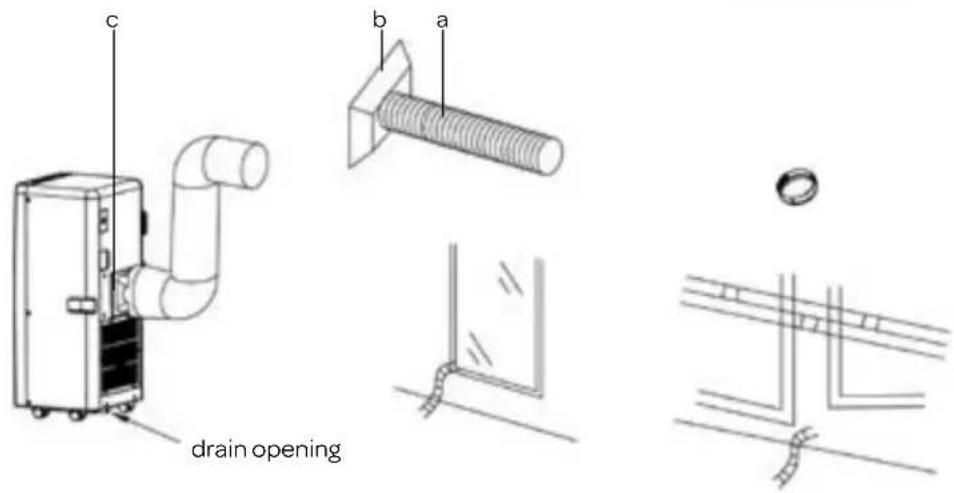

• Screw an end of the discharge hose [ a ] in the square connector [ b ].

• Place the square connector [ b ] in the fixing clamp [ c ] on the rear of the air conditioner.

• Ensure a good air circulation and keep at least 30 cm around the air conditioner free.

• Hang the other end of the discharge hose to the outside. Ensure a free passage of the hose. Close the window or door to the extent possible. REMARK: Optimum operation of the air conditioner depends on the length of the discharge hose and the number of bends. Try to limit both. The supplied flexible discharge hose has a maximum length of approx. 150 cm and corresponds with the capacity of the air conditioner. The use of any other hoses or extensions could cause failures in the appliance. The air should be able to flow without any hindrance, or else this could cause overheating of the appliance or condensa- tion of water in the air discharge hose. Therefore make sure there are no kinks or sharp bends in the discharge hose. In order to reach an optimum result, the discharge hose should be kept shorter than 1 metre during use of the air conditioner.English • 29

INSTALLATION OF THE WINDOW SEAL SET

The flexible window seal set is suitable for many windows. Such as: tilt and turn windows, windows turning to the outside and inside. It ensures that you are able to hang the discharge hose to the outside, without hot air flowing indoors again or having problems with insects. For windows turning to the outside, we recommend taping all four sides (a+b+c+d) around the window and for windows turning to the inside only three sides (a+b+c).

• Attach the supplied double-sided tape on the window frame and the window in accordance with one of the drawings below that is similar to your situation.

• Then attach the cloth to the tape that you attached in the openings. Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8

1. Attach the supplied double-sided tape on the window frame.

2. Then attach double-sided tape on the window.

3. Cut away excess tape.

4. Make sure the tapes on the corners properly overlap to achieve proper sealing.

5. Attach the cloth to the tape attached to the window frame and window.

6. Make sure the cloth is neatly attached to the tape on both sides.

7. Zip open the cloth.

8. Insert the discharge hose through the opening and zip the cloth closed to achieve proper sealing.30 • English

operation of the air conditioner

In addition to cooling, the air conditioner has two other functions, i.e. air circulation and dehumidification. The air conditioner can be operated via the control panel on the appliance and with the provided remote control.

• Choose a location near a socket.

• Install the discharge hose in accordance with the figures and make sure the window is closed as much as possible.

• Insert the plug in an earthed socket.

• Press the on/off key to switch on the air conditioner.

• The temperature range of the air conditioner is: 18 to 35°C.

• Check that the discharge hose is mounted correctly.

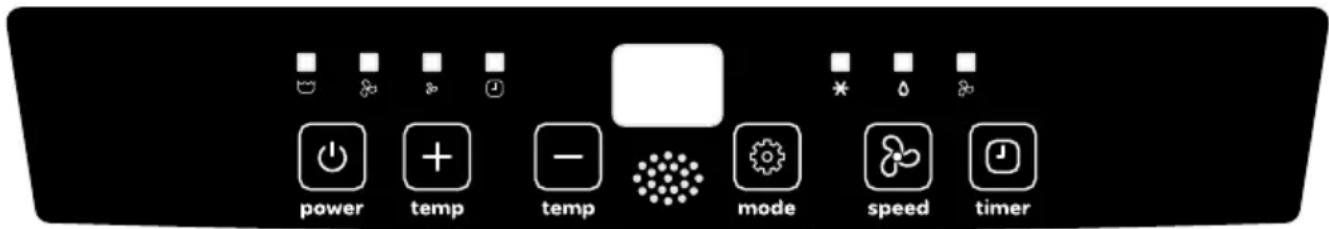

• Do not share the socket with any other appliances. CONTROL PANEL

• The control panel always shows the ambient temperature.

• After pressing the [TEMP and TEMP ] buttons the display flashes and the set temperature is displayed.

• After 3 seconds the display shows the ambient temperature again. COOLING

• Press the [ MODE / ] key until the symbol appears in the display.

• Press the [ TEMP and TEMP ] keys to set the required room temperature (between 16°C and 31°C).

• Press the [ SPEED / ] key to adjust the wind speed. DEHUMIDIFICATION

• Press the [ MODE / ] key until the symbol appears in the display.

• The air conditioner automatically adjusts the temperature to the current room temperature minus 2°C.

• The wind speed is at low speed automatically. This cannot be changed. AIR CIRCULATION

• Press the [ MODE / ] key until the symbol appears in the display.

• Press the [ SPEED / ] key to set the wind speed - high or low .

The timer function can be used to allow the air conditioner to switch on automatically (delayed start) or switch off automatically at a set time (automatic deactivation). Delayed start

• Press the timer key when the air conditioner is off and select the required time at which you want the air conditioner to switch on by means of the [ TEMP and TEMP ] keys. The delayed start can be set between 0 and 24 hours.

• Confirm the number of hours by pressing the timer key once more.

• The set number of hours is shown in the display.

• When the set number of hours have passed, the air conditioner switches on automatically. Automatic deactivation

• Press the timer key when the air conditioner is on and select the required time at which you want the air conditioner to switch off by means of the temperature and time keys [ TEMP and TEMP ]. Automatic deactivation can be set between 0 and 24 hours.

• Confirm the number of hours by pressing the timer key once more.

• The set number of hours is shown in the display.

• When the set number of hours have passed, the air conditioner switches off automatically.English • 31 WATER DRAINAGE When the air conditioner is not used for a longer period of time, remove the rubber cap from the drain opening at the bottom of the appliance and place an empty cup under the outlet. All the water will flow out of the tank. The water tank is equipped with an alarm sensor. When the water reaches a certain level in the water tank, the indicator light lights up. Should the water pump be defective, this could be an option for draining the water, as the water pump is not used in this way. The air conditioner will still be able to function properly. When the water pump is defective, intermediate drainage can also be used. Keep an eye on the indicator light for full water tank , to see whether it lights. Once the indicator led lights, connect a discharge hose in the same way and all the water will flow out of the tank. In this way the air conditioner is also able to function properly. drain opening cleaning and maintenance

Just before cleaning your air conditioner, switch off the appliance, remove the plug from the socket and allow the appliance to cool down fully. Cleaning the exterior Clean the exterior of the appliance with a damp cloth or sponge. If necessary, you can clean the exterior of the appliance by means of a mild detergent.

• Do not use aggressive or abrasive cleaning agents for cleaning the appliance.

• Dry the exterior of the appliance.

• Never submerge the appliance, cord or plug in water or any other liquid. Cleaning the air filter In order to allow the air conditioner to function as well as possible, we recommend cleaning the air filter every two weeks. The air filter could get clogged with dust and dirt.

• Pull the air filter out of the air inlet on the side of the appliance.

• Clean the air filter with a mild detergent in lukewarm water (approx. 40°C) and allow it to dry in the air. Do not place the air filter in the sun or on the heating radiator to dry it.

• Slide back the air filter. Check that it is fully dry, before using the air conditioner again. Cleaning the ventilation grilles In order to allow the air conditioner to function as well as possible, you can clean the ventilation grilles by means of a vacuum cleaner with a soft brush nozzle.32 • English problems and remedies

First check the following before submitting the air conditioner for repair. Problem Possible cause Solution The appliance does not switch on when pressing the on/off key. The indicator light on the water tank flashes and the water tank is full. Empty the water tank. The room temperature is lower than the set temperature. Set the temperature once more. The appliance does not cool sufficiently. Not all doors and windows are closed. Make sure that all doors and windows are closed. There are heat sources that are active in the room. Remove the heat sources or switch them off if possible. The temperature is set too high. Set the temperature once more. The air inlet is blocked. Clean the air inlet grille. The appliance makes a lot of noise. The surface on which the appliance is placed is not level of flat enough. Place the appliance on a flat surface, level if possible. The noise is caused by the flowing refrigerant liquid within the air conditioner. This is normal. Error code E0 The sensor of the room temperature is defective. Have the sensor replaced (the appliance is also able to function without replacing the sensor). Error code E2 The water tank is full. Empty the water tank. technical specifications

1. Customers enjoy a 5-year full manufacturer’s warranty on all Inventum products.

2. Within this period, a defective product or part, which makes normal functioning of the product or part impossible, will always be repaired free of charge or, if repair is not possible and/or does not provide a solution, replaced (by the same or equivalent product). The assessment of this lies with Inventum. 3. In order to make a claim under the 5-year Inventum warranty you must, within two months after discovering the fault or defect, either return the product to the shop where you bought it, or contact the Inventum customer service department by using the form at www.inventum.eu/service.

4. The warranty period starts from the date stated on the product's original sales receipt.

5. To invoke the warranty, you must always send a copy of the original proof of purchase with the service request and

present the original proof of purchase to the service technician.

6. The 5-year warranty applies only to normal domestic use of Inventum products within the Netherlands.

Warranty exclusions 1. The 5-year Inventum guarantee does not apply in case of: normal wear and tear, consumables, improper use, insufficient or incorrect maintenance, incorrect and/or inexpert assembly and installation of the appliance, repairs by unauthorised third parties, business or commercial use, missing serial number, damage caused by an external cause. This enumeration is not exhaustive.

2. B-choice products and products that have been built-in in a showroom are not covered by the 5-year Inventum warranty.

All optical damage such as dents, scratches and slight traces of use are excluded from any warranty. Reporting malfunctions on Inventum products

1. Faults or defects on Inventum products can be reported by using the service request form on the website

www.inventum.eu/service or through the seller of the product.

2. A copy of the original proof of purchase must be included with the request.

3. Inventum's service department determines whether the product will be repaired or replaced, based on the request and

the sales receipt. Important to know

• Products sent without prior notification will not be accepted. Further to the notification you will be informed by Inventum whether a warranty applies and whether you must return the product.

• The replacement or repair of a defective product, or a part thereof, does not lead to an extension of the original warranty period.

• Products eligible for replacement or repair must be emptied and clean. For a detailed explanation of the warranty conditions and items excluded from them, please visit Inventum's website www.inventum.eu/algemene-voorwaarden These general warranty and service conditions apply to Inventum brand products purchased after 27 April 2022 and intended for use within the Netherlands. For Inventum products used outside the Netherlands, but within a EU Member State, the warranty rules of that country apply. Inventum provides warranty and service by a white goods technician only in the Netherlands. As a consumer, you are entitled by law to a properly working product. Does the product break down sooner than you might expect? This means that the product is not in conformity. In that case, the law offers you, the buyer, with a number of legal remedies for your protection. This legal protection is not affected by the above commercial warranty given by Inventum on Inventum products used within the Netherlands. Inventum Huishoudelijke Apparaten B.V., Meander 261, 6825 MC Arnhem, the Netherlands66 • Deutsch Allgemeine Service- und Garantiebedingungen Fünf Jahre Inventum-Garantie
