VV 2200 - Hair dryer ECG - Free user manual and instructions

Brand	ECG
Model	VV 2200
Product type	Hair dryer
Rated voltage	220–240 V~
Frequency	50–60 Hz
Rated power	1800–2200 W
Sound level	≤ 85 dB
Temperature settings	3 levels: low, medium, high
Airflow settings	3 positions: Off (0), low (*), high
Cold air function	Cold air burst (button ④) to set the hairstyle
Included accessories	Nozzle, diffuser
Air inlet grille	Removable for cleaning
Suspension eyelet	Yes, for hanging
Safety	Overheat protection: automatic shutdown if air inlet is blocked
Maintenance and cleaning	Unplug and allow to cool; clean the inlet grille with a small brush; wipe the appliance with a damp cloth; do not immerse in water
Repairability	No user-serviceable parts; have any repairs carried out by a specialized service
Compliance	European directives (electromagnetic compatibility and electrical safety)
Intended use	Domestic, for drying human hair (not on wigs or animals)
Recycling	Do not dispose with household waste; take to a collection point for electrical and electronic equipment

Frequently Asked Questions - VV 2200 ECG

How to use the cold air function?

Press and hold button ④ (Cold air setting) to quickly cool the hair and set the hairstyle. This function is active when medium or high temperature is set.

What accessories are included with the ECG VV 2200 hair dryer?

The hair dryer comes with a nozzle and a diffuser (not shown in the diagram but mentioned in the manual).

How to clean the hair dryer?

Unplug it and let it cool. Use a small brush to remove dust and hair from the removable air inlet grille. Wipe the appliance with a damp (not wet) cloth and then with a dry cloth. Never immerse it in water.

What to do if the hair dryer stops automatically?

This is normal: the overheat safety system activates if the air inlet is blocked. The appliance will restart after a brief cool-down. Check that the inlet and outlet grilles are not blocked.

Can I use the hair dryer in the bathroom?

Yes, but with caution. Never use it near a bathtub, shower, or basin full of water. Always unplug the adapter after use, as proximity to water poses a risk even when off.

How to achieve maximum volume with this hair dryer?

Set to medium or high temperature and high speed. Separate hair into sections and dry against the direction of growth starting from the roots. Use the diffuser for gentle drying and more volume.

Can the hair dryer be used by children?

Yes, from 8 years of age under supervision. Children under 8 must be kept away. Cleaning and maintenance must not be carried out by children without supervision.

What is the power of the VV 2200 model?

The rated power is between 1800 and 2200 W, depending on the voltage (220–240 V~).

How to use the nozzle for smoothing hair?

After pre-drying at medium/high temperature and high speed, attach the nozzle. Reduce temperature and speed. Separate hair into sections and glide the nozzle along each section from roots to ends, following the comb.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by a professional. Do not remove protective covers, risk of electric shock.

USER MANUAL VV 2200 ECG

White ECG 2200 W high power hair dryer with handle and spout (no text or symbols on device body)

VV 2200

CZ

VYSOUŠEČ VLASŮ

NÁVOD K OBSLUZE

SK

SUŠIČ VLASOV

NÁVOD NA OBSLUHU

PL

SUSZARKA DO WŁOSÓW

INSTRUKCJA OBSŁUGI

HU

HAJSZÁRÍTÓ

HASZNÁLATI ÚTMUTATÓ

DE

HAARTROCKNER

BEDIENUNGSANLEITUNG

GB

HAIR DRYER

INSTRUCTION MANUAL

HR/BIH

SUŠILO ZA KOSU

UPUTE ZA UPORABU

SI

SUŠILEC ZA LASE

NAVODILA

SR/MNE

FEN ZA KOSU

UPUTSTVO ZA UPOTREBU

FR

SECHE-CHEVEUX

MODE D'EMPLOI

IT

ASCIUGACAPELLI

Low temperature Medium temperature High temperature

1. Air flow settings:

0 Off * Low * High

CZ

Items not pictured: diffuser

HR/BIH

1. Mlaznica zraka (koncentrator)
2. Rešetka usisa zraka
3. Rešetka ispusta zraka
4. Stiliziranje s hladnim zrakom

5. Postavke temperature:
   Niska temperatura
   Srednja temperatura
   Visoka temperatura

6. Postavke protoka zraka: 0 Isključeno

* Niska brzina

* Visoka brzina

1. Kuka za vješanje

Predmeti bez slike: difuzor

SI

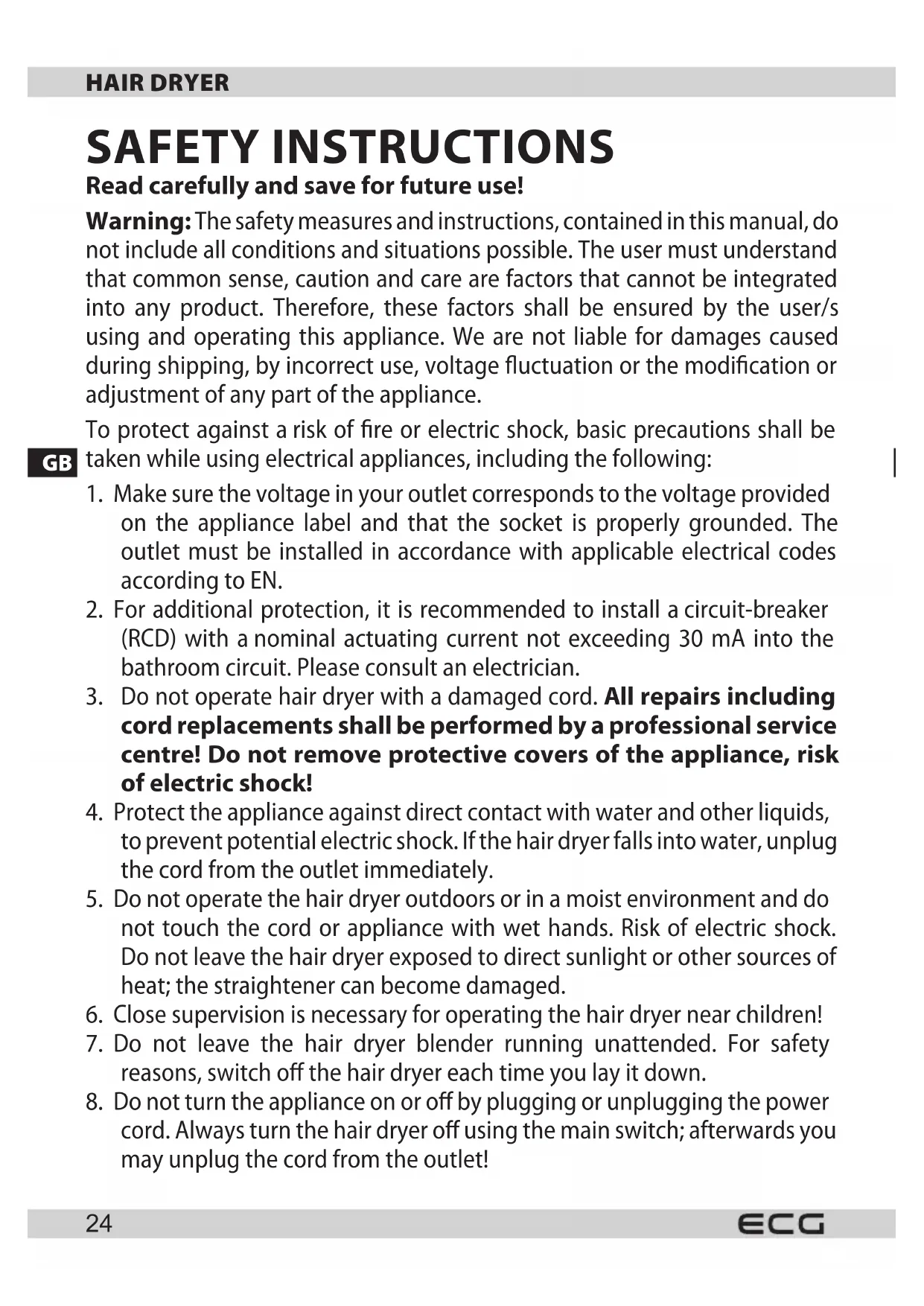

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.
2. For additional protection, it is recommended to install a circuit-breaker (RCD) with a nominal actuating current not exceeding 30 mA into the bathroom circuit. Please consult an electrician.
3. Do not operate hair dryer with a damaged cord. All repairs including cord replacements shall be performed by a professional service centre! Do not remove protective covers of the appliance, risk of electric shock!
4. Protect the appliance against direct contact with water and other liquids, to prevent potential electric shock. If the hair dryer falls into water, unplug the cord from the outlet immediately.
5. Do not operate the hair dryer outdoors or in a moist environment and do not touch the cord or appliance with wet hands. Risk of electric shock. Do not leave the hair dryer exposed to direct sunlight or other sources of heat; the straightener can become damaged.
6. Close supervision is necessary for operating the hair dryer near children!
7. Do not leave the hair dryer blender running unattended. For safety reasons, switch off the hair dryer each time you lay it down.

8. Do not turn the appliance on or off by plugging or unplugging the power cord. Always turn the hair dryer off using the main switch; afterwards you may unplug the cord from the outlet!

9. Leaving the hair dryer cord connected to outlet unattended is not recommended. Disconnect the cord from the electrical outlet prior to performing maintenance. Do not pull the cord from the outlet by yanking the cord. Unplug the cord from the outlet by grasping the plug.

10. When using the appliance in the bathroom disconnect it after use by pulling the plug from the power supply, because the proximity of water presents danger even when the appliance is switched off.
11. This hair dryer is equipped with overheating protection. If the air inlet is covered, the appliance with automatically switch off. It will restart after a short period necessary for the appliance to cool down. When using the appliance, make sure the air inlet and outlet vents are clear.
12. Do not allow the cord to touch hot surfaces or lead the cord over sharp edges. Do not turn the power cable around the hair dryer.
13. Unplug the appliance immediately after you are done using it and let the hair dryer cool completely before putting away.
14. Do not use accessories that the manufacturer does not recommend.
15. Use the hair dryer only in accordance with the instructions given in this manual. The manufacturer is not liable for damages caused by the improper use of this appliance.
16. Do not use the appliance together with hairspray or other aerosol product.
17. This appliance is intended for household use and similar areas, including:
18. appliances used by guests in hotels, motels and other residential areas
19. appliances used in bed and breakfast businesses
20. This appliance can be used by children ages 8 and older and by the physically and mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand potential dangers. Children shall not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children, if they are not older than 8 years and under supervision. Children under the age of 8 shall keep away from the appliance and its power supply.

WARNING

Do not use this appliance near bathtubs, showers, sinks or other containers holding water.

USING THE APPLIANCE

The appliance shall only be used for drying human hair. Do not use it on wigs and animals.

1. After washing, dry your hair with a towel before using the hair dryer.
2. Plug the hair dryer into an outlet.
3. Set the desired temperature and air flow speed via switches ⑤ and ⑥.
4. Style your hair with a comb while drying. Keep a safe distance to prevent burning your hair and skin or sucking your hair into the inlet grille.
5. An air jet allows directing a narrow flow of air onto the comb or brush used to style your hair.
6. Switch the hair dryer off and disconnect from the outlet after use.
7. The hanging loop ⑦ is used to hang the appliance for storage.

Cool air impulse

The cool air impulse is used to make your hairdo hold. Press and hold ④ to quickly cool your hair and make your hairdo hold.

Note: Pulse of cold air is effective when temperature setting is medium and high.

Quick drying

Select the medium or high temperature and high fan speed to dry your hair quickly. Use a brush or your hand to remove moisture from you hair and dry while continuously moving the dryer.

Hair straightening

Select the medium or high temperature and high fan speed to dry your hair quickly. When your hair is almost dry, attach the air jet (minimizes hair graining) and lower the temperature and speed. Divide your hair into locks and begin straightening from the bottom layers. Follow the brush movement with the air jet and slowly slide along each lock from root to end. After the bottom layers have been straightened, continue with the middle layers and finish the with top layers.

Natural curly hair

Set the dryer to a lower temperature and lower fan speed. Divide several locks of hair between your fingers and direct the flow of air between your fingers. As soon as you achieve the desired effect, use the cold air impulse each time to achieve a solid hold. For larger volume, tilt forward and dry your hair from the bottom up.

Maximum volume

Set the temperature to medium or high and the fan speed to high. Proceed from the roots and begin from the crown of the head. Divide your hair into locks and dry in the opposite direction of their natural growing direction with the help of a brush or your hand. This way you can raise your hair from the roots and create a hairstyle with rich volume.

Note: You can use the diffuser to achieve maximum hair volume. The dispersal of air stream contributes to fine drying and gives the hair shine and volume.

Hairstyling

Attach the air jet to the dryer for precise drying. Set the temperature to low or medium and the fan speed to low. Use a comb to style each lock. Direct the flow of air directly on the brushed lock of hair. For a better hold, keep the air flowing over each lock 2 to 5 seconds and curl your hair up or down.

Note: Using lower power is recommended for people with coloured, brittle, damaged and fine hair. To save time and effort, using the maximum amount of heat, established on the highest setting, is recommended for people with healthy rough, strong, exotic and resistant hair.

CLEANING AND MAINTENANCE

• There are no components for the user to adjust inside the device, all repairs shall be carried out by a qualified repair centre!
• Disconnect the appliance from the electrical output prior to performing any maintenance.
• Cleaning shall always be performed on a cooled appliance!
• Use a small brush to occasionally remove hair from the air inlet grille.
• Wipe the appliance with a damp (not wet) cloth and dry with a soft dry cloth.
• Never clean the hair dryer under running water, do not rinse or immerse the iron into water!
  • Always make sure the hair dryer is completely cooled, clean and dry before putting it away.

TECHNICAL DATA

Nominal voltage: 220–240 V\~ 50–60 Hz

Nominal input power: 2200 W

Noise level: ≤ 85 dB

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.
