Product type	Hearing amplifier
Brand	Sennheiser
Model	A 200 SET
Frequency response	200 – 12 000 Hz
Max. sound pressure level	105 dB (at 1 kHz)
Max. acoustic gain	35 dB (stereo)
Microphone directivity	Omnidirectional
Power supply	NiMH battery 2.4 V, 80 mAh
Battery life	Up to 12 hours
Weight (with battery)	Approx. 51 g
Charging time	Approx. 16 hours
Charger input voltage	100 – 240 V AC, 50 – 60 Hz
Charger output voltage	12 V DC, max. 500 mA
Temperature range (operation)	0 °C to +40 °C
Temperature range (storage)	-20 °C to +60 °C
Humidity (operation)	20 to 85 % (non-condensing)
Humidity (storage)	10 to 95 % (non-condensing)
Number of amplification settings	6 positions
Balance adjustment	Yes (at the back)
Earpiece type	Ear tips (2 pairs supplied)
Box contents	A 200 amplifier, L 200 charger, NT12-5TW power supply unit, BA 151 battery, 2 pairs of ear tips, 2 adhesive strips, instruction manual
Cleaning	Slightly damp cloth, no solvent
Safety	Keep away from pacemakers (>10 cm), set volume low
Warranty	24 months

Frequently Asked Questions - A 200 SET SENNHEISER

How to turn on the device?

Turn the on/off/hearing amplification control knob to ON past the slight resistance.

How to adjust the volume?

Use the same knob to choose from 6 positions of amplification (1 = low, 6 = very high).

How to charge the device?

Place the A 200 in the charging compartment of the L 200 with the Sennheiser logo facing forward. The green indicator confirms charging. You can also charge the battery separately in the side compartment.

What is the battery life?

A fully charged battery provides up to 12 hours of use.

How to clean the device?

Use a slightly damp cloth (no solvent or detergent). Clean the ear tips with warm soapy water, rinse and air dry.

Is the device compatible with pacemakers?

Always keep the ear tips more than 10 cm away from pacemakers or implanted defibrillators due to magnetic fields.

What to do in case of whistling (feedback)?

Turn the adjustment knob to OFF until the noise disappears, then set a lower volume.

What accessories are included in the box?

The package contains: A 200 amplifier, L 200 charger, NT12-5TW power supply unit, BA 151 battery, 2 pairs of ear tips, 2 adhesive strips and the instruction manual.

How to replace the ear tips?

Carefully remove the old ear tips, clean them or replace with new ones. Replacement ear tips are available from Sennheiser.

What is the warranty period?

Sennheiser offers a 24-month warranty on this product. Consult www.sennheiser.com for conditions.

USER MANUAL A 200 SET SENNHEISER

Black Audi stereo cassette head with earphones and a Sennheiser brand logo (no visible text or symbols on device body)

Bedienungsanleitung

Instruction manual

Notice d'emploi

Illustration of a hand holding a small electronic component with a blue arrow indicating direction (no text or symbols)

Illustration of a hand holding a blue plastic component with a blue arrow pointing to it (no text or symbols present)

Balance einstellen

Illustration of a medical or surgical instrument with a blue arrow pointing to a component (no text or symbols present)

Illustration of hands using a tool to adjust or install a small component (no text or symbols visible)

Illustration of two hands holding a small object, no text or symbols present

Technische Daten

Hörverstärker

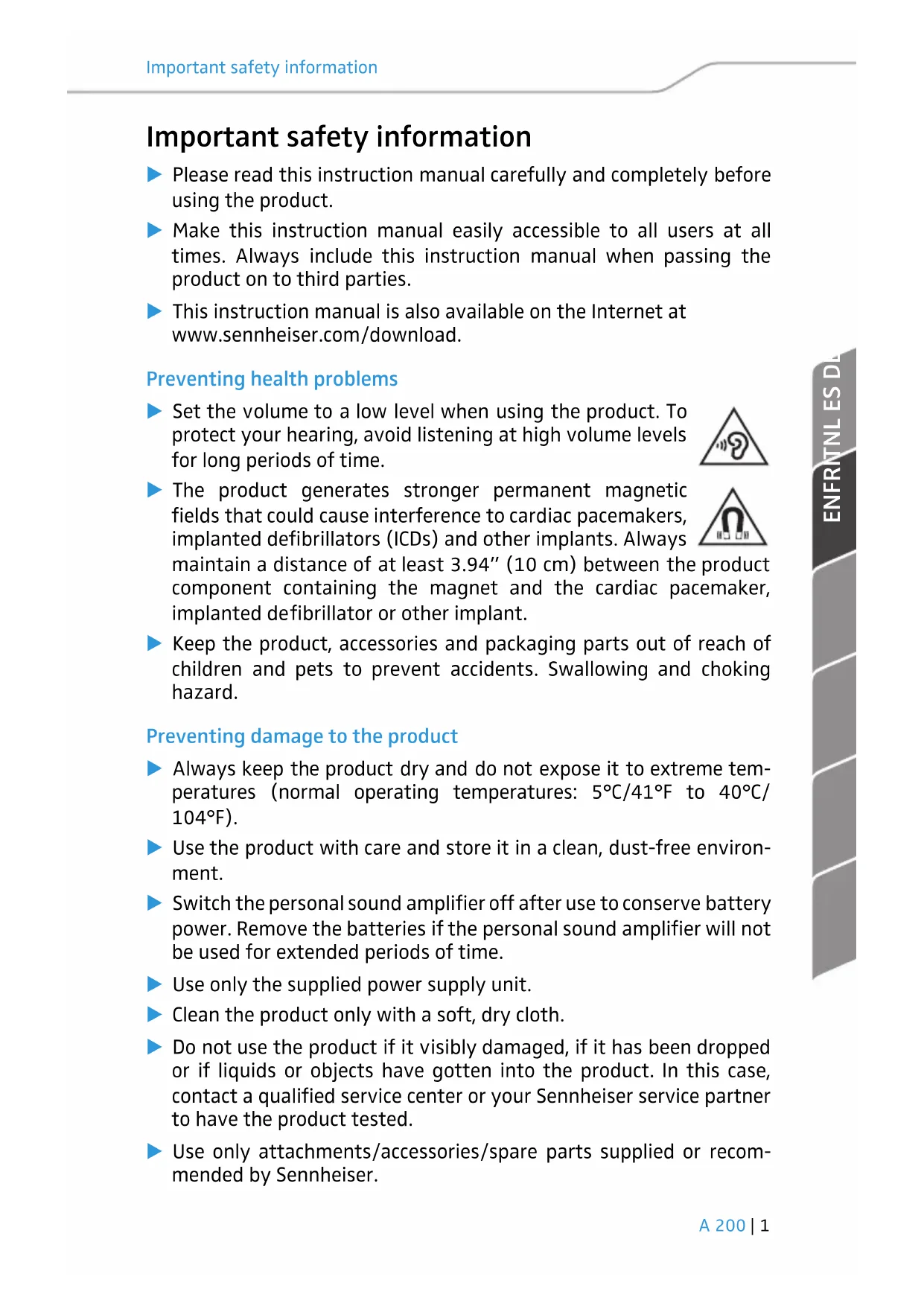

Important safety information

Please read this instruction manual carefully and completely before using the product.
Make this instruction manual easily accessible to all users at all times. Always include this instruction manual when passing the product on to third parties.
This instruction manual is also available on the Internet at www.sennheiser.com/download.

Preventing health problems

Set the volume to a low level when using the product. To protect your hearing, avoid listening at high volume levels for long periods of time.

The product generates stronger permanent magnetic fields that could cause interference to cardiac pacemakers, implanted defibrillators (ICDs) and other implants. Always

maintain a distance of at least 3.94" (10 cm) between the product component containing the magnet and the cardiac pacemaker, implanted defibrillator or other implant.

Keep the product, accessories and packaging parts out of reach of children and pets to prevent accidents. Swallowing and choking hazard.

Preventing damage to the product

Always keep the product dry and do not expose it to extreme temperatures (normal operating temperatures: 5°C/41°F to 40°C/104°F).
Use the product with care and store it in a clean, dust-free environment.
Switch the personal sound amplifier off after use to conserve battery power. Remove the batteries if the personal sound amplifier will not be used for extended periods of time.

▶ Use only the supplied power supply unit.

Clean the product only with a soft, dry cloth.

Do not use the product if it visibly damaged, if it has been dropped or if liquids or objects have gotten into the product. In this case, contact a qualified service center or your Sennheiser service partner to have the product tested.

Use only attachments/accessories/spare parts supplied or recommended by Sennheiser.

Preventing damage to the mains unit

To reduce the risk of fire or electric shock, do not expose the mains unit to rain or moisture.
Unplug the mains unit from the wall socket to completely disconnect the product from the mains, during lightning storms or when unused for long periods of time.
Only operate the mains unit from the type of power source specified in the specifications chapter (see page 9).
To prevent heat accumulation, always ensure that the mains unit is in a safe operating condition and easily accessible, properly plugged into the wall socket and not covered or exposed to direct sunlight for longer periods of time.

Intended use

This product is designed for private domestic use. The personal sound amplifier is suitable for people who may sometimes need to rely on artificial assistance for their hearing.

"Improper use" means using the product

• other than as described in this instruction manual,
• under operating conditions which differ from those described in this instruction manual.

Safety instructions for the nickel metal hydride batteries

If abused or misused, the A 200's rechargeable battery may leak. In extreme cases, it may even present

• a heat hazard,
• a fire hazard,
• an explosion hazard,
  • a smoke or gas hazard.

Please understand that Sennheiser does not accept liability for damage arising from abuse or misuse.

	Keep away from children.	[yz5x]	Only charge rechargeable batteries with the charger recommended by Sennheiser.
	Only charge rechargeable batteries at ambient temperatures between 10°C/50°F and 40°C/104°F.		When not using rechargeable batteries for extended periods of time, charge them regularly (about every 3 months).
	Do not expose to moisture.	[k8g2]	Observe correct polarity.
	Do not mutilate or dismantle.		Switch rechargeable battery-powered products off after use.
	Do not heat above 70°C/158°F, e.g. do not expose to sunlight or throw into a fire.		Pack/store charged batteries so that the terminals cannot contact each other – danger of shorting out/fire hazard.
	Immediately remove rechargeable batteries from an obviously defective product.		Do not continue to use defective rechargeable batteries.
	Only use rechargeable batteries specified by Sennheiser.		Dispose of rechargeable batteries at special collection points or return it to your specialist dealer.

Delivery includes

1 A 200 personal sound amplifier

1 L 200 charger

1 NT12-5TW plug-in power supply unit (country-specific, EU or US) for L 200

1 BA 151 rechargeable battery

2 pairs of spare ear pads

1 set of sealing tape

1 instruction manual

A list of accessories can be found on the A 200 product page at www.sennheiser.com. For information on suppliers, contact your local Sennheiser partner: www.sennheiser.com > "Service & Support".

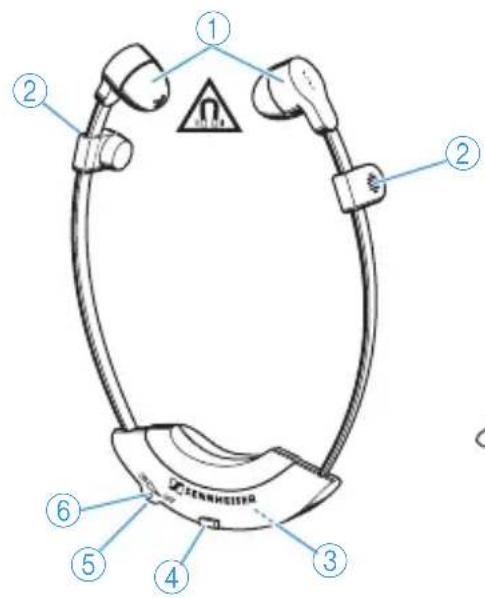

Product overview

① Ear pads
②Microphones
③Balance control (at the rear)
④ Battery compartment
⑤ On/off/sound amplification control
⑥ Indicator for sound amplification

⑦ Charging compartment for A 200
⑧ DC socket for connection of mains unit
⑨ Charging compartment for optional spare rechargeable battery
⑩ Charging indicator for optional spare rechargeable battery
⑪ Charging indicator for the A 200's rechargeable battery

Putting the L 200 charger into operation

Setting up the charger

CAUTION

Risk of staining furniture surfaces!

Furniture surfaces are often treated with varnish, polish or synthetics which might cause stains when they come into contact with other synthetics such as the device feet.

Do not place the charger on delicate surfaces; if necessary, place a pad under the charger.

Place the charger on a flat, even surface and use a non-slip pad.

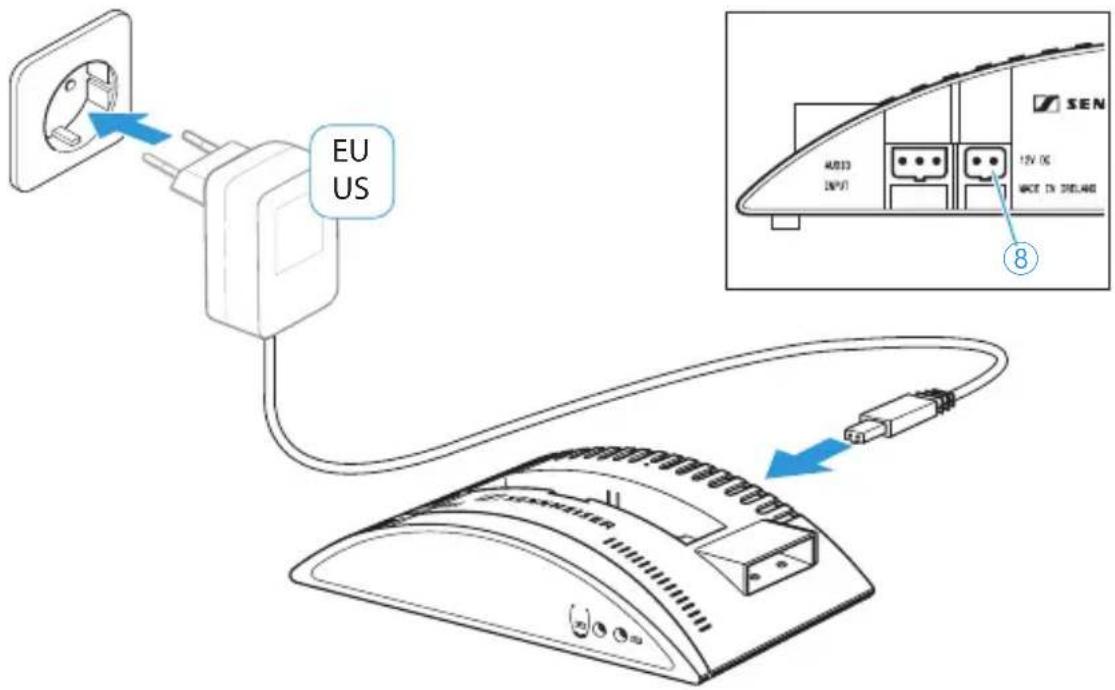

Connecting the charger to the mains

Connect the connector of the mains unit to the socket ⑧ on the charger (12 V DC).
Connect the mains unit to a wall socket. The charger is ready for operation.

To disconnect the charger from the mains:

▶ Unplug the mains unit from the wall socket.

Charging and replacing the rechargeable battery

The rechargeable battery can be charged whilst installed in the A 200 or separately in the charging compartment at the side of the charger.

Before using the rechargeable battery for the first time, charge it for at least 16 hours. With a fully charged rechargeable battery, the operating time is up to 12 hours.

Charging the A 200 with the rechargeable battery installed

After use, place the A 200 into the charging compartment without exerting too much pressure, making sure the Sennheiser logo is at the front.
When the A 200 is placed correctly, the indicator ⏱ lights up green.

Charging the rechargeable battery in the charging compartment at the side of the charger

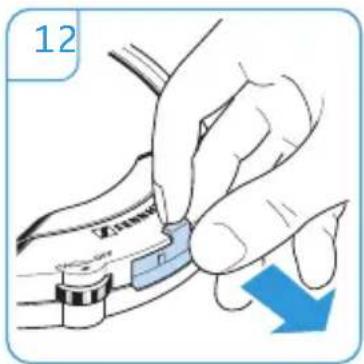

1 Pull the rechargeable battery out of the A 200's battery compartment.

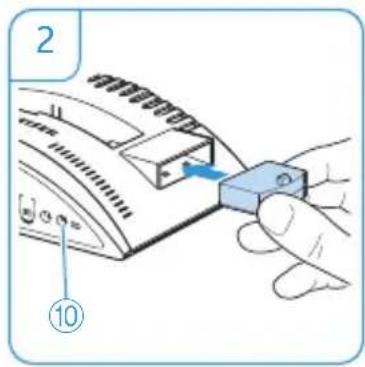

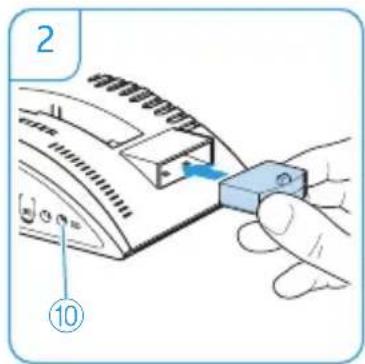

2 Insert the rechargeable battery into the charging compartment at the side of the charger. When the rechargeable battery is inserted correctly, the indicator ⑩ lights up green.

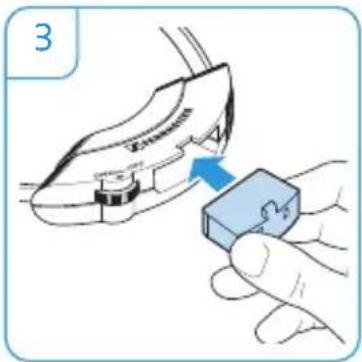

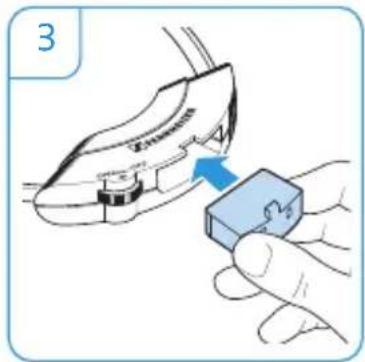

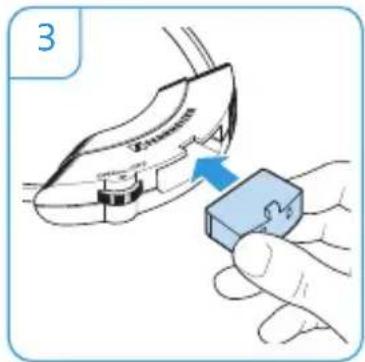

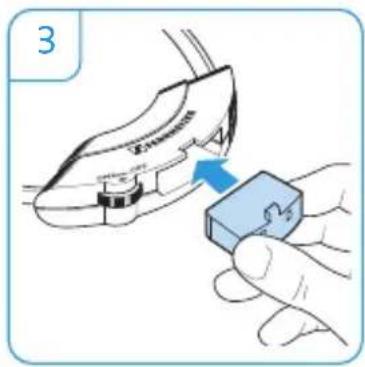

3 Slide the rechargeable battery into the A 200's battery compartment as far as it will go.

Illustration of a hand using a tool to adjust a component, with a blue arrow indicating direction (no text or symbols present)

With a spare BA 151 rechargeable battery (to be ordered separately), you can use the A 200 for more than twice the time. You can charge the spare rechargeable battery while using the supplied one and replace one with the other when needed.

Using the A 200 personal sound amplifier

WARNING

Danger of hearing damage!

Listening at high volume levels for long periods can lead to permanent hearing defects.

Before putting the A 200 on, set the volume to a low level.
Then adjust a comfortable sound amplification.

WARNING

Interference due to magnetic fields!

The product generates stronger permanent magnetic fields that could cause interference with cardiac pacemakers and implanted defibrillators (ICDs).

Always maintain a distance of at least 3.94" (10 cm) between the ends of the earbows with the ear pads and the cardiac pacemaker or implanted defibrillator.

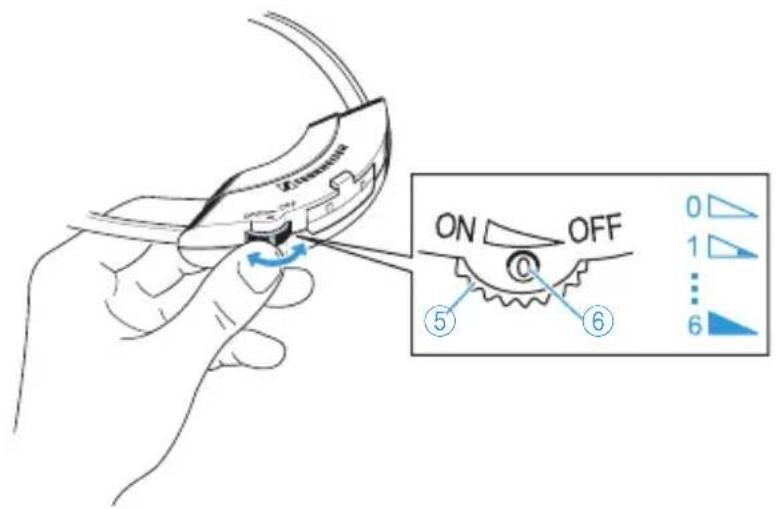

Switching the A 200 on/off

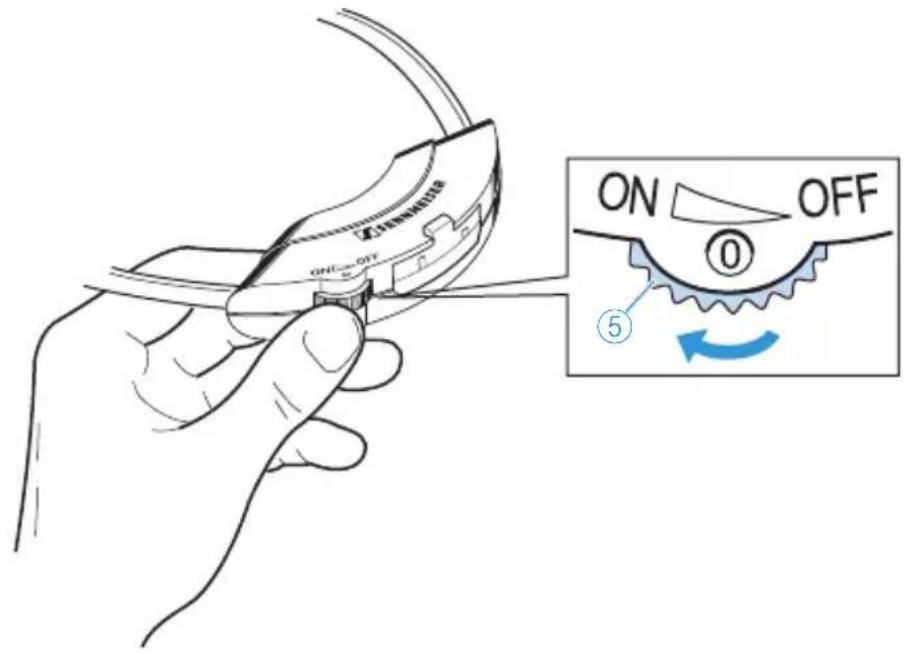

▶ Turn the on/off/sound amplification control ⑤ towards ON until you overcome a slight resistance.

Adjusting the sound amplification

You can choose between 6 different settings for the sound amplification ⑥. Position "1" corresponds to a low sound amplification and position "6" corresponds to a very high sound amplification.

Use the control ⑤ to adjust the volume to a sufficient and comfortable level.
If you hear a loud noise (feedback), turn the control ⑤ towards OFF until the noise disappears.

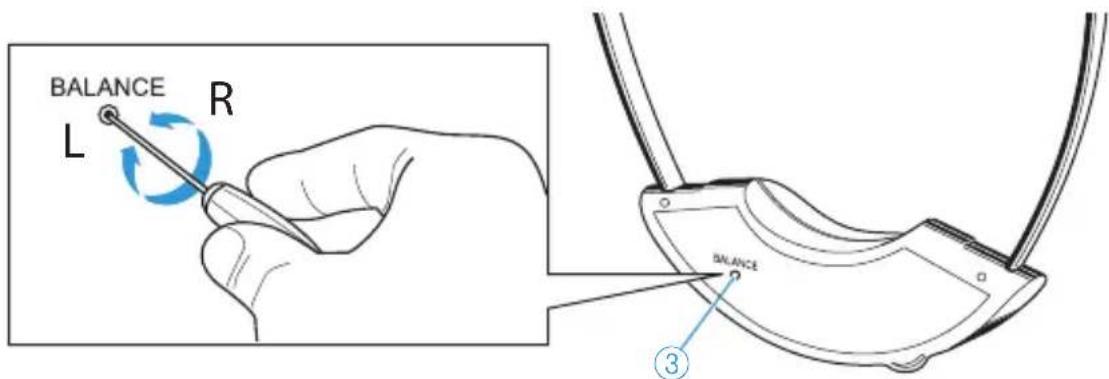

Adjusting the balance

The balance control allows for right/left volume adjustment. Adjust the balance so that you hear equally well with both ears. If necessary, have the balance adjusted by your hearing aid acoustician.

Using a 2 mm slotted screwdriver, turn the balance control ③ to the left L or right R in order to increase the volume for the corresponding ear.

Adjusting the bass attenuation

Illustration of a medical or surgical device with a blue arrow pointing to a point on the base (no text or symbols)

The more holes you seal with the sealing tape, the greater is the bass attenuation. This increases the speech intelligibility without increasing the volume – which is an advantage for people with a hearing impairment at high frequencies.

Use the two supplied sealing tapes to seal the small holes in back of the headphone systems of the A 200.

Cleaning and maintaining the product

CAUTION

Liquids can damage the electronics of the product!

Liquids entering the housing of the product can cause a short-circuit and damage the electronics.

Keep all liquids far away from the product.
Do not use any solvents or cleansing agents.
Before cleaning, disconnect the charger from the mains.
Only use a slightly humid cloth to clean the product.

Cleaning and replacing the ear pads

The product is supplied with two pairs of ear pads in different fits. You can change to these ear pads to optimize the wearing comfort, if necessary. Other spare ear pads are available from your Sennheiser partner.

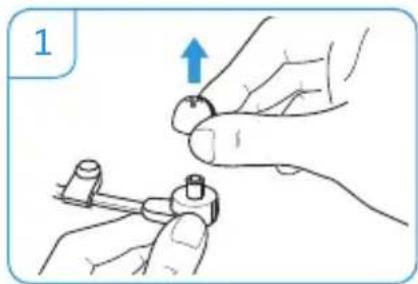

1 Carefully remove the ear pads from the A 200.

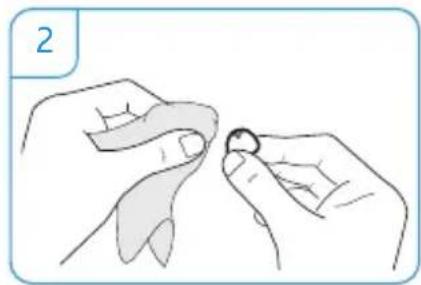

2 Clean the ear pads with warm soapy water and rinse thoroughly. Let the ear pads air dry.

Illustration of hands using a tool to adjust a small component, with an arrow indicating the step (no text or symbols present)

Illustration of two hands holding a small object, no text or symbols present

Specifications

A 200 personal sound amplifier

Frequency response	200 - 12,000 Hz
Max. SPL (at 1 kHz)	105 dB
Acoustic amplification, stereo	max. 35 dB
Pick-up pattern of microphones	omni-directional
Supply voltage2.4 V
Current consumptionapprox. 5 mA
Operating time	up to 12 hours
Weight (incl. rechargeable battery)	approx. 51 g
Magnetic field strength	5,4 mT

L 200 charger and BA 151 rechargeable battery

Input voltage L 200 12 V
Current consumption L 200	approx. 20 mA
Charging outputs (2x)	max. 7 mA/max. 2.8 V
Charging time of rechargeable battery	approx. 16 hours

BA 151 rechargeable battery

nickel metal hydride: 2.4 V, 80 mAh

NT12-5TW plug-in power supply unit (country-specific, EU or US)

Nominal input voltage/ nominal input current	100 – 240 V~/ 200 mA
Power frequency	~ 50 – 60 Hz
Nominal output voltage	12 V ===
Nominal output current	max. 500 mA
Temperature rangeoperation: 0 °C to +40 °C
	storage: -20 °C to +60 °C
Relative air humidity (non-condensing)	operation: 20 to 85 % storage: 10 to 95 %

Manufacturer declarations

Warranty

Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product. For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner.

FOR AUSTRALIA ONLY

Sennheiser goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is in addition to other rights or remedies under law. Nothing in this warranty excludes, limits, or modifies any liability of Sennheiser which is imposed by law, or limits or modifies any remedy available to the consumer which is granted by law.

To make a claim under this warranty, contact: Sennheiser Technical Services and Spare Parts Sales, c/o Linfox, Gate 3, 1 Fox Lane, Erskine Park, 2759, NSW Australia, phone: [phone] email: [e-mail]

All expenses of claiming the warranty will be borne by the person making the claim.

The Sennheiser International Warranty is provided by Sennheiser Australia Pty Ltd (ABN 68 165 388 312), The Zenith, Tower A, L14, 821 Pacific Highway Chatswood NSW 2067, Australia.

In compliance with the following requirements

EU Declaration of Conformity

• EMC Directive (2014/30/EU)

• RoHS Directive (2011/65/EU)

• Low Voltage Directive (2014/35/EU)

• Ecodesign Directive (2009/125/EC)

The declaration is available at www.sennheiser.com/download.

Notes on disposal

• Battery Directive (2006/66/EC & 2013/56/EU)

• WEEE Directive (2012/19/EU)

The symbol of the crossed-out wheeled bin on the product, the battery/rechargeable battery (if applicable) and/or the packaging indicates

that these products must not be disposed of with normal household waste, but must be disposed of separately at the end of their operational lifetime. For packaging disposal, please observe the legal regulations on waste segregation applicable in your country.

Further information on the recycling of theses products can be obtained from your municipal administration, from the municipal collection points, or from your Sennheiser partner.

The separate collection of waste electrical and electronic equipment, batteries/rechargeable batteries (if applicable) and packagings is used to promote the reuse and recycling and to prevent negative effects caused by e.g. potentially hazardous substances contained in these products. Herewith you make an important contribution to the protection of the environment and public health.

In compliance with

Europe
Australia/New Zealand
USA

The compliance marks are printed on the bottom surface of the charger.

Illustration of a hand holding a small component with a blue arrow indicating direction (no text or symbols)

Régler la balance

Diagram of a medical or surgical instrument with a blue arrow pointing to a point on the base (no text or symbols present)

Illustration of hands using a tool to adjust or install a small component, with an arrow indicating the step (no text or symbols present)

Illustration of two hands holding a small object near the center (no text or symbols)

Illustration of a hand using a tool to adjust a component, with a blue arrow indicating direction (no text or symbols present)

Illustration of a medical or surgical instrument with a blue arrow pointing to a component (no text or symbols present)

Illustration of hands using a tool to adjust or install a small component, with an arrow indicating the process (no text or symbols present)

Illustration of two hands holding a small object, no text or symbols present

Dati tecnici

Amplificatore

Illustration of a hand using a tool to adjust a component, with a blue arrow indicating direction (no text or symbols present)

Illustration of a hand using a tool to adjust a component, showing a blue arrow pointing to the component (no text or symbols present)

Ajustar el balance

Diagram of a medical or surgical device with a blue arrow pointing to a point on the base (no text or symbols present)

Illustration of hands performing a manual tool manipulation (no text or symbols)

Illustration of two hands holding a small object, no text or symbols present

Illustration of a hand using a tool to adjust a component, with a blue arrow indicating direction (no text or symbols present)

Balans instellen

Verlaging van de lage tonen instellen

Illustration of a medical or surgical instrument with a blue arrow pointing to a component (no text or symbols present)

Illustration of hands performing a manual tool manipulation (no text or symbols visible)

Illustration of two hands holding a small object, no text or symbols present

Technische specificaties

Gehoorversterker

Frequentiebereik200 - 12.000 Hz

Line drawing of a pair of earphones with clamps, no text or symbols present

Sennheiser electronic GmbH & Co. KG

Am Labor 1, 30900 Wedemark, Germany

www.sennheiser.com

Printed in Germany, Publ. 09/18, 566667/A03
