USER MANUAL BTLSKOALA BIGBEN INTERACTIVE

REEMPLACEMENT DE LA PILE (DE LA

TELECOMMANDE) 4

Avertissement!

Remarques 5

Waterloo Office Park/Batiment H

Dreve Richelle 161 bte 15 1410 Waterloo, Belgium

Bigben Interactive NEDERLAND b.v.

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

www/bigben.eu

BIGBEN

LUMINOUS SPEAKER

OPERATING INSTRUCTIONS

PLEASE READ OPERATING INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.

Contents

Warnings and precautions 1

Important safety instructions

Contents 2

SPECIFICATION

OPERATION 3

CHARGING

Play music by BT

Play music by USB card

Play music by AUX IN cable

Priority of audio source: Bluetooth/USB/AUX

BATTERY REPLACEMENT (FOR REMOTE

CONTROL) 4

Warning!

Remarks 5

Warnings and precautions

The lightning bolt with an arrowhead within a triangle indicates the presence of uninsulated dangerous voltage within the product enclosure that may be of sufficient mag. constitute a risk of electric shock to persons.

The exclamation point within a triangle indicates the presence of important or maintenance (servicing) instructions in the literature accompanying the unit.

Important safety instructions

• Read these instructions.
• Keep these instructions.
  Heed all warnings.
• Follow all instructions.
  Refer all servicing to qualified service personnel.
• Do not expose the unit to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on it.
  Class I appliances must be connected to the mains socket outlet with a protective-earth connection.
• The mains plug connects the device and should remain operable during use.
• To disconnect the unit from the mains, the plug should be fully disconnected from the mains socket outlet. The mains plug should not be obstructed and should be easily accessible during use.
• When a power indicator light is on, it indicates the unit is connected to the mains supply. When the light is off, it indicates the unit is fully disconnected from the mains supply.

INFORMATION ABOUT BATTERIES (applicable only if batteries included)

• Polarity must be respected when inserting batteries.
• The batteries should be inserted in such a way as to avoid any short circuit.
• Do not mix used and new batteries.
• Do not mix alkaline, standard (carbon-zinc) and rechargeable (nickel-cadmium) batteries.
• Do not expose the battery to excessive heat such as sunshine or fire.
• Remove the batteries when they have not been used for a long time.
• If the liquid contained in the batteries comes in contact with eyes or skin, immediately and carefully wash the affected area with clear water and consult a doctor.
• The product/remote control may contain a coin/butto type battery.

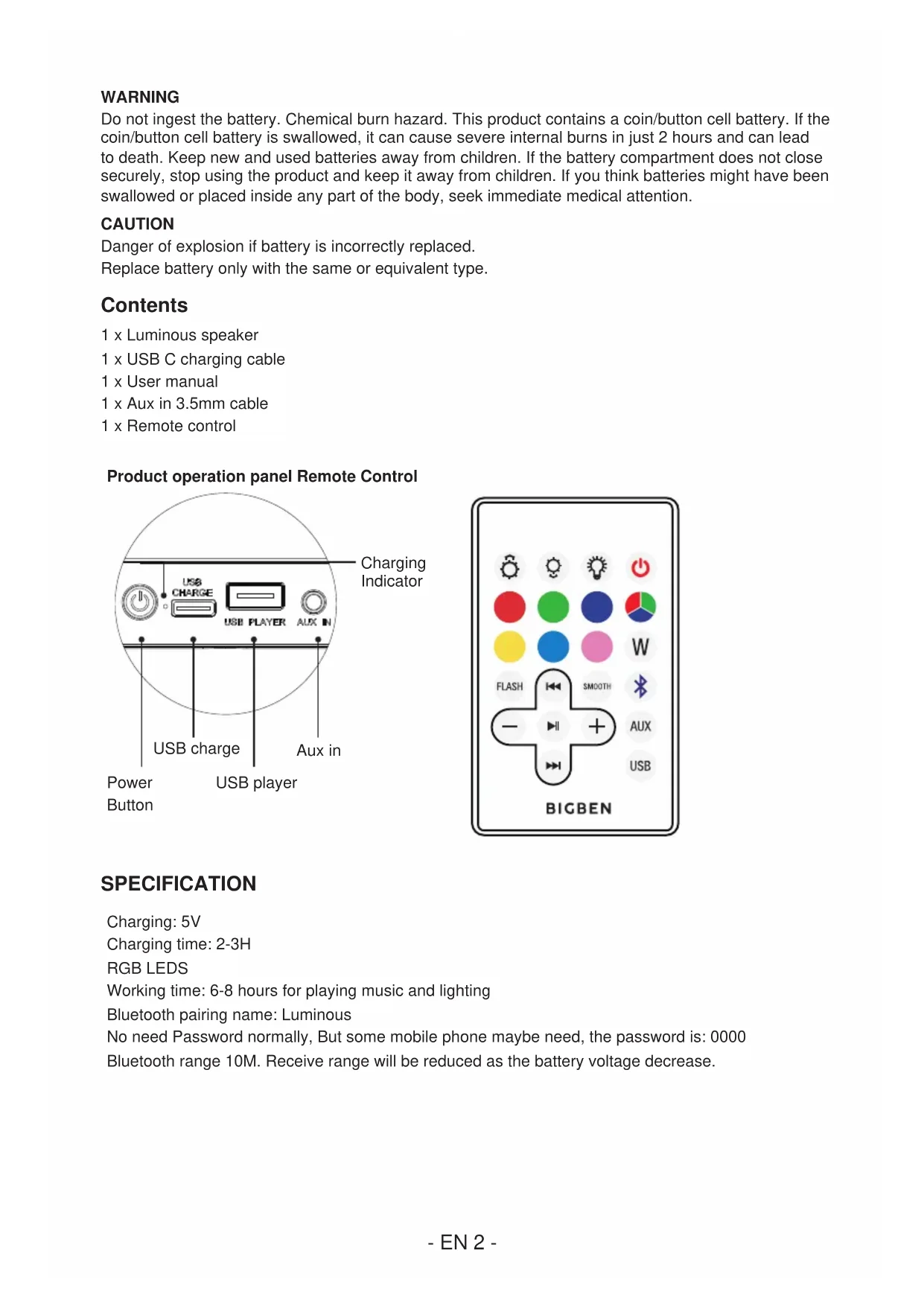

WARNING

Do not ingest the battery. Chemical burn hazard. This product contains a coin/burner cell battery. If the coin/burner cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace battery only with the same or equivalent type.

Contents

1 x Luminous speaker
1 x USB C charging cable
1 x User manual
1 x Aux in 3.5mm cable
1 x Remote control

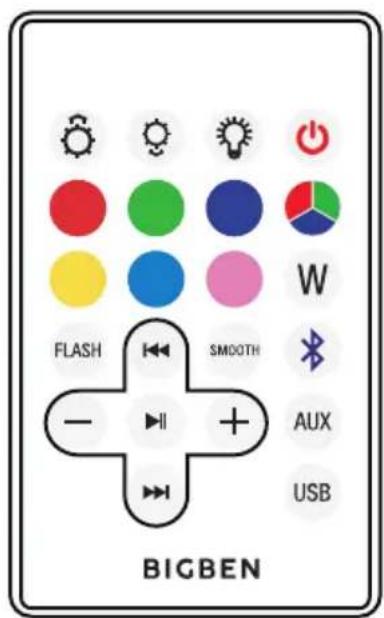

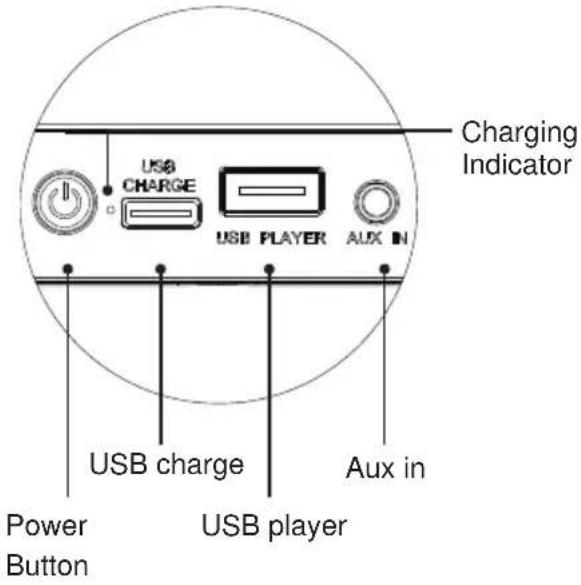

Product operation panel Remote Control

SPECIFICATION

Charging: 5V

Charging time: 2-3H

RGB LEDs

Working time: 6-8 hours for playing music and lighting

Bluetooth pairing name: Luminous

No need Password normally, But some mobile phone maybe need, the password is: 0000

Bluetooth range 10M. Receive range will be reduced as the battery voltage decrease.

OPERATION

Turn on/off the luminous speaker

1. long press the power button at the speaker bottom for 2-3 seconds, the light and BT will be on automatically.
2. long press the power button at the speaker bottom for 2-3 seconds again, the light and BT will be off automatically. Only after you press the button on the speaker, the speaker is truly been turn off.

CHARGING

1. Connect speaker with the USB C charging cable.
2. The Red LED indicator besides the power button will turn ON when charging, and turn OFF when fully charged.
3. Unplug the USB charging cable after fully charged.

Play music by BT

1. Turn on the speaker. Keep the speaker and device within 1 meter of each other.
2. Start the Bluetooth function on your mobile device and select "Luminous" in the Bluetooth device list (depending on the Bluetooth version of your device you may have to enter pass code '0000').

Play music by USB player

• Turn on the speaker, insert the USB player into USB port, then can listen music from USB player.

Play music by AUX IN cable

• Turn on the speaker, you can connect music device to the luminous speaker via the AUX port using the cable included.

Priority of audio source: Bluetooth/USB/AUX

• Bluetooth is set as default, speaker will play music via Bluetooth after being switched on.
• As soon as you plug-in USB, the speaker will play music via USB. It will also play music via USB the next time when you switch on the unit if USB is plugged in.
• As soon as you plug-in AUX, the speaker will play music via AUX. It will also play music via AUX the next time when you switch on the unit if AUX is plugged in.
  If both USB and AUX are plugged-in, speaker will play via USB.

NOTE: Please first pull out the small plastic sheet from the battery cover before below operation.

1. Stand by button: After turn on the speaker (by pressing power button which located on back of the speaker), short press this button to turn off the light and Bluetooth, short press again to turn on the light and Bluetooth.
2. Brightness intensity button: Change brightness intensity when the light is fixed on one single color.
3. Light ON/OFF button: Press this button to power the light on and off. Power on is the first step for all functions on remote control. Once the color light is on, press ON/OFF button again is only to turn or off the lighting. This color light has memory storage function when electricity is not exhausted. The light could keep the same lighting working mode or color which you turned off last

time, for example, last time you turned off the light on "RED" mode, this time you press the ON/OFF button, the mode will still be on "RED" mode.

1. Bluetooth function button: press this button to switch into bluetooth function
2. AUX AUX IN function button : press this button to switch into AUX IN function.
3. USB player function button : press this button to switch into USB player function
4. Color selection button: When the light is on, press this button to choose your favorite color as shows on the remote control (six colors).
5. Color selection button: when the light is on, press this button to choose your favorite colors (Total 7 colors)
6. Music flash button: the light will flash when music is playing
7. Smooth button: 7 colors scrolling automatically.
8. w White color button: press this button, speaker will display white color
9. Previous button: when the Bluetooth or USB key is connected and music is on, press this button to select previous music.
10. Next button: when the Bluetooth or USB key is connected and music is on, press this button to select next music.
11. • Pause and play: when the Bluetooth or USB key is connected and music is on, press this button to play or pause the music.
12. Voice- and +: when the bluetooth or USB key is connected and and music is on, press the " - to reduce volume, press "+" to increase volume.

BATTERY REPLACEMENT (FOR REMOTE CONTROL)

• If remote control fails to activate the light, replace the battery.
• Move the slot besides the battery cover to right side, then battery cover will pop out, then take out the battery and replace a new one.
• Pay attention to the polarity of battery on the cover and cover direction when installing them back to the remote control.

Warning!

• Make sure that battery is inserted the right way and with the right polarity
• Remove exhausted battery from the product
• The supply terminals should not be short-circuited

Dispose of battery safely

Type Specification Type Specification
Speaker 2.25" 5W Charging	Timer 2-3 hours
Peak Speaker 15W Playing	Time		100% Volume: around 2.5 hours 50% Volume: around 6 hours
RMS Power 3W Bluetooth Version 5
EIRP (for Rabbit, Unicorn, Cat, Panda,Koala)	4.89dBm (3.08mW)	EIRP (for Panda2, Whale)	-2.46dBm(0.57mW)
Power Consumptions	0.2W (lights off) 1.5W (lights on)	Bluetooth Frequency	2.40-2.80 GHz
Power Input	USB 5V,1A	Speaker Frequency	80Hz-20kHz
Speaker + Tweeter Impendance	4O	Input	DC 5V
S/N Ratio =50dB	Driver	2.25" 4 Ohms speaker
Battery Type	2200mAh-Lithium Battery	Battery Capacity	2200mAh
Output (V,A)	3.7V, 2.2A, 8.14Wh	Transmission Distance	10m
Bluetooth Pairing Name	Luminous / BTLS....	Battery Weight	47g

Remarks:

Don't discard the electrical and electronic appliances in the regular waste disposal.

a) Take them to a collection point.
b) Some components in these appliances may be hazardous to health and the environment.

• If there is an incoming call while "BTLS range" is connected to your cell phone for music playback, it will pause at once when you answer the call and resume after the call ended. (Sometimes it will pause after end the call, it depends on your cell phone.)
• The Bluetooth® word, mark and logo are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bigben Interactive is under license. Other trademarks and trade names are those of their respective owners.

DECLARATION OF CONFORMITY

The undersigned, Bigben Interactive declares that the radio equipment of the BTLSHEART,BTLSBEAR, BTLSCACTUS,BTLSRABBIT,BTLSUNICORN,BTLSCAT type complies with the 2014/53/EU directive. The complete text is available at https://www/bigben-interactive.co.uk/support/

Manufactured by BIGBEN INTERACTIVE

396, Rue de la Voyette

CRT2-FRETIN

CS 90414

59814 LESQUIN Cedex - France

www/bigben.eu

Made in China
