USER MANUAL SSOT 6 B2 SILVERCREST

22SET 12hr (12/24) SET 24hr (12/24) SET hour SET minute SET Year SET month SET day SET sleep disable

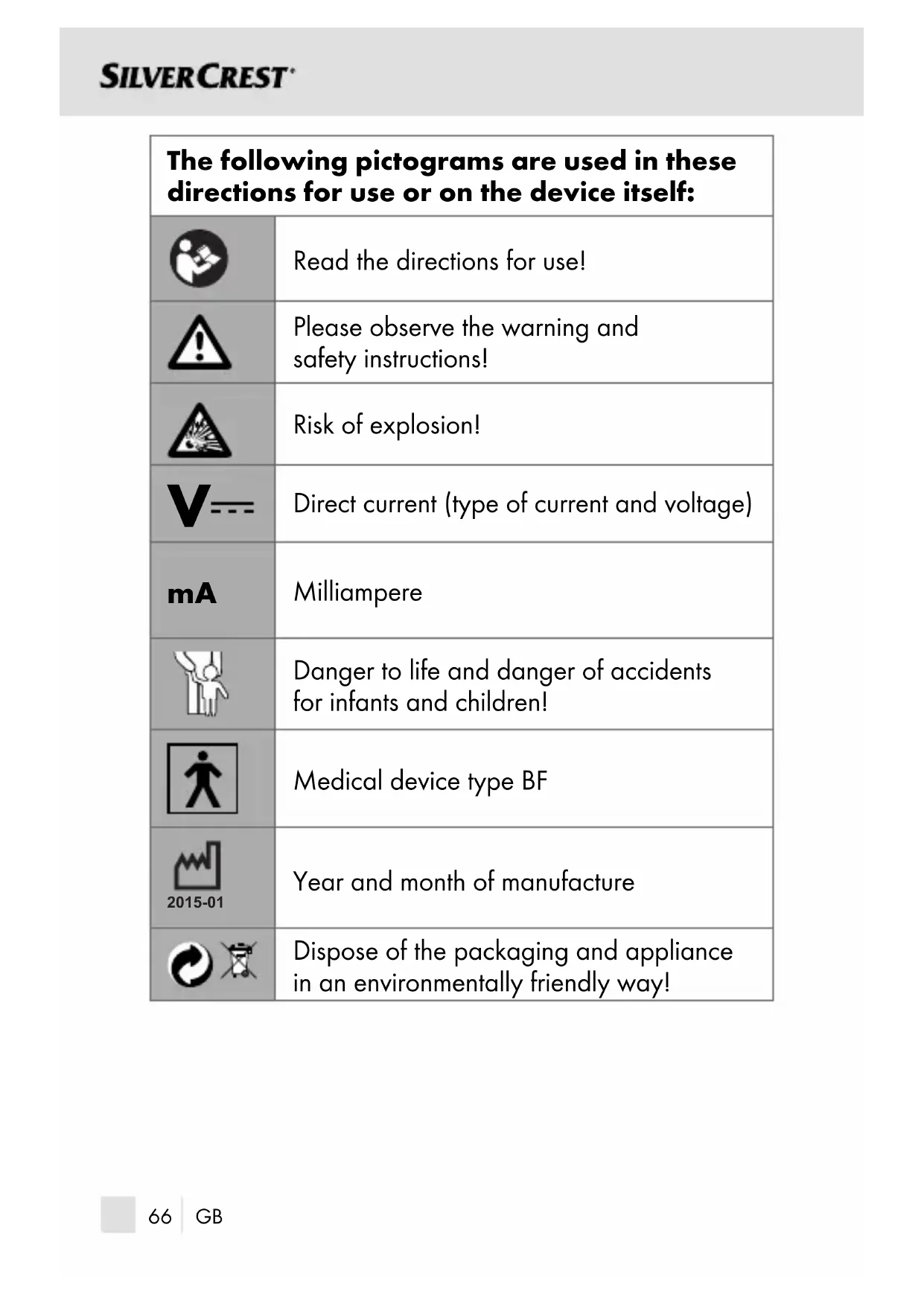

Direct current (type of current and voltage)

Milliampere Danger to life and danger of accidents for infants and children! Medical device type BF 2015-01 Year and month of manufacture Dispose of the packaging and appliance in an environmentally friendly way! IB_106635_SSOT6B2_FR_DE_GB_LB2.indd 66 19.09.14 14:0567 GB Forehead & Ear Thermometer

Introduction Congratulations on the purchase of your new appliance. You have clearly decided in favour of a quality product. These operating instructions are a part of this product. They contain important information in regard to safety, use and disposal. Before starting the device up for the fi rst time, familiarise yourself with its functions. Read the follow- ing directions for use. Please keep these instructions in a safe place. When handing the device on to a third party, hand all instructions on, too.

Intended use The device is intended for indoor use for measuring the body temperature at the ear or temple/forehead, measur- ing the room temperature and measuring surface tempera- tures in the household. In no way does it replace an exam- ination by a qualifi ed doctor. This appliance is solely intended for private use. Any use other than that previous- ly described or any change to the product is not permitted and may lead to injuries and / or damage to the product. The manufacturer does not assume any liability for dam- age arising from improper use. IB_106635_SSOT6B2_FR_DE_GB_LB2.indd 67 19.09.14 14:0568 GB

Scope of delivery 1 x Forehead and ear thermometer (incl. battery and protective head guard

1 x Directions for use

Description of parts

“EAR” button (Temperature measurement in the ear / scan mode)

“FOREHEAD” button (Temperature measurement at forehead / temple)

Orange LED: slightly elevated temperature

“MEM / SET” button (Interrogate memory etc.)

Battery compartment lid

Battery change symbol

Date and time in standard mode

PLEASE KEEP ALL SAFETY INFORMA-

TION AND INSTRUCTIONS FOR

FUTURE USE! General safety instructions

TO LIFE AND DANGER OF

ACCIDENTS FOR INFANTS

AND CHILDREN! Never leave children alone and unsupervised with the packaging material. Danger of suff o- cation. Children often underestimate risks. Always keep children away from the product. IB_106635_SSOT6B2_FR_DE_GB_LB2.indd 71 19.09.14 14:0572 GB

WARNING! DANGER TO LIFE! Batteries can be swallowed, which may represent a danger to life. If a battery has been swallowed, medical help is required immediately. This device may be used by children aged 8 over and by persons with re- duced physical, sensory or mental capa- bilities or lack of experience and knowl- edge, provided that they are under supervision or have been told how to use the device safely and are aware of the potential risks. Children must not play with the device. Cleaning and user main- tenance tasks must not be carried out by children unless they are supervised. Do not expose the device to - extreme temperatures, - strong vibrations, - heavy mechanical loads, - direct sunlight. Otherwise there is a danger that the de- vice will be damaged. Please note that the guarantee does not cover damage caused by incorrect han- dling, non-compliance with the operating instructions or interference with the de- vice by unauthorised individuals. IB_106635_SSOT6B2_FR_DE_GB_LB2.indd 72 19.09.14 14:0573 GB Under no circumstances should you take the device apart. Improper repairs may place the user in considerable danger. Repairs should only be carried out by specialist personnel. Do not use the device if it is damaged. Otherwise the consequence may be in- juries and / or inaccurate readings. Please consult a doctor if the thermome- ter indicates that the body temperature measured is high. With this measuring method, a fever is indicated if the tem- perature is above 38.0 °C (100.4 °F). The red LED

is a warning. Please take several measurements at intervals of 0.5 to 1 hour in order to follow the progres- sion of the temperature. The values you measure will help your doctor make a diagnosis. Do not use the temperature under ex- treme temperature conditions and / or outdoors. This will result in inaccurate measuring results. Please observe the de- tails regarding ambient and storage tem- peratures (see “Technical data”). The measurement sensor should not be touched directly or be blown on. This will result in inaccurate measuring results. IB_106635_SSOT6B2_FR_DE_GB_LB2.indd 73 19.09.14 14:0674 GB Mobile telephones should not be used in the immediate vicinity when the thermom- eter is being used. Otherwise the conse- quence may be inaccurate measurement results. Safety instructions This appliance is solely intended for pri- vate use. That is why it is not subject to mandatory verifi cation. Discontinue using the appliance if it is damaged or if you feel that the meas- ured values are unrealistic. Consult the chapter “Functions/Error analysis - Trou- bleshooting” for advice or contact our service centre. Safety Instructions for the Battery Remove the battery from the device if it is not going to be used for a prolonged period.

PLOSION! The battery must never be recharged! IB_106635_SSOT6B2_FR_DE_GB_LB2.indd 74 19.09.14 14:0675 GB Ensure correct polarity when inserting the battery! This is indicated in the bat- tery compartment. If necessary, clean the battery and de- vice contacts before inserting the battery. Batteries must not be disposed of in the normal domestic waste! Every consumer is legally obliged to dis- pose of batteries in the proper manner!

CAUTION! RISK OF EX-

PLOSION! Keep batteries away from children; do not throw batteries into a fi re; do not short-circuit the batteries and do not take them apart. Avoid contact with the skin, eyes and mucous membranes. Any parts of the body coming into contact with battery acid should be rinsed off with copious amounts of water and / or a doctor contacted if necessary! Avoid contact with skin, eyes and mu- cous membranes. Upon contact with battery acid, rinse the aff ected area with lots of water and / or consult a doctor! IB_106635_SSOT6B2_FR_DE_GB_LB2.indd 75 19.09.14 14:0676 GB

Before getting started

Removing the battery fuse Push the battery compartment lid

downwards. Pull the tab of the protective fi lm out of the battery compartment. Push the battery compartment lid

onto the battery compartment until it clicks into place (Fig. A). – When it is switched on, an internal alignment and a self-test of the LC display are carried out. – To verify that all of the bars of the numbers are being managed correctly, when you switch on check the display of the LC display

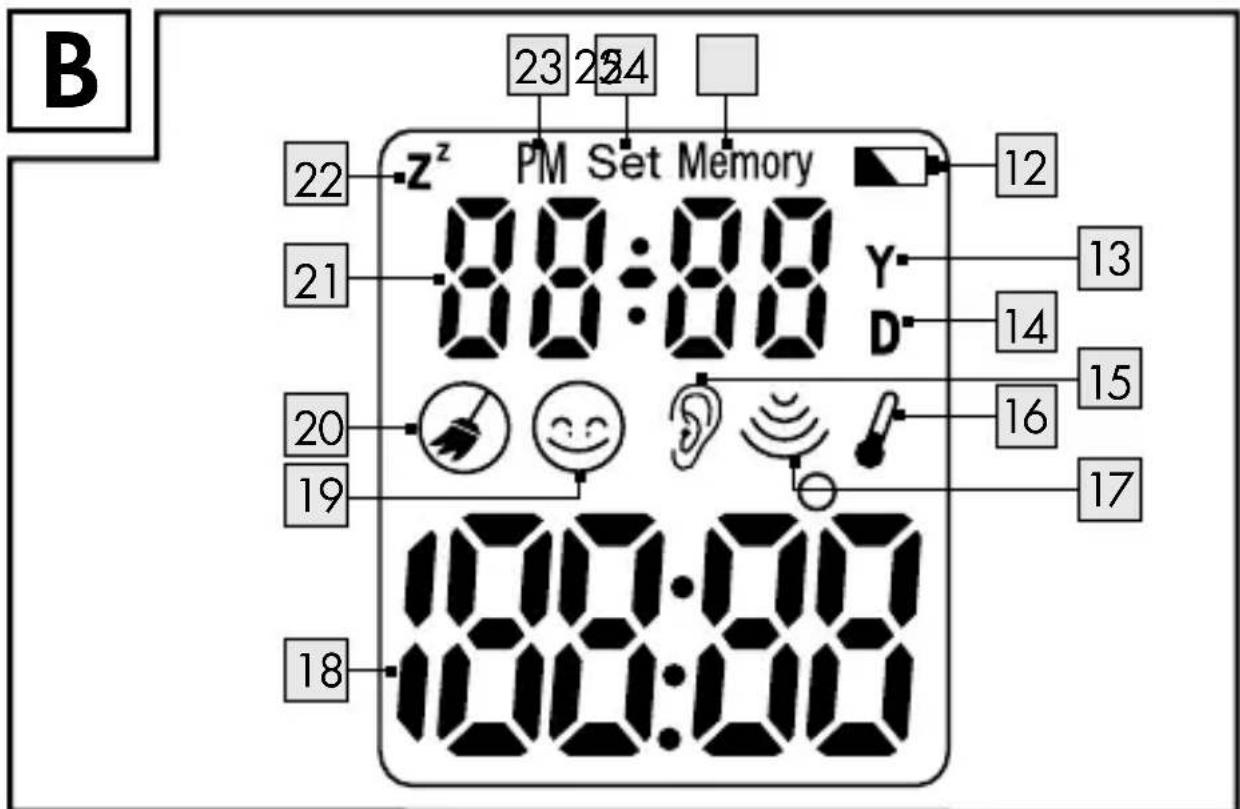

on your appliance against the example (Fig. B).

Setting the date / time (Fig. C) You only have to set the date and time when you operate the appliance for the fi rst time and after you change the battery.

1. Press and hold the “MEM / SET” button

down for two seconds in standard mode. An acoustic signal will sound. The device is now in set-up mode.

2. Press the “MEM / SET” button

to choose between the 12-hour or 24-hour format.

. The hours will fl ash and can be corrected with the “MEM / SET” button

again. The minutes will fl ash and can be corrected with the “MEM / SET” button

Repeat steps 3 and 4 to set the values for the year, month and day or to switch the sleep mode on or off . Finally, press the “FOREHEAD” button

. The settings will be taken over and the appliance reverts to standard mode.

Temperature measurements Measuring room temperature (standard mode) When you have fi nished setting the time and date and do not carry out any further procedures, the device switches to sleep mode after 1 minute in order to save the battery. In the condition as supplied to the customer the sleep mode is activated, as shown by the symbol, and the LC display

is completely switched off . When the sleep mode is deactivated, the device remains switched on, while the time and room temperature are still shown and updated once a minute. The LC display

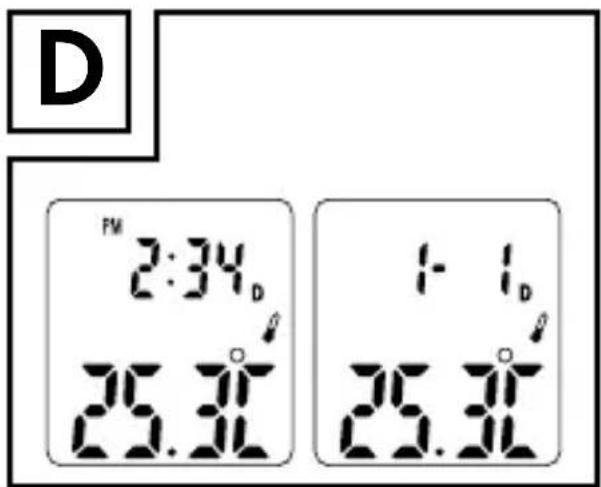

shows the time and date alternately (Illustration D). Measuring body temperature (ear mode) IMPORTANT! It is advisable to carry out 3 meas- urements in a row on the same ear and to take the highest temperature as the measured value. A new measurement can be taken when the display “ ” goes out. Do not use the thermometer if pain occurs when the meas- urement is being taken. This could damage the ear canal. IB_106635_SSOT6B2_FR_DE_GB_LB2.indd 77 19.09.14 14:0678 GB Do not use the thermometer with external ear disorders (e.g. infl ammation of the ear canal, injuries to the outer ear). The condition of the aff ected areas could worsen. Do not use the thermometer straight after bathing or swimming when the ear canal is wet. This could dam- age the ear canal. Due to the risk of contamination of the measuring head

, clean the appliance after every use. In this mode, only measure the temperature in the ear and at no other place on the body.

1. If the sleep mode has been activated, activate the

thermometer again by pressing any button before taking the measurement.

2. Carefully press on the protective cap

and remove it with a gentle rotary motion and without using any force.

3. Check that the measuring head

and the measuring sensors are clean.

4. Carefully clean the ear canal with a cotton bud.

5. Pull the outer ear, tilted slightly upwards/to the rear,

towards the back of his head, so that the ear canal is freely accessible and there are no impediments be- tween the measurement sensor and the eardrum.

6. Please keep the outer ear slightly extended and now

carefully insert the measuring head

. The symbol will appear in the LC display

and the measurement will start after an acoustic signal.

8. The end of the measurement is indicated by means of

2 acoustic signals. IB_106635_SSOT6B2_FR_DE_GB_LB2.indd 78 19.09.14 14:0679 GB

9. Now you can read off the measurement result on the

. At the same time, one of the 3 LEDs will come on. Note: LED green

: slight increase in temperature

10. Values can be displayed in °C as well as in °F

(see “Functions / error analysis - selecting the temperature unit”).

11. Wait until the display “

” goes out before you start taking a new measurement. Note: The appliance automatically switches off if it is not operated for longer than 1 minute. When the sleep mode has been activated, the LC display

switches itself off . When the sleep mode has been deactivated, the appliance switches to standard mode. If the thermometer has been operated under normal conditions, the result of the last measurement taken before the appliance was switched off is stored. The measured value is available again along with information on the date, time and measurement mode when the “MEM / SET” button

is pressed again. The device has 9 storage spaces (see section on “Functions / error analysis - the memory function”). IB_106635_SSOT6B2_FR_DE_GB_LB2.indd 79 19.09.14 14:0680 GB Measuring the body temperature (forehead mode) IMPORTANT! It is advisable to carry out 3 meas- urements in a row at the same place and to take the highest temperature as the measured value. With diff erent room temperatures, let the appliance lie in the room where the temperature is to be taken for at least 30 minutes to “acclimatise” it. Before measuring your body temperature, you should relax for about 5 minutes. If you have done any physical activity or taken a bath, wait for at least 30 minutes before taking a measurement in order to get a measurement that is as accurate as possible. Ensure that the forehead or temple is clean, free of injuries and not covered with sweat, cosmetics or ointment. Take a note of what measurement method you used to measure the temperature and inform your doctor of it.

1. If the sleep mode has been activated, activate the

thermometer again by pressing any button before taking the measurement.

2. Carefully press on the protective cap

and remove it with a gentle rotary motion and without using any force.

3. Check that the measuring head

and the measuring sensors are clean.

4. Hold the measuring sensor 1 cm away from the

forehead or temple. IB_106635_SSOT6B2_FR_DE_GB_LB2.indd 80 19.09.14 14:0681 GB

5. To start the measurement, press on the “FOREHEAD”

. The symbol will appear in the LC display

and the measurement will start after an acoustic signal.

6. The end of the measurement is indicated by 2 acoustic

7. Now you can read off the measurement result on the

. At the same time, one of the 3 LEDs will come on. Note: LED green

slight increase in temperature

8. Values can be displayed in °C as well as in °F

(see “Functions / error analysis - selecting the temperature unit”).

9. Repeat steps 3 to 6 to carry out further measurements.

Note: The appliance automatically switches off if it is not operated for longer than 1 minute. When the sleep mode has been activated, the LC display

switches itself off . When the sleep mode has been deactivated, the appliance switches to standard mode. If the thermometer has been operated under normal conditions, the result of the last measurement taken before the appliance was switched off is stored. The measured value is available again along with information on the date, time and measurement mode when the “MEM / SET” button

is pressed again. The appliance has 9 storage spaces (see “Functions / error analysis - the memory function”). IB_106635_SSOT6B2_FR_DE_GB_LB2.indd 81 19.09.14 14:0682 GB Use as a household thermometer (scan mode) The thermometer can also be used in the house for non-contact temperature measurements in the range of –22.0 °C - 80.0 °C (–7.6 °F - 176.0 °F). Attention! Do not use this mode for measuring body temperature. – With this measurement, the current surface temperature of the object is displayed. It can be diff erent from its internal temperature, especially if the surface is exposed to direct sunlight or a draught! Due to its design, the thermometer measures the precise value when its casing has adjusted to room temperature. That is why you should not hold it in the hand for a long time when you want to take a measurement and why you should keep it away from direct sunlight! Do not use the appliance immediately after cleaning the measuring head

. The evaporative cooling eff ect of the detergent may falsify the measuring result. Sample applications: - The temperature of milk in baby bottles - The temperature of bathwater

1. If the sleep mode has been activated, activate the

thermometer again by pressing any button before taking a measurement.

2. Carefully press on the protective cap

and remove it with a gentle rotary motion and without using any force. IB_106635_SSOT6B2_FR_DE_GB_LB2.indd 82 19.09.14 14:0683 GB

3. Make sure that the measuring head

and the measuring sensor are clean.

and the “EAR” button

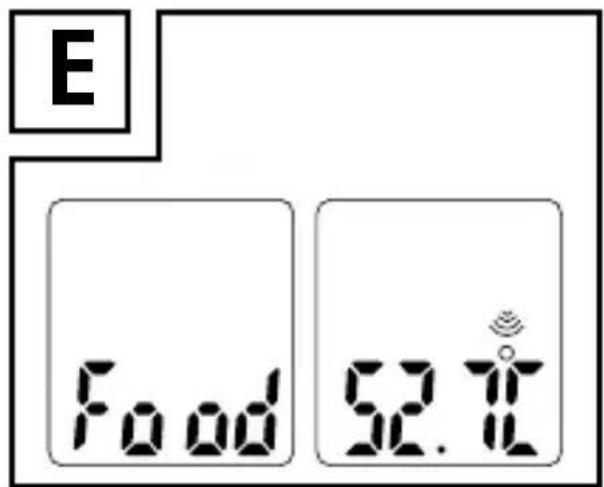

repeatedly at the same time until “Food” is shown in the LC display

5. Hold the measuring head at a distance of 1 cm from

the liquid and / or surface whose temperature you want to measure.

to start the measurement.

7. Now you can read off the measurement result on the

8. Values can be displayed in °C as well as in °F

(see “Functions / error analysis - selecting the temperature unit”).

again to carry out further measurements.

10. The appliance automatically switches off if it is not

operated for longer than 1 minute. This application is not stored in the device. In order to return to standard mode, proceed as follows:

and the “EAR” button

repeatedly at the same time until the LC display

again shows the room temperature, date and time, as well as the symbol (Illustration D).

2. You are now back in standard mode.

Selecting the temperature unit Press and hold down the “EAR” button

and the “FOREHEAD” button

at the same time until “°F” appears behind the temperature display. Switching from “°F” to “°C” is possible with the same procedure.

The memory function (memory mode) IMPORTANT! The current measurement is always stored in the last storage space. When all storage spaces have been occupied, the oldest measurement is always deleted from the memory. Measurements taken in ear and forehead mode are automatically stored in the appliance. The measured values are available again along with information on the date, time and measurement mode when the “MEM / SET” button

is operated in standard mode. Press the “MEM / SET” button

once to retrieve the value of the last measurement. The “Memory” symbol (memory mode), the number of the measurement, date, time and measurement mode will appear in the LC display

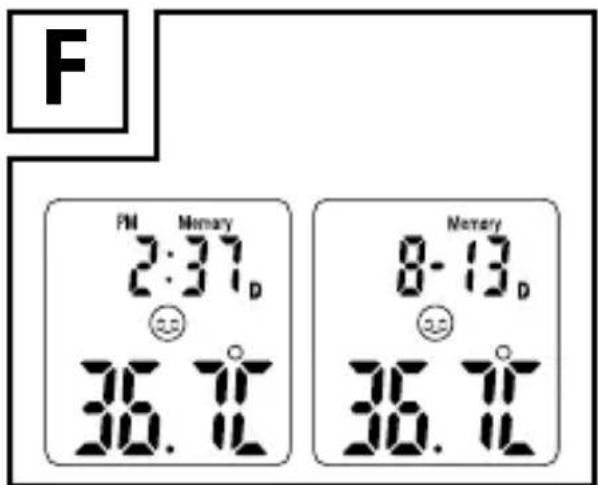

(Fig. F). By pressing the “MEM / SET” button

the next storage space along with its associated measured value will appear. A maximum of 9 measurements can be stored. In order to return to standard mode, proceed as follows: IB_106635_SSOT6B2_FR_DE_GB_LB2.indd 84 19.09.14 14:0685 GB

and the “EAR” button

repeatedly at the same time until the LC display

again shows the room temperature, date and time, as well as the symbol (Illustration D).

2. You are now in standard mode again.

Changing the battery The appliance is fi tted with a lithium battery (CR2032, 3 V ) that allows a lot of measurements to be taken. If the battery is empty, you will be made aware of that by means of an appropriate error message (see “Functions / error analysis - problem-solving”). Push the battery compartment lid

downwards. Lever the battery

out with a small screwdriver. Avoid short-circuiting the battery at all cost. A short- circuit can occur if the screwdriver comes into contact with the battery and the live parts in the battery compartment at the same time. Insert the new battery into the battery compartment. Note: Ensure correct polarity. The plus sign on the battery must point upwards. Push the new battery under the metal nose and press it down until it clicks into place. Push the battery compartment lid

onto the battery compartment until it clicks into place (Fig. A). IB_106635_SSOT6B2_FR_DE_GB_LB2.indd 85 19.09.14 14:0686 GB

Problem-solving If the appliance cannot take a measurement in the designated range, it will generate an error message. This message should help to solve the problem. Error Problem Solution Appliance does not re- act / automat- ically resets itself when protective fi lm is removed Empty battery? Insert a new battery Wrong battery polarity? Removing bat- tery and insert it correctly Faulty battery contact? Battery sym- bol on the LC display

Weak battery Insert a new battery “Lo” on the LC display

(measured value below 32.0°C or 89.6°F) Thermometer correctly posi- tioned in the ear or on the fore- head/temple? Pay heed to the operating in- structions in re- gard to position- ing in the ear or on the fore- head/temple. IB_106635_SSOT6B2_FR_DE_GB_LB2.indd 86 19.09.14 14:0687 GB Error Problem Solution “Hi” on the LC display

(measured value above 42.9°C or 109.2°F) Check the meas- urement mode. Please observe the directions for use with re- gard to taking correct measure- ments. “ErrE” on the LC display

Ambient tempera- ture outside the range of 15.0 °C - 40.0 °C /

- 104.0 °F (ear and scan mode). Please ensure an ambient tempera- ture in the range of 15.0 °C -

No measure- ment result after measurement. Please observe the directions for use with re- gard to taking correct measure- ments. “ErrH” on the LC display

Error detected during self-test. Contact the service centre. “ErrP” in LC display

Cleaning and care The device reminds you to clean the measuring sensor af- ter taking several temperature measurements. When this occurs, the cleaning symbol

appears in the LC display

and acoustic signals are heard. In order to avoid con- tamination with germs, the lens has to be rubbed after every use with a soft cloth that has been moistened with 70% medical alcohol. The use of hygiene attachments is, therefore, not necessary. After that, wait for at least 30 minutes before taking another measurement. Please keep in mind that due to the evaporative cooling eff ect of the alcohol, even the smallest amounts can falsify the result. Clean the housing with a soft, slightly damp cloth. In the case of more severe soiling a mild detergent can also be added to the water.Keep the appliance in a dry environ- ment and protect from direct sunlight. The appliance can be stored at temperatures of –10.0 °C - 55.0 °C (14.0 °F - 131.0 °F). Temperatures over 80.0 °C are to be avoided! In order to measure with it, however, it is nec- essary to let the appliance adjust to room temperature for a suffi cient length of time - otherwise an error message will be generated (see “Functions / Fault Analysis - Correc- tion of Problems”). A room temperature of 5.0°C - 59.9°C (41.0°F - 139.8°F) should also be maintained for the pur- poses of measurement. If the temperature is outside this range, an error message is shown (see “Functions / Fault Analysis - Correction of Problems”). Remove the battery when not using the appliance for any length of time. IB_106635_SSOT6B2_FR_DE_GB_LB2.indd 88 19.09.14 14:0689 GB

Guarantee and Service The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticu- lously examined before delivery. Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with our Customer Service Depart- ment. Only in this way can a post-free des- patch for your goods be assured. The warranty covers only claims for material and manu- facturing defects, but not for transport damage, wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for domestic use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorised service branch. Your statutory rights are not restricted in any way by this warranty. The warranty period is not extended by repairs made under the warranty. This ap- plies also to replaced and repaired parts. Damages and defects extant at the time of purchase must be reported immediately after unpacking, resp. no later than two days after the date of purchase.Repairs made after the lapse of the warranty period are subject to charge. IB_106635_SSOT6B2_FR_DE_GB_LB2.indd 89 19.09.14 14:0690 GB

Disposal The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. Contact your local refuse disposal authority for more details of how to dispose of your worn-out product. The product is subject to Directive 2012 / 19 / EU (WEEE). In the interests of environmental pro- tection, do not throw the product away with do- mestic waste when it is worn out, but take it to a proper disposal facility. Contact your local authority to fi nd out about collection centres and their opening times. IB_106635_SSOT6B2_FR_DE_GB_LB2.indd 90 19.09.14 14:0691 GB Faulty or used batteries must be recycled in accordance with Council Directive 2006 / 66 / EC. Take used batteries and / or the appliance itself to the collection facilities provided. Batteries should not be disposed of with domestic waste! Take batteries and / or the product itself to the collection facilities provided.

Conformity The CE Mark 0197 has been attached to this product in accordance with the following European Directive: Directive for Medical Products 93/42/EEC, as amended by Directive 2007/47/EC. The associated declaration of conformity has been deposited with the importer:
