Brand	Remington
Model	Style Series B5
Product Type	Beard Trimmer
Power Supply	Rechargeable Li-ion battery, AC adapter 100-240 V (type PA-0510E)
Charging Time	2 hours for a full charge
Battery Life	Up to 60 minutes
Cutting Lengths	17 positions from 0.4 mm to 18 mm (with adjustable guide)
Blades	Stainless steel blades, removable and washable under water
Approximate Weight	200 g
Approximate Dimensions	15 x 4 x 3 cm
Main Functions	Trimming, beard/mustache styling, thinning, neck trimming
Maintenance and Cleaning	Blades washable under running water; body not washable; regular brushing
Safety	Auto-disconnect adapter; do not use if cord is damaged; keep out of reach of children
Spare Parts and Repairability	Battery not user-replaceable; original adapter required; removable blades
Included Accessories	Adjustable cutting guide, AC adapter, storage case
Warranty	Refer to the warranty document provided
Country of Manufacture	China (estimated)

Frequently Asked Questions - Style Series B5 REMINGTON

How do I charge the Remington Style Series B5 trimmer?

Turn off the device, connect the AC adapter (type PA-0510E) to the device and then to a power outlet. The LED indicator flashes during charging and turns off when the battery is full (about 2 hours).

What is the battery life?

The battery life can reach 60 minutes after a full charge. To preserve the battery, fully discharge it every 6 months before recharging.

How do I adjust the cutting length?

Attach the adjustable cutting guide, then turn the adjustment wheel: up to lengthen, down to shorten. The indicator shows the selected length from 17 positions from 0.4 mm to 18 mm.

Can I use the trimmer without the cutting guide?

Yes, without the guide you cut hair to 1 mm (blades perpendicular to skin for 0.4 mm). Ideal for close shaving or beard outlining.

How do I clean the blades?

Turn off and unplug the device. Remove the blades by pushing your thumb under the blades. Rinse them under running water, dry thoroughly, then reassemble. Never rinse the body of the trimmer.

Can I replace the blade myself?

Yes, the blades are removable. To remove, push up under the blades. To reattach, align the back with the housing and press until it clicks.

What if the trimmer no longer charges?

Check that the adapter is properly connected and the outlet works. If the indicator does not light up, the adapter or battery may be defective. Use only the original adapter (PA-0510E).

Can I use the trimmer in the shower?

No, the device body is not water-resistant and must not be immersed. Only the blades are washable. Use the device on dry skin and hair.

How do I outline the beard?

Hold the trimmer with the blade facing you, place it on the desired contour and move outward from the beard or neck. Preferably use without the guide for more precision.

How do I recycle the trimmer at end of life?

Do not dispose of the device with household waste. Remove the battery (see manual), dispose of the device and battery at an approved collection point for electrical devices and batteries.

USER MANUAL Style Series B5 REMINGTON

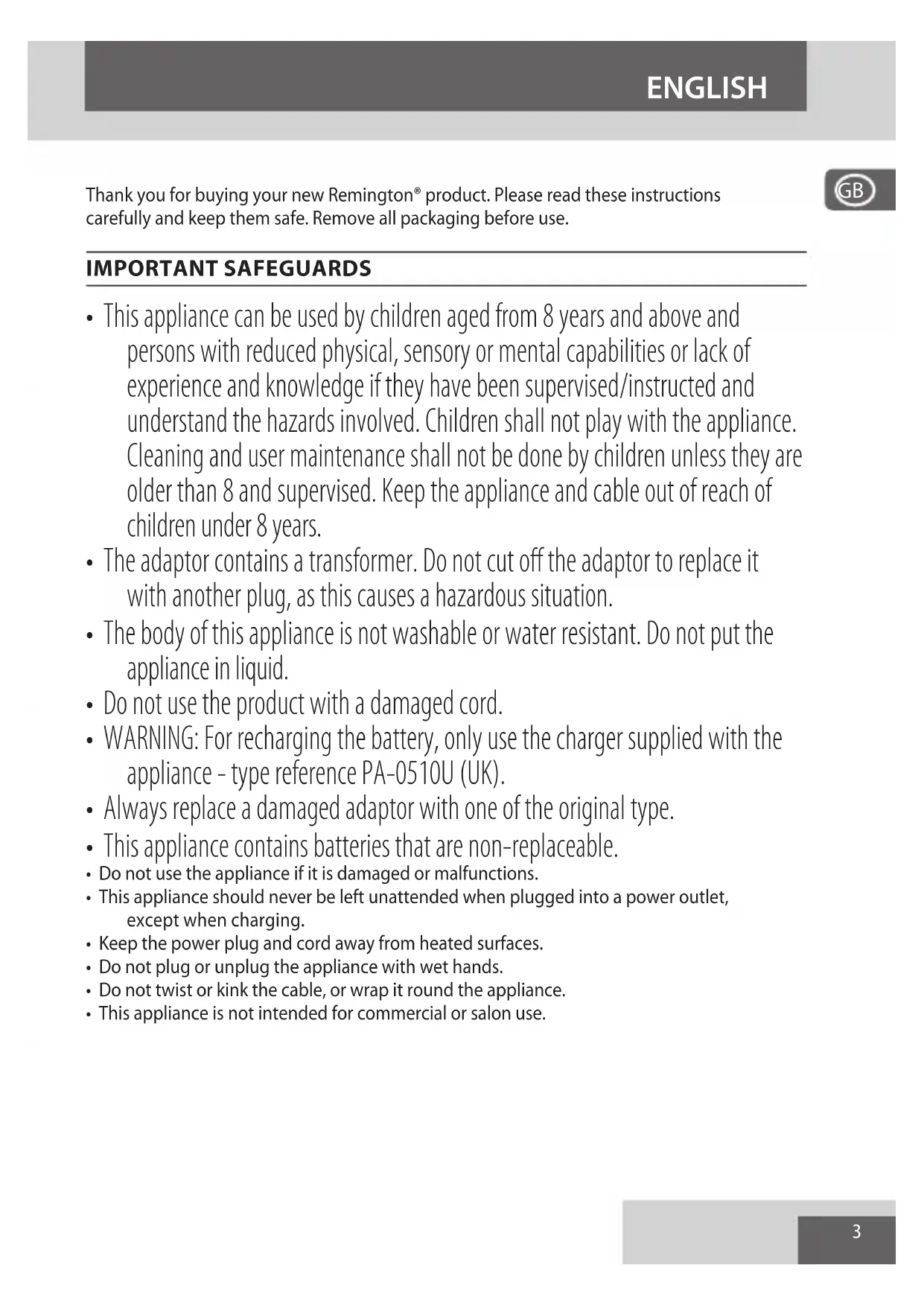

Thank you for buying your new Remington® product. Please read these instructions carefully and keep them safe. Remove all packaging before use.

IMPORTANT SAFEGUARDS

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Keep the appliance and cable out of reach of children under 8 years.
• The adaptor contains a transformer. Do not cut off the adaptor to replace it with another plug, as this causes a hazardous situation.
• The body of this appliance is not washable or water resistant. Do not put the appliance in liquid.
• Do not use the product with a damaged cord.
• WARNING: For recharging the battery, only use the charger supplied with the appliance - type reference PA-0510U (UK).
• Always replace a damaged adaptor with one of the original type.
• This appliance contains batteries that are non-replaceable.
• Do not use the appliance if it is damaged or malfunctions.
• This appliance should never be left unattended when plugged into a power outlet, except when charging.
• Keep the power plug and cord away from heated surfaces.
• Do not plug or unplug the appliance with wet hands.
• Do not twist or kink the cable, or wrap it round the appliance.
• This appliance is not intended for commercial or salon use.

PARTS

1. On/Off switch
2. Zoom wheel
3. Length position indicator
4. Charge indicator

5. Trimmer assembly

6. Adjustable comb

7. Charging connector
   Not shown:
8. Pouch

CHARGING YOUR APPLIANCE

CHARGING

• It is recommended to fully charge your product before using for the first time.
• Ensure the product is switched off.
• The adaptor automatically adjusts to a main voltage between 100V and 240V.
• Connect the charging adaptor to the product and then to the mains.

Charging indicator

Charging	LED will flash
Fully Charged LED will go off
Battery low LED will flash quickly

• Charge time for the battery from empty to full charge is 2 hours.
• Run time from fully charged is up to 60 mins.
• To preserve the life of your batteries, let them run out completely every 6 months and then fully charge.
• Do not recharge your product after each use as this will shorten the life of the battery. This appliance can be used "cordless" by powering it from its internal rechargeable battery, or "cored" by connecting it to the charging adaptor and then the mains power supply. Powering the appliance from the charging adaptor is useful if the rechargeable battery does not have enough charge. Be aware however, that frequent use of the cordless mode will reduce the life of the rechargeable battery.

INSTRUCTIONS FOR USE

FITTING THE ADJUSTABLE COMB

• Hold the trimmer in one hand with your thumb firmly on the zoom wheel to keep it from turning. Ensure the length position indicator is at 0.4.
• Slide the comb down the grooves until it clicks into place.
• The comb can only be attached one way.

ADJUSTING THE TRIM LENGTH

• The trimmer comb can be adjusted to give you 17 different trim lengths simply by turning the wheel to the desired setting.
• Select the comb length by rotating the zoom wheel upwards to increase the length and downwards to decrease the length. Please see the table below for the different length increments.
• The wheel will click into place as it reaches each setting and the setting number will appear on the length position indicator.

Setting Cutting Length
0.4 0.4 mm
1 1 mm
1.5 1.5 mm
2 2 mm
2.5 2.5 mm
3 3 mm
3.5 3.5 mm
4 4 mm
4.5 4.5 mm
5 5 mm
6 6 mm
8 8 mm
10 10 mm
12 12 mm
14 14 mm
16 16 mm
18 18 mm

Note: trimmer comb must be attached to the product in order to use the hair length selector.

TO THIN AND TAPER THE BEARD/MOUSTACHE

1. Fit the adjustable comb.
2. Use the zoom wheel to set the comb to the desired length setting.
3. The setting will appear on the length position indicator. If you are trimming for the first time start with the maximum trimming length setting.
4. Turn the unit on.

1. Place the flat top of the trimmer comb against the skin.
2. Slowly slide through the hair. Repeat from different directions as necessary.
3. If hair builds up in the trimmer comb during the trimming process, switch the unit off, pull the comb and brush the hair off.

Note: Use the beard trimmer without the adjustable comb for trimming hair close to the skin. This will trim hair to 1mm , holding the blades perpendicular to the skin will trim hair to 0.4mm .

TRIMMING THE NAPE OF YOUR NECK

Note: you will need a hand mirror for this operation if performing it alone.

1. Remove the adjustable comb.
2. Use your fingers to lift the hair at the base of your head up off the neck. Your index finger should be covering the roots of the hairs you are lifting to prevent accidental removal by the beard trimmer.
3. Using your other hand, hold the trimmer to the base of your neck with the cutting unit facing up and move the trimmer up the length of the neck until it touches your finger covering the hair roots at the base of your head.
4. Be sure to move the unit slowly when performing this operation and to keep the roots at the base of your head out of the way of the trimmer.

TO DEFINE THE BEARD/MoustACHE LINE

1. Hold the trimmer with the trimmer blade facing you.
2. Start with the edge of beard/moustache line and gently lower the trimmer blade onto your skin.
3. Use motions towards the edge of the beard/moustache line to trim to desired locations in facial area and away from beard in neck area.

BLADE RELEASE

• Ensure the trimmer is switched off.
• Remove the adjustable comb.
• Remove the blades by pushing your thumb upwards under the blades and move the blade set away from the trimmer body.
• To reattach the blades, align the back of the blades with the back housing at the top of the trimmer and push down until the blade set clicks into place.

TIPS FOR BEST RESULTS

• Beard, moustache and sideburn hairs should be dry.
• Avoid using lotions before use.
• Comb your hair in the direction that it grows.

• To ensure long lasting performance of the trimmer, clean the blades and unit regularly.
• Do not use harsh or abrasive cleaners on the unit or blades.
• This product has washable blades. Ensure the blades are detached from the trimmer before washing the blades.
• Wash the blades under a running tap to remove any hair clippings.
  After rinsing under a tap ensure the blades are dry.
• Please note the main body of the trimmer is not washable and should be kept away from water.
• After each use, it is recommended to clean hair from the blades either by rinsing the blades or using a cleaning brush.
• We recommend that you oil the blades regularly. Add a few drops on all gliding surfaces, the cutting area and back pads of the blades.

BATTERY REMOVAL

We strongly recommend that a professional removes the rechargeable battery. Parts of the case, and tools have sharp edges and may cause injury if not handled correctly.

• The rechargeable battery must be removed from the appliance before it is scrapped.
• Disconnect the charging adapter before removing the battery.
• Turn the trimmer on and discharge all remaining power.
• Remove the trimmer head.
• Pry off the metal clip under the trimmer head.
• Pry off the decorative panel around the switch.
• Unscrew the 2 screws.
• Pry off the top housing and expose the printed circuit board.
• Take out the battery and printed circuit board assembly.
• Disconnect the battery from the circuit board.
• Used batteries must be removed from the appliance and disposed of at an appropriate official recycling/collection point.
• Do not attempt to operate the device once you have opened it.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/ collection point.

C

UW APPARAAT VERZORGEN

NAGRA GODA RÄD FÖR BÄSTA RESULTAT

RADY, JAK OSIAGNAC NAJLEPSZY WYNIK

IOBTOPHA INEPEPABOTKA

Bo n36eXaHne BO3dEiCTBnB BpeDhbIX BeIeCTB Ha OkpykaIOU cyedy n 3IDOpOBBe np60bp i 6batapeo Ondop3OBOrO IIN MHOropa3OBOrO nCpONb3OBaHn, NOMEeHHbIe ONDHM I3 3Tnx CmMBo1OB, Heo6xOIMo yTuIN3NPOBaTb OTJeNbHOOT HecOPTnpOBaHHbIX 6bITOBbIX OTxOIOB. O6r3aTeIbHO yTuIN3NpyI Te 3JIeKTPnueckne i 3JIeKTPoHbIe n3DeJIIn, a TaKJee (ecIIN 3TO npImeHMo) 6batapeo Ondop3OBOrO IIN MHOropa3OBOrO IcNoIb3OBaHn B COOTBeTCTByIOuNX oΦNIuaNbHbIX PnyHKTaX NOBtOPHO nepepa6OTKn / c6opa OTxOIOB.

EN IYI SONUCLAR IÇIN IPUCLARI

N3BAJDAHE HA BATEPURA

Cinno npenopbVbme npocecnoHaHnct da otctpaHn npe3apeJdaaata ce 6atepy. Yactn OT Kopnyca n HnCTpyMeHTnte mAt OCTpn Kpaunu a Moat da npuHnT hapaHBAhe, aKO He ce u3PON3BaT npabUNHO.

• Ппзарждаца тсберия Трябда сс OTСТРANИ OTуpeда п徳Да ссКранВа.
• I3BaTe aanTepa 3a 3apeKdahe npeni da OTcTaHbAte 6aTePnTa.
• BkIIOUeTe TpIMepa n ro octabeTe da pa6oTn do n3uePbAHe Ha 6aTepeyraTa.
  2.ИЗваде Te rnaBaTa Ha Tpnmepa.
• CbaTe MeTaJIHata cKo6a nOД rIaBaTа Ha TpIMepa.
• CbaIe Te deKopaTbHnnaHeI OKoJIo 6yToHa.
• Pa3BnIte 2-Ta BnHTa.
• CbaIe TropnK Kopnyc, 3a da OTkpneTe neuatha Ta nlaTka.
  7.ИЗbaДeTe 6aTePnЯТа И моДуЛа Ha NeчaTHaТа ПlaTka.
• Pa3kaye 6aTepeyra O T PnTaKaTa.
• YnOtpe6eHnte 6aTeepnn Tp86Ba Da ce n3BaJr OT ypeDa N da Ce npedaaT Ha npabunHOTo MxCTo 3a peuKInpaHe/cb6InpaHe.
  He ce onntBaTe da BkIIOuBaTe ypea cnei KaTO cTe ro OTBOpNIn.

PEÇUKJIIPAHE

3a da ce n36erHaT ekOJorHn H 3dpabHn npoBemn nopadn haIuYe Ha onaChi cy6ctaHn, ypeDnte, akymyataOpHnte n

HeakymylaTopHnTe 6aTepu, 06o3HaueHn C eHN OT Te3N CmBOnn, He Tp8Ba Da ce N3XbPnT 3aeHNO C HecOpTnpaHn O6uHcN OtnpaBcu.

BnHa n3XbpbnIe eJektpnueckn n eJektpoHn npOdykTn n,

KbdeTo e npnIOxHMo, aKymyIaTOPHn I HeaKymyIaTOPHn 6aTePnN, H a NOxOJaIoo OfHiuHaIIHO MAcTO 3a peuNKInpaHe/Cb6InpaHe.

J So 150

J 1 J 1

aale aie g c|e j

8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8

8 8

cIaI aIbIawI gI aIyI

1jbs

1

·J

aaiii 10000000000000000000000000000000000000000000

.

-

.PA-0510E

iJ

aJi

L
在 Rt ABN 中:
AD^2 = AB^2 + BD^2
·
a
S OBC = S AOB + S BOC
jL = j_L
( xt^2 + x) ( xt^2 - x) = 0 xt^2 + 3xt^2 - xt^2 = 0

byall yill bie

J 1

在 Rt ABD 中:

(On/off) 1

S OBC = S COD + S_ BOC

Jg 3

J 4

y1 = 5,y2 = 4

1j2

AE

#

S1 = S2 = S_3 = 0

j( t - 1) ( t - 2) = 0

.

a1 = 2,b2 = - 4

#

ED = 2GD = 1

. a : a A

...

a,b = 1( b)

山

iiJall iJ! iie aee 10 jiee

.

.1

.

3

.4

iJawall 5

Ref. No. MB5000 Type No.MB03A

19/INT/ MB5000 T22-7001148 Version 11/19

Remington® is a Registered Trade Mark of Spectrum Brands, Inc., or one of its subsidiaries

VARTA Consumer Batteries GmbH & Co. KGaA, Alfred-Krupp-Str. 9, 73479 Ellwangen, Germany www.remington-europe.com
