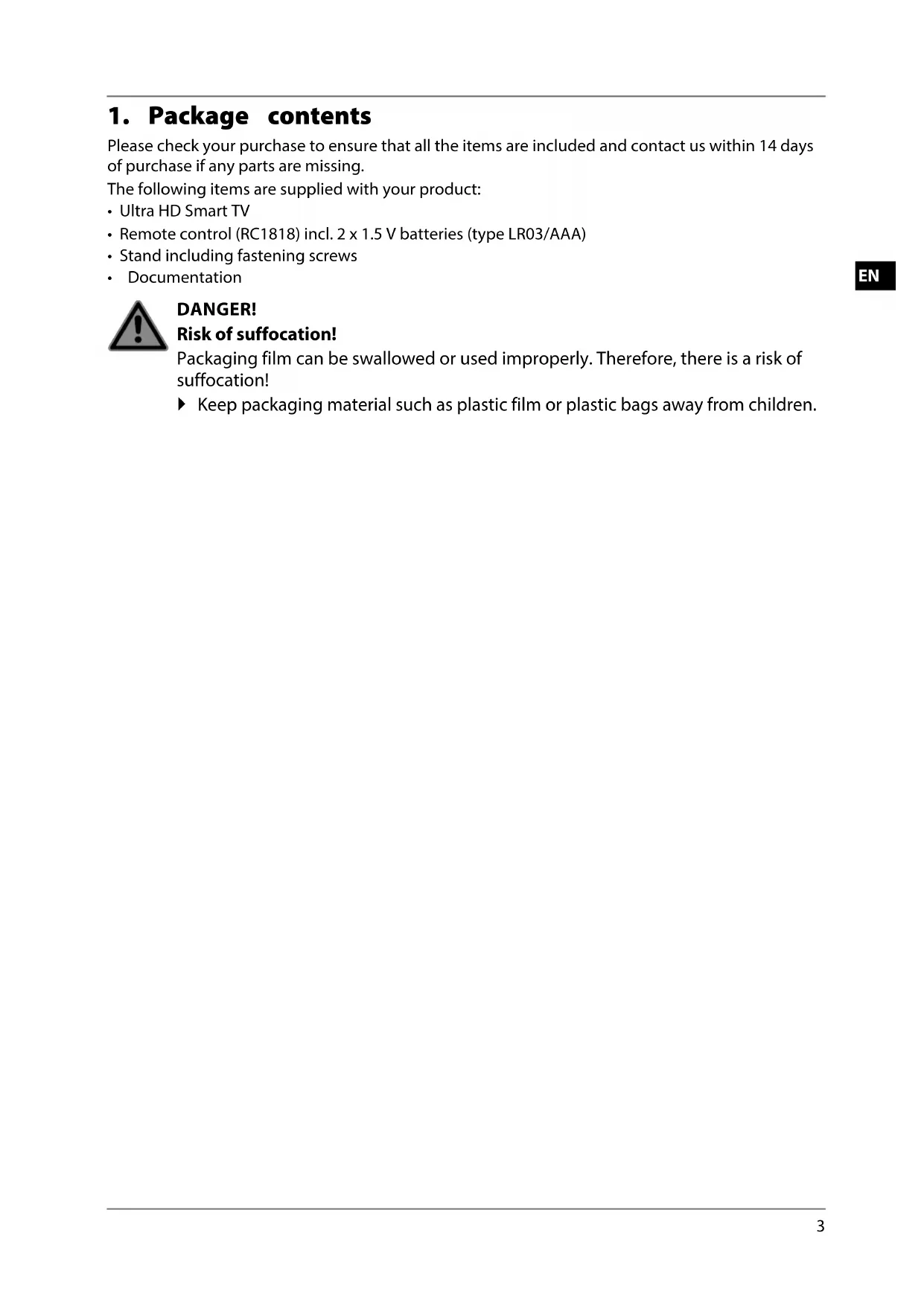

EN21. Package contents Please check your purchase to ensure that all the items are included and contact us within 14 days of purchase if any parts are missing. The following items are supplied with your product:

• Stand including fastening screws

• Documentation DANGER! Risk of suffocation! Packaging film can be swallowed or used improperly. Therefore, there is a risk of suffocation! Keep packaging material such as plastic film or plastic bags away from children.

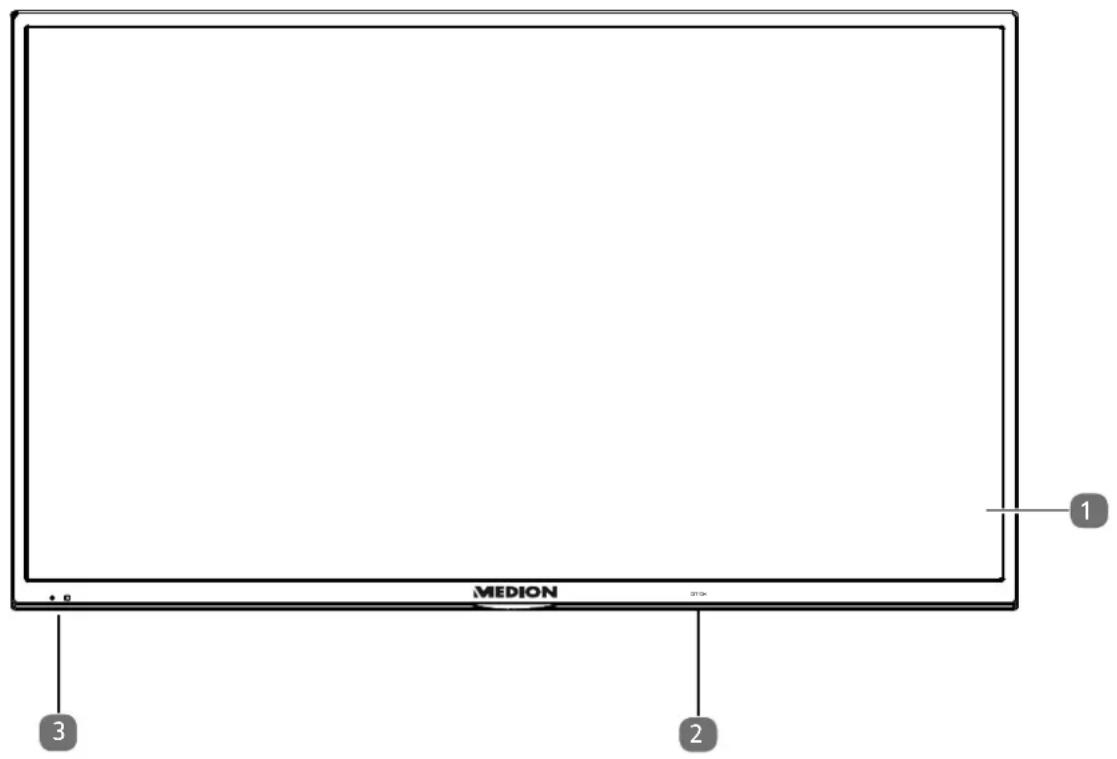

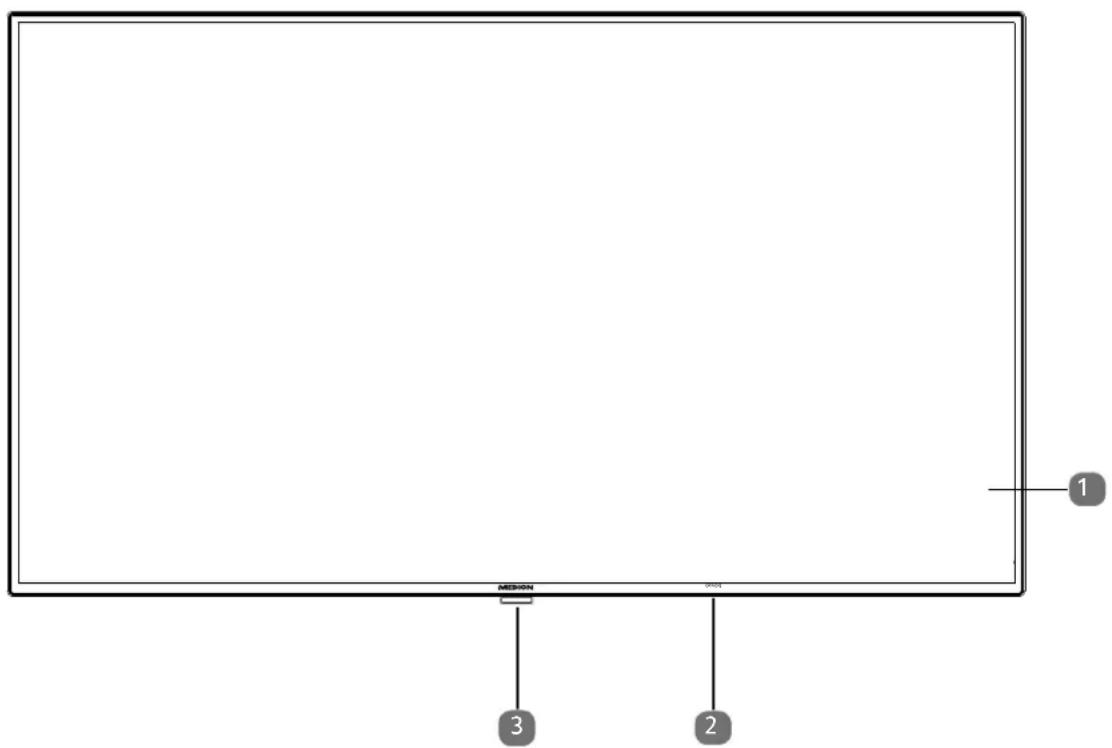

3) Infrared sensor: Reception field for the infrared TV signals.

Operating light: Lights up when the device is in standby mode. 42.2. Rear and right-hand side

(ARC)MODE - / I- O +

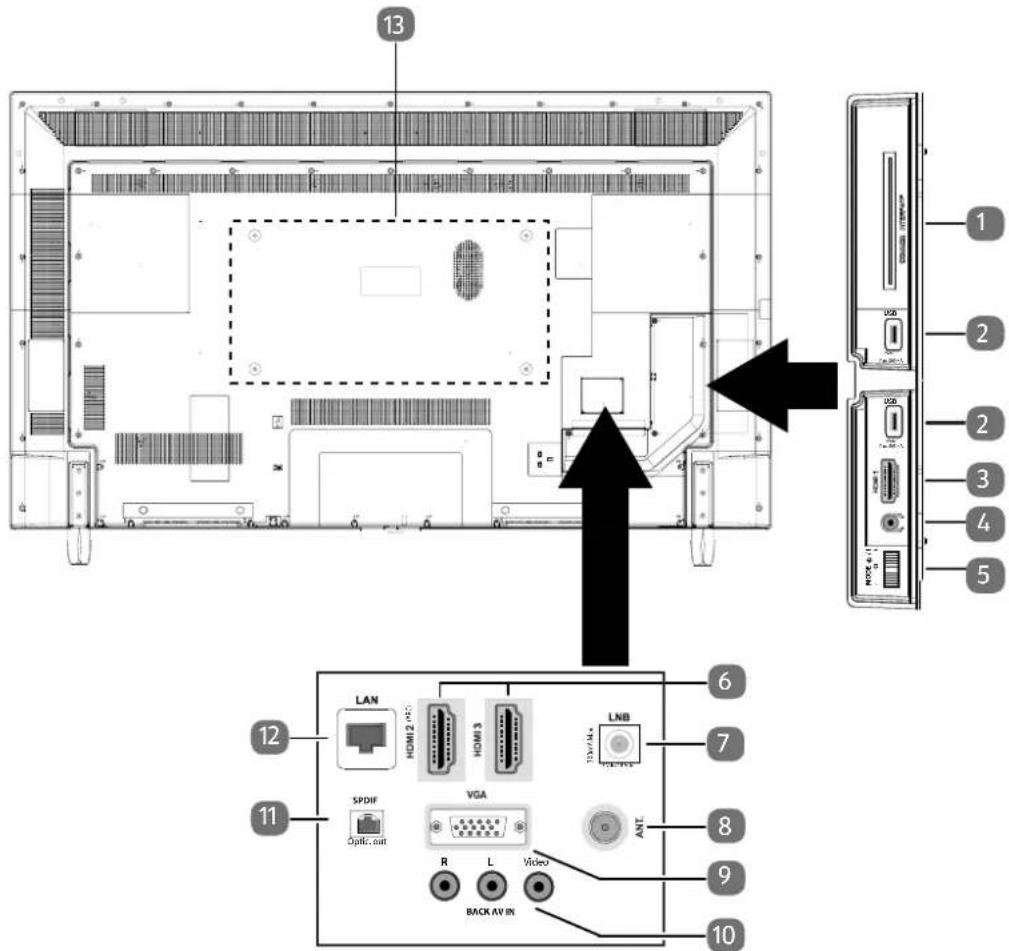

1) COMMON INTERFACE (CI+): Card slot for connecting pay TV cards

, 500 mA max.): USB connection for media playback/recording (PVR)

: For connecting headphones with 3.5 mm jack

5) MODE: Multifunction button for channel switching, input source selection or volume

adjustment. Settings are made by tilting upwards (+) or downwards (-). Pressing the button briefly switches between functions. A long press switches the device into standby mode or operating mode.

6) HDMI 2-3: HDMI connection for devices with a HDMI output (HDMI 2 can be used for CEC/

9) VGA: VGA port for connecting a PC or a YUV adapter (optional)

12) LAN: Network connection to connect to the Internet

Wall mount not supplied. When mounting the device, make sure that you use M6 screws. The length of the screws corresponds to the thickness of the wall bracket plus 10 mm.

61) (SOURCE): Select input signal of connected devices

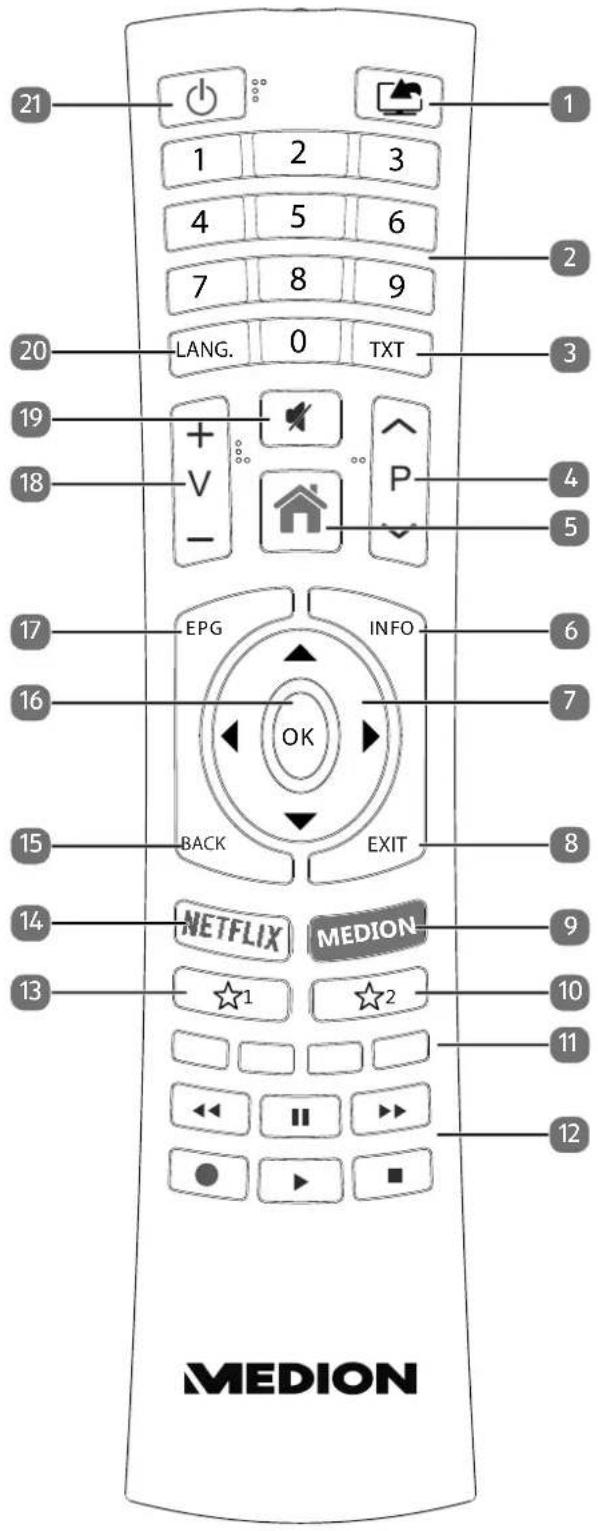

TV: programme selection, teletext: page selection

TXT : Activate teletext Press 2 x = set transparent; Press 3 x = close

: Multifunction button for channel position or input source, switching between DVB-S, DVB-T and DVB-C channels

and buttons can be programmed to any channel position or a particular input source Start by selecting the function you require and then hold down the corresponding button for 5 seconds until MY BUTTON IS SET appears on the screen. This confirms the new programming. After each INITIAL INSTALLATION your customised button programming is deleted and reset to the factory defaults

3. Using the device for the fi rst time

Before using for the first time, be sure to read the section “Safety instructions”. 3.1. Unpacking

• Select a suitable place for setting up the device before unpacking.• Open the box very carefully to avoid damaging the device. The device could be damaged if you use a knife with a long blade to open the box.• The box contains a number of small items (including batteries). Keep these out of the reach of children as they represent a choking hazard.• Store the packaging material in a safe place; only use this box to transport the TV. DANGER! Risk of suffocation! Packaging film can be swallowed or used improperly. Therefore, there is a risk of suffocation! Keep packaging material such as plastic film or plastic bags away from children. 3.2. Mounting Attach the stand as shown in the illustration. Carry out this step before connecting the smart TV.MD31421 / MD31422 / MD31423:

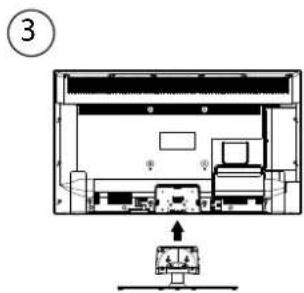

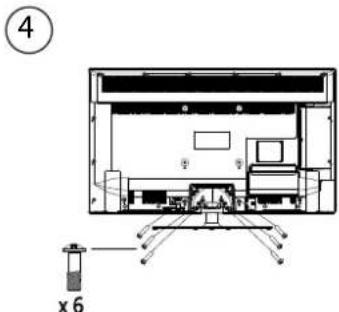

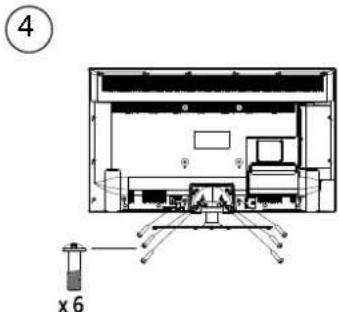

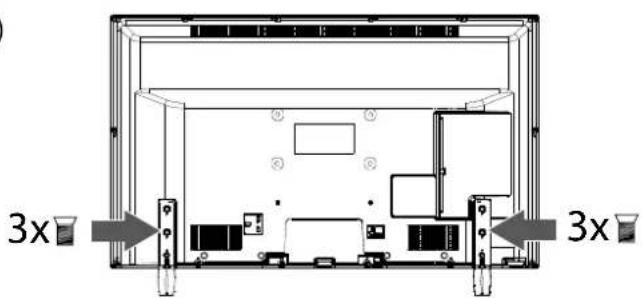

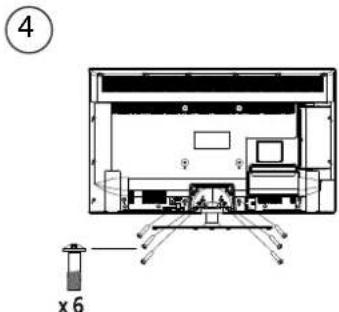

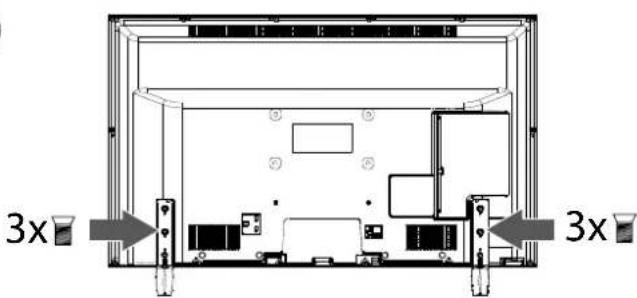

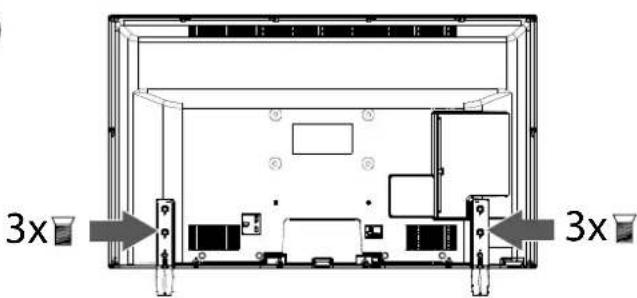

4 x M4 x 164 x M6 x 20 3.3. Inserting batteries in the remote control Loose the screw of the battery compartment cover on the back of the remote control and remove the cover. Insert two LR03 (AAA) 1.5 V batteries in the battery compartment of the remote control. Check the battery polarity (inscribed on the bottom of the battery compartment). Close the battery compartment by fixing the cover with the screw. NOTICE! Risk of damage! The remote control can be damaged by leaking batteries if not used for a long period of time! Remove the batteries from the remote control if the device is not going to be used for a long period. 3.4. Connecting the antenna Your smart TV supports different antenna signals. You can feed the following picture signals via the connection labelled ANT.

connector (digital cable)

This service must be available in your region.

EN Connect the antenna cable from either the house aerial/the analogue cable connection, the DVB-T antenna or the DVB-C connection to the antenna connection on the smart TV You also have the option of connecting a digital satellite system to the connection labelled LNB. Screw the F connector of a coaxial antenna cable onto the connection on the smart TV. To receive encrypted/subscription channels you will need to use a CI module and an appropriate card. Insert a CI module (available in specialist shops) into the slot provided for this purpose on the left-hand side of the device (Common Interface). You can then insert the card from your provider into the CI module. 3.5. Connecting the power supply Connect the mains plug on the device to an easily accessible 220 - 240 V ~ 50 Hz mains socket. 3.6. Switching the smart TV on and off Set the power switch on the bottom of the device to ON. The device switches to standby mode and the display on the front will light up. To switch on the device, press − on the remote control: the Standby/On button , one of the number buttons or one of the P / buttons; − on the device: the multifunction button

Use the Standby/On button on the remote control to switch the device back into standby mode. Although the device has been switched off, it will continue to consume electricity. Use the mains switch to turn off the device (OFF position). The device will continue to consume power as long as it is connected to the mains network. If the device is not receiving an input signal, it will automatically switch to standby mode after five minutes. A countdown timer will appear on the screen until this time. This function is not available for all sources. 3.7. Channel search when switching on for the fi rst time When you switch the device on for the first time, you will be guided through the FIRST TIME INSTALLATION menu.You can call up and carry out the first-time installation again at any time via the menu INSTALLATION > FIRST TIME INSTALLATION . Use the keys to select the language.. After confirming the selected language with OK the initial installation will begin 10 Use to select the desired country. The country setting will influence the order in which the channels are stored. Also, there are a number of options preset for the individual countries. Afterwards, press OK to continue. You will be asked to agree to the MEDION® Smart TV Privacy Policy. This is necessary if you intend to use the Network / Internet / HbbTV services. Read the privacy settings carefully. Select the individual points with and confirm them with OK, if necessary. If you have any questions, complaints or comments regarding this privacy policy or its enforcement, please contact by email at smarttvsecurity@vosshub.com. Then confirm with YES. If you choose NO, you will not be able to use these services without later agreeing to the terms. Finally, press the NEXT button with and press OK to go to the next point.

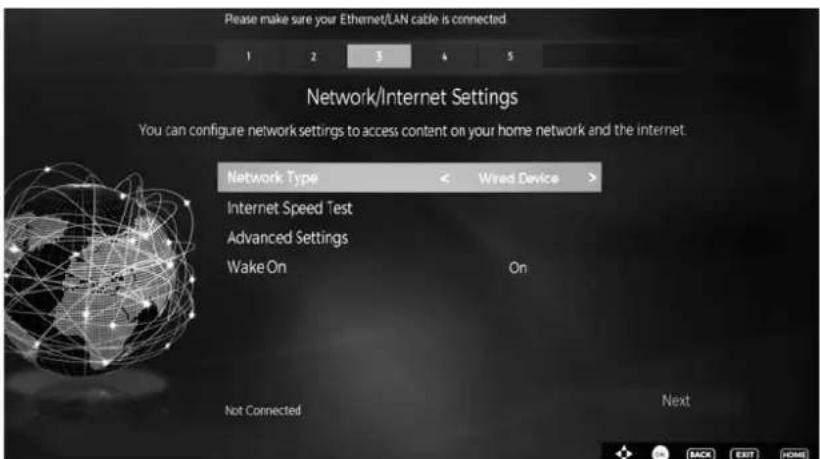

ENNetwork settings NETWORK TYPE Here you select the network type: WIRELESS DEVICE or WIRED DEVICE. After making a selection NEXT with the direction buttons and confirming with the OK button, an overview of all available networks appears. Make a selection and confirm with the OK button. If a password is required for a network, a virtual keyboard appears which you can use to enter this with the help of the direction buttons and the OK button. After entering the password, select OK on the keyboard and confirm with the OK button. PRESS WPS

FI ROUTER (only for WLAN) This option enables you to quickly establish a WPS connection via a wireless network (Wi-Fi). Hold down the WPS button on your router and confirm this option OK using the OK button. Then the WPS connection will be made. INTERNET SPEED TEST Press the OK button in order to test the Internet speed. ADVANCED SETTINGS Press the OK button to call up further network configuration options. CONFIGURATION Choose the setting AUTOMATIC IP or MANUAL IP. If you select MANUAL IP, three additional lines appear in which you can manually enter the data for the IP

and DEFAULT GATEWAY using the direction buttons and the number buttons. CONFIGURATION Select here between AUTOMATIC DNS or MANUAL DNS. If you select MANUAL DNS, two additional lines appear in which you can manually enter the data for the DNS SERVER 1 and DNS SERVER 2 using the direction buttons and the number buttons. An existing network connection can be terminated by pressing the red button. WAKE ON Activate/deactivate the Wake-On LAN/Wake-On Wireless LAN function (WoL/ WoWLAN). This enables you to switch on the smart TV via a different device (e.g. a smartphone with the MEDION® Life Remote App). Both devices must be connected to the same network via LAN or Wi-Fi for this purpose. Select the ON setting to activate this function. The device being used as a remote control needs to be connected to the TV once when it is switched on. The control function only works when the TV is in standby mode. If the TV is turned off and on again at the mains switch, the connection between the two devices will be automatically restored. Exit the network settings by pressing OK.

123.7.2. Übertragungsart

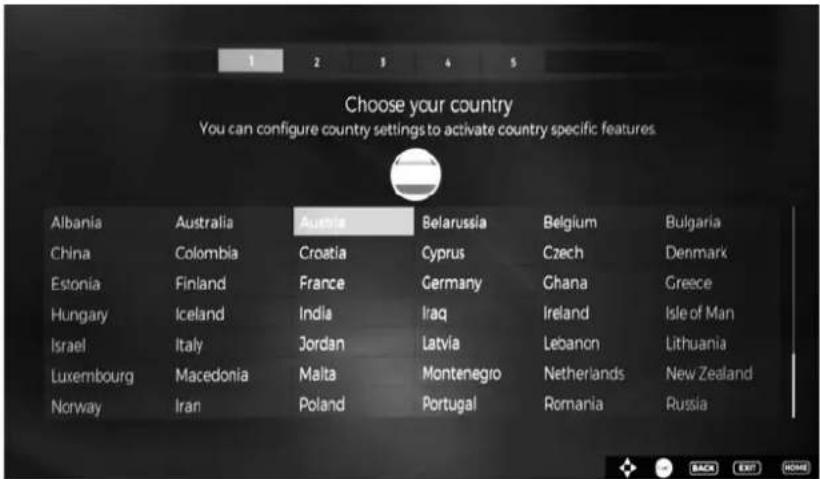

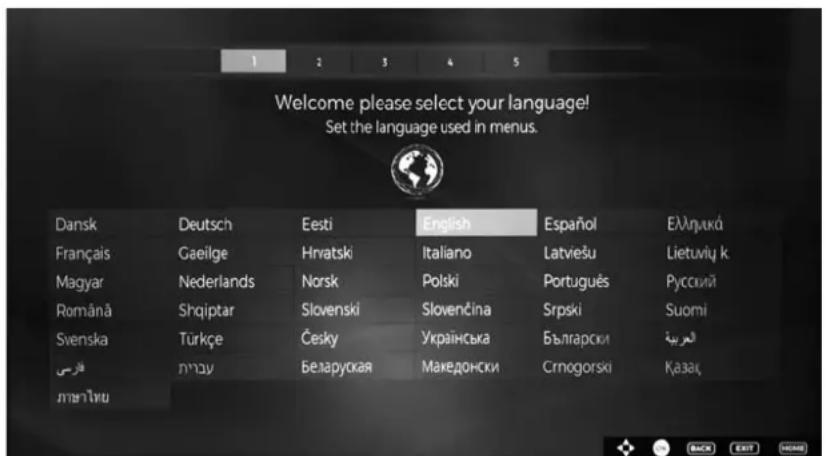

Before the station search starts, select the following options:

SCAN ENCRYPTED CHANNELS: Use to select whether encrypted channels should also be searched for.

SELECT FAVOURITE NETWORK TYPE: Use to select the preferred reception method. If you use several types of reception, you can select the types below with and activate with OK. Select NEXT with and confirm with OK.

3.7.3. Cable digital

If you have previously activated the reception type DIGITAL CABLE, you can now make settings for the network search. If it should be necessary, you can adjust the NETWORK, FREQUENCY, the NETWORK ID and the SEARCH STEP correspondingly.

If you have previously activated the reception type SATELLITE, you can now make settings for the antenna type. To set the antenna type, select one of the following antenna types:

DIRECT: Select this antenna type if you have a single receiver and a satellite antenna. Press the OK button and then choose the desired satellite (you can also call up the transponder list using the blue button). Afterwards, press the OK button again to start the search. After that, decide whether or not the channel list should be loaded.

UNICABLE: Select this antenna type if you have multiple receivers and a single-cable system. Press the OK button and make all the necessary settings regarding SATELLITE POSITION 1/2, USER BAND and BAND FREQUENCY (here you can also call up the transponder list using the blue button). Afterwards, press the OK button again to start the search. After that, decide whether or not the channel list should be loaded.

DISEQC SWITCH: Select this antenna type if you have multiple satellite antennas and a DiSEqC switch. Press the OK button and activate the desired DISEQC switch 1 - 4 (here you can also call up the corresponding transponder list using the blue button). Afterwards, press the OK button again to start the search. After that, decide whether or not the channel list should be loaded. During the search, the scan progress is displayed. In addition, the number of found TV and radio stations is displayed. Afterwards, press OK to continue. At the end of automatic program storage, a TV programme is shown. The initial installation described here corresponds to the FIRST TIME INSTALLATION option in the INSTALLATION menu.

EN4. Troubleshooting Malfunctions can sometimes have quite trivial causes, but they may also be the result of defective components. We have included a brief troubleshooting guide below which may help to solve any problems. If these tips don’t solve the problem then we’ll be more than pleased to help you out. Just give us a call! Error Measures There is no picture and no sound.

• Check if the power cable is inserted properly into the socket.

• Check if signal reception is set to TV.

• Check whether the power switch on the bottom of the device is turned on. There is no AV picture. • Check to ensure that the contrast and brightness settings are correct.

• Check to ensure that all external devices have been connected properly.

• Check to ensure that you have selected the correct AV source.

• Any input source that you want to select with

SOURCE) must be marked in the SOURCES > SOURCE SETTINGS menu. There is no sound. • Ensure that the volume has not been set to the minimum level.

• Ensure the mute setting is not active. Do this by pressing the button in the top left of the remote control with the crossed out loudspeaker symbol. There is no picture and no sound. I can hear noise, though.

• The reception might be poor. Check if the antenna is connected properly. The picture is not clear. • The reception might be poor.

• Check if the antenna is connected properly. The picture is too bright or too dark.

• Check the settings for contrast and brightness. The picture is not sharp. • The reception might be poor.

• Check if the antenna is connected properly.

• Check the settings for sharpness and noise reduction in the PICTURE menu. There is a double/triple picture.

• Check if the antenna is aligned properly.

• Waves might be reflected off buildings or mountains. The picture is pixellated. • There might be interference from cars, trains, power lines, neon lights, etc.

• There might be interference between the antenna and power cables. Position the cables further apart. There are stripes on the screen or the colours are faded.

• Is there interference from another device?

• Transmission antennae on radio stations, ham radios and portable phones can also cause interference.

• Operate the device as far away as possible from the device that might be causing the interference. The MODE multifunction button on the device is not working.

• The child lock might be on. 14TV switches off • Check whether the automatic TV switch off function is activated under MORE... No reception/poor reception via a wireless network connection (WLAN).

• Ensure that all necessary settings have been made. WIRELESS DISPLAY cannot be established.

• Check that all necessary settings have been made. Read the section “Wireless Display”. The remote control is not working.

• Check whether the batteries in the remote control are functional and have been inserted the right way round.

• Ensure the sensor field is not exposed to strong light.

• Turn the device off and on again using the power switch on the bottom of the device. Menu cannot be opened. • Check whether CEC is enabled. In this case, the menu cannot be opened. This is not a defect. In some cases, the menu of the device connected via HDMI2 opens. This is dependent on the source device and must be supported accordingly.

• Change the input source. No Bluetooth® connection • Make sure that all settings have been correctly specified on the device and that the Bluetooth® function is enabled.

• Check whether the device to be connected is switched on and is in discoverable mode.

• Make sure that all settings have been correctly specified on the device to be connected and that the Bluetooth® function is enabled. Consult the operating instructions of the corresponding device, if necessary. For further information on troubleshooting, read where applicable the comprehensive operating instructions available online because certain measures and procedures are described there in more detail.

EN4.1. Do you need more help? If the suggestions in the previous section did not solve your problem, please contact us. To make it easier for us to help you, please have the following information to hand:

• What external devices are connected?

• What messages appear on the screen?

• When operating the device, at which step did the problem occur?

• If you have a PC connected to the device: − How is your computer configured? − What software were you using when the problem occurred?

• What steps have you already taken to try and rectify the problem?

• Please provide us with your customer number if you have one.

5. Service information

Please contact our Customer Service team if your device ever stops working the way you want or expect it to. There are several ways for you to contact us:

• In our Service Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there. You will find our Service Community at http://community.medion.com.

• Alternatively, use our contact form at www.medion.com/contact.

• You can also contact our Service team via our hotline or by post. Opening times Hotline number UK Mon – Fri: 08.00 –

Service address MEDION Electronics Ltd. 120 Faraday Park, Faraday Road, Dorcan Swindon SN3 5JF, Wiltshire United Kingdom

166. Legal notice & operating instructions download

Copyright © 2018 Date: 28.08.2018 All rights reserved. These operating instructions are protected by copyright. Mechanical, electronic and any other forms of reproduction are prohibited without the written permission of the manufacturer. Copyright is owned by the company: Medion AG Am Zehnthof 77 45307 Essen Germany Subject to technical and optical changes as well as printing errors. The operating instructions can be downloaded from the service portal. On the service portal, use the device’s MSN device to look for the associated instructions. You will find the MSN on the device’s type plate or in the “Product Data Sheet” section. You can also scan the QR code below to download the instructions onto your mobile device from the service portal. URL QR code GB www.medion.com/gb/service/start/ AUS www.medion.com/au/contact.php. US www.medion.com/us/

EN7. Product data sheet According to Directive 1062/2010 Trademarks MSN no.

Annual power consumption (kWh/year)
