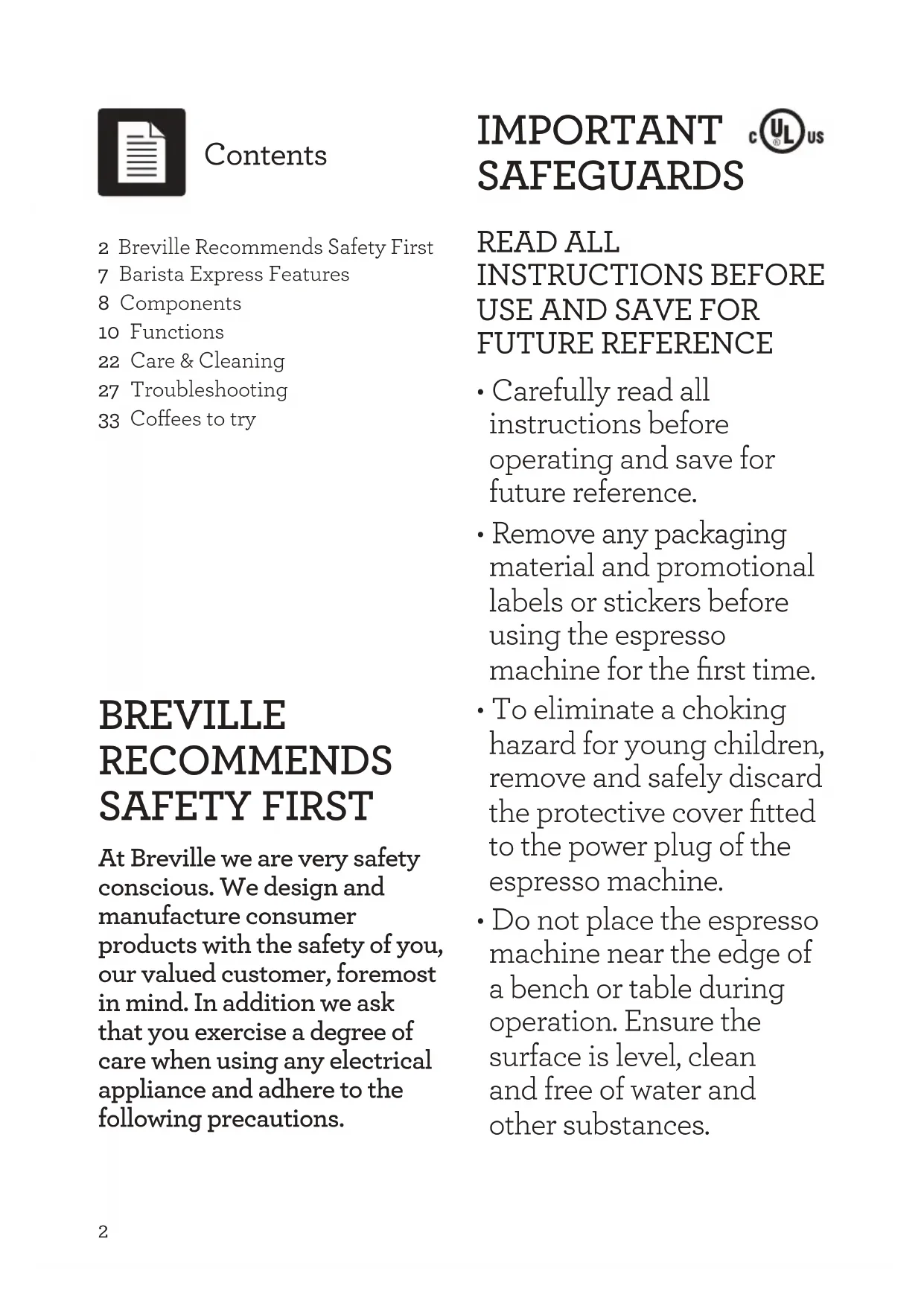

USER MANUAL the Barista Express BES870XL BREVILLE

• Carefully read all instructions before operating and save for future reference.

• Remove any packaging material and promotional labels or stickers before using the espresso machine for the first time.

• To eliminate a choking hazard for young children, remove and safely discard the protective cover fitted to the power plug of the espresso machine.

• Do not place the espresso machine near the edge of a bench or table during operation. Ensure the surface is level, clean and free of water and other substances. Contents BREVILLE RECOMMENDS SAFETYFIRST At Breville we are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions. 2 Breville Recommends Safety First 7 Barista Express Features 8 Components 10 Functions 22 Care & Cleaning 27 Troubleshooting 33 Coees to try3

• Do not place the espresso machine on or near a hot gas or electric burner, or where it could touch aheated oven.

• Do not use the espresso machine on metal surfaces, for example, asink drain board.

• Always ensure the espresso machine is properly assembled before connecting to a power outlet and operating.

• Do not attempt to operate the espresso machine by any method other than those described in this book.

• The espresso machine is not intended to be operated by means of an external timer or separate remote control system.

• We recommend using cold, filtered water. WARNING To avoid the risk of injury, donot open the brew chamber during the brew process.

• We do not recommend the use of de-mineralized or distilled water as this may aect the taste of the espresso and how the machine is designed to function. Do not use any other liquid.

• Never use the espresso machine without water in the water tank.

• Ensure the portafilter is firmly inserted and secured into the group head before using the machine.

• Never remove the portafilter during the brewing operation as the machine is under pressure.

• Do not touch hot surfaces. Use handles or knobs. Allow the espresso machine to cool down before moving or cleaning any parts.

• Do not place anything other than cups for warming on top of the espresso machine.4

• Do not operate the grinder without the hopper lid in position. Keep fingers, hands, hair, clothing and utensils away from the hopper during operation.

• Always switch o the espresso machine by pressing the POWER button to o and unplug if appliance is to be left unattended, if not in use, before cleaning, before attempting to move the appliance, disassembling, assembling and when storing the appliance.

• Keep the espresso machine and accessories clean. Follow the cleaning instructions provided in this book.

• Do not use espresso machine attachments other than those provided. The use of accessory attachments not recommended by Breville may result in fire, electric shock or injury to persons. IMPORTANT SAFEGUARDS FOR ALL ELECTRICAL APPLIANCES

• Fully unwind cord before use.

• To protect against electric shock, do not immerse cord, plug or appliance in water or any other liquid.

• Do not let the cord hang over the edge of a bench or table, touch hot surfaces, or become knotted.

• Do not leave the appliance unattended when in use.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.5

• Children should be supervised to ensure they do not play with the appliance.

• This appliance is recommended for household use only. Do not use this appliance for anything other than its intended use. Do not use in moving vehicles or boats. Do not use outdoors.

• It is recommended to regularly inspect the appliance. Do not use the appliance if the power cord, power plug, or appliance becomes damaged in anyway. Immediately cease use and call Breville Consumer Support.

• For any maintenance other than cleaning, call Breville Consumer Support.

• This appliance is equipped with a power cord having a grounding wire with a grounding plug. The appliance must be grounded using a 3-hole properly grounded outlet. In the event of an electrical short circuit, grounding reduces the risk of electrical shock.

• If the appliance is of the grounded type, the extension cord should be a grounding 3-wire cord.

• If the power outlet is a standard 2-prong wall outlet, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord or use an adapter.6

• Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded. SHORT CORD INSTRUCTIONS Your Breville appliance is fitted with a short power cord to reduce personal injury or property damage resulting from pulling, tripping or becoming entangled with a longer cord. Longer detachable power cords or extension cords are available and may be used if care is exercised. If an extension cord is used, (1) the marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance, (2) the cord should be arranged so that it will not drape over the countertop or table where it can be pulled on by children or tripped over unintentionally and (3) the extension cord must include a 3-prong grounding plug. WARNING Fully unwind the cord before use. BREVILLE ASSIST™ PLUG Your Breville appliance comes with a unique Assist™ Plug, conveniently designed with a finger hole to ease removal from the power outlet.

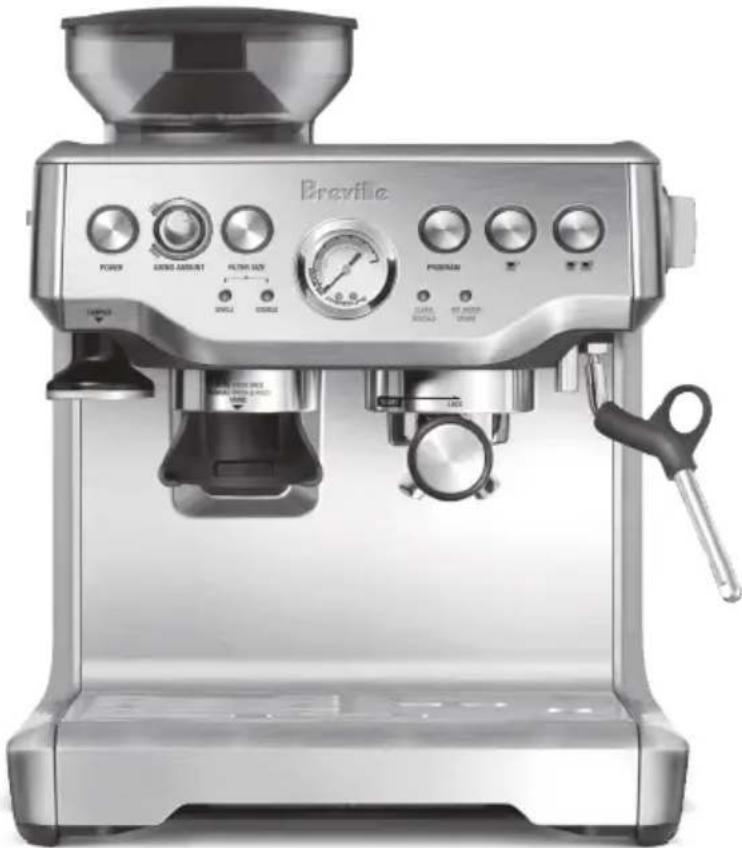

Feature INTEGRATED CONICAL BURR GRINDER Precision conical burrs maximize ground coee surface area for a full espresso flavor. Upper and lower burrs are removable for cleaning.

ADJUSTABLE GRIND SIZE

Espresso grind settings from fine to coarse for optimal extraction.

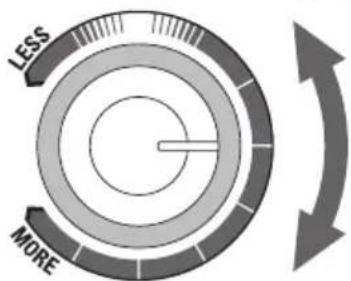

ADJUSTABLE GRIND AMOUNT

Adjust the amount of fresh ground coee dosed into the filter basket to suit the fineness or coarseness of the grind. AUTOMATIC DOSING Use the FILTER SIZE button to tell the machine if you are using a 1 CUP or 2 CUP filter basket. The grinder will dispense the required amount of ground coee for a single or double cup dose.

Auto stop for hands free grinding directly into the portafilter.

Electronic PID temperature control for increased temperature stability.

THERMOCOIL HEATING SYSTEM

Integrated stainless steel water coil accurately controls water temperature.

COMMERCIAL STYLE STEAM WAND

Stainless steel 360° swivel-action steam wand for eortless milk texturing.

Dedicated hot water outlet for making Americanos and pre-heating cups.

LOW PRESSURE PRE-INFUSION

Applies low water pressure at the start of the extraction to gently expand grinds for an even extraction.

Removes excess water from the ground coee in the filter basket after extraction for easy disposal of the coee puck.8 Components A. 8.8oz (250g) bean hopper With locking system for easy removal, storage and transfer of coee beans. B. Integrated conical burr grinder C. Grind outlet D. Grinding activation switch E. Hands free grinding cradle F. GRIND SIZE selector Espresso grind settings from fine to coarse. G. GRIND AMOUNT dial Adjust the amount of fresh ground coee dosed into the filter basket to suit the fineness or coarseness of the grind. H. FILTER SIZE button Tell the machine if you are using a 1 CUP or 2 CUP filter basket and the grinder will dispense the required amount of ground coee for a single or double cup dose.

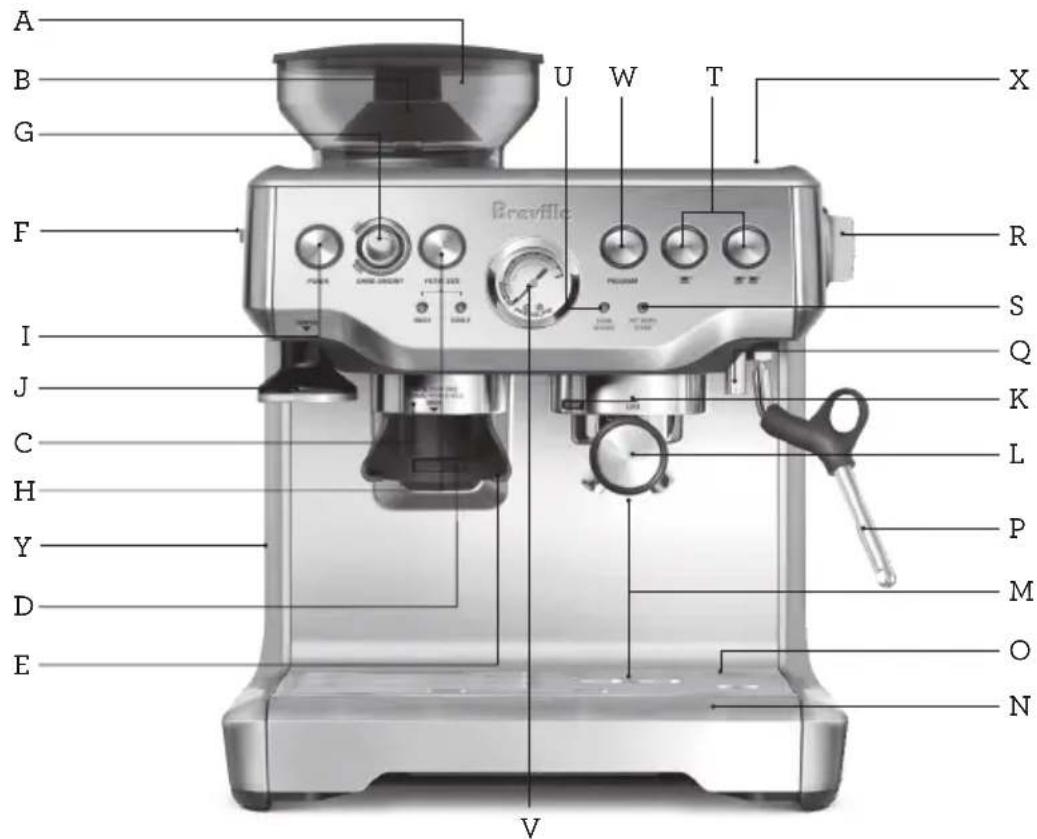

J. Integrated removable 54mm tamper K. Group Head L. 54mm stainless steel portafilter With commercial style spouts. M. Extra-tall cup clearance for tall mugs N. Removable wet & dry coee separator drip tray O. Storage tray (located behind drip tray) Houses accessories when not in use. P. 360˚ swivel-action steam wand Q. Dedicated hot water outlet Monitors espresso extraction pressure. R. Steam/Hot Water dial Selector dial for steam and hot water. S. Steam/Hot Water light Illuminates to indicate that the steam or hot water function is selected. T. 1 CUP and 2 CUP buttons With preset, manual over-ride or re-programmable shot volumes.

Rating Information U. CLEAN / DESCALE light Illuminates when a cleaning cycle or descaling is required.

Y. 67 fl.oz (2L) removable water tank With replaceable water filter to reduce impurities and scale. All parts of the Barista Express

that come into contact with coee, water and milk are BPA Free. ACCESSORIES

1. Stainless steel milk jug

Use with pre-ground coee.

4. Single Wall filter baskets (1 cup & 2 cup)

Use when grinding fresh whole coee beans.

5. Water filter holder and filter

(Included with machines in color only. DO NOT DISCARD) 120 V

Machine Preparation Remove and discard all labeling and packaging materials attached to your espresso machine. Ensure you have removed all parts and accessories before discarding the packaging. Remove the water tank located at the back of the machine by lifting the water tank handle. Remove the plastic bag containing the water filter and water filter holder. Clean parts and accessories (water tank, portafilter, filter baskets, milk jug) using warm water and a gentle dish washing liquid, then rinse and dry thoroughly. Wipe the outer housing, bean hopper and drip tray with a soft damp cloth and dry thoroughly. Do not immerse the outer housing, power cord or power plug in water or any other liquid. NOTE All parts should be cleaned by hand using warm water and a gentle dish washing liquid. Do not use abrasive cleansers, pads or cloths which can scratch the surface. Do not clean any of the parts or accessories in the dishwasher. NOTE To purchase water filters contact Breville Consumer Support. Rinse filter Place filter intofilter holderSet date 2 monthsaheadInstall filter inwater tank Soak water filterfor 5 mins

Insert & lock water tank

FIRST USE Initial Start Up

• Ensure the water filter is securely fitted inside the water tank.

• Fill the water tank with cold, preferably filtered water up to the MAX mark. When replacing the water tank, ensure to push down completely to lock into place. NOTE Always check the water level before use and replace water daily. We recommend using cold, filtered water. We do not recommend the use of de-mineralized or distilled water or any other liquid as this may aect the taste of the espresso and how the machine is designed to function.

• Ensure the hopper is locked into position.

• Plug the power cord into a 110/120V power outlet.

• Press the POWER button to switch the machine on. The POWER button light will flash while the machine is heating. NOTE If the hopper is not correctly locked into position, the FILTER SIZE LED’s will flash.

• A pumping sound will be heard. This is normal.

• When the machine has reached the correct operating temperature, the POWER button light will stop flashing and all button lights on the control panel will illuminate. The machine is now in STANDBY mode, ready for the next step ‘Flushing The Machine’. Flushing the Machine It is recommended to complete a water flushing operation, without ground coee, to ensure the machine has been conditioned. When the machine has reached STANDBY mode, follow these steps:

1. Press 2 CUP button to run hot water

through the group head.

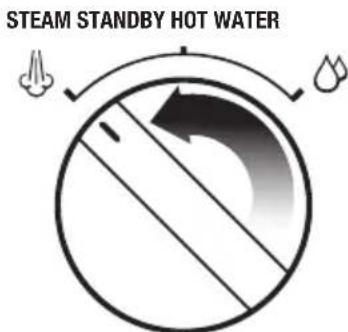

2. Position the steam wand tip over the drip

tray. Rotate the STEAM/HOT WATER dial to the STEAM position and run steam through the steam wand for 10 seconds.

STEAM STANDBY HOT WATER

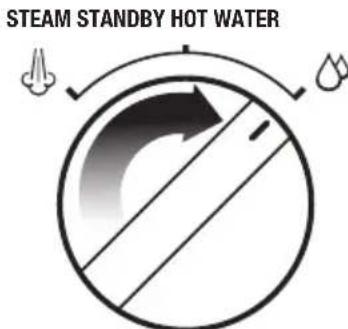

3. Rotate the STEAM/HOT WATER dial

to the HOT WATER position and run water through the hot water outlet for 10 seconds.

STEAM STANDBY HOT WATER

4. Repeat steps 1–3 until the water tank

is empty.12 GENERAL OPERATION Attaching the Drip Tray

• Place the drip tray grill on top of the drip tray.

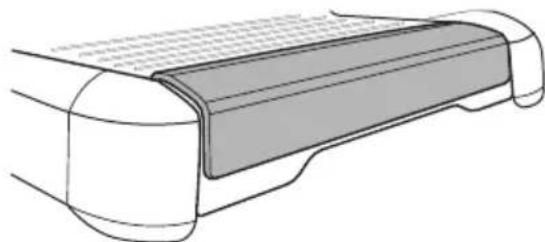

• Machines with color, attach the drip tray protection guard cover on the drip tray.

• Slide the drip tray into the machine. NOTE Using the drip tray protection guard cover is optional. But note that using the drip tray protection guard can protect your drip tray from dents and scratches. Setting the Grind Size NOTE This machine is designed only for whole roasted coee beans. Avoid grinding unroasted green and under-roasted coee beans. These are dense and not brittle enough to run through a burr grinder. This will damage or break burr grinders and even pose a safety risk. The grind size will aect the rate of water flow through the coee in the filter basket and the flavor of the espresso. When setting the grind size, it should be fine but not too fine and powdery. There are numbered settings on the GRIND SIZE selector. The smaller the number, the finer the grind size. The larger the number, the coarser the grind size. We recommend you start at setting 5 and adjust as required. Setting the Grind Amount Set the GRIND AMOUNT dial to the 3 o’clock position as a starting point. Adjust towards LESS or MORE as required to adjust the dose amount so the metal cap on the supplied tamper is level with the top edge of the filter basket rim, AFTER tamping. TIPS It is normal that the GRIND SIZE selector and GRIND AMOUNT dial will need to be adjusted a few times to achieve the correct extraction rate. Start with the suggested settings, extract an espresso, then refer to the Extraction Guide, page 20, to determine what adjustments need to be made. Selecting the Filter Size Insert either the 1 CUP or 2 CUP filter basket into the portafilter (see ‘Selecting a Filter Basket’, page 17). Press the FILTER SIZE button to select SINGLE if using the 1 CUP filter basket, or DOUBLE if using the 2 CUP filter basket. SINGLE FILTER SIZE DOUBLE Automatic Dosing

• Ensure the hopper is locked into position and is filled with fresh coee beans.

• Attach and twist the dosing funnel onto the portafilter.

• Insert the portafilter (with the dosing funnel) into the grinding cradle.

• Push and release the portafilter to engage the grinding activation switch, then allow fresh ground coee to fill the portafilter.

• Grinding will automatically stop, however if you wish to stop grinding before the cycle has finished, push and release the portafilter. NOTE It is normal for the portafilter to appear overfilled with ground coee. Untamped coee is three times the volume of tamped coee. Manual Dosing

• If you prefer to manually dose, with the portafilter inserted in the grinding cradle, push and hold the portafilter to engage the grinding activation switch. Continue holding until the desired amount of ground coee has been dosed.

• To stop grinding, release the portafilter. This will release the grinding activation switch and stop the grinding function. Tamping the Ground Coee

• Once grinding is complete, carefully remove the portafilter from the grinding cradle.

• Tap the portafilter several times to collapse and distribute the coee evenly in the filter basket.

• Using the tamper, tamp down firmly approx. 22-33 lbs (10-15 kg) of pressure. The amount of pressure is not as important as consistent pressure every time.

• After tamping, remove the dosing funnel from the portafilter. NOTE As a guide to dose, the top edge of the metal cap on the tamper should be level with the top of the filter basket AFTER the coee has been tamped. Trimming the Dose The Razor™ precision dose trimming tool allows you to trim the puck to the right level for a consistent extraction. the Razor

Precision dose trimming tool

• Insert the Razor™ dose trimming tool into the filter basket until the shoulders of the tool rest on the rim of the basket. The blade of the dose trimming tool should penetrate the surface of the tamped coee.

• Rotate the Razor™ dose trimming tool back and forth while holding the portafilter on an angle over a knock box to trim o excess coee grinds. Your filter basket is now dosed with the correct amount of coee.

• Wipe excess coee from the rim of the filter basket to ensure a proper seal is achieved in the group head.14 Purging the Group Head Before placing the portafilter into the group head, run a short flow of water through the group head by pressing the 1 CUP button. This will stabilize the temperature prior to extraction. Inserting the Portafilter NOTE DO NOT insert the portafilter with the dosing funnel in the group-head. Place the portafilter underneath the group head so that the handle is aligned with the INSERT position. Insert the portafilter into the group head and rotate the handle towards the center until resistance is felt. LOCK TIGHT Preset Shot Volume - 1 CUP button Press the 1 CUP button once to extract a single shot of espresso at the preset volume (approx. 1oz / 30ml). The extraction will start using the low pressure pre-infusion. The machine will stop after the preset volume has been extracted. PROGRAM NOTE The amount of espresso extracted in the cup will vary depending on your grind size and grind amount settings. NOTE Pressing the 1 CUP or 2 CUP button during a preset shot volume will immediately stop the extraction. Preset Shot Volume - 2 CUP button Press the 2 CUP button once to extract a double shot of espresso at the preset volume (approx. 2oz / 60ml). The extraction will start using the low pressure pre-infusion The machine will stop after the preset volume has been extracted. PROGRAM Re-Programming Shot Volume - 1 CUP Button

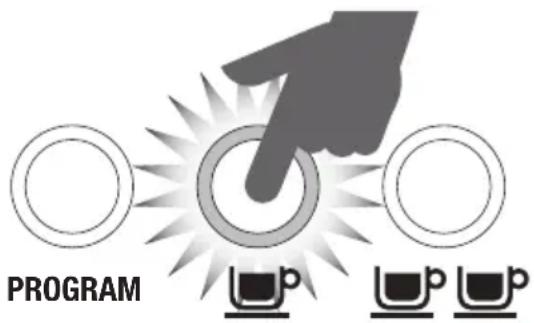

1. To begin programming, press the

PROGRAM button once. The machine will beep once and the PROGRAM button will begin to flash. This indicates the machine is in programming mode.

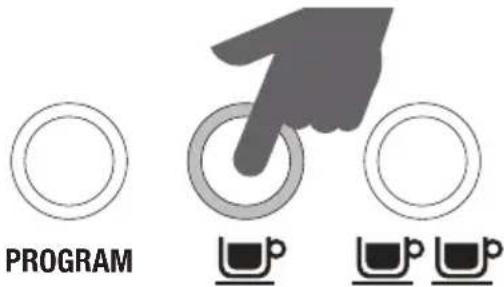

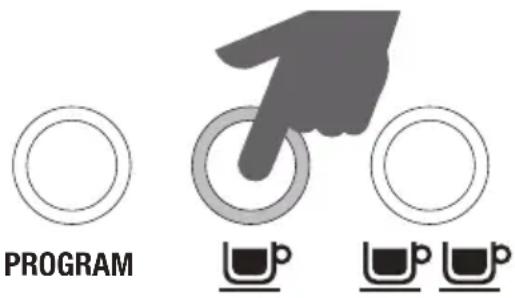

2. Press 1 CUP button to start espresso

extraction. Press 1 CUP button again once desired volume of espresso has been extracted. The machine will beep twice to indicate the new 1 CUP volume has been set. Re-Programming Shot Volume - 2 CUP Button

1. To begin programming, press the

PROGRAM button once. The machine will beep once and the PROGRAM button will begin to flash. This indicates the machine is in programming mode.

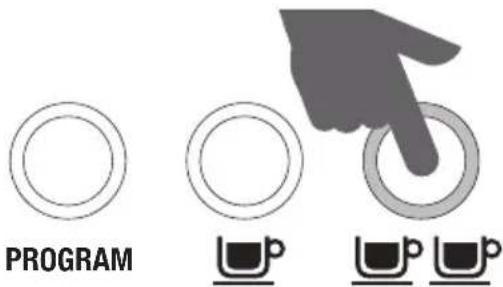

2. Press 2 CUP button to start espresso

extraction. Press 2 CUP button again once desired volume of espresso has been extracted. The machine will beep twice to indicate the new 2 CUP volume has been set.15

Resetting Default Volumes To reset the machine to the default 1 CUP and 2 CUP shot volumes, press and hold the PROGRAM button until the machine beeps three times. Release the PROGRAM button. The machine will return to its original default volume settings and default espresso water temperature (see ‘Advanced Temperature Mode’). NOTE Default settings: 1 CUP shot volume is approx. 1oz / 30ml. 2 CUP shot volume is approx. 2oz / 60ml. Manual Shot Volume Manually control low pressure pre-infusion time and shot volume without re-programming the presets shot volume. Press and hold the 1 CUP or 2 CUP button. The extraction will enter low pressure pre-infusion until the button is released. When the 1 CUP or 2 CUP button is released, extraction will continue at full pressure. Press the 1 CUP or 2 CUP button again once the desired volume of espresso has been extracted. PROGRAM PRESS & HOLD NOTE For optimal flavor when using a 1 CUP filter basket, you should extract approx. 1oz / 30ml. When using a 2 CUP filter basket, you should extract approx. 2oz / 60ml.

• Position the steam wand tip over the drip tray.

• Turn the STEAM/HOT WATER dial to the STEAM position. The STEAM/HOT WATER light will flash to indicate the machine is heating to create steam. During this time, condensed water may purge from the steam wand. This is normal. NOTE When the machine creates steam, a pumping noise can be heard. This is the normal opera- tion of the 15 bar Italian pump.

• When the STEAM/HOT WATER light stops flashing the steam wand is ready for use.

• Before inserting the wand into the milk, pause the steam by returning the dial back to the STANDBY position. Then within 8 seconds, insert the steam wand tip ¼–¾” (1–2cm) below the surface of the milk, close to the right hand side of the jug at the 3 o’clock position and quickly turn the dial back to the STEAM position. Pausing the steam avoids the milk splashing out of the jug (this pause function lasts for 8 seconds only).

• Once the milk is at the correct temperature (140–149°F or 60–65°C) and the jug is hot to touch, return the dial to the STANDBY position BEFORE removing the jug.

• For more tips on milk texturing, refer to ‘Texturing Milk’. NOTE After 5 minutes of continuous steaming, the machine will automatically disable the steam function. The STEAM/HOT WATER light will flash. When this occurs return the dial to the STANDBY position. Hot Water

• Turn the STEAM/HOT WATER dial to the HOT WATER position. The STEAM/ HOT WATER light will flash to indicate the machine is heating to create hot water.16

• When the STEAM/HOT WATER light stops flashing the hot water is up to temperature. Hot water will pour from the hot water outlet and can be used for making Americanos and pre-heating cups.

• To stop the hot water, return the dial to the STANDBY position. AUTO PURGE Immediately after the espresso, hot water and steam functions, the machine will purge water into the drip tray. This ensures the thermocoil is at the optimal temperature. TIPS Ensure the drip tray is firmly pushed in place and emptied whenever the Empty Me! indicator is displayed.

SLEEP & AUTO OFF MODE

The machine automatically switches to SLEEP MODE after 1 hour. During this time, the POWER button light will flash slowly. After 3 hours, the machine will switch to AUTO OFF MODE. To re-activate the machine, press any button except for the POWER button. The POWER button light will flash while the machine re- heats. A pumping sound will be heard. This is normal. When the machine has reached the correct operating temperature, the POWER button light will stop flashing and all button lights on the control panel will illuminate.

ADVANCED TEMPERATURE MODE

Adjusting Water Temperature Dierent beans require a dierent water temperature to extract their optimum flavor. The Barista Express

allows you to adjust water temperature ±4°F in 2°F increments from the default temperature. To enter Advanced Temperature Mode:

press the POWER button. The machine will beep once. The illuminated button will indicate the current temperature selected. To adjust the water temperature, press one of the following buttons within 5 seconds of entering Advanced Temperature Mode. The machine will beep twice to confirm the change. If no buttons are pressed within 5 seconds after entering Advanced Temperature Mode, no change will be made & the machine will return to STANDBY mode. PROGRAMPOWER PRESS & HOLD Default Temperature setting: In Advanced Temperature Mode, press the PROGRAM button. PROGRAM Increase Water Temperature +2˚F: In Advanced Temperature Mode, press the 1 CUP button. PROGRAM17

Increase Water Temperature ˚F: In Advanced Temperature Mode, press the 2 CUP button. PROGRAM Decrease Water Temperature -˚F: In Advanced Temperature Mode, press the FILTER SIZE button. SINGLE FILTER SIZE DOUBLE PROGRAMPOWER Decrease Water Temperature -˚F: In Advanced Temperature Mode, press the POWER button. SINGLE FILTER SIZE DOUBLE PROGRAMPOWER PREHEATING Heating your cup or glass A warm cup will help maintain the coee’s optimal temperature. Pre-heat your cup by rinsing with hot water from the hot water outlet and place on the cup warming tray. Heating the portafilter and filter basket A cold portafilter and filter basket can reduce the extraction temperature enough to significantly aect the quality of your espresso. Always ensure the portafilter and filter basket are pre-heated with hot water from the hot water outlet before initial use. NOTE Always wipe the portafilter and filter bas- ket dry before dosing with ground coee as moisture can encourage ‘channeling’ where water-by-passes the ground coee during extraction.

SELECTING A FILTER BASKET

Single Wall Filter Baskets Use Single Wall filter baskets if grinding fresh whole coee beans. Single Wall filter baskets allow you to experiment with grind, dose and tamp to create a more balanced espresso. 1 CUP 2 CUP Dual Wall Filter Baskets Use Dual Wall filter baskets if using pre-ground coee. Dual Wall filter baskets regulate the pressure and help to optimize the extraction regardless of the grind, dose, tamp pressure or freshness. 1 CUP 2 CUP NOTE Regardless of whether you use Single Wall or Dual Wall filter baskets, use the 1 CUP basket when brewing a single cup and the 2 CUP basket when brewing two cups or a stronger single cup or mug.18 NOTE You will need to adjust the grind amount and size if switching from a single basket to a double basket, or vice versa. The provided filter baskets are designed for: 1 CUP basket = approx. 8-11g. If using pre-ground coee, this is approx. 2 level scoops of the provided coee scoop. 2 CUP basket = approx. 16-19g. If using pre-ground coee, this is approx. 3 level scoops of the provided coee scoop. If using freshly ground coee, this is approx. 4 level scoops of the provided coee scoop. The reason for this dierence is that pre- ground coee is often coarser and hence occupies more volume than coee that is more finely ground. NOTE You may need to experiment with how much coee is inserted into the filter basket or how long the grinder needs to run to achieve the correct dose. For example, when using a finer espresso grind with the Single Wall filter baskets, you may need to increase the grind amount to ensure the filter basket is correctly dosed. THE GRIND If grinding coee beans, the grind size should be fine but not too fine. The grind size will aect the rate at which the water flows through the ground coee in the filter basket and the taste of the espresso. If the grind is too fine (looks like powder and feels like flour when rubbed between fingers), the water will not flow through the coee even when under pressure. The resulting espresso will be OVER EXTRACTED, dark in color and bitter in flavor. If the grind is too coarse the water will flow through the ground coee in the filter basket too quickly. The resulting espresso will be UNDER EXTRACTED and lacking in color and flavor.

COFFEE DOSE AND TAMPING

Follow the instructions for:

Before placing the portafilter into the group head, run a short flow of water through the group head by pressing the 1 CUP button. This will purge any ground coee residue from the group head and stabilize the temperature prior to extraction.

INSERTING THE PORTAFILTER

Place the portafilter underneath the group head so that the handle is aligned with the INSERT position. Insert the portafilter into the group head and rotate the handle towards the center until resistance is felt. EXTRACTING ESPRESSO

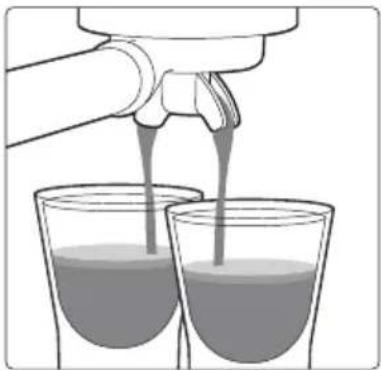

• Place pre-warmed cup(s) beneath the portafilter and press the 1 CUP or 2 CUP button for the desired volume.

• Due to pre-infusion time, the espresso will not start to flow immediately.

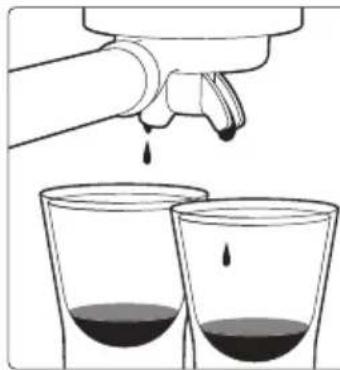

• As a guide, the espresso will start to flow after 4–7 seconds (infusion time) and should be the consistency of dripping honey.

• If the espresso starts to flow after less than 3 seconds you have either under dosed the filter basket and/or the grind is too coarse. This is an UNDER-EXTRACTED shot.

• If the espresso starts to drip but doesn’t flow after 8 seconds, then you have either over dosed the filter basket and/or the grind is too fine. This is an OVER-EXTRACTED shot. A great espresso is about achieving the perfect balance between sweetness, acidity and bit- terness. The flavor of your coee will depend on many factors, such as the type of coee19

beans, degree of roast, freshness, coarseness or fineness of the grind, dose of ground coee, and tamping pressure. Experiment by adjusting these factors just one at a time to achieve the taste of your preference, see ‘Extraction Guide’. TEXTURING MILK There are two phases to texturing milk. The first is stretching the milk to aerate it and the second is swirling the milk to make it silky smooth. These two operations should blend into one.

• Always start with fresh cold milk.

• Fill the jug just below the “V” at the bottom of the spout.

• Position the steam wand tip over the drip tray and turn the STEAM/HOT WATER dial to the STEAM position. The STEAM/ HOT WATER light will flash to indicate the machine is heating to create steam. During this time, condensed water may purge from the steam wand. This is normal. When the STEAM/HOT WATER light stops flashing the steam wand is ready for use. NOTE When the machine creates steam, a pumping noise can be heard. This is the normal operation of the 15 bar Italian pump.

• Before inserting the wand into the milk, pause the steam by returning the dial back to the STANDBY position. Then within 8 seconds, insert the steam wand tip ¼-¾” (1-2cm) below the surface of the milk, close to the right hand side of the jug at the 3 o’clock position and quickly turn the dial back to the STEAM position. Pausing the steam avoids the milk splashing out of the jug (this pause function lasts for 8 seconds only).

• Keep the tip just under the surface of the milk until the milk is spinning clockwise, producing a vortex (whirlpool eect).

• With the milk spinning, slowly lower the jug. This will bring the steam tip to the surface of the milk & start to introduce air into the milk. You may have to gently break the surface of the milk with the tip to get the milk spinning fast enough.

• Keep the tip at or slightly below the surface, continuing to maintain the vortex. Texture the milk until sucient volume is obtained.

• Lift the jug to lower the tip beneath the surface, but keep the vortex of milk spinning. The milk is at the correct temperature (140-149°F or 60-65°C) when the jug is hot to touch.

• Turn o steam BEFORE taking the tip out of the milk.

• Set the jug to one side. Immediately wipe the steam wand with a damp cloth. Then, with the steam wand tip directed over the drip tray, briefly turn steam on to clear any remaining milk from inside the steam wand.

• Tap the jug on the bench to collapse any bubbles.

• Swirl the jug to “polish” and re-integrate the texture.

• Pour milk directly into the espresso.

• The key is to work quickly, before the milk begins to separate. HINTS & TIPS

• Fresh, quality coee beans will give you the best possible extraction.

• We recommend quality 100% Arabica beans with a ‘Roasted On’ date stamped on the bag, not a ‘Best Before’ or ‘Use By’ date.

• Coee beans are best consumed between 5–20 days after the ‘Roasted On’ date. Ideally only grind directly before the extraction to maximize flavor.

• Buy coee beans in small batches to reduce the storage time.

• Flow starts after 8 -12 secs

• Flow slow like warm honey

• Crema is golden brown with a ne mousse texture

• Espresso is dark brown

• Extraction takes 25 - 30 secs LOCK INSERT REMOVE USED GRINDS Used grinds will form a coffee 'puck'. If the puck is wet, refer to the 'Under Extraction' section. RINSE FILTER BASKET Keep the lter basket clean to prevent blockages. Without ground coffee in the lter basket, lock the portalter into the machine and run hot water through. AFTER EXTRACTION CORRECT EXTRACTION SOLUTIONS Over Espresso Range
• Flow starts after 12 secs

• Flow drips or not at all

• Crema is dark and spotty

• Espresso is very dark brown

• Tastes bitter and burnt

• Extraction takes more than 35 secs OVER EXTRACTION Adjust & re-test

DECREASE GRIND AMOUNTGRIND SIZE COARSER

Adjust & re-test TURNTURN Tamp using 22-33lb of pressure. The top edge of metal cap on the tamper should be level with the top of the lter basket AFTER tamping. Remove the dosing funnel from the portalter then trim the puck to the right level using the Razor

• Flow starts after 1- 6 secs

• Flow fast like water

• Crema is thin and pale

• Espresso is pale brown

• Tastes bitter/sharp, weak and watery

• Extraction takes up to 20 secs Adjust & re-test

Adjust & re-test TURN Tamp using 22-33lb of pressure. The top edge of metal cap on the tamper should be level with the top of the lter basket AFTER tamping. Remove the dosing funnel from the portalter then trim the puck to the right level using the Razor

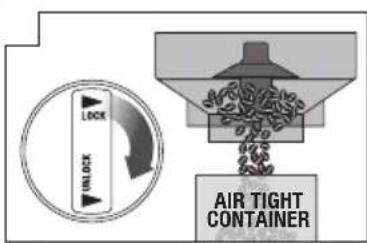

Hold hopper over container & turn dial to release beans into container Align hopper into position Run grinder until empty Remove hopper Unlock hopper

Move adjustable top burr, 1 number, coarser or finer Remove wire handle from both sides of the burr Align the number with the handle opening Remove upper burr

Insert wire handle from both sides of the burr

Push upper burr firmly into position

Check your extraction

Some types of coee may require a wider grind range to achieve an ideal extraction or brew. A feature of your Barista Express

is the ability to extend this range with an adjustable upper burr. We recommend making only one adjustment at a time.22 Care & Cleaning

REPLACING THE WATER FILTER

Insert & lock water tank

The provided water filter helps prevent scale build-up in and on many of the inner functioning components. Replacing the water filter every two months will reduce the need to descale the machine. If you live in a hard water area, we recommend you change the water filter more frequently.

• Remove the new water filter from the plastic bag.

• Soak the new water filter in a cup of water for 5 minutes, then rinse under cold running water.

• Wash the water filter holder with cold water.

• Insert the new water filter into the two parts of the water filter holder.

• Set Date Dial 2 months ahead.

• To install the assembled water filter holder into the water tank, align the base of the water filter holder with the adapter inside the water tank. Push down to lock into place.

• Slide the water tank back into position at the back of the machine, ensuring to push down completely to lock into place. The water filter should be removed if using filtered or bottled water. NOTE To purchase water filters contact Breville Consumer Support. CLEANING CYCLE The CLEAN / DESCALE light will illuminate (flashing) when a cleaning cycle is required. This is a back-flushing cycle and is separate from descaling.

1. Insert the 1 CUP filter basket into the

portafilter, followed by the supplied cleaning disc, followed by 1 cleaning tablet.

2. Lock the portafilter into the group head

and place a large container beneath the portafilter spouts.

3. Ensure the water tank is filled with cold

water and the drip tray is empty.

simultaneously, then also press the POWER button. Hold all 3 buttons together for approximately 10 seconds.

6. The cleaning cycle will commence and

last for approximately 5 minutes. During this time, water will intermittently flow from the portafilter spouts. Once complete, 2 beeps will sound.

7. Remove the portafilter and ensure the

tablet has completely dissolved. If the tablet has not dissolved, repeat until the tablet has dissolved.23

DESCALING After regular use, hard water can cause mineral build up in and on many of the inner functioning components, reducing the brewing flow, brewing temperature, power of the machine, and taste of the espresso. We advise you to undertake the descaling processes outlined below when the ‘CLEAN / DESCALE’ indicator is illuminated (solid on). Refer to CLEANING CYCLE when the ‘CLEAN / DESCALE’ indicator is flashing. Check if descaling is required

1. Check if the ‘CLEAN / DESCALE’ light is

illuminated (solid on), descaling is required. WARNING Do not immerse power cord, power plug or appliance in water or any other liquid. The water tank should never be removed or completely emptied during descaling. Priming machine for descaling function

2. Dissolve one Breville Descaling powder

sachet into 34 fl. oz (1L) of water then fill the water tank.

3. Press and hold the 2-CUP button and

then press and hold the POWER button simultaneously to enter the Descale mode. The unit will heat up as part of commencing the descaling action, during the heating processes the POWER button should flash continuously. The machine will indicate it is ready for descaling when the POWER button, 1 CUP button, CLEAN/DESCALE indicator and HOT WATER/ STEAM indicator are all illuminated (solid on). Descaling the coee component

4. Press the 1-CUP button to start the

descaling for the coee component of the machine. Descaling coee component takes approximately 25 seconds. The 1 CUP button should flash continuously and remain constant once the descaling process has finished. To terminate the descaling within 25 seconds, press the 1 CUP button again. Descale the Steam and hot water components Descaling steam and hot water takes approximately 13 seconds and 8 seconds respectively. Descaling can be terminated prematurely by turning the steam dial to STANDBY.

5. Descale Steam component by turning the

steam dial RIGHT towards the icon.

6. Descale Hot water component by turning

the steam dial to the LEFT towards the icon. Repeat processes to complete descaling After the above processes about half (17 fl. oz / 0.5L) of the descale solution should be left in the water tank.

7. Repeat steps 4-6 above to complete the

descaling process to empty the solution in the tank. Descaling Solution Rinse

8. After descaling, remove the water tank and

rinse thoroughly then refill with fresh cold water to the maximum capacity (68 fl. oz / 2L) and repeat steps 4-6 to further cleanse the machine of any residue of the cleaning solution thoroughly.

9. Press ‘POWER’ to quit the descaling

process. This will be indicated by the LED lights switching o. NOTE The machine turns o automatically if there is no action for 5 minutes in descaling mode. To resume descaling, please start from step 3.24

CLEANING THE CONICAL BURR GRINDER

This grinder cleaning cycle removes oil build-up on the burrs which can impede performance. Unlock hopper Empty hopper Replace hopper Lock hopper Run grinder empty Unlock hopper Remove hopper Remove top burr Unlock top burr Clean top burr with brush Clean lower burr with brush Clean chute with brush

GRIND SIZE GRIND SIZE GRIND SIZE ADVANCED CLEANING FOR THE CONICAL BURR GRINDER This step is only required if there is a blockage between the grinding burrs and the grinder outlet. WARNING Care should be taken as the grinder burrs are extremely sharp.25

• The steam wand should always be cleaned after texturing milk. Wipe the steam wand with a damp cloth. Then with the steam wand tip directed over the drip tray, briefly set the STEAM/HOT WATER dial to the STEAM position. This will clear any remaining milk from inside the steam wand.

• If any of the holes in the tip of the steam wand become blocked, ensure the STEAM/ HOT WATER dial is in the STANDBY position. Press the POWER button to switch the machine o and allow to cool. Use the pin on the end of the provided cleaning tool to unblock the hole(s).

• If the steam wand remains blocked, remove the tip using the integrated spanner in the cleaning tool and soak in hot water. Use the pin on the end of the provided cleaning tool to unblock the hole(s) before re-attaching to the steam wand.

• The filter baskets and portafilter should be rinsed under hot water immediately after use to remove all residual coee oils.

• If any of the holes in the filter basket become blocked, use the pin on the end of the provided cleaning tool to unblock the hole(s).

• If the hole(s) remain blocked, dissolve a cleaning tablet in hot water and soak filter basket and portafilter in solution for approx. 20 minutes. Rinse thoroughly.

CLEANING THE SHOWER SCREEN

• The group head interior and shower screen should be wiped with a damp cloth to remove any ground coee particles.

• Periodically purge the machine. Place an empty filter basket and portfilter into the group head. Press and hold the 1 CUP button and run a short flow of water to rinse out any residual coee.

• The drip tray should be removed, emptied, and cleaned at regular intervals, particularly when the drip tray full indicator is visibly floating.

• Remove the grid from the drip tray. Lift the coee grind separator and dispose of any coee grounds. The drip tray full indicator can also be removed from the drip tray by pulling upwards to release the side latches. Wash all parts in warm soapy water with a soft cloth. Rinse and dry thoroughly.

• The storage tray (located behind the drip tray) can be removed and cleaned with a soft, damp cloth. Do not use abrasive cleansers, pads or cloths which can scratch the surface. NOTE All parts should be cleaned by hand using warm water and a gentle dish washing liquid. Do not use abrasive cleansers, pads or cloths which can scratch the surface. Do not clean any of the parts or accessories in the dishwasher.

The outer housing and cup warming tray can be cleaned with a soft, damp cloth. Polish with a soft, dry cloth. Do not use abrasive cleansers, pads or cloths which can scratch the surface.

STORING YOUR MACHINE

Before storing, ensure the STEAM/HOT WATER dial is in the STANDBY position, press the POWER button to switch the machine o and remove the plug from the power outlet. Remove unused beans from the hopper, clean the grinde, empty the water tank and the drip tray. Ensure the machine is cool, clean and dry. Insert all accessories into the storage tray. Store upright. Do not place anything on top.26 WARNING Do not immerse power cord, power plug or appliance in water or any other liquid.

Over time, the silicone seal surrounding the shower screen will need to be replaced to ensure optimum brewing performance.

1. Press the POWER button to switch the

machine o and unplug the cord from the power outlet.

2. Carefully remove the water tank and drip

tray, taking particular care if they are full.

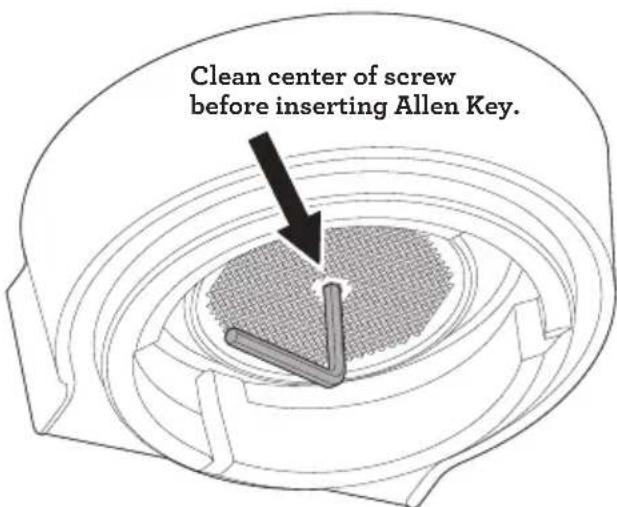

3. Using a skewer or similar, clean the center

of the screw of any residual coee.

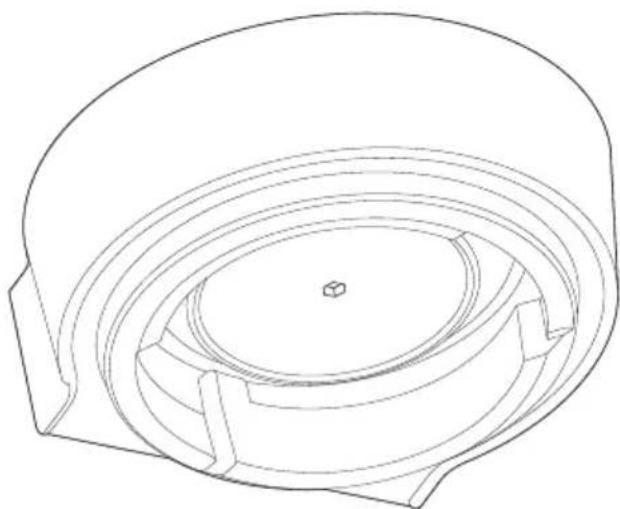

4. Insert the shorter end of the Allen Key

into the center of the screw. Turn counter- clockwise to loosen the screw.

5. Once loosened, carefully remove and retain

the screw and the stainless steel shower screen. Make note of the side of the shower screen that is downwards. This will make re-assembly easier. Wash the shower screen in warm soapy water, then dry thoroughly. Clean center of screw before inserting Allen Key.

6. Remove the silicone seal with your fingers

or a pair of long-nose pliers. Insert the new seal, flat side first, so the ribbed side is facing you.

7. Re-insert the shower screen, then the screw.

With your fingers, turn the screw clockwise for 2-3 revolutions then insert the Allen Key to tighten until the screw is flush with the shower screen. Do not overtighten screw.

8. Re-insert the drip tray and water tank.

Contact Breville Consumer Support or visit www.breville.com for replacement silicone seals or for advice.27

PROBLEM POSSIBLE CAUSES EASY SOLUTION

Machine does not heat up. STEAM/HOT WATER light flashes when the machine is turned on. STEAM/HOT WATER dial is not in the STANDBY position. Turn the Steam dial to ‘STANDBY’ position. Machine will commence normal heat up procedure.Water does not flow from the group head.No hot water. Machine has not reached operating temperature. Allow time for the machine to reach operating temperature. The POWER button light will stop flashing and all button lights on the control panel will illuminate when ready. Water tank is empty. Fill tank. Water tank is not fully inserted and locked into position. Push water tank down completely to lock into place. Machine needs to be descaled. Refer to ‘Descaling’ within Care & Cleaning . Coee is ground too finely and/or too much coee in filter basket and/or over tamping and/or filter basket is blocked. See below, ‘Espresso only drips from the portafilter spouts or not at all’.Espresso only drips from the portafilter spouts or not at all. Coee is ground too finely. Use slightly coarser grind. Refer to ‘Setting the Grind Size’ and ‘Over Extraction’, within Functions . Too much coee in the filter basket. Lower dose of coee. Refer to ‘Setting the Grind Amount’ and ‘Over Extraction’, within Functions . After tamping, trim the coee dose using the Razor™ dose trimming tool. Coee tamped too firmly. Tamp between 22-33lbs or 10-15kg of pressure. Water tank is empty. Fill tank. Water tank is not fully inserted and locked into position. Push water tank down completely to lock into place. the Dosing Funnel

PROBLEM POSSIBLE CAUSES EASY SOLUTION

The filter basket may be blocked.

Use the pin on the end of the provided cleaning tool to unblock the hole(s). If the hole(s) remain blocked, dissolve a cleaning tablet in hot water and soak filter basket and portafilter in solution for approx. 20 minutes. Rinse thoroughly.

Machine needs to be descaled.

Refer to ‘Descaling’ within Care & Cleaning . Espresso runs out too quickly.

Coee is ground too coarsely.

Use slightly finer grind. Refer to ‘Setting the Grind Size’ and ‘Under Extraction’, within Functions .

Not enough coee in the filter basket.

Increase dose of coee. Refer to ‘Setting the Grind Amount’, and ‘Under Extraction’, within Functions . Tamp then use the Razor™ dose trimming tool to trim o excess coee.

Coee tamped too lightly.

Tamp between 22-33lbs or 10-15kg of pressure. Espresso runs out around the edge of the portafilter.

Portafilter not inserted in the group head correctly.

Ensure portafilter is completely inserted and rotated until resistance is felt.

There are coee grounds around the filter basket rim.

Clean excess coee from the rim of the filter basket to ensure a proper seal in group head.

Too much coee in the filter basket.

Lower dose of coee. Refer to ‘Setting the Grind Amount’, within Functions . After tamping, trim the coee dose using the Razor™ dose trimming tool.

The silicone seal surrounding the shower screen needs to be replaced to ensure the portafilter is properly secured into the group head.

Refer to ‘Using the Allen Key’, within Care & Cleaning .29

PROBLEM POSSIBLE CAUSES EASY SOLUTION

Machine has not reached operating temperature.

Allow time for the machine to reach operating temperature. The STEAM/ HOT WATER light will flash to indicate the machine is heating to create steam. During this time, condensed water may purge from the steam wand. This is normal. When the STEAM/HOT WATER light stops flashing the steam wand is ready for use.

Water tank is empty.

Water tank is not fully inserted and locked into position.

Push water tank down completely to lock into place.

Machine needs to be descaled.

Refer to ‘Descaling’, within Care & Cleaning .

Steam wand is blocked.

Refer to ‘Cleaning the Steam Wand’, within Care & Cleaning .

STEAM/HOT WATER dial is not in the STEAM position.

Ensure the STEAM/HOT WATER dial is completely rotated to the STEAM position. Coee not hot enough.

Cups not pre-heated.

Rinse cups under hot water outlet and place on cup warming tray.

Portafilter not pre-heated.

Rinse portafilter under hot water outlet. Dry thoroughly.

Milk not hot enough (if making a cappuccino or latté etc).

Heat milk until base of the jug becomes hot to touch.

Machine needs to be descaled.

Refer to ‘Descaling’, within Care & Cleaning .

Water temperature needs to be adjusted.

Increase the water temperature. Refer to ‘Advanced Temperature Mode’, within Care & Cleaning .30

PROBLEM POSSIBLE CAUSES EASY SOLUTION

Coee tamped too lightly.

Tamp between 22-33lbs or 10-15kg of pressure.

Coee is ground too coarsely.

Use slightly finer grind. Refer to ‘Setting the Grind Size’, and ‘Under Extraction’, within Functions .

Coee beans or pre-ground coee are not fresh.

If grinding fresh whole coee beans, use freshly roasted coee beans with a ‘Roasted On’ date and consume between 5–20 days after that date.

If using pre-ground coee, use within a week of grinding.

The filter basket may be blocked.

Use the pin on the end of the provided cleaning tool to unblock the hole(s). If the hole(s) remain blocked, dissolve a cleaning tablet in hot water and soak filter basket and portafilter in solution for approx. 20 minutes. Rinse thoroughly.

Single Wall filter baskets are being used with pre-ground coee.

Ensure you use Dual Wall filter baskets with pre-ground coee. Drip tray fills too quickly.

Auto purge feature. Immediately after the espresso, hot water and steam functions, the machine will purge water into the drip tray. This ensures the thermocoil is at the optimal temperature.

No action required as this is the normal operation of the machine.31

PROBLEM POSSIBLE CAUSES EASY SOLUTION

Pulsing/pumping sound while extracting espresso or steaming milk.

The machine is carrying out the normal operation of the 15 bar Italian pump.

No action required as this is the normal operation of the machine.

Water tank is empty.

Water tank is not fully inserted and locked into position.

Push water tank down completely to lock into place. Water leaking.

Auto purge feature. Immediately after the espresso, hot water and steam functions, the machine will purge water into the drip tray. This ensures the thermocoil is at the optimal temperature.

Ensure the drip tray is firmly pushed in place and emptied whenever the Empty Me! indicator is displayed.

Water tank is not fully inserted and locked into position.

Push water tank down completely to lock into place.

The silicone seal surrounding the shower screen needs to be replaced to ensure the portafilter is properly secured into the group head.

Refer to ‘Using the Allen Key’, within Care & Cleaning . Machine is on but ceases to operate.

The safety thermal-cut out may have activated due to the pump or grinder overheating.

Press the POWER button to switch the machine o and unplug from the power outlet. Allow to cool for about 30–60 minutes.

If problem persists, call Breville Consumer Support.32

PROBLEM POSSIBLE CAUSES EASY SOLUTION

No ground coee coming from grinder.

No coee beans in hopper.

Filler hopper with fresh coee beans.

Blocked grinder chamber or chute.

Clean and clear grinder chamber and chute. Refer to ‘Advanced Cleaning for the Conical Burr Grinder’, within Care & Cleaning .

Water / moisture in grinder chamber and chute.

Clean and clear grinder chamber and chute. Refer to ‘Advanced Cleaning for the Conical Burr Grinder’. Ensure burrs are thoroughly dry before re-assembling. It is possible to use a hair dryer to blow air into the grinder chamber. FILTER SIZE LED’s are flashing.

Bean hopper is not attached correctly.

Remove hopper, check for debris and then re-lock hopper into position. Too much/too little ground coee is being delivered to the filter basket.

Grind amount settings are incorrect for particular grind size.

Use the GRIND AMOUNT dial to increase or decrease the grind amount. Refer to ‘Setting the Grind Amount’, and ‘Extraction Guide’, within Functions . Too much/too little espresso is being delivered to the cup.

Grind amount and/or grind size settings and/or shot volumes require adjustment.

Try the following, one at a time:

Reset the machine to its original default settings. Refer to ‘Resetting Default Volumes’, within Functions .

Re-program the shot volumes. Refer to ‘Re-Programming Shot Volume’, within Functions .

Adjust the grind amount and/or grind size settings. Refer to ‘Setting the Grind Size’, ‘Setting the Grind Amount’ and ‘Extraction Guide’, within Functions . Grinder is making a loud noise.

Blockage or foreign object in grinder.

Remove hopper, check for debris or blockage. If necessary, clean and clear grinder chamber and chute. Refer to ‘Cleaning the Conical Burr Grinder’, within Care & Cleaning .33

Coees to try CAPPUCCINO A single shot of espresso with textured milk, garnished with drinking chocolate. ESPRESSO Intense and aromatic, it is also known as a short black and is served in a small cup or glass. LATTÉ A latté consists of a single espresso with textured milk and approx. 10mm of foam. MACCHIATO Traditionally served short, the macchiato is also poured as a long black with a dash of milk or a dollop of textured milk. AMERICANO A shot of espresso (single or double) with hot water. Also known as a long black. RISTRETTO A ristretto is an extremely short espresso of approximately 15ml, distinguished by its intense flavor and aftertaste.34 NotesFR-CA MANUEL D'INSTRUCTIONS the Barista Express

• Due to continued product improvement, the products illustrated/photographed in this brochure may vary slightly from the actual product.
