RE190 - Wifi repeater TP-LINK - Free user manual and instructions

Product type	WiFi Range Extender
Brand	TP-Link
Model	RE190
Dimensions (L x W x H)	approx. 100 x 65 x 40 mm
Weight	approx. 150 g
Power supply	Built-in power plug (100-240 V AC, 50/60 Hz)
WiFi standards	IEEE 802.11 b/g/n
Frequency bands	2.4 GHz
Max speed	300 Mbps
Ethernet port	1 RJ45 10/100 Mbps port
Buttons	Reset, WPS
LEDs	Power, Signal, Ethernet
Configuration	Via TP-Link Tether app or web browser (http://tplinkrepeater.net)
Main functions	WiFi extension, access point mode, WiFi client mode (via Ethernet port)
Security	WPA/WPA2-PSK, AES encryption
Maintenance and cleaning	Unplug before cleaning; use a soft dry cloth
Operating temperature	0°C to 40°C
Operating humidity	10% to 90% non-condensing
Warranty	3 years limited

Frequently Asked Questions - RE190 TP-LINK

How to set up the RE190 extender?

You can set up the RE190 via the TP-Link Tether app (recommended) or via a web browser by connecting to the extender's WiFi network (e.g., TP-Link_Extender) and opening http://tplinkrepeater.net.

Why can't I access the configuration page?

Make sure your computer is connected to the extender's WiFi network (or via Ethernet cable if available) and that IP address acquisition is automatic. Try the IP address 192.168.0.254 or reset the extender.

How to reset the RE190 extender?

Press and hold the RESET button (located on the side) for about 5 seconds until all LEDs briefly turn off, then release. The extender will restart with factory settings.

What is the difference between extender mode and access point mode?

In extender mode, the device extends the existing WiFi signal. In access point mode, it connects to the router via an Ethernet cable and creates a new WiFi network. The RE190 supports both modes.

Can I use the Ethernet port to connect a wired device?

Yes, the Ethernet port allows you to connect a device without WiFi (TV, console, PC) to the network. Wirelessly connect the extender to the router, then connect your device via Ethernet cable.

Where to place the extender for best coverage?

Ideally, plug the extender halfway between your router and the area to cover. Use the signal LED to find the best location: it should be green or orange, not red.

Does the extender support 5 GHz WiFi?

No, the RE190 model works only on the 2.4 GHz band. For dual-band coverage, consider an upgraded model.

How to secure my extended network?

During setup, set a strong WiFi password. The extender uses the same encryption as your router (WPA/WPA2). You can also change the SSID and password via the web interface.

Are all LEDs lit in normal operation?

The Power LED should be solid. The Signal LED indicates quality: green (good), orange (fair), red (weak). The Ethernet LED lights up when a cable is connected.

What to do if the extender fails to connect to the router?

Check that the router is on and the WiFi password is correct. Try moving the extender closer to the router during setup. If necessary, reset the extender and start over.

USER MANUAL RE190 TP-LINK

Quick Installation Guide

Wi-Fi Range Extender

For technical support, replacement services, user guides, and other information, please visit https://www.tp-link.com/support, or simply scan the QR code.

© 2021 TP-Link 7106509184 REV3.1.1

*Images may differ from actual products.

Contents

Deutsch- 1

English 4

Espanol -7

Eλληνικα- 10

Francais- 13

Italiano 16

Portugues 19

Suomi 22

Nederlands 25

Svenska- 28

Norsk- 31

Dansk 34

1 Konfigurieren

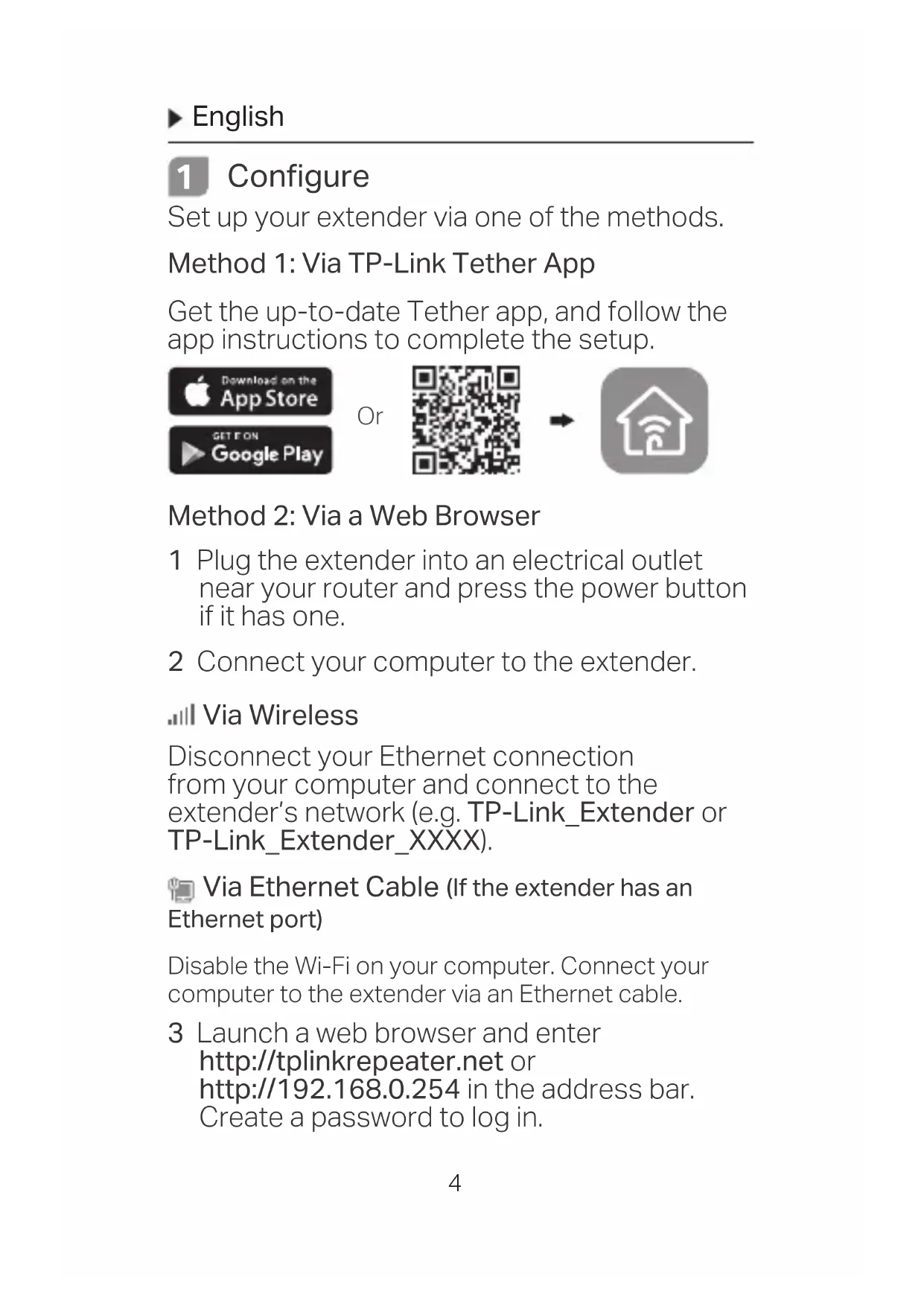

Set up your extender via one of the methods.

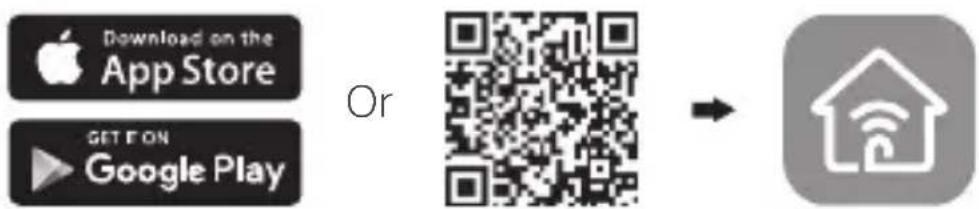

Method 1: Via TP-Link Tether App

Get the up-to-date Tether app, and follow the app instructions to complete the setup.

Method 2: Via a Web Browser

1 Plug the extender into an electrical outlet near your router and press the power button if it has one.

2 Connect your computer to the extender.

Via Wireless

Disconnect your Ethernet connection from your computer and connect to the extender's network (e.g. TP-Link_Extender or TP-Link_Extender_XXXX).

Via Ethernet Cable (If the extender has an Ethernet port)

Disable the Wi-Fi on your computer. Connect your computer to the extender via an Ethernet cable.

3 Launch a web browser and enter http://tplinkrepeater.net or http://192.168.0.254 in the address bar. Create a password to log in.

4 Follow the instructions on the web page to complete the initial configuration.

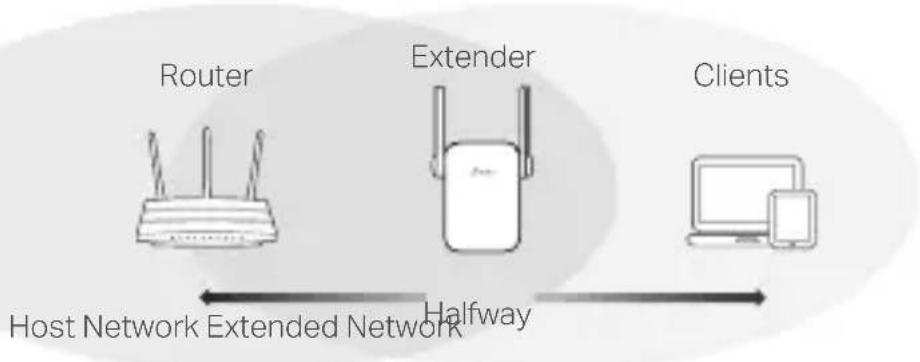

2 Relocate

To achieve better signal quality, plug in the extender halfway between your router and the Wi-Fi dead zone.

Enjoy!

Connect your device to the extender using the extended SSID and Wi-Fi password that you've set during the configuration. The default Wi-Fi password is the same as your host network.

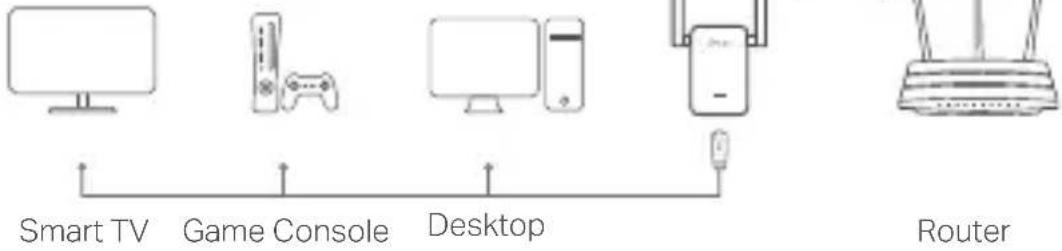

Entertainment Adapter

If your extender has an Ethernet port, it can be used as a wireless adapter to connect any Ethernet-only device such as a Blu-ray player, game console, DVR, or smart TV to your Wi-Fi network.

First, connect the extender to your router, then connect your Ethernet-only device to the extender via an Ethernet cable.

Ethernet Connection

FAQ (Frequently Asked Questions)

Q1 Why can't I see the login page after entering http://tplinkrepeater.net in the browser?

A1: Make sure your computer is connected to the extender either via the extended SSID or via an Ethernet cable (if the extender has an Ethernet port).

A2: Make sure your computer is set to obtain an IP address automatically.

A3: Use the IP address to access the extender. The default IP is 192.168.0.254. If the extender is connected to the router, you should go to your router's DHCP client list to obtain the extender's current IP address.

A4: Reset the extender and connect to its wireless network, enter http://tplinkrepeater.net or http://192.168.0.254 in a web browser and press Enter.

Q2 How do I reset the extender?

A: With the extender powered on, press the RESET button until the LEDs turn on momentarily, then release the button.

1 Configuración

Configure tu extensor a工程技术 de uno de los métodos.

Método 1: Via App Tether TP-Link

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.

• Do not use the device where wireless devices are not allowed.

• The socket-outlet shall be installed near the equipment and shall be easily accessible.

• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTY, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.

Espanol

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives (EU)2015/863, 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at

https://www.tp-link.com/en/ce.

Espanol

https://www.tp-link.com/en/ce.

Portuqués

https://www.tp-link.com/en/ce.

Nederlandss

https://www.tp-link.com/en/ce.

Dansk
