Ecosenzo Plus ABL930SR - Vacuum Cleaner BESTRON - Free user manual and instructions

Product type	Canister vacuum cleaner
Brand	Bestron
Model	Ecosenzo Plus ABL930SR
Power supply	220-240 V ~ 50/60 Hz
Power	700 W
Tank capacity	1.5 L
Cable length	500 cm
Dimensions (L x l x H)	34 x 25 x 31 cm
Safety class	II
Main filter	Washable with warm water
Exhaust filter	Washable, replace at least 2 times per year
Included accessories	2-in-1 nozzle, telescopic tube, suction brush
Usage	Household only
Power adjustment	Via air intake on the handle
Full tank indicator	Yes (red light)
Cable rewind	Yes, with rewind button
Filter maintenance	Every 2 to 3 uses
Accessory storage	Mounting slot at the back
Tank material	Plastic

Frequently Asked Questions - Ecosenzo Plus ABL930SR BESTRON

How to empty the dust collector?

If the tank indicator turns red, empty it immediately. Unplug the appliance, remove the hose by pressing the side buttons on the connector. Remove the dust bin by pressing the release button. Hold the bin over a trash can and open the bottom lid by pressing the button. Remove stuck residues by hand or with a brush. Close the lid until it clicks and replace the bin on the appliance.

What to do if the red light comes on even though the bin is not full?

Check that the brush, tube, and hose are not blocked. A blockage can cause the light to turn red even if the bin is not full. Clean any obstructions.

How often should the filters be cleaned?

For optimal performance, clean the filter every two or three uses. Clean more often if necessary. Replace the filter if it is damaged.

How to clean the exhaust filter?

Replace or clean the exhaust filter at least twice a year. Open the cover by turning the handle counterclockwise, remove the filter, rinse it with warm water, and let it dry completely before putting it back.

What types of dirt should NOT be vacuumed?

Never vacuum incandescent or burning objects, glass shards or sharp objects, plaster, cement, stone, soot residues, or liquids or wet dirt. Do not use the vacuum on wet carpets.

Can I use the vacuum on hard floors and carpets?

Yes, the vacuum brush has two settings: for hard floors (parquet, laminate) and for soft floors (carpet). Choose the appropriate position before vacuuming.

How to use the 2-in-1 accessory?

Use the flat nozzle to clean radiators, cracks, window frames, etc. Use the small brush for delicate or uneven surfaces, furniture, blinds.

How to store the vacuum after use?

Unplug the appliance, press the rewind button to wind the cable (guide it with your hand). Collapse the telescopic tube. Slide the combined nozzle into the mounting slot at the back of the vacuum for convenient storage.

What to do in case of overheating or malfunction?

Turn off the appliance immediately and unplug it. Check that the suction and exhaust openings are not blocked and that the filter is clean. If the problem persists, contact Bestron customer service via www.bestron.com/service.

Is the appliance suitable for children?

This appliance can be used by children aged 8 years and above under supervision. Children should not clean or maintain the appliance unless they are over 8 years old and supervised. Keep the appliance and cord out of reach of children under 8 years of age.

USER MANUAL Ecosenzo Plus ABL930SR BESTRON

Black vacuum cleaner with coiled hose and Max logo, no visible text or symbols on body

INSTRUCTION MANUALCYCLO

DE

EN

BG

8 11 7 10 6 9 3 15 2 14 4 13 5 12 1

A B C 2

D C B A 3

Line drawing of a vacuum cleaner's wheel and side panel (no text or symbols)

SICHERHEITSHINWEISE

- This appliance is not intended for professional use, but is intended for domestic and similar use, such as in staff kitchens, in shops, offices and other working environments, by guests in hotels, motels and other residential environments, in Bed & Breakfast type environments and farms.

• Always place the device on a stable and level surface.

- Check whether the mains voltage corresponds to the mains voltage indicated on the rating plate of the appliance before connecting it to an earthed socket.

- Certain parts of the device may become hot. Do not touch it to avoid getting burned.

- The device must be able to dissipate heat and must therefore not be covered. Keep it sufficiently free.

- Never immerse the appliance, the cord or the plug in water or any other liquid and do not hold it under running water.

- Do not pick up the device if it has fallen into water. Immediately pull the plug from the socket. Don't use it anymore.

• Make sure your hands are dry when you touch the device.

• Make sure that the appliance, the cord and the plug do not come into contact with heat sources such as a hob or oven fire.

- Remove the plug from the socket when you are not using the device. Pull the plug, not the cord.

- Check regularly whether the cord is still intact. If the device is damaged, do not use it anymore, but take it to the manufacturer or a technical service center for repair.

- The appliance must not be operated by means of an external timer or by a remote control system.

- Switch off the device before moving it.

- Do not use the device if the filter is damaged or incorrectly installed. This could damage the device.

- Do not use the device to vacuum the following objects:

- glowing or burning objects

- glass splinters or other sharp objects

- remains of plaster, cement, stone, soot and the like

- liquids or damp dirt.

- Do not use the vacuum cleaner on wet rugs and carpets.

- Never insert objects into the exhaust openings.

- Make sure that the suction and discharge openings are open and the filter is not clogged. Blockages cause overheating.

- Keep suction nozzles and tubes away from the body. You can cause serious injuries, for example to eyes or ears.

- Switch off the appliance and remove the plug from the socket if you experience any malfunctions during use, empty the appliance, clean the

appliance, install or remove an accessory, or have finished using it.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the dangers.
  • Children are not allowed to clean or maintain the appliance unless they are over 8 years old and supervised.
• Keep the appliance and the cord out of the reach of children under the age of 8.
  • Children must be supervised to ensure that they do not play with the appliance.

ENVIRONMENT

• Dispose of packaging material such as plastic and cardboard boxes in the designated containers.
• Do not dispose of this product as normal domestic waste at the end of its life, but hand it in at a collection point for the reuse of electric and electronic equipment. Look for the symbol on the product, the user instructions or the packaging showing the type of waste.
• The materials can be used as indicated. By helping us reuse and process the materials or otherwise recycle the old equipment, you will be making an important contribution towards the protection of the environment.
• Your municipality can tell you where to find the designated waste collection point in your neighbourhood.

SERVICE

In the unlikely event of a malfunction, please contact Bestron customer service: www.bestron.com/service

EN

Technical specifications
Model ABL930SR
Tension (V) 220-240
Frequency (Hz) 50/60
Safety class 2
Power (Watt) 700
Noise level (dB(A))	-
Max. Capacity	1.5L
Maximum continuous use time (KB)	-
Device dimensions (L x W x H) (cm)	34 x 25 x 31
Cable length (cm)	500

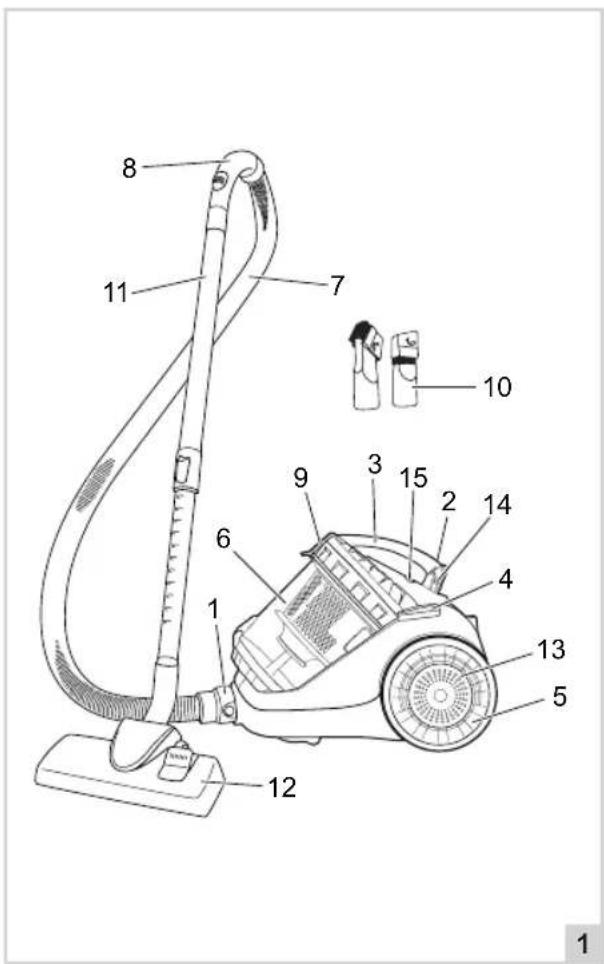

DESCRIPTION

This appliance is intended for domestic purposes only, not for professional use. The description below corresponds to image 1 on page 2.

1. Hose connection

2. Cord retractor

3. Vacuum cleaner handle

4. On/off switch

5. Rear wheels

6. Dust collector

7. Hose

8. Hose handle with air opening

9. Release button

10. 2-in-1 Attachment

11. Telescopic tube

12. Combination nozzle

13. Exhaust filter

14. Dust collector release button

15. Dust collector full indicator

BEFORE FIRST USE

1. Remove all packaging materials.

2. Insert the telescopic tube into the combination nozzle and insert the hose into the other end of the tube. Press the button on the tube to make it longer or shorter.

3. Insert the other end of the hose into the hose connector on the vacuum cleaner until it clicks into place. Check whether the dust collector is properly clicked into place on the vacuum cleaner.

VACUUM

1. Select the correct position of the combination nozzle. You can choose from the brush setting for hard floors (parquet, laminate, etc...) or the setting for soft floors (carpet, carpet, etc...).

2. Pull the cord out of the vacuum cleaner up to the yellow marking and plug it into a wall socket.

3. Press the on/off button and start vacuuming.

NB:

- You can reduce the suction power by temporarily opening the closable air opening. This prevents textiles from being sucked into the hose.

- You can lift the device by the handle.

• To avoid damage, never extend the cord beyond the red marking.

ACCESSORIES

This vacuum cleaner has a 2-in-1 attachment supplied. Use this as a crevice tool to clean radiators, cracks, window frames, holes and the like. Use it as a small brush to clean delicate or uneven surfaces, furniture, blinds and the like.

If the dust collector full indicator turns red, empty the dust container immediately.

1. Remove the hose by pressing the two side buttons on the connection piece.

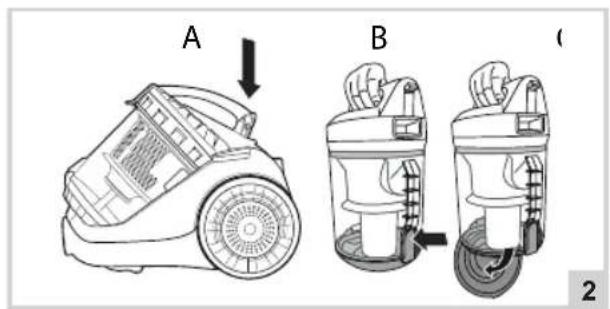

2. Remove the dust collector by pushing the release button, see figure 2A on page 2.

3. Hold the Dust collector above a waste bag and let the bottom cover fall open by pressing the button, see images 2B and 2C on page 2.

4. Remove any stuck debris by hand or a small brush.

5. Close the bottom cover until it clicks into place and place the dust collector back on the device until it clicks into place.

NB:

It is possible that the indicator turns red while the dust collector is not yet full. Then check the nozzle, hose and tube to see if they are clogged.

CLEANING THE FILTERS

For optimal results, you should clean or replace the filter after every 2 to 3 vacuuming sessions, or more often if it appears that the filter is visibly clogged. This also prevents the engine from overheating.

1. First empty the dust collector, see previous chapter.

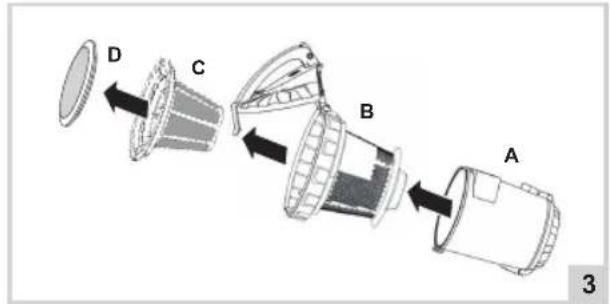

2. Open the filter cover, see Figure 3B on page 2.
3. Remove the dust separation system from the dust collector, see figures 3B and 3C on page 2.
4. Remove the filter from the dust separation system, see image 3D on page 2.
5. Rinse the filter and dust separation system thoroughly in lukewarm water. Let the filters dry thoroughly.
6. Reassemble everything in reverse order.

NB:

• Dry everything thoroughly so that moisture cannot enter the device and cause damage.
• Never clean the filters in the washing machine.
• Never dry the filters with a hairdryer.

CLEANING THE EXHAUST FILTER

Replace the exhaust filter at least twice a year, or more often if it appears that the filter is visibly clogged.

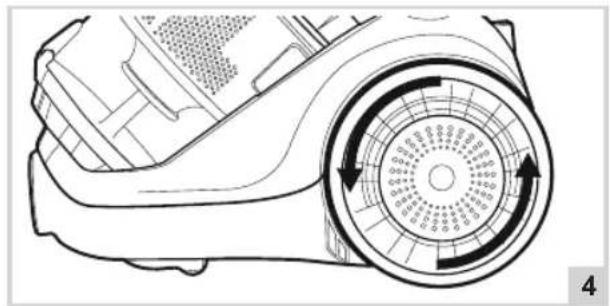

1. Open the exhaust filter cover by turning the wheel cover counterclockwise. Pull the exhaust filter out of the device, see figure 4 on page 2.
2. Rinse it clean in lukewarm water. Let it dry thoroughly.
3. Replace the cleaned filter and turn the lid clockwise until it clicks into place.

NB:

• Dry everything thoroughly so that moisture cannot enter the device and cause damage.
• Never clean the filter in the washing machine.
• Never dry the filter with a hairdryer.

CLEANING THE VACUUM CLEANER

1. Clean the outside of all parts with a damp cloth and a cleaning agent suitable for plastic. Make sure that no moisture gets inside the device.
2. Over time, dust and dirt can accumulate on the wheels, causing them to no longer turn properly. So clean it well.

NB:

• Never immerse the appliance, the plug or the cord in water.
• Do not use aggressive or abrasive cleaning agents or sharp objects when cleaning.

STORING THE VACUUM CLEANER

1. Remove the plug from the socket.
2. Press and hold the rewind button to automatically rewind the cord.
3. Slide the tube together.
4. Slide the combination nozzle into the mounting slot on the back of the vacuum cleaner to easily store and retrieve the vacuum cleaner without having to take all the parts apart.

NB:

Guide the cord as you rewind it. Otherwise, the cord may become tangled or the plug may hit the back of the appliance. Hold the cord loosely in your hand at the marking and let it slide through your fingers in a controlled manner.

This appliance is intended for domestic purposes only, not for professional use. The description below corresponds to image 1 on page 2.
