BCHP30100SS - Basket BLOMBERG - Free user manual and instructions

Features	Details
Type of hood	Extractor hood
Dimensions	Width: 60 cm
Airflow	Up to 600 m8/h
Power levels	3 power levels
Lighting	LED lighting
Grease filter	Washable metal filter
Installation	Wall-mounted installation
Energy consumption	Energy class C
Additional features	Timer function
Maintenance	Filters to be cleaned regularly
Safety	Overheat protection
Warranty	2 years

Frequently Asked Questions - BCHP30100SS BLOMBERG

The BLOMBERG BCHP30100SS hood does not turn on. What should I do?

Check that the hood is properly plugged into a working electrical outlet. Also make sure the fuse is not blown. If the problem persists, contact customer service.

The noise level of the hood is too high. Is this normal?

A certain noise level is normal when the hood is operating, but if it is excessive, check if the filters are clean and if the hood is properly installed. If in doubt, consult the user manual.

How do I clean the filters of the BLOMBERG BCHP30100SS hood?

The metal filters can be cleaned with warm soapy water or in the dishwasher. Make sure to let them dry completely before putting them back in place.

The hood does not seem to extract efficiently. What should I do?

Check that the filters are not clogged and that they are properly installed. Also make sure the hood is set to the correct extraction speed according to your needs.

Is there a lighting function on the hood?

Yes, the BLOMBERG BCHP30100SS hood is equipped with integrated lighting. If the lights do not work, check the bulbs and replace them if necessary.

How do I install the BLOMBERG BCHP30100SS hood?

Follow the instructions provided in the installation manual. Make sure to respect the dimensions and distances recommended by the manufacturer for proper installation.

What type of filter should I use for the BLOMBERG BCHP30100SS hood?

Use metal grease filters for grease filtration and charcoal filters if you use the hood in recirculation mode. Make sure to check the specifications in the user manual.

The hood emits odors even after use. What should I do?

Check that the filters are clean and functional. If the hood is in recirculation mode, replace the charcoal filter if necessary. Proper kitchen ventilation is also important.

USER MANUAL BCHP30100SS BLOMBERG

Line drawing of a standard kitchen range hood with three circular buttons (no text or symbols)

BCHP30100SS

Please read this manual first!

Dear Customers!

Thank you for preferring a Blomberg product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Remember that this user manual is also applicable for several other models. Differences between the models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in the various section of this manual:

Important information and useful hints about usage.

WARNING: Warnings for dangerous situations concerning the safety of life and property.

Warning for electric shock.

Warning for hot surfaces.

This product has been manufactured in environmental friendly modern plants without giving any harm to the nature.

1 Important safety and environmental instructions 4

1.1 General safety 4
1.1.1 Electrical safety....4
1.1.2 Product safety....5
1.1.3 Children's safety 6
1.2 Intended use 6
1.3 Compliance with WEEE Directive and disposing of the waste product....7
Compliance with RoHS Directive: 7
1.4 Package information .....7

2 Electrical & Installation requirements 8

2.1 Electrical requirements....8
2.2 Before installing the hood 8

3 Technical specifications of your appliance 9

3.1 List of Materials 9
3.1.1 Parts supplied 9
3.1.2 Parts not supplied 9
3.2 Dimensions and Clearances....10
3.3 Ducting Options and Examples.....10
3.3.1 Venting methods.....10
3.4 Preparation 10

4 Installing your appliance 12

4.1 Installation - Ducting version....12
4.2 install hood onto wall 12

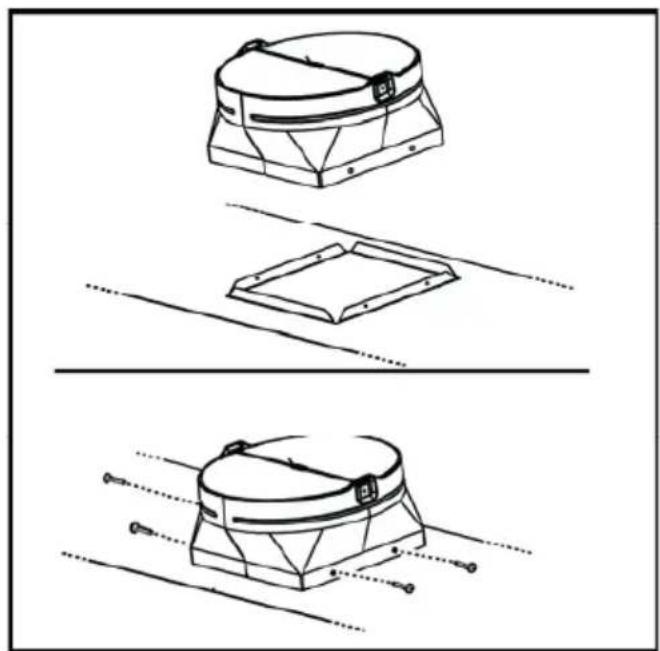

4.2.1 Install Transition Onto Top of Hood.....12
4.2.2 Hang hood on wood support.....13
4.2.3 Install bottom mounting screws .....13
4.3 Install hood ceiling or beneath cabinets .. 13
4.3.1 Install Transition Onto Top of Hood.....14
4.3 2 Mount hood onto ceiling or cabinet ..... 14
4.3.3 Connecting the ductwork ..... 15
4.3.4 Electrical connection....15

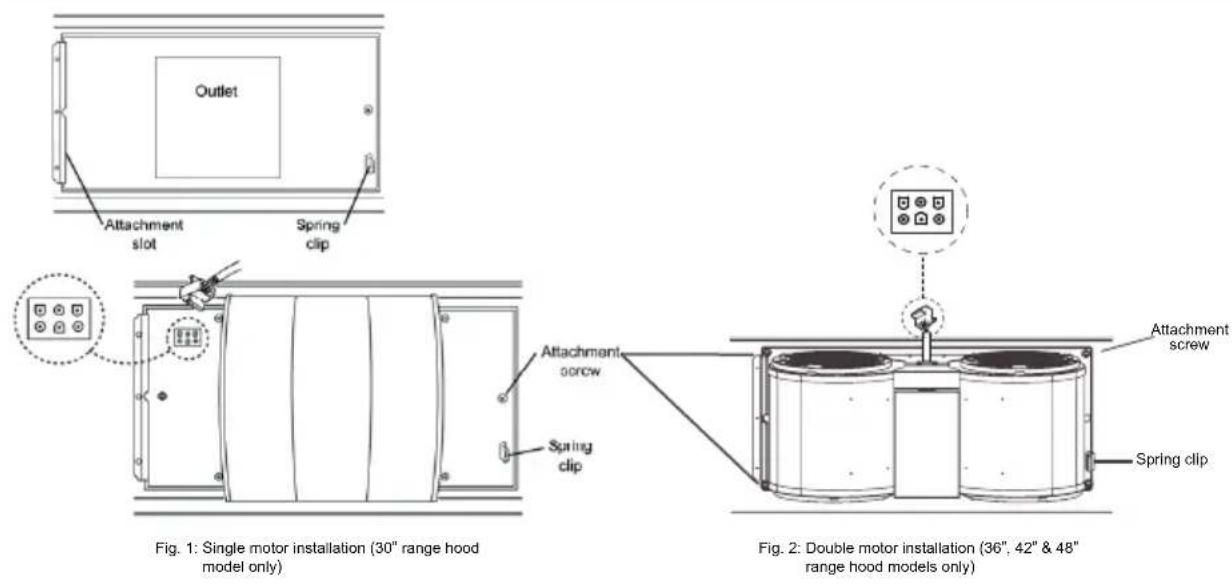

4.3.5 Install Motor....15

5 Operating your appliance 17

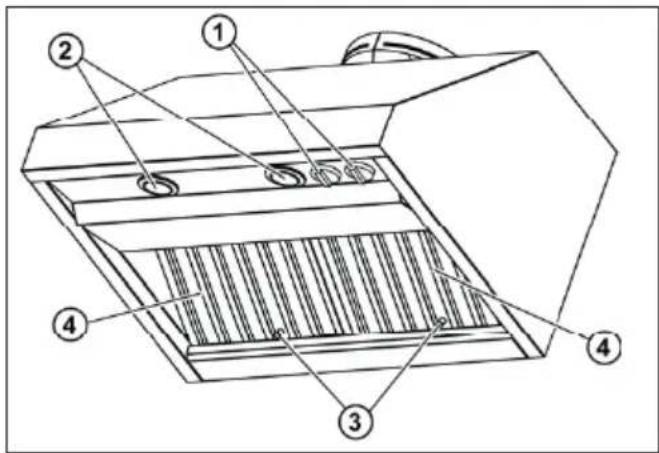

5.1 Description of the hood & Controls ..... 17
5.1.1 Controls....17

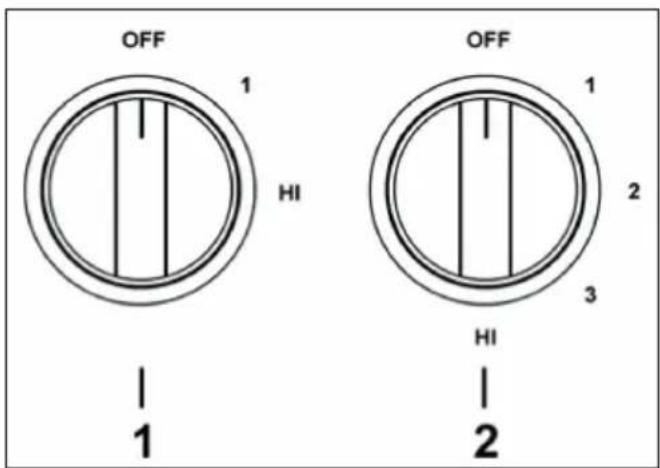

5.1.2 Description of control panel.... 17

6 Cleaning and maintenance 18

6.1 Maintenance 18
6.2 Cleaning....18
6.3 Grease Filter 18
6.3.1 Remove grease filters....18
6.3.2 install grease filters 18

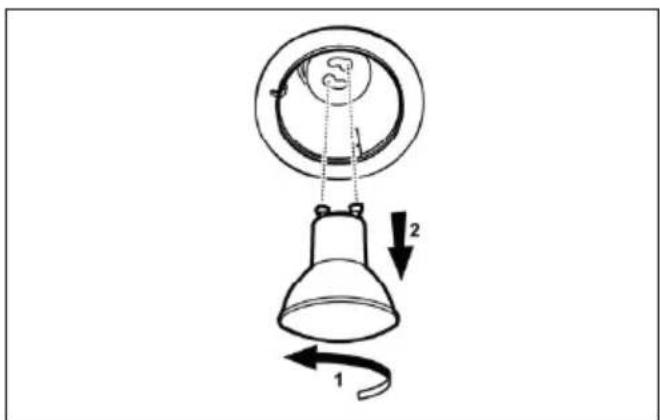

6.4 Replacing the light bulb....18

7 Warranty 20

1

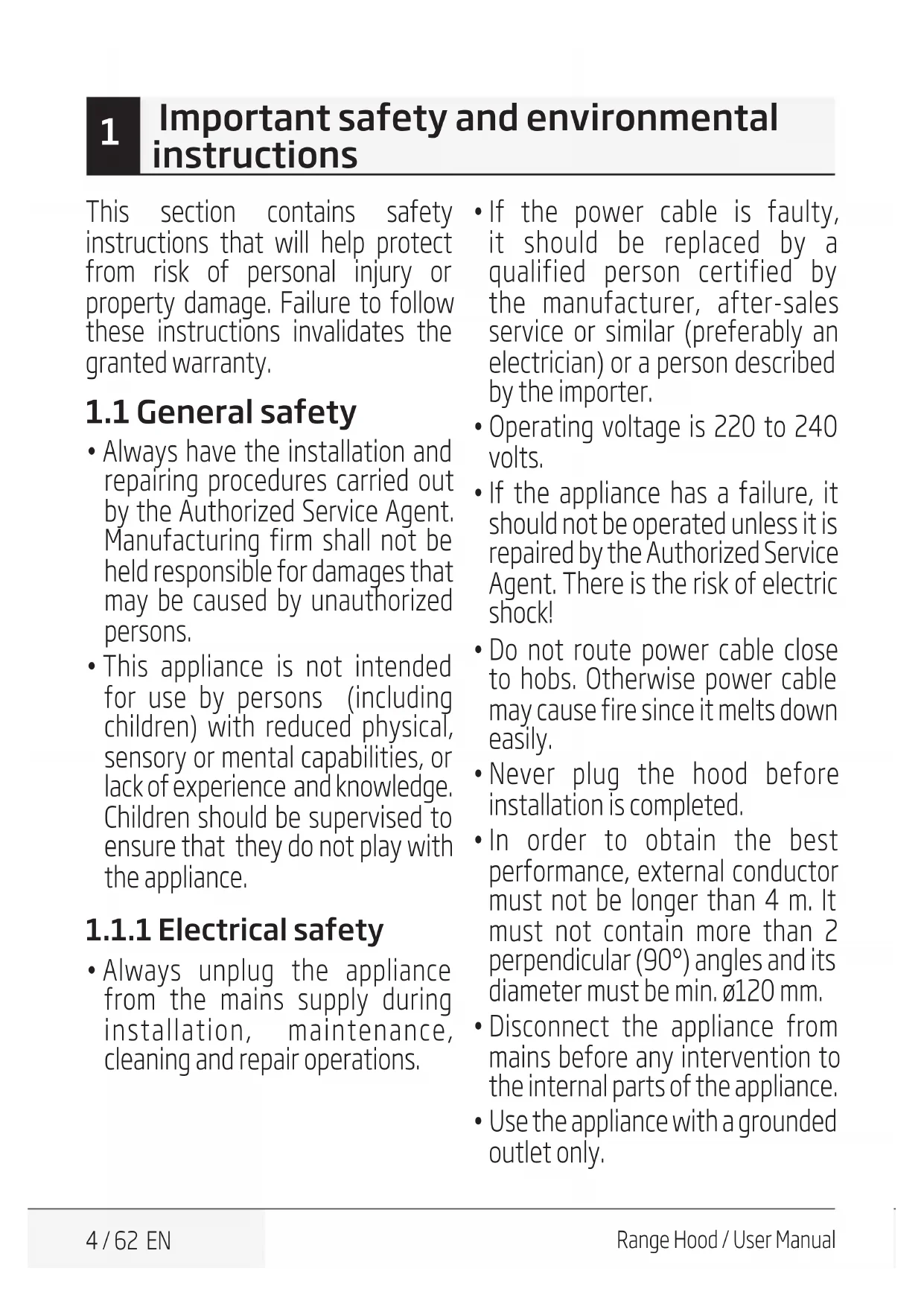

Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• Always have the installation and repairing procedures carried out by the Authorized Service Agent. Manufacturing firm shall not be held responsible for damages that may be caused by unauthorized persons.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. Children should be supervised to ensure that they do not play with the appliance.

1.1.1 Electrical safety

• Always unplug the appliance from the mains supply during installation, maintenance, cleaning and repair operations.

- If the power cable is faulty, it should be replaced by a qualified person certified by the manufacturer, after-sales service or similar (preferably an electrician) or a person described by the importer.

- Operating voltage is 220 to 240 volts.

- If the appliance has a failure, it should not be operated unless it is repaired by the Authorized Service Agent. There is the risk of electric shock!

- Do not route power cable close to hobs. Otherwise power cable may cause fire since it melts down easily.

- Never plug the hood before installation is completed.

- In order to obtain the best performance, external conductor must not be longer than 4 m. It must not contain more than 2 perpendicular (90°) angles and its diameter must be min. ∅120 mm.

- Disconnect the appliance from mains before any intervention to the internal parts of the appliance.

- Use the appliance with a grounded outlet only.

1

Important safety and environmental instructions

1.1.2 Product safety

• You can use a pipe with a diameter of 120 mm or 150 mm on the flue connection of the hood.
• Do not make connections to the flues connected with stoves, exhaust shafts or flues with rising flames. Observe the rules set by authorities on the discharge of exhaust air.
• The height between the lower surface of the hood and upper surface of the stove/oven should not be less than 50 cm for gas hobs and 45 cm for electric hobs.
• Do not operate the hood without aluminum filters and do not remove the filters while it is operated.
• Never touch the hood's lamps after they are operated for a long time. Hot lamps may burn your hand.
• Avoid large flames beneath the product. Otherwise, particles on oil filter may ignite and lead to a fire.

• Turn on the hobs after placing pans or pots on it. Otherwise, rising heat may deform certain parts of your product.

• Turn off the hobs before taking away pans or pots.

• Avoid inflammable materials under the hood.
• Oil may ignite while frying foods. Therefore, be careful about cloths and curtains.
• Never leave the cooker unattended when frying foods; otherwise hot oil may cause fire.
• There is the risk of fire if your hood is not cleaned in the specified periods.
• Be extremely careful and wear gloves when cleaning the hood.
  • We advise you to operate the appliance a few minutes before starting to cook in order to increase the suction power. Thus, you shall have a continuous and stable suction power when the vapors arise.
• Operate your hood for 15 minutes more after the end of cooking or frying in order to remove the smell and cooking vapor in the kitchen.
• When the hood is in use, especially together with gas cookers, make sure that environment is ventilated with clean air.

1

Important safety and environmental instructions

• Pay attention not to connect the appliance to the flues used by non-electrical devices. (E.g.: Heater flue).
• Simultaneous and smooth operation of the hood and another device that require air is only possible when a low pressure of 4 Pa (0.04 mbar) is reached, and thus the reabsorption of the gas is avoided. This can only be achieved by means of air coming from uncovered openings (door, window, ventilation openings or other technical measures). Pay utmost attention to provide sufficient air flow. A flue that provides air ingress/egress is not enough for this purpose.

1.1.3 Children's safety

• Packaging materials are dangerous to children. Keep packaging materials in a safe place out of reach of children.
  • Electrical appliances are dangerous to children. Keep children away from the product. Do not allow children play with the appliance.

• This appliance can be used by the children who are at the age of 8 or over and by the people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, as long as they are supervised with regard to safe use of the product or they are instructed accordingly and understand the risks of using the product. Children should not play with the appliance.

- CAUTION: Accessible parts may heat up when used with a cooking device.

1.2 Intended use

• This appliance is intended for domestic use. It is not suitable for commercial use and it must not be used out of its intended use.
• The manufacturer shall not be liable for any damage caused by improper use or handling.
  • Service life of your appliance is 10 years. This is the period required for availability of spare parts for proper functioning of the product.

1

Important safety and environmental instructions

- WARNING: Failure to fix the screws in concordance with the instructions provided in the manual may lead to electrical hazards.

1.3 Compliance with WEEE Directive and disposing of the waste product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

Compliance with RoHS Directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Package of the product is made of recyclable materials in accordance with our National Legislation. Do not dispose

of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Electrical & Installation requirements

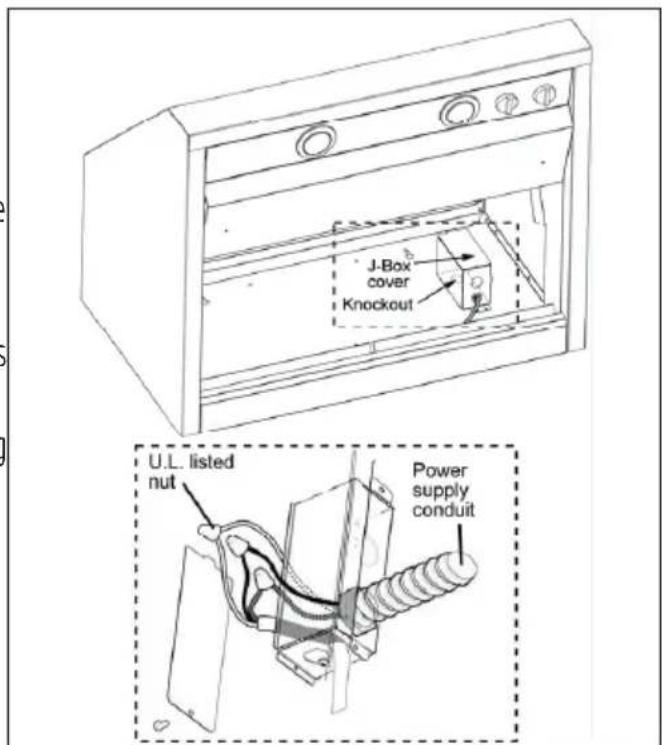

2.1 Electrical requirements

Observe all governing codes and ordinances.

It is the customer's responsibility:

To contact a qualified electrical installer. To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 – latest edition*, or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes and ordinances.

• If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.
• Do not ground to a gas pipe.
• Check with a qualified electrician if you are not sure range hood is properly grounded.
• Do not have a fuse in the neutral or ground circuit.

Save Installation Instructions for electrical inspector's use.

The range hood must be connected with copper wire only.

The range hood should be connected directly to the fused disconnect (Or circuit breaker) box through metal electrical conduit.

Wire sizes must conform to the requirements of the National Electrical Code ANSI/NFPA 70 – latest edition*, or CSA Standards C22.1-94, Canadian Electrical Code Part 1 and C22.2 No. 0-M91 - latest edition** and all local codes and ordinances.

A U.L.- or C.S.A.-listed conduit connector must be provided at each end of the power supply conduit (at the range hood and at the junction box).

Copies of the standards listed may be obtained from:

* National Fire Protection Association Batterymarch Park Quincy, Massachusetts 02269
** CSA International 8501 East Pleasant Valley Road Cleveland, Ohio 44131-5575

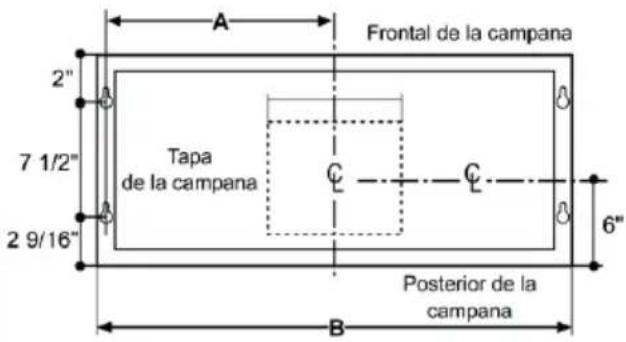

2.2 Before installing the hood

1. For the most efficient air flow exhaust, use a straight run or as few elbows as possible.

WARNING: Vent unit to outside of building, only.

1. At least two people are necessary for installation.
   e3. Fittings material is provided to secure the hood to most types of walls/ceilings, consult a Qualified Installer, check if they perfectly fit with your cabinet/wall.
2. Do not use flex ducting.
3. COLD WEATHER installations should have an additional backdraft damper installed to minimize backward cold airflow and a nonmetallic thermal break to minimize conduction of outside temperatures as part of the ductwork. The damper should be on the cold air side of the thermal break. The break should be as close as possible to where the ducting enters the heated portion of the house.
4. Make up air: Local building codes may require the use of Make-Up Air Systems when using Ducted Ventilation Systems greater than specified CFM of air movement. The specified CFM varies from locale to locale. Consult your HVAC professional for specific requirements in your area.

Removing the packaging

Remove carton carefully, Wear gloves to protect against sharp edges.

WARNING: Remove the protective film covering the product before putting into operation.

3 Technical specifications of your appliance

3.1 List of Materials

3.1.1 Parts supplied

Removing the packaging

Remove carton carefully, Wear gloves to protect against sharp edges.

WARNING: Remove the protective film covering the product before putting into operation.

• Hood canopy.
• Blower.
• Duct transition.
• Lamp already installed.
• Grease filter.

• Hardware bag with:

• Use, care and installation guide

• 2 hollow wall anchors with screws to secure hood to the wall at the bottom
• 4 Wood screws to secure the wood support to the wall
• 4 Phillips head screws to secure the transition to the hood outlet on the top
• 6 Phillips head screws to secure hood to the wood support (2 secured to wood support)
• 1 Safety screw and lock washer to secure the blower (screw is marked with red or blue paint)
• 2 Flat washers for wall anchors

3.1.2 Parts not supplied

Optional Accessories

• Duct Cover
  • Heat Lamps kit (2 IR 175W)
• Backsplash kit

Tools/Materials required

• Wire nuts
• Tape to mount template

• 8" rounded metal duct length to suit installation

• Measuring tape

• Pliers
• Gloves
• Knife
• Safety glasses
  • Electric drill with 5/16" and 3/8" Bits
• Strain relief
• Spirit level
• Duct tape
• Screwdrivers:
• Phillips (Posidrive) # 2
• Torx # 2
• Wire cutter/stripper
• Masking tape
• Hammer
• Saw, jig saw or reciprocating saw

	BCHP30100SS
Operating mode	ducted out only
Max. Ventilation Capacity	515 CFM
Nr.of Speeds	4
Controls	Mechanical Knobs
Lights	2 x 50 W Halogene
Filtering	2 x Baffle Filters
Volts	120 V
Frequency	60 Hz
Total Power (motor + lamps)	550 W
Plug type	Hard Wire
Required distance above cooktop	30" (gas cooktop)
	30" (electrical cooktop)

3 Technical specifications of your appliance

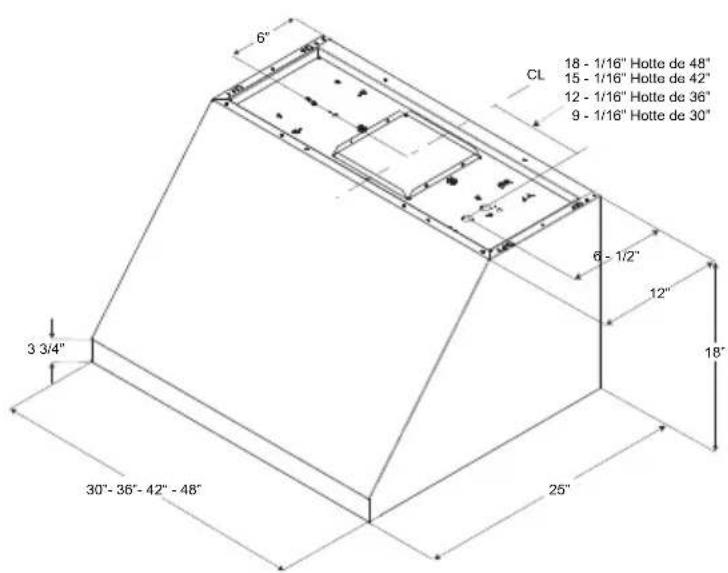

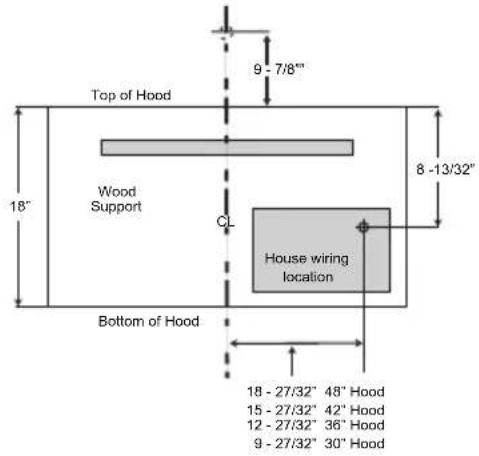

3.2 Dimensions and Clearances

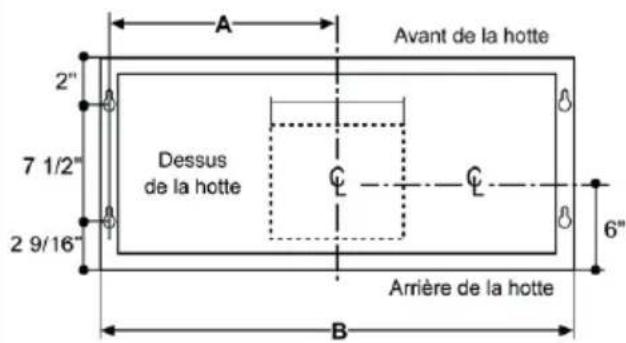

6" CL 18 - 1/16" Hotte de 48" 15 - 1/16" Hotte de 42" 12 - 1/16" Hotte de 36" 9 - 1/16" Hotte de 30" 6 - 1/2" 12" 3 3/4" 18" 30' - 36' - 42' - 48" 25"

Top of Hood 9 - 7/8" 18" Wood Support CL 8 -13/32" House wiring location Bottom of Hood 18 - 27/32" 48" Hood 15 - 27/32" 42" Hood 12 - 27/32" 36" Hood 9 - 27/32" 30" Hood

3.3 Ducting Options and Examples

Closely follow the instructions set out in this manual.

All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined.

3.3.1 Venting methods

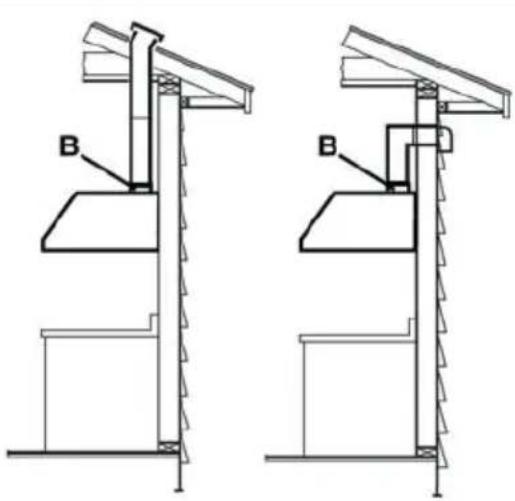

Vent Exhaust Option

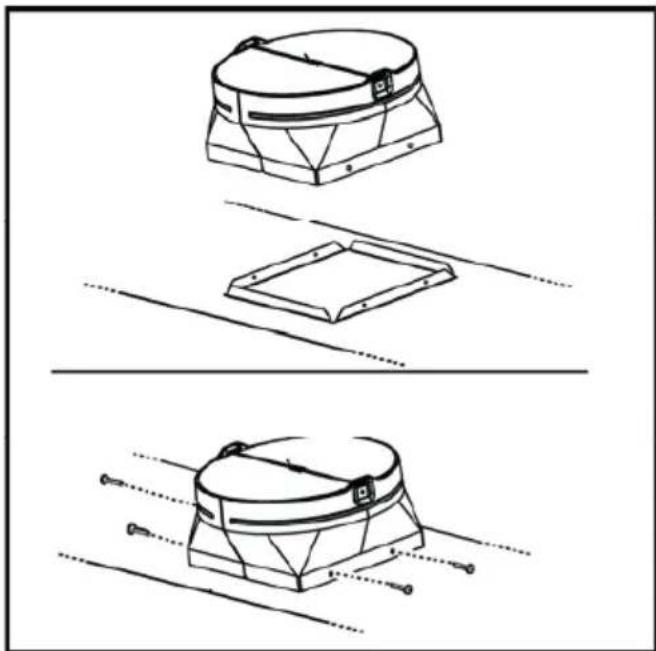

The hood is equipped with a transition B for discharge of fumes to the outside (Ducting version).

Minimum Duct Size (Ducting/Ductless version): 10" Round Pipe.

Technical line drawing of two identical mechanical or structural components with labeled parts B (no text or symbols beyond labels)

Vertical discharge

3.4 Preparation

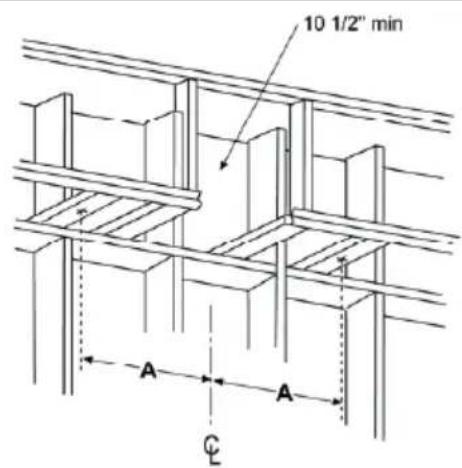

Do not cut a joist or stud unless absolutely necessary. If a joist or stud must be cut, then a supporting frame must be constructed.

Fittings material is provided to secure the hood to most types of walls/ceilings.

However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling.

3 Technical specifications of your appliance

Before making cutouts, make sure there is proper clearance within the ceiling or wall for exhaust vent.

Hood installation height above cooktop is the users preference. The lower the hood is above the cooktop, the more efficient the capturing of cooking odors, grease and smoke.

WARNING: For gas ranges installation: mount this hood so that the bottom edge is at 30" (76,2 cm) above the cooking surface.

For electric ranges installation: mount this hood so that the bottom is not less than 30" (76,2 cm) and not more that 36" above the cooking surface.

Household use. Please, read installation manual for specific application.

Check your ceiling height and the hood height maximum before you select your hood.

4 Installing your appliance

4.1 Installation - Ducting version

• If possible, disconnect and move freestanding or slide-in range from cabinet opening to provide easier access to rear wall. Otherwise put a thick, protective covering over countertop, cooktop or range to protect from damage and debris. Select a flat surface for assembling the unit. Cover that surface with a protective covering and place all canopy hood parts and hardware in it.
• Determine and mark the centerline on the wall where the canopy hood will be installed.
• Select a mounting height comfortable for the user and mark on wall.
• Tape template, matching center-line and hood bottom.

4.2 install hood onto wall

IMPORTANT: Framing must be capable of supporting up to 150 lbs.

• Locate at least.2 vertical studs at the wood support.

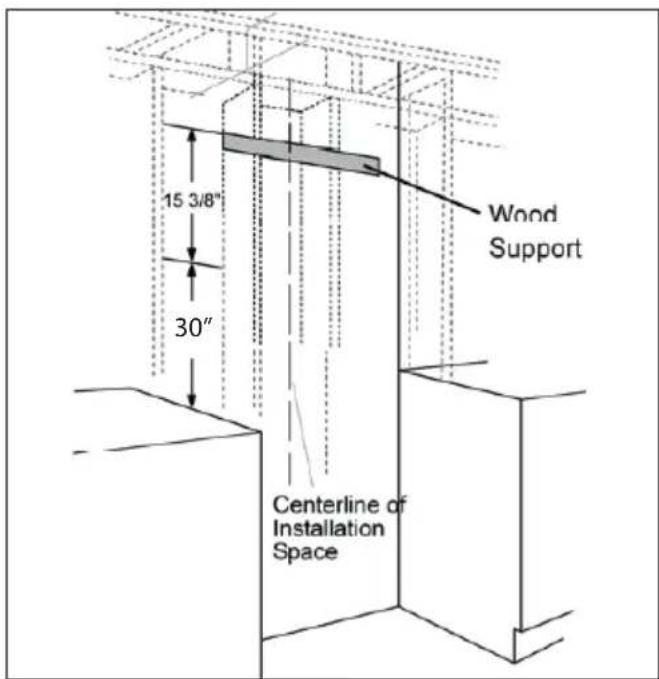

• Center the supplied wood support, left to right and below the 15 3/8" marked line.

15 3/8" 30" Wood Support Centerline of Installation Space

- Secure the wood support to 2 or more vertical studs, using at least 2 of the 4 supplied long screws.

IMPORTANT: Screws must penetrate at least 1 1/2" into vertical studs. Countersink screws into support.

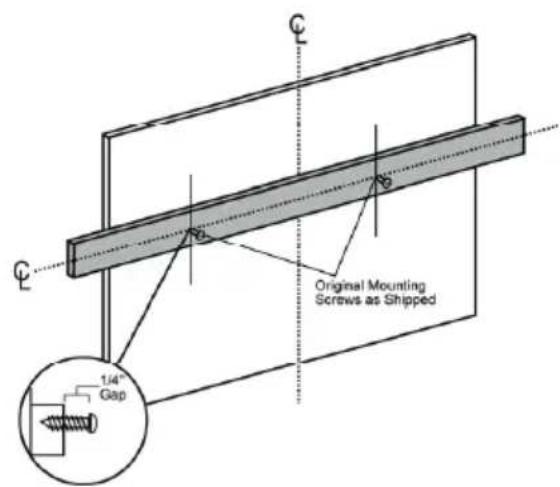

The mounting screws must remain in their original shipping location. These screws are positioned to engage the keyhole slots in the back of the hood.

Original Mounting Screws as Shipped 1/4" Gap

- Adjust depth of original mounting srcrews in the wood support until they protrude 1/4" forward. This 1/4" gap will provide clearance to hang the hood.

4.2.1 Install Transition Onto Top of Hood

IMPORTANT: Remove shipping tape from damper and check that damper moves freely.

• Place the transition piece over the hood exhaust and secure with 4 screws provided.
• Use duct tape to seal the connection. Check to be sure the damper moves freely.

4 Installing your appliance

Three technical line drawings of a mechanical component with no visible text or symbols

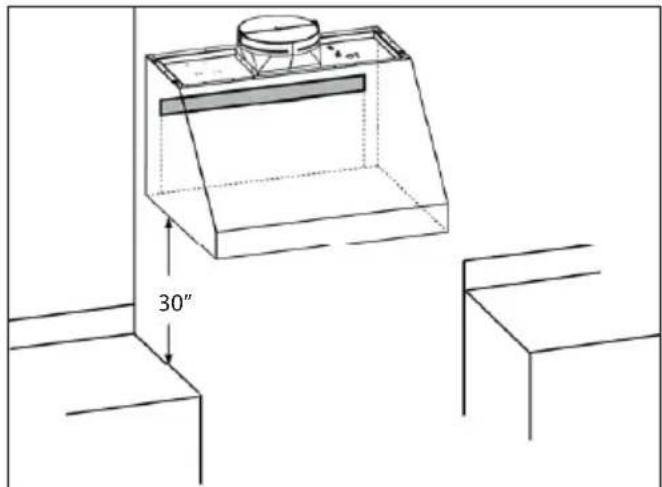

4.2.2 Hang hood on wood support

• Lift the hood and hold close to the installation location. Route house wiring through the knockout and into the junction box.
• Place the hood over the wood support. Be sure the mounting screws engage the keyhole slots in the back of the hood.

Tighten the screws.

WARNING: Continue to provide additional support while the hood is mounted with only these 2 screws.

These screws will not support the weight of the hood. The hood could fall resulting in damage or personal injury.

- Check to be sure the hood is level and centered.

30"

4.2.3 Install bottom mounting screws

- Drill 1/8" pilot holes into the two lower mounting holes. Enlarge the holes if they did not enter studs to 3/8". Insert anchors for wall fasteners into bottom holes. Remove anchor screws and add flat washers provided. Drive screws into anchors and tighten. - Install 4 additional screws through the back of the hood and into the wood support.

4.3 install hood ceiling or beneath cabinets

(Skip this step if using wall mounting method)

IMPORTANT: Ceiling framing must be capable of supporting up to 150 lbs.

• The ceiling should be constructed with 2x4's.
• Determine the installation location on the wall.
- Continue the centerline forward on the bottom of the cabinet or ceiling.
- The opening above the hood should allow for the 10" round duct and clearance to slide the hood back against the wall.

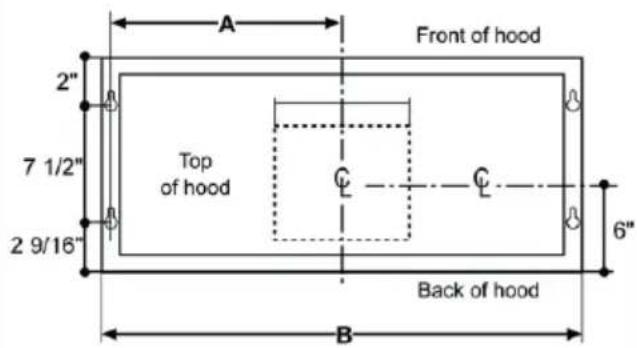

- The 2x4 studs must be located as shown in the chart, Dim. A to accept monting screw.
- Drill 1/8" pilot holes into the studs at the locations show in the illustration.

4 Installing your appliance

10 1/2" min A A C

"A"	"B"
23 9/16"	48"
20 9/16"	42"
17 9/16	36"
14 9/16"	30"

Front of hood 2" 7 1/2" Top of hood 2 9/16" Back of hood 6"

4.3.1 Install Transition Onto Top of Hood

IMPORTANT: Remove shipping tape from damper and check that damper moves freely.

• Place the transition piece over the hood exhaust and secure with 4 screws provided.
• Use duct tape to seal the connection. Check to be sure the damper moves freely.

Technical line drawings of a mechanical component with three views (top, front, side), no text or symbols present.

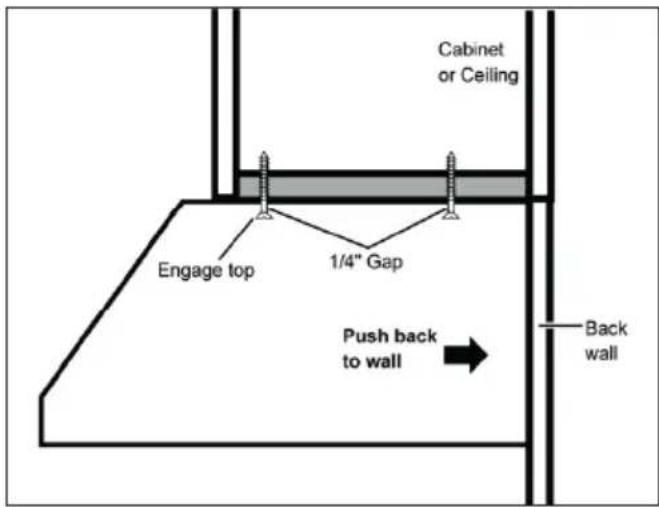

4.3 2 Mount hood onto ceiling or cabinet

If mounting to the underside of a cabinet with a recessed bottom, install shims to fill the gap.

• Drive mounting screws into the studs until they protrude 1/4". The 1/4" gap will provide clearance to engage the keyhole slots in the top of the hood.
• Lift hood to installation position. Locate house wiring and route trough the knockout (from the back or top of the hood).
• Lift hood onto mounting screws. Slide back against the rear wall.
• Tighten mounting screws.

IMPORTANT: For additional support and to minimize vibration during operation, the hood must be secured to the back wall. Use wall anchors to fasten bottom back of hood to the wall.

4 Installing your appliance

Cabinet or Ceiling Engage top 1/4" Gap Push back to wall Back wall

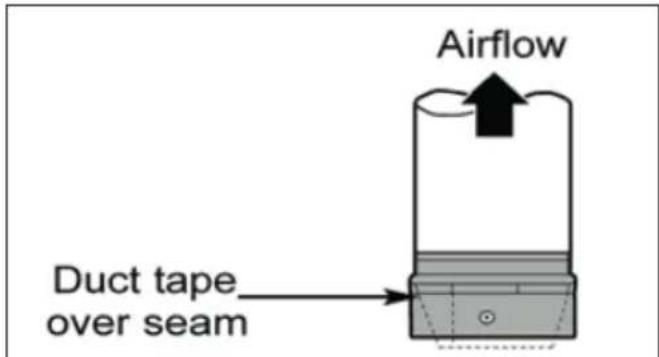

4.3.3 Connecting the ductwork

• Install ductwork, making connections in the direction of airflow as illustrated.
- Push duct over the exhaust outlet.
- Wrap all duct joints and the flange connections with duct tape for an airtight seal.
- Make the same connection in the wall or ceiling vent exit.

Airflow Duct tape over seam

4.3.4 Electrical connection

Electrical Shock Hazard

Turn off power circuit at the service panel before wiring this unit. 120 VAC, 15 or 20 Amp circuit required.

Electrical grounding instructions

This appliance is fitted with an electrical junction box with 3 wires, one of which (green/yellow) serves to ground the appliance.

To protect you against electric shock, the green and yellow wire must be connected to the grounding wire in your home electrical system, and it must under no circumstances be cut or removed.

Failure to do so can result in death or electrical shock.

Remove the knockout and the Junction box cover and install the conduit connector (cULus listed) in junction box.

J-Box cover Knockout U.L. listed nut Power supply conduit

4.3.5 Install Motor

• From the inside of the hood, slip motor into the attachment slot on the left.
• Rotate motor upwards until it snaps into the spring clip on the right.
• Secure the motor to the hood with the machine screw and lock washer. (Screw is marked with red or blue paint).

IMPORTANT: Connector ends are designed to mate only one way. Match flat and round connectors as shown.

4 Installing your appliance

- Plug connector into the motor.

Outlet Attachment slot Spring clip Attachment screw Spring clip Fig. 1: Single motor installation (30" range hood model only) Figure 2: Double motor installation (36", 42" & 48" range hood models only)

Install the grease filter and turn power on at service panel.

Check operation of the hood.

If range hood does not operate:

• Check that the circuit breaker is not tripped or the house fuse blown.
• Disconnect power supply. Check that wiring is correct.

To get the most efficient use from your new range hood, read the "Use and Care Information" section.

Keep your Installation Instructions and Use and Care Guide close to range hood for easy reference.

5 Operating your appliance

5.1 Description of the hood & Controls

Technical diagram of a mechanical device with numbered components labeled 1 to 4

1. Blower and light controls
2. Lamp housings
3. Grease filter Handle
4. Grease filter

5.1.1 Controls

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

5.1.2 Description of control panel

OFF 1 HI 1 OFF 1 2 3 HI 2

1. Light Control
2. Turn the light control from OFF to HI for the brightest light while cooking.
3. Fan Control
4. Turn the fan control speed from OFF to HI as needed.

6 Cleaning and maintenance

6.1 Maintenance

Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

6.2 Cleaning

- The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks.

• Therefore, we recommend oserving these instructions.
• The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

6.3 Grease Filter

Traps cooking grease particles.

This must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

6.3.1 Remove grease filters

- To remove the filters, grasp the handle, push the filter up and lift out.

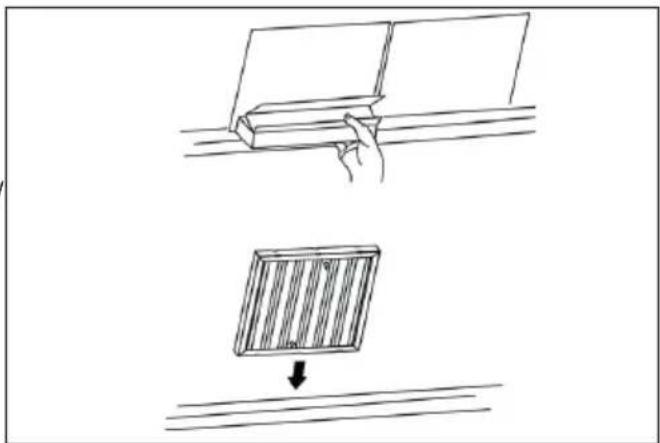

6.3.2 install grease filters

• Place filter drip trays into the rear of the hood.
• Insert the grease filter into opening and drop into the trays.

Diagram showing a hand holding a rectangular object above a grid-like structure, with an arrow indicating downward motion (no text or symbols)

6.4 Replacing the light bulb

Before replacing the lamps, switch power off at service panel and lock service panel disconnecting means to prevent power from being switched on accidentally.

Turn off the lights and fan. Allow the lights to cool before handling. If new lights do not operate be sure lights are inserted correctly before calling service.

Diagram of a lamp with labeled parts and directional arrows indicating motion or rotation.

6 Cleaning and maintenance

Replace Lights

- Remove the damaged light (twist counter clockwise) and replace with a new 120 Volt, 50 Watt (maximum) 50° halogen light made for a GU10 base, suitable for use in open luminarie.

7 Warranty

Warranty Statement For Blomberg Range Hoods

Cooking Appliances

The warranties provided by Blomberg in these statements only apply to Blomberg cooking appliances(wall ovens / cooktops) sold to the original purchaser or homeowner

in the US and Canada. The warranty is not transferable. To obtain warranty service, please contact our nearest distributor as listed by state. You will need your cooking appliances(wall ovens / cooktops) model number, serial number, retailer name and address, where purchased and purchase date / installation date. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

1 year * limited warranty from date of first installation Blomberg will repair or replace at no cost to the consumer any defective parts of the cooking appliances(wall ovens / cooktops) if used under normal household conditions (warranty is void if the product is used commercially). Service must also be performed by an authorized Blomberg service agency otherwise the warranty is void. (Cosmetic defects must be reported within 10 business days from installation)

2 year * ++ limited warranty from date of first installation (Parts only) Blomberg will repair or replace any parts at no cost to the consumer if material defects or workmanship have caused the damage or failure of these components. Again the appliance must have been used under normal household conditions and not commercially as stated above (Labor charges are the responsibility of the consumer)

Disclaimers of warranties and exclusions: Warranty does not cover service costs by an authorized service agent to correct installation, electrical problems or educational instruction on the use of the cooking appliances(wall ovens / cooktops). The warranty also does not cover defects or damage caused by an act of god (such as storms, floods, fires, mudslides, etc.), damage cause by use of the cooking appliances(wall ovens / cooktops) for purposes other than those for which it was designed, misuse, abuse, accident, alteration, improper installation, maintenance, travel fees, service calls outside normal service hours, unauthorized service work or work.

This product is fully tested and went through official quality assurance inspections before leaving the original manufacturing site. Warranty terms for this Blomberg household appliance is not valid if the product is altered, tampered, modified, additional parts assembled, fixed and re-packed by an authorized distributor, servicer, a third party retailer, reseller or by any other unauthorized person(s).

TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESSED AND IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. BLOMBERG UNDERTAKES NO RESPONSIBILITY FOR THE QUALITY OF THIS PRODUCT EXCEPT AS OTHERWISE PROVIDED IN THIS WARRANTY STATEMENT. BLOMBERG ASSUMES NO RESPONSIBILITY THAT THE PRODUCT WILL BE FIT FOR ANY PARTICULAR PURPOSE FOR WHICH YOU MAY BE BUYING THIS PRODUCT, EXCEPT AS OTHERWISE PROVIDED IN THIS WARRANTY STATEMENT.

Blomberg does not assume any responsibility for incidental or consequential damages. Such damages include, but are not limited to, loss of profits, loss of savings or revenue, loss of use of the washer or any associated equipment, cost of capital, cost of any substitute equipment, facilities or services, downtime, the claims of third parties, and injury to property. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusion may not apply to you.

* installation date shall refer to either purchase date or 5 business days after delivery of the product to the home, whichever is later. ++Parts replaced will assume the identity of the original parts + their original warranty.

No Other Warranties. This Warranty Statement is the complete and exclusive warranty from the manufacturer. No employee of Blomberg or any other party is authorized to make any warranty statements in addition to those made in this Warranty Statement. Please keep this warranty card, user manual and your sales slip for future reference.

HOW TO GET SERVICE

Please contact the Distributor for your State or Province as listed on the Distributor Contact List, or call our Toll Free Number at 1 800 459 9848 for direction to an Authorized Blomberg Service Agent. 02 01.

* National Fire Protection Association Batterymarch Park Quincy, Massachusetts 02269

** CSA International 8501 East Pleasant Valley Road Cleveland, Ohio 44131-5575

2.2 Antes de instalar la campana

Technical line drawings of a mechanical component with three views (top, front, side), no text or symbols present.

"A"	"B"
23 9/16"	48"
20 9/16"	42"
17 9/16	36"
14 9/16"	30"

A Frontal de la campana 2" 7 1/2" 2 9/16" Tapa de la campana C C 6" Posterior de la campana B

Three technical line drawings of a mechanical component with no visible text or symbols

Outlet Attachment slot Spring clip Attachment screw Spring clip Attachment screw

Fig. 1: Single motor installation (30" range hood model only)
Fig. 2: Double motor installation (36", 42" & 48" range hood models only)

Technical diagram of a mechanical device with numbered components for identification

Diagram showing a hand holding a rectangular object above a surface and a grid-patterned object below it, with no visible text or symbols.

6 Cleaning and maintenance

Diagram of a hanging lamp with labeled parts and directional arrows indicating motion or rotation.

* La National Fire Protection Association, Batterymarch Park Quincy, Massachusetts, 02269
** La CSA International, 8501 East Pleasant Valley Road, Cleveland, Ohio, 44131-5575

Top of Hood 9 - 7/8" 18" Wood Support CL 8 -13/32" House wiring location Bottom of Hood 18 - 27/32" 48" Hood 15 - 27/32" 42" Hood 12 - 27/32" 36" Hood 9 - 27/32" 30" Hood

Technical diagram showing two mechanical assembly configurations labeled B, with structural supports and mounting brackets.

Technical line drawings of three mechanical components with no visible text or symbols

"A"	"B"
23 9/16"	48"
20 9/16"	42"
17 9/16	36"
14 9/16"	30"

Technical line drawing of a mechanical component with two views: top shows a cylindrical component, bottom shows a square component (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Airflow Duct tape over seam

Outlet Attachment slot Spring clip Attachment screw Spring clip Attachment screw

Fig. 1: Single motor installation (30° range hood model only)
Fig. 2: Double motor installation (36", 42" & 48" range hood models only)

Technical diagram of a mechanical device with numbered components labeled 1 to 4

Simple line drawing of a hand holding a rectangular object on a surface (no text or symbols)

Simple line drawing of a solar panel with an arrow pointing downward, no text or symbols present.

Diagram of a hanging lamp with labeled parts and directional arrows indicating motion or rotation.
