USER MANUAL DKP 2020 A BLOMBERG

RECOMMENDATIONS AND SUGGESTIONS

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

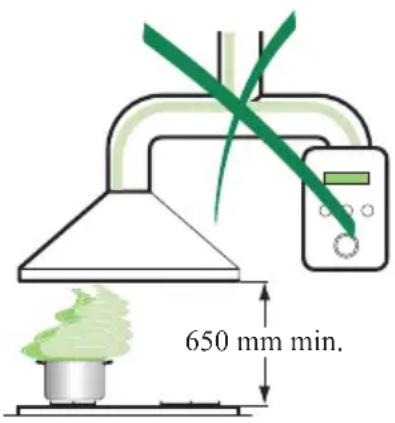

• The minimum safety distance between the cooker top and the extrac- tor hood is 650 mm.

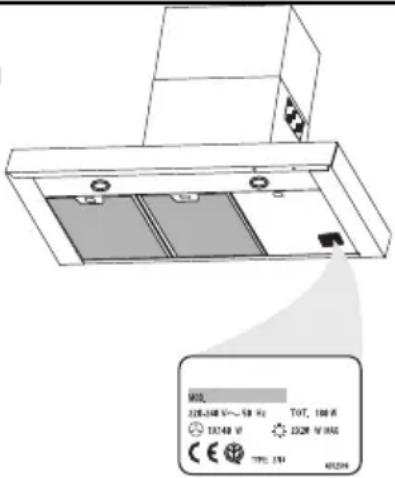

• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.

• For Class I appliances, check that the domestic power supply guaran- tees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combus- tion fumes (boilers, fireplaces, etc.).

• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has ben de- signed.

• Never leave high naked flames under the hood when it is in operation.

• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored during use: over- heated oil can burst into flames.

• The hood should not be used by children or persons not instructed in its correct use. MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carry- ing out any maintenance work.

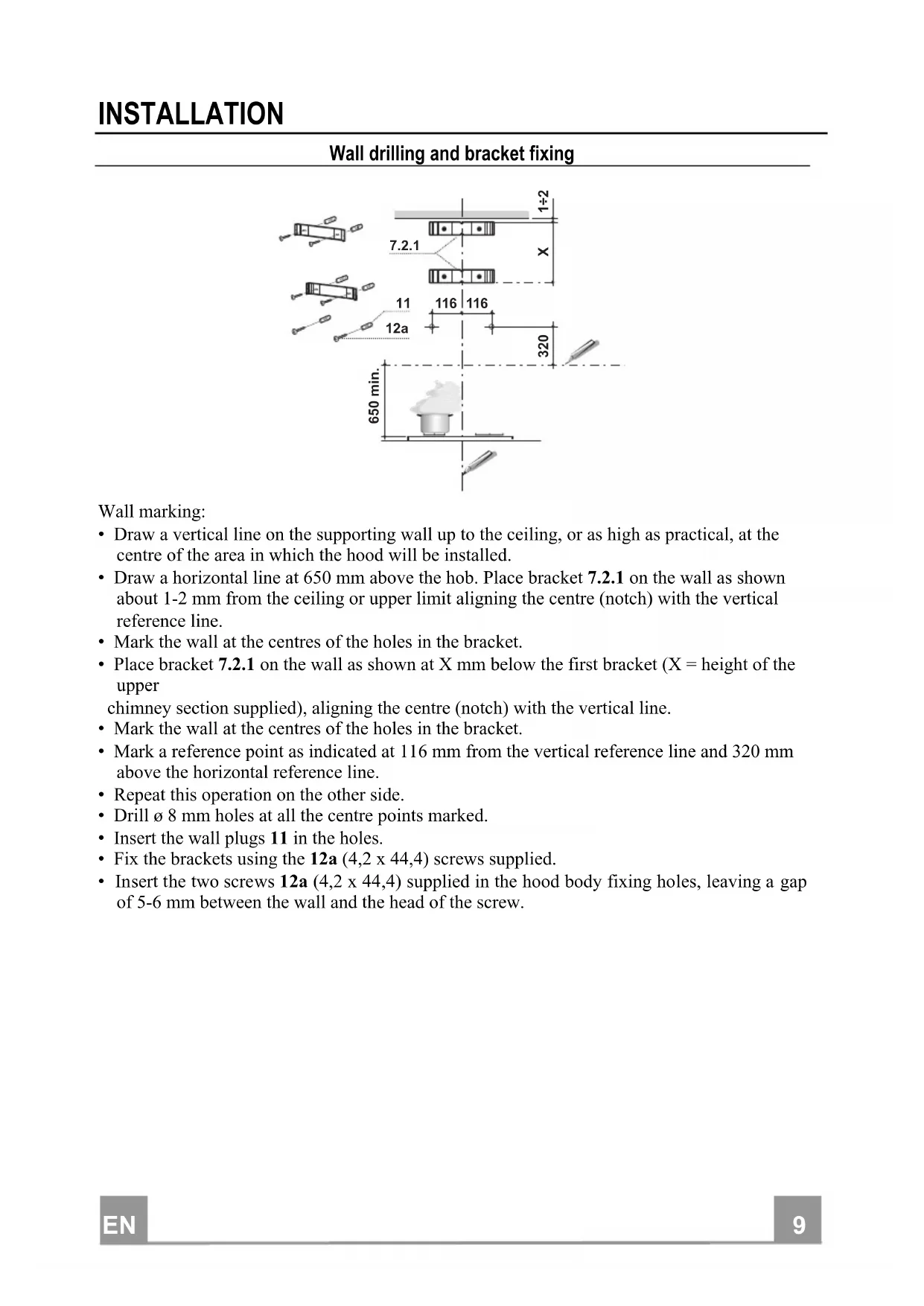

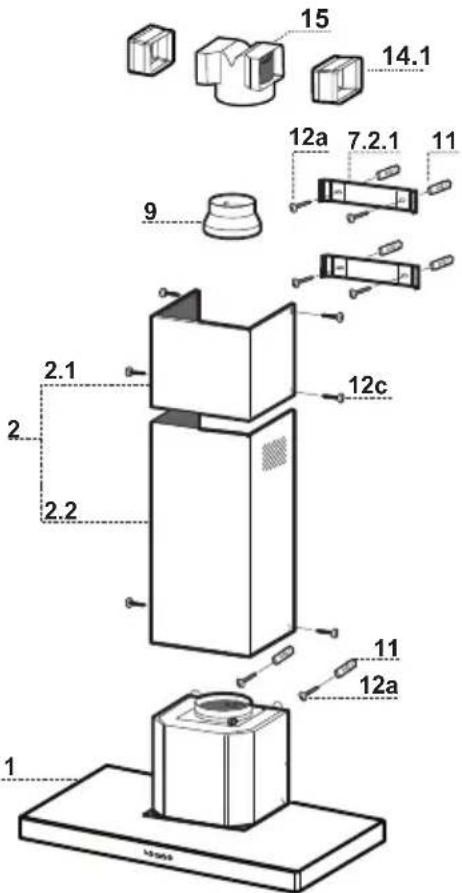

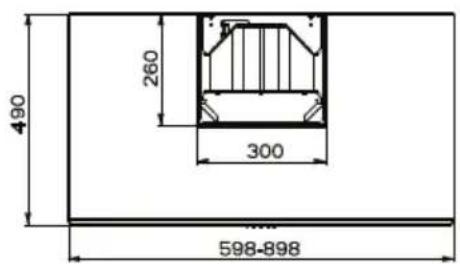

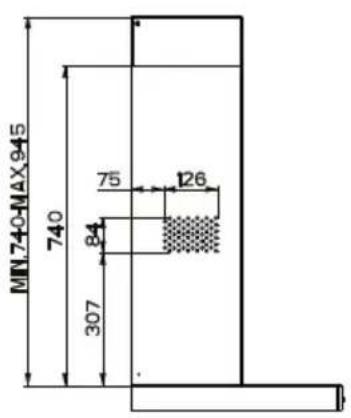

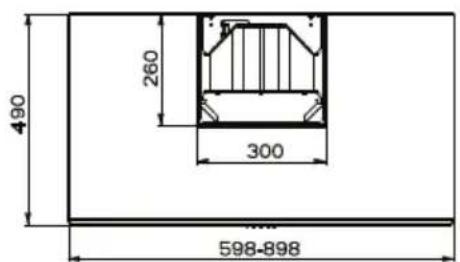

INSTALLATION Wall drilling and bracket fixing

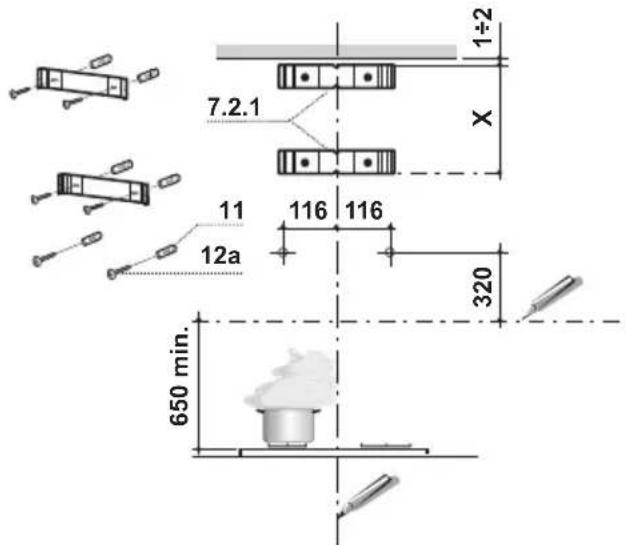

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed.

• Draw a horizontal line at 650 mm above the hob. Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit aligning the centre (notch) with the vertical reference line.

• Mark the wall at the centres of the holes in the bracket.

• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the upper chimney section supplied), aligning the centre (notch) with the vertical line.

• Mark the wall at the centres of the holes in the bracket.

• Mark a reference point as indicated at 116 mm from the vertical reference line and 320 mm above the horizontal reference line.

• Repeat this operation on the other side.

• Drill ø 8 mm holes at all the centre points marked.

• Insert the wall plugs 11 in the holes.

• Fix the brackets using the 12a (4,2 x 44,4) screws supplied.

• Insert the two screws 12a (4,2 x 44,4) supplied in the hood body fixing holes, leaving a gap of 5-6 mm between the wall and the head of the screw.

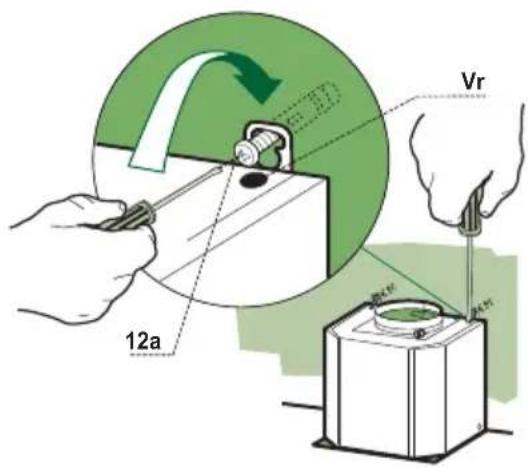

Mounting the hood body

• Before attaching the hood body, tighten the two screws Vr located on the hood body mounting points.

• Hook the hood body onto the screws 12a.

• Fully tighten support screws 12a.

• Adjust screws Vr to level the hood body. 12a

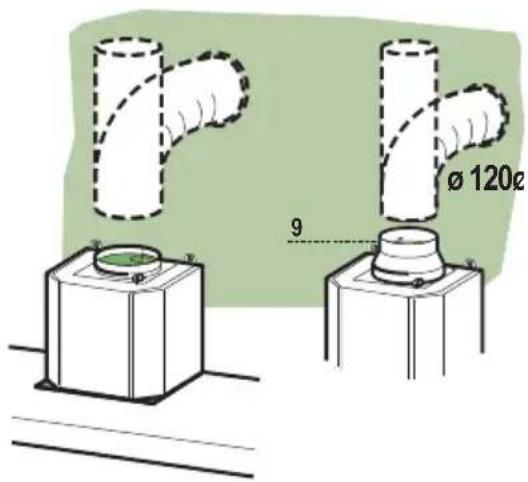

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe ø 150 or 120 mm, the choice of which is left to the installer.

• To install a ø 120 mm air exhaust connection, insert the reducer flange 9 on the hood body outlet.

• Fix the pipe in position using sufficient pipe clamps (not supplied).

• Remove any activated charcoal filters.

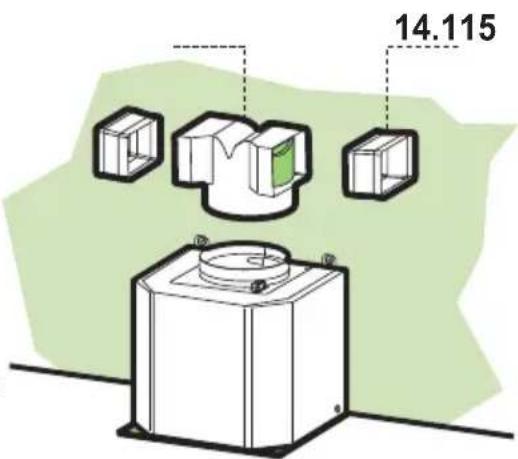

• Insert the connection extension pieces laterally 14.1 in connection 15.

• Make sure that the outlet of the extension pieces 14.1 is horizontally and vertically aligned with the chim- ney outlets. If this is not the case, adjust the position by either reversing the connection extension pieces

14.1 and then reassemble as described previously.

• Ensure that the activated charcoal filters have been inserted. 14.115EN

• Connect the hood to the mains through a two-pole switch hav- ing a contact gap of at least 3 mm.

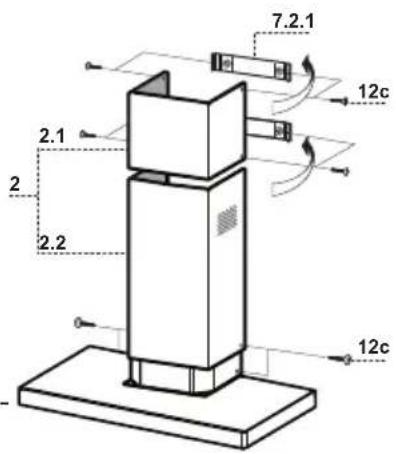

• Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan. Flue assembly Upper exhaust flue

• Slightly widen the two sides of the upper flue and hook them behind the brackets 7.2.1, making sure that they are well seated.

• Secure the sides to the brackets using the 4 screws 12c (2,9 x 9,5) supplied. Lower exhaust flue

• Slightly widen the two sides of the flue and hook them be- tween the upper flue and the wall, making sure that they are well seated.

• Fix the lower part laterally to the hood body using the 2 screws 12c (2,9 x 9,5) supplied. 12c

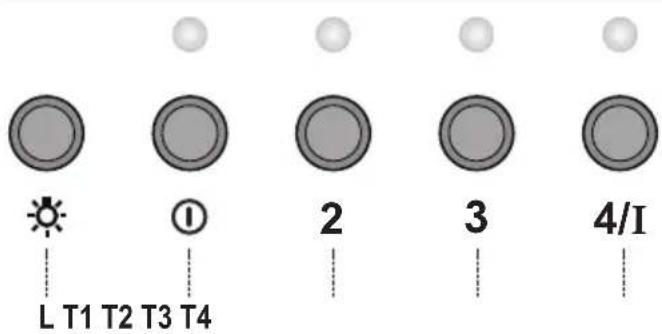

4/I L T1 T2 T3 T4 Control panel KEY LED FUNCTIONS L 0/1 Light Turns lighting on and off. T1 0/1 Motor on First speed. When pressed for about 1 seconds the motor is switched off. T2 Speed on Second speed. T3 Speed on Third speed. T4 Speed Fixed Max. speed Flashing Intensive speed. Suitable for the strongest cooking vapours and odours. The func- tion becomes active when the button is pushed for about 2 sec- onds. After 10 minutes of functioning it turns off automatically. This function can be interrupted by means of pressing any of the buttons.EN

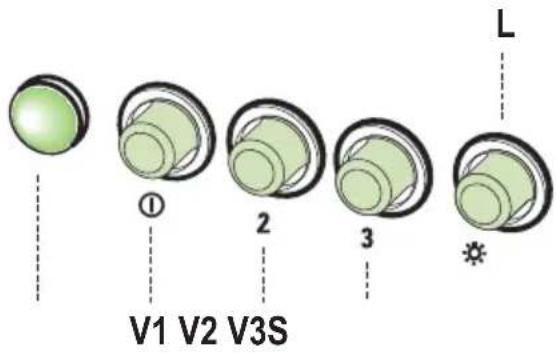

L Light Switches the lighting system on and off. S Led Motor running led. V1 Motor Switches the extractor motor on and off at low speed. Used to provide a contin- uos and silent air change in the presence of light cooking vapours. V2 Speed Medium speed, suitable for most operating conditions given the optimum treated air flox/noise level ratio. V3 Intensive Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.EN

• The filters must be cleaned every 2 months of op- eration, or more frequently for particularly heavy usage, and can be washed in a dishwasher.

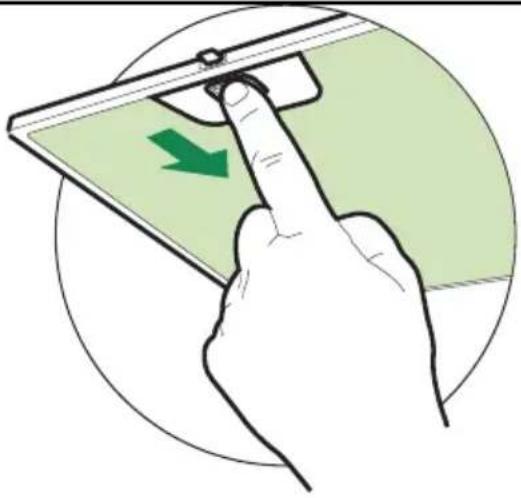

• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.

• Wash the filters, taking care not to bend them. Al- low them to dry before refitting.

• When refitting the filters, make sure that the han- dle is visible on the outside.

Activated charcoal filter (Recirculation version)

REPLACING THE ACTIVATED CHARCOAL FILTER

• The filter is not washable and cannot be regener- ated, and must be replaced approximately every 4 months of operation, or more frequently for par- ticularly heavy usage.

• Remove the metal grease filters

• Remove the saturated activated carbon filter by releasing the fixing hooks

• Fit the new filter by hooking it into its seating

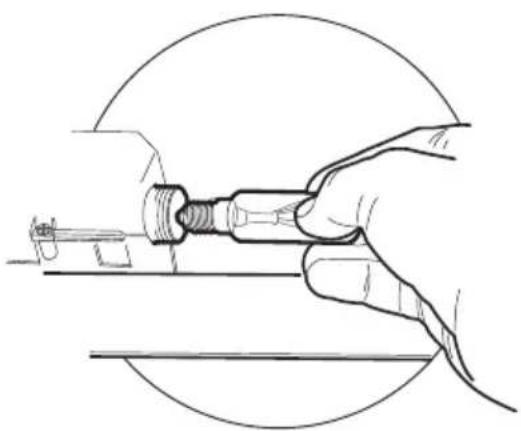

• Replace the metal grease filters. Lighting LIGHT REPLACEMENT 40 W incandescent light.

• Remove the metal grease filters.

• Unscrew the bulbs and replace them with new ones having the same characteristics.
