J645 - Watch JAGUAR - Free user manual and instructions

Product type	Quartz watch
Brand	Jaguar
Model	J645
Display	Hands (hours, minutes, small seconds at 3 o'clock) and date window at 12 o'clock
Functions	Time, date, chronograph (1/10s, minutes up to 30 min, seconds at center)
Battery type	395 (Ø 9.5 mm x 2.6 mm / SR 927 SW)
Accuracy	+20 / -10 seconds per month
Battery life	About 2 to 3 years (estimated)
Water resistance	Not specified
Care	Avoid any contact with water and shocks. Clean with a soft, dry cloth.
Recycling	Do not dispose of with household waste. Deposit at an approved collection point.
Repairability	Battery replacement and adjustments possible by a professional watchmaker.
Package contents	Watch, instruction manual

Frequently Asked Questions - J645 JAGUAR

How to set the time on my Jaguar J645 watch?

Pull the crown to position III (the second hand stops). Turn the crown to display the desired time. Push the crown back to position I. For exact second setting, pull the crown when the second hand is at 60.

How to set the date?

Pull the crown to position II. Turn it until the correct date is displayed. Push back to position I. Avoid setting the date between 9 PM and midnight as the calendar is changing.

How to use the chronograph?

Press pusher A to start and stop the chronograph. Press pusher B to reset the hands to zero. The minute counter measures up to 30 minutes, the central seconds counter measures 60 seconds, and the 1/10 second counter measures 1 second per revolution (after 30 min it becomes an hour counter).

How to take a cumulative timing?

Press A to start, then press A again to stop (intermediate time). Press A to restart, and so on. To get the total time, stop with A and read the counters. Reset to zero with B.

How to measure an intermediate time?

Press A to start. To display an intermediate time, press B (the hands show the intermediate time but the chronograph continues in the background). Press B again to catch up to the elapsed time. Press A to finally stop.

What to do if the chronograph hands are not at zero?

Pull the crown to position III. Simultaneously press pushers A and B for at least 2 seconds (the central second hand rotates 360°). Use A to adjust the selected hand step by step or continuously, then B to move to the next hand (1/10s then minutes). Push the crown back to position I.

What type of battery does the Jaguar J645 use?

It uses a type 395 battery (Ø 9.5 mm x 2.6 mm / SR 927 SW). Replacement is recommended by a professional.

How to care for my Jaguar J645 watch?

Clean it with a soft, dry cloth. Avoid water, shocks, and magnetic fields. For battery replacement, consult a watchmaker.

What to do if my watch stops or malfunctions?

First check if the battery is worn out. If the problem persists, contact an authorized Jaguar after-sales service or a professional watchmaker.

How to recycle my watch at end of life?

Do not throw the watch away with household waste. In accordance with the WEEE regulation, deposit it at a selective collection point or with an approved retailer for recycling.

USER MANUAL J645 JAGUAR

Blank white image with a thin black border (no text, symbols, or markings)

JAGUAR — SWISS MADE —

FESTINA GROUP

Via Layetana 20

08003 BARCELONA

USER GUIDE IJM5040A COMPANY OF TH

INDEX

Español > p.3

English > p.17

Français > p.31

Deutsch > p.45

Italiano >p.59

Manual del usuario

Analog stopwatch with dual dials and a close-up of the next time showing three labeled buttons (I, II, III) for time measurement.

Analog stopwatch with dual dials showing time, seconds, and elapsed minutes

Diagram showing mechanical or electrical components with labeled arrows A and B, likely illustrating a sequence or motion sequence.

-Brief specifications....18
- Description of the display and control buttons ..... 19
- Setting the time / date .....20 - 23
- Operation of the chronograph....24 - 29

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

Brief specifications

Time/Date

• Hour hand
- Minute hand
- Small second hand (position 3h)
• Date (position 12h)

Chronograph

• 1/10 second counter / hour counter after 30 minutes (position 6h)
• Minute counter up to 30 minutes (position 9h)
- Centre stop-second

General

• Battery type: 395 (diameter 9.5mm x 2.6mm / SR 927 SW)
  • Accuracy: +20 / -10 seconds per month

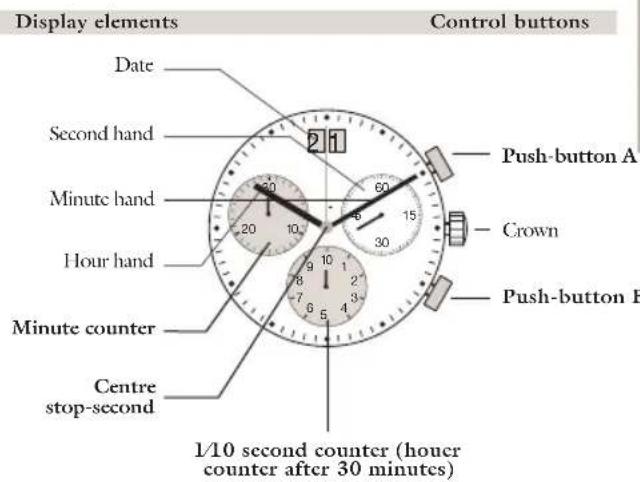

Description of the display and control buttons

Display elements Control buttons Date Second hand Minute hand Hour hand Minute counter Centre stop-second Push-button A Crown Push-button B 1/10 second counter (hower counter after 30 minutes)

Setting the time

Second hand 1 2 30 60 4 5 30 20 10 8 7 6 5 I II III

Diagram of a stopwatch with analog clock face, showing time and duration settings

Setting the date (quick mode)

3:1 20 30 9 8 7 6 5 4 30 15 1 I II 1 U

Analog stopwatch with dual dials showing time, seconds, and elapsed minutes

1 *Pull out the crown to position III (the watch stops).
② Turn the crown until you reach the correct time 8.45.
3 *Push the crown back into position I.

Please note:

*In order to set the time to the exact second, 1 must be pulled out when the second hand is in position «60» (I).

Once the hour and minute hands have been set, ③ must be pushed back into position I at the exact second.

1 Pull out the crown to position II (the watch continues to run).
2 Turn the crown until the correct date 01 appears.
3 Push the crown back into position I.

Please note:

The date can be changed during the date changing phase between 9.00 PM and 12.00 PM; please note that the date must be set to the date of the following day as in this case the automatic date changing does not occur at midnight.

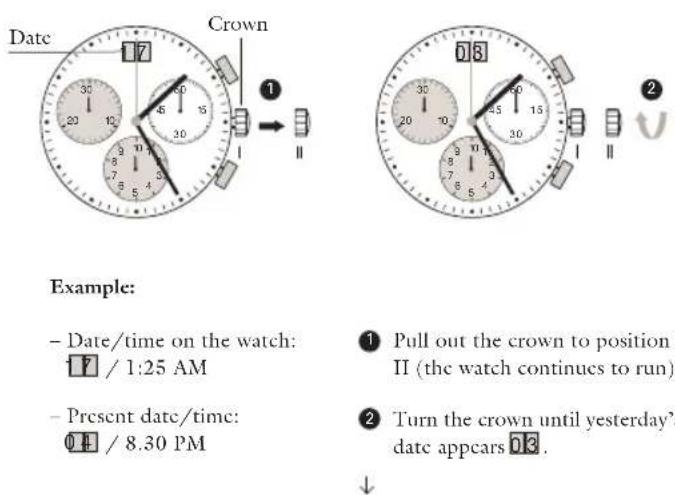

Setting the date/time following a battery change

Example:

- Date/time on the watch:

17 / 1:25 AM

- Present date/time:

04 / 8.30 PM

1 Pull out the crown to position II (the watch continues to run).
2 Turn the crown until yesterday's date appears 03.

↓

Second hand 0 3 30 20 10 5 30 6 9 7 8 5 I II III

↓

3 *Pull out the crown to position III (the watch stops).
4 Turn the crown until the correct date 0.4 appears.
5 **Continue to turn the crown until the correct time 8.30 PM appears.

0 4 1 30 20 15 6 60 15 30 9 8 7 6 4 I II III ④ ⑤ ⑥

6 Push the crown back into position I.

Please note:

*To set your watch to the exact second, please refer to the chapter entitled «setting the time».
**Please observe the AM/PM clock rhythm.

Chronograph:

• The minute counter measures 30 minutes per rotation.
• The center stop-second measures 60 seconds per rotation.
- The 1/10 second counter measures 1 second per rotation. After 30 minutes this counter works as hour counter. The how counter measures 10 hours per rotation.

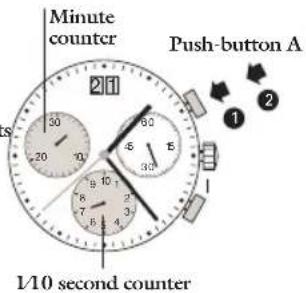

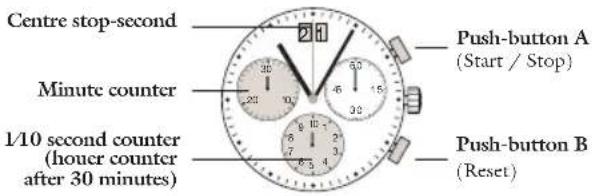

Chronograph: basic function
(start / stop / reset)
Control buttonsDisplay elements

Centre stop-second Minute counter 1/10 second counter (houer counter after 30 minutes) Push-button A (Start / Stop) Push-button B (Reset)

Minute counter Push-button A 1/10 second counter

2 H 30 25 10 6 15 32 9 7 5 4 Push-button B

Example:

Please note:

Before using the chronograph functions, please ensure that:

→ the crown is in position I (= normal position).

→ the 3 chronograph hands are precisely at zero position following activation of push

button B. Should this not be the case, the positions of the hands must be adjusted (see the chapter entitled «adjusting the chronograph hands to zero position»).

1 Start: Press push-button A.
2 Stop: to stop the timing, press push-button A. once more and read the three chronograph hands: 4min/38sec/7/10 sec

3 Zero positioning: Press push-button B. (The three chronograph hands will be reset to their zero positions).

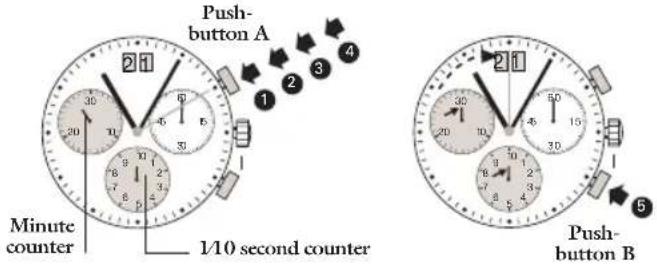

Chronograph: accumulated timing

Push-button A 21 30 6 20 10 6 30 1 2 3 4 Minute counter 1/10 second counter 21 30 6 20 6 30 10 6 30 5 Push-button B

Example:

1 Start: (start timing)
2 Stop: (e.g. 15 min 5 sec following 1)
3 Restart: (timing is resumed)
4 *Stop: (c.g. 13 min 5 sec following 3) = 28 min 10 sec (The accumulated measured time is shown)

5 Reset: The three chronograph hands are returned to their zero positions.

Please note:

* Following 4, the accumulation of the timing can be continued by pressing push button A (Restart / Stop, Restart / Stop, ...)

Chronograph: intermediate or interval timing

Minute counter 1/10 second counter Push-button A Push-button B Push-button

Example:

1 Start: (start timing)
2 Display interval: ↑ c.g. 10 minutes 10 seconds (timing continues in the background)
* 3 Making up the measured time: (the 3 chronograph hands are quickly advanced to the ongoing measured time).
4 Stop: (Final time is displayed)

⑤ Reset: The 3 chronograph displays are returned to their zero position

Please note:

* Following 3, further intervals or intermediates can be displayed by pressing push-button B (display interval / make up measured time, ...)

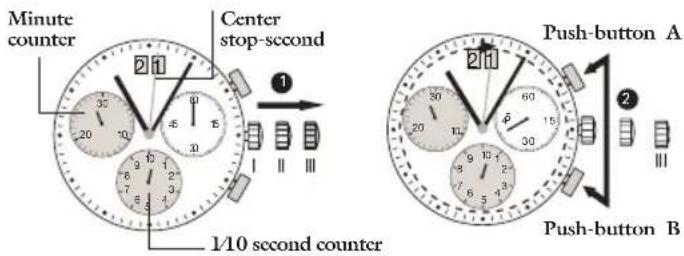

Adjusting the chronograph hands to zero position

Minute counter Center stop-second 1/10 second counter Push-button A Push-button B

Example:

One or several chronograph hands are not in their correct zero positions and have to be adjusted (e.g. following a battery change).

1 Pull out the crown to position III (all 3 chronograph hands are in their correct or incorrect zero position).

2 Keep push-buttons A and B depressed simultaneously for at least 2 seconds (the centre stop-second rotates by 360^ →corrective mode is activated).

↓

Diagram showing six sequential scenarios of a mechanical or electrical component with labeled components A and B, likely illustrating motion or assembly steps.

↓ Adjusting the centre stop second
Single step • Al x short
Continuous • A long
Adjusting the next hand B
Adjusting the 1/10 second counter hand (position 6h)
Single step • Al x short
Continuous • A long
Adjusting the next hand B
Adjusting the 1/10 minute counter hand (position 9h)
Single step • Al x short
Continuous ♦ A long
3 Returning the crown to position I
Termination of the chronograph hands adjustment (can be carried out at any time).
