Features	Details
Watch type	Analog watch
Movement	Quartz movement
Case material	Stainless steel
Case diameter	40 mm
Glass	Mineral glass
Water resistance	3 ATM (30 meters)
Strap	Genuine leather
Additional features	No connected functions
Usage	Daily use, formal occasions
Maintenance	Battery replacement recommended every 2-3 years
Safety	Avoid strong shocks, do not expose to extreme temperatures
General information	2-year warranty, after-sales service available

Frequently Asked Questions - J626 JAGUAR

How do I set the time on my JAGUAR J626 watch?

To set the time, pull the watch crown out to the first position. Then turn the crown clockwise or counterclockwise to adjust the time. Push the crown back in to lock the setting.

My JAGUAR J626 watch is not working, what should I do?

Check if the watch is sufficiently charged. If it is automatic, wear it for a few hours to recharge. If it runs on a battery, it may need to be replaced.

How do I maintain my JAGUAR J626 watch?

To maintain your watch, clean it regularly with a soft, dry cloth. Avoid harsh chemicals and do not expose it to extreme temperatures.

Is my JAGUAR J626 watch waterproof, and to what depth?

The JAGUAR J626 watch is waterproof up to 50 meters. This means it can withstand splashes and swimming but should not be used for diving.

How do I change the strap on my JAGUAR J626 watch?

To change the strap, use a spring bar tool to remove the spring bars. Insert the new strap by aligning the spring bars with the holes and ensure they click into place properly.

Where can I find the warranty for my JAGUAR J626 watch?

The warranty is usually included in the watch box at the time of purchase. If you cannot find it, contact the retailer where you bought the watch or JAGUAR customer service.

What should I do if the glass on my JAGUAR J626 watch is scratched?

For light scratches on mineral glass, you can try using a glass polish. For deeper scratches or if the glass is sapphire, it is recommended to consult a professional for replacement.

Does the JAGUAR J626 watch have a stopwatch function?

Yes, the JAGUAR J626 watch is equipped with a stopwatch function. To use it, press the start/stop button and the reset button to reset the stopwatch.

How do I know if the battery in my JAGUAR J626 watch needs to be replaced?

If the watch starts to lose time or stops, this may indicate the battery is weak. It is recommended to have it checked and replaced by a professional.

USER MANUAL J626 JAGUAR

Blank white image with a thin black border (no text, symbols, or markings)

JAGUAR — SWISS MADE —

FESTINA GROUP

Via Layetana 20

08003 BARCELONA

USER GUIDE IJM5040A COMPANY OF TH

INDEX

Español > p.3

English > p.17

Français > p.31

Deutsch > p.45

Italiano >p.59

Manual del usuario

Analog stopwatch with dual dials and a close-up of the next time showing three labeled buttons (I, II, III) for time measurement.

Analog stopwatch with dual dials showing time, seconds, and elapsed minutes

Diagram showing mechanical or electrical components with labeled arrows A and B, likely illustrating a sequence or motion sequence.

-Brief specifications....18
- Description of the display and control buttons ..... 19
- Setting the time / date .....20 - 23
- Operation of the chronograph....24 - 29

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

Brief specifications

Time/Date

• Hour hand
• Minute hand
• Small second hand (position 3h)
  • Date (position 12h)

Chronograph

• 1/10 second counter / hour counter after 30 minutes (position 6h)
• Minute counter up to 30 minutes (position 9h)
- Centre stop-second

General

• Battery type: 395 (diameter 9.5mm x 2.6mm / SR 927 SW)
  • Accuracy: +20 / -10 seconds per month

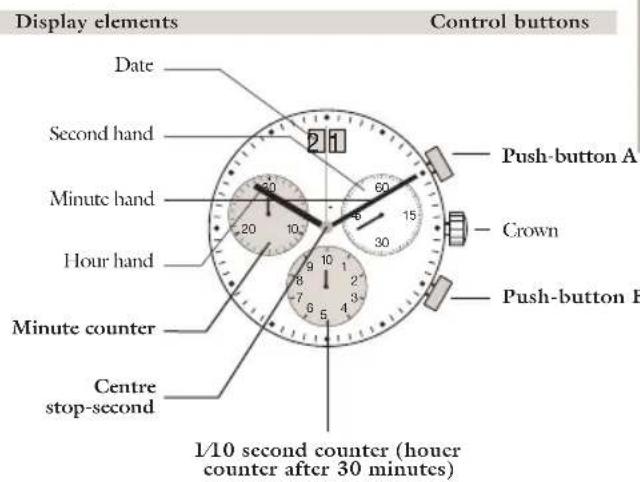

Description of the display and control buttons

Display elements Control buttons Date Second hand Minute hand Hour hand Minute counter Centre stop-second 1/10 second counter (hower counter after 30 minutes) Push-button A Crown Push-button B

Setting the time

Second hand 1 2 30 60 4 5 30 20 10 8 7 6 5 I II III

Diagram of a stopwatch with analog clock face, showing time and duration settings

Setting the date (quick mode)

3:1 20 30 9 8 7 6 5 4 30 15 1 I II 1 U

Analog stopwatch with dual dials showing time, seconds, and elapsed minutes

1 *Pull out the crown to position III (the watch stops).
② Turn the crown until you reach the correct time 8.45.
3 *Push the crown back into position I.

Please note:

*In order to set the time to the exact second, 1 must be pulled out when the second hand is in position «60» (I).

Once the hour and minute hands have been set, ③ must be pushed back into position I at the exact second.

1 Pull out the crown to position II (the watch continues to run).
2 Turn the crown until the correct date 01 appears.
3 Push the crown back into position I.

Please note:

The date can be changed during the date changing phase between 9.00 PM and 12.00 PM; please note that the date must be set to the date of the following day as in this case the automatic date changing does not occur at midnight.

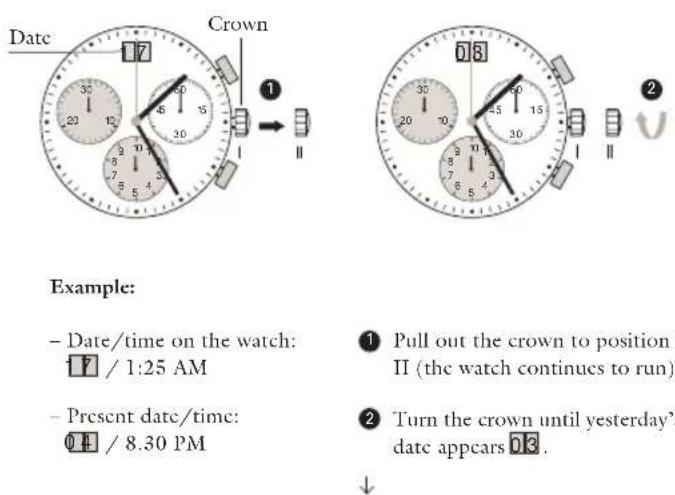

Setting the date/time following a battery change

Example:

- Date/time on the watch:

17 / 1:25 AM

- Present date/time:

04 / 8.30 PM

1 Pull out the crown to position II (the watch continues to run).
2 Turn the crown until yesterday's date appears 03.

↓

Second hand 0 3 30 20 10 5 30 6 9 7 8 5 I II III

↓

3 *Pull out the crown to position III (the watch stops).
4 Turn the crown until the correct date 0.4 appears.
5 **Continue to turn the crown until the correct time 8.30 PM appears.

0 4 1 30 20 15 6 60 15 30 9 8 7 6 4 I II III ④ ⑤ ⑥

6 Push the crown back into position I.

Please note:

*To set your watch to the exact second, please refer to the chapter entitled «setting the time».
**Please observe the AM/PM clock rhythm.

Chronograph:

• The minute counter measures 30 minutes per rotation.
• The center stop-second measures 60 seconds per rotation.
- The 1/10 second counter measures 1 second per rotation. After 30 minutes this counter works as hour counter. The how counter measures 10 hours per rotation.

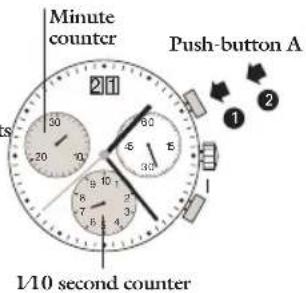

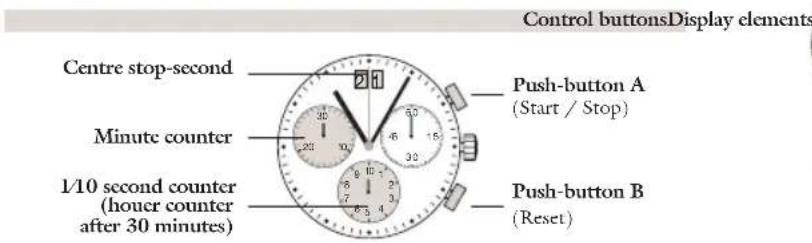

Chronograph: basic function
(start / stop / reset)

Control buttonsDisplay elements Centre stop-second Minute counter 1/10 second counter (hourer counter after 30 minutes) Push-button A (Start / Stop) Push-button B (Reset)

Minute counter Push-button A 1/10 second counter

2 H 30 25 10 6 15 32 9 7 5 4 Push-button B

Example:

Please note:

Before using the chronograph functions, please ensure that:

→ the crown is in position I (= normal position).

→ the 3 chronograph hands are precisely at zero position following activation of push

button B. Should this not be the case, the positions of the hands must be adjusted (see the chapter entitled «adjusting the chronograph hands to zero position»).

1 Start: Press push-button A.
2 Stop: to stop the timing, press push-button A. once more and read the three chronograph hands: 4min/38sec/7/10 sec

3 Zero positioning: Press push-button B. (The three chronograph hands will be reset to their zero positions).

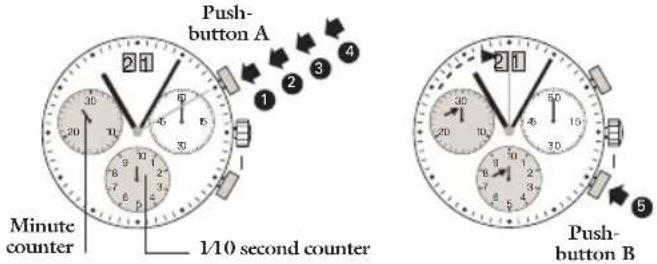

Chronograph: accumulated timing

Push-button A 21 30 6 20 10 6 30 1 2 3 4 Minute counter 1/10 second counter 21 30 6 20 6 30 10 6 30 5 Push-button B

Example:

1 Start: (start timing)
2 Stop: (e.g. 15 min 5 sec following 1)
3 Restart: (timing is resumed)
4 *Stop: (c.g. 13 min 5 sec following 3) = 28 min 10 sec (The accumulated measured time is shown)

5 Reset: The three chronograph hands are returned to their zero positions.

Please note:

* Following 4, the accumulation of the timing can be continued by pressing push button A (Restart / Stop, Restart / Stop, ...)

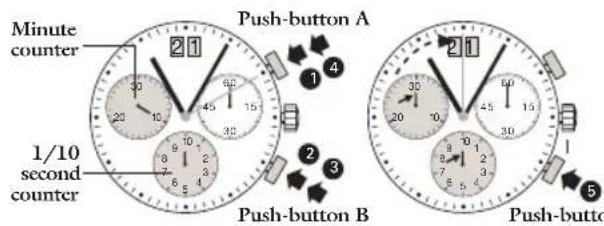

Chronograph: intermediate or interval timing

Minute counter 1/10 second counter Push-button A Push-button B Push-button

Example:

1 Start: (start timing)
2 Display interval: ↑ c.g. 10 minutes 10 seconds (timing continues in the background)
* 3 Making up the measured time: (the 3 chronograph hands are quickly advanced to the ongoing measured time).
4 Stop: (Final time is displayed)

⑤ Reset: The 3 chronograph displays are returned to their zero position

Please note:

* Following 3, further intervals or intermediates can be displayed by pressing push-button B (display interval / make up measured time, ...)

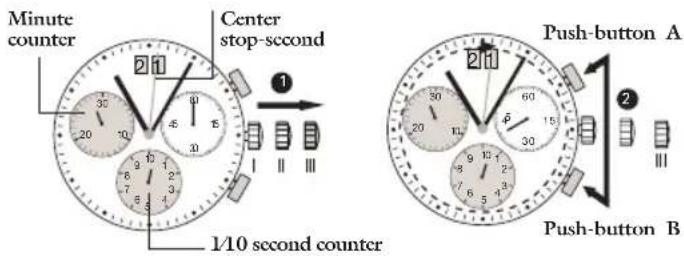

Adjusting the chronograph hands to zero position

Minute counter Center stop-second 1/10 second counter Push-button A Push-button B

Example:

One or several chronograph hands are not in their correct zero positions and have to be adjusted (e.g. following a battery change).

1 Pull out the crown to position III (all 3 chronograph hands are in their correct or incorrect zero position).

2 Keep push-buttons A and B depressed simultaneously for at least 2 seconds (the centre stop-second rotates by 360^ →corrective mode is activated).

↓

Diagram showing six sequential scenarios of a mechanical or electrical component with labeled components A and B, likely illustrating a process or assembly.

↓ Adjusting the centre stop second
Single step • Al x short
Continuous • A long
Adjusting the next hand B
Adjusting the 1/10 second counter hand (position 6h)
Single step • Al x short
Continuous • A long
Adjusting the next hand B
Adjusting the 1/10 minute counter hand (position 9h)
Single step • Al x short
Continuous ♦ A long
3 Returning the crown to position I
Termination of the chronograph hands adjustment (can be carried out at any time).
