Product Type	Quartz Chronograph Watch
Brand	Jaguar
Model	J689 Special Edition
Movement	Quartz
Main Functions	Hours, minutes, seconds, date, chronograph (counters 1h, 20min, 10s)
Crown	3 positions: I (neutral), II (date correction), III (time setting/seconds stop)
Pushers	A: start/stop chronograph, B: reset and intermediate functions
Power supply	Battery (type not specified, estimated standard button cell)
Battery life	Approximately 2 to 3 years (estimated)
Chronograph	Start/stop/reset, totalization, intermediate times functions
Hands adjustment	Possible in zero position after battery change
Recycling	Selective collection of quartz watch products at end of life
Maintenance	Avoid shocks and magnets, clean with a soft cloth

Frequently Asked Questions - J689 Special Edition JAGUAR

How to set the time on the Jaguar J689 Special Edition watch?

To set the time, pull the crown to position III (the second hand stops). Turn the crown until the desired time is displayed, then push it back to position I. For precise second adjustment, pull the crown when the second hand is at 60, then push it back at the exact second.

How to set the date quickly?

Pull the crown to position II (the watch continues running). Turn the crown until the current date appears, then push it back to position I. Caution: between 9 PM and 12 AM, set the date to the next day to avoid damaging the mechanism.

How to use the chronograph?

Press pusher A to start timing. Press A again to stop. Press pusher B to reset the hands to zero. The counters display hours, minutes, and seconds.

How to perform totalizing timing?

Start with A, stop with A, restart with A to accumulate times. After each stop, read the total time on the counters. Press B to reset to zero.

How to time intermediate laps?

Start with A. To display an intermediate time, press B (timing continues internally). To catch up to the real time, press B again. Stop with A for the final time.

How to adjust the chronograph hands if they are not in zero position?

Pull the crown to position III. Press pushers A and B simultaneously for at least 2 seconds: the second hand rotates 360°, activating correction mode. Use A to adjust the second hand step by step or continuously, then press B to switch to the hour hand (6 o'clock position) and minute hand (9 o'clock position). Once adjusted, push the crown back to position I.

How to set the date and time after a battery change?

Pull the crown to position II to display the day before the current date. Then pull to position III to stop the seconds. Turn to display the current date, then continue to the exact time. Push back to position I. Respect the 24-hour cycle.

What to do if the watch stops working?

First check the battery. If it is dead, replace it with an identical battery (standard button cell). If the problem persists, consult an authorized watchmaker.

How to maintain my Jaguar watch?

Avoid shocks, extreme temperatures, and magnetic fields. Clean the case and bracelet with a soft, dry cloth. Do not use chemicals. Have the water resistance checked every 2 years by a professional.

Where can I download the full manual?

The full PDF manual is available for free on notice-facile.com. You can also request a translation into another language via the online form.

USER MANUAL J689 Special Edition JAGUAR

• Description of the display and control buttons. 14
  -Chronograph 15
  -Setting the time 20
  -Setting the date (quick mode) 21
• Setting the date time following a battery change. 22

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of life cycle watch making

products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point.

The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

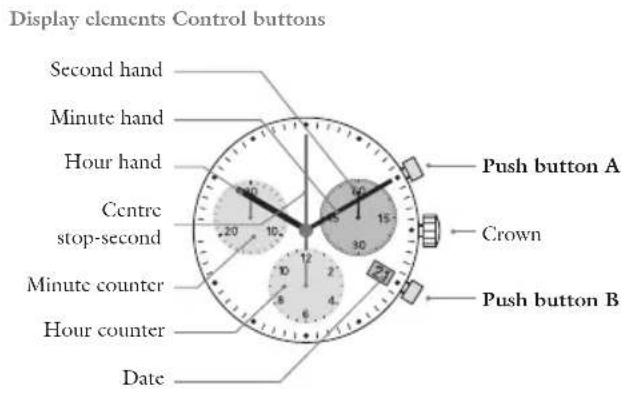

Description of the dislay and control buttons

Chronograph: Basic function

START/STOP/RESET

Example:

① Start: Press push button A.
Stop: to stop the timing, press pushbutton A once more and read the three chronograph hand: 1h / 20min / 10scc
③ Zero positioning:

Press push-button B. (The three chiorograph hands will be reset to their zero positions).

Chronograph: Accumulated timing

Hour counter Hour counter

Example: Example:

① Start: (start timing)
② Stop: (c.g. 15 min 5 sec following ①)
Restart: (timing is resumed)
*Stop:c.g.13 min 5 scc following 28 min 10 sec (the accumulated measured time is shown).

⑤ Reset:

The three chronograph hands are returned to their zero positions

PushbuttonB

Please note:

Following*4, the accumulation of the timing can be continued by pressing push button A (Rstart/Stop, Rstart/ Stop,...)

Chronograph Intermediate or interval timing

Start: (start timing)
Display interval: c.g. 10 minutes, 10 seconds (timing continues in the background).
Making up the measured time: (the 3 chronograph hands are quickly advanced to the ongoing measured time).
Stop: (Final time is displayed)
④ Reset:

The 3 chronograph hands are returned to their zero position.

Please note:

Following 6 further intervals or intermediates can be displayed by pressing push-button B (display interval/make up measured time,...)

Adjusting the chronograph hands to zero position

Minute counter Center stop-second

Example:

One or several chronograph hand are not in their correct zero positions and have to be adjusted (c.g. following a battery change).

Pull out the crown to position III (all 3 chronograph hands are in their correct or incorrect zero position).
2 Keep push Buttons A and B depressed simultaneously for at least 2 seconds (the centre stop-second rotates by 360° corrective mode is activated)

Adjusting the centre stop second: Single step A1 x short Continuous

Adjusting the next hand

Adjusting the hour counter hand (position 6h)

Single step A1 x short

Continuous long

Adjusting the next hand B

Adjusting the minute counter hand (position 9h)

Single step dA short

Continuous Long

Returning the crown to position 1 Termination of the chronograph hands adjustment (can be carried out at any time)

Setting the time

Setting the date (quick mode)

① Pull out the crown to position III * (the watch stops).
② Turn the crown until you reach the correct time 8:45.
Push the crown back into position I.*

Pull out the crown to position II (the watch continues to run).
Turn the crown until the correct date 1 appears.
Push the crown back into position I.

Please note: Please note:

In order to set the time to the exact * second, ① must be pullet out when the second hand is in position "60" (I). Once the hour and minute hands have been set, ③ must be pushed back into position I at the exact second.

During the date changing phase between 9 PM and 12 PM; the date must be set to the date of the following day.

Setting the date/time

Following a battery change

Example:

Date/time on the watch:17/1:25 AM Present date/time:4/8:30PM

Pull out the crown to position II (the watch continues to run).
Turn the crown until yesterday's date appears 3.

Pull out the crown to position * III (the watch stops).
Turn the crown until the correct date appears.
5* Continue to turn the crown * until the correct time 8:30 PM appears.
Push the crown back into position I.

Please note:

To set your watch to the exact * second please refer to the chapter entitled "setting the time".
* Please observe the AM/PM clock * rhythm.
