Pia - Kettle Reer - Free user manual and instructions

Product Type	Electric Kettle
Brand	Reer
Model	Pia
Capacity	500 ml
Power	1000 W
Voltage/Frequency	230 V ~ 50/60 Hz
Material	Brushed 18/8 stainless steel, BPA-free plastic
Automatic Shut-off	Yes, after boiling
Dry Boil Protection	Yes, prevents overheating, manual shut-off required
Removable Filter	Yes, fine, dishwasher-safe
Suitable for baby bottles	Yes, specially designed spout
Ergonomic Handle	Yes, for right- and left-handed users
Power Indicator	Yes, illuminated indicator
Flat Base	Yes, stainless steel, easy to clean
Cleaning and Descaling	Wipe with damp cloth, descale with vinegar/water mixture
Warranty	To be determined with the seller, keep the receipt

Frequently Asked Questions - Pia Reer

How to use the Reer Pia kettle?

Press the button to open the lid, fill with water up to the MAX level (0.5 L), close the lid until it clicks, plug in the appliance and press the on/off switch down. It shuts off automatically after boiling. Unplug after use.

What is the maximum capacity of the kettle?

The maximum capacity is 500 ml (0.5 L), indicated by the MAX mark inside the kettle.

How to clean the kettle?

Always unplug the appliance before cleaning. Wipe the inside with a damp cloth. For descaling, use a mixture of equal parts household vinegar and water, bring to a boil, let it sit for a few minutes, then rinse with clean water. Do not use abrasive cleaners.

Is the filter removable and washable?

Yes, the fine filter is removable and dishwasher-safe. Clean it regularly to prevent deposits.

What to do if the kettle does not heat up?

Check that the appliance is plugged into a working outlet, that the switch is fully pressed, and that the kettle has cooled down for at least 1 minute after the last use. If the indicator light does not turn on, consult the troubleshooting table.

Does the kettle have dry boil protection?

Yes, but it does not completely stop the appliance. In case of dry operation or too little water, manually turn off the switch and let it cool for about 10 minutes before refilling.

Can I use the kettle to heat milk or other liquids?

No, the appliance is designed exclusively for boiling water. Never heat other liquids.

Is the spout suitable for baby bottles?

Yes, the spout has a special shape to fit baby bottles, making filling easier.

How to maintain the kettle to prevent limescale?

Descale regularly with a vinegar/water mixture as indicated in the manual. Wipe the outside with a soft cloth. Do not use abrasive sponges.

What is the supply voltage?

The kettle operates on 230 V ~ 50/60 Hz. Make sure the outlet matches this voltage.

USER MANUAL Pia Reer

Congratulations on purchasing your new kettle from reer.

We are sure you will enjoy the quality of our product for many years to come. Please keep the instruction for use for later reference!

FR

Safety instructions 10

Technical specifications, product overview. 11

Before first use 12

Cleaning and care. 13

Troubleshooting 14

Disposal 15

Sommaire

Mains connection	Make sure the supply voltage in your home ist the same as the voltage marked on the rating label of the appliance.
General	Keep children away from the kettle and never let the cord hang down over the worktop edge - a child could grab it and pull the kettle down.
	Never overfill - boiling water may splash out.
	Never put the kettle, cord or plug in liquid.
	If the supply cord is damaged, it must be replaced by the manufacturer or its ser- vice agent or a similarly qualified person in order to avoid a hazard.
	Failure to observe these cautions may result in damage to the kettle.
	The appliance may not be used by small children or handicapped people without proper supervision.
	The appliance must be kept safe from access by small children - it is not a toy.
WARNING	Do not operate the kettle on an inclined surface.
	Make sure the lid is secure before switching the kettle on.
	Unplug the kettle before filling or pouring.
	Never put the kettle near or on cooker hot plates or gas burners.
	This kettle is for boiling water only - don't boil any other liquids in it!
	This kettle is for domestic use only.

Avoid touching the surface of the unit with your bare hands when in use. Always handle the unit by the insulated carrying handle to protect yourself from injuries.

Hot surface

Avoid contact with steam coming out of the spout area when puring and out of the lid when refilling.

Do not open the lid while the water is boiling.

Make sure the kettle is switched off before lifting or pouring.

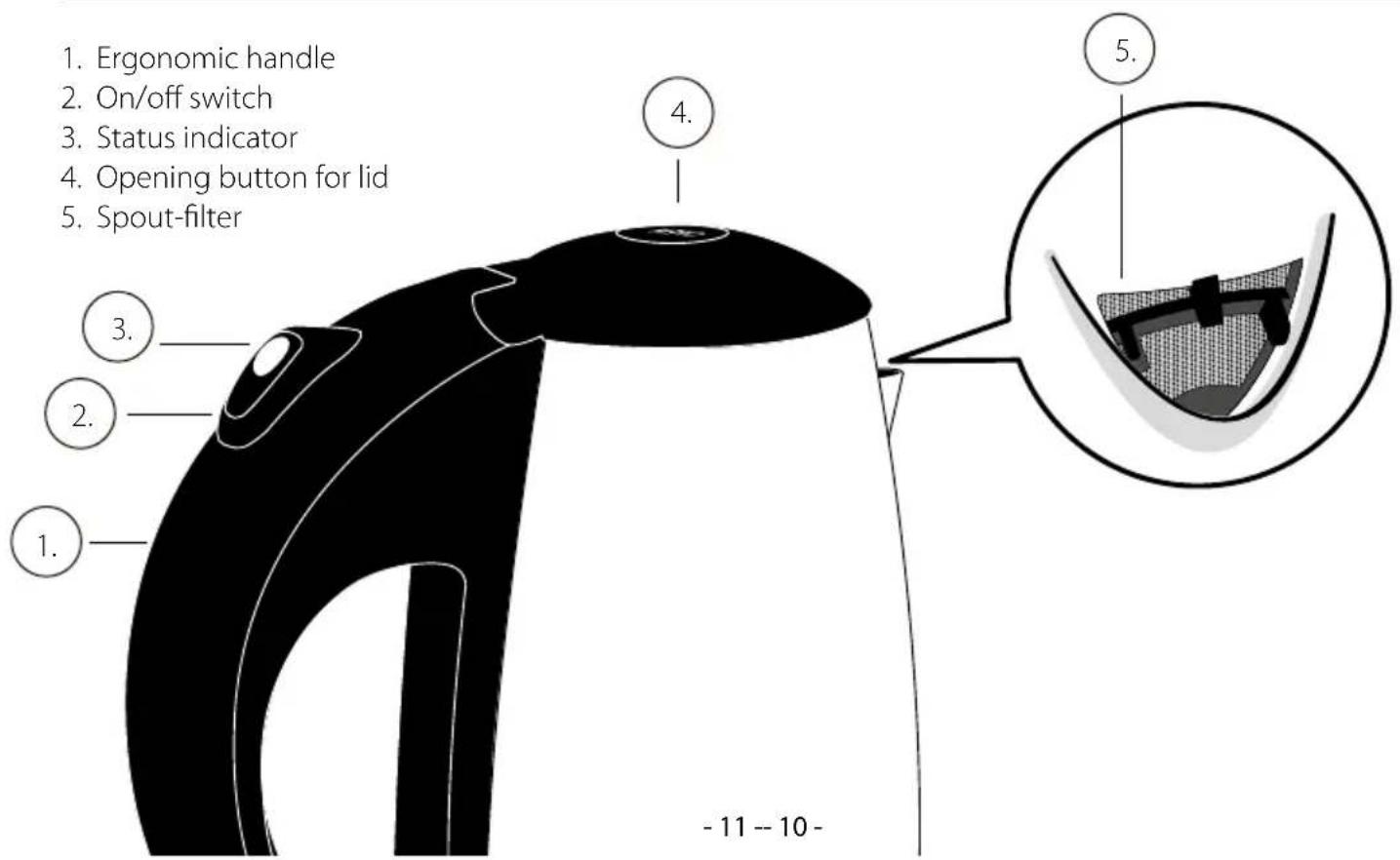

Technical specifications

230 V ~ 50/60 Hz
1000-Watt heating output
Capacity: 500 ml
Stainless steel 18/8, plastic
Status indicator
Automatic or manual switch off
Integrated steam sensor
Drying protection: Protection when operated with too little water
Ergonomic handle for right and left handed users
Easy to clean, flat stainless steel base without coils
specially formed pouring spout suitable for baby bottles
removable spout-filter

1. Make sure that all packaging was removed from the device.
2. Fill the kettle with water up to the MAX-marking on the inside of the device.
3. Continue as described in chapter "Usage of kettle".
4. After boiling, pour away the water.
5. Repeat the procedure. Then your device is ready for operation.

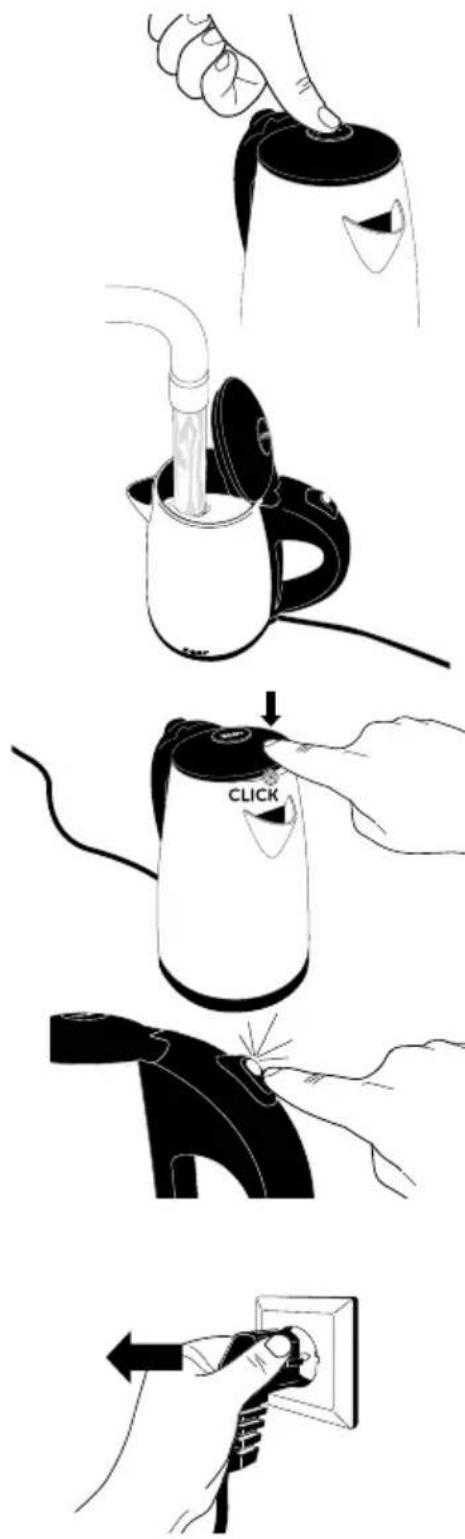

Operation

1. Open the lid

Open the lid by pressing the opening button.

2. Filling the kettle

Do not exceed the maximum fill level of 0.5 I (MAX marking inside the kettle).

3. Close the lid

Push down the lid without pressing the opening button until it snaps into place with a click. Check whether the lid is closed.

4. Operating the appliance

Connect to power after filling the device with water.

Switch on:

Press down the on/off switch in the handle in the upper switch area. The operating light is on.

Switch off:

Your kettle will boil and switch off automatically. The operating light goes out.

The heating can be interrupted manually at any time or continued by pressing the on/off switch in the upper lower area.

5. Disconnecting from the power supply

Always unplug the kettle after use.

Renewed boiling becomes possible only after the automatic switchoff mechanism has cooled down sufficiently. This may take a couple of minutes, depending on the operating and surrounding temperatures.

NOTE

Drying protection: In case your device is in operation with too little or no water, the drying protection prevents overheating, but doesn't turn it off completely. The device must be turned off manually by all means! Let it cool down (10 mins) before refilling. After cooling down the device is ready for operation.

SAFETY

Cleaning and attendance

Always unplug first. When the heating bowl has cooled off, it can be wiped out with a damp cloth. For decalcifying the appliance use commercially available fluid Decalcifiers. Follow the respective instructions for use! Limescale can also be dissolved by a vinegar-water solution (equal parts household vinegar and water) which is brought to boil briefly. If there is a lot of limescale, the above mentioned process must be repeated. Do not leave the heating bowl unattended as the vinegar-water mixture can foam over. Leave the solution in the heating bowl for a few moments longer after brief boiling and then pour it out. Wipe out the heating bowl after the de-calcifying, an repeat the evaporation process with clean water to neutralize the odor of vinegar. Do not use strong de-calcifiers or sourcing agents nor scratch with pointed objects. The spout drainage is dishwasher safe.

Should the kettle not be functioning properly or should unexpected malfunctioning occur, we kindly ask you to:

1. First thoroughly read the respective section of the instruction manual once again.
2. Afterwards please try to find the error with the help of the following mal function chart.
3. Should you not be able to solve the problem, we kindly ask you to contact your specialist dealer.

ATTENTION

Problem/Situation Possible malfunction source	What to do?
·The appliance does not start the boiling process, the operating light is off.	·The kettle is turned off ·The kettle is cooling down after the last boiling procedure (cooling-off time ca. 1 min) ·The plug connector is not plugged in ·Power blackout	·Check the kettle is connected to an working power socket ·If the appliance is connected to the power supply, ensure that the connection is intact. ·If you boiled water shortly before the kettle has to cool down for approximately 1 minutes
·The appliance starts the boiling process immediately, even before I press the on/off switch.	·The on/off switch is still on.	·Continue as described in „Before first use" chapter, item 4.
·There are drops of water underneath the device.		·This is no reason for concern, since this is normal condensation.

At the end of its life, this product must not be disposed of as normal domestic waste, but should be recycled at a collection point for the recycling of electrical and electronic appliances. Please see the relevant symbol on the product, in the user manual and packaging. Materials can be recycled as specified. An important contribution to the protection of the environment can be made by reusing the unit, recycling its components or otherwise reusing old appliances.

Check with your local authority or retailer for recycling advice (electrical waste and electronic equipment directive).

NOTE

Warranty

Please keep the sales receipt and item number. Potential warranty claims or claims under warranty must be dealt with directly in contact with the dealer/seller.
