Product Type	Blender
Brand	Black & Decker
Model	BLP6600M
Power	600 W
Voltage	120 V, 60 Hz
Number of Speeds	7 (Stir, Blend, Chop, Grate, Puree, Smoothie, Ice Crush)
Pulse Function	Yes (OFF/PULSE button)
Container Capacity	Not specified (approx. 1.5 L estimated)
Container Material	Glass (likely)
Blades	4 flat blades, removable
Base	Die-cast aluminum
Control	Touch panel (touchpad)
Indicator Light	Yes, blue (Intelligent Fuse system)
Special Feature	Ice crusher, intelligent anti-overheat fuse
Lid Cap	Removable, measuring capacity 75 ml (1/3 cup)
Container Care	Dishwasher safe (bottom rack) or hand wash
Other Removable Parts Care	Dishwasher safe (top rack)
Base Cleaning	Wipe with a damp cloth, do not immerse
Available Spare Parts	Yes (cap, lid, container, seal, blades, container base)
Repairability	By authorized service center, tamper-proof screws
Safety	Polarized plug, automatic overload shut-off
Warranty	1 year limited (USA and Canada)
Intended Use	Household only

Frequently Asked Questions - BLP6600M BLACK & DECKER

How to assemble the blender container?

Place the container upside down, insert the seal onto the blade assembly, then place the assembly into the bottom opening of the container (blades facing down). Screw the container base on by turning clockwise until tight. Turn the container right side up, put on the lid and cap.

How to use the pulse function (PULSE)?

Press the OFF/PULSE button for a few seconds, then release. The blender stops automatically. Use this function for short tasks like crushing ice or chopping nuts. Do not exceed 2 minutes of continuous use in pulse mode.

What to do if the blender does not work?

Check that the appliance is plugged into a working outlet. If the blue indicator light flashes, the Intelligent Fuse system has detected overheating: unplug and wait 30 seconds. If the light goes off, there is an overload: unplug and wait 3 minutes before using again.

How to quickly clean the blender?

Pour one cup of hot water and a drop of liquid soap into the container, put on the lid and run on STIR speed for about 30 seconds. Discard the liquid and rinse thoroughly. Removable parts are dishwasher safe.

Can I blend hot liquids?

Yes, but let cool for at least 5 minutes before pouring. Use only STIR speed (1), do not fill more than 625 ml (2 2/3 cups), and leave the lid cap slightly open on the side opposite to you. Cover with a cloth to avoid splashes.

How to prevent food from sticking to the sides?

Make sure the container, blades, and ingredients are dry. If food sticks, stop the blender, remove the lid and use a rubber spatula to redistribute the mixture toward the blades. Add a little liquid if needed.

The container does not detach from the base, what to do?

Place the container on the power base and turn the container base counterclockwise until it releases. This is due to suction effect.

What are the available speeds and their uses?

Stir (1): mixing liquids, dressings. Blend (2): pancake batter, eggs. Chop (3): chopping vegetables, nuts. Grate (4): grating cheese, grinding coffee. Puree (5): purees, sauces, baby food. Smoothie (6): drinks, milkshakes. Ice Crush (7): crushing ice (works like PULSE).

Can I put frozen food in the blender?

Yes, but cut them into pieces of max 2 cm (3/4 in). Avoid large frozen blocks. Use the PULSE function or Ice Crush speed for ice cubes.

Where can I find spare parts?

Spare parts are available in the USA and Canada by calling 1-800-738-0245. Part numbers: lid cap (BLP5600-02), lid (BLP5600-01), container (BIP5600-03), seal (BLP5600-04), blades (BLP5600-05), container base (BLP5600-06).

USER MANUAL BLP6600M BLACK & DECKER

Register your product online at www.prodprotect.com/applica, for a chance to WIN $100,000!

Registresu producto en la Internet en elsitio Web www.prodprotect.com/applicay tendrara la opportunities de GANAR $100,000!

Accessories/Parts (USA/Canada)

Please Read and Save this Use and Care Book

GETTING FAMILIAR WITH YOUR APPLIANCE 4

FEATURES 4

HOW TO USE 5

GETTING STARTED 5

BLENDER JAR ASSEMBLY 5

READY TO USE 5

SPECIAL FEATURES 6

7 BLENDING TIPS AND TECHNIQUES

RECIPES 9

CARE AND CLEANING 13

TROUBLESHOOTING 14

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

Read all instructions.
To protect against risk of electrical shock, do not put blender base, cord, or plug in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
Avoid contacting moving parts.
Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment. Or, call the appropriate toll-free number listed on the cover of this manual.
The use of attachments, including canning jars, not recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury.
Do not use outdoors
Do not let the plug or cord hang over the edge of table or counter.
- Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running.
Blades are sharp. Handle carefully.
To reduce the risk of injury, never place cutter assembly blades on base without the jar properly attached.
Always operate blender with cover in place.
- When blending hot liquids, remove center piece of two-piece cover.
Do not use appliance for other than intended use.

SAVE THESE INSTRUCTIONS.

POLARIZED PLUG (120V Models Only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

ELECTRICAL CORD

The cord of this appliance was selected to reduce the possibility of tangling in or tripping over a longer cord. If more length is needed, use an extension cord rated no less than 15-amperes. (For 220 volts rated products, use an extension cord rated no less than 6-amperes). When using an extension cord, do not let it drape over the working area or dangle where someone could accidentally trip over it. Handle cord carefully for longer life; avoid jerking or straining it at outlet and appliance connections.

TAMPER-RESISTANT SCREW

Warning : This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.

WELCOME

Thank you for choosing the new Black & Decker® 6-Speed Metal Blender. Your new blender includes a user-friendly touchpad with easy-to-use touch buttons and a powerful motor that will make every blending task effortless. Try a delicious tropical drink, refreshing smoothie, a creamy soup and more from the recipe section in the instructions

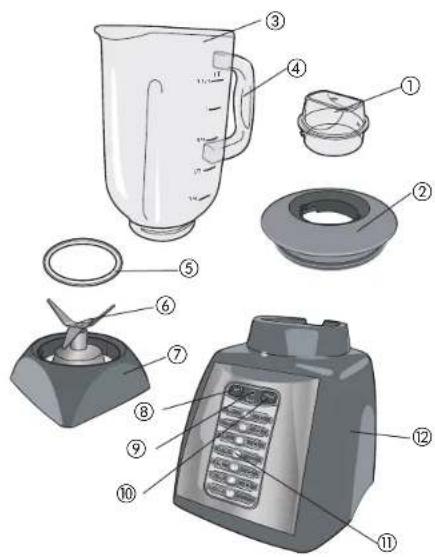

GETTING FAMILIAR WITH YOUR APPLIANCE

† 1. Lid cap
(Part#BLP5600-02)
† 2. Lid (Part# BLP5600-01)
+3.Jar (Part#BLP5600-03)
4. Handle
+5.Gasket
(Part# BLP5600-04)
† 6. Blade assembly
(Part# BLP5600-05)
† 7. Jar base
(Part# BLP5600-06)
8. OFF button
9. Power indicator light
10. PULSE button
11. Speed buttons
12. Power base

A

• Consumer replaceable/removable parts

Product may vary slightly from what is illustrated.

FEATURES

ICE CRUSH

INTELLIGENT FUSE

4 PLANE BLADES

This unit is for household use only.

GETTING STARTED

• Remove all packing material and any stickers from the product.
• Wash all removable parts as instructed in Care and Cleaning section of this manual.

BLENDER JAR ASSEMBLY (B)

1. Turn blender jar upside down and place flat on counter top or work surface.
2. Put the gasket on top of the blade assembly.
3. Place the blade assembly with gasket in bottom opening of the jar with blades down.
4. Place jar base onto jar and rotate clockwise until it is tight.

5. Turn assembled jar right side up.

6. Place lid with lid cap in place on blender jar.

7. Uncoil power cord from storage area under the base.
8. Place jar on power base. Blender is now ready for use.

READY TO USE

1. Make sure appliance is OFF.
2. Place foods to be blended into jar.
3. Place lid on jar; make sure lid cap is in place.
4. Plug power cord into standard electrical outlet.

NOTE: When in use do not leave blender unattended. When using hard foods, such as ice, cheese, nuts and coffee beans, keep one hand on the lid to keep blender in place.

1. Select the speed that best suits your desired task.

1. For blending tasks such as grinding coffee beans or nuts, or when blending thick mixtures, use the PULSE button for several seconds; then release (C). Releasing the PULSE button automatically turns the blender off.

1. Open the lid cap to add ingredients while the blender is running, and drop ingredients through the opening (D).

NOTE:DO NOT REMOVE THE LID WHILE THE BLENDER IS RUNNING.

1. When finished, press the OFF/PULSE button.

2. To remove the jar, grasp the handle and lift up.

3. Remove the lid to pour.

4. Always unplug the appliance when not in use.

SPECIAL FEATURES

This blender has an Intelligent Fuse system designed to protect the motor from overheating. If appliance is used on PULSE for more than 2 minutes the blue light will flash and the blender will shut off. Unplug the appliance and wait 30 seconds. Plug in the appliance and restart the blending.

If appliance is being overloaded, the blue light will turn off and the blender will shut off. Unplug the appliance and wait 3 minutes. Plug in the appliance and restart the blending.

BLENDING TIPS AND TECHNIQUES

• Cut food into pieces no larger than 3/4-inch for use in the blender.

• When ingredients splatter onto the sides of the jar, or the mixture is very thick, press the OFF/PULSE button to turn appliance off. Remove the lid and use a rubber spatula to scrape down the sides of the jar and to redistribute the food, pushing food toward the blades. Replace the lid and continue blending.
• Appliance should always have cover in place when in use.
• Do not place blender jar on base when motor is running.

• The lid cap holds 1/3 cup liquid and can be used when adding ingredients such as juices, milk, cream and liquor (E).

• When making bread crumbs, chopping nuts or grinding coffee beans, make sure blender jar is completely dry.

• When using the PULSE function, use short bursts. Allow the blades to stop rotating between pulses. Do not use PULSE for more than 2 minutes.
• Use the PULSE button when preparing beverages that include ice cubes; this helps to produce a smoother texture.
  It is helpful to begin the blending process on the lowest speed and then increase to a higher speed, if necessary.

This symbol is placed next to information that requires your special attention.

• When blending hot ingredients always open the lid cap and replace it ajar with the opened side away from you (F). Cover lid with a cloth to avoid splattering and only use speed 1. Do not blend more than 2% to 3 cups at a time.
  DO NOT place any of the following in the blender:

Large pieces of frozen foods Tough foods such as raw turnips, sweet potatoes and potatoes

Bones

Hard salami, pepperoni

Boiling liquids (cool for 5 minutes before placing in blender jar.)

• Tasks not recommended for the blender:

Whipping cream
Beating egg whites
Mixing dough
Mashing potatoes
Grinding meats
Extracting juice from fruits and vegetables

SELECTING A SPEED

Stir "1" Reconstituting frozen juices and drink mixes Preparing salad dressings Puddings Pureeing hot liquids

Blend "2" Blending pancake and waffle batter or mixes Beating eggs for omelets and custards Making cookie and bread crumbs

Chop "3" Coarse to fine chopping of nuts, Vegetables and fruits

Grate "4" Grinding hard cheeses Grinding coffee beans

Puree "5" Baby foods - fruits and vegetables Preparing sauscs and salsas Coarse to fine grinding of spices

Smoothie "6" Protein drinks Milk shakes and malts Frozen drinks; smoothies

Ice Crush "7" For greater control, this function operates As a PULSE function

RECIPES

MANGO COLADA

1 cup white grape and peach juice drink
1/2 cup frozen pña colada drink mix
2 cups frozen peach slices
1 ripe mango, cut in 3/4-inch chunks
1 cup ice cubes

In blender container, combine all ingredients in order listed. Place cover on jar. Pulse several times for about 5 seconds each to blend ingredients and begin crushing ice. Blend on "Smoothie - 6" until smooth and creamy, about 25 seconds. Turn blender off and serve immediately. Makes about 4% cups

BANANA ORANGE SMOOTHIE

2 cups orange juice
1 cup vanilla yogurt
2 medium bananas, cut into 2-inch pieces

1½cups frozen strawberries
2 tbsp. honey

In blender container, combine all ingredients in order listed. Place cover on jar. Pulse several times for about 5 seconds each to blend ingredients. Blend on " Smoothie - 6 " until smooth and well blended, about 30 seconds. Turn blender off and serve immediately. Makes about 5 12 cups

PEACHES AND CREAM ENERGY DRINK

1 cup low fat buttermilk
1 cup frozen peach yogurt
1 can (16 oz.) chilled and well drained sliced peaches
3 tbsp. wheat germ
2 tbsp. honey
1 cups ice cubes

In blender container, combine all ingredients in order listed. Place cover on jar. Pulse several times for about 5 seconds each to blend ingredients and begin crushing ice. Blend on "Smoothie - 6" until smooth and well blended, about 30 seconds. Turn blender off and serve immediately. Makes about 5 cups

ROASTED RED PEPPER BISQUE

3 medium red peppers, halved and seeded
1 large onion, chopped (about 112 cups)
1 cup chopped celery
2 large cloves garlic, minced
2 tbsp. olive oil
3 cups vegetable broth or stock

1 cup V-8 vegetable juice

1/2 tsp. salt

1/4 tsp. black pepper

Sour cream

Snipped fresh chives

Place peppers skin side up on shallow baking pan. Broil on high until skins are blackened and blistered. Remove from pan and place in plastic bag; close securely and allow to stand at room temperature for 10 minutes. Remove from bag and peel, discarding skin. Cut into 1-inch pieces.

Meanwhile, in saucepan, cook onion, celery and garlic in oil over medium heat, stirring often, until onions are softened. Add chopped peppers, vegetable broth, vegetable juice, salt and pepper. Bring to boil. Cover and simmer 10 minutes. Remove from heat and let stand at least 5 minutes.

Spoon about 212 cups soup mixture into blender jar. Cover and remove lid cap; replace it ajar with open side facing away. Cover lid with cloth. Blend on "stir - 1" until creamy and smooth. Pour into measuring cup. Repeat with remaining mixture until all is pureed. Return soup to saucepan and heat, stirring. Serve garnished with sour cream and chives.

Makes about 6 cups.

RED CURRENY SPINACH SOUP

1 bunch green onions, sliced (about 1 cup)
2 medium cloves garlic, minced
2 tbsp. butter or margarine
4 cups chicken broth or stock
112 cups cubed peeled potatoes
1 tsp. red curry
1/2 tsp. salt
1/4 tsp. black pepper
12 ounces fresh spinach
Sour cream
Caesar flavored croutons

In medium saucepan, cook onions and garlic in butter over medium heat until tender. Add chicken broth, potatoes curry, salt and pepper. Bring to boil. Cover and simmer 8 minutes. Add spinach; continue cooking until spinach is wilted (about 3 minutes). Remove from heat and let stand at least 5 minutes.

Spoon about 212 cups soup mixture into blender jar. Cover and remove lid cap; replace it ajar with open side facing away. Cover lid with cloth. Blend on "stir - 1" until creamy and smooth. Pour into measuring cup. Repeat with remaining mixture until all is purced. Return soup to saucepan and heat, stirring often.

Serve with a dollop of sour cream and garnish with croutons.

Makes about 612 cups

SUNDRIED TOMATO HUMMUS

2 cans (16 oz. ea.) chick peas

1/3 cup fresh lemon juice

2 tbsp. olive oil

3 tbsp. tahini (sesame seed paste)

2 large cloves garlic

1/2 tsp. salt

1/4 tsp. ground cumin

1/2 cup chopped sundried tomatoes

2 tbsp. chopped parsley

Drain chick peas, reserving liquid.

In blender jar, combine lemon juice, oil, chick peas, tahini, garlic, salt and cumin. Place cover on jar. Pulse several times for about 5 seconds each to blend ingredients. Blend on "puree - 5" until smooth and well blended, about 30 seconds. If mixture is thick, add 2 to 3 tbsp. reserved chick pea liquid through lid cap opening. Turn blender off.

Spoon mixture into bowl; blend in tomatoes and parsley. Serve immediately or cover and refrigerate until ready to serve.

Serve with toasted pita wedges.

Makes about 3 cups

APPLE CABBAGE SLAW

1 large egg

1 egg yolk

1/4 tsp. dry mustard

1/4 tsp. salt

1/8 tsp. pepper

1/4 cup rice vinegar

2/3 cup vegetable oil

4 cups packaged cabbage slaw mix

2 cups coarsely chopped Granny Smith apples

1 small purple onion, chopped (about 1/2 cup)

1/2 cup coarsely chopped honey roasted peanuts

1/2 cup golden raisins

In blender container, combine 1 large egg, 1 egg yolk and 1/4 tsp. dry mustard. Blend on "stir - 1" for 10 seconds. Add rice vinegar and blend on "stir - 1" for 20 seconds. Remove lid cap and with blender running drizzle in vegetable oil in slow steady stream (about 1 minute). Scrape down container.

In large bowl, combine remaining ingredients and spoon dressing over all; toss to coat. Cover and chill about 1 hour or until ready to serve. Makes 6 servings

TOMATO CUCUMBER SALSA

1 bunch green onions, sliced (about 1 cup)

3 to 4 jalapenos, seeded and cut into 1-inch pieces

3 large cloves garlic

4 medium tomatoes, cored and cut into 1-inch pieces

1 medium cucumber, peeled, seeded and cut into 1-inch pieces

1/2 cup cilantro leaves, loosely packed. Juice of 1 lime

1/2 tsp. salt

1 can (16 oz.) black beans, rinsed and drained

In blender container, combine green onion, jalapenos and garlic. Place cover on jar. Pulse several times for about 5 seconds each to chop ingredients. Add remaining ingredients and pulse several times until vegetables are coarsely chopped and mixture is blended.

Spoon into bowl. Stir in black beans. Cover and refrigerate at least 1 hour or until ready to serve.

Serve with tortilla chips.

Makes about 4 cups

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service personnel.

CLEANING

1. Before cleaning, turn off and unplug the appliance.
2. Lift the jar by the handle off the power base.
3. Remove jar base by turning it counterclockwise until loose.
4. Remove the gasket and the blade assembly.

Caution: Blades are sharp, handle carefully.

1. Remove lid and lid cap.
2. Wash removable parts by hand or in the dishwasher. Place the jar on the bottom rack and the rest of the parts on the top rack only.

Helpful Tip:

• For quick clean-up, combine 1 cup hot water and a drop of liquid dish soap to the blender jar.
  Cover and blend on STIR for about 30 seconds.
  Discard liquid and rinse thoroughly.

Important:

• Do not place the jar parts in boiling liquids.
• Do not immerse the base in liquid. Wipe the unit base with a damp cloth and dry thoroughly.
• Remove stubborn spots by rubbing with a damp cloth and nonabrasive cleaner.

Note: If liquids spill onto the power base, wipe with a damp cloth and dry thoroughly. Do not use rough scouring pads or cleansers on parts or finish.

TROUBLE SHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION

Jar bottom does A vacuum has been Place the jar on the not come off of jar formed blender and turn counter clockwise until jar is released from the bottom

Liquid is leaking Gasket is either missing Check that jar is from bottom of jar or not in place correctly assembled correctly

Appliance does Appliance is not Check that appliance not turn on plugged in is plugged into a working outlet

Mixture in blender Not enough liquid in Turn the blender off does not seem to mixture being blended and use a rubber spatula to redistribute the food; add some liquid and pulse the mixture to aid in the blending process

Herbs or bread are Blender jar, food to be chipped and blade are not dry always make sure that the jar, the blade and the food to be chopped are dry

Jar separates from bottom when being removed from blender. Liquid spills onto counter Jar was twisted when being removed from base of blender When removing jar from blender base, simply lift up; do not twist

INDICE

Paginas

(Parte No.BLP5600-02)

+2.Tapa

(Parte No. BLP5600-01)

+3. Jarra

(Parte No.BLP5600-03)

1. Asa

5.Junta

(Parte No. BLP5600-04)

(Parte No. BLP5600-05)

(Parte No. BLP5600-06)

IMPORTANT MISES EN GARDE

For service, repair or any questions regarding your appliance, call the appropriate "800" number on the cover of this book. Do not return the product to the place of purchase. Do not mail the product back to the manufacturer nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

One-Year Limited Warranty

(Appplies only in the United States and Canada)

What does it cover?

• Any defect in material or workmanship; provided; however, Applica's liability will not exceed the purchase price of the product.

For how long?

One year after the date of original purchase.

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of the date of sale.

• Check our on-line service site at www.prodprotect.com/applica, or call our toll-free number, 1-800-231-9786, for general warranty service.

If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use

• Damage from misuse, abuse or neglect

• Products that have been modified in any way

• Products used or serviced outside the country of purchase

Glass parts and other accessory items that are packed with the unit

• Shipping and handling costs associated with the replacement of the unit

• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

• This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.

JNECESITA AYUDA?

San Jose, Costa Rica

Tel：[phone]

223-0136

Ecuador

Servicio Master Ecuador

33 Independence Square,

Port of Spain

Trinidad, W.

Tel.: [phone]

Venezuela

Inversiones BDR CA

Nivel Plaza Local 153

Diagonal Hotel Melia.

Caracas

Tel. [phone]

BLACKS DECKER is a trademark of The Black & Decker Corporation, Towson, Maryland, USA

Marca registrada de The Black & Decker Corporation, Towson, Maryland, E.U.

Copyright © 2007 Applica Consumer Products, Inc.

Made in People's Republic of China

Printed in People's Republic of China

Importado por:

APLICA DE MEXICO, S. DE R. L. DE C.V. P.O. Box 100, N. 131, Mexico

Col. Chapultepec Morales, Mexico D.F

Deleg. Miguel Hidalgo

CP 11570

MEXICO
