Product Type	Countertop Blender
Brand	Black & Decker
Model	BLC12600B
Capacity	6 cups (48 oz / 1420 ml)
Voltage	120 V (Polarized plug)
Power	Not specified (estimated 500-700 W)
Dimensions (Approx.)	Height: 15 in, Width: 7 in, Depth: 7 in
Weight (Approx.)	5 lbs
Speed Settings	HIGH, LOW, and PULSE/OFF button
Pre-programmed Cycles	STIR, CLEAN, MIX, BLEND, AERATE, BEAT, SALSA, CHOP, GRATE, PUREE, SMOOTHIE, LIQUEFY
Display	LCD showing selected speed and ON status
Jar Material	Plastic (Perfect Pour™ blending jar)
Blade Material	Stainless steel
Dishwasher Safe Parts	Jar, lid, lid cap, blade assembly, gasket, jar base
Safety Features	Polarized plug, tamper-resistant screw, auto shut-off (after 2 min), overheat protection
Warranty	2-year limited warranty (USA and Canada)
Country of Origin	People's Republic of China
Replaceable Parts	Lid cap (081114FI), Lid (081113EE), Jar (99010), Blade assembly (77766), Gasket (09146-1), Jar base (03498EZB)
Intended Use	Household use only

Frequently Asked Questions - BLC12600B BLACK & DECKER

How do I assemble the blender jar?

Place the gasket on the blade assembly, then insert the blade assembly (blades down) into the bottom of the jar. Screw the jar base on clockwise until tight. Place the lid with cap on top.

How do I use the PULSE function?

Press the PULSE/OFF button for short bursts (no more than 5 seconds) and let the blades stop completely between pulses. Use for thick mixtures like smoothies or to break up ice.

What should I do if the blender overheats?

Unplug the blender, wait 30 seconds, then plug it back in. If it occurs again, repeat the same process. The motor also shuts off after 2 minutes of continuous use; press any speed button to resume.

How do I clean the blender?

Unplug and disassemble. Wash removable parts (jar, lid, blade assembly, gasket, jar base) by hand or on the top rack of the dishwasher. For quick cleanup, blend hot water with a drop of dish soap on the CLEAN cycle for 30 seconds. Wipe the base with a damp cloth.

Can I blend hot liquids?

Yes, but allow hot liquids to cool for 5 minutes before blending. Remove the lid cap, place it partly open with the open side tilted away from you, and cover with a cloth. Use only the lowest speed (STIR). Do not blend more than 2½ to 3 cups at a time.

How do I remove the jar base from the jar?

If the jar base is stuck, a vacuum may have formed. Place the assembled jar on the blender base and turn counterclockwise to release. Then twist the jar base counterclockwise to remove.

Why won't my blender turn on?

Check that the blender is plugged into a working outlet. Ensure the jar is locked onto the base. If the motor shut off due to overheating or 2-minute timeout, press any speed button to resume. If the PULSE button stops working, unplug for 5 seconds to reset.

What foods should I not blend?

Avoid large pieces of frozen food, tough foods like raw turnips or potatoes, bones, hard salami, boiling liquids (cool 5 min), whipping cream, beating egg whites, mixing dough, mashing potatoes, grinding meats, or extracting juice.

How do I crush ice effectively?

Use the PULSE function in short bursts (no more than 5 seconds at a time) to break up ice. For frozen drinks, press LIQUEFY after pulsing. Make sure not to run the blender for more than 1½ minutes at a time.

What is the warranty for this blender?

The Black & Decker BLC12600B comes with a 2-year limited warranty covering defects in material or workmanship. It applies only in the United States and Canada. For service, call 1-800-231-9786. The warranty does not cover commercial use, misuse, or modified products.

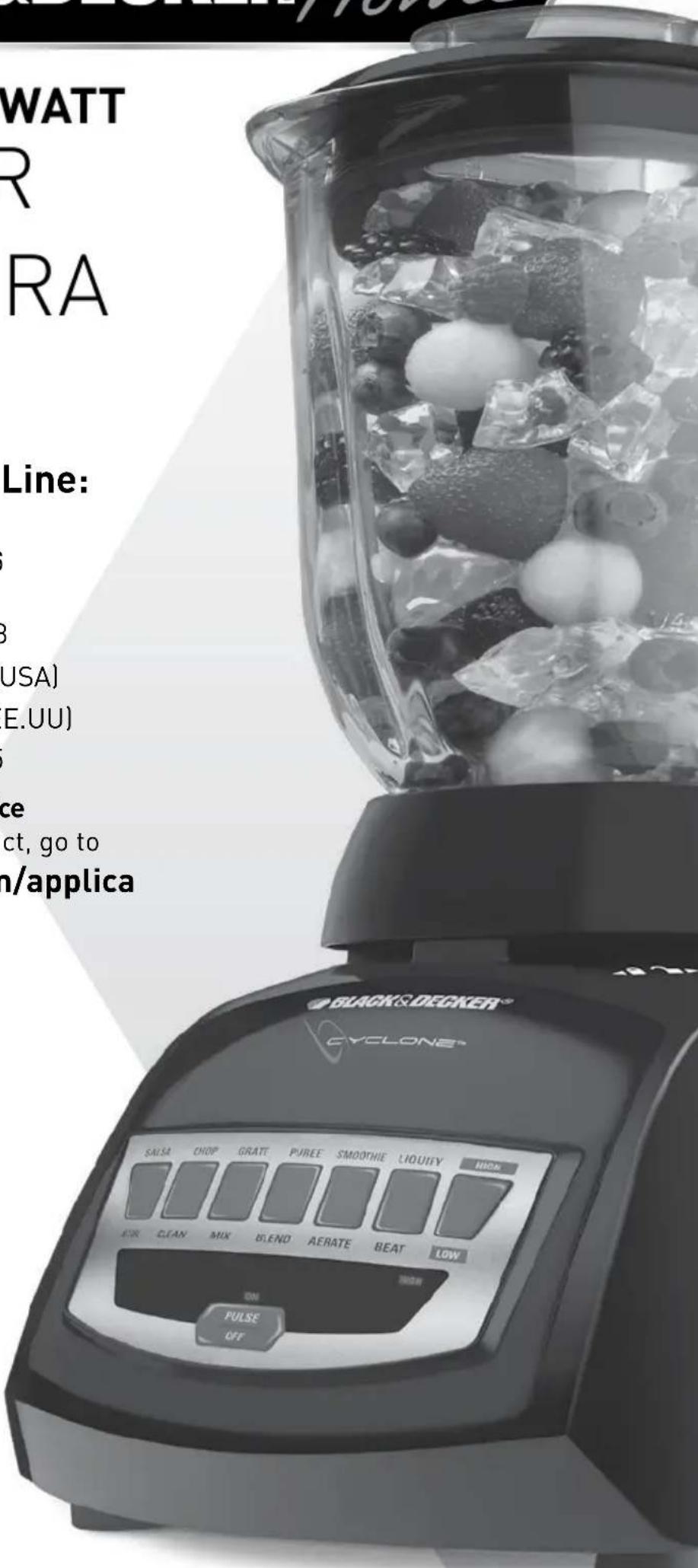

USER MANUAL BLC12600B BLACK & DECKER

Accessories/Parts (USA)

For online customer service

and to register your product, go to

www.prodprotect.com/applica

MODEL/MODELO

BLC12600B

Please Read and Save this Use and Care Book.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

○ Read all instructions.
To protect against risk of electrical shock, do not put blender base, cord or plug in water or other liquid.
○ Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use, before putting on or taking off parts and before cleaning.
- Avoid contacting moving parts.
Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment. Or, call the appropriate toll-free number listed on the cover of this manual.
The use of attachments, including canning jars, not recommended or sold by the appliance manufacturer may cause fire, electric shock or injury.
○ Do not use outdoors.
- Do not let the plug or cord hang over the edge of table or counter.
Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running.
- Blades are sharp. Handle carefully.
To reduce the risk of injury, never place cutter assembly blades on base without the jar properly attached.
○ Always operate blender with cover in place.

• When blending hot liquids, remove center piece of two-piece cover.
  ○ Do not use appliance for other than intended use.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

POLARIZED PLUG (120V Models Only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

ELECTRICAL CORD

The cord of this appliance was selected to reduce the possibility of tangling in or tripping over a longer cord. If more length is needed, use an extension cord rated no less than 15-amperes. (For 220 volts rated products, use an extension cord rated no less than 6-amperes). When using an extension cord, do not let it drape over the working area or dangle where someone could accidentally trip over it. Handle cord carefully for longer life; avoid jerking or straining it at outlet and appliance connections.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel; in Latin America, by an authorized service center.

This symbol is placed near information that requires your special attention.

Product may vary slightly from what is illustrated.

• 1. Lid cap (Part # 081114FI)
• 1. Lid (Part # 081113EE)
     † 3. Perfect Pour™ blending jar 6 cups / 48 oz. / 1420 ml (Part # 99010)
• Handle
• 1. Blade assembly (Part # 77766)
• 1. Gasket (Part # 09146-1)
     † 7. Jar base (Part # 03498EZB)
• Speed buttons
• Display
• PULSE/OFF button
• Base

Note: indicates consumer replaceable/removable parts

How to Use

This unit is for household use only.

GETTING STARTED

• Remove all packing material and any stickers from the product.
• Please go to www.prodprotect.com/applica to register your warranty.
• Wash all removable parts as instructed in CARE AND CLEANING section of this manual.

BLENDER JAR ASSEMBLY

1. Turn blending jar upside down and place flat on countertop or work surface.
2. Put the gasket on top of the blade assembly.
3. Place the blade assembly with gasket in bottom opening of the jar with blades down.

1. Place jar base onto jar and rotate clockwise until it is tight (A).
2. Turn assembled jar right side up.
3. Place lid with lid cap on blender jar.
4. Uncoil power cord from storage area under the base.
5. Place jar assembly in unlocked position on base and turn jar clockwise until jar is in the locked position (B).
6. Blender is now ready for use.

USING YOUR BLENDER Important

• If the appliance overheats, please unplug, wait 30 seconds and then plug in again. If it happens again, repeat the same process.
• If appliance runs for more than 2 minutes, the motor will shut off. If this occurs, press any speed button to resume operation.

• If the PULSE function stops working, simply unplug the power cord and wait 5 seconds for the unit to reset. For HIGH / LOW function, press any speed button to start blending again.

• Make sure appliance is unplugged.

• Place foods to be blended into jar, liquid first.
• Place lid on jar; make sure lid cap is in place.
• Place the jar on the base of the blender.
• Plug power cord into outlet. The word ON appears on the LCD and remains on until the blender is unplugged.

Note: When in use, do not leave blender unattended. When using hard foods, such as ice, cheese, nuts and coffee beans, keep one hand on the lid to keep blender in place.

1. Select the speed that best suits your desired task. (See SPEED CHART on page 8.) The blender immediately begins to run. The word HIGH or LOW will be visible on the LCD depending upon which speed is selected.

1. When blending thick mixtures, such as smoothies, power drinks and milkshakes press the PULSE button several times to begin the blending process. Press the PULSE button for no more than 5 seconds at a time and let the blades come to a complete stop before pressing the PULSE button again. This helps break up the ice (C).

1. Open the lid cap to add ingredients while the blender is running and drop ingredients through the opening (D).

Important: Do not remove the lid while the blender is running.

1. When finished, press the PULSE/OFF button. Make sure blades have completely stopped before attempting to remove the blending jar from the base.

1. To remove the jar, using both hands, grasp the handle with one and the base of the jar with the other, turn slightly counterclockwise to unlock position and lift up. (E)

2. Remove lid to pour.

3. Always unplug the appliance when not in use.

BLENDING TIPS AND TECHNIQUES

• Cut food into pieces no larger than 34 for use in the blender.
• When preparing foods that have several different kinds of ingredients, always add liquid ingredients first.
• When ingredients splatter onto the sides of the jar or the mixture is very thick, press the PULSE/OFF button to turn appliance off. Remove the lid and use a rubber spatula to scrape down the sides of the jar and to redistribute the food, pushing food toward the blades. Replace the lid and continue blending.

Important: Appliance should always have lid in place when in use.

Caution: Do not place blender jar onto base when motor is running.

• The lid cap holds up to 2 oz. of liquid and can be used as a measure when adding ingredients such as juices, milk, cream or liquor (F).

• When making bread crumbs, chopping nuts or grinding coffee beans, make sure blender jar is completely dry.

• When using PULSE function, use short bursts. Allow the blades to stop rotating between pulses. Do not use PULSE for more than 2 minutes.

• Use the PULSE/OFF button to begin the blending process when preparing beverages that include ice cubes; this helps to produce a smoother texture.
• The PULSE function is helpful when short bursts of power are needed, such as when preparing thick smoothies or milkshakes, chopping nuts or grinding coffee beans.
• It is helpful to begin the blending process on the lowest speed and then increase to a higher speed, if necessary.
  • To stop blending at any time, press the PULSE/OFF button.

- When blending hot ingredients, remove the lid cap and then put it back partly open, with the opened side tilted away from you. Cover lid with a cloth to avoid splattering and only use the lowest speed. Do not blend more than 2½ to 3 cups at a time (G).

• DO NOT place any of the following in the blender:

• Large pieces of frozen foods
- Tough foods such as raw turnips, sweet potatoes and potatoes
- Bones
- Hard salami, pepperoni
- Boiling liquids (cool for 5 minutes before placing in blending jar)

• Several other don'ts:

• Do not operate blender without the lid on the blending jar.
• Do not store foods in the blending jar.
• Do not overfill the blender (the blender is more efficient with less rather than more).

• Do not use PULSE for more than 10 seconds at a time; release the PULSE/OFF button, allow the blender to come to a complete stop, then continue.

• Do not run blender for longer than 1 12 minutes at a time. Scrape down sides of blending jar, if necessary, and continue blending.

• Do not use if blending jar is chipped or cracked.
  • Tasks not recommended for the blender:
• Whipping cream
• Beating egg whites
• Mixing dough
• Mashing potatoes
• Grinding meats
  • Extracting juice from fruits and vegetables

SPEED CHART
PULSE/OFF	Use for thick mixtures
STIR	Liquefy frozen juices, drink mixes and condensed soupsPrepare salad dressingsPuree hot liquids
CLEAN	Combine drop of dishwashing liquid and hot water to clean blender
MIX	Mix puddingsCombine pancake and waffle batter or mixes
BLEND	Prepare saucesRemove lumps from gravies
AERATE	Aerate soups and beverages
BEAT	Beat eggs for omelets and custards
SALSA	Prepare salsas
CHOP	Chop fruits and vegetablesChop cooked meatsChop nuts, coarse-to-fine
GRATE	Grate hard cheeses and coconutMake superfine sugarMake cookie, cereal and bread crumbsGrind coffee beans, spices and chocolate
PUREE	Puree baby foods – fruits and vegetablesBlend protein drinks
SMOOTHIE	Blend milkshakes, smoothies and malts
LIQUEFY	Liquefy frozen drinks
HIGH/LOW	Select to change speed between High and LowThe word will appear on the LCD to show which speed is being used

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service personnel.

CLEANING

1. Before cleaning, turn off and unplug the appliance.
2. To remove the jar, using both hands, grasp the handle with one and the base of the jar with the other, turn slightly counterclockwise to unlock position and lift up.
3. Remove jar base by turning it counterclockwise until loose.
4. Remove the gasket and the blade assembly.

Caution: Blades are sharp, handle carefully.

1. Remove lid and lid cap.

2. Wash removable parts by hand or in the dishwasher. Place the jar on the bottom rack and the rest of the parts on the top rack only.

Helpful Tips:

• For quick cleanup, combine 1 cup hot water and a drop of liquid dish soap in the blending jar.
  • Cover and blend on CLEAN for about 30 seconds.
  • Discard liquid and rinse thoroughly.

Important:

• Do not place the jar parts in boiling liquids.
• Do not immerse the base in liquid. Wipe the base with a damp cloth and dry thoroughly.
• Remove stubborn spots by rubbing with a damp cloth and nonabrasive cleaner.

Note: If liquids spill onto the base, wipe with a damp cloth and dry thoroughly. Do not use rough scouring pads or cleansers on parts or finish.

TROUBLESHOOTING
PROBLEM POSSIBLE	CAUSE SOLUTION
Jar base bottom does not come off of jar. counterclockwise until jar is released from the jar base.	A vacuum has been formed. blender and turn	Place the jar on the
Liquid is leaking from bottom of jar.	Basket is either missing or not in place correctly.	Check that jar is assembled correctly.
Appliance does not turn on. a working outlet.	Appliance is not plugged in.	Check that appliance is plugged into
Mixture in blender does not seem to be blending. the food; add some liquid and PULSE the mixture to aid in the blending process.	Not enough liquid in mixture being blended or too much ice.	Turn the blender off and use a rubber spatula to redistribute
Herbs or bread are sticking to sides of blender and not getting chopped.	Blending jar, food to be chopped and blade are not dry. are dry.	Always make sure that the jar, the blade and the food to be chopped
Jar separates from jar base when being removed from blender. Liquid spills onto counter.	Jar was twisted when being removed from base of blender. not twist.	When removing jar from blender base, simply lift up; do

RECIPES

WILD BERRY YOGURT COOLER

2 cups pineapple juice

1 cup wild berry frozen yogurt

1 cup frozen cubed mango

1 cup frozen hulled strawberries

Combine all ingredients in order listed in blending jar and close with lid. PULSE for several seconds, three to four times. Press SMOOTHIE and let cycle run until mixture is smooth and well blended; about 30 seconds.

Makes about 4½ cups.

CRAN-PINEAPPLE COLADA

1½ cups cran-apple juice

1 cup fresh pineapple chunks

^2/_3 cup frozen piña colada drink mix

1 ripe banana, cut into pieces

2 cups ice cubes

In blending jar, combine all ingredients in order listed and close lid. PULSE several times, for about 5 seconds each time, to blend ingredients and begin crushing ice. Press LIQUEFY and blend until smooth and creamy; about 25 seconds. Serve immediately.

Makes about 3½ cups.

PEAR BERRY DELIGHT

1½ cups pear nectar

1 cup pineapple/passion fruit sorbet

2 cups fresh strawberries

2 cups ice cubes

In blending jar, combine all ingredients in order listed. Place lid on jar. PULSE several times, for about 5 seconds each time, to blend ingredients and begin crushing ice. Press LIQUEFY and run until smooth and well blended; about 30 seconds. Turn blender OFF and serve immediately.

Makes about 3 cups.

MANGO RASPBERRY FIZZ

1½ cups pineapple mango juice

1½ cups raspberry sorbet

1 cup frozen sliced peaches

Cold club soda

Mint sprigs

Combine first 3 ingredients in order listed in blending jar. Close lid. PULSE for several seconds, three to four times. Press SMOOTHIE and let run until mixture is smooth and well blended; about 30 seconds.

Fill tall beverage glasses half-full with raspberry mixture; top of with club soda. Stir to blend. Garnish with mint sprig.

Makes 4 to 6 drinks.

BREAKFAST IN A GLASS

1 cup milk

12 cup plain yogurt

12 cup creamy peanut butter

1 banana, cut into pieces

14 cup wheat germ

14 cup peanuts

1 tbsp. honey

2 cups ice cubes.

In blending jar, combine all ingredients in order listed. Place lid on jar. PULSE several times, for about 5 seconds each, to blend ingredients and begin crushing ice. Press SMOOTHIE and run until smooth and well blended; about 30 seconds. Turn blender OFF and serve immediately.

Makes about 4 cups.

MANGO AND CORN SALSA

12 cup orange pepper, cut into 34 -inch chunks

12 cup purple onion, cut in 12 -inch pieces

2 to 3 medium jalapeños, seeded and quartered

2 large cloves garlic

Juice of 1 lime

1½ cups tomato, cubed

1 large mango, cubed

12 cup fresh cilantro leaves

1 cup canned whole kernel corn

In blending jar, combine pepper, onion, jalapenos and garlic. Place lid on jar. PULSE several times, for about 5 seconds each, to chop ingredients. Add lime juice, tomato, mango and cilantro and PULSE several times until vegetables are chopped and mixture is blended. Spoon mixture into bowl; stir in corn. Cover and refrigerate until ready to serve.

Serve with tortilla chips.

Makes about 4½ cups.

BALSAMIC TOMATO VINAIGRETTE

1 small purple onion, cut in 34 -inch pieces

2 large cloves garlic

1 small tomato, cut in 34 -inch pieces

3 tbsp. Balsamic vinegar

14 tsp. salt

14 tsp. black pepper

^2/_3 cup olive oil

In blending jar, combine onion, garlic and tomato. Place lid on jar. PULSE several times, for about 5 seconds each, to chop ingredients. Add vinegar, salt and pepper. Replace lid on jar; remove lid cap. With blender running on STIR, add oil through lid cap opening in a slow, steady stream until mixture is completely blended.

Cover and refrigerate until ready to serve.

Use as dressing for crisp green salad or to marinate cooked vegetables such as asparagus or broccoli.

Makes about 1 ^1/4 cups.

PEA AND POTATO BISQUE

1 small onion, chopped

2 medium cloves garlic, minced

2 tbsp. butter or margarine

4 cups chicken broth or stock

2 cups cubed peeled potatoes

12 tsp. ground ginger

12 tsp. salt

14 tsp. black pepper

1½ cups frozen peas

14 cup loosely packed parsley leaves

12 cup heavy cream

In medium saucepan, cook onion and garlic in butter over medium heat until tender. Add chicken broth, potatoes ginger, salt and pepper. Bring to boil. Cover and simmer 8 minutes. Add peas and parsley; continue cooking until potatoes are tender. Remove from heat and let stand at least 5 minutes.

Spoon about 2½ cups soup mixture into blending jar. Cover and remove lid cap; put it back with the open side tilted away from you. Cover lid with cloth. Blend on STIR until creamy and smooth; pour into measuring cup. Repeat with remaining mixture until all is pureed. Return soup to saucepan; stir in cream. Heat, stirring; do not allow bisque to boil.

Serve with a dollop of sour cream, if desired. Garnish with additional chopped parsley.

Makes about 6½ cups.

NEED HELP?

For service, repair or any questions regarding your appliance, call the appropriate 800 number on cover of this book. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

Two-Year Limited Warranty

(Applies only in the United States and Canada)

What does it cover?

- Any defect in material or workmanship provided; however, Applica's liability will not exceed the purchase price of product.

For how long?

- Two years from the date of original purchase with proof of such purchase.

What will we do to help you?

- Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of date of sale.

- Visit the online service website at www.prodprotect.com/applica, or call toll-free 1-800-231-9786, for general warranty service.

• If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use

• Damage from misuse, abuse or neglect

• Products that have been modified in any way

• Products used or serviced outside the country of purchase

• Glass parts and other accessory items that are packed with the unit

• Shipping and handling costs associated with the replacement of the unit

- Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

- This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.

BLACK&DECKER. is a registered trademark of The Black & Decker Corporation, Towson, Maryland, USA

Made in People's Republic of China

Printed in People's Republic of China

Illustration of a hand pouring liquid into a blender with a downward arrow (no text or symbols)

[e-mail]

Colombia

PLINARES

Avenida Quito # 88A-09

Bogotá, Colombia

San Jose, Costa Rica

Tel.: [506] 257-5716 / 223-0136

Ecuador

Col. Centro, Cuauhtemoc,

México, D.F

Tel. [phone]

Nicaragua

ServiTotal

City Market Nivel Plaza Local 153

Diagonal Hotel Melia,

Caraças.

Tel. [phone]

www.applicaservice.com

[e-mail]

Col. Chapultepec Morales, Mexico D.F

Deleg, Miguel Hidalgo

CP 11570

MEXICO

C.U.I.T No. 30-69729892-0

Importado por / Imported by:

APPLICA MANUFACTURING, S. DE R. L. DE C. V.

Presidente Mazarik No. 111, 1er Piso

Col. Chapultepec Morales, Mexico D.F

Deleg. Miguel Hidalgo

CP 11570

MEXICO
