USER MANUAL SB35 BLACK & DECKER

Line drawing of a hairdryer with a cord and base, no text or symbols present

FirstUseSafetyRecommendation

Pleasereadthroughthisbookletforsafeandefficientuseofthe appliance.Weurgeyoutoreadthe"ImportantSafeguards" sectionandalsofollowalldetailedinstructionsevenifyouare familiarwithasimilarappliance.

Keepthisguidehandyforfuturereference.

IMPORTANTSAFEGUARDS

While using electrical appliances, inordertoreducetheriskoffire, electricshock, and/or injury topersons, basicsafety precaution should be followed, including the following:

- Readallinstructionscarefully,evenifyouarefamiliarwiththeappliance. Toprotectagainsttheriskofelectricshock,DONOTIMMERSEtheappliance, cordsetorpluginwaterorotherliquids.

• Toclean,wipetheexteriorwithadampclothandthenwipedry.

- Closesupervisionisnecessarywhenanyapplianceisusednearchildren, Never leaveanyapplianceunattendedwheninuse.Donotallowchildrenoranyperson unfamiliarwiththeseinstructionstousetheappliance.

- Switchoffandremovetheplugfromthepoweroutletwhennotinuse, before assemblingordisassemblingpartsorduringcleaning. Neverpullthecord.

- Donotoperateanyappliancewithadamagedcordorplug,oraftertheappliance malfunctions,orisdroppedordamagedinanymanner.Returnthecomplete appliancetoyournearestauthorizedservicefacilityforexamination,electricalrepair, mechanicalrepairoradjustmenttoavoidanyhazard.

• Theuseofanyattachmentsoraccessoriesnotrecommendedorsoldbythis appliancemanufacturermayresultinfire,electricshockorpersonalinjury.

- Donotletthecordhangovertheedgeofatable,counter,ortouchhotsurfaces. Guidethepowersupplycordneatlysoitdoesnothangovertheedgeofa workshopandcannotbecaughtaccidentallyortrippedover.

- Donotoperateorplaceanypartofthisapplianceonornearanyhotsurfaces(suchaselectricburnerorinaheatedoven)

- Donotabusethecord. Never carry the appliance by the cordory ankonitto disconnect from the outlet; instead, grasp the plug and pull to disconnect.

- Whenusinganextensioncordwithyourappliance,makesuretheextensioncordis correctlywired,andratedforitsuse.

- Donotattempttorepairtheapplianceyourself;instead,takeittoyourBlack&Decker-ownedorAuthorizedServiceCentrefor repair.

- Donotallowchildrenoranimalstocomeneartheworkareaortotouchthe applianceorpowersupplycord.

SAVETHESEINSTRUCTIONS

YourStickBlenderFeatures

• 500mlmeasuringbeakeridealfordailyusage
• Singlepulsespeedoperationforbetterspeedcontrol.
• Stainless Steel multi functional blade ensures high efficiency and easy cleaning.
• WallBracket(accessory)providesforconvenientstorage.
• BalloonWisk(SB34/35)forwhippingoperations
• ChopperBowl(SB35)forfastandconvenientchoppingoperations
• Detachable Plastic (SB 33 / 34) Metal (SB35) stem for easy reach and blending operations.
• 300WPowermotorforperformingtoughestofallJobs.
• Softrubbergrip(SB35)foreasyandcomfortablegrip.

1 2 2

PartsIdentification:-

1. PulseSpeedSwitch
2. Release buttons
3. Chopperlid(SB34&SB35)
4. Chopperblade(SB34&SB35)
5. Chopperbowl(SB34&SB35)
6. Plasticstem(SB33&SB34)
7. Metalstem(SB35)
8. Measuring jug
   9.AllPurposeCuttingblade
9. Whisking attachment(SB35)
10. WallMountingBracket

Line drawing of a hair follicle with a spool, labeled with number 10 (no text or symbols on the object itself)

11

IntendedUse:-

YourBlack&Deckerstickblendersethasbeendesignedforblending,whisking,beating, whippingandchoppingfoodandbeverageingredients.Thisproductisintendedforindoor householduseonly.

BeforeusingyourStickblender:-

Remove all the packaging from the set. Wipethe appliance with adrycloth before using.

Makesurethattheapplianceisswitchedoffbeforeconnectingtoordisconnecting fromthepowersupply.

Ensure that the voltage rating on the base plate corresponds to themains voltage at your home.

Fittingandremovinganattachment:-

• Usetheblendingattachmentforblendingliquidsormashingsolids.
• Use the whisking attachment form mixing, beating, whipping and creaming liquids and mixtures.
• Usethechopperbowlforchoppingvegetables, nuts, driedfruitsetc.

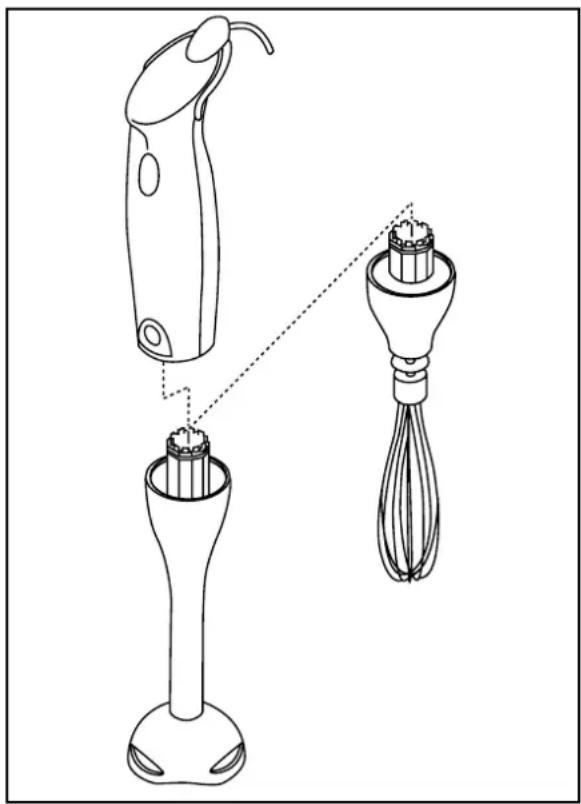

BlendingandWhiskingSB35

• Tofitanattachment, placeitontothe appliance.
• Presstheattachmentuntilitlocksinplace.
• Toremovetheattachment, keep the release button pressed and take it off the appliance.

Line drawing of a hairdryer with two different designs, showing mechanical components and a wire brush (no text or symbols)

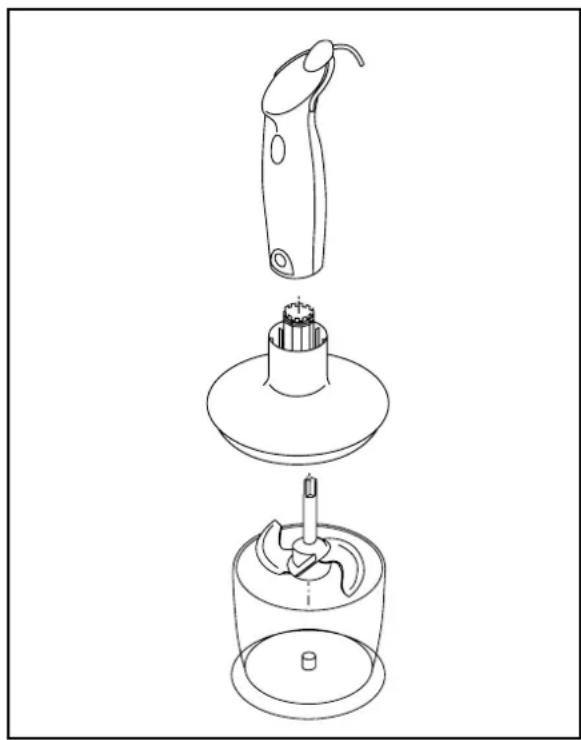

ChopperBowl:-SB34andSB35

• Holding the central plastic shaft of chopper blade carefully placethe blade over the central shaft in the bowl. Rotate the blades slightly for a proper fit on the shaft.
• Puttheingredientsintothebowl, not exceedingthe"Max"markonthe chopperbowl.
• Placethelidontothebowl
  • Fixthelidbyturningitclockwise
• Placetheapplianceontothechopperlid
• Pushtheapplianceuntililocksinplace
• Toremovetheattachment, keep the releasebuttonpressedandtakethe applianceoffthechopperassembly.
• Toremovethelidfromthebowl,turnthe lidcounterclockwiseandtakeitoff.

Technical line drawing of a cleaning or cleaning device with three views: top view, side view, and bottom view (no text or symbols)

Usage:-

Blending:-

• Placetheingredientsintothemeasuringjugorasuitablecontainer.
• Usingthestabbingmotion, pushthebladesintotheingredientsuntilthedesired consistencyisreached.
• When blending liquids or fluiding ingredients, uses hortpulse stop prevent spillage.
• Keepingthebladesubmergedwillhelptopreventspillage.
• Extracareshouldbetakenwhileblendinghotingredients
• Donotuseyourplasticstemblenderforextremelyhotingredients, asthiswill deformthestem.

Whipping:

• Placetheingredientsintothemeasuringjugorasuitablecontainer.
• Whiptheingredientsuntilthedesiredresultsareachieved.
• Keeping the whippers submerged will help to prevent spillage.
  • Extracareshouldbetakenwhilewhippinghotingredients

Chopping:

• Placetheingredientsintothechopperbowl,uptothemaxlevel.
• Assemblethebowlandfitittotheappliance
• Choptheingredientsuntilthecorrectconsistencyisreached.
• Donotusethechopperperformorethanaminuteduringcontinuoususage. Keep anintervalofnearfiveminutesbetweenwoconsecutivecycles.

Refertothetableforappropriateprocessing.

	MaximumQtyPreparation	Time(s)
Meat300g(<2cmcubes)dice15-25
Hardcheese200g(<1cmcubes)dice20-25
Onions100g	quarter	5-10
BabyFood	170g	Cookanddice	10-20
Nuts	350g	Removeshell	8-15
Garlic	20piecesCutintopieces	10-20
DryBread	150g	Cutintopieces	10-20
Parsley	1sprig	Removestalks	1-20
Carrot	200g	Cutintopieces	10-20

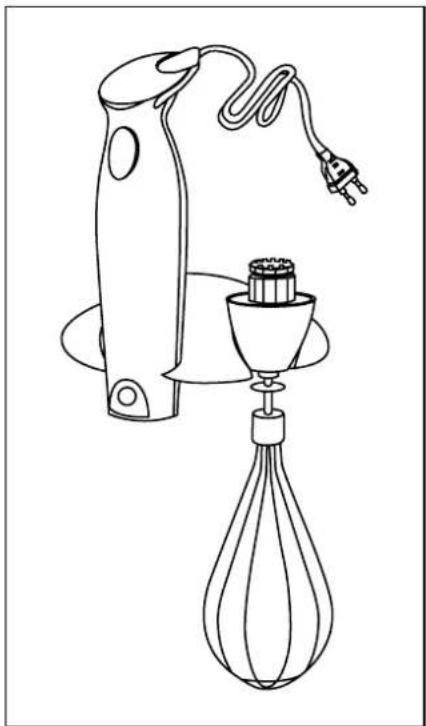

Storage :-

You can store your appliance and one of the blending sticks on the wall mounting bracket provided along with the appliance.

Warning!

Do not operate the appliance continuously for more than 1 minute. After operating the appliance continuously for 1 minute,, let it cool down for atleast 5 minutes before operating it.

Some Do's and Don't

1 - Do not touch moving parts

2 – Always allow motor to stop before approaching the blades or changing any accessory.

3 – Keep your fingers, long hair, loose clothes and supply cord away from moving parts

4 - Handle the blade with care as it is sharp

5 - Never pull the power cord to disconnect the plug from the socket

6 - Keep the power supply cord away from heat, oil and sharp edges

7 - Do not place the appliance on or near heat source or in a heated oven

8 – Do not use the appliance outdoors. Always protect the motor unit from water or excessive humidity

9 - Operate the appliance only with dry hands

10- If the power supply cord is damaged during use, disconnect the appliance from the power supply immediately. Do not touch the power supply cord before disconnecting from the power supply.

11- When not in use, the appliance should be stored in a dry place. Children should not have access to stored appliances.

12- Never immerse your plastic stem (SB33/34) in hot/boiling liquid.

Line drawing of a hairdryer with a whisk and plug, no text or symbols present

Line drawing of a hairdryer with a brush and straw holder, showing mechanical components (no text or symbols)

Technical line drawing of a kitchen tool assembly (no text or symbols)

Line drawing of a handheld device with labeled ports (no text or symbols)

وصف الأجزاء:

Line drawing of a laboratory brush with a pipette and cap (no text or symbols)

Simple line drawing of a hairdryer with a whisk and bulb (no text or symbols)

الغرض من الاستعمال:

Black & Decker provides a 2 Year Warranty for this product from the date of purchase against defects due to defective materials or workmanship. Motor/element burn-outs due to voltage fluctuations are not covered under warranty. If the product should become defective within the warranty period, Black & Decker will repair or (at Black & Decker's discretion) replace it free of charge.

The warranty provisions do not cover failure due to accident, misuse, abuse, negligence or non observation of local regulations on the part of the user. Equally, the warranty provisions do not apply where the appliance has been serviced by a person not authorized by Black & Decker or serviced with non-approved parts and this has contributed to the fault of the product. Superseeded models without a replacement equivalent will either berepaired or (at Black & Decker's discretion) replaced with another product of similar retail value.

UPONPURCHASE

FillintheWarrantyRegistrationCardwiththeoriginalAuthorizedDealer'sstamp(indicatingdate ofpurchase)andattachyourpurchasereceipttoit.Retainincaseofclaimsinthefuture.

MAKINGACCLAIM

Takeyour defective product together with the Warranty Registration Card & purchase receipt to your localservice Centre. You can either do this in person or send it freight prepaid. If mailing or shipping your appliance, ensure and remove all the water and pack it carefully in asturdycarton with enough packing material to prevent damage. Include anoted describing the problem to the service Centre and besure to give your return address.

DESIGNEDFORDOMESTICPURPOSESONLY.

Names&AddressesforBlack&DeckerServiceConcessionaries

Afghanistan: Ishan National Co., Opp. Ministry of Justice, Kabul Tel.: [phone]. Algeria: SARL Outillage Corporation, 04 Route De Dely Brahim Cheraga, Alger. Tel.: [phone] Fax: [phone]. Bahrain: Fawaz Al Zayani, P.O.Box 26563, Adliya, Manama. Tel.: [phone]/712756 Fax: [phone]. Bangladesh: Ultra Corporation, 8, Kushol Centre, Uttara, Dhaka 1230. Tel.: [phone] Ext.28 Fax: [phone]. Egypt: Anasia Egypt for Trading S. A. E., P.O.Box 2443, 110 Mostafa Refaat Street, Sheraton Heliopolis 11361, Cairo. Tel.: [phone] Fax: [phone]. Ethiopia: Tewfik Sherif & Co. Ltd., P.O.Box 5583, Debre Zeit Road, Addis Ababa. Tel.: [phone] Fax: [phone]. India: Gryphon Impex Pvt. Ltd., D-6/4, Okhla Industrial Area, Phase-I, New Delhi-110020. Tel.: [phone] Fax: [phone]. Iran: Tehran - Service Centre of Iran, No 510, South Karger Ave, Below Pasteur Sq. Tehran. Tel.: [phone]. Kish Island - Cayhan Electric Co., No. 69, Paradise Shopping Centre, Kish Island. Tel.: [phone]. Jordan: Bashiti Hardware, P.O.Box 1564, TLA Ali, Amman. Tel.: [phone] Fax: [phone]. Kenya: Zylog Enterprises, IPS Building, Kuanda Street, P.O.Box 40877, Nairobi. Tel.: [phone] Fax: [phone]. Kuwait: Al Omar Technical Co., P.O.Box 4062, 13041 Safat, Kuwait. Tel.: [phone] Fax: [phone]. Lebanon: Est. F.A. Kettaneh SA, P.O.Box 110242, Dora Highway, Kettaneh Building, Beirut. Tel.: [phone] Fax: [phone]. Libya: El Ghoul Brothers, P.O.Box 348, Islamic Call Bldg., Office 201-202, Benghazi. Tel.: [phone]/4183 Fax: [phone]. Madagascar: Group Tana Confort S. A. R. L., B. P. 1770, Antananarivo. Tel.: [phone] Fax: [phone]. Malta: John G. Cassar Ltd., 36 Victory Str, Qormi QRM 06, Malta. Tel.: [phone] Fax: [phone]. Mauritius: Happy World Marketing Ltd., Block 2, Industrial Estate, Coromandel, P.O.Box 429, Port Louis Tel.: [phone] Fax: [phone]. Nepal: Universal Trading Centre, P.O.Box 1947, Tripureswor, Kathmandu Tel.: [phone] Fax: 261154. Nigeria: Amin Bros. Eng. Co. Ltd., 30A (Plot 1291), Akin Adesola Street, Victoria Island, Lagos. Tel.: [phone] Fax: [phone]. Oman: Oman Mktg. & Service Co., P.O.Box 2734, Ruwi, Muscat. Tel.: [phone] Fax: [phone]. Pakistan: Karachi - Ammar Service & Spares, 60, Bank Arcade, Serai Road, Karachi +92-21 Tel.: [phone] Fax: [phone]. Pakistan: Lahore - Electronics Inn, 212-G Raja Centre, Main Market, Gulberg, Lahore. Tel.: [phone]. Philippines: Amity Sales Centre, No. 244 Unit B, Escolta Street, Manila. Tel.: [phone]. Amon Trading Corp. 10/F Pacific Star Building, Makati Ave Ext., Manila. Tel.: [phone]. Qatar: Al Muftah Trading & Cont., P.O.Box 875, Doha. Tel.: [phone] Fax: [phone]. Saudi Arabia: Dammam - Ebrahim Fawaz Al Zayani, P.O.Box 76026, Al Raka, Dammam. Tel.: [phone] Fax: [phone]. Jeddah - Anasia, P.O.Box 50959, Jeddah - 21477. Tel.: [phone] Fax: [phone]. EAC (Al Yousuf) P.O. Box 30377, Jeddah - 21477. Tel.: [phone] Fax: [phone]. Madina - Garziz Trdg. for Bldg. Mat.&Decor., P.O.Box 3364, Madina. Tel.: [phone] Fax: [phone] Riyadh - Anasia, P.O.Box 18689, Riyadh - 11425. Tel.: [phone] Fax: [phone]. Yanbu - Bin Afif, P.O.Box 530 Yanbu, Al Bahr. Tel.: [phone] Fax: [phone]. Sri Lanka: Delmege Gen. Equip. Pvt. Ltd., No. 428/AT.B., Jaya Mawatha (Darley Road), Colombo-10. Tel.: [phone] Fax: [phone]. Sudan: United Distribution Company, P.O.Box 325, Sayed Abdul Rehman Street, Khartoum. Tel.: [phone]/777296 Fax: [phone]. Tanzania: General Motors Investment, P.O Box 16541, 14 Vingunguti Nyerere Road, Dar Es Salaam. Tel.: [phone]/5022 Fax: [phone]/5412/3. Tunisia: Sfax - Techni Sud, 68, Rue d'Algerie, Sfax. Tel.: [phone]. Tunis - Souissi Ace Home Centre, Zone Industrielle, Megrine (Saint Gobain), Z4 - Tunis. Tel.: [phone] Fax: + 216-1-429540/330. UAE: Abu Dhabi - Light House Electric., P.O.Box 120, Abu Dhabi. Tel.: [phone] Fax: [phone]. Dubai - Black & Decker (O) A.G., P.O.Box 5420, Dubai. Tel.: [phone] Fax: [phone]. Ideal Mach. & Equipt. R.W/shop P.O.Box 37116, Al Quoz, Dubai. Tel.: [phone] Fax: [phone]. Sharjah - McCoy Middle East LLC, P.O.Box 20228, Sharjah. Tel.: [phone] Fax: [phone]. Uganda: The Building Centre, Kitgum House, 52 Station Road, P.O.Box 7436, Kampala. Tel.: [phone] Fax: [phone].Yemen: Aden - Middle East Trad.Co.Ltd., Mulla Dakka, Aden.Tel.:[phone] Fax:[phone].Sana'a - Middle East Trad.Co.Ltd., P.O.Box 12363,Hayel Street,Sana'a.Tel.:[phone] Fax:[phone].Taiz-Middle East Trad.Co.Ltd., Campa area near Al-Kair mosque,Taiz.Tel.:[phone]/232033 Fax:[phone].Zimbabwe: J.D.Distributors,P.O.Box 226, 17 Bessemer Road,Graniteside,HarareTel.:[phone]-TFax: 753918
