Product Type	Blender
Brand	Black & Decker
Model	BLC18750DMB (also BC18750DMS, BC18750DB)
Jar Capacity	48 oz / 6 cups / 1420 ml
Jar Material	Plastic (Perfect Pour™ blending jar)
Blade Material	Stainless steel
Control Panel	Digital display with MODE indicator lights, Start/Stop, Power, Scroll Up/Down, MODE button
Speed Settings	18 speeds (1-18) plus Pulse and Crush functions
Timer Function	Up to 60 seconds, adjustable in 5-second increments
Pulse Function	For thick mixtures, press and hold up to 5 seconds
Crush Function	Designed to crush up to 1.5 cups of ice in 10 seconds
Safety Features	Stability interlock system, automatic shutoff (2 mins for speeds, 20 secs for Pulse/Crush), polarized plug, tamper-resistant screw
Automatic Shutoff	After 2 minutes for speeds 1-18, after 20 seconds for Pulse and Crush; displays 'EE'
Dishwasher Safe Parts	Yes (jar, lid, lid cap, blade assembly, gasket, jar base; jar on bottom rack, others on top)
Included Accessories	Lid cap, lid, blending jar, gasket, blade assembly, jar base
Warranty	2-year limited warranty (U.S. and Canada)
Voltage	120V (polarized plug)
Power Cord	Short detachable cord with polarized plug

Frequently Asked Questions - BLC18750DMB BLACK & DECKER

How do I use the timer function on my Black & Decker blender?

Press the POWER button, then press ▲/▼ to select a speed. Press and release the MODE button until the red light is above TIMER. The display shows '00'. Use ▲/▼ to set time in 5-second increments (max 60 seconds). Press START/STOP to begin countdown; blender stops automatically when time expires.

Can I blend hot liquids in this blender?

Yes, but with caution. Remove the center piece of the two-piece lid (lid cap) and replace it ajar with the opened side away from you. Cover the lid with a cloth to avoid splattering. Only use the lowest speed and do not blend more than 2.5 to 3 cups at a time. Do not blend boiling liquids; cool for 5 minutes first.

How do I clean the blender after use?

Unplug and disassemble: remove jar base by turning counterclockwise, then remove gasket and blade assembly (blades are sharp). Wash all removable parts by hand or on the top rack of the dishwasher (jar on bottom rack). For quick cleanup, blend 1 cup hot water with a drop of dish soap on speed 1-4 for 30 seconds, then rinse. Wipe the base with a damp cloth and dry thoroughly.

What does 'EE' mean on the display and how do I fix it?

'EE' indicates the blender's intelligent system has automatically shut off after running for 2 minutes (speeds 1-18) or 20 seconds (Pulse/Crush). Unplug the unit and wait 30 seconds before plugging it back in. This is a normal safety feature to prevent overheating.

How do I crush ice using this blender?

Press the POWER button. Press and release the MODE button until the red light is below CRUSH. Press START/STOP; two ice cube icons will flash on the display. The blender will run until you press START/STOP again. Use for up to 1.5 cups of ice cubes.

Can I put the blender jar in the dishwasher?

Yes, the jar, lid, lid cap, blade assembly, gasket, and jar base are all dishwasher safe. Place the jar on the bottom rack and all other parts on the top rack only. Do not use boiling liquids on the parts.

How do I disassemble the blender jar for cleaning?

Turn the jar upside down. Rotate the jar base counterclockwise to remove it. Then remove the gasket and blade assembly carefully (blades are sharp). The lid and lid cap can be removed separately.

What speeds should I use for different tasks?

Pulse for thick mixtures. Speeds 1-4: cleaning, liquefying frozen juices, salad dressings, pudding, pureeing hot liquids. Speeds 5-8: grating cheese, making superfine sugar, chopping nuts, grinding coffee. Speeds 9-13: pureeing baby food, blending batters, beating eggs. Speeds 14-18: protein drinks, smoothies, milkshakes, sauces.

Can I add ingredients while the blender is running?

Yes, you can open the lid cap to drop or pour in ingredients while the blender is running. Do not remove the lid itself while the blender is running.

What is the warranty period for this Black & Decker blender?

The blender comes with a 2-year limited warranty covering defects in material or workmanship (applies in the United States and Canada). It does not cover commercial use, misuse, or modified products. For service, call 1-800-231-9786.

USER MANUAL BLC18750DMB BLACK & DECKER

For online customer service

and to register your product go to

www.prodprotect.com/applica

MODELS/MODELOS

BC18750DMS

BC18750DB

BC18750DMB

Please Read and Save this Use and Care Book.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before using.
  To protect against risk of electrical shock do not immerse cord, plugs or appliance in water or other liquid.
  ○ Close supervision is necessary when any appliance is used by or near children.
  ○ Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
  ○ Avoid contacting moving parts.
  Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility or call the appropriate toll-free number on the front of this manual for examination, repair or electrical or mechanical adjustment. Or, call the appropriate toll-free number on the cover of this manual.
  The use of attachments, including canning jars, not recommended by the manufacturer may cause fire, electric shock or injury.
  ○ Do not use outdoors.
  ○ Do not let cord hang over edge of table or counter.
  Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used, but must be used only when the blender is not running.
• Blades are sharp. Handle carefully.
  To reduce the risk of injury, never place cutter-assembly blades on base without jar properly attached.
  ○ Always operate blender with cover in place.
  When blending hot liquids, remove center piece of two-piece cover.
  ○ Do not use appliance for other than intended use.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

POLARIZED PLUG (120V Models Only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

a) A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
c) If a long detachable power-supply cord or extension cord is used,

1) The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance,
2) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord, and
3) The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel; in Latin America, by an authorized service center.

This symbol is placed near information that requires your special attention.

Product may vary slightly from what is illustrated.

A
† 1. Lid cap (Part# BLC18750-01)
+ 2. Lid (Part# BLC18750-02)
† 3. Perfect Pour™ blending jar 6 cups / 48 oz. / 1420 ml (Part# BLC18750-03)
4. Handle
+ 5. Gasket (Part# BLC18750-05)
+ 6. Blade assembly (Part# BLC18750-04)
+ 7. Jar base (Part# BLC18750-06)
8. Stability interlock system
9. Blender base
10. Control panel
Note: † indicates consumer replaceable/removable parts

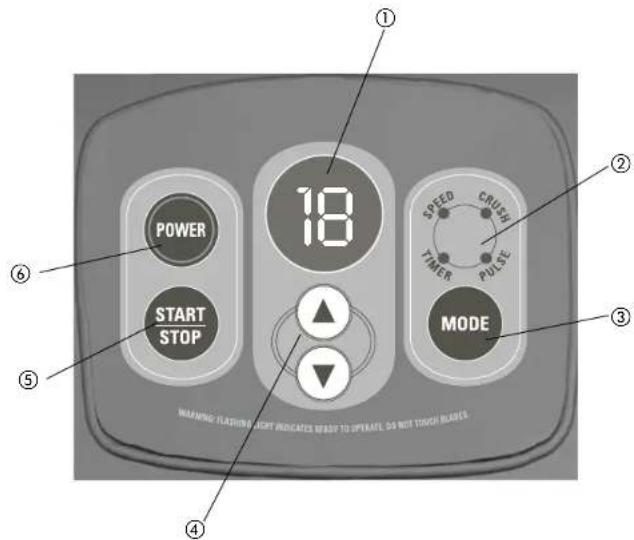

CONTROL PANEL

B
1. Digital display
2. MODE indicator lights
3. MODE button
4. Scroll Up / Scroll Down buttons
5. START/STOP button
6. POWER button

How to Use

This unit is for household use only.

GETTING STARTED

• Remove all packing material and any stickers from the product.
• Please go to www.prodprotect.com/applica to register your warranty.
• Wash all removable parts as instructed in CARE AND CLEANING section of this manual.

Important: This blender has an intelligent system that automatically shuts off the appliance after 2 minutes for speeds 1 to 18 and after 20 seconds for the PULSE and CRUSH functions. If this occurs, the LED display shows "EE"; unplug the unit and wait 30 seconds (C).

BLENDER JAR ASSEMBLY

1. Turn blender jar upside-down and place flat on countertop or work surface.
2. Put the gasket on top of the blade assembly.
3. Place the blade assembly with gasket in bottom opening of the jar, with blades down.

1. Place jar base onto blending jar and rotate clockwise until it is tight (D).
2. Turn assembled blending jar right side up.
3. Place lid with lid cap on blending jar.
4. Uncoil power cord from storage area under base.
5. Place jar in unlocked position on base and turn jar clockwise until jar is in locked position on base (E).
6. Blender is now ready for use.

USING YOUR BLENDER

1. Make sure appliance is OFF.
2. Place foods to be blended into jar.
3. Place lid on jar; make sure lid cap is in place.

Important: Do not remove lid while blender is running.

1. Plug power cord into standard electrical outlet.

Note: When in use, do not leave blender unattended. When using hard foods, such as ice, cheese, nuts and coffee beans, keep one hand on lid to keep blender in place.

1. Press POWER button. Select speed and function following directions below.

2. When finished, press START/STOP button. Make sure blades have completely stopped before attempting to remove blending jar from base.

Medical illustration of a surgical instrument with needle inserted, showing anatomical structure (no text or labels)

1. To remove jar, grasp handle, turn slightly counterclockwise to unlock position and lift up (F).
2. Remove lid to pour.
3. Always unplug appliance when not in use

USING MODE FUNCTION

When blender is plugged in and POWER button is pressed, speed will be shown at 1 on display in center of control panel and red light below SPEED indicator light in MODE section of control panel will flash [G].

ADJUSTING SPEEDS

1. Press ▲ / ▼ buttons below digital display in center of control panel to select speed that best suits your desired task. Digital display will show number of speed selected (H).
2. Press START/STOP button and blender will run until START/STOP button is pressed again.

USING THE TIMER (J)

1. Press ▲ / ▼ buttons to select speed that best suits your desired task. Digital display will show number of speed selected.
2. Press and release MODE button to select TIMER. The red light will be illuminated above TIMER indicator. Digital display will show 00.

3. Press ▲ / ▼ buttons and timer will change in 5 second increments up to a maximum of 60 seconds.

4. Press START/STOP button and blender will begin running. Display will show countdown in 1-second increments and blender will automatically stop once time has run down.

5. If longer blending is required, simply press ▲ /▼ buttons to select additional time desired. Then START/STOP button again.

Note: To run blender longer than 60 seconds or if mixture needs more blending once blender has stopped, press ▲ button to select additional time desired and press START/STOP button to resume blending.

Important: If SPEED is selected first and then TIME is selected, visual display will show the time countdown as blender runs. Otherwise, countdown will not be shown.

USING PULSE (K)

Use this function for blending thick mixtures, such as smoothies, power drinks and milkshakes.

1. Press /▲ buttons to select the speed that best suits your task. Digital display will show the number of the speed selected.

1. Press and release MODE button to select PULSE. The red indicator light will be illuminated above PULSE.
2. Press and hold START/STOP button for no more than 5 seconds. Release and press again until food has desired consistency. Releasing START/STOP button automatically turns blender off.
3. Allow several seconds between pulses.

Note: Use PULSE button to begin blending process when preparing beverages that include ice cubes; this helps to produce smoother texture.

1. Once the mixture is ready for continuous blending, you may use the speed buttons or press and release the MODE button to select TIMER. Press ▼ / ▲ buttons to select your speed or the desired amount of running time
2. Press START/STOP button and blender will begin running. Display will show countdown in 1-second increments and blender will automatically stop when time has run down.

USING CRUSH (L)

Use to crush up to 1½ cups ice cubes to a fine crush in just 10 seconds.

1. Press and release MODE button to select CRUSH. The red indicator light will be illuminated below CRUSH.
2. Press START/STOP button. Two ice cubes will flash on digital display while blender is running on this function.
3. Blender will continue to run until START/STOP button is pressed again.

ADDING FOODS WHILE BLENDER IS RUNNING

Open lid cap to add ingredients while blender is running. Drop or pour ingredients through opening. (M)

Important: Do not remove lid while blender is running.

BLENDING TIPS AND TECHNIQUES

• Cut food into pieces no larger than 34 -inch for use in blender.
• When preparing foods that have several different kinds of ingredients, always add liquid ingredients first.
• When ingredients splatter onto sides of jar or mixture is very thick, press START/STOP button to turn appliance off. Remove lid and use a rubber spatula to scrape down sides of the jar and to redistribute food, pushing food toward blades. Replace lid and continue blending.

Important: Appliance should always have cover in place when in use.

Caution: Do not place blender jar on base when motor is running.

• Lid cap holds up to 2 oz. of liquid and can be used as a measure when adding ingredients such as juices, milk, cream and liquor (N).
• When making bread crumbs, chopping nuts or grinding coffee beans, make sure blender jar is completely dry.
• When using PULSE function, use short bursts. Allow blades to stop rotating between pulses. Do not use pulse for more than 2 minutes.

- Use PULSE function to begin blending process when preparing beverages that include ice cubes; this helps to produce a smoother texture. Once mixture begins to come together:

o Set MODE to SPEED; select desired speed.
o Change MODE to TIMER; select desired running time.
o Press START/STOP and let blender run.

- Use PULSE function to begin blending process when preparing beverages that include ice cubes; this helps to produce a smoother texture. Once mixture begins to come together:

- It is helpful to begin blending process on lowest speed and then increase to higher speeds, if necessary.

• To stop blending at any time, press START/STOP.

- When blending hot ingredients always open lid cap and replace it ajar with opened side away from you. Cover lid with a cloth to avoid splattering and only use lowest speed. Do not blend more than 2½ to 3 cups at a time (P).

Important: DO NOT place any of the following in blender:

• Large pieces of frozen foods
- Tough foods such as raw turnips, sweet potatoes and potatoes
- Bones
• Hard salami, pepperoni
• Boiling liquids (cool for 5 minutes before placing in blending jar)

Several other DONT'S:

• Do not operate blender without the lid on blending jar.
• Do not store foods in blending jar.
- Do not overfill blender. (Blender is more efficient with less, rather than more.)
• Do not put boiling liquids into blender.
- Do not use PULSE for more than 5 seconds at a time. Release PULSE button, allow blender to rest briefly and then continue.
- Do not run blender for longer than 1 12 minutes at a time. Scrape down sides on blender jar, if necessary, and continue blending.
- Do not use if blender jar is chipped or cracked.

Tasks NOT recommended for the blender:

• Whipping cream
• Beating egg whites
• Mixing dough
• Mashing potatoes
• Grinding meats
  • Extracting juice from fruits and vegetables

SELECTING A SPEED

SPEED / FUNCTION USE

PULSE• Use for thick mixtures

Speeds 1 - 4• For quick cleaning blend drop of dishwashing liquid and hot water• Liquely frozen juices, drink mixes and condensed soups• Prepare salad dressings• Blend puddings• Puree hot liquids

Speeds 5 - 8• Grate hard cheeses• Make superfine sugar• Aerate soups and beverages• Chop nuts, coarse to fine• Grind coffee beans, spices and chocolate• Grind hard cheese, cooked meats and coconut

Speeds 9 - 13 vegetables• Puree baby foods – cooked fruits and vegetables• Blend pancake and waffle batter or mixes• Beat eggs for omelets and custards• Make cookie, cereal and bread crumbs

Speeds 14 - 18• Blend protein drinks• Liquely frozen drinks; smoothies• Blend milk shakes and malteds• Prepare smoothies• Prepare sauces• Remove lumps from gravies

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service personnel.

CLEANING

1. Before cleaning, turn off and unplug the appliance.
2. Lift the jar by the handle off the blender base.
3. Remove jar base by turning it counterclockwise until loose.
4. Remove the gasket and the blade assembly.

Caution: Blades are sharp, handle carefully.

1. Remove lid and lid cap.
2. Wash removable parts by hand or in the dishwasher. Place the jar on the bottom rack and the rest of the parts on the top rack only.

Helpful Tip:

• For quick cleanup, combine 1 cup hot water and drop of liquid dish soap in blending jar.
• Cover and blend on any speed from 1 – 4 for about 30 seconds.
  • Discard liquid and rinse thoroughly.

Important:

• Do not place the jar parts in boiling liquids.
• Do not immerse the base in liquid. Wipe the unit base with a damp cloth and dry thoroughly.
• Remove stubborn spots by rubbing with a damp cloth and nonabrasive cleaner.

Note: If liquids spill onto base, wipe with damp cloth and dry thoroughly. Do not use rough scouring pads or cleansers on parts or finish.

TROUBLESHOOTING
PROBLEM POSSIBLE	CAUSE SOLUTION
Jar bottom does not come off of jar. counterclockwise until jar is released from the bottom.	Vacuum has been formed. blender and turn	jar on the
Liquid is leaking from bottom of jar.	Gasket is either missing or not properly in place.	Check that jar is assembled correctly.
Appliance does not turn on. a working outlet.	Appliance is not plugged in.	Check that appliance is plugged into
Mixture in blender does not seem to be blending. redistribute the food; add some liquid and pulse the mixture to aid in the blending process.	Not enough liquid in mixture being blended or too much ice.	Turn the blender off and use a rubber spatula to
Herbs or bread are sticking to sides of blender and not getting chopped.	Blending jar, food to be chopped or blade are not dry. be chopped are dry.	Always make sure that the jar, the blade and the food to

RECIPES

MOCHA JAVA SMOOTHIE

1 cup mocha flavored soymilk

12 cup cold strong brewed coffee

2 cups frozen vanilla soy yogurt

3 tbsp. hazelnut spread

2 cups ice cubes

In blending jar, combine all ingredients in order listed. Place cover on jar. Press PULSE several times for about 5 seconds each to blend ingredients and begin crushing ice. Select speed 18 and blend until mixture is smooth and well blended (about 30 seconds).

Makes about 4½ cups.

PUMP IT UP SMOOTHIE

1 cup fat free milk

2 tbsp. protein soy powder

1 tbsp. sugar free French Vanilla Café instant coffee

2 cups ice cubes

In blending jar, combine all ingredients in order listed. Place cover on jar. Press PULSE several times for about 5 seconds each to blend ingredients and begin crushing ice. Select speed 18 and blend until mixture is smooth and well blended (about 30 seconds).

Makes about 2½ cups.

BREAKFAST IN A GLASS

1 cup milk

12 cup plain yogurt

1 banana, cut into pieces

12 cup creamy peanut butter

14 cup wheat germ

14 cup peanuts

1 tbsp. honey

2 cups ice cubes

In blending jar, combine all ingredients in order listed. Place cover on jar. Press PULSE several times for about 5 seconds each to blend ingredients and begin crushing ice. Select speed 18 and blend until mixture is smooth and well blended (about 30 seconds).

Makes about 4 cups.

CAESAR SALAD DRESSING

1 egg, slightly beaten

14 cup fresh lemon juice

1 tsp. Worcestershire sauce

12 cup grated Parmesan cheese

2 medium garlic cloves

12 tsp. Anchovy paste

12 tsp. coarse ground pepper

12 cup corn or vegetable oil

In blending jar, combine all ingredients, except oil, in order listed. Place cover on jar. Blend ingredients on speed 2 for 10 seconds. With blender running, open lid cap and pour oil in slow steady stream into blender. Continue blending until mixture is smooth and well blended.

Spoon mixture into glass bowl and cover with plastic wrap; refrigerate until ready to use.

Dressing may be kept for up to 1 week.

Makes about 1 cup of dressing.

PEA AND POTATO BISQUE

1 small onion, chopped

2 medium cloves garlic, minced

2 tbsp. butter or margarine

4 cups chicken broth or stock

2 cups cubed peeled potatoes

12 tsp. ground ginger

12 tsp. salt

14 tsp. black pepper

1½ cups frozen peas

14 cup loosely packed parsley leaves

12 cup heavy cream

In medium saucepan, cook onion and garlic in butter over medium heat until tender. Add chicken broth, potatoes ginger, salt and pepper. Bring to boil. Cover and simmer 8 minutes. Add peas and parsley; continue cooking until potatoes are tender. Remove from heat and let stand at least 5 minutes.

Spoon about 2½ cups of soup mixture into blending jar. Cover and remove lid cap; replace it ajar with open side facing away. Cover lid with cloth. Blend on speed 3 until creamy and smooth. Pour into measuring cup. Repeat with remaining mixture until all is pureed. Return soup to saucepan; stir in cream. Heat, stirring; do not allow bisque to boil.

Serve with dollop of sour cream or yogurt, if desired. Garnish with additional chopped parsley.

Makes about 6½ cups.

NEED HELP?

For service, repair or any questions regarding your appliance, call the appropriate 800 number on cover of this book. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

Two-Year Limited Warranty

(Applies only in the United States and Canada)

What does it cover?

- Any defect in material or workmanship provided; however, Applica's liability will not exceed the purchase price of product.

For how long?

• Two years after date of purchase.

What will we do to help you?

- Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of date of sale.
- Visit the online service website at www.prodprotect.com/applica, or call toll-free 1-800-231-9786, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
• Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
- Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

- This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.

BLACK&DECKER is a registered trademark of The Black & Decker Corporation, Towson, Maryland, USA

Made in People's Republic of China

Printed in People's Republic of China

A

Medical X-ray image showing internal anatomical structures with a dashed arrow indicating a specific region (no text or labels present)

[e-mail]

Colombia

PLINARES

Avenida Quito # 88A-09

Bogotá, Colombia

San Jose, Costa Rica

Tel.: [phone]

Ecuador

Col. Centro, Cuauhtemoc,

México, D.F.

Tel. [phone]

Nicaragua

ServiTotal

City Market Nivel Plaza Local 153

Diagonal Hotel Melia,

Caracas.

Tel. [582] 324-0969

www.applicaservice.com

[e-mail]

Col. Chapultepec Morales, Mexico D.F

Deleg. Miguel Hidalgo

CP 11570

MEXICO

C.U.I.T No. 30-69729892-0

Importado por / Imported by:

APPLICA MANUFACTURING, S. DE R. L. DE C. V.

Presidente Mazarik No111, 1er Piso

Col. Chapultepec Morales, Mexico D.F

Deleg. Miguel Hidalgo

CP 11570

MEXICO
