Product Type	Blender
Brand	Black & Decker
Model	BLP5600GM
Power	600 W
Voltage	120 V, 60 Hz
Jar Capacity	Approximately 1.5 L
Number of Speeds	5 speeds + pulse (Stir, Blend, Chop, Puree, Ice Crush)
Blade Type	4 flat blades
Base	Die-cast aluminum
Special Functions	Intelligent Fuse System (overheat protection), pulse
Jar Material	Glass or plastic (unspecified, likely plastic)
Lid	With measuring cap (75 ml)
Safety	Sharp blades, do not immerse base, polarized plug
Care and Cleaning	Removable parts dishwasher safe (jar in lower rack, others in upper rack)
Weight	Approximately 2 kg (estimated)
Dimensions (L x W x H)	Approximately 20 x 20 x 40 cm (estimated)
Color	Black and gray (unspecified, estimated)
Country of Origin	People's Republic of China
Warranty	1-year limited (US and Canada)
Included Accessories	Jar, lid with cap, power base

Frequently Asked Questions - BLP5600GM BLACK & DECKER

How to use the pulse function (PULSE)?

Press the PULSE button for several seconds, then release. The blender stops automatically. Use it to crush ice, chop nuts, or blend hard foods. Do not use for more than 2 minutes continuously.

What to do if the blender does not work?

Check that the appliance is plugged into a working outlet. If the blue light blinks, unplug and wait 30 seconds. If it turns off, wait 3 minutes to reset the Intelligent Fuse system.

How to quickly clean the blender?

Pour one cup of hot water with a drop of liquid soap into the jar, put the lid on, and run on STIR speed for 30 seconds. Rinse thoroughly. Removable parts are dishwasher safe (jar on lower rack, others on upper rack).

Are the blades dangerous?

Yes, the blades are very sharp. Handle them carefully during cleaning. Never touch them when the blender is plugged in. Always unplug before removing the jar.

Can I blend hot liquids?

Yes, but let cool for 5 minutes before pouring into the jar. Use speed 1 only, fill no more than 625 ml, and open the lid cap slightly on the side opposite you. Cover with a cloth to prevent splashing.

What foods not to put in the blender?

Avoid: large frozen pieces, tough foods (turnips, raw sweet potatoes), bones, hard salami, boiling liquids. Do not use for whipping cream, beating egg whites, kneading dough, mashing potatoes, grinding meat, or extracting juice.

The jar leaks from the base, what to do?

Check that the seal ring is correctly placed on the blade assembly. Ensure the jar base is tightly screwed. If the problem persists, contact customer service.

How to disassemble the jar for cleaning?

Unplug the appliance and remove the jar from the base. Turn the jar base counterclockwise to unscrew it. Remove the seal ring and blade assembly. Beware of sharp blades.

What if pieces remain stuck on the walls?

Make sure the jar, blade, and ingredients are dry. If herbs or bread stick, use the pulse function to dislodge. You can also stop, remove the lid, and redistribute with a rubber spatula.

What is the warranty of this blender?

Limited one-year warranty (US and Canada) covering defects in workmanship or materials. Keep the sales receipt. For service, visit www.prodprotect.com/applica or call 1 800 231-9786.

USER MANUAL BLP5600GM BLACK & DECKER

Register your product online at www.prodprotect.com/applica, for a chance to WIN $100,000!

Accessories/Parts (USA/Canada)

Please Read and Save this Use and Care Book

GETTING FAMILIAR WITH YOUR APPLIANCE 4

FEATURES 4

HOW TO USE

GETTING STARTED

BLENDER JAR ASSEMBLY 5

READY TO USE 5

SPECIAL FEATURES 6

BLENDING TIPS AND TECHNIQUES 7

RECIPES 9

CARE AND CLEANING 12

TROUBLESHOOTING 13

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

Read all instructions.
To protect against risk of electrical shock, do not put blender base, cord, or plug in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
- Avoid contacting moving parts.
Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment. Or, call the appropriate toll-free number listed on the cover of this manual.
The use of attachments, including canning jars, not recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury.
Do not use outdoors.
Do not let the plug or cord hang over the edge of table or counter.
- Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running.
Blades are sharp. Handle carefully.
To reduce the risk of injury, never place cutter assembly blades on base without the jar properly attached.
Always operate blender with cover in place.
- When blending hot liquids, remove center piece of two-piece cover.
Do not use appliance for other than intended use.

SAVE THESE INSTRUCTIONS.

POLARIZED PLUG (120V Models Only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

ELECTRICAL CORD

The cord of this appliance was selected to reduce the possibility of tangling in or tripping over a longer cord. If more length is needed, use an extension cord rated no less than 15-amperes. (For 220 volts rated products, use an extension cord rated no less than 6-amperes). When using an extension cord, do not let it drape over the working area or dangle where someone could accidentally trip over it. Handle cord carefully for longer life; avoid jerking or straining it at outlet and appliance connections.

TAMPER-RESISTANT SCREW

Warning : This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.

This symbol is placed next to information that requires your special attention.

WELCOME

Thank you for choosing the new Black & Decker® iBlend™ blender. Your new blender will let you prepare from delicious frozen drinks to savory chunky salsas, vinaigrettes and more-all at the touch of a button. Just add the ingredients, choose from five preset functions you can monitor on easy-to-read backlit display, and watch the powerful motor take over and do the rest.

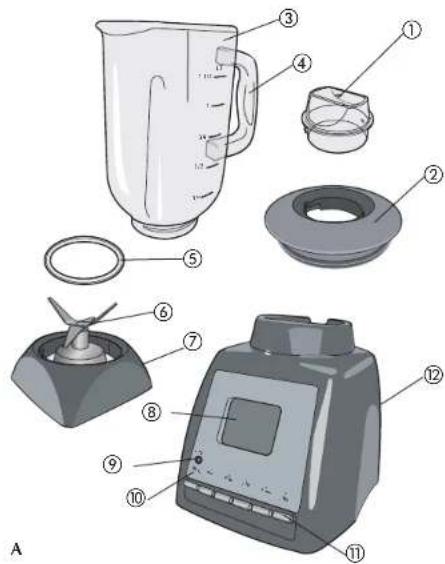

GETTING FAMILIAR WITH YOUR APPLIANCE

+1. Lid cap (Part#BLP5600-02)
+2.Lid(Part#BLP5600-01)
+3.Jar(Part#BLP5600-03)
4. Handle
+5.Gasket (Part#BLP5600-04)
6 . Blade assembly (Part# BLP5600-05)
7. Jar base (Part# BLP5600-06)
8. LCD display
9. Power indicator light
10. OFF/PULSE button
11. Speed buttons
12. Power base

† Consumer replaceable/removable parts

Product may vary slightly from what is illustrated.

FEATURES

MOTION SPEED DISPLAY

ICE CRUSH

INTELLIGENT FUSE

4 PLANE BLADES

DIE CUM ALU MIN BASE

POWERFUL MOTOR

How to Use

This unit is for household use only.

GETTING STARTED

• Remove all packing material and any stickers from the product.
• Wash all removable parts as instructed in Care and Cleaning section of this manual.

BLENDER JAR ASSEMBLY (B)

CAUTION: Never place blade assembly on base unless assembled to jar.

1. Turn blender jar upside down and place flat on counter top or work surface.
2. Put the gasket on top of the blade assembly.
3. Place the blade assembly with gasket in bottom opening of the jar with blades down.

4. Place jar base onto jar and rotate clockwise until it is tight.

5. Turn assembled jar right side up.

6. Place lid with lid cap in place on blender jar.
7. Uncoil power cord from storage area under the base.
8. Place jar on power base. Blender is now ready for use.

READY TO USE

1. Make sure appliance is OFF.
2. Place foods to be blended into jar.
3. Place lid on jar; make sure lid cap is in place.
4. Plug power cord into standard electrical outlet.

NOTE: When in use do not leave blender unattended. When using hard foods, such as ice, cheese, nuts and coffee beans, keep one hand on the lid to keep blender in place.

1. Select the speed that best suits your desired task.

1. For blending tasks such as grinding coffee beans or nuts, or when blending thick mixtures, use the PULSE button for several seconds; then release (C). Releasing the PULSE button automatically turns the blender off.

1. Open the lid cap to add ingredients while the blender is running, and drop ingredients through the opening (D).

NOTE:DO NOT REMOVE THE LID WHILE THE BLENDER IS RUNNING.

1. When finished, press the OFF/PULSE button.

2. To remove the jar, grasp the handle and lift up.

3. Remove the lid to pour.

4. Always unplug the appliance when not in use.

SPECIAL FEATURES

This blender has an Intelligent Fuse system designed to protect the motor from overheating. If appliance is used on PULSE for more than 2 minutes the blue light will flash and the blender will shut off. Unplug the appliance and wait 30 seconds. Plug in the appliance and restart the blending.

If appliance is being overloaded the blue light will turn off and the blender will shut off. Unplug the appliance and wait 3 minutes. Plug in the appliance and restart the blending.

BLENDING TIPS AND TECHNIQUES

Cut food into pieces no larger than _inch for use in the blender.

• When ingredients splatter onto the sides of the jar or the mixture is very thick, press the OFF/PULSE button to turn appliance off. Remove the lid and use a rubber spatula to scrape down the sides of the jar and to redistribute the food pushing food toward the blades. Replace the lid and continue blending.
• Appliance should always have cover in place when in use.
• Do not place blender jar on base when motor is running.

• The lid cap holds 1/3 cup liquid and can be used when adding ingredients such as juices, milk, cream and liquor (E).

• When making bread crumbs, chopping nuts or grinding coffee beans makes sure blender jar is completely dry.

• When using a PULSE function use short bursts. Allow the blades to stop rotating between pulses. Do not use pulse for more than 2 minutes.
• Use the PULSE button when preparing beverages that include ice cubes; this helps to produce a smoother texture.
  It is helpful to begin the blending process on the lowest speed and then increase to a higher speed, if necessary.

• When blending hot ingredients always open the lid cap and replace itajar with the opened side away from you (F). Cover lid with a cloth to avoid splattering and only use speed 1. Do not blend more than 214 to 3 cups at a time.

DO NOT place any of the following in the blender:

Large pieces of frozen foods

Tough foods such as raw turnips, sweet potatoes and potatoes

Bones

Hard salami, pepperoni

Boiling liquids (cool for 5 minutes before placing in blender jar.)

• Tasks not recommended for the blender:

Whipping cream

Beating egg whites

Mixing dough

Mashing potatoes

Grinding meats

Extracting juice from fruits and vegetables

SELECTING A SPEED Stir "1" Reconstituting frozen juices and drink mixes Preparing salad dressings Puddings Pureeing hot liquids

Blend "2" Blending pancake and waffle batter or mixes Beating eggs for omelets and custards Making cookie and bread crumbs

Chop "3" Coarse to fine chopping of nuts Grinding hard cheeses Grinding coffee beans

Puree "4" Baby foods - fruits and vegetables Protein drinks Frozen drinks; smoothies Grinding spices

Ice Crush For greater control this function operates As a PULSE function

RECIPES

CRAN - PINEAPPLE COLADA

1½ cups cran-apple juice

1 cup fresh pineapple chunks
2/3 cup frozen pinacolada drink mix
1 ripe banana, cut into pieces
2 cups ice cubes

In blender container, combine all ingredients in order listed. Place cover on jar. Pulse several times for about 5 seconds, each to blend ingredients and begin crushing ice. Using speed "4" blend until smooth and creamy, about 25 seconds. Serve immediately. Makes about 312 cups

PEAR BERRY DELIGHT

112 cups pear nectar

1 cup pineapple/passion fruit sorbet
2 cups fresh strawberries
2 cups ice cubes

In blender container, combine all ingredients in order listed. Place cover on jar. Pulse several times for about 5 seconds, each to blend ingredients and begin crushing ice. Using speed "4" blend until smooth and well blended, about 30 seconds. Turn blender off and serve immediately. Makes about 3 cups.

TROPICAL BREEZE SMOOTHIE

2 cups prepared lemonade

1 cup banana nectar
1 cup mango sorbet
2 cups ice cubes

In blender container, combine all ingredients in order listed. Place cover on jar. Pulse several times for about 5 seconds, each to blend ingredients and begin crushing ice. Using speed "4" blend until smooth and well blended, about 30 seconds. Turn blender off and serve immediately. Makes about 5 cups.

BREAKFAST IN A GLASS

1 cup milk
1/2 cup plain yogurt
1/2 cup creamy peanut butter
1 banana, cut into pieces
1/4 cup wheat germ
1/4 cup peanuts
1 tbsp. honey
2 cups ice cubes.

In blender container, combine all ingredients in order listed. Place cover on jar. Pulse several times for about 5 seconds, each to blend ingredients and begin crushing ice. Using speed "4" blend until smooth and well blended, about 30 seconds. Turn blender off and serve immediately. Makes about 4 cups.

MANGO PINEAPPLE SALSA

1 small red pepper, seeded and cut into 3/4 inch chunks
1/2 small purple onion, cut in 1/2-inch pieces
2 to 3 medium jalapeños, seeded and quartered
3 large cloves garlic

Juice of 1 lime

1½ cups fresh pineapple, cubed
2 medium golden mangoes, cubed
1/2 cup fresh cilantro leaves

In blender container, combine pepper, onion, jalapenos and garlic. Place cover on jar. Pulse several times for about 5 seconds, each; to chop ingredients. Add remaining ingredients and pulse several times until vegetables are chopped and mixture is blended.

Cover and refrigerate until ready to serve.

Serve with tortilla chips.

Makes about 4 cups.

BALSAMIC TOMATO VINAIGRETTE

1 small purple onion, cut in 3/4-inch pieces

2 large cloves garlic

1 small tomato, cut in 3/4-inch pieces

3 tbsp. Balsamic vinegar

1/4 tsp. salt

1/4 tsp. black pepper

2/3 cup olive oil

In blender container, combine pepper, garlic and tomato. Place cover on jar. Pulse several times for about 5 seconds, each to chop ingredients. Add vinegar, salt and pepper. Replace cover on jar. Remove lid cap. With blender running add oil through opening in a slow, steady stream until mixture is completely blended. Cover and refrigerate until ready to serve.

Use as dressing for crisp green salad or to marinate cooked vegetables such as

asparagus or broccoli.

Makes about 112 cups.

PEA AND POTATO BISQUE

1 small onion, chopped

2 medium cloves garlic, minced

2 tbsp. butter or margarine

4 cups chicken broth or stock

2 cups cubed peeled potatoes

1/2 tsp. ground ginger

1/2 tsp. salt

1/4 tsp. black pepper

1/2 cups frozen peas

1/4 cup loosely packed parsley leaves

1/2 cup heavy cream

In medium saucepan, cook onion and garlic in butter over medium heat until tender. Add chicken broth, potatoes ginger, salt and pepper. Bring to boil. Cover and simmer 8 minutes. Add peas and parsley; continue cooking until potatoes are tender. Remove from heat and let stand at least 5 minutes.

Spoon about 212 cups soup mixture into blender jar. Cover and remove lid cap; replace it ajar with open side facing away. Cover lid with cloth. Blend on speed "1" until creamy and smooth. Pour into measuring cup. Repeat with remaining mixture until all is pureed. Return soup to saucepan; stir in cream. Heat, stirring; do not allow bisque to boil.

Serve with a dollop of sour cream, if desired. Garnish with additional chopped parsley. Makes about 6½ cups.

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service personnel.

CLEANING

1. Before cleaning, turn off and unplug the appliance.
2. Lift the jar by the handle off the power base.
3. Remove jar base by turning it counterclockwise until loose.
4. Remove the gasket and the blade assembly.

Caution: Blades are sharp, handle carefully.

1. Remove lid and lid cap.
2. Wash removable parts by hand or in the dishwasher. Place the jar on the bottom rack and the rest of the parts on the top rack only.

Helpful Tip:

• For quick clean-up, combine 1 cup hot water and a drop of liquid dish soap to the blender jar.
  Cover and blend on STIR for about 30 seconds.
• Discard liquid and rinse thoroughly.

Important:

• Do not place the jar parts in boiling liquids.
• Do not immerse the base in liquid. Wipe the unit base with a damp cloth and dry thoroughly.
• Remove stubborn spots by rubbing with a damp cloth and nonabrasive cleaner.

Note: If liquids spill onto the power base, wipe with a damp cloth and dry thoroughly. Do not use rough scouring pads or cleansers on parts or finish.

TROUBLE SHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION

Jar bottom does A vacuum has been Place the jar on the not come off of jar formed blender and turn counter clockwise until jar is released from the bottom

Liquid is leaking Gasket is either missing Check that jar is from bottom of jar or not in place correctly assembled correctly

Appliance does Appliance is not Check that appliance not turn on plugged in is plugged into a working outlet

Mixture in blender Not enough liquid in Turn the blender off does not seem to mixture being blended and use a rubber spatula to redistribute the food; add some liquid and pulse the mixture to aid in the blending process

Herbs or bread are Blender and not too much ice not dry always make sure that the jar, the blade and the food to be chopped are dry

Jar separates from bottom when being removed from base of blender When removing jar from blender base, simply lift up; do not twist

Liquid spills onto counter

INDICE

IMPORTANT MISES EN GARDE

For service, repair or any questions regarding your appliance, call the appropriate "800" number on the cover of this book. Do not return the product to the place of purchase. Do not mail the product back to the manufacturer nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

One-Year Limited Warranty

(Appplies only in the United States and Canada)

What does it cover?

• Any defect in material or workmanship; provided; however, Applica's liability will not exceed the purchase price of the product.

For how long?

One year after the date of original purchase.

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of the date of sale.
• Check our on-line service site at www.prodprotect.com/applica, or call our toll-free number, 1-800-231-9786, for general warranty service.
  If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
  Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

• This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.

NECESITA AYUDA?

Electromechanics, S.A.

San Jose, Costa Rica

Tel.: [phone]

22.3-0136

Ecuador

Servicio Master Ecuador

Tumbam Puerto Boulevard Fl

Dorado

Panama

Tel. [phone]

(507)2360159

Perú

Servicio Tecnico Central

Fast Service

Calle Jorge Muelle 121 San

Borja

Lima Perú

Tel.[phone]

Puerto Rico

Buckeye Service

Jesus P. Pinero #1013

Puerto Nuevo, SJ PR 00920

Nivel Plaza Local 153

Diagonal Hotel Melia.

Caracas

Tel. [phone]

R.F.C.AME-001026-PF3.

Col. Centro, Mexico D.F., CP 06050

BLACKS DECKER is a trademark of The Black & Decker Corporation, Towson, Maryland, USA

Marca registrada de The Black & Decker Corporation, Towson, Maryland, E.U.

Copyright © 2007 Applica Consumer Products, Inc.

Made in People's Republic of China

Printed in People's Republic of China

Importado por:

APPLICADEMEXICO,S.DER.L.DE.C.V.

Col. Chapullepec Morales, Mexico D.F

Deleg. Miguel Hidalgo

CP 11570

MEXICO
