HBS936801X - Basket HOOVER - Free user manual and instructions

Product type	Range hood
Brand	Hoover
Model	HBS936801X
Dimensions (W x D x H)	900 mm x 500 mm x 600-1100 mm (estimate)
Net weight	Approximately 15 kg (estimate)
Power supply	220-240 V ~ 50 Hz
Motor power	Approximately 250 W (estimate)
Lighting	LED, replaceable by after-sales service
Number of speeds	3 speeds + timed intensive speed
Functions	Timer (20/15/10/5 min), temperature alarm, filter saturation indicators
Exhaust mode	Extraction (external exhaust) or recirculation (recycling with activated carbon filter)
Grease filter	Metal, washable (hand or dishwasher), clean every 80 h or once a month
Activated carbon filter	Not included, replace every 4 months (only in recirculation mode)
Minimum distance from hob	50 cm (electric) or 65 cm (gas/mixed)
Noise level	Approximately 55-65 dB(A) (estimate)
Safety	Automatic shut-off, flame protection, power disconnection before maintenance
Maintenance	Clean exterior with damp cloth and neutral detergent; do not use abrasives or alcohol
Spare parts	Grease and charcoal filters, LED lamps (via after-sales service)
Repairability	Repairability index not known; parts available via Hoover technical support

Frequently Asked Questions - HBS936801X HOOVER

What is the recommended installation height for the Hoover HBS936801X range hood?

The minimum distance between the cooking surface and the lowest part of the hood is 50 cm for electric cooktops and 65 cm for gas or mixed cooktops. You must comply with these distances for optimal and safe operation.

How to clean the grease filter of the hood?

The metal grease filter should be cleaned at least once a month (or when the saturation indicator flashes). You can wash it by hand with a mild detergent or in the dishwasher at low temperature and quick cycle. Do not use abrasives or alcohol.

When should I replace the activated carbon filter?

The activated carbon filter must be replaced at most every 4 months, or when the corresponding saturation indicator (flashing number 2) displays. This filter is only necessary in recirculation mode.

How to activate or deactivate the charcoal filter signal?

To activate the signal, hood off, press and hold buttons 2 and 3 for 3 seconds. Numbers 1 and 2 flash alternately. To deactivate, repeat the procedure: number 1 flashes alone.

Does the hood emit an audible or visual signal? What does it mean?

The digital display indicates filter saturation: flashing 1 signals that the grease filter needs cleaning; flashing 2 indicates that the charcoal filter needs replacement. A flashing 't' signals an excessive temperature alarm.

How to reset the grease filter saturation indicator?

With the hood on, press button 1 for more than 3 seconds until the flashing stops. The same procedure applies for the charcoal filter after activating it.

Can I use the hood without the grease filter?

No, it is dangerous to use the hood without the grease filter properly installed. This risks damaging the motor and causing a fire.

Are the LED lamps of the hood replaceable?

Yes, the LED lamps are replaceable, but only by Hoover authorized after-sales service or a qualified technician. Do not try to replace them yourself.

What to do in case of temperature alarm (flashing 't' display)?

The temperature alarm activates if the display area becomes too hot. The hood automatically switches to speed 3. Press button 2 to exit this mode. Check that the hood is not obstructed and that cooking is not too close.

What type of power cord is required?

The hood must be connected to a 220-240 V ~ 50 Hz outlet. If the cable is damaged, it must be replaced by the manufacturer, their after-sales service, or a qualified person to avoid any hazard.

USER MANUAL HBS936801X HOOVER

Instruction on mounting and use

Technical diagram showing installation of a stove with dimensions and component placement, including a magnified view of the base and a hand holding a tool.

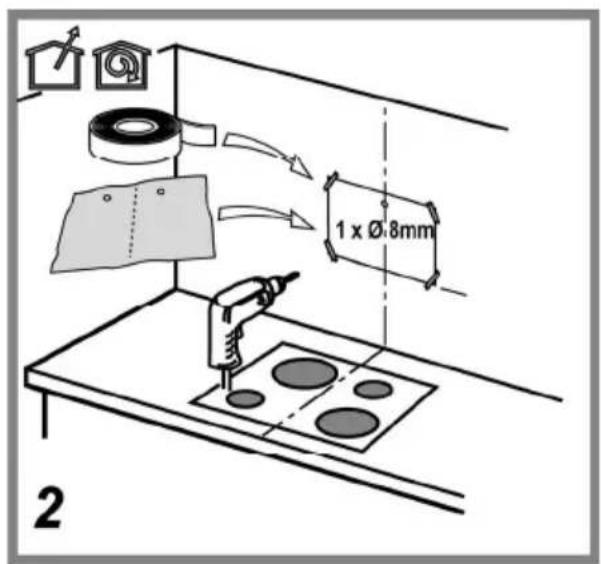

1 x Ø.8mm 2

1 x Ø 8 x 40mm 1 x Ø 5 x 45mm 3

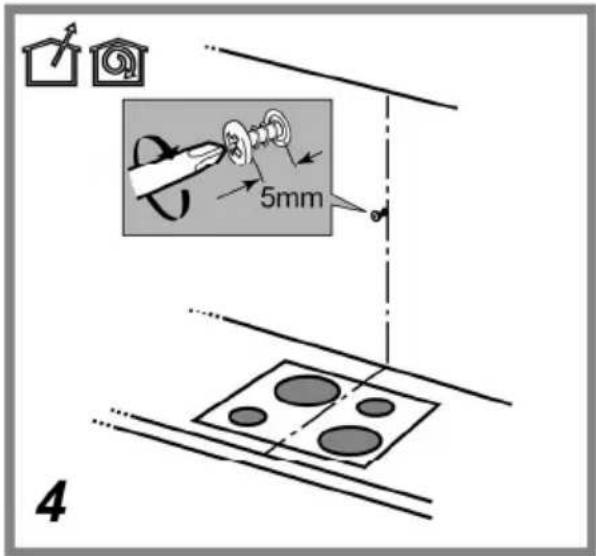

5mm 4

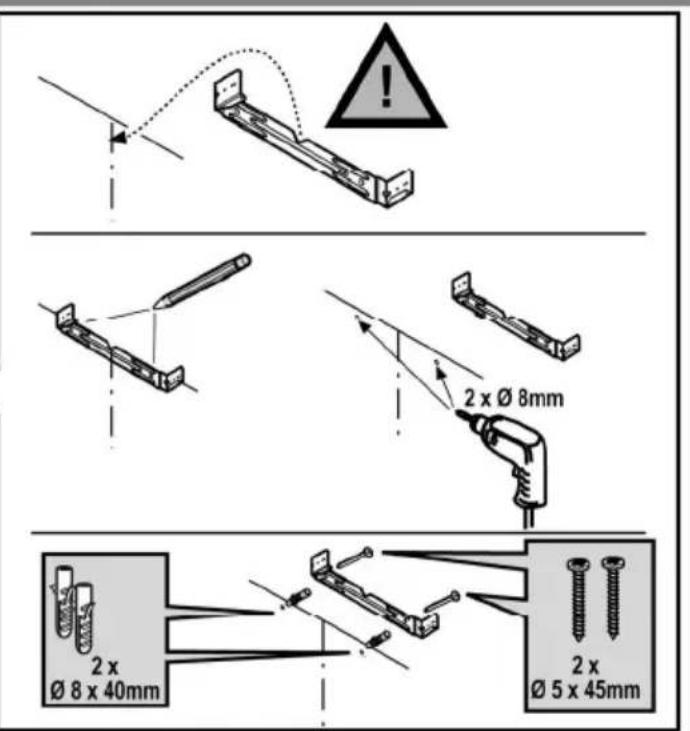

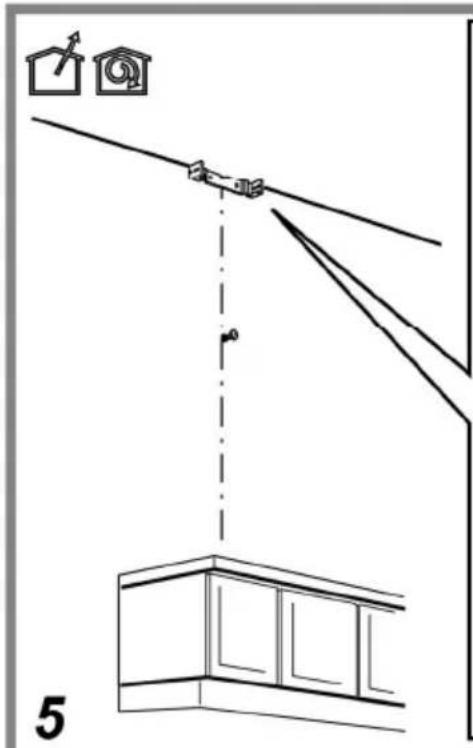

5

2 x Ø 8mm 2 x Ø 8 x 40mm 2 x Ø 5 x 45mm

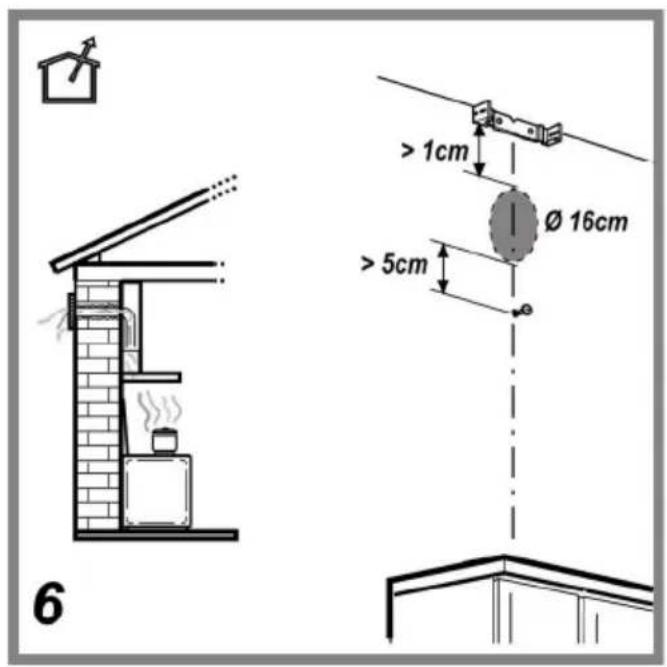

6 > 1cm Ø 16cm > 5cm

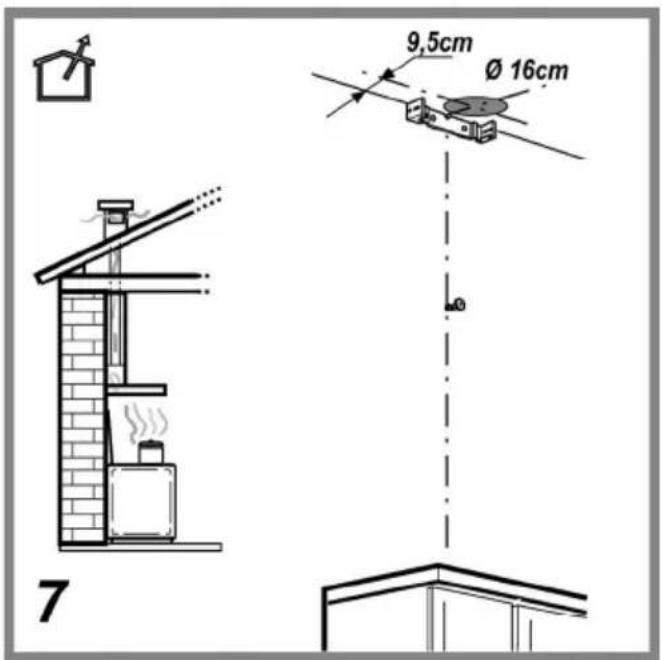

9,5cm Ø 16cm 7

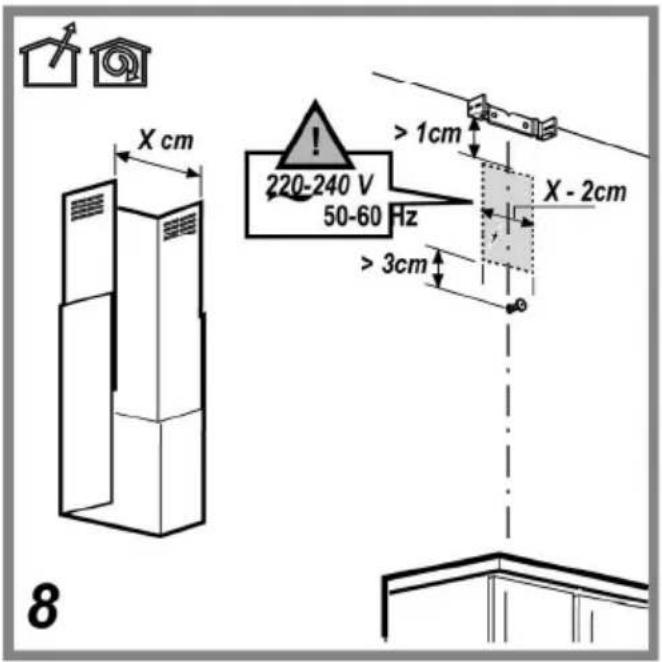

X cm 220-240 V 50-60 Hz > 1cm X - 2cm > 3cm 8

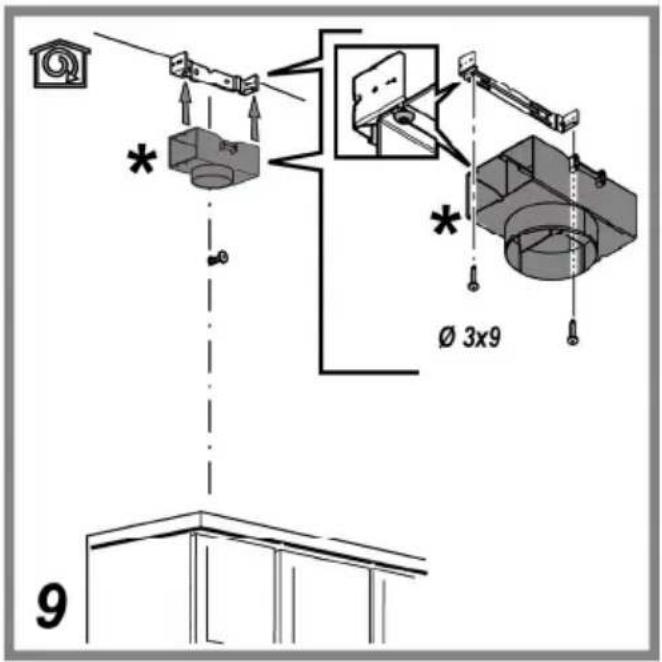

Ø 3x9 9

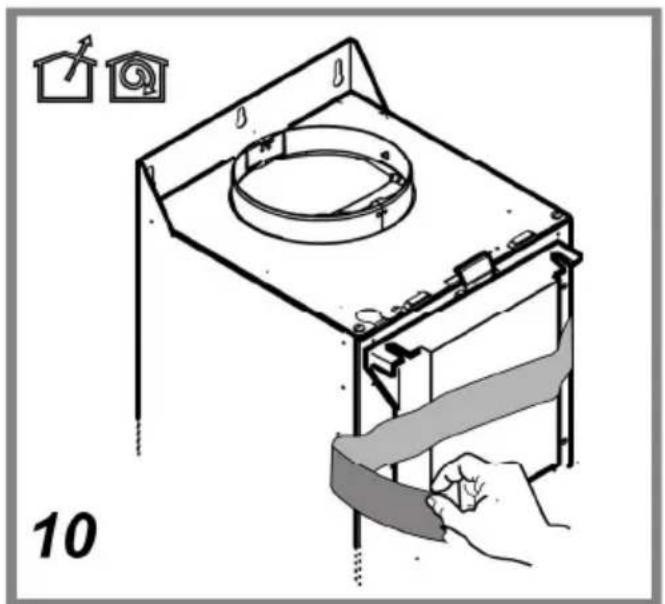

Diagram of a washing machine with a hand adjusting the base panel, showing components and wiring (no text or symbols)

Diagram illustrating a folding or disassembly process with labeled components and an open lock mechanism, including hand actions and annotations.

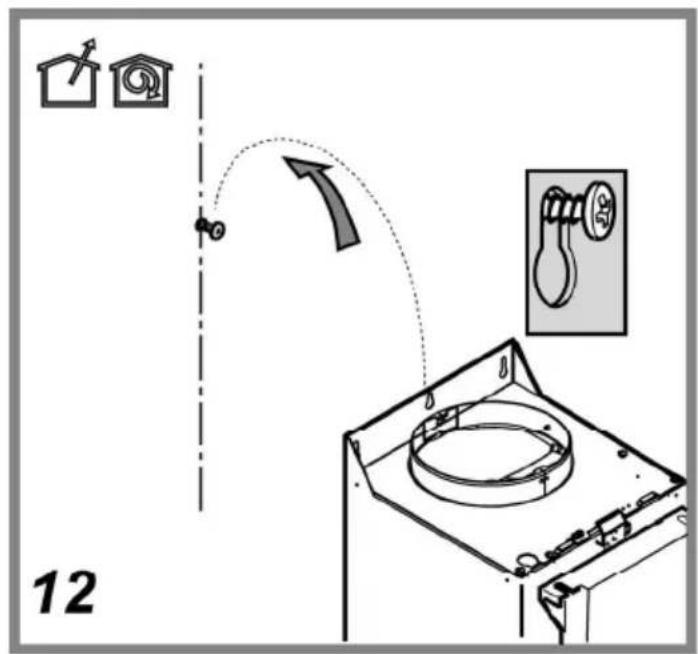

12

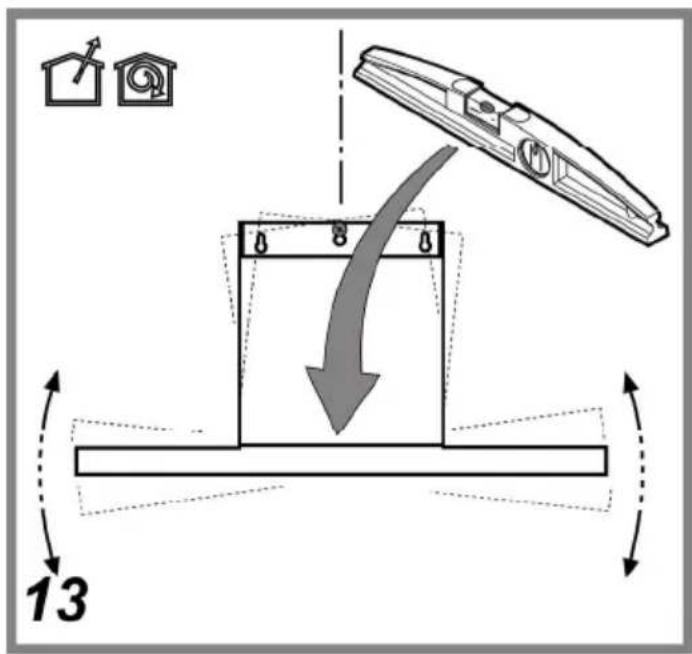

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a 13-unit measurement.

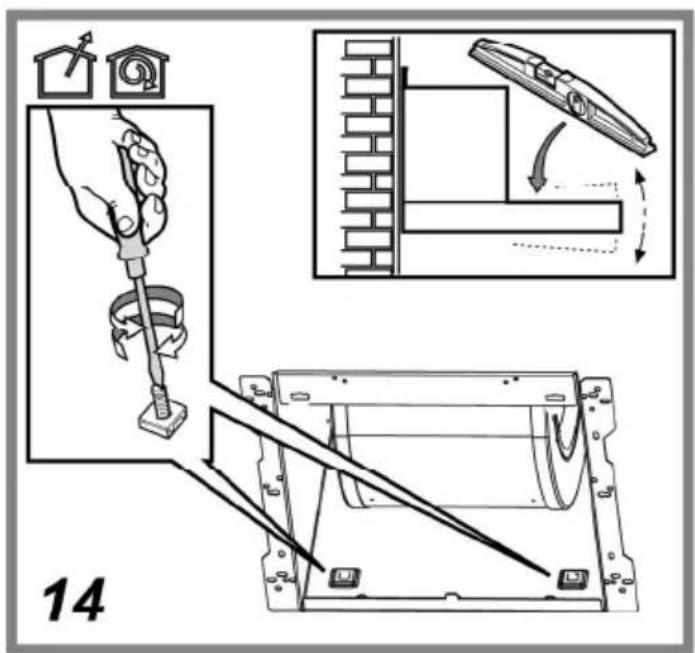

Technical diagram illustrating a tool application on a brick wall, showing steps from pinning to cutting and assembly.

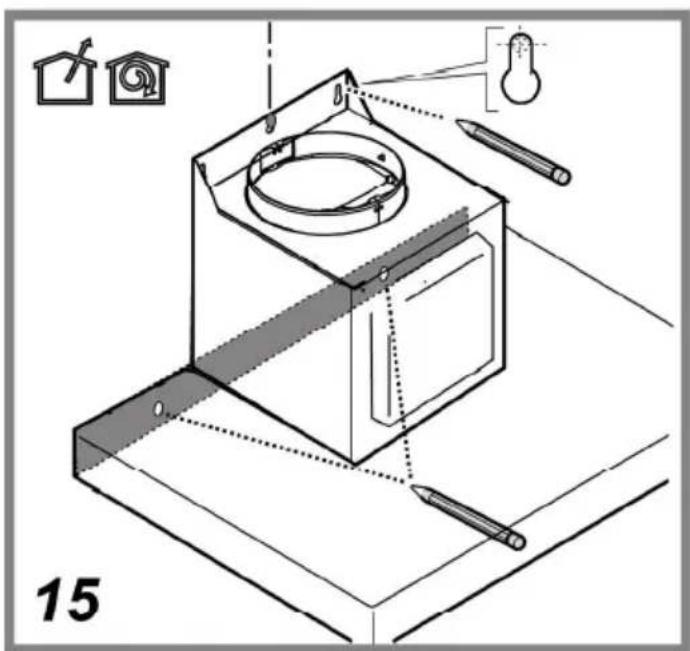

15

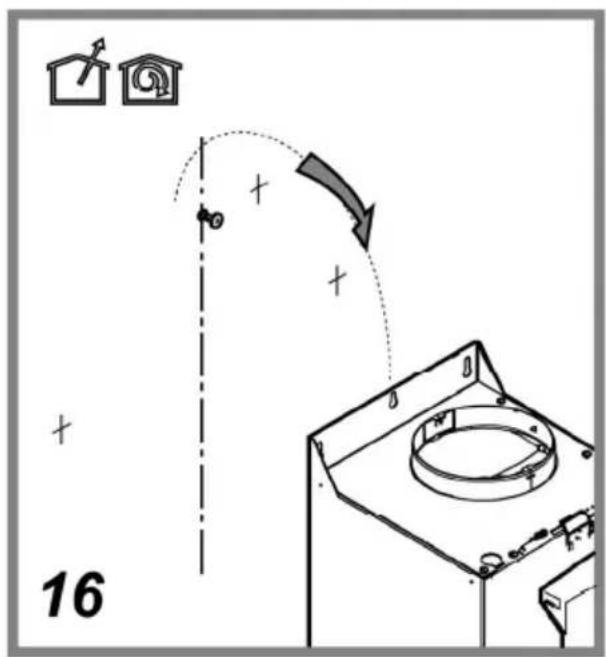

16

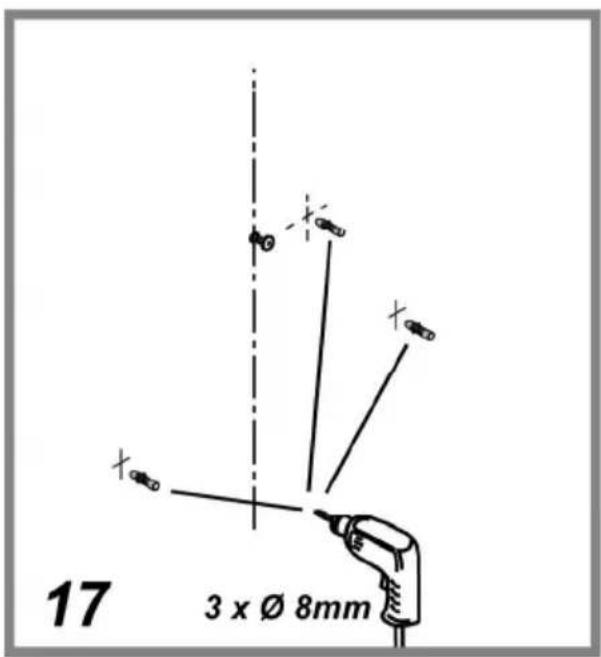

17 3 x Ø 8mm

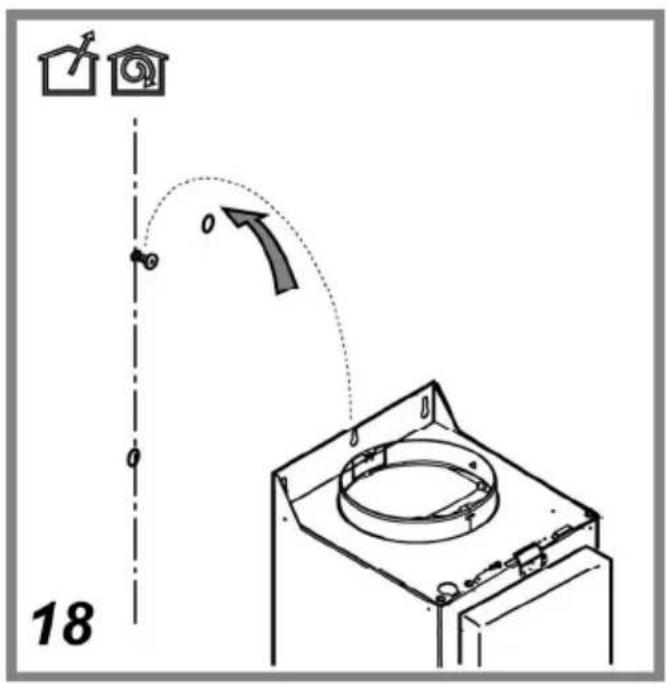

18

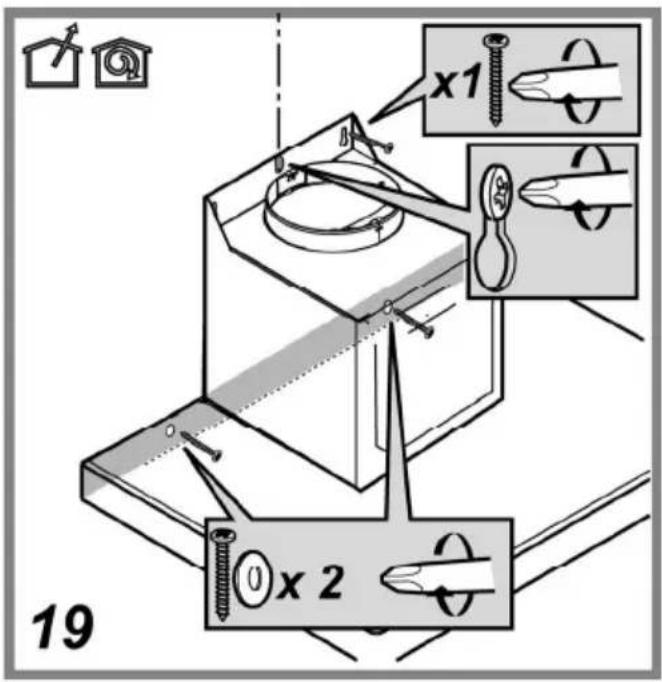

x1 x 2 19

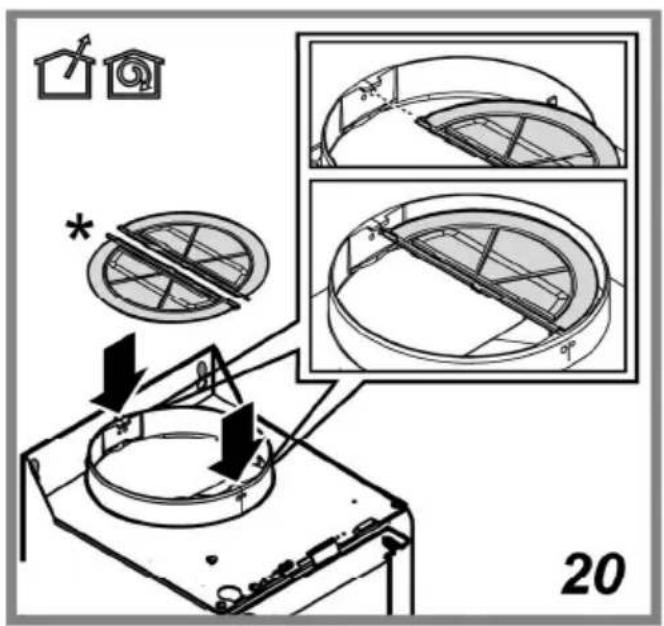

Diagram illustrating a mechanical assembly process with labeled components and directional arrows, including a magnified inset showing cross-sectional views.

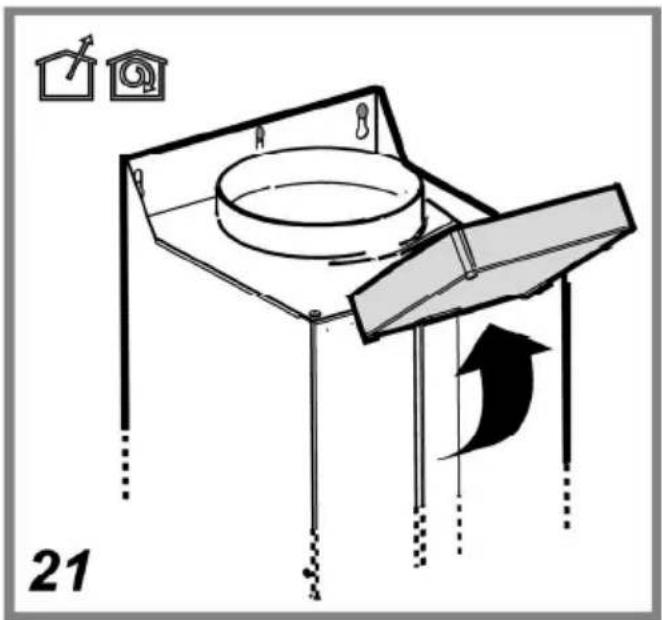

Diagram of a mechanical device with a circular component and a curved arrow indicating motion (no text or symbols)

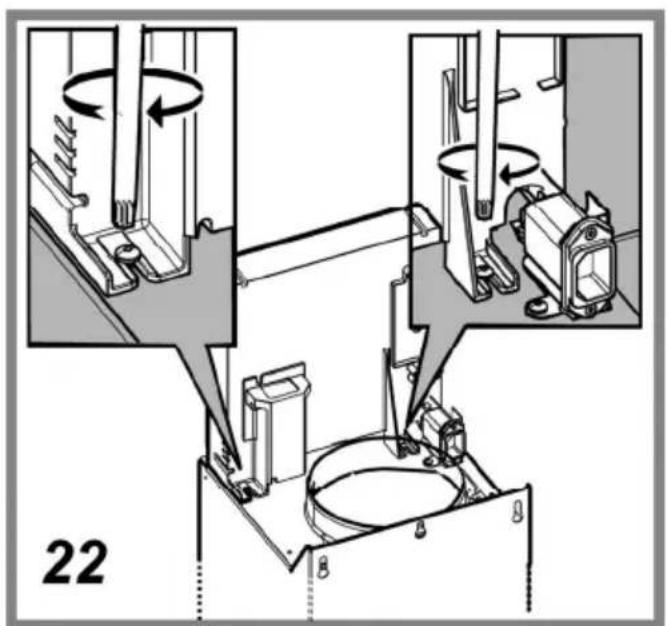

22

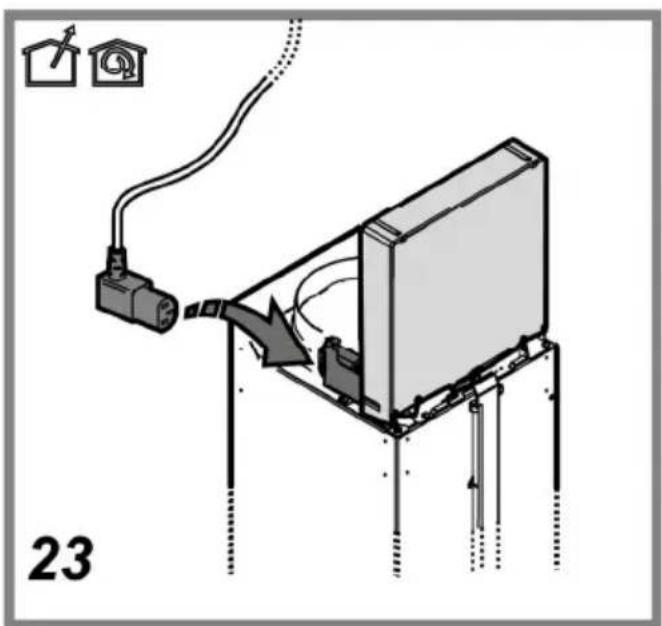

23

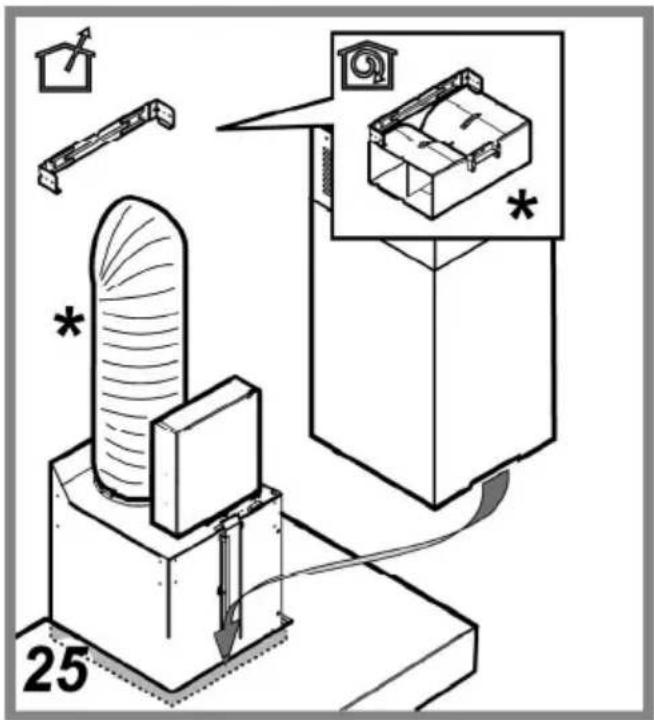

25

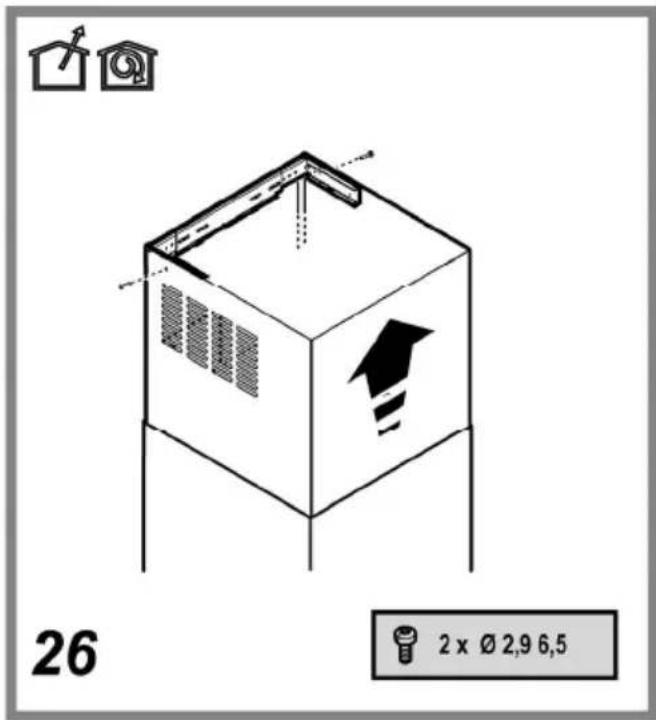

26 2 x Ø 2,9 6,5

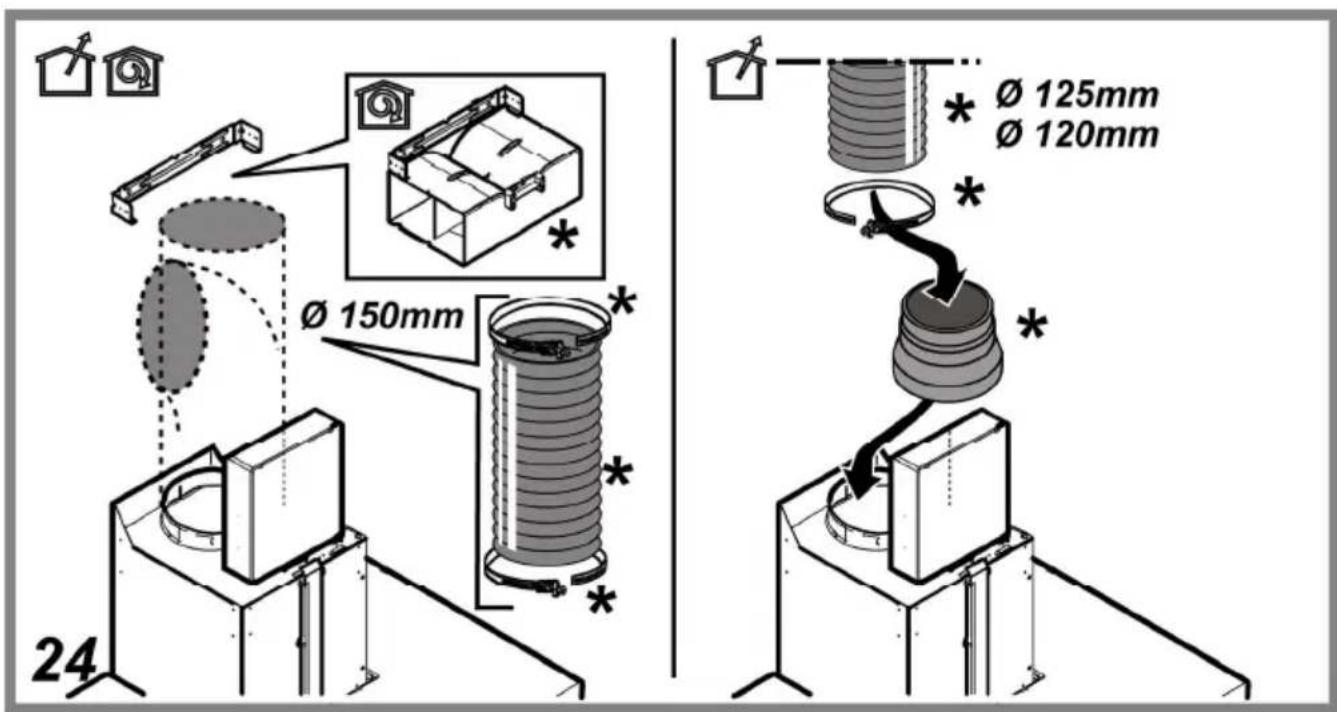

27

28

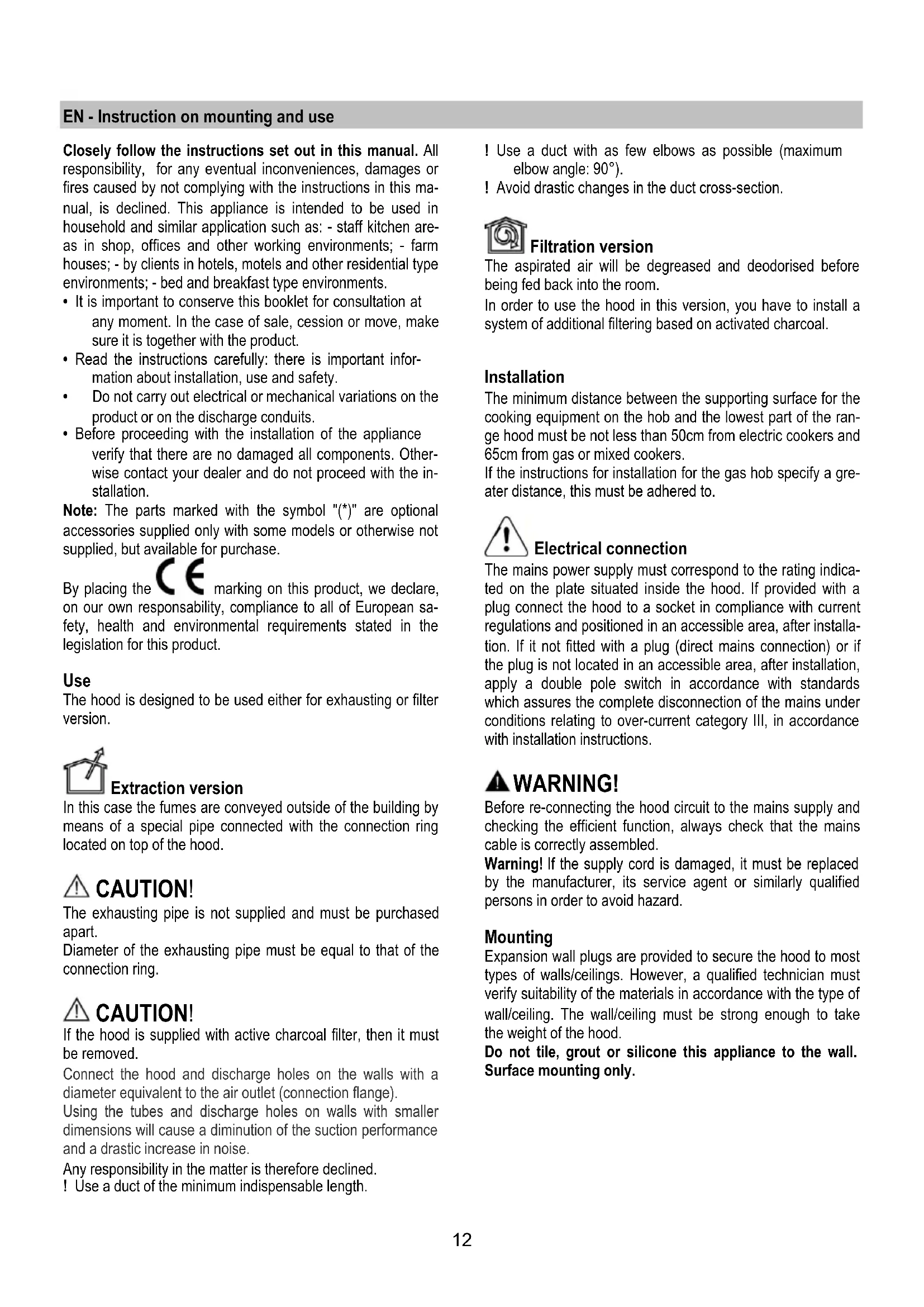

EN - Instruction on mounting and use

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

• It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
• Read the instructions carefully: there is important information about installation, use and safety.
• Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
• Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

Note: The parts marked with the symbol "(*)" are optional accessories supplied only with some models or otherwise not supplied, but available for purchase.

CE

By placing the CC marking on this product, we declare, on our own responsibility, compliance to all of European safety, health and environmental requirements stated in the legislation for this product.

Use

The hood is designed to be used either for exhausting or filter version.

Extraction version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

CAUTION!

The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

CAUTION!

If the hood is supplied with active charcoal filter, then it must be removed.

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.

! Use a duct with as few elbows as possible (maximum elbow angle: 90°).
! Avoid drastic changes in the duct cross-section.

Filtration version

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

Installation

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

WARNING!

Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

Warning! If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.

Mounting

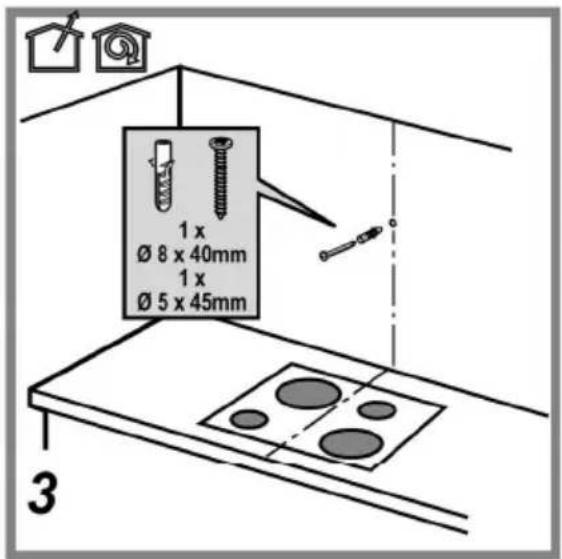

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood.

Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

Operation

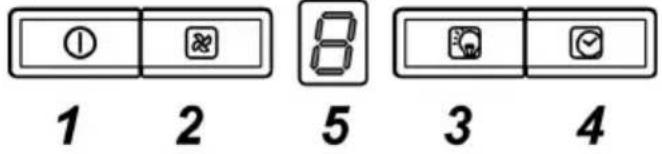

1 2 8 5 3 4

1 ON/OFF motor

Pressing the button, the hood turns on at speed 1.

Pressing the button during functioning, the hood turns OFF.

2 Speed Increase

Pressing the button the hood passes from the OFF state to speed 1.

Pressing the button (hood in ON state) the motor speed is increased from speed 1 to intensive.

To each speed corresponds the ignition of the respective led.

Speed 1:1

Speed 2:2

Speed 3:3

Intensive Speed: 4 (flashing)

The intensive speed is timed. The standard timing is 5', at the end of which the hood positions itself to speed 2.

To deactivate the function before the time expires press key 2, the hood positions itself to speed 1, pressing key 1 the hood will turn off.

3 ON/OFF lights

4 Speed timing

5 Function state indicator

Speed Timing

The timing of the speed is enabled by pressing key 4, once the timing expires the hood turns off.

The timing is subdivided as follows:

Speed 1 - 20 minutes (1 fixed, flashing point)

Speed 2 - 15 minutes (2 fixed, flashing point)

Speed 3 - 10 minutes (3 fixed, flashing point)

Intensive Speed - 5 minutes (4 fixed, flashing point)

During time-running, if key 1 or 4 is pressed, the hood turns off; if key 2 is pressed, the hood stops time-running and sets to the selected speed.

Grease filter signalling

The grease filter is signalled by the display with number 1 flashing after 80 hours of use.

This means that the grease filter needs to be washed.

The signalling is visible with the hood in ON state.

To eliminate the grease filter signalling, press key "1" for more than 3", until it turns off.

The signalling can be eliminated with the hood in ON state.

Carbon filter signalling (only for filtering version)

The carbon filter is signalled by the display with number 2 flashing after 320 hours of use.

This means that the grease filter installed must be replaced.

The signalling is visible with the hood in ON state.

To eliminate the carbon filter signalling, press key "1" for more than 3", until it turns off.

The signalling can be eliminated with the hood in ON state.

In case both filters are signalled at the same time, numbers 1 and 2 flash on the display alternately.

The signalling can be reset by carrying out the above-described procedure twice.

First it resets the grease filter signalling, then the carbon filter signalling.

In the standard mode the carbon filter signalling is not active. In case the filtering version hood is used, it is necessary to enable the carbon filter signalling.

Activation of carbon filter signalling:

Set the hood to OFF and keep keys "2" and "3" pressed contemporaneously for 3".

Numbers 1 and 2 flash alternately for 2".

Deactivation of carbon filter signalling:

Set the hood to OFF and keep keys "2" and "3" pressed contemporaneously for 3".

Number 1 flashes for 2".

Temperature Alarm

The hood is equipped with a temperature sensor which activates the motor at speed 3 in case the temperature in the display zone is too high.

The alarm condition is indicated by the display with the letter "t" flashing.

This condition remains as such until the temperature falls below the alarm threshold.

This mode can be quit by pressing key "2".

Every 30" the sensor checks the ambient temperature of the display zone.

Maintenance

Cleaning

Clean using ONLY the cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

Grease filter

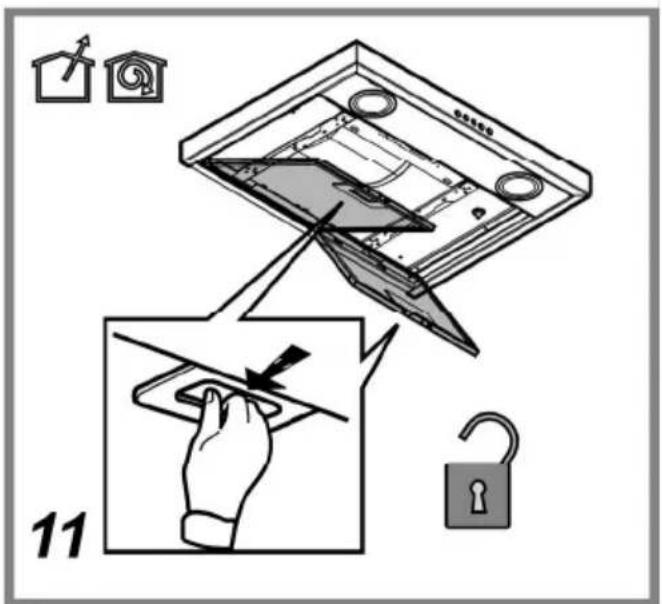

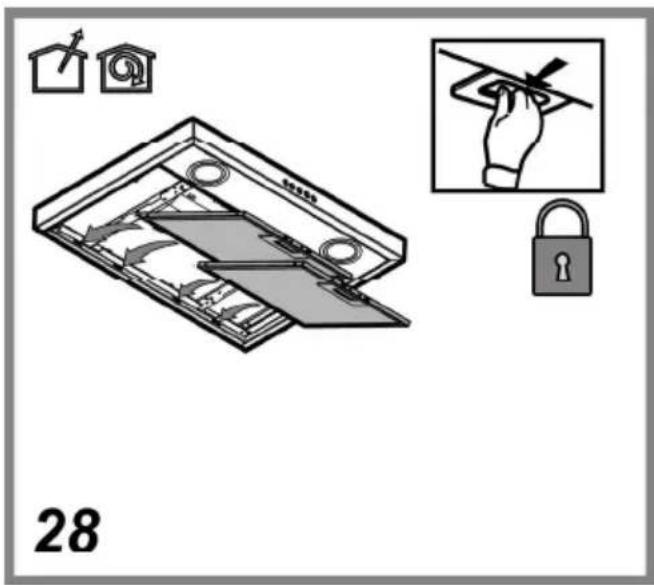

Fig. 11-28

Traps cooking grease particles.

This must be cleaned once a month (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity.

To remove the grease filter, pull the spring release handle.

Charcoal filter (filter version only)

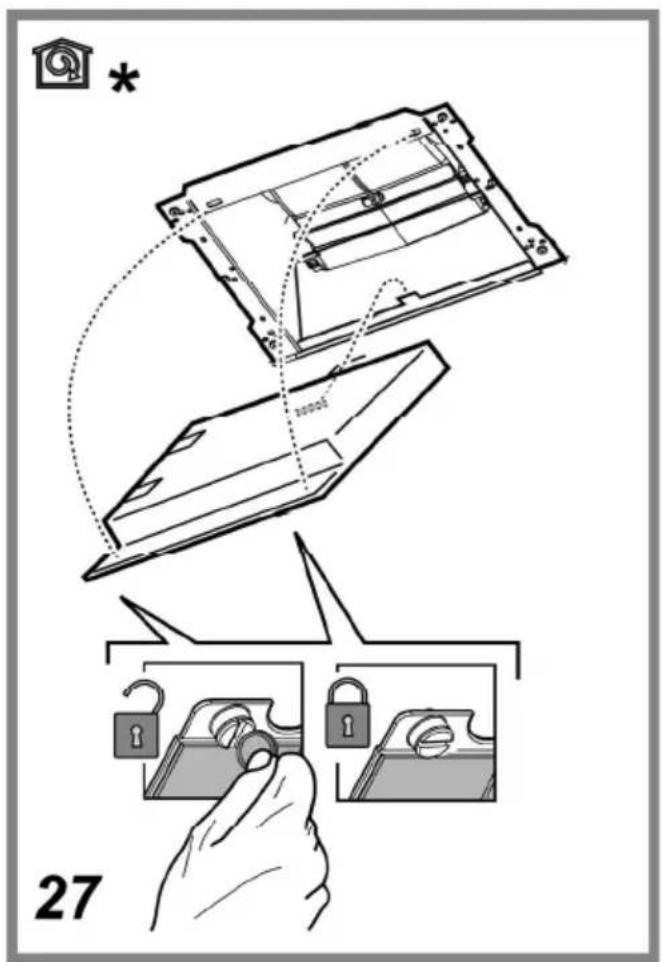

Fig. 27

It absorbs unpleasant odors caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four mounths (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity). The charcoal filter may NOT be washed or regenerated.

Replacing lamps

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

For replacement, contact the technical service.

Caution

- Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

- Always wear work gloves for all installation and maintenance operations.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not be allowed to tamper with the controls or play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

- The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

- This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.

- Do not flambé under the range hood.

- For lamp replacement use only lamp type indicated in the Maintenan-

ce/Replacing lamps section of this manual.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

• Do not connect the appliance to the mains until the installation is fully complete.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
• The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.
• Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.
• Never use the hood without effectively mounted grids.
• The hood must NEVER be used as a support surface unless specifically indicated.
• Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.
• Use the correct length for the screws which are identified in the Installation Guide.
• In case of doubt, consult an authorized service assistance center or similar qualified person.

WARNING!

• Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

• This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE).

• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

- The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken

to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

- For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
  • Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.
